PBSAerospace Auxiliary Power Units SAFIR 5L

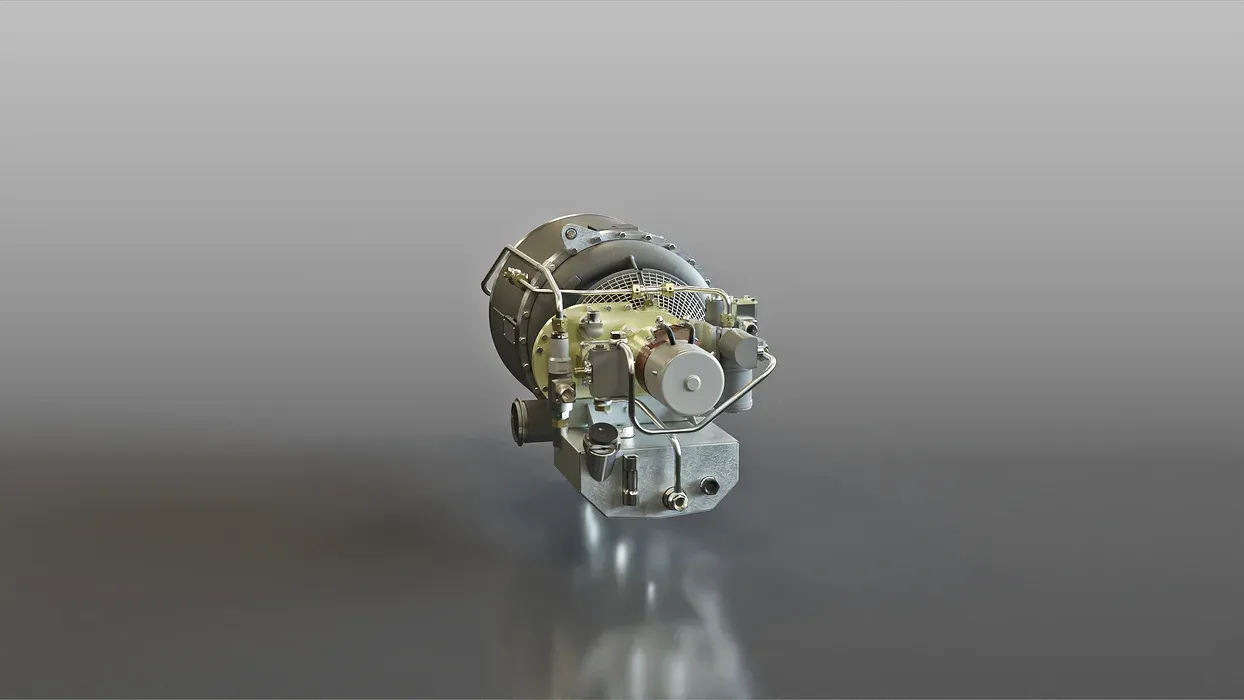

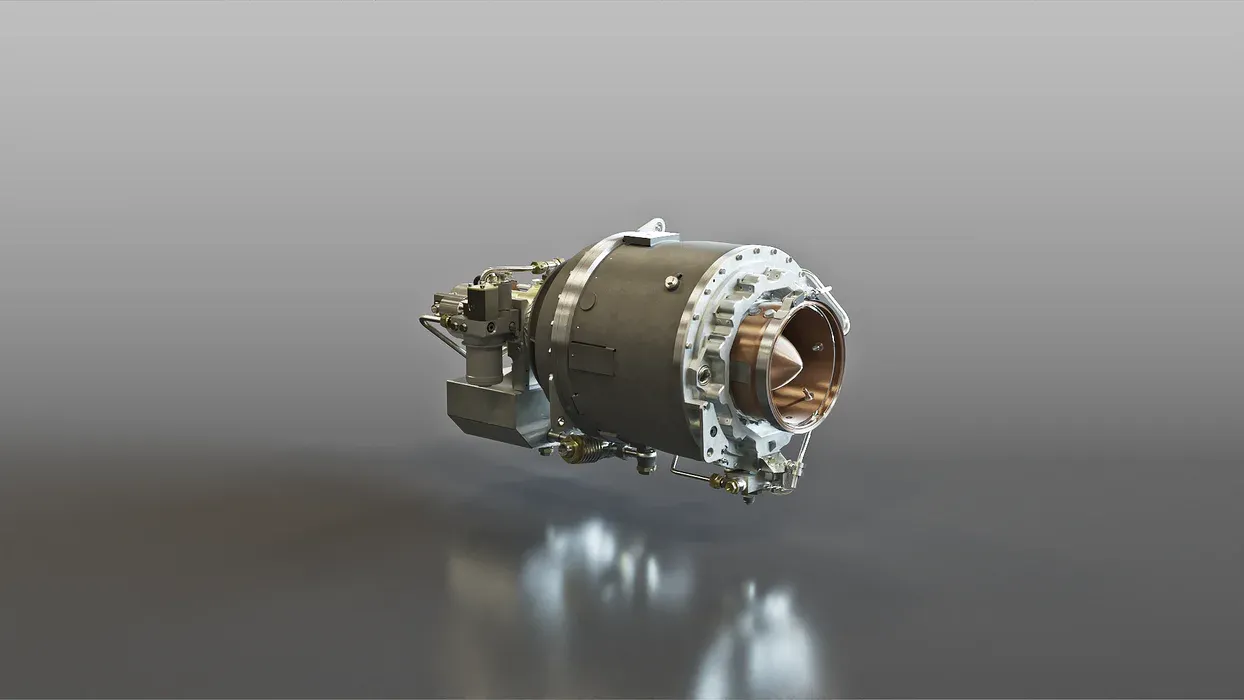

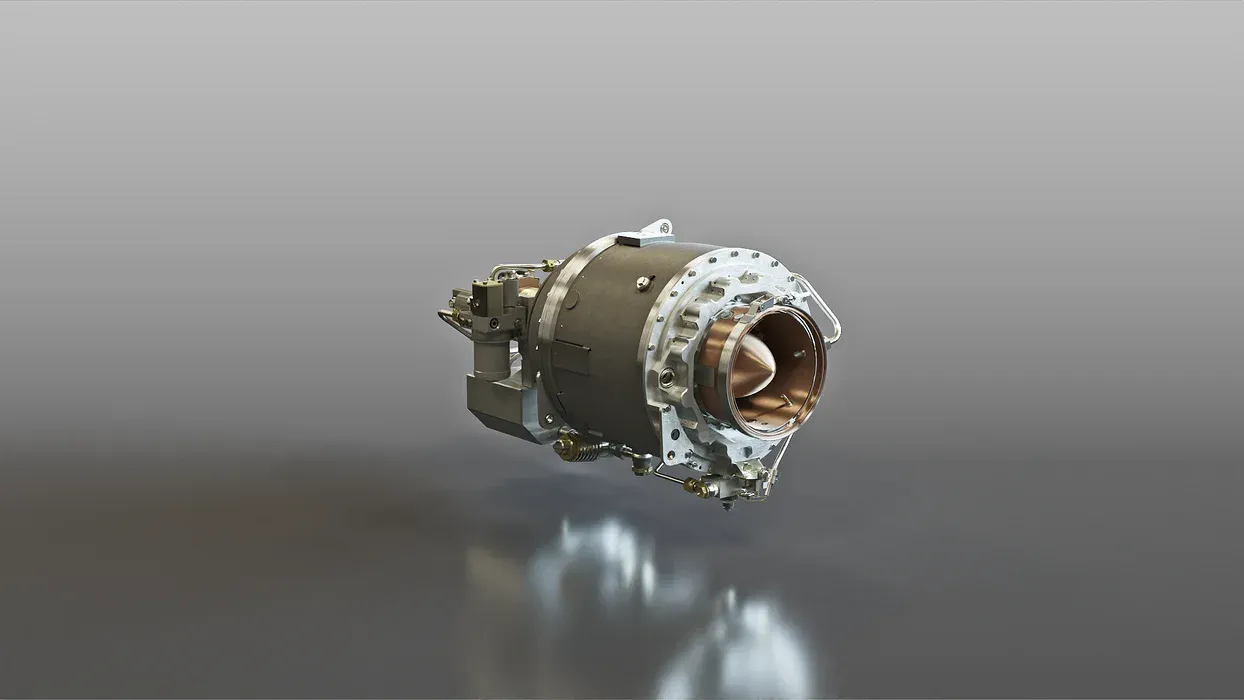

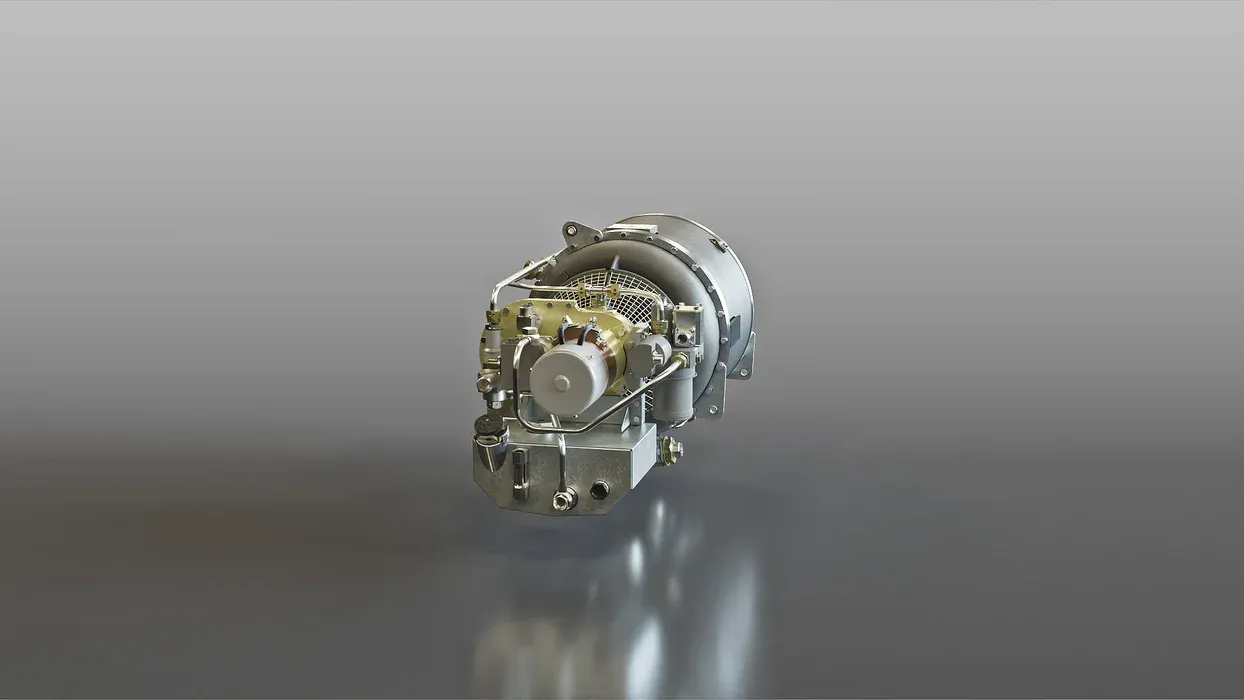

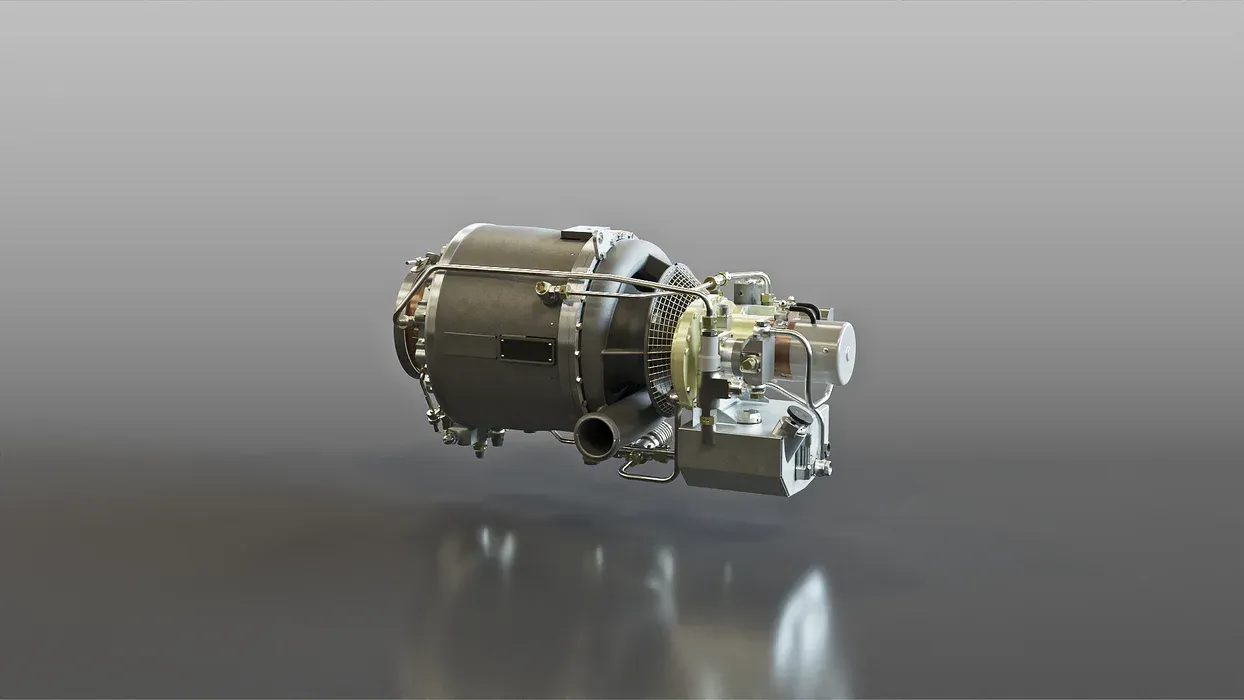

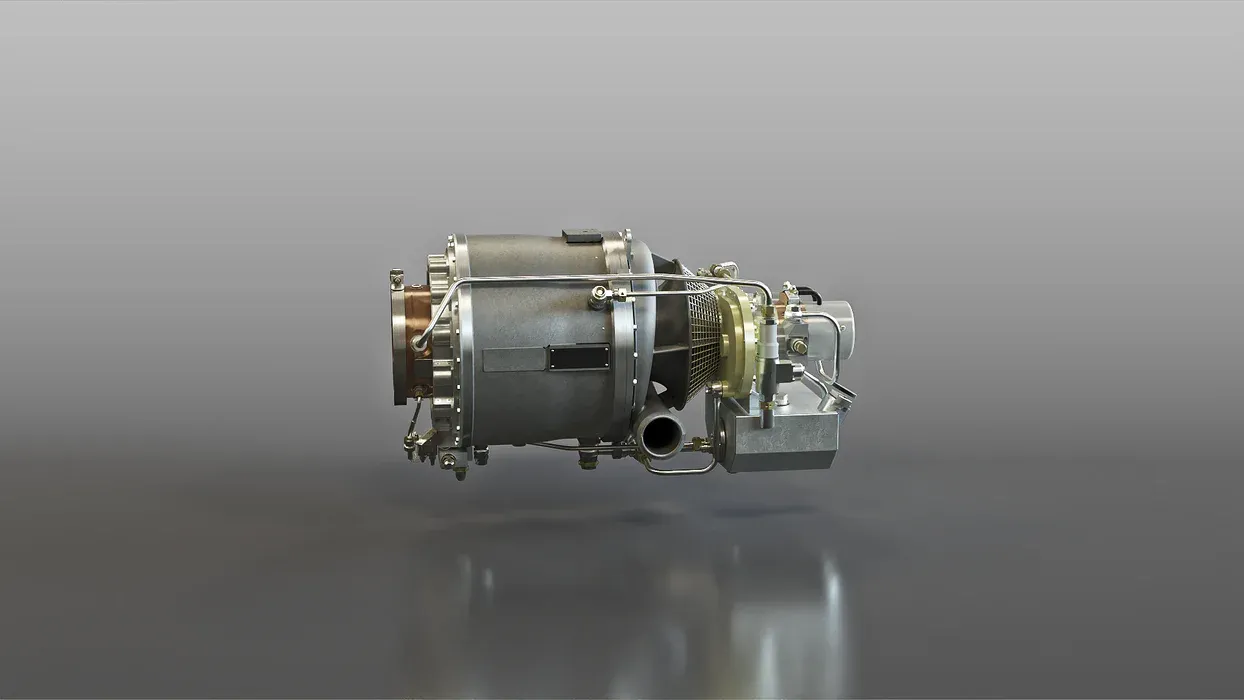

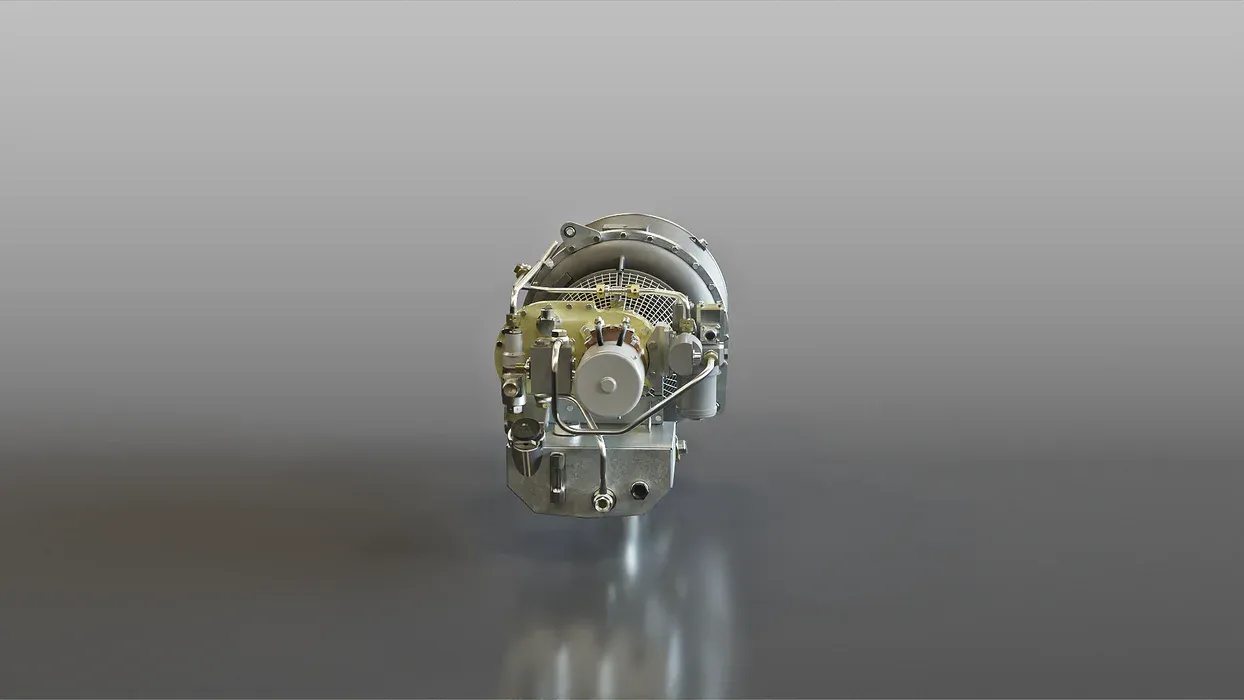

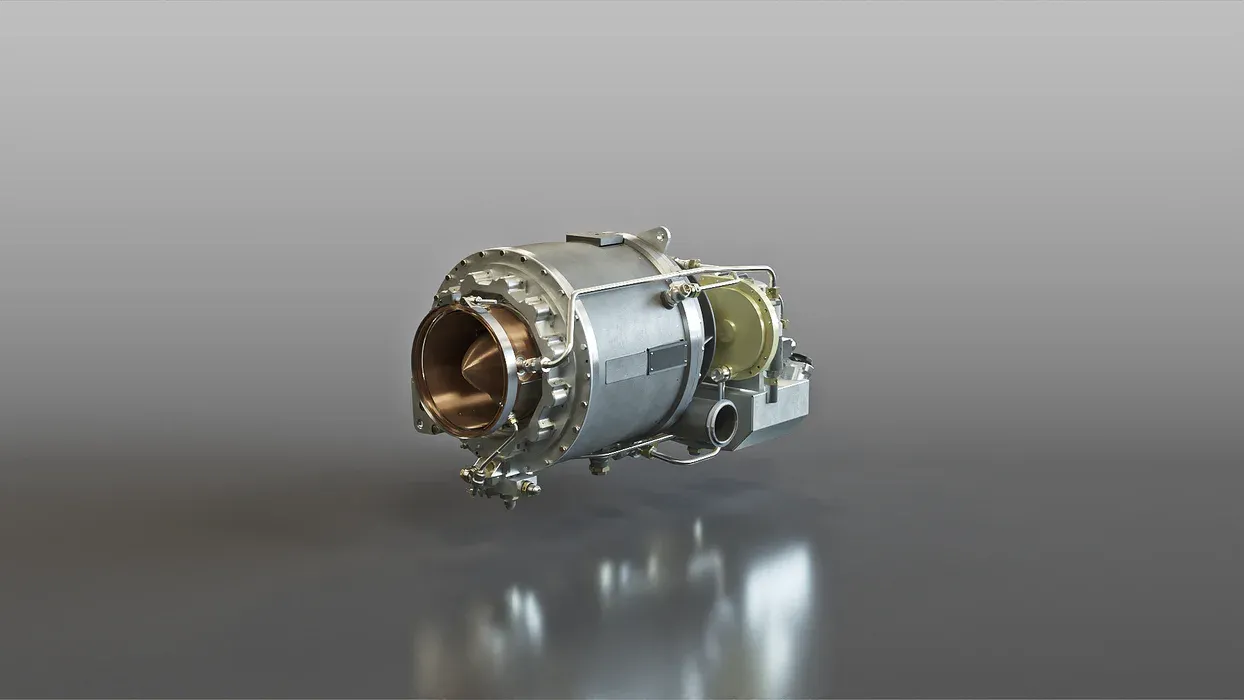

SAFIR 5L

PBS.TopImage.Btn.Scroll

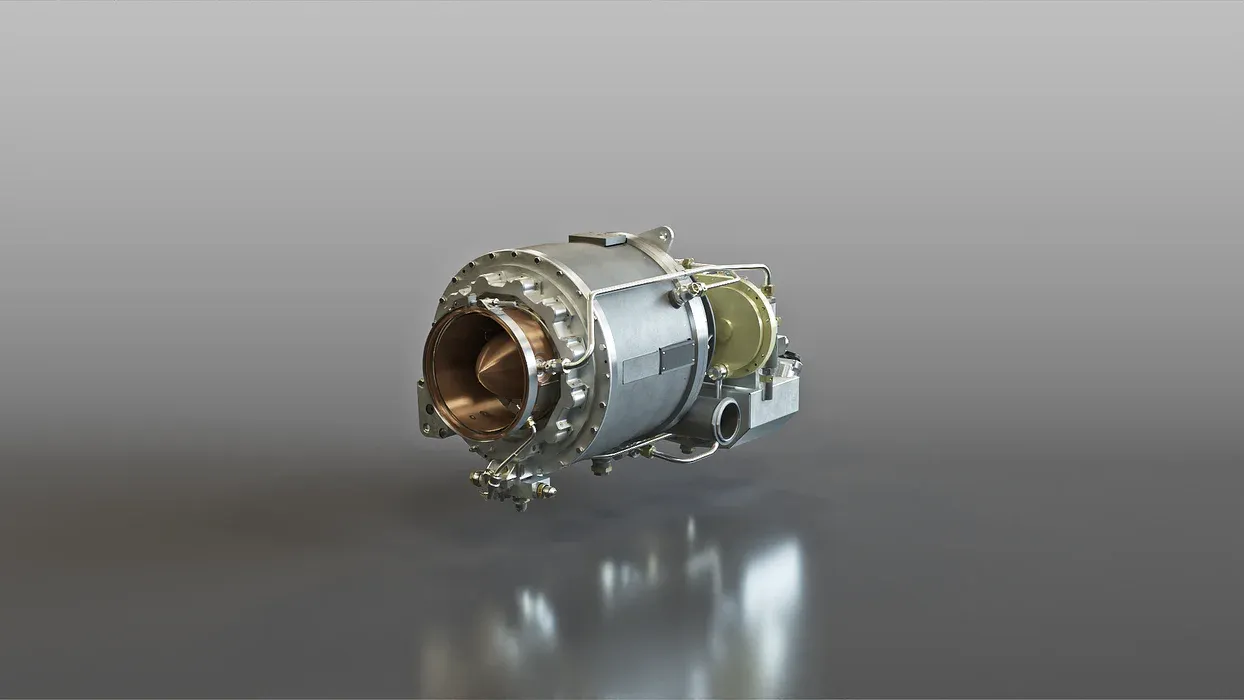

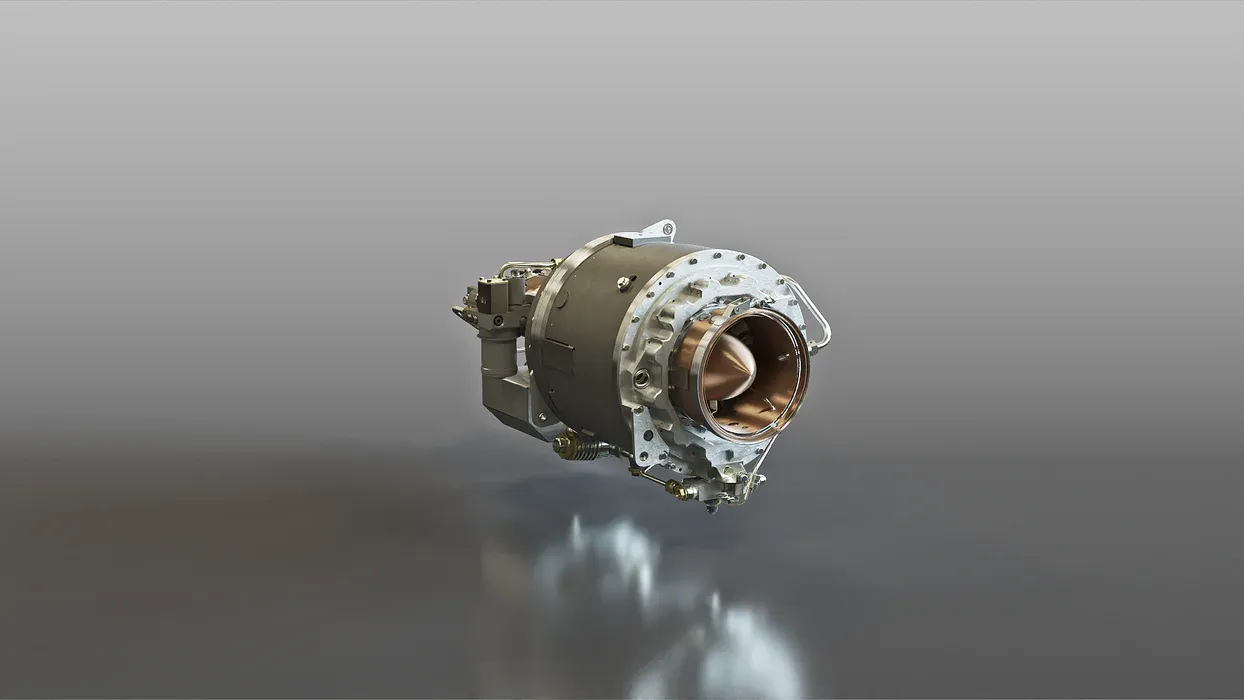

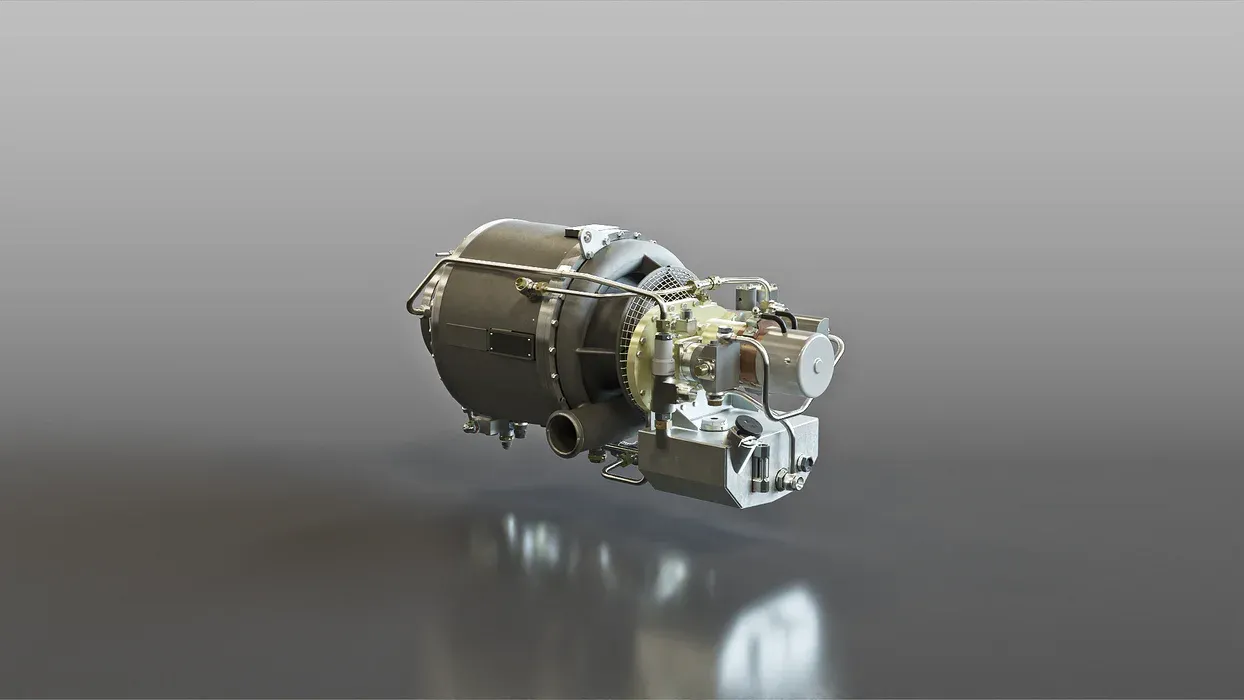

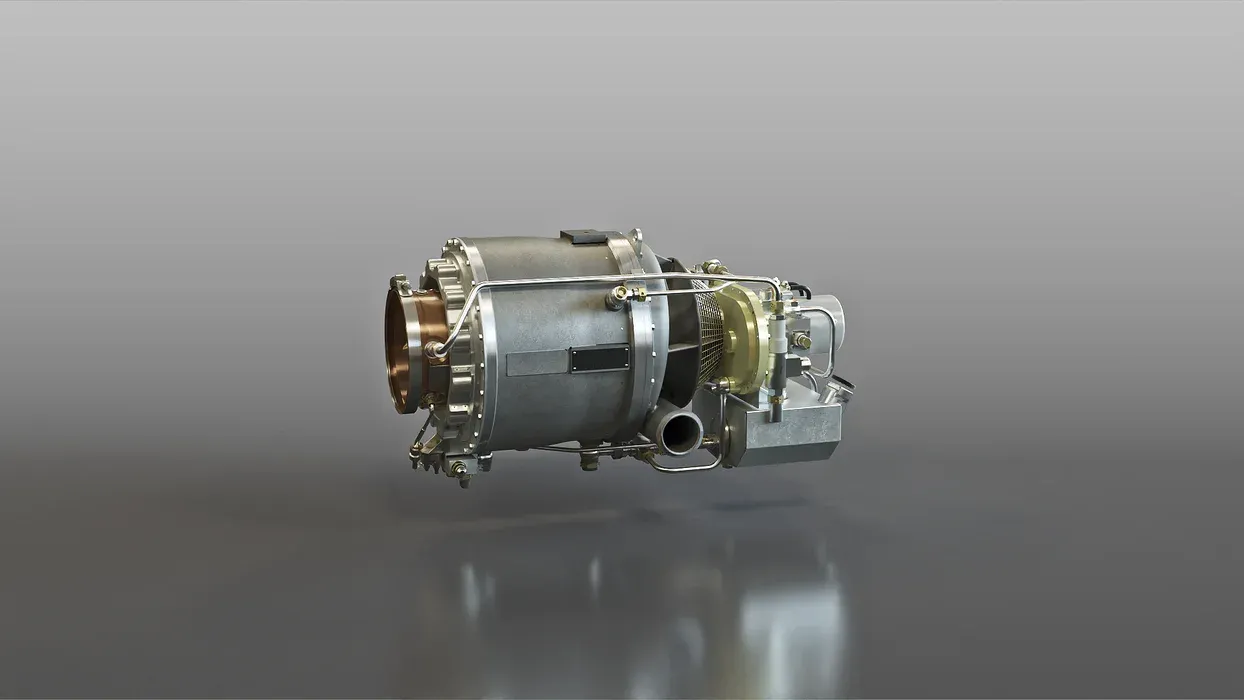

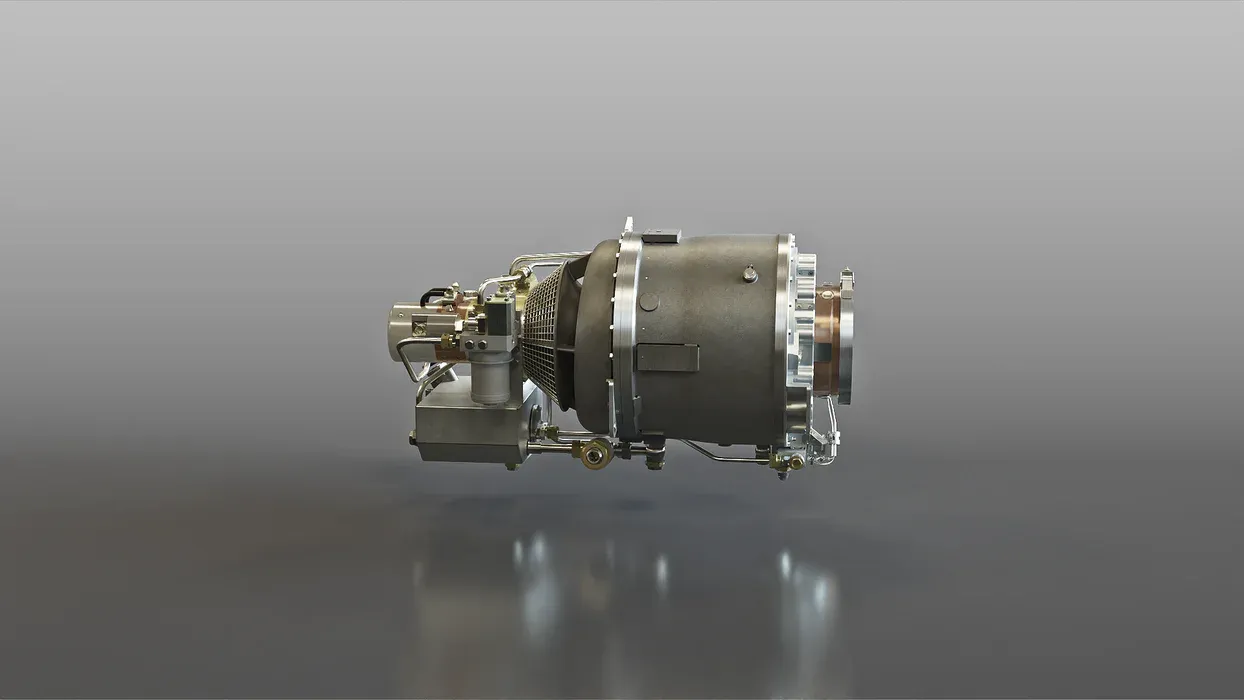

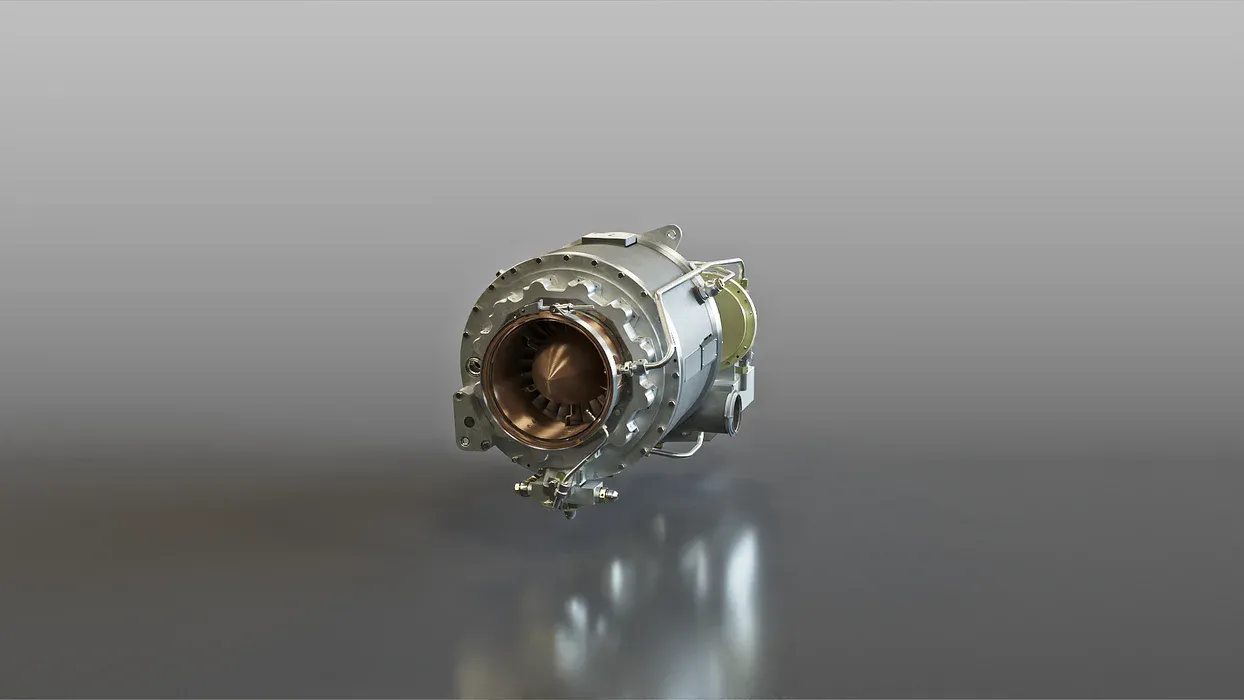

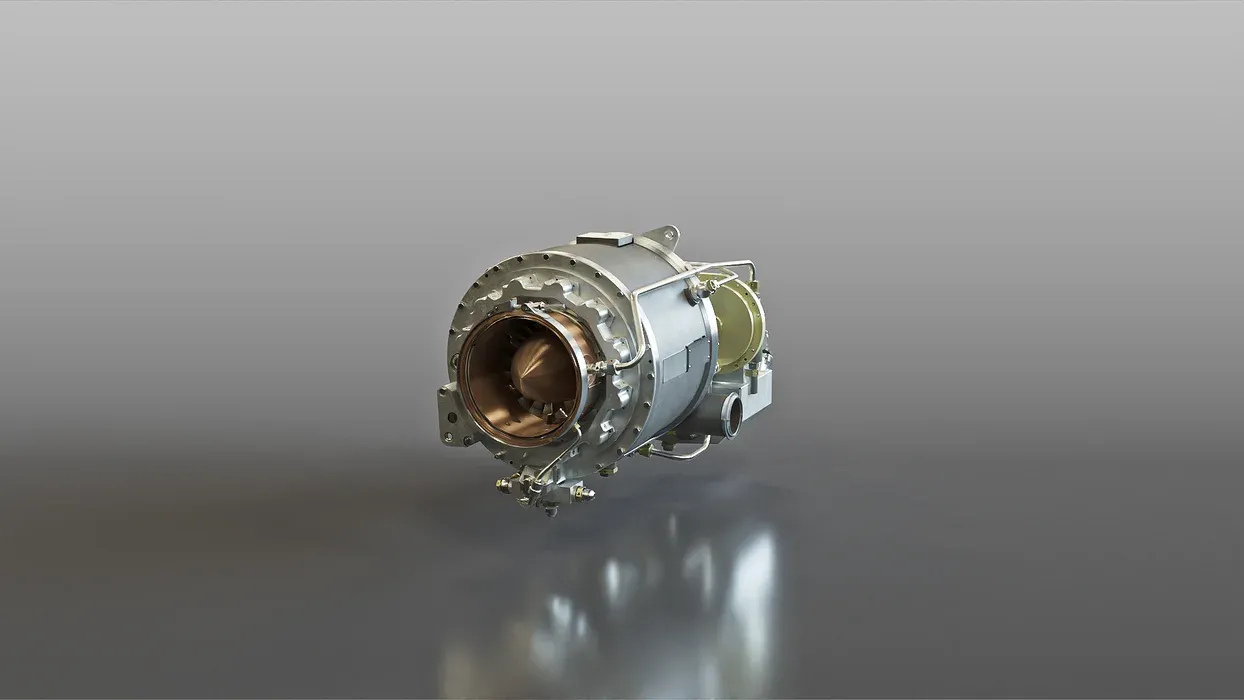

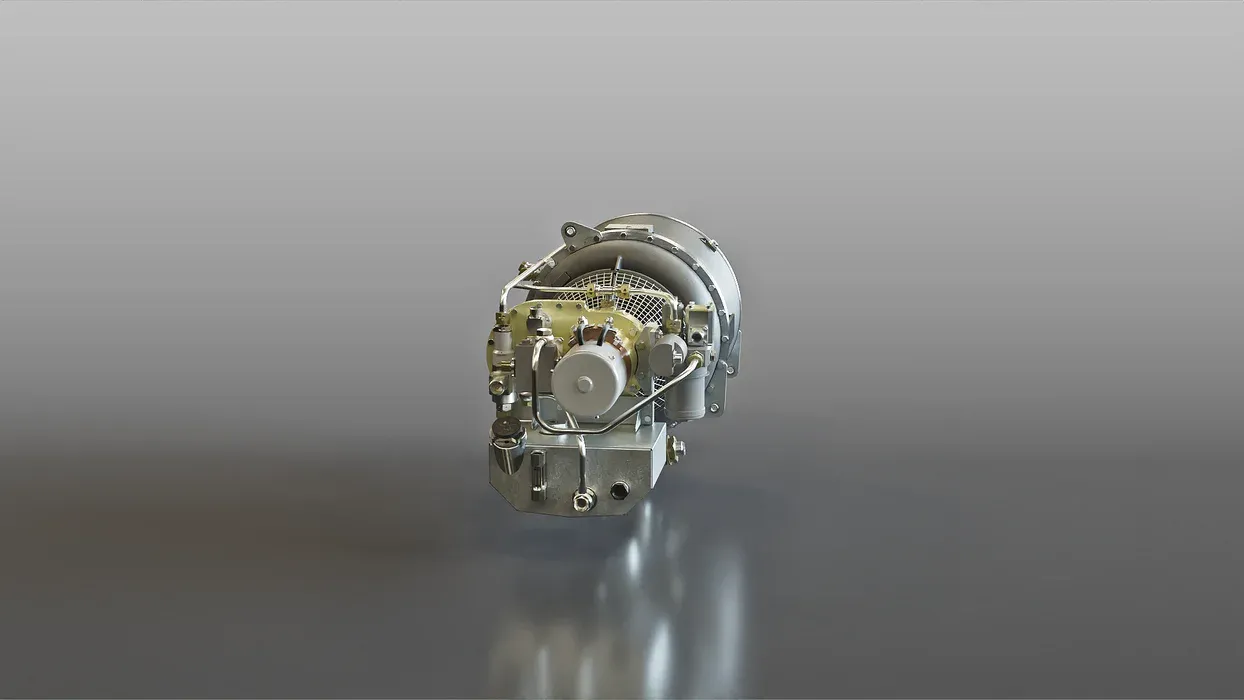

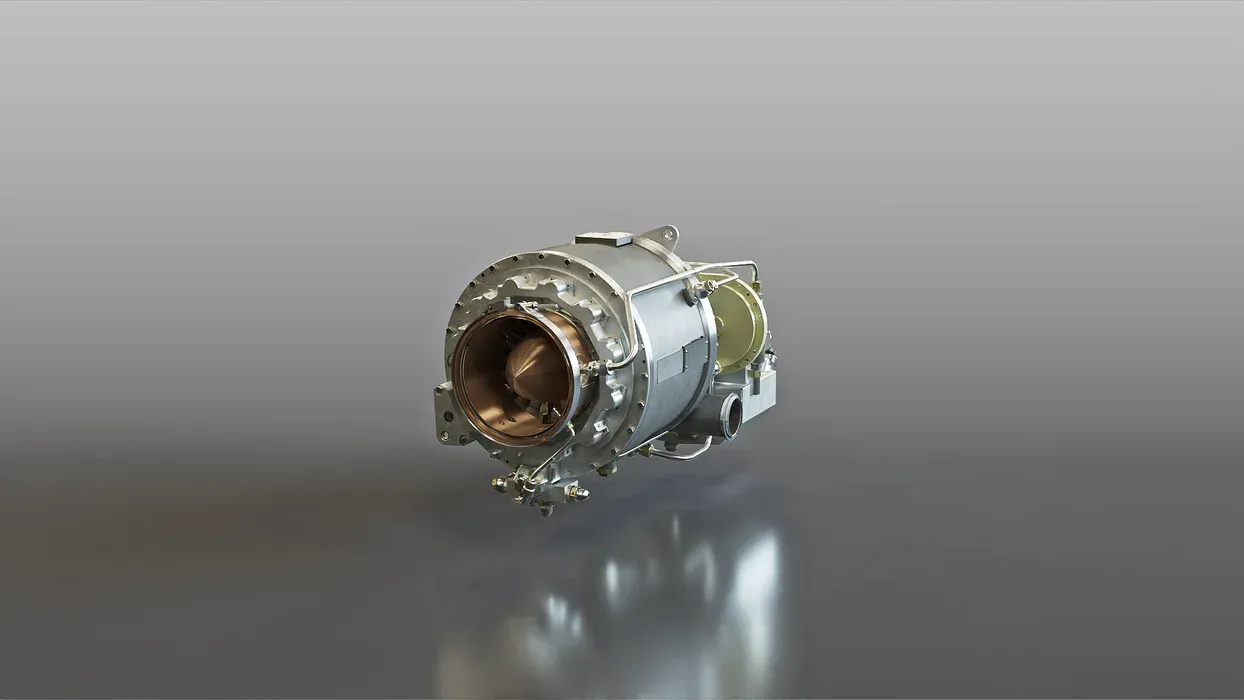

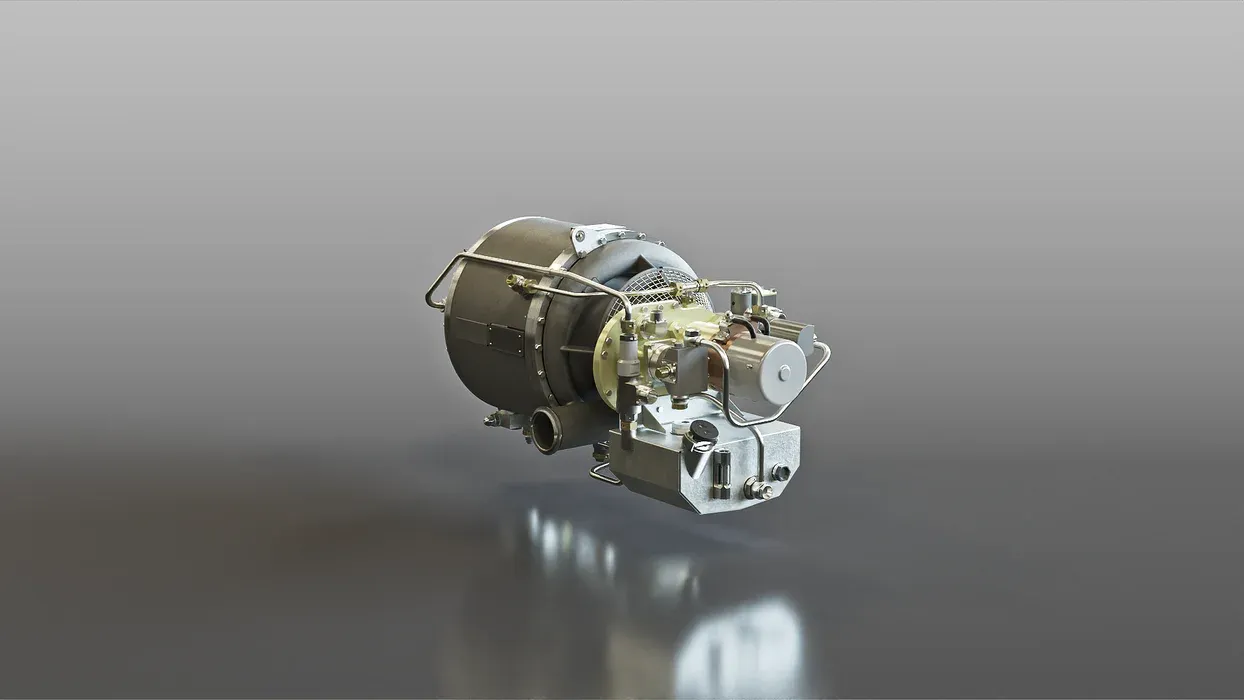

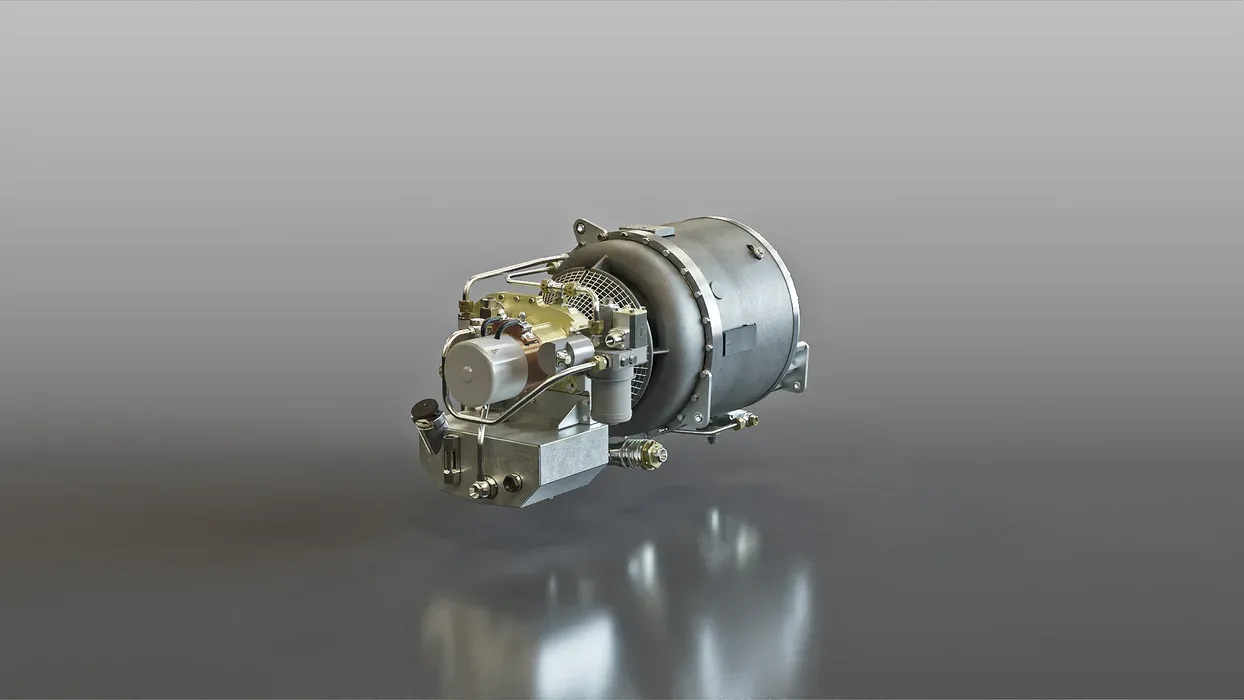

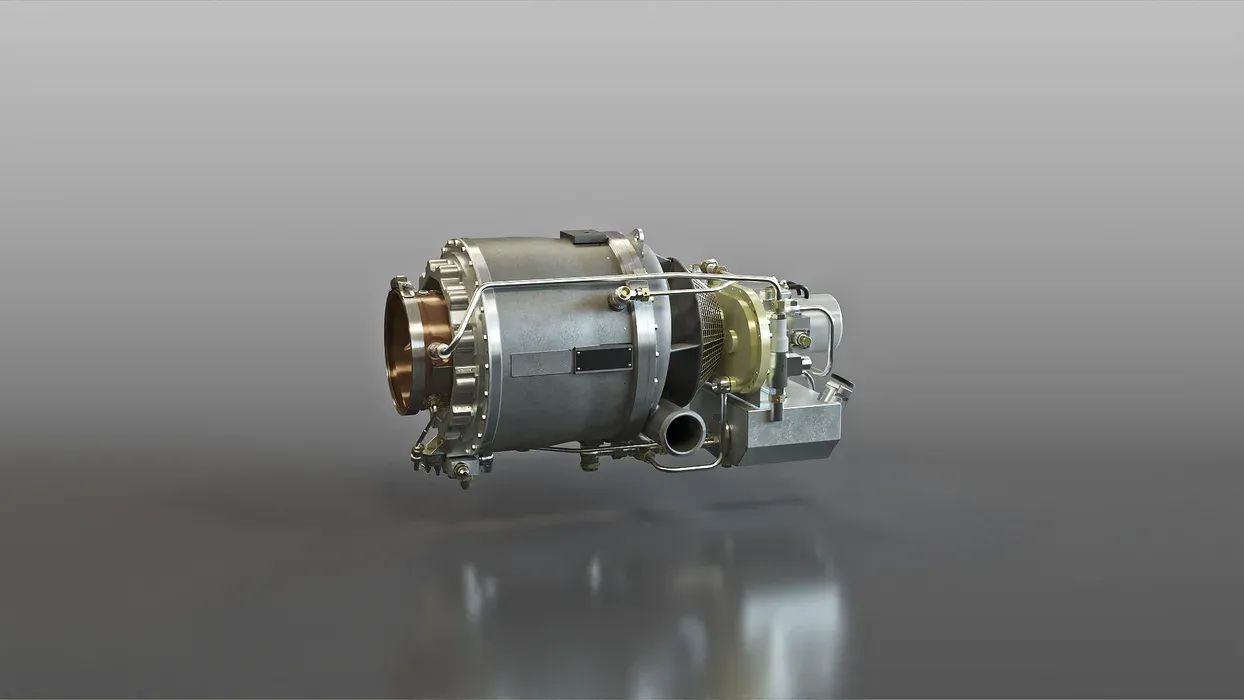

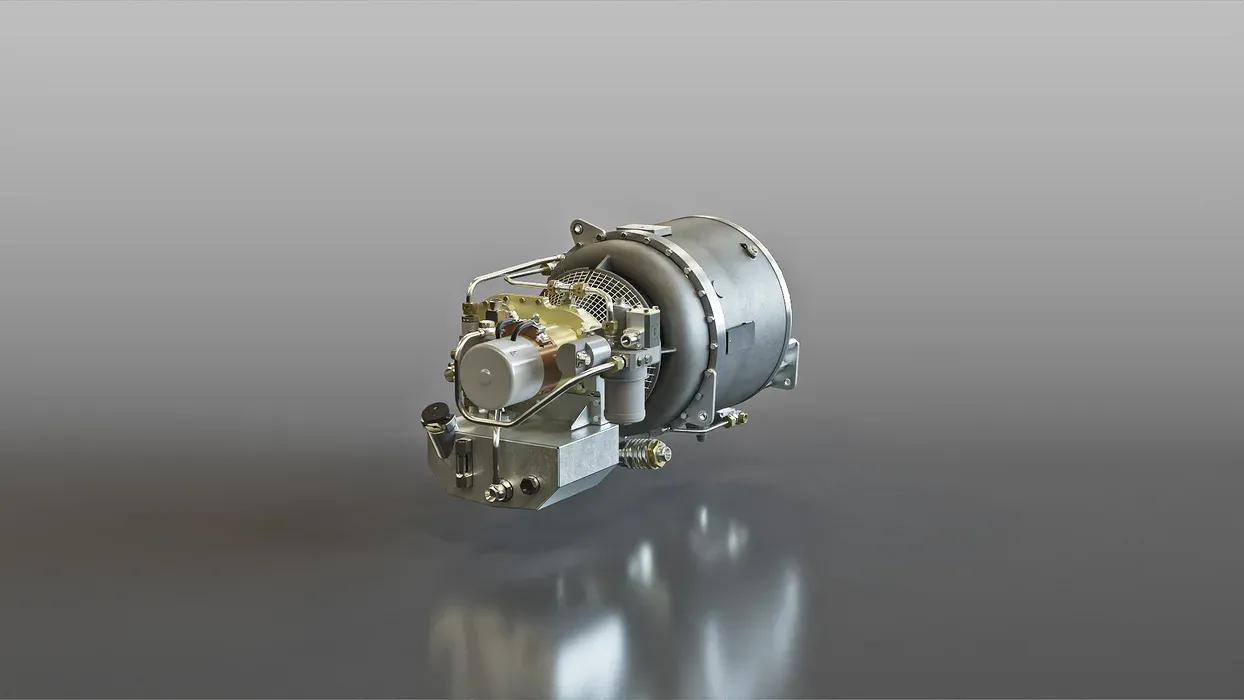

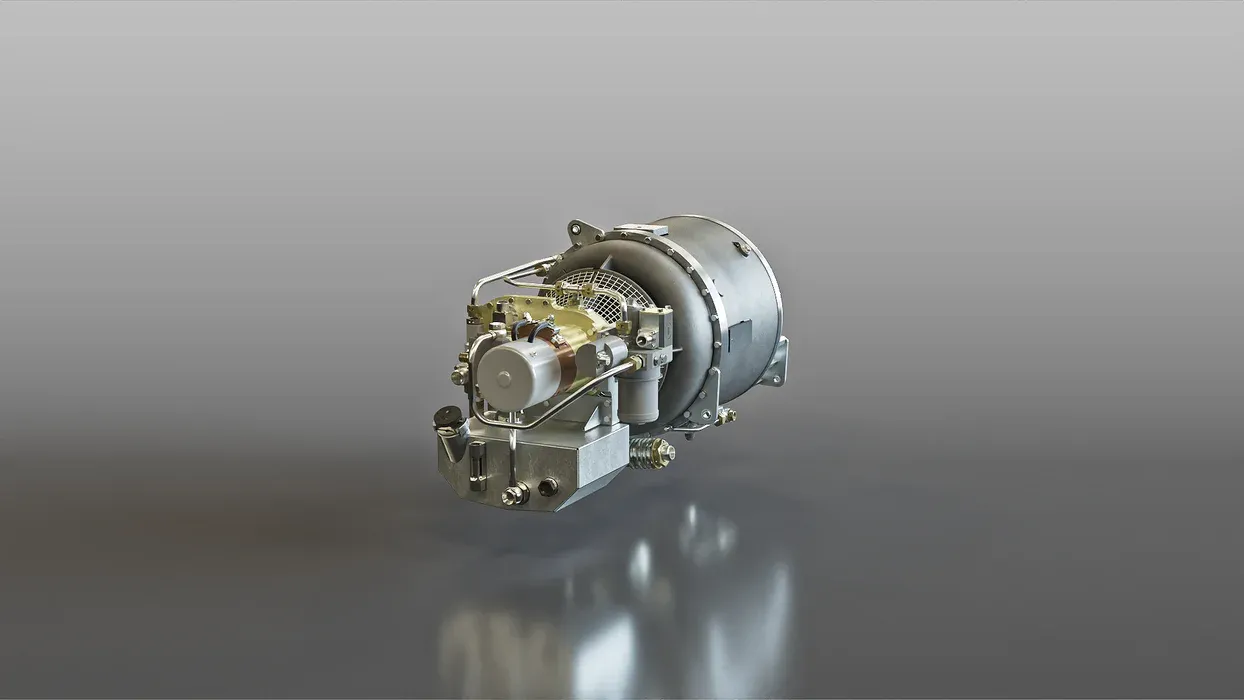

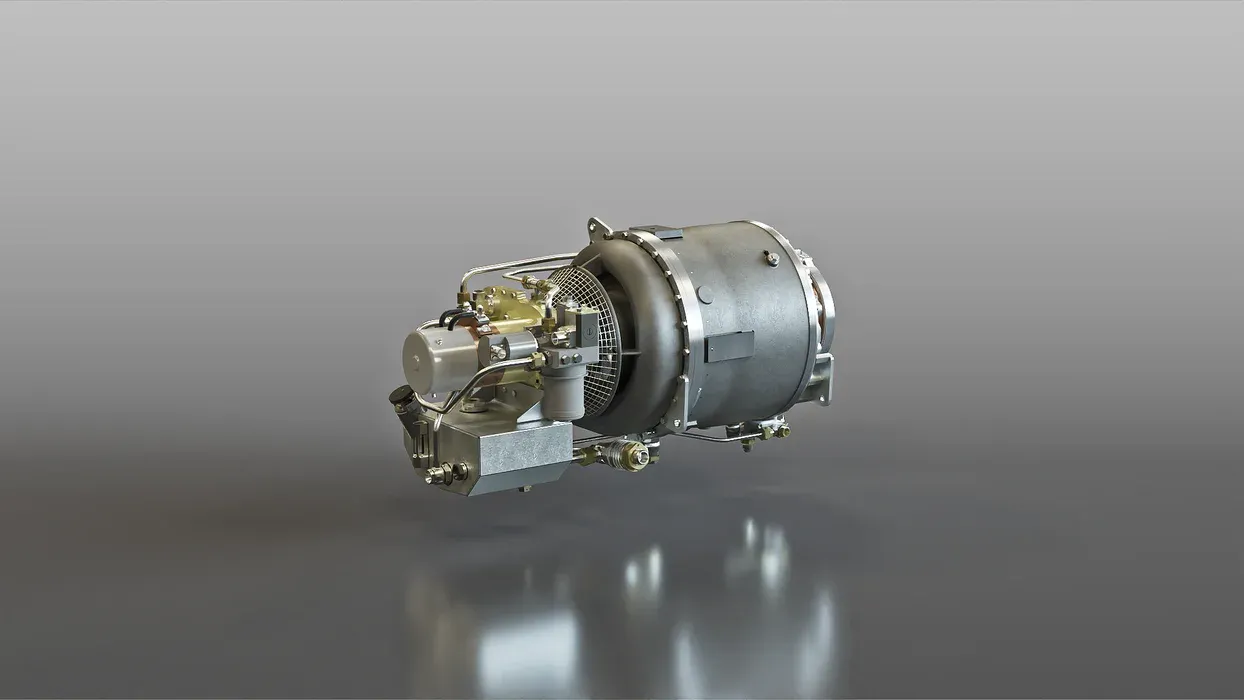

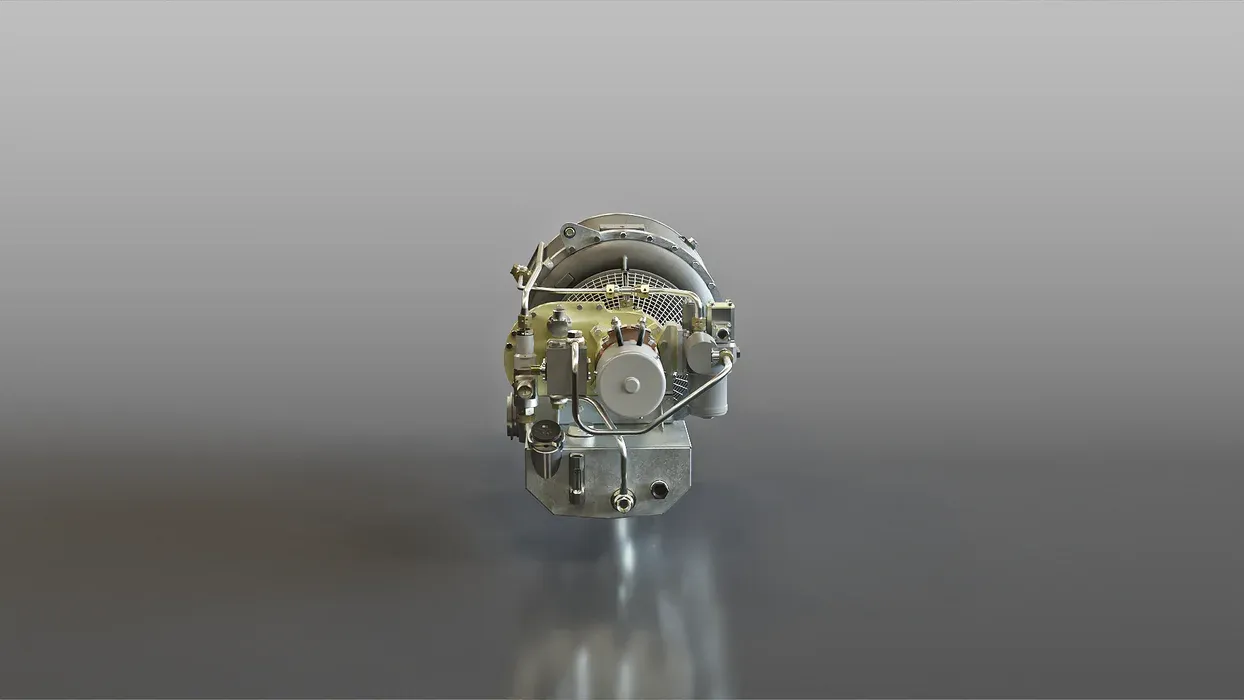

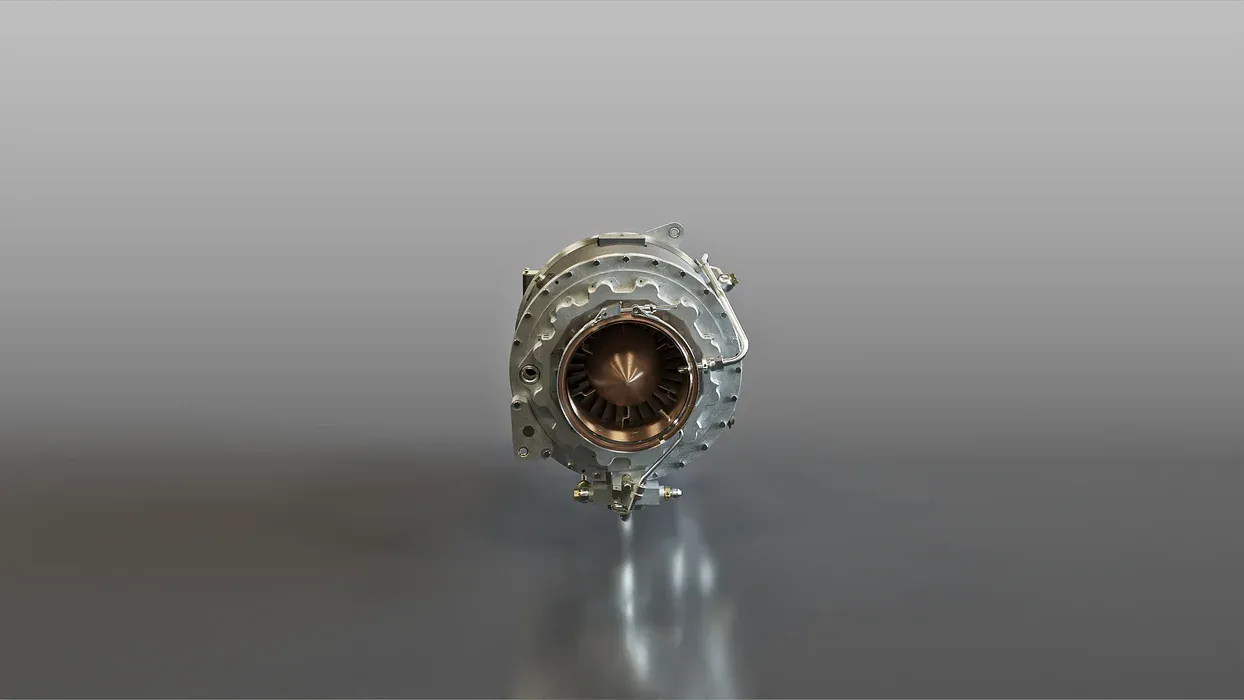

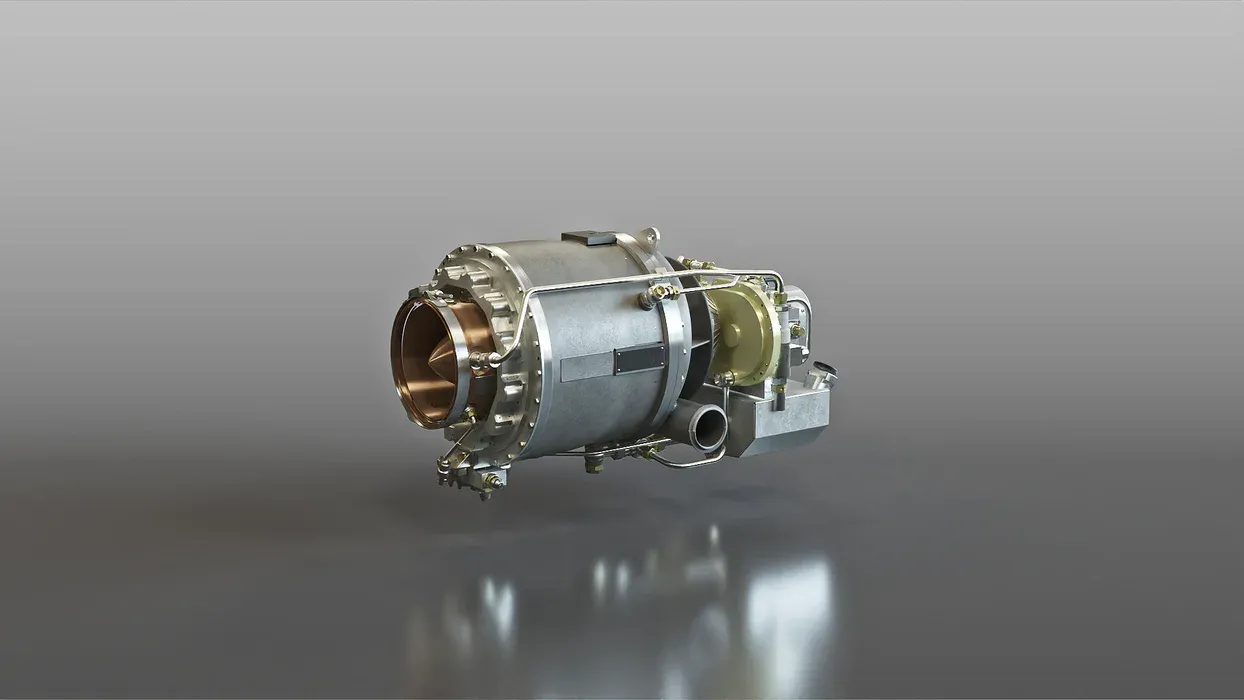

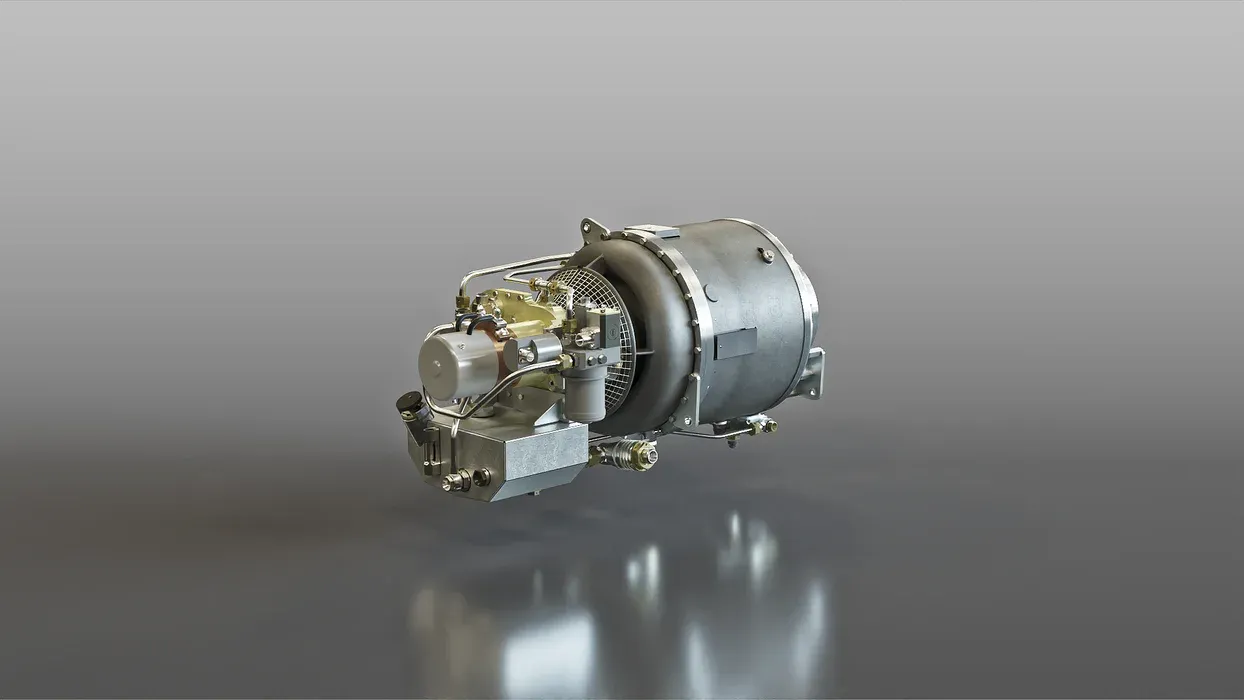

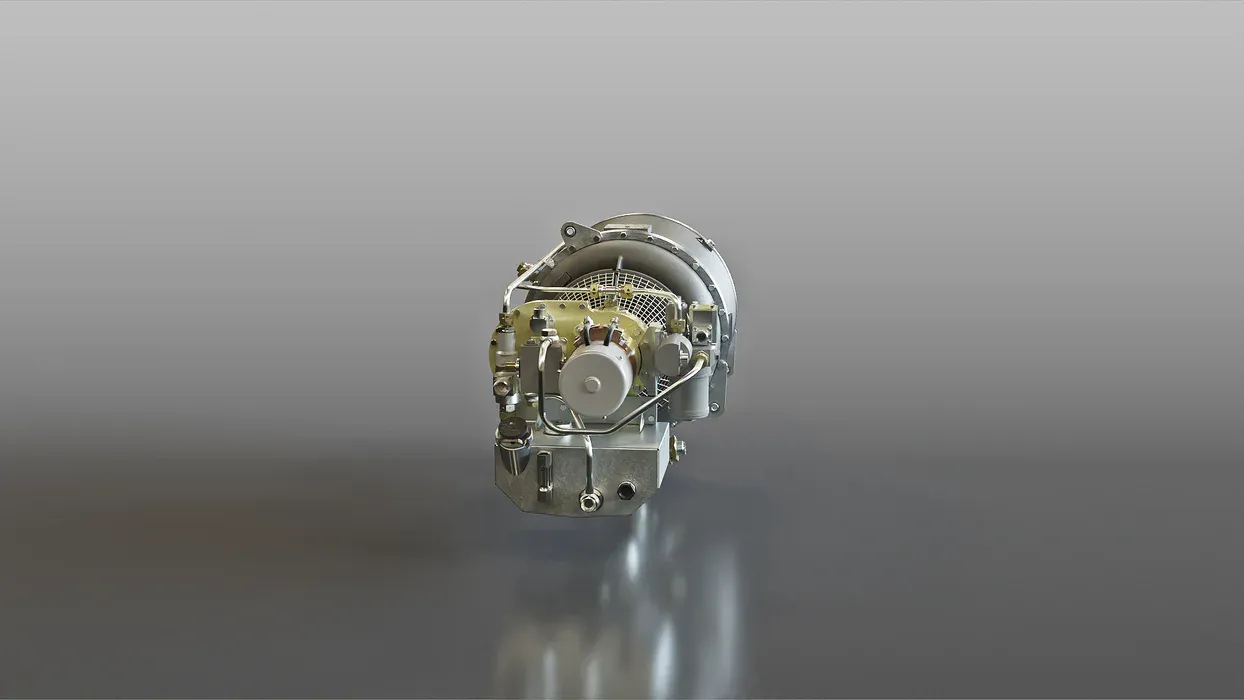

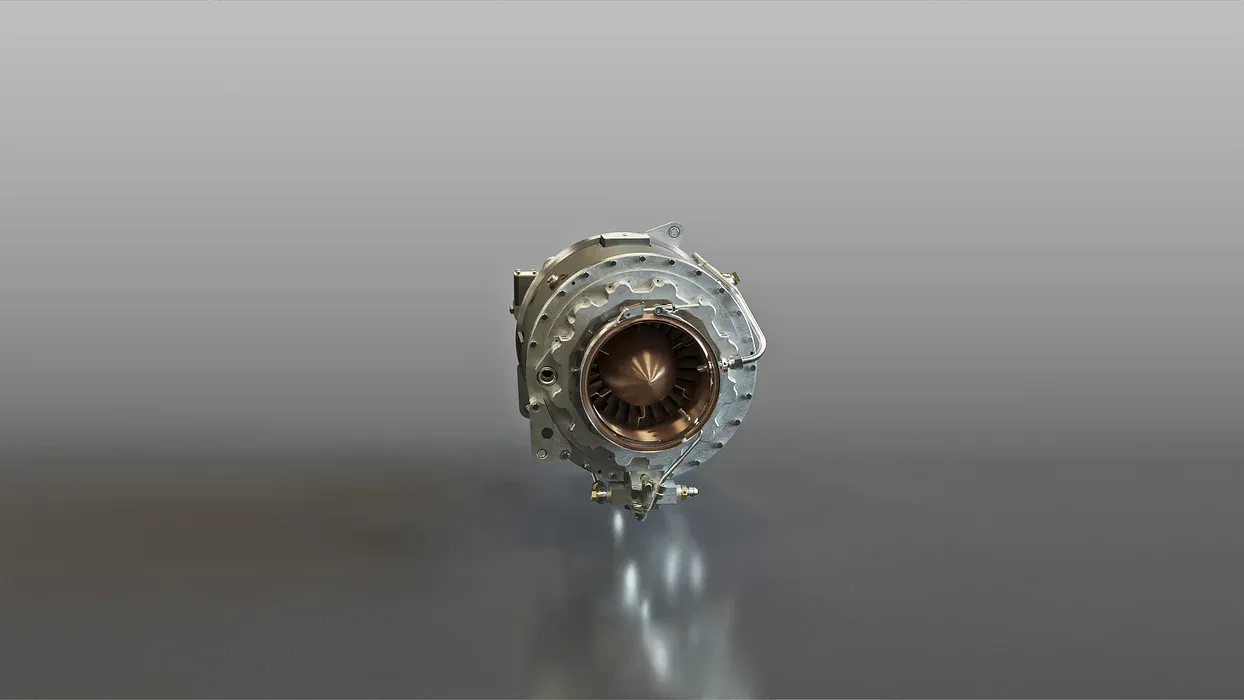

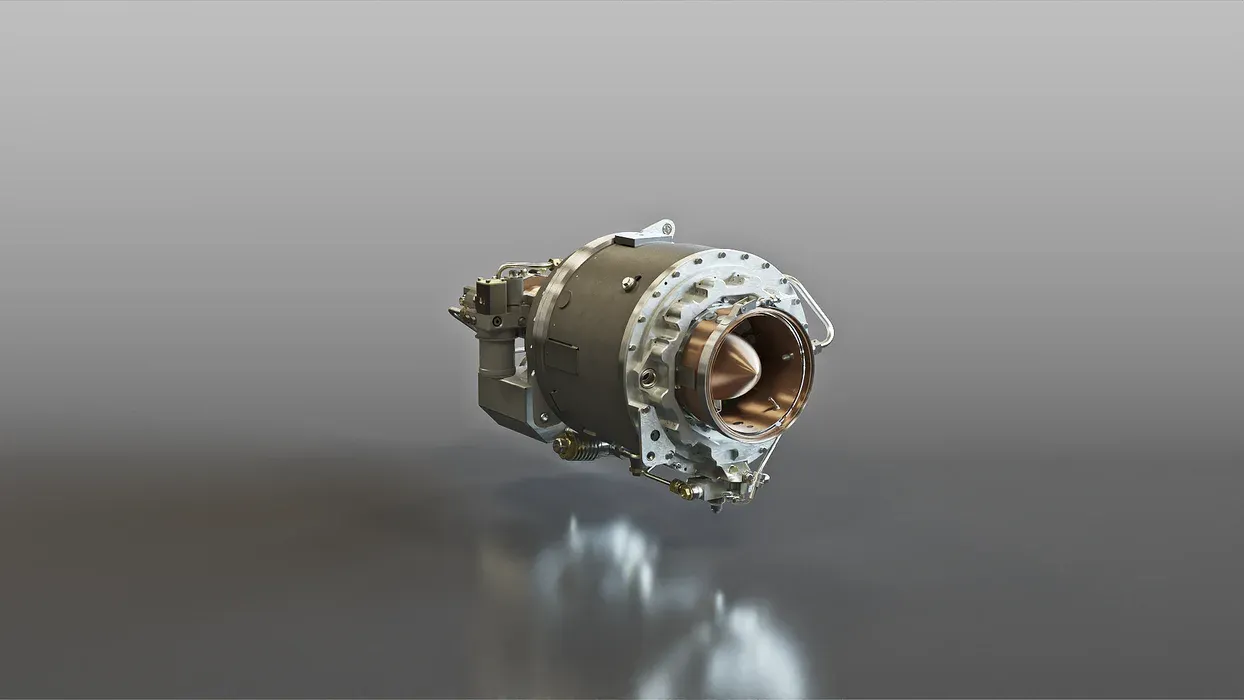

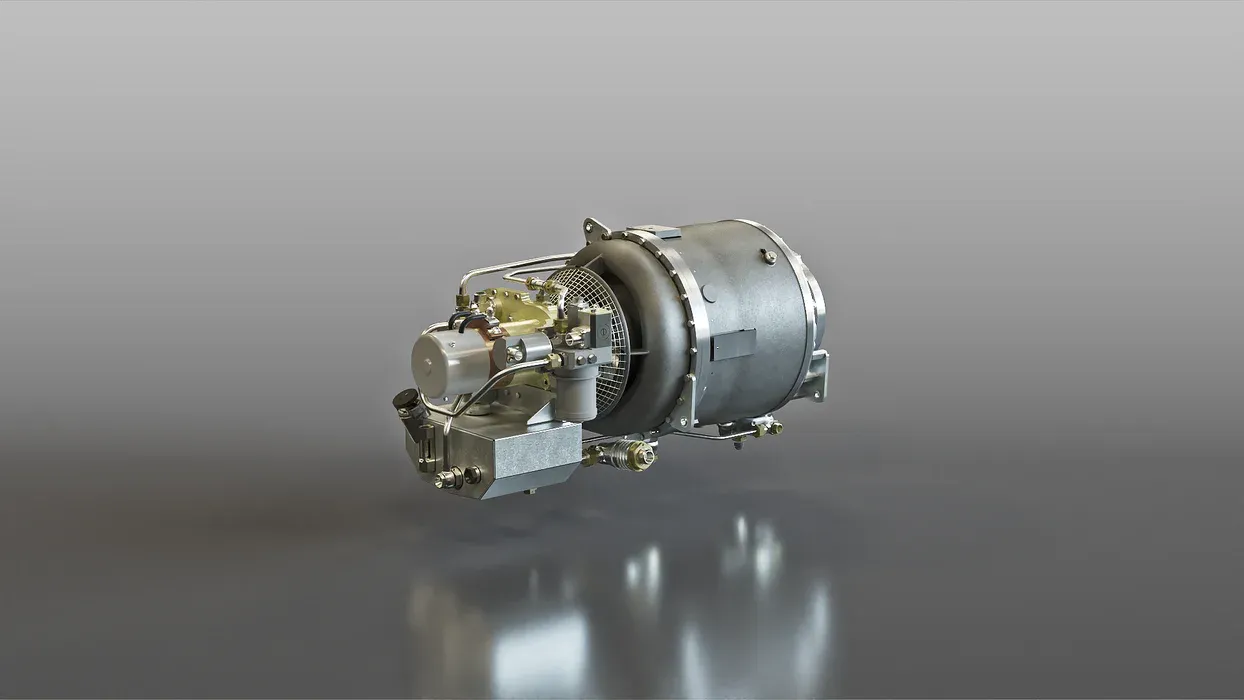

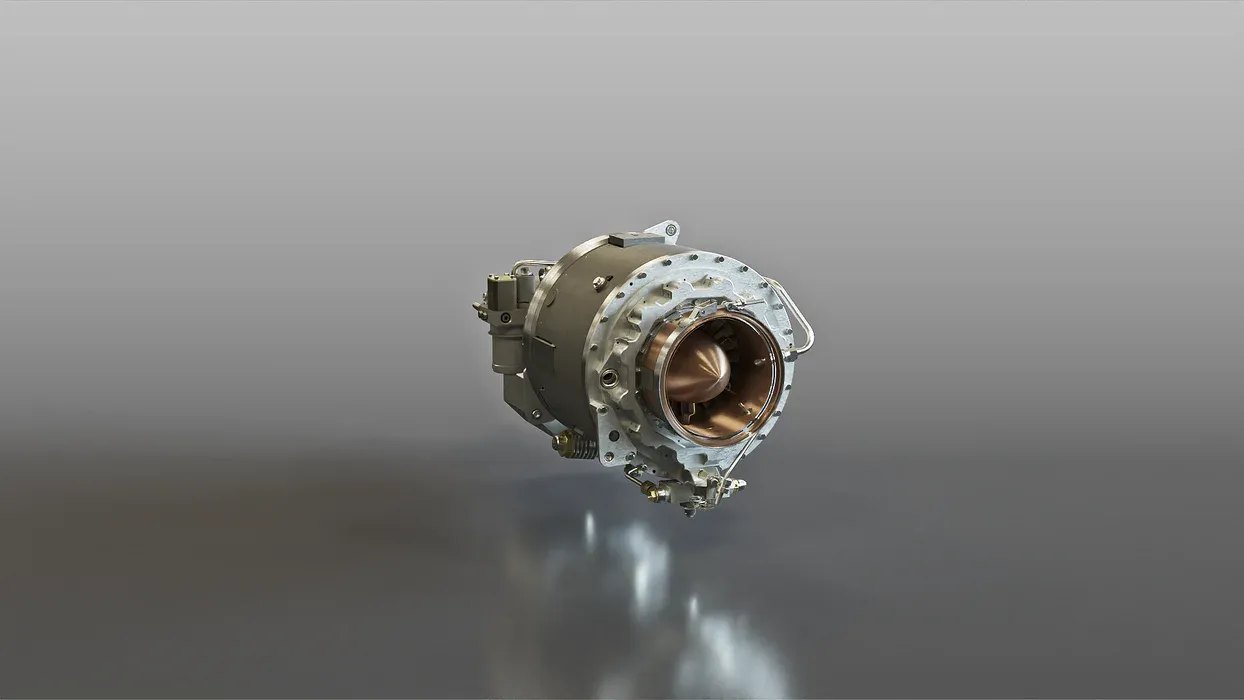

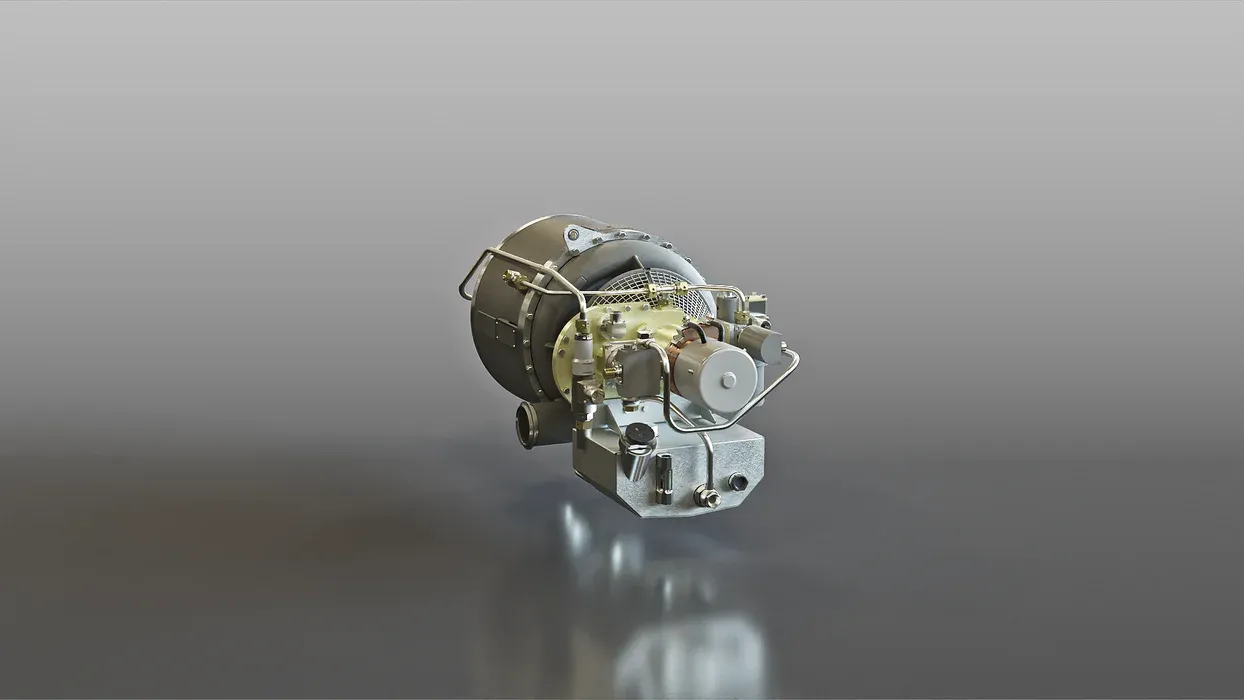

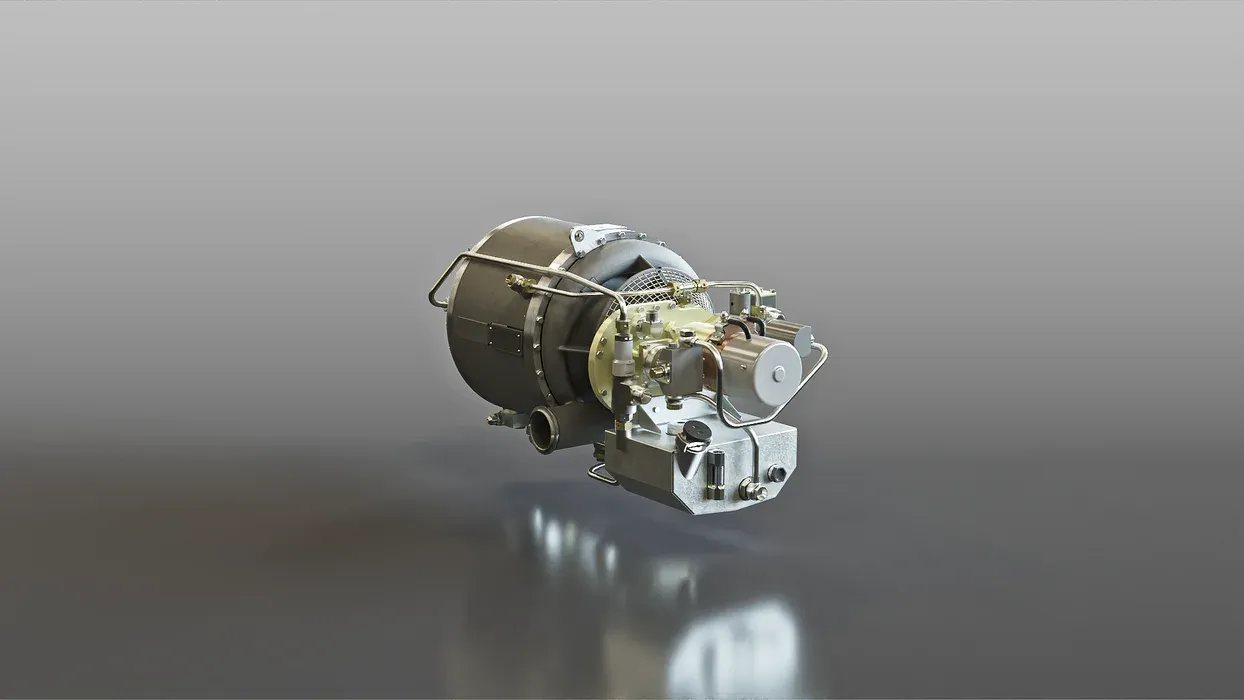

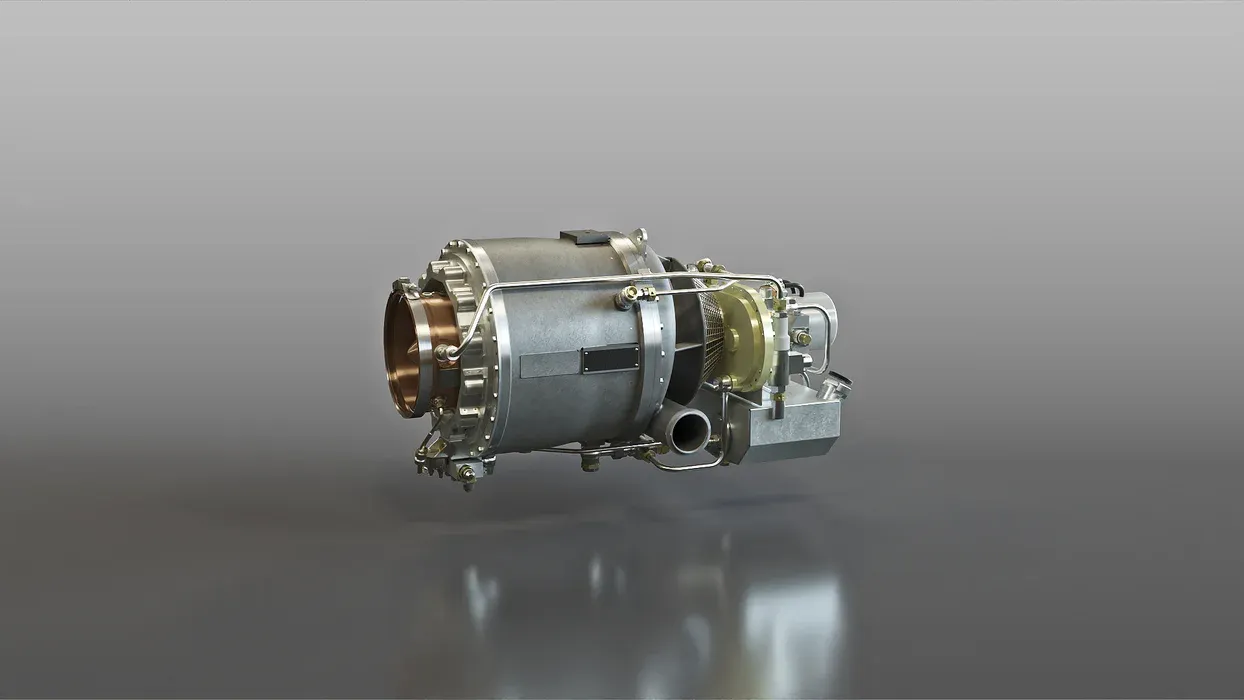

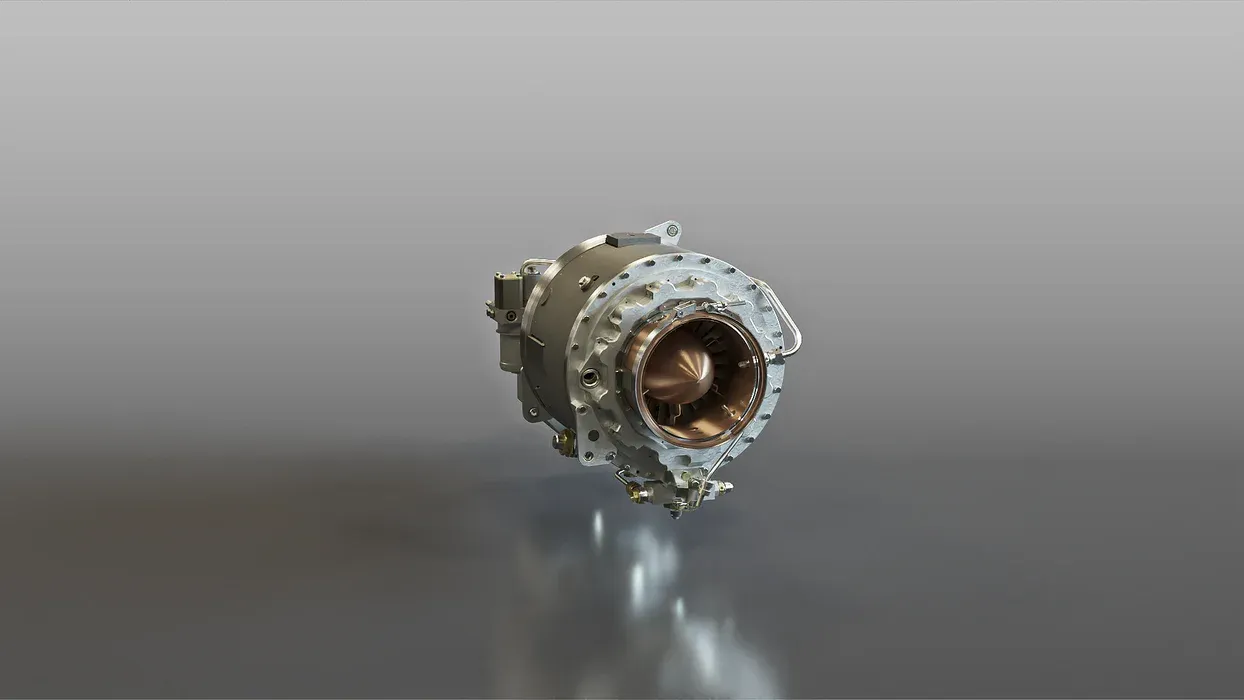

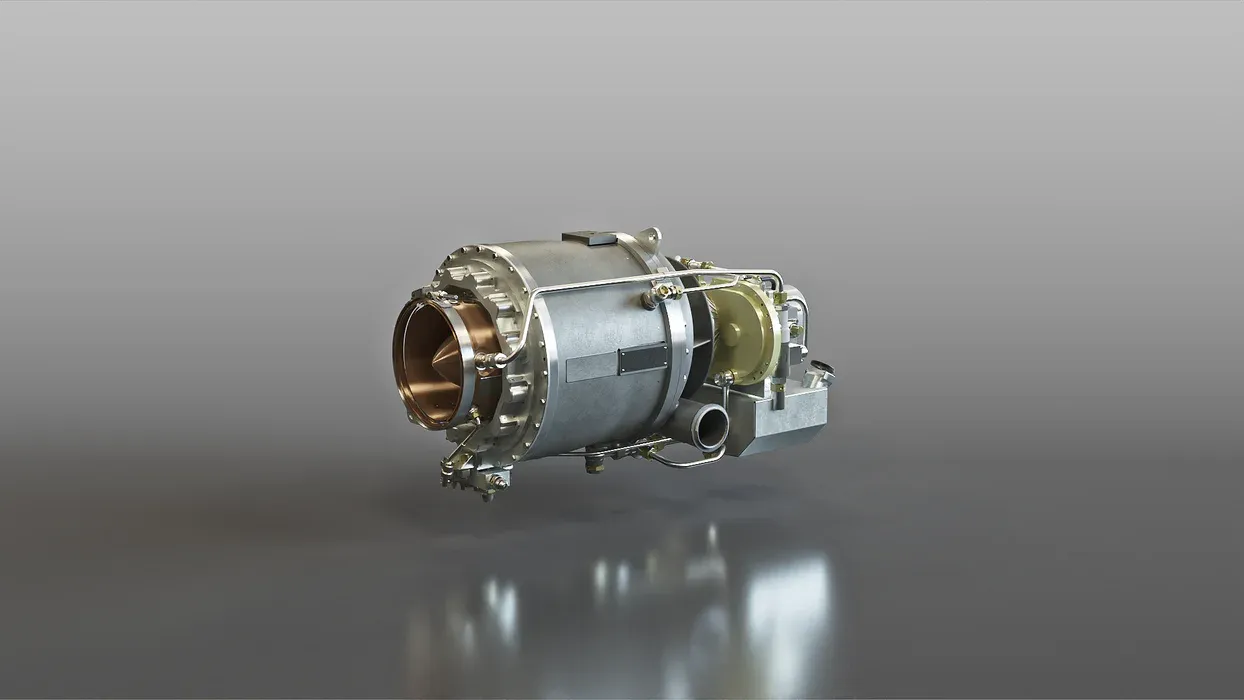

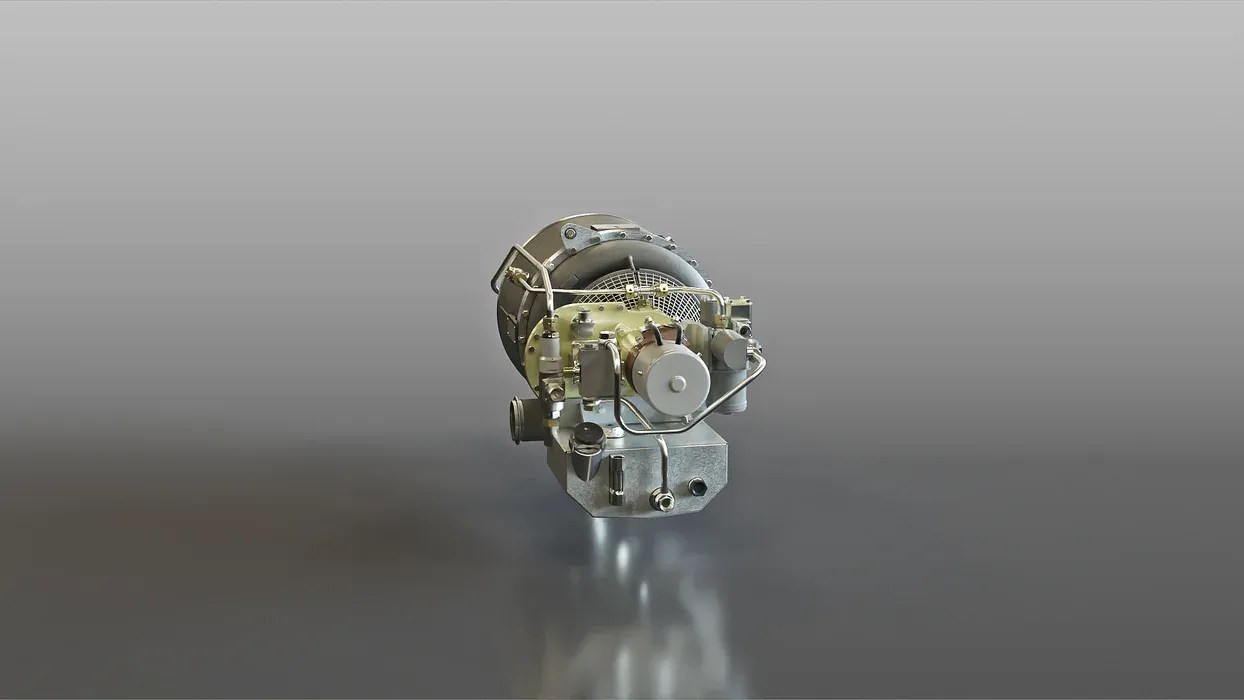

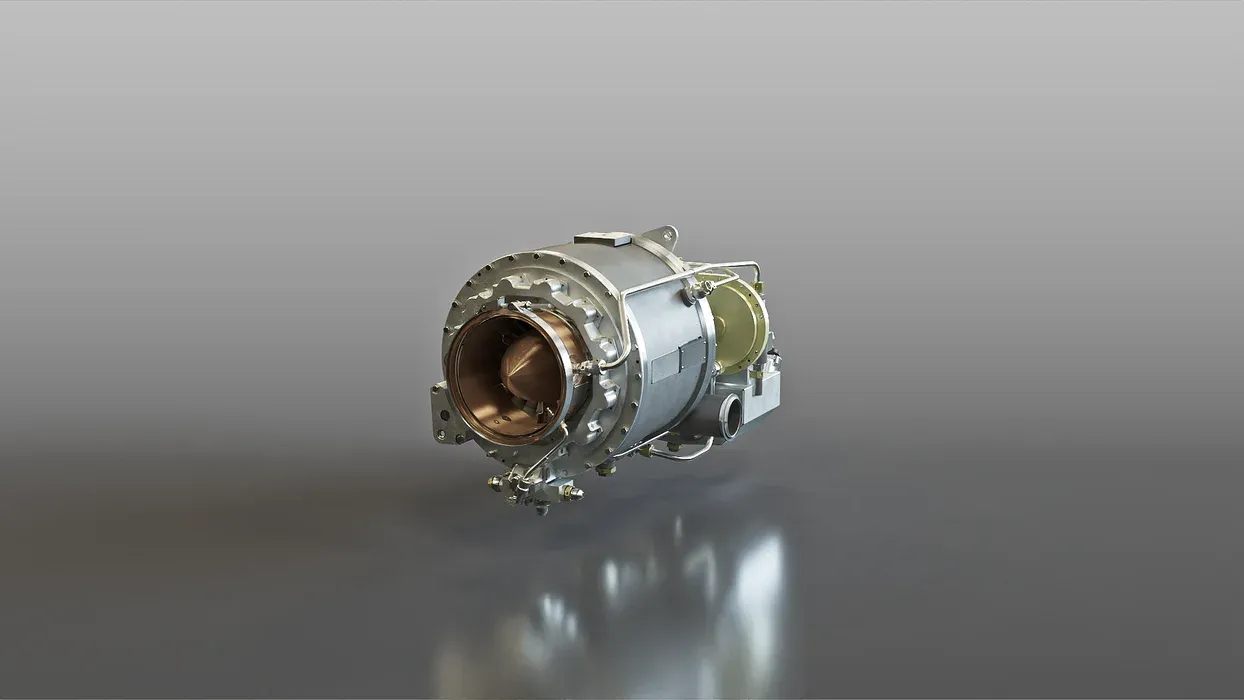

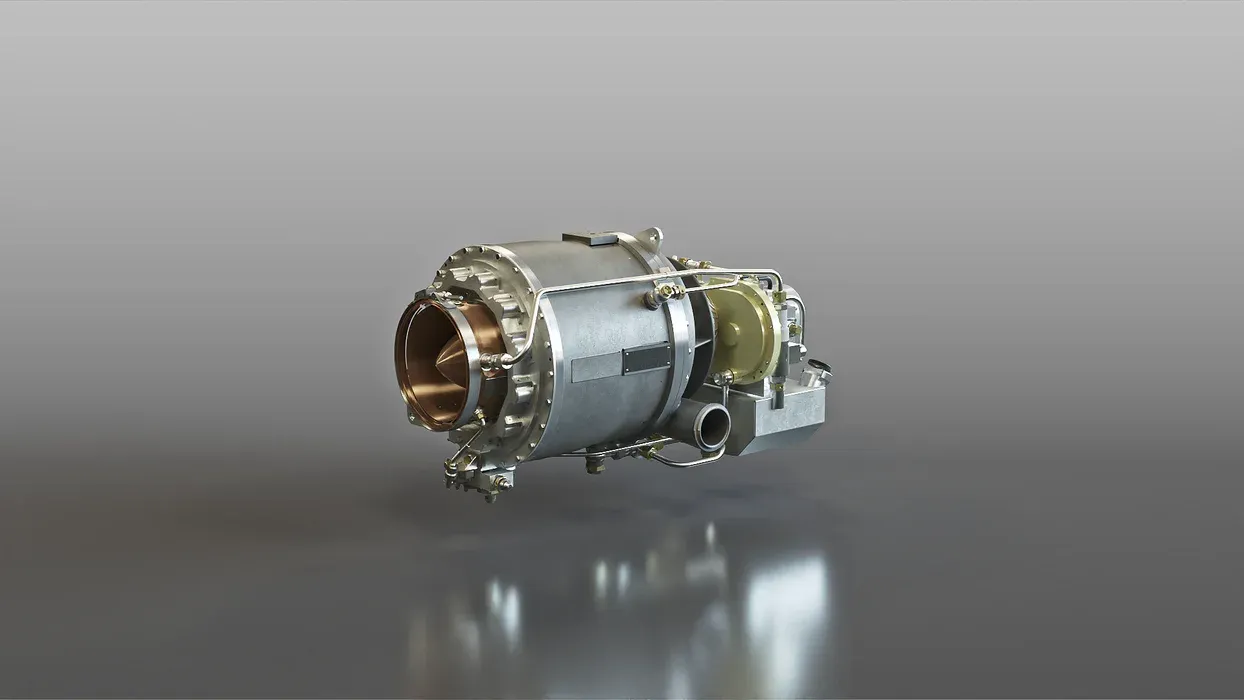

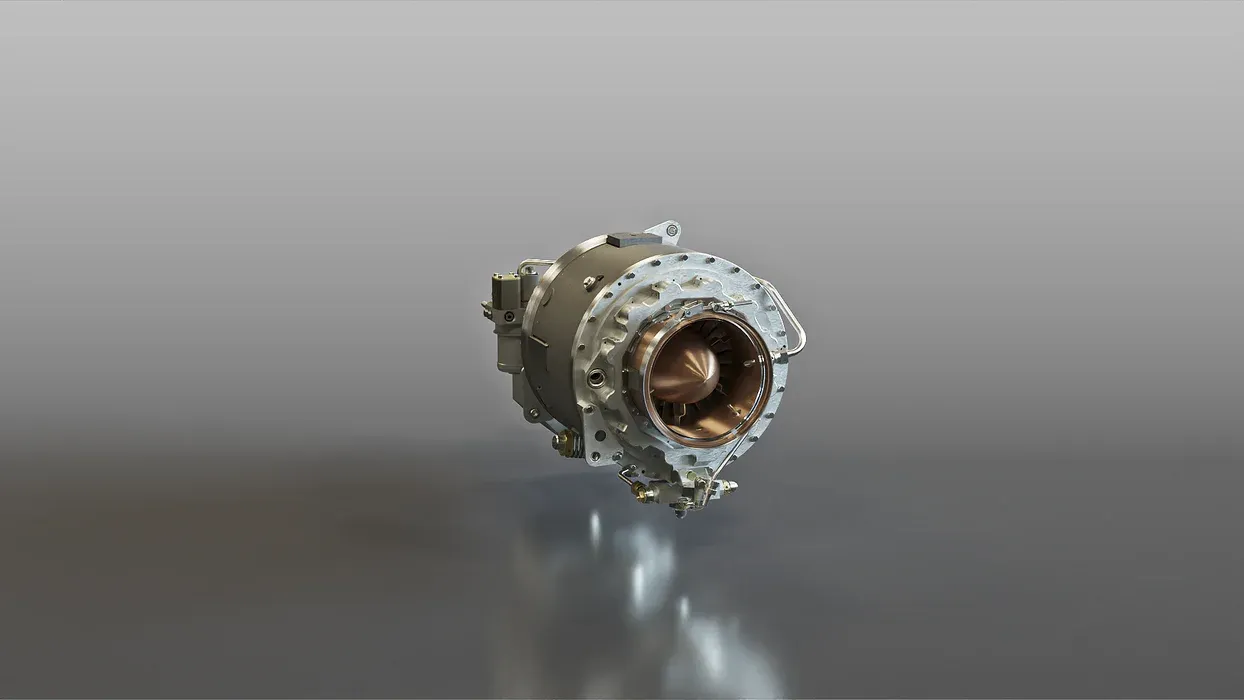

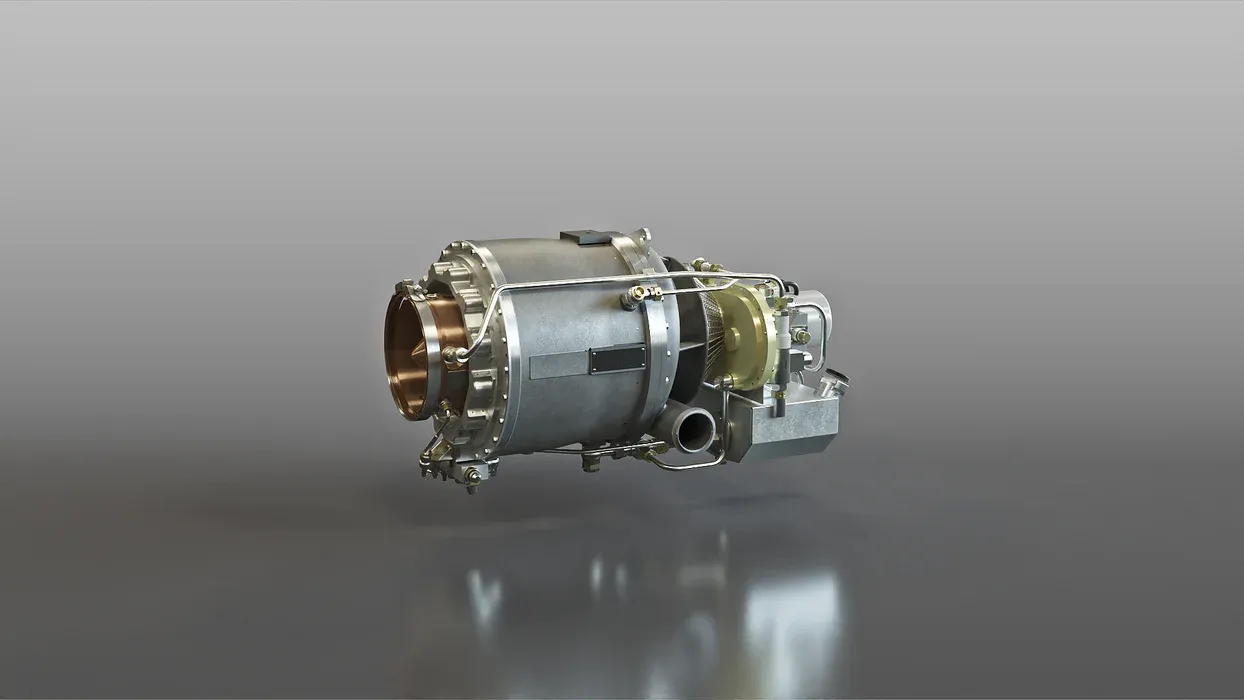

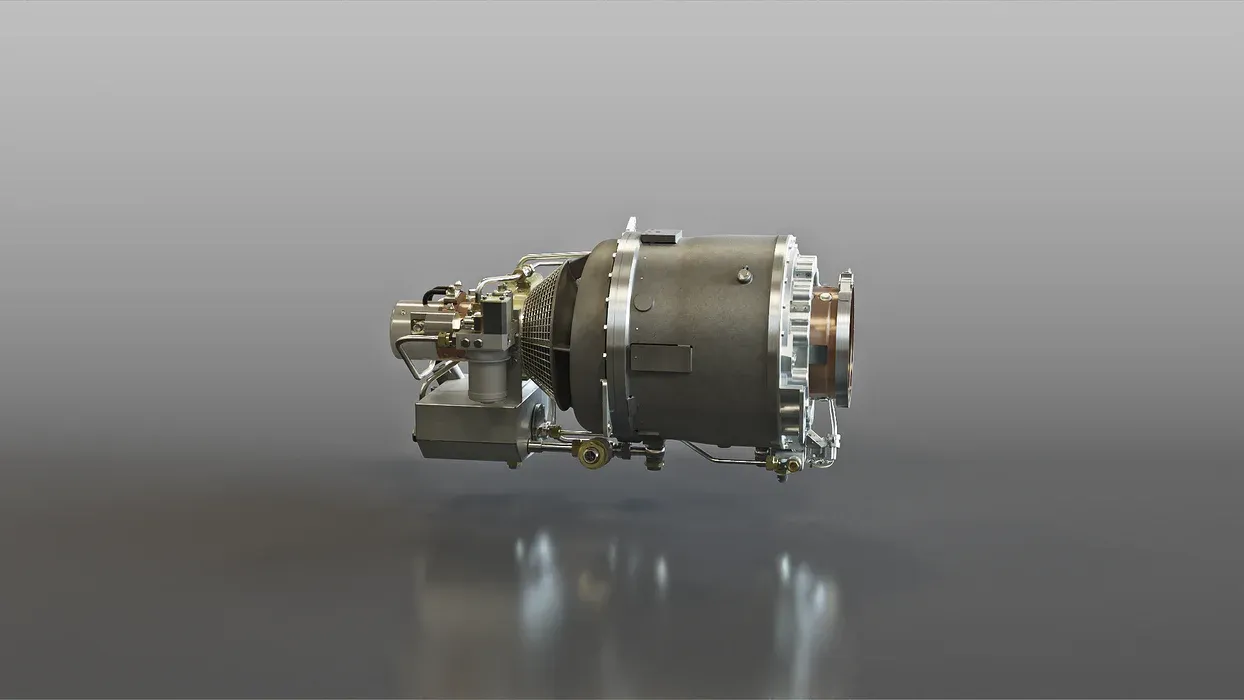

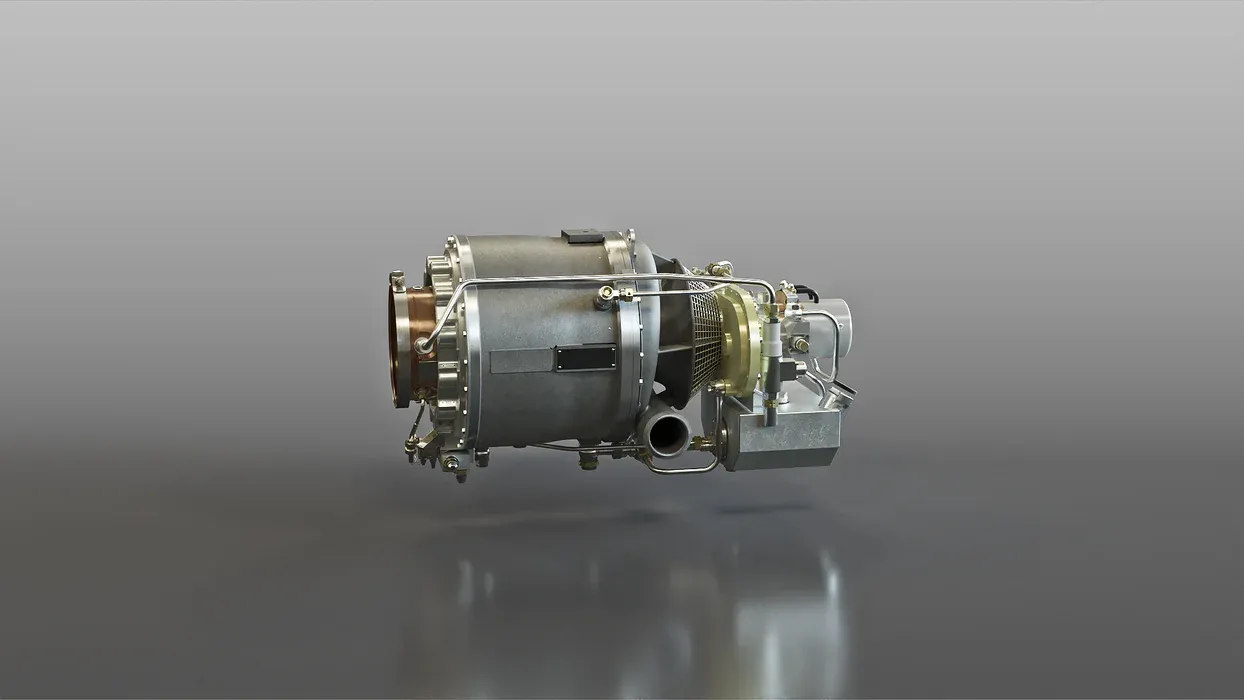

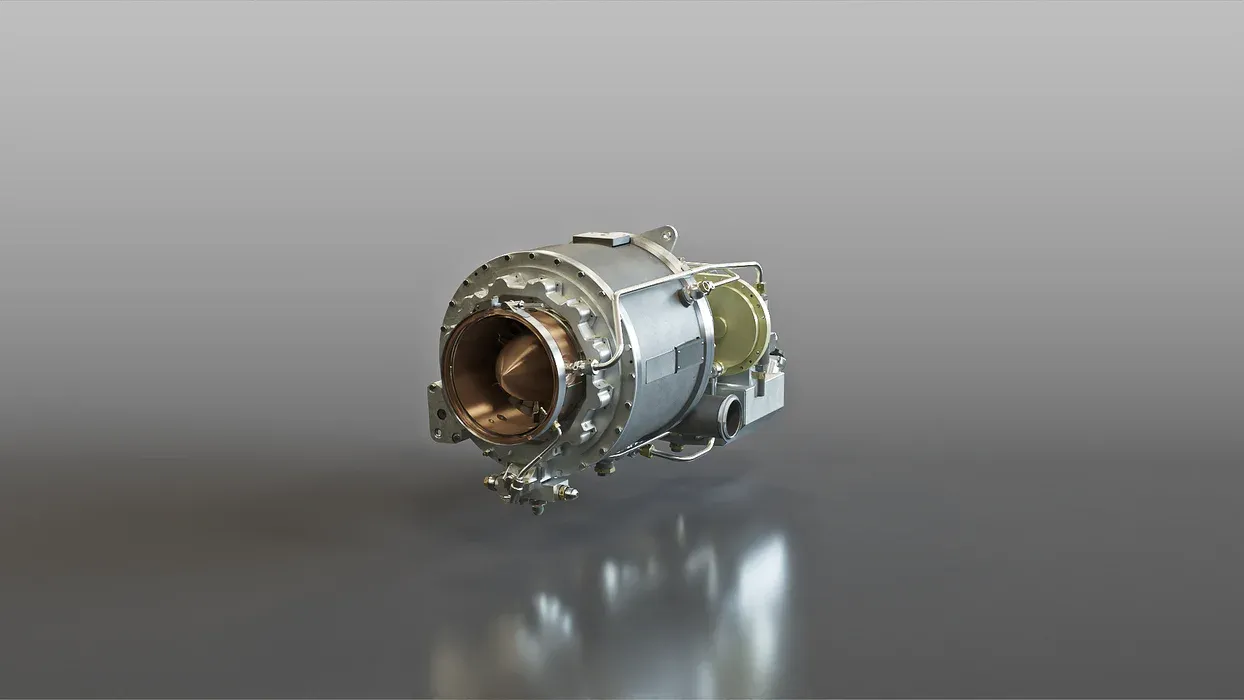

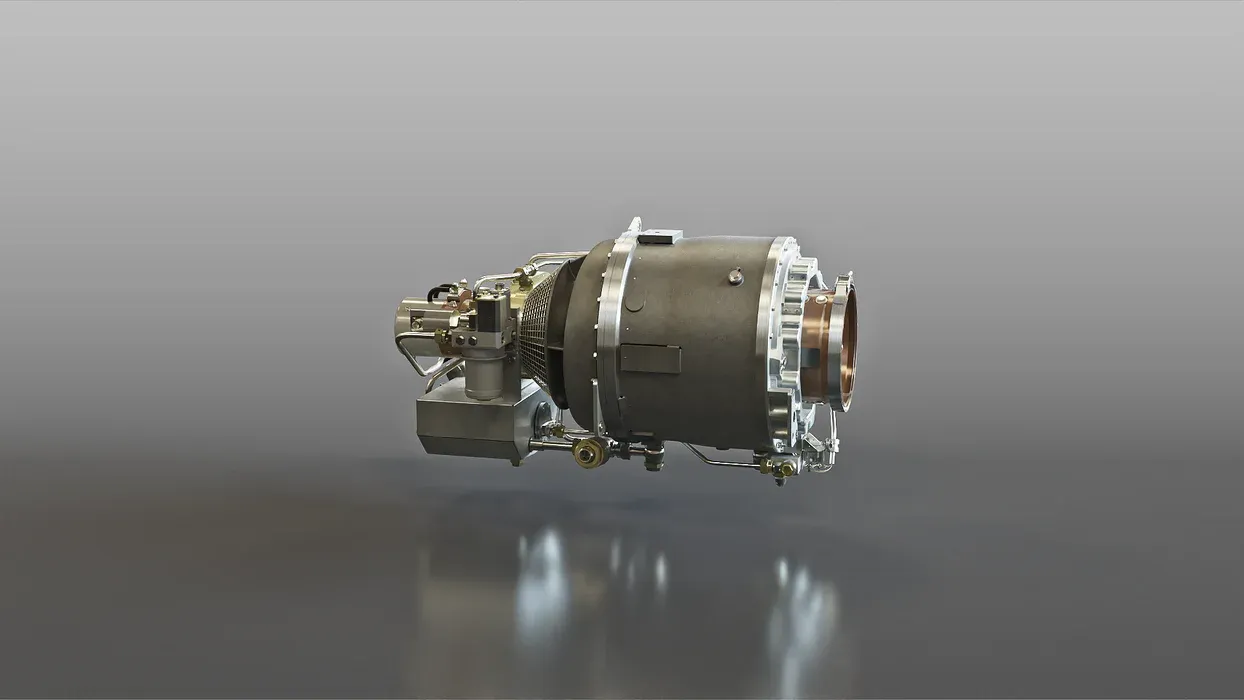

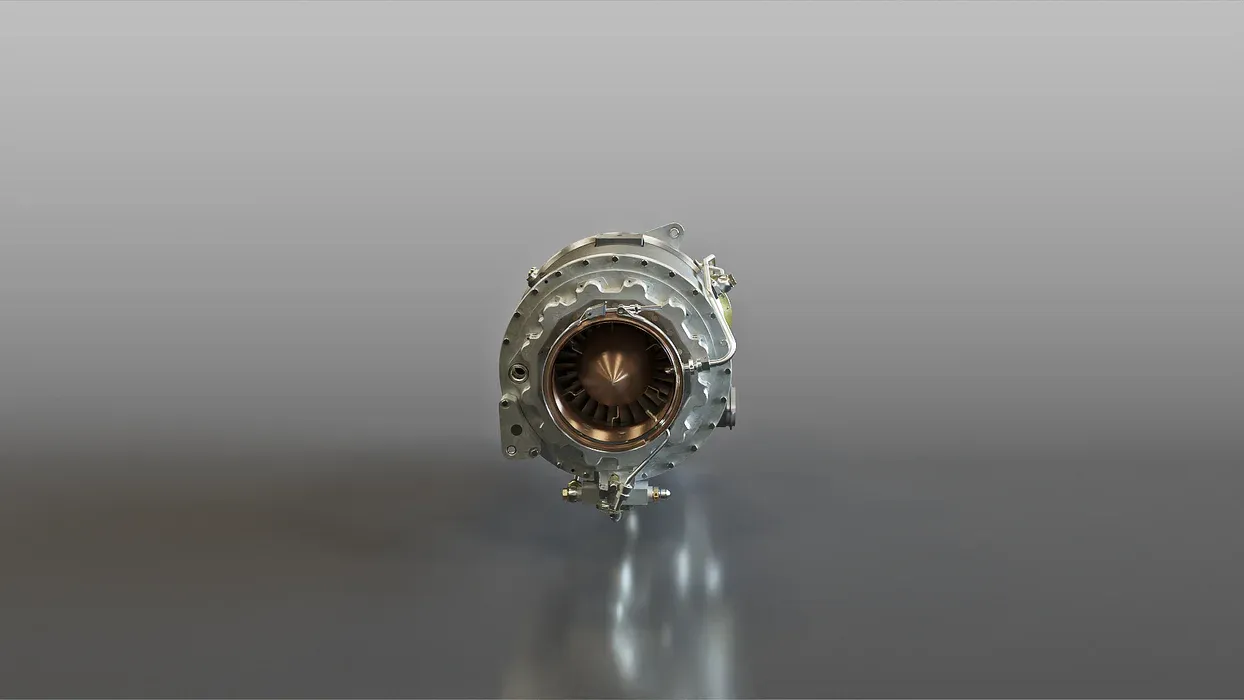

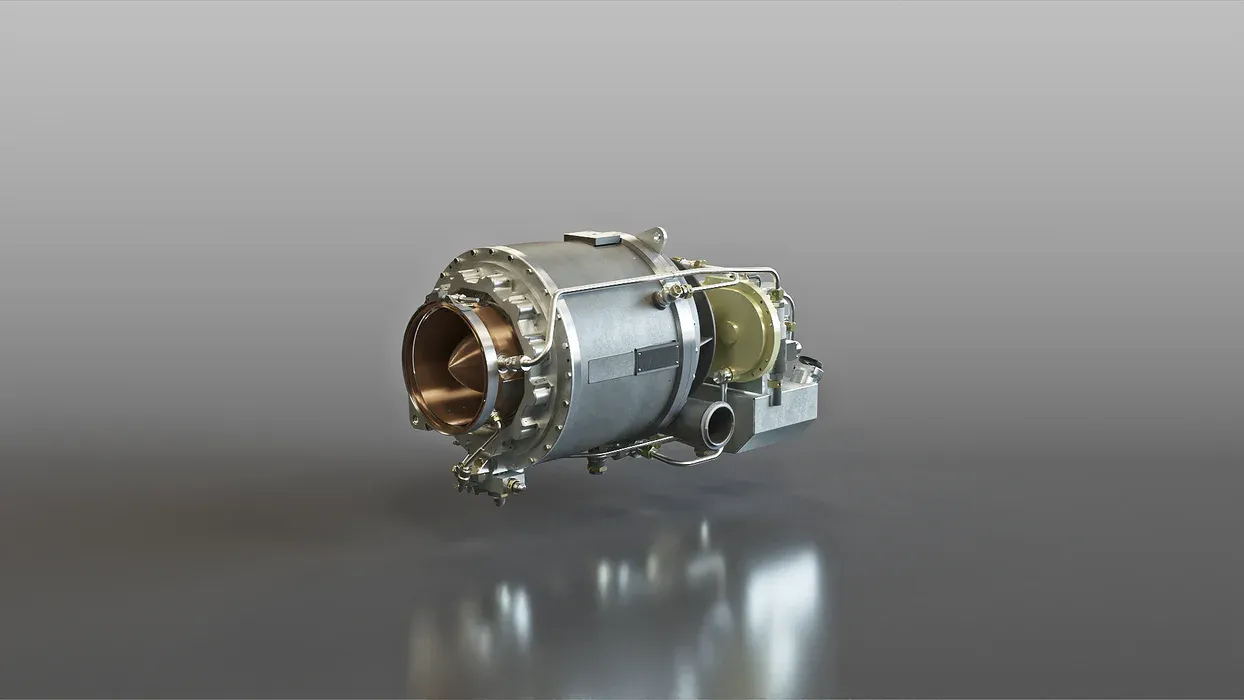

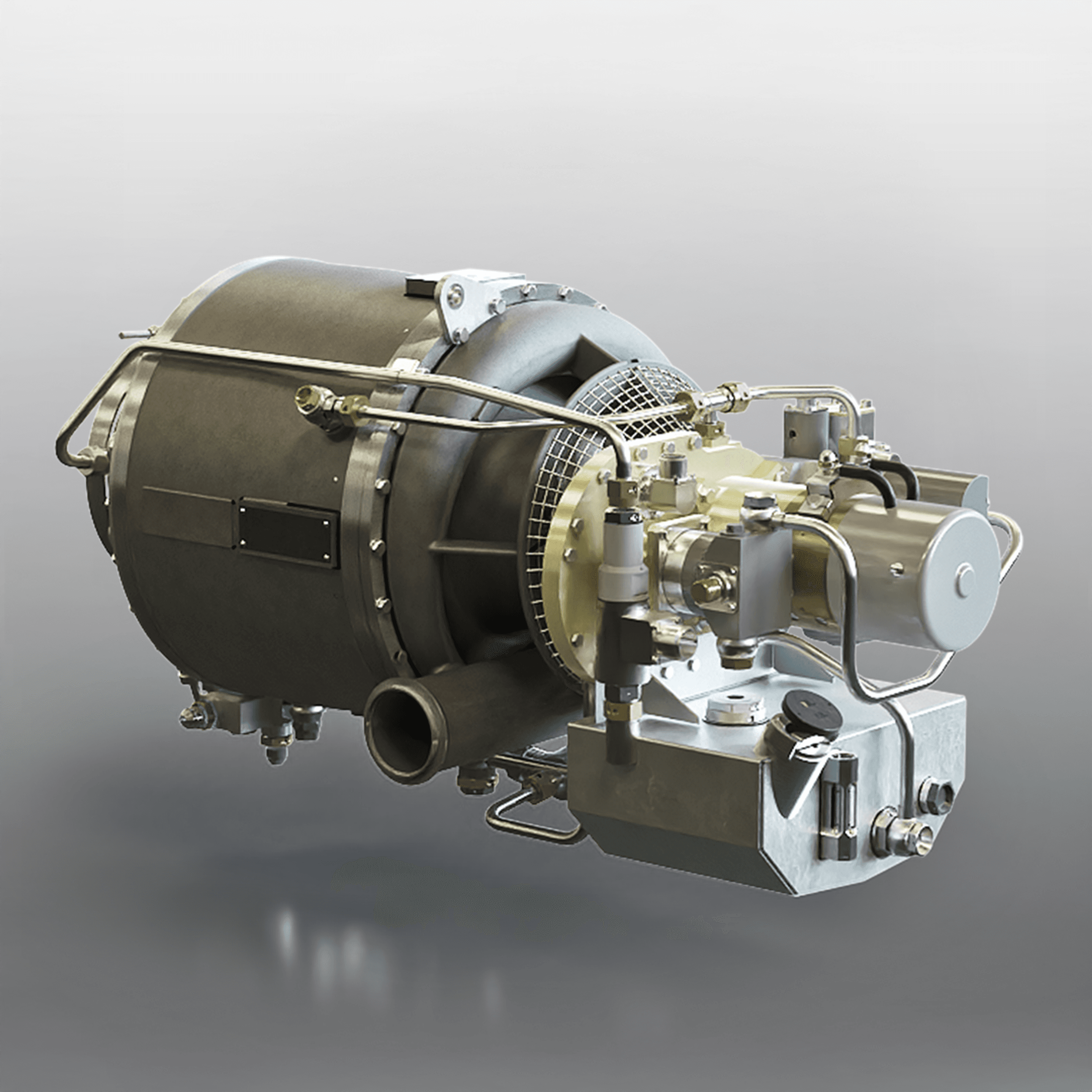

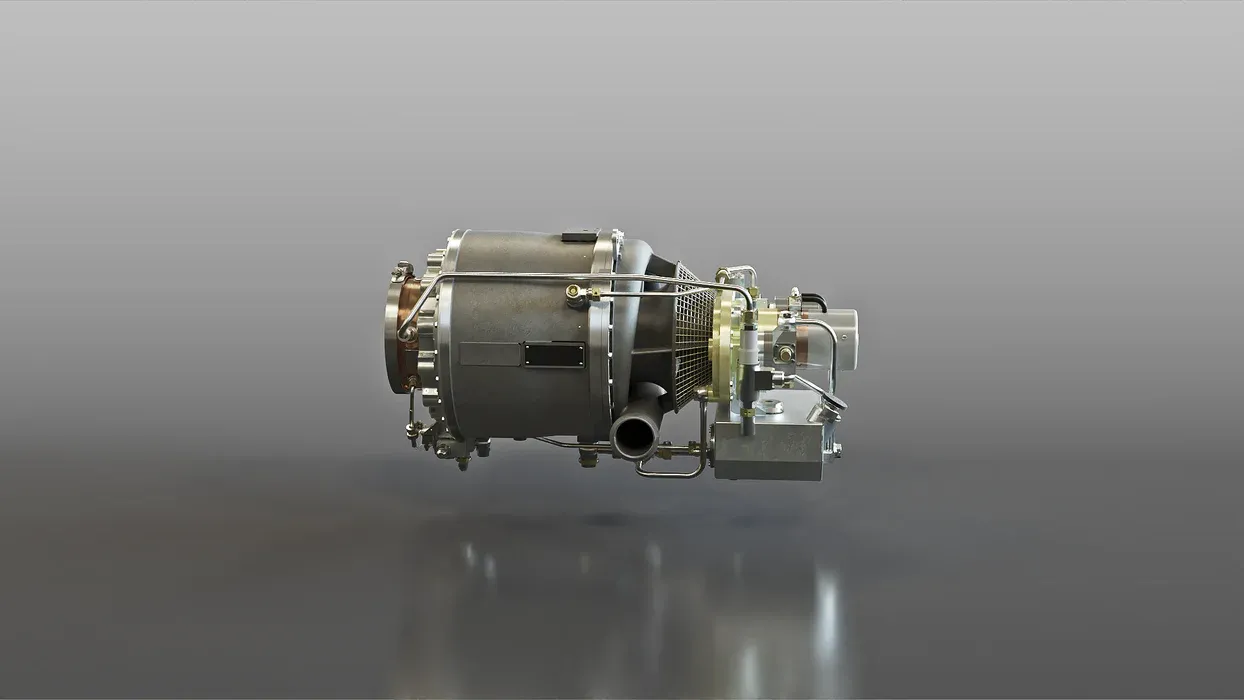

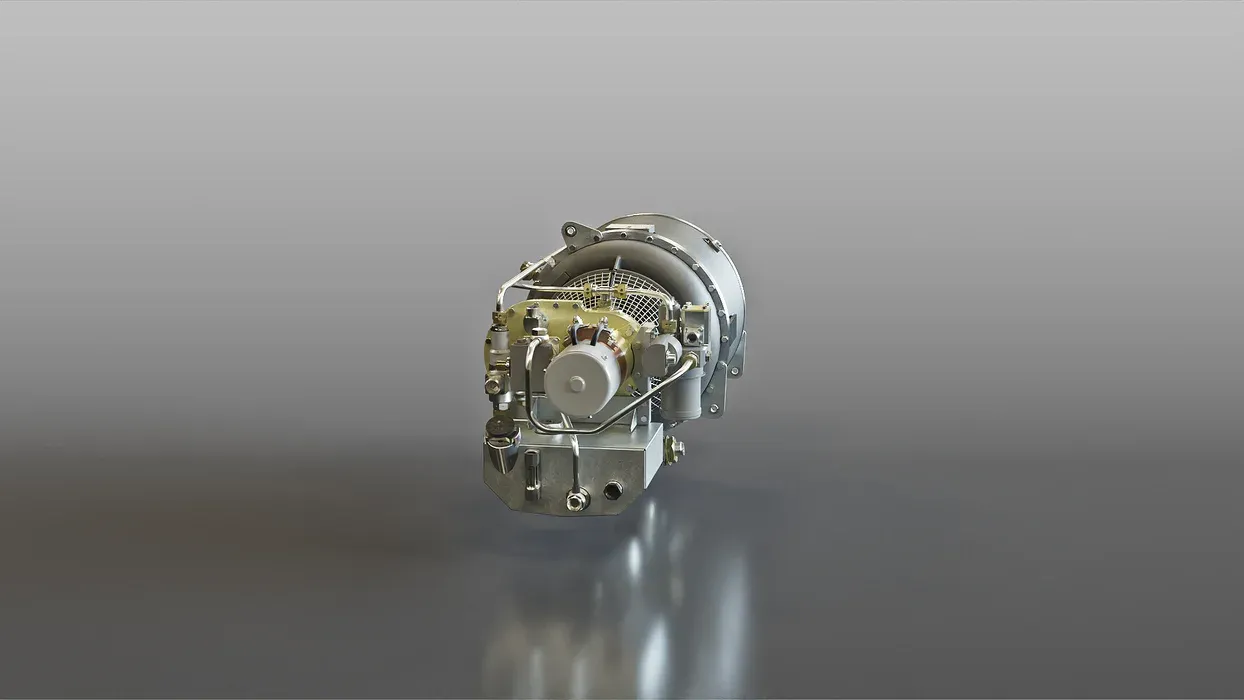

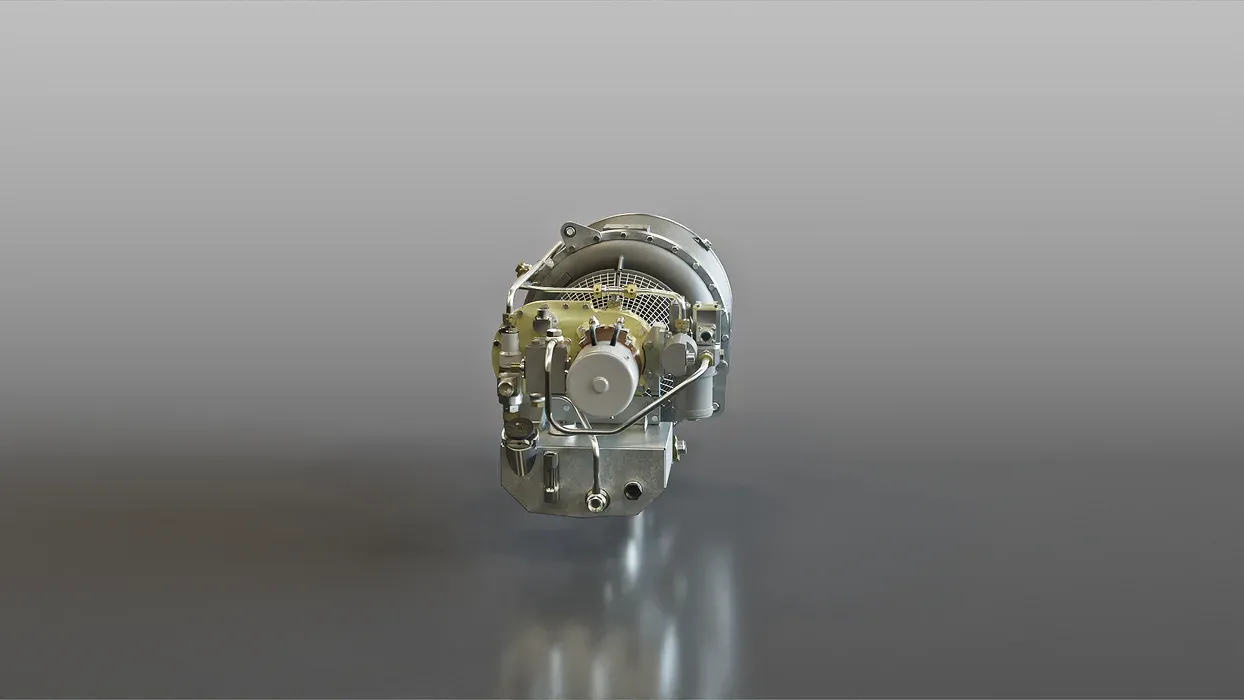

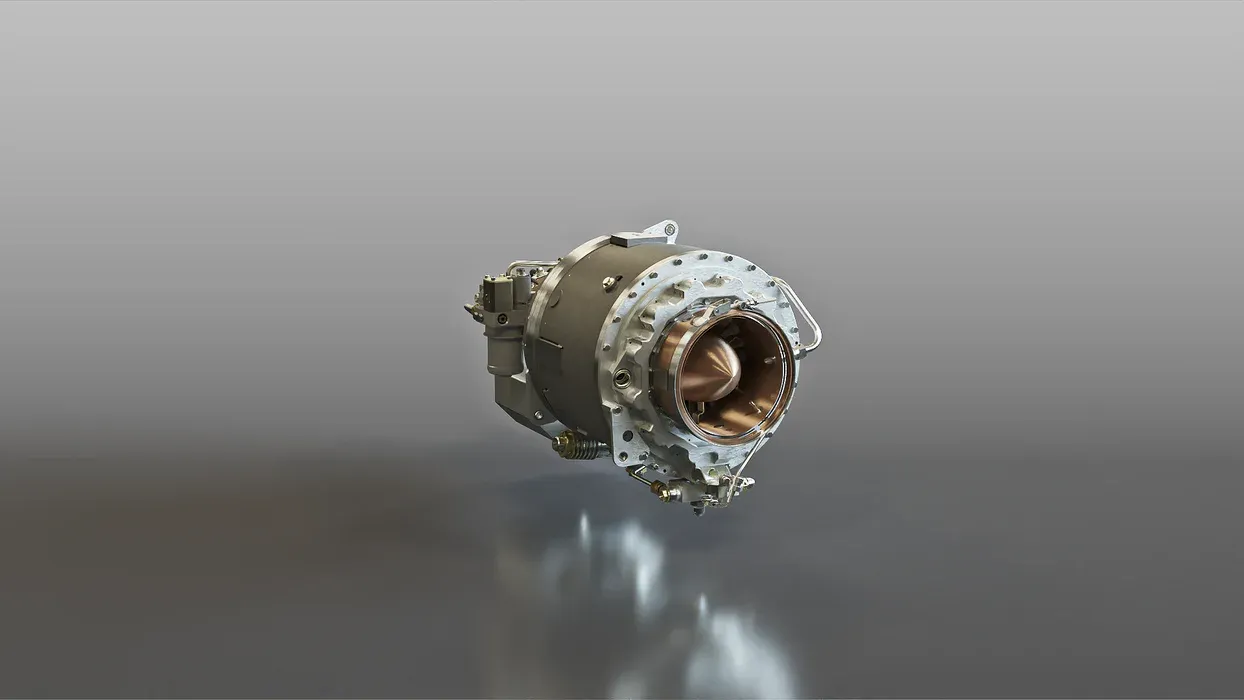

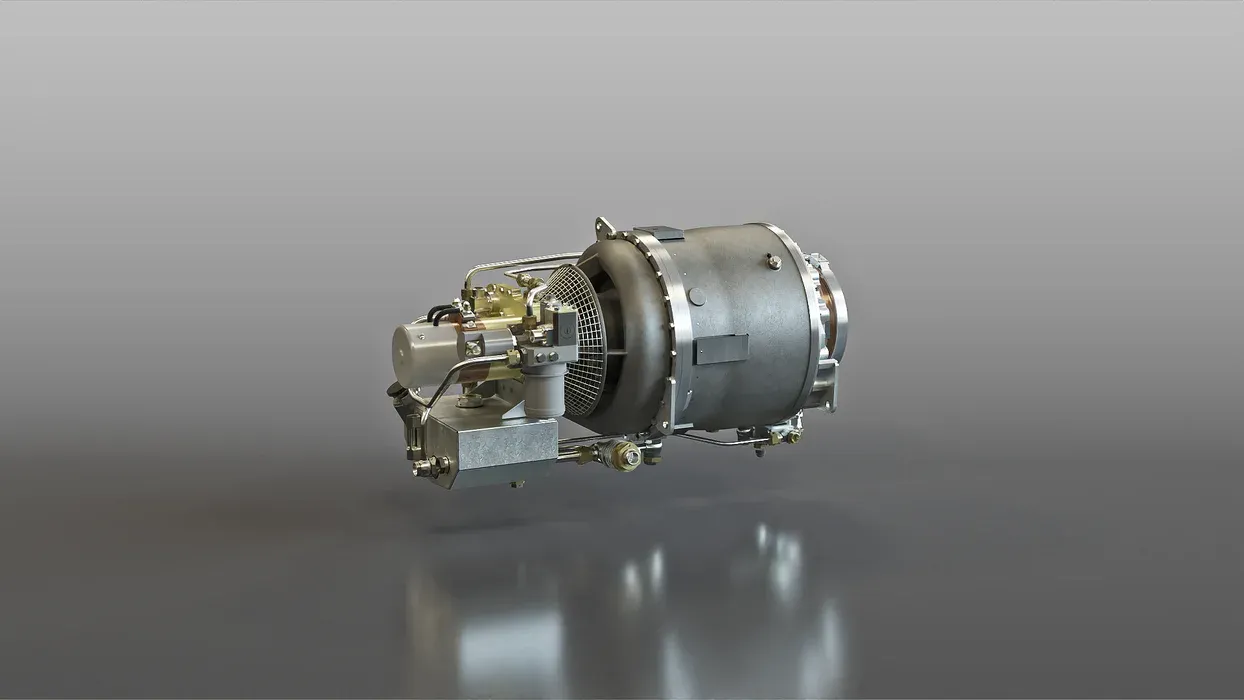

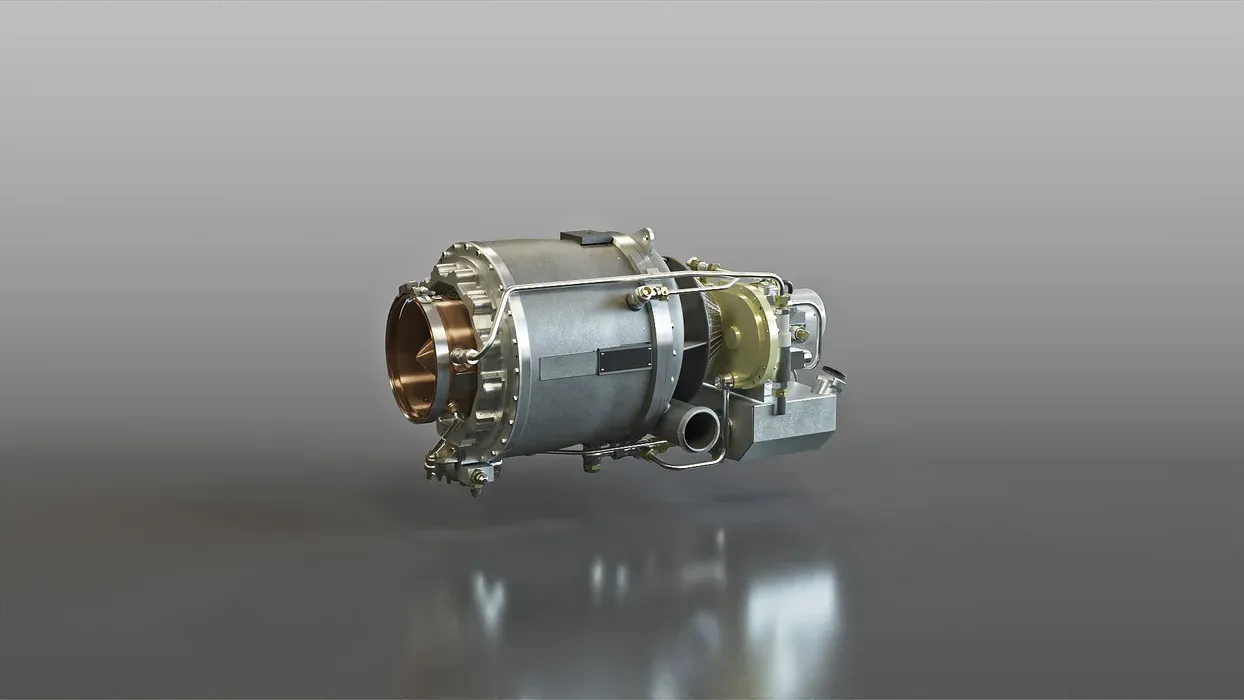

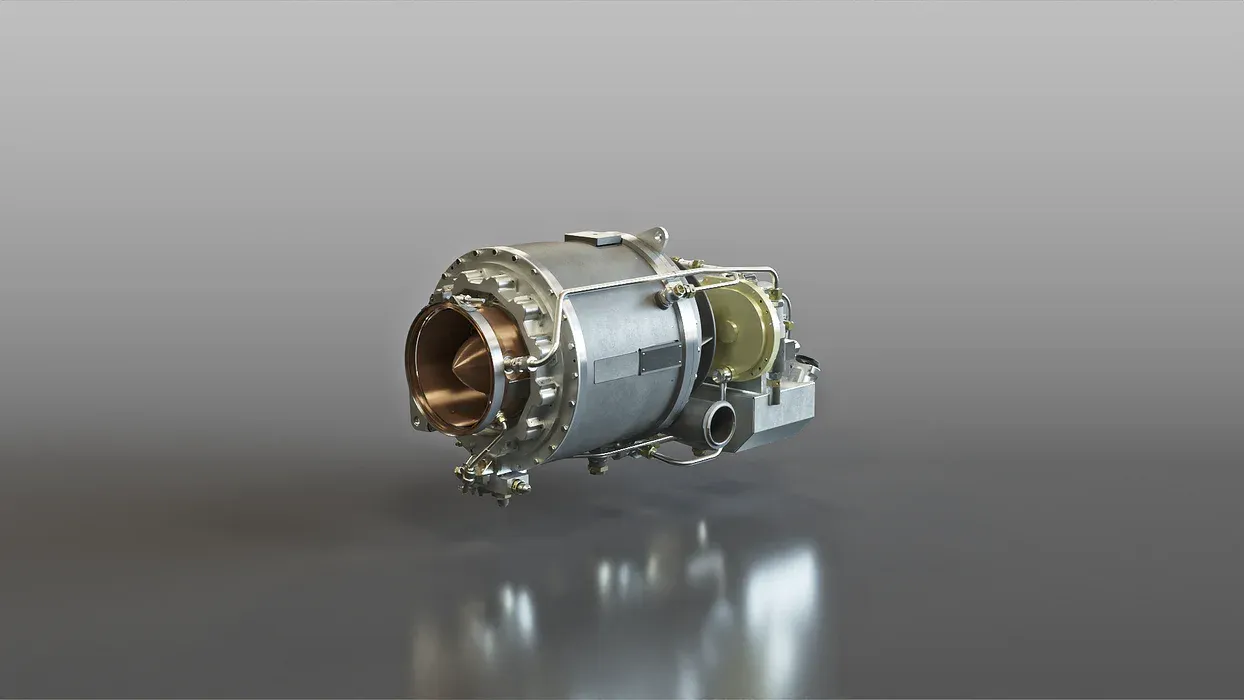

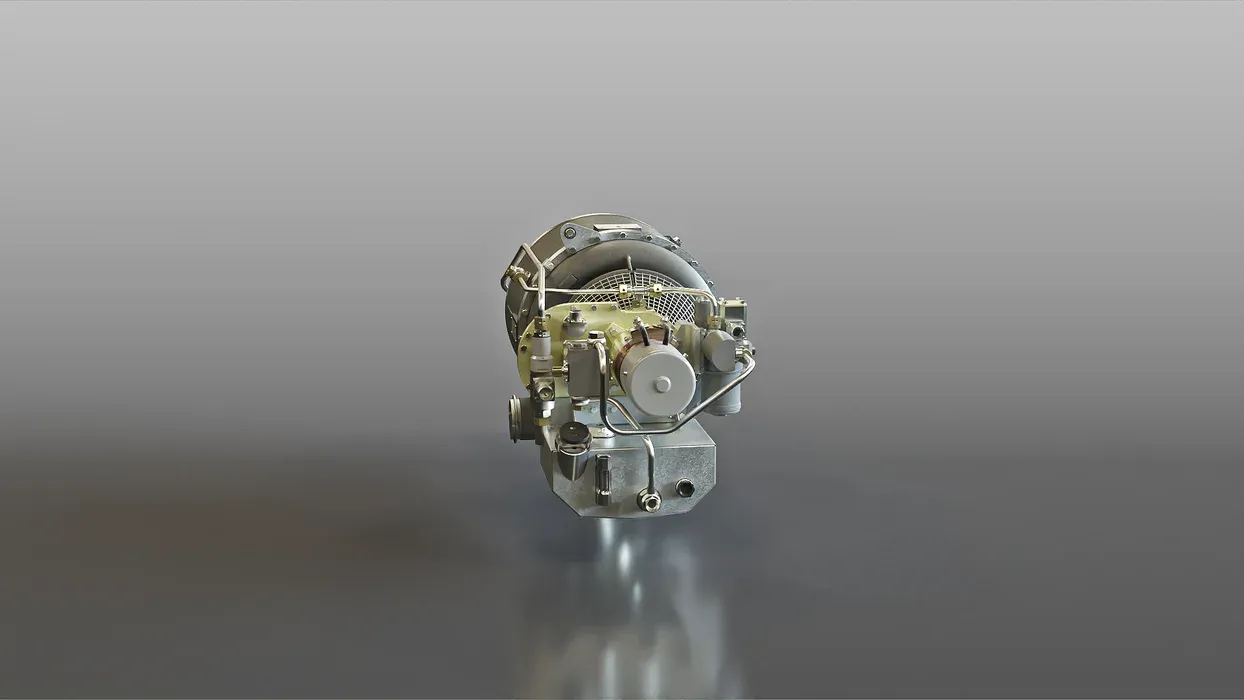

SAFIR 5L

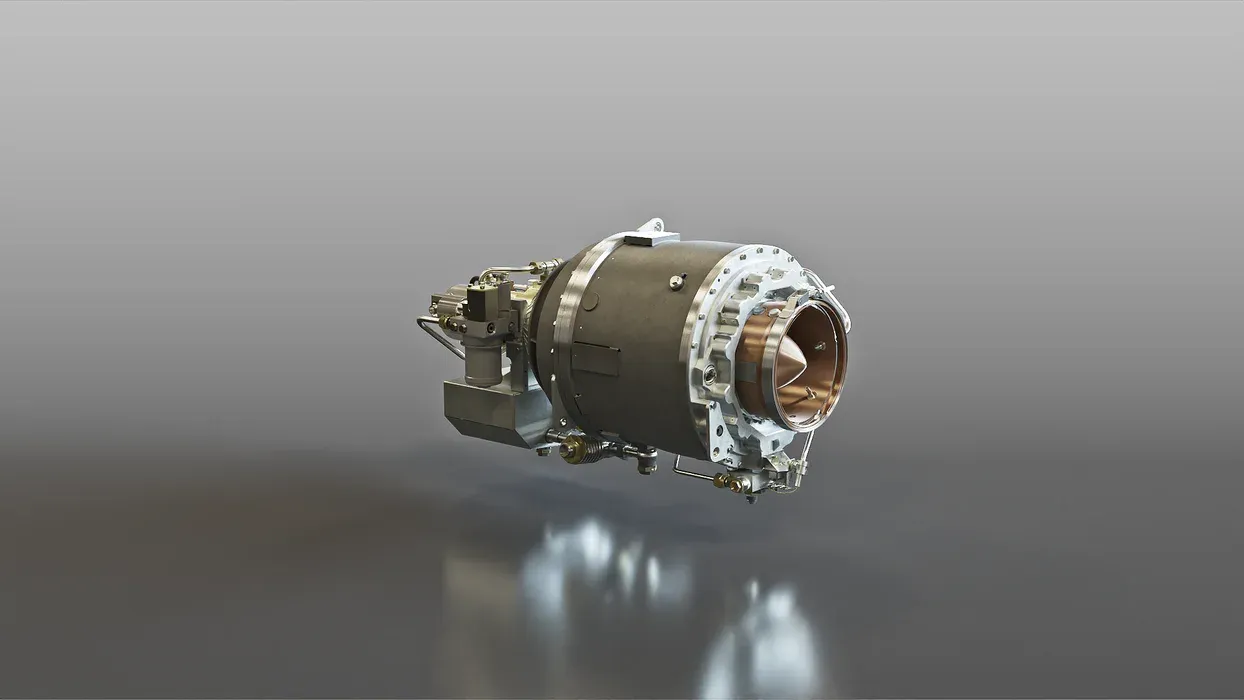

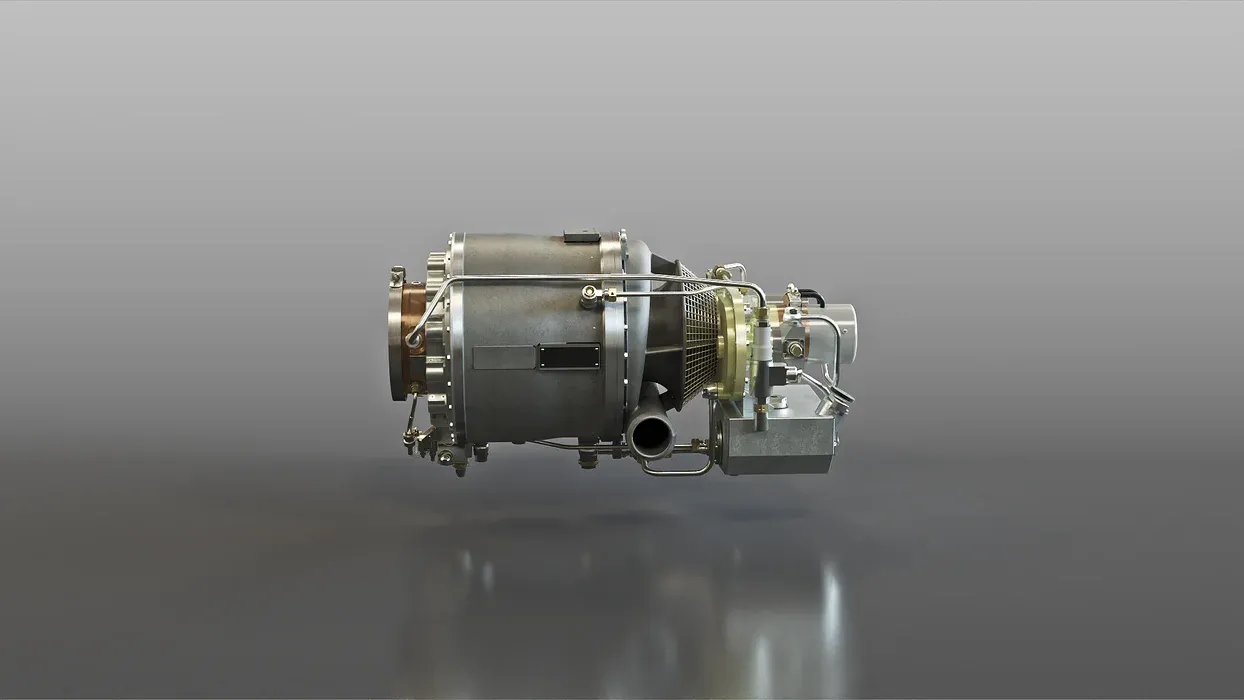

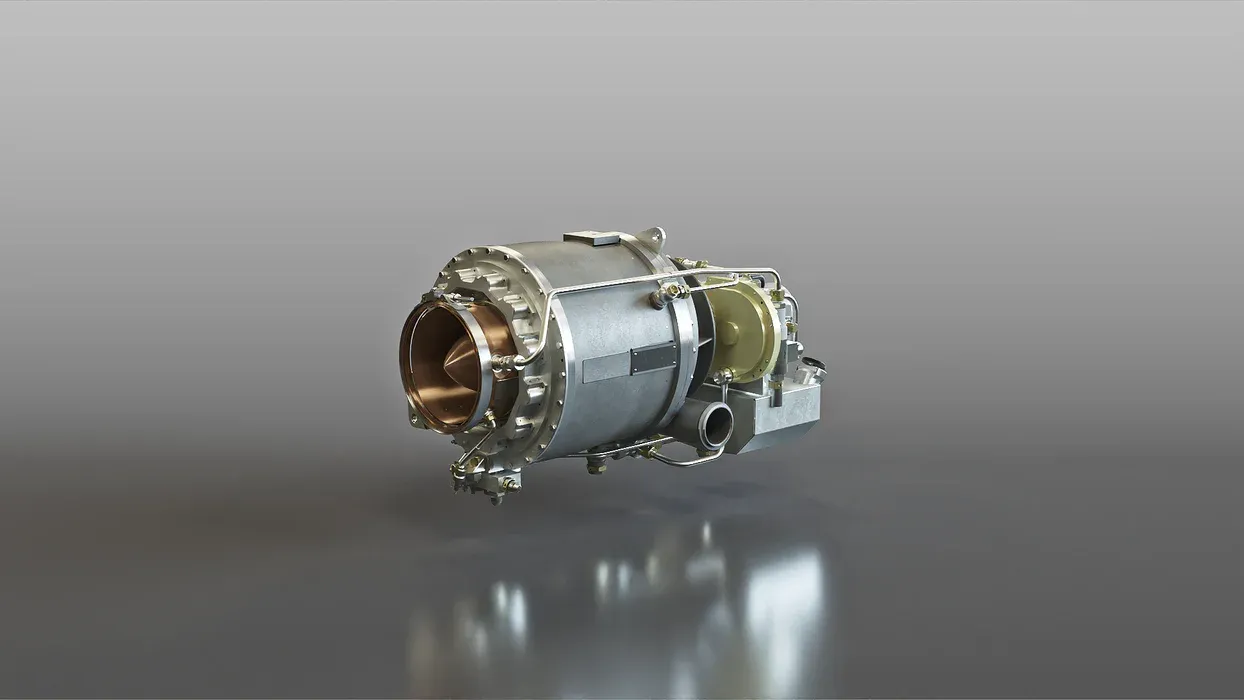

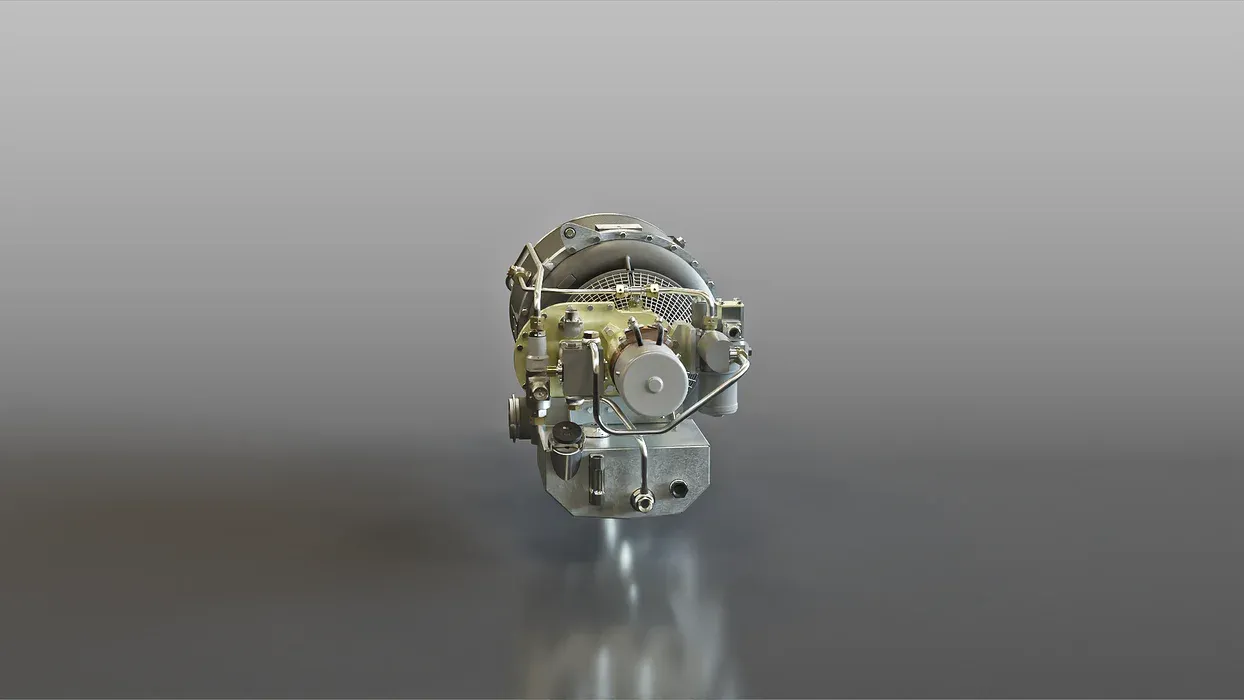

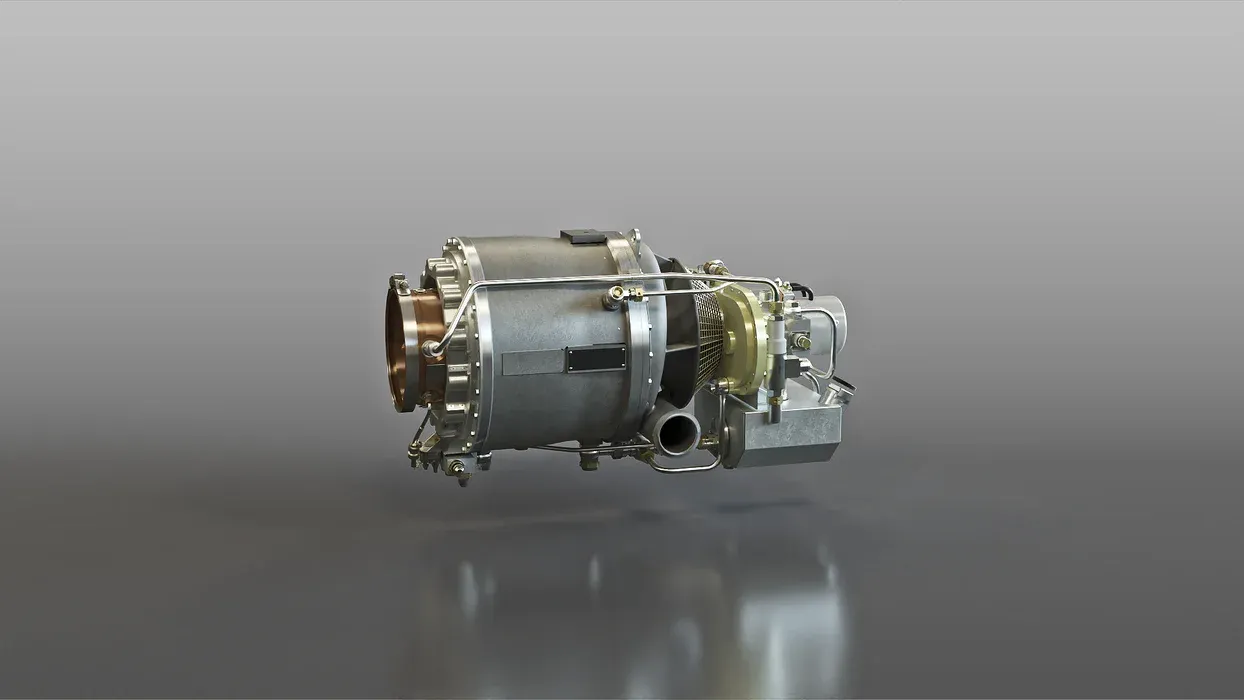

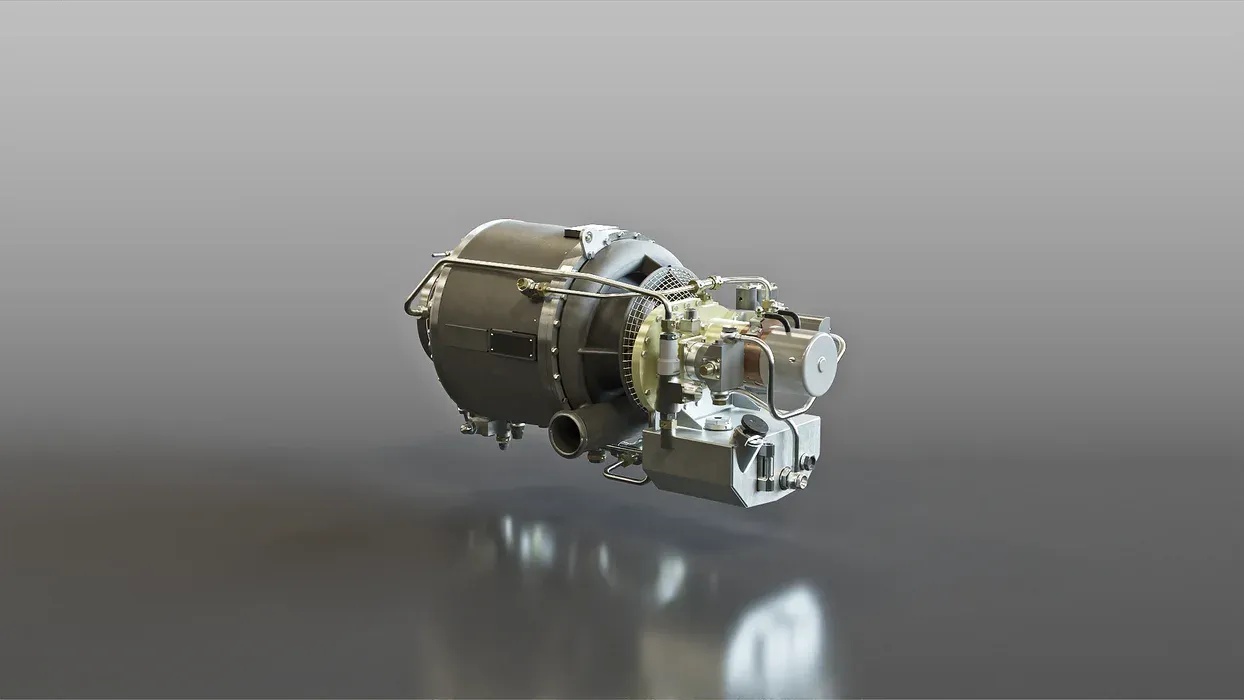

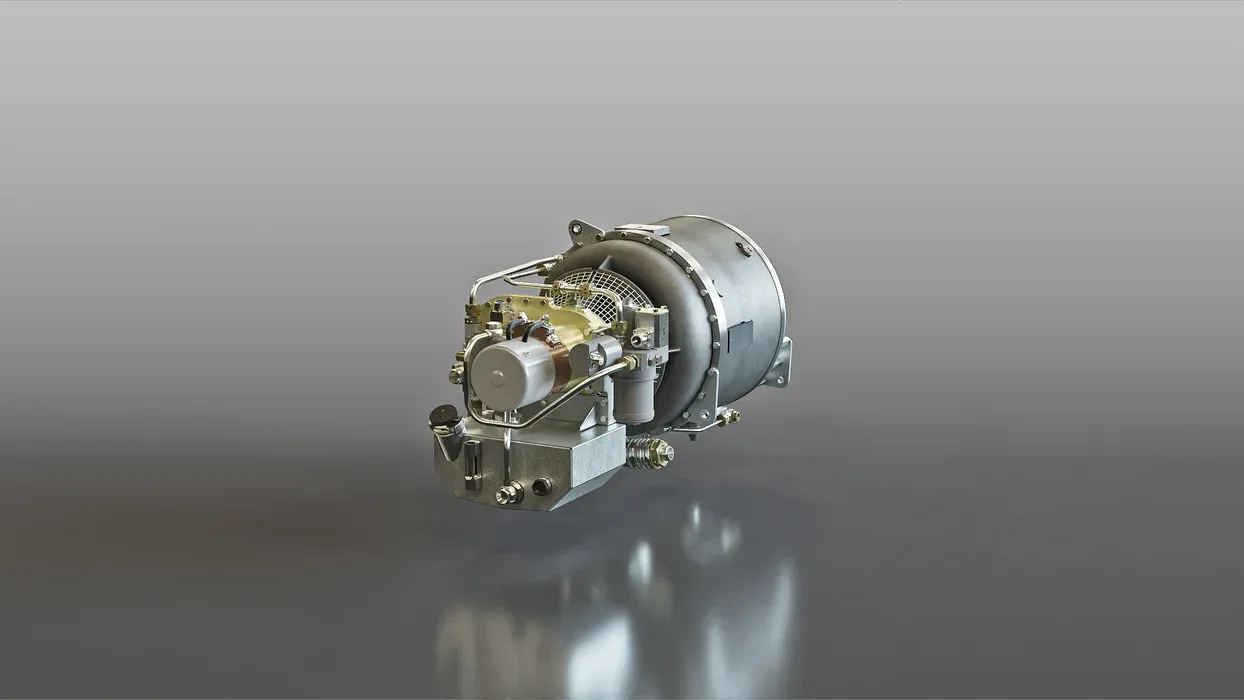

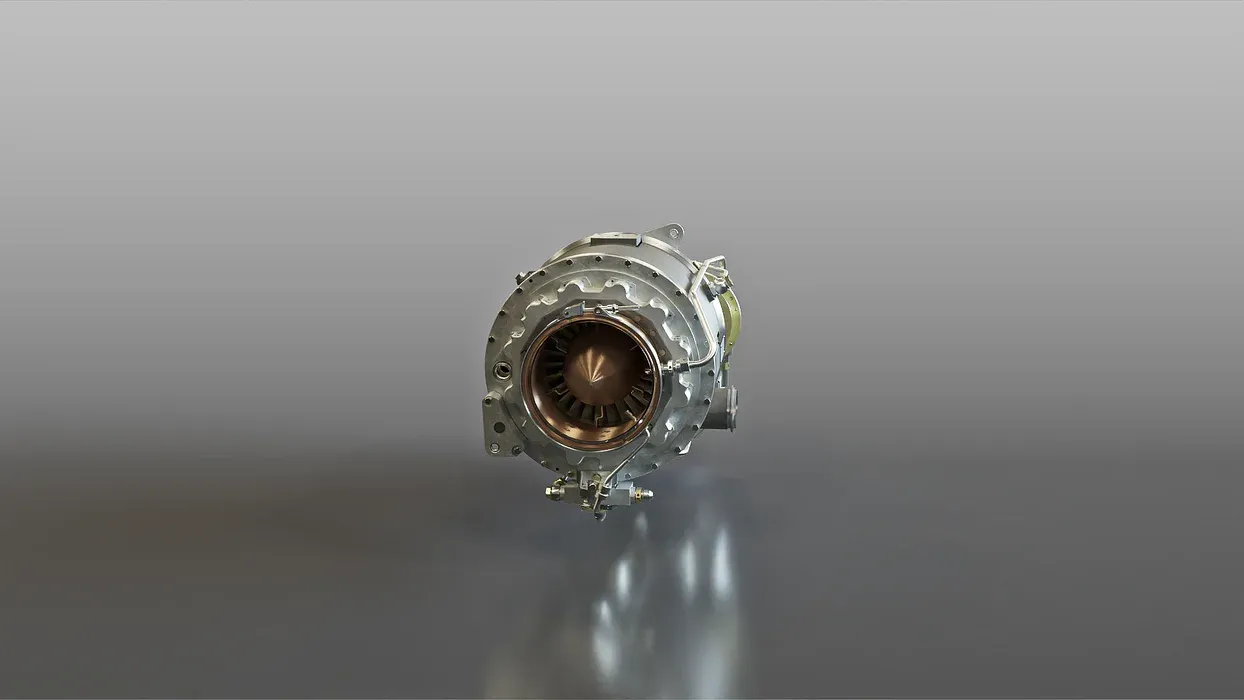

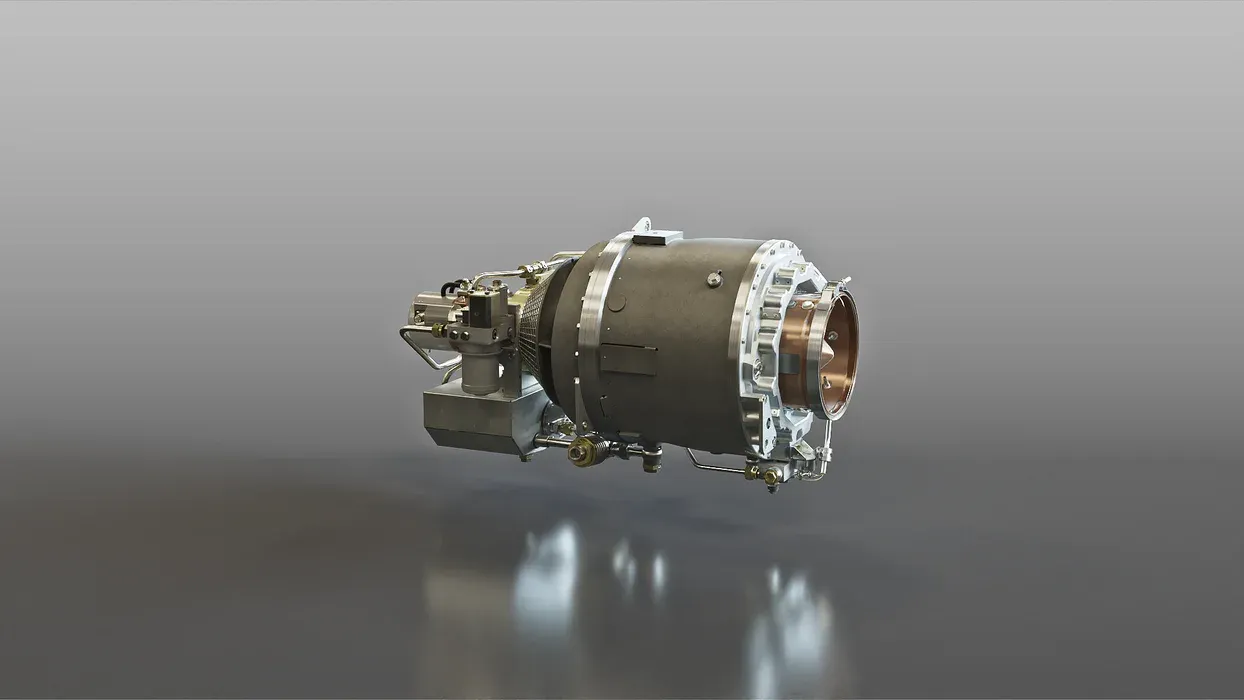

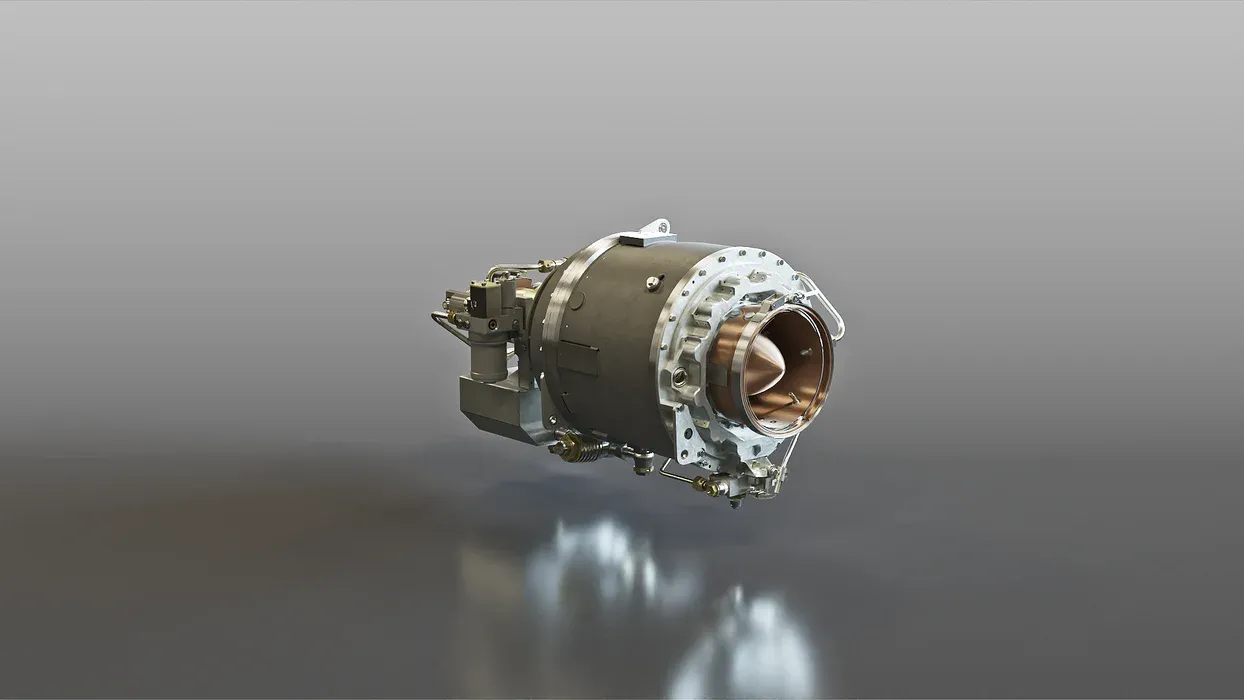

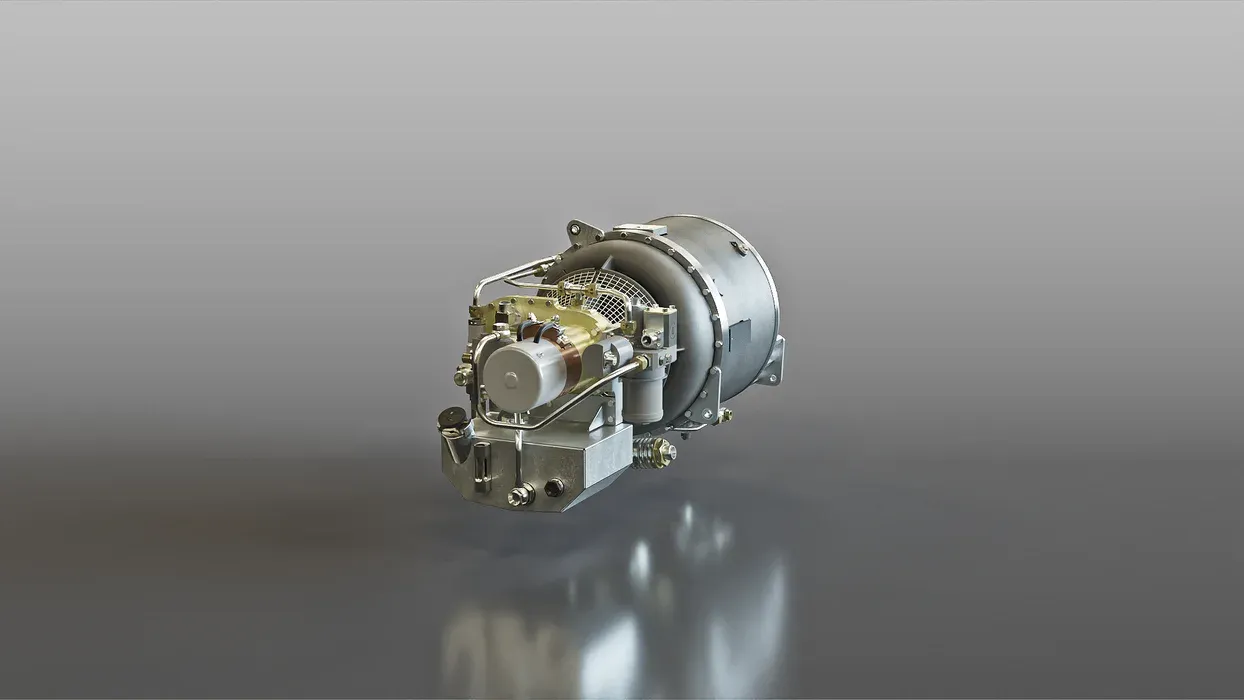

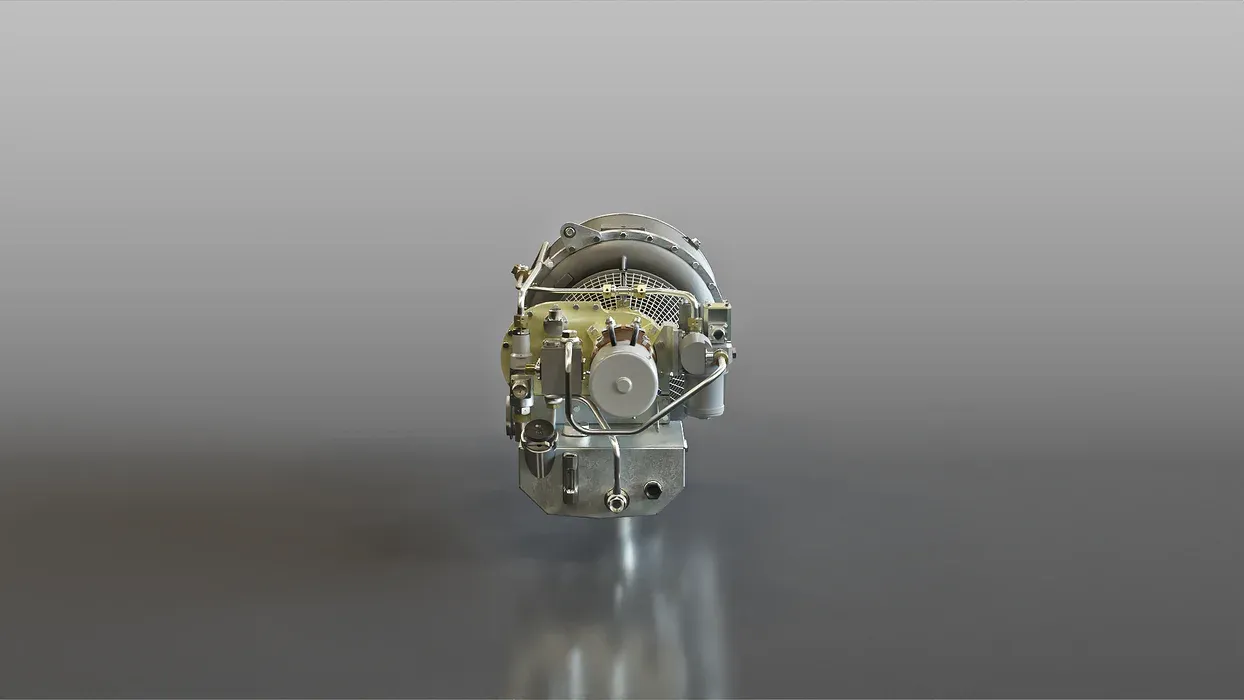

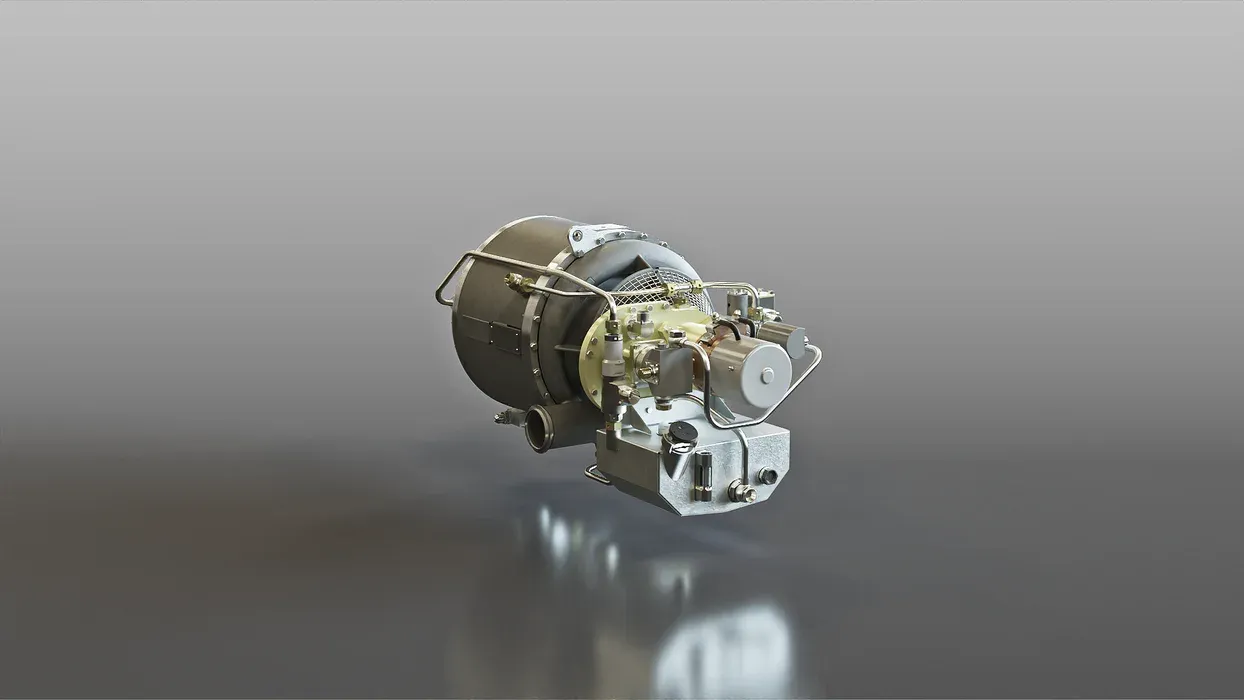

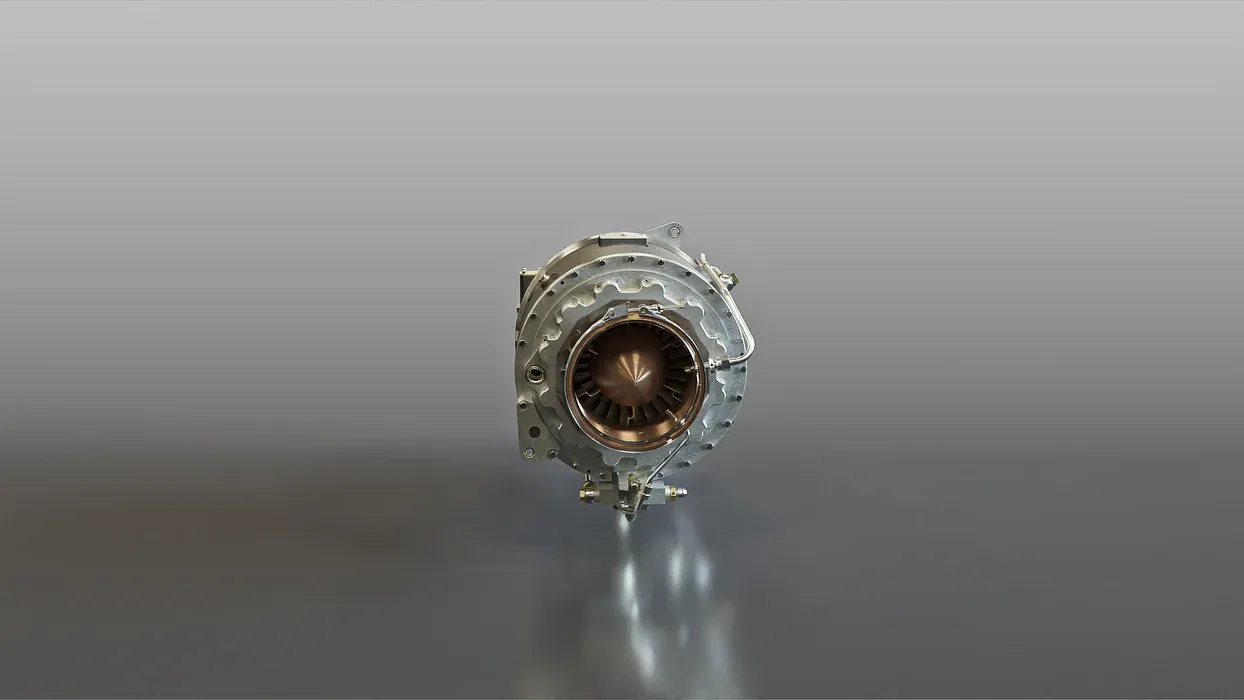

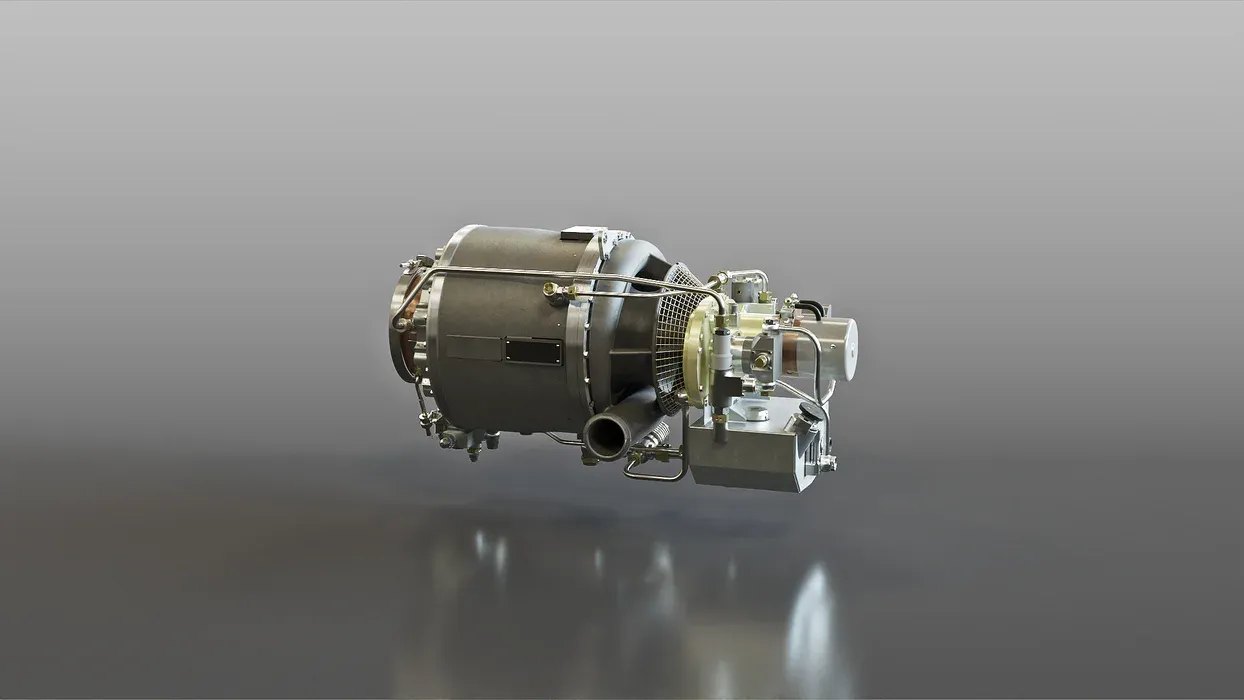

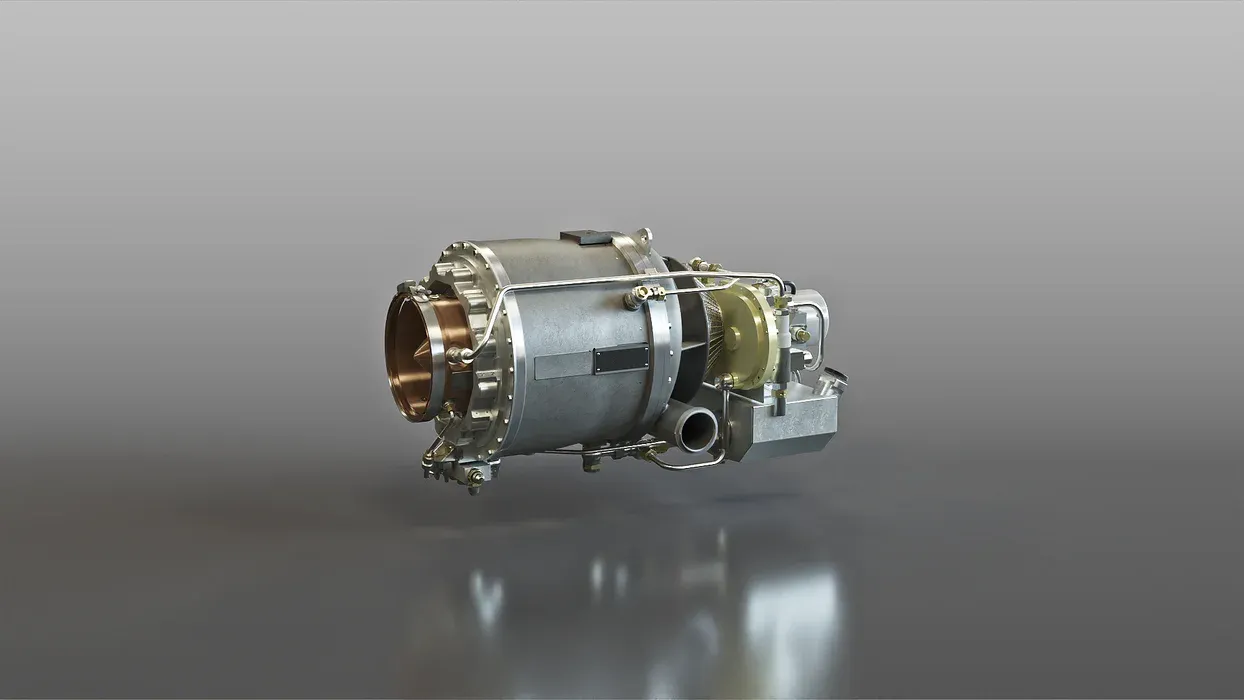

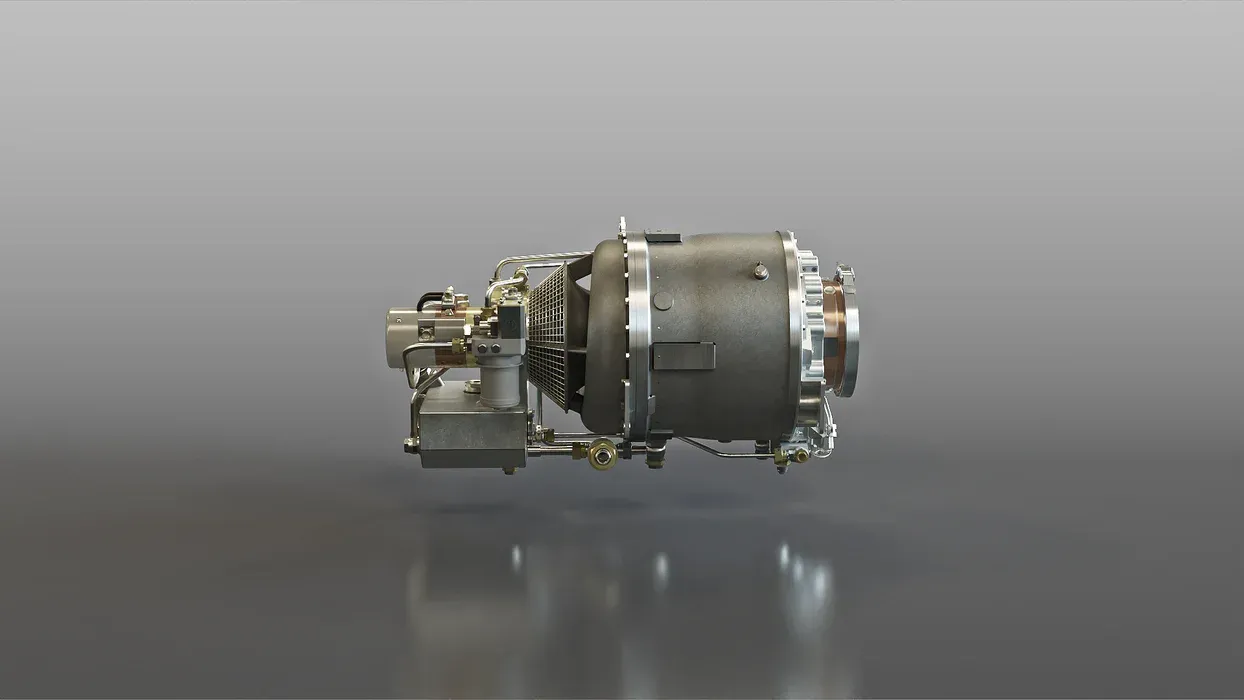

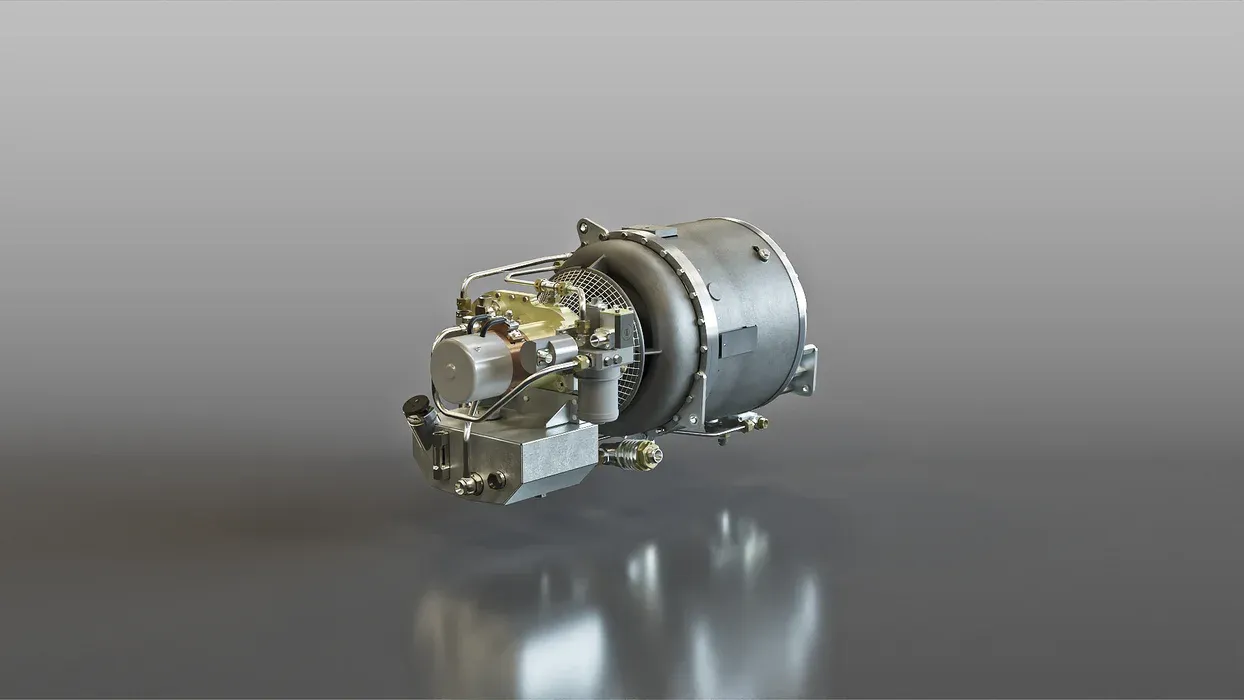

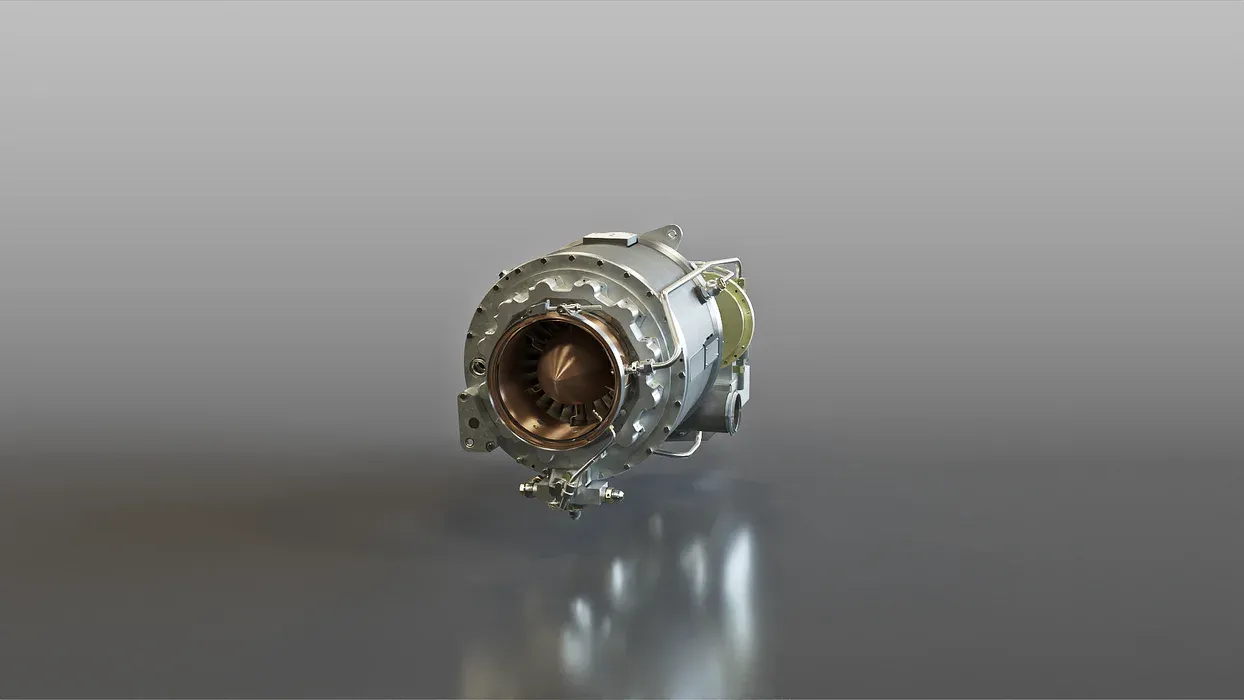

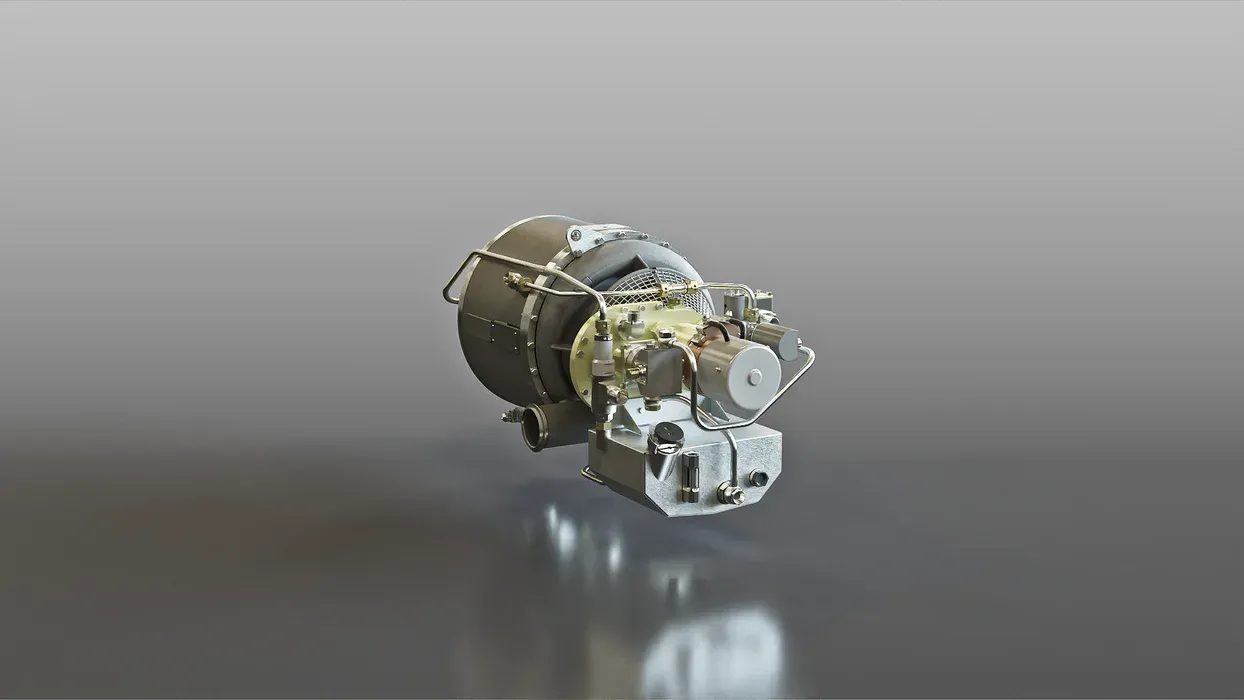

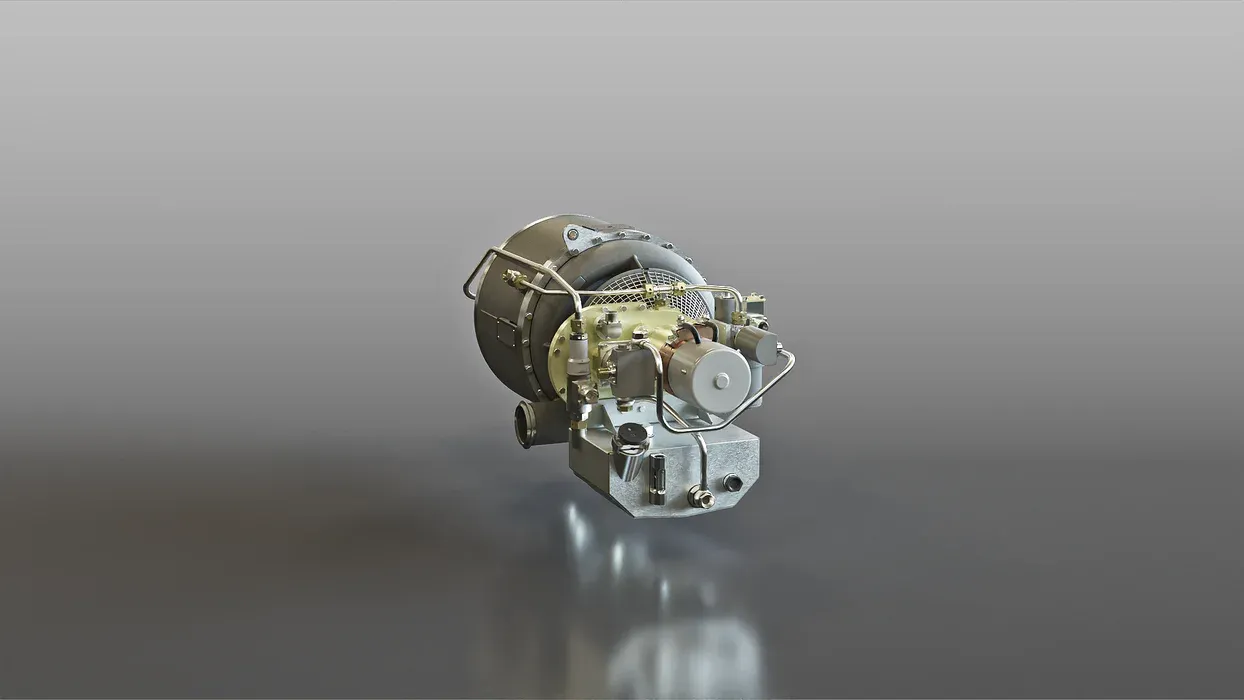

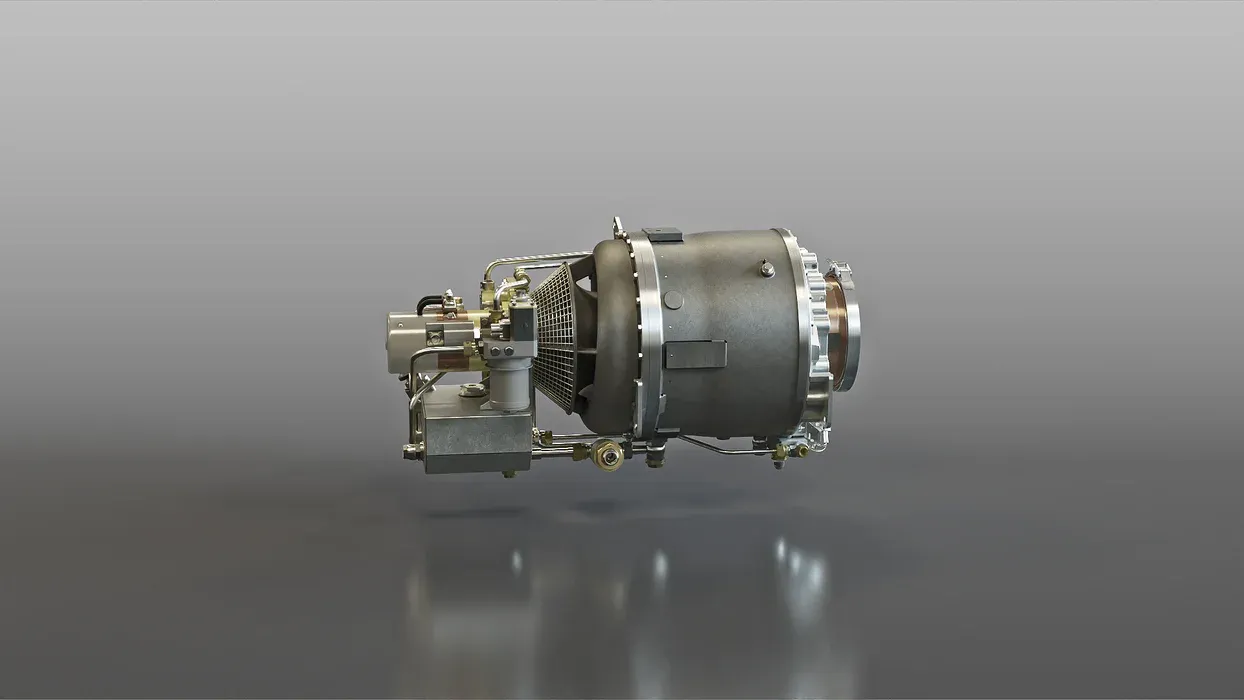

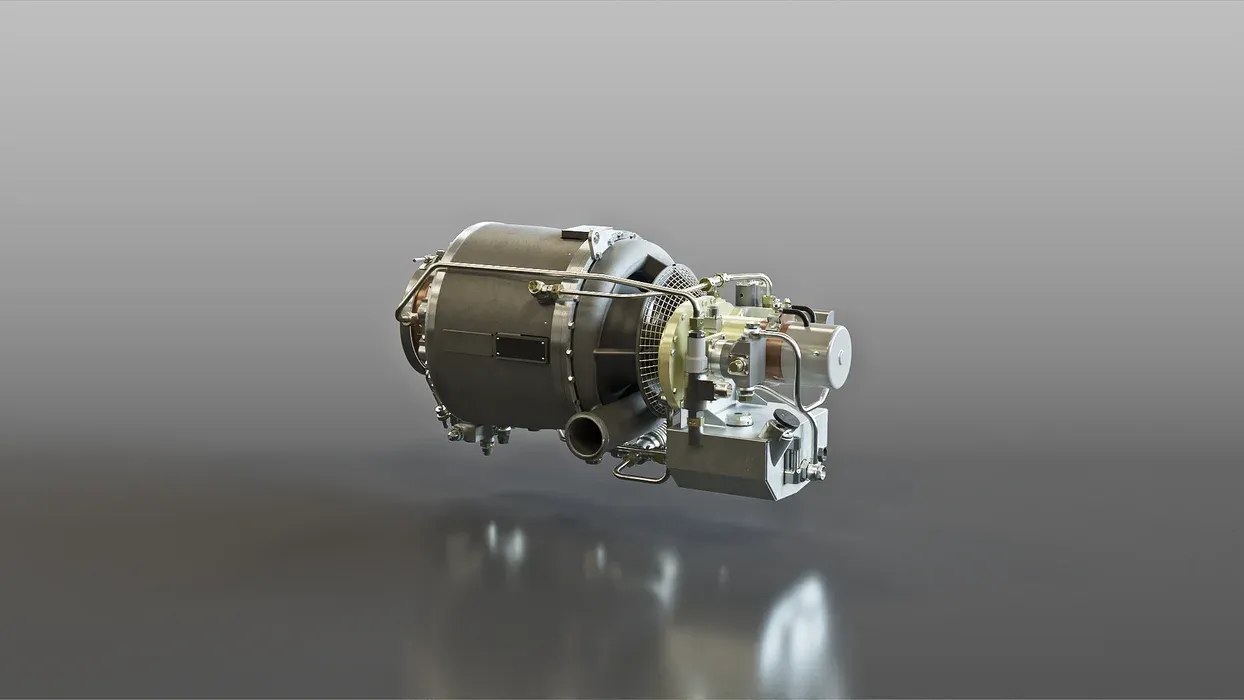

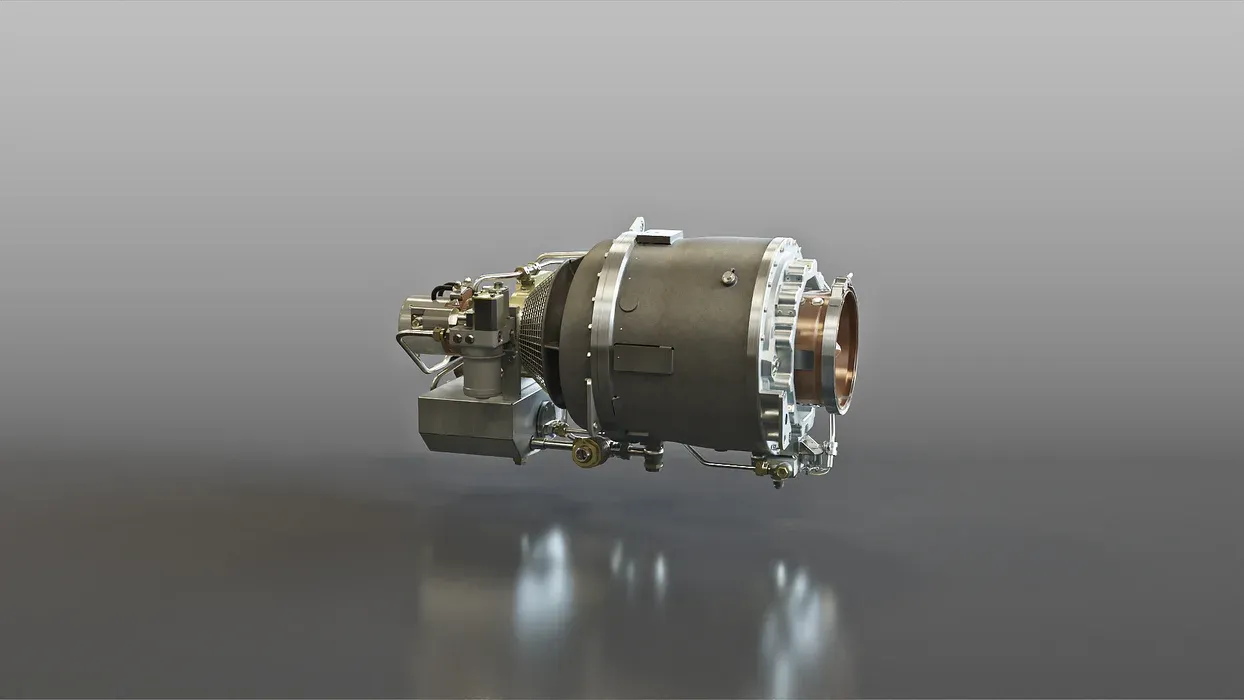

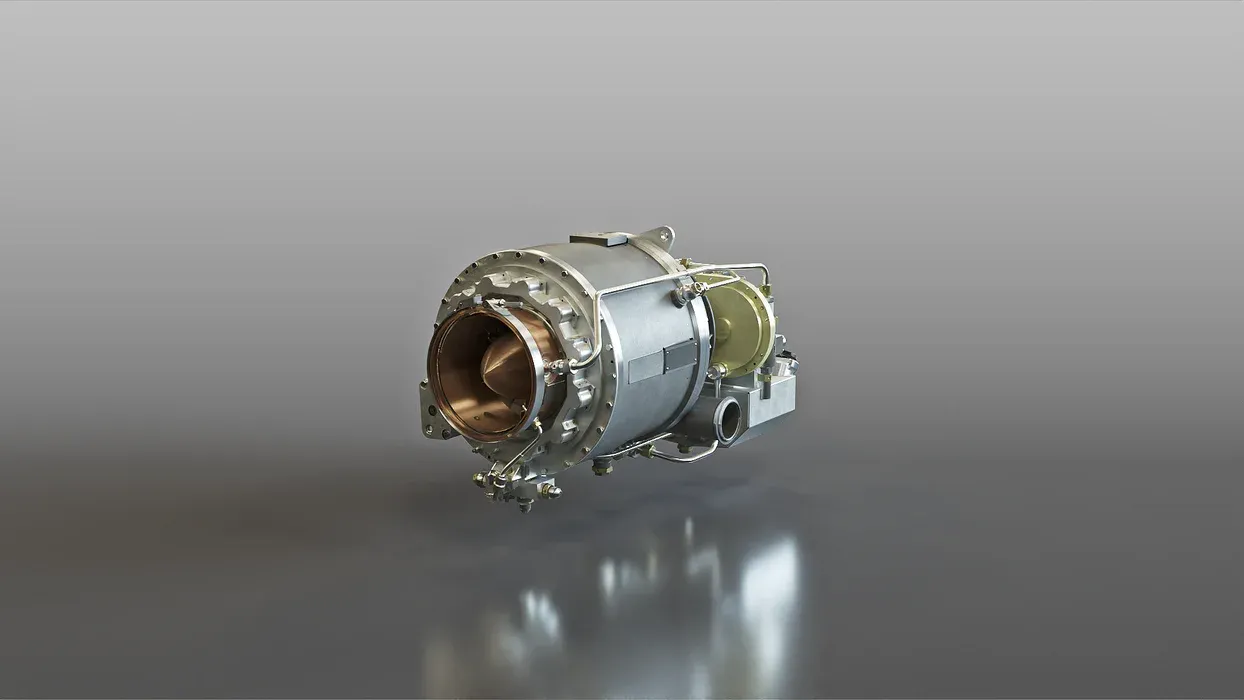

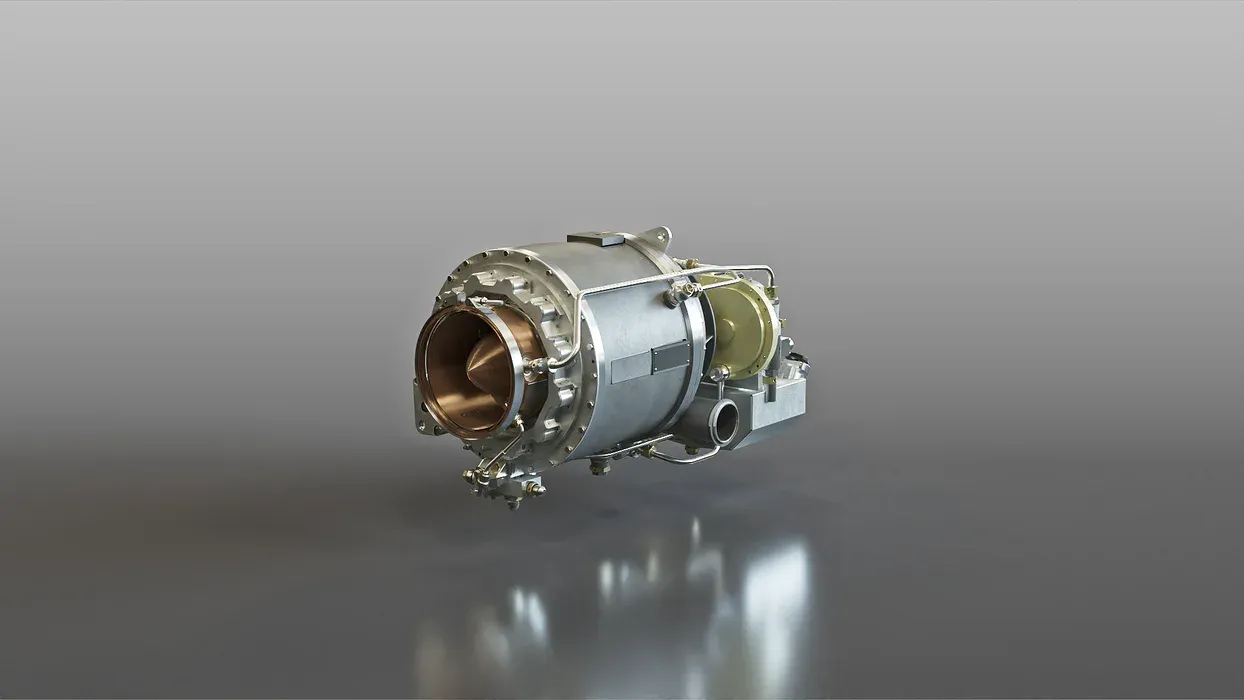

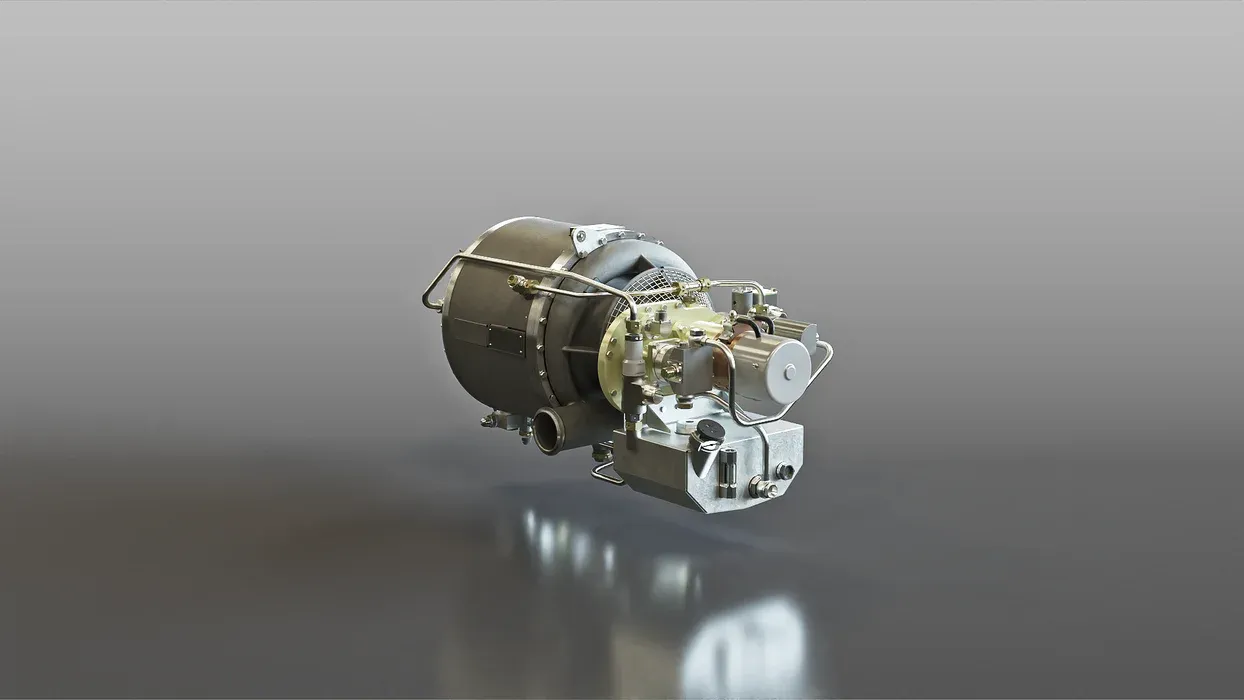

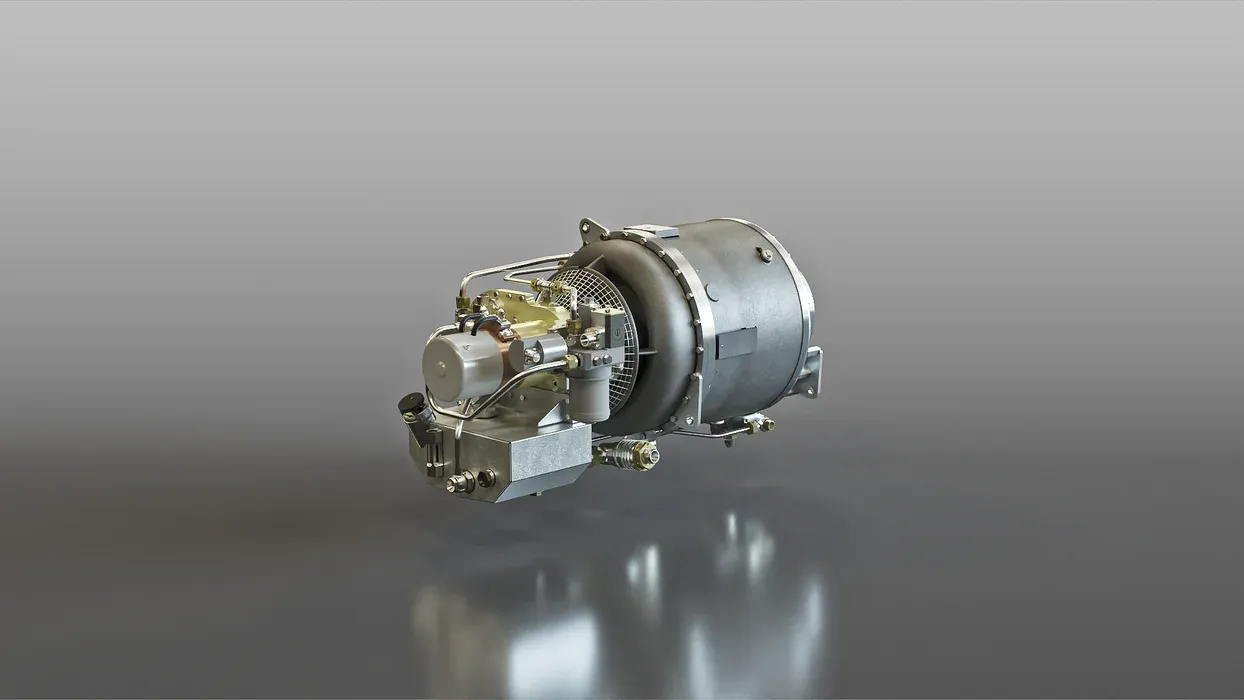

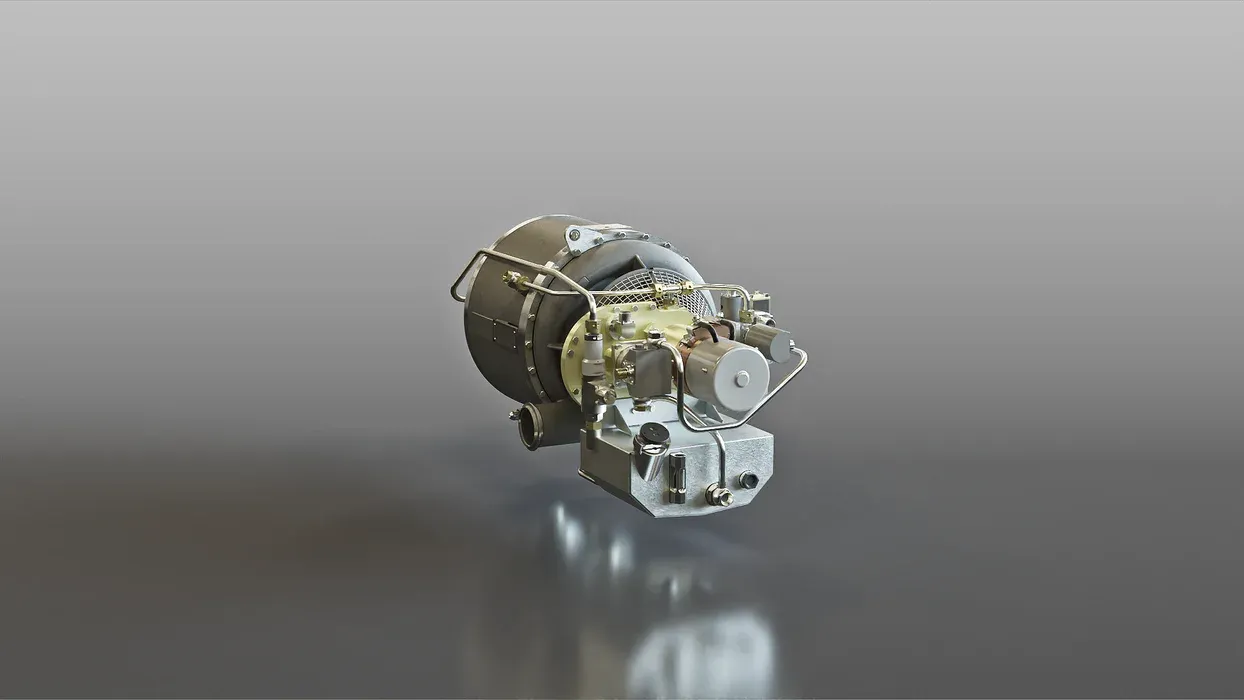

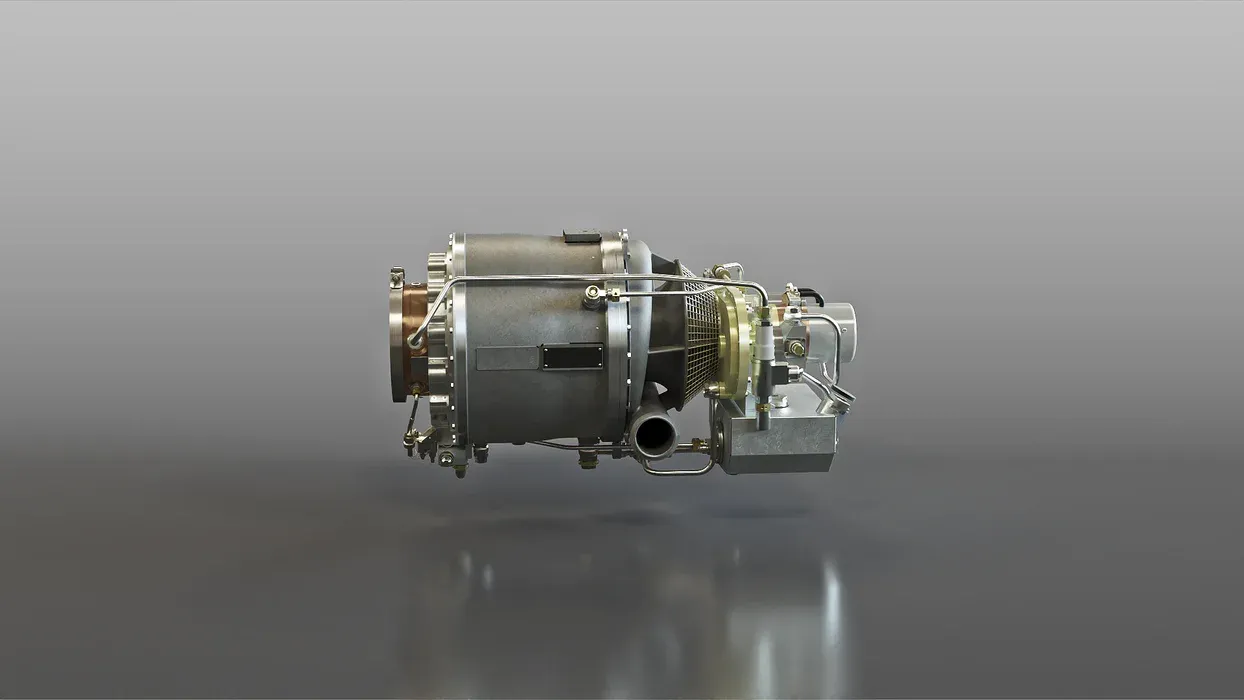

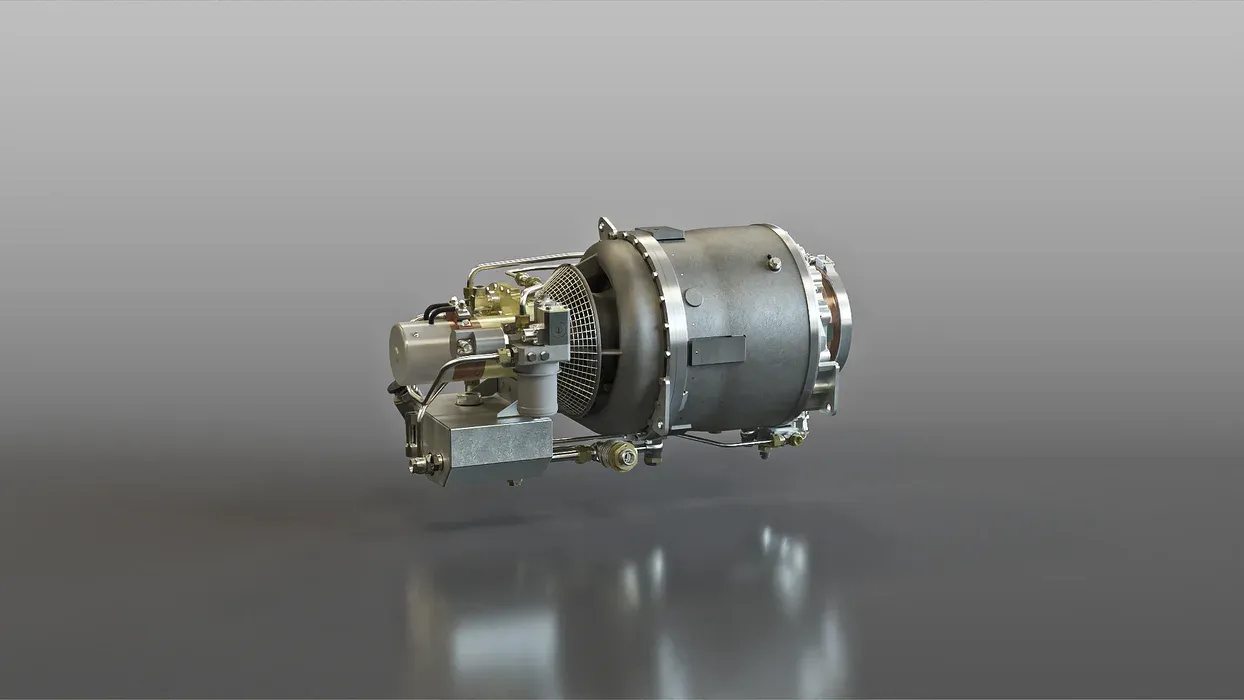

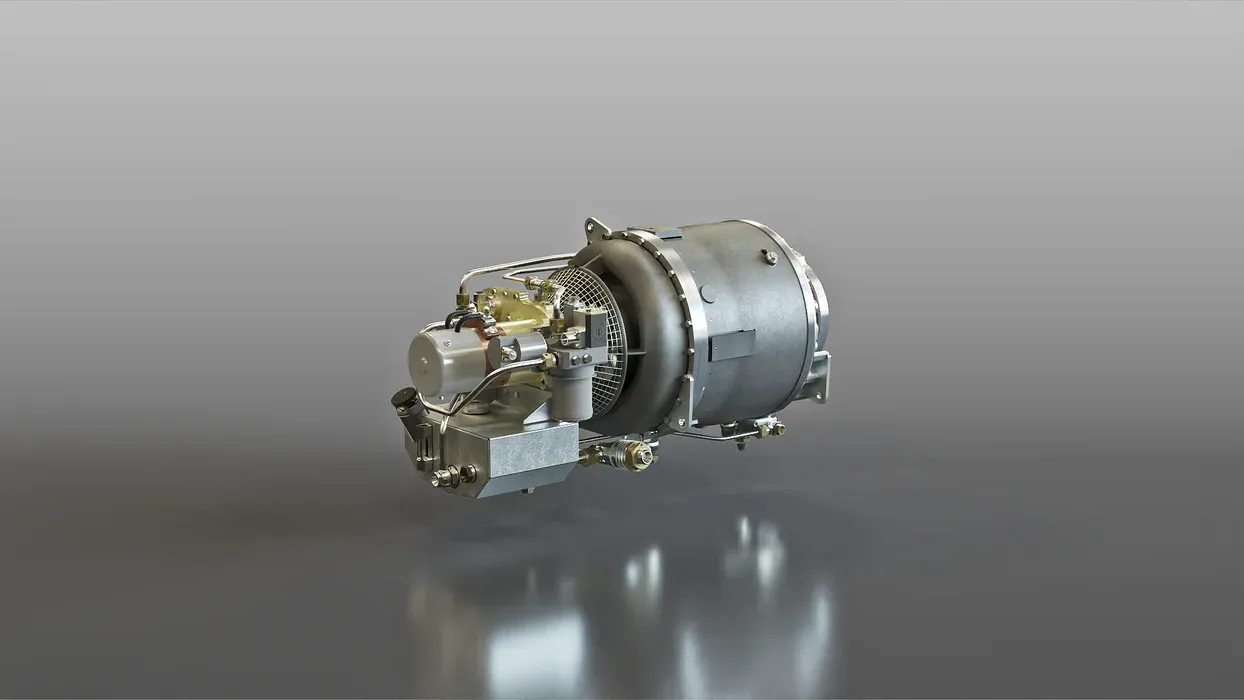

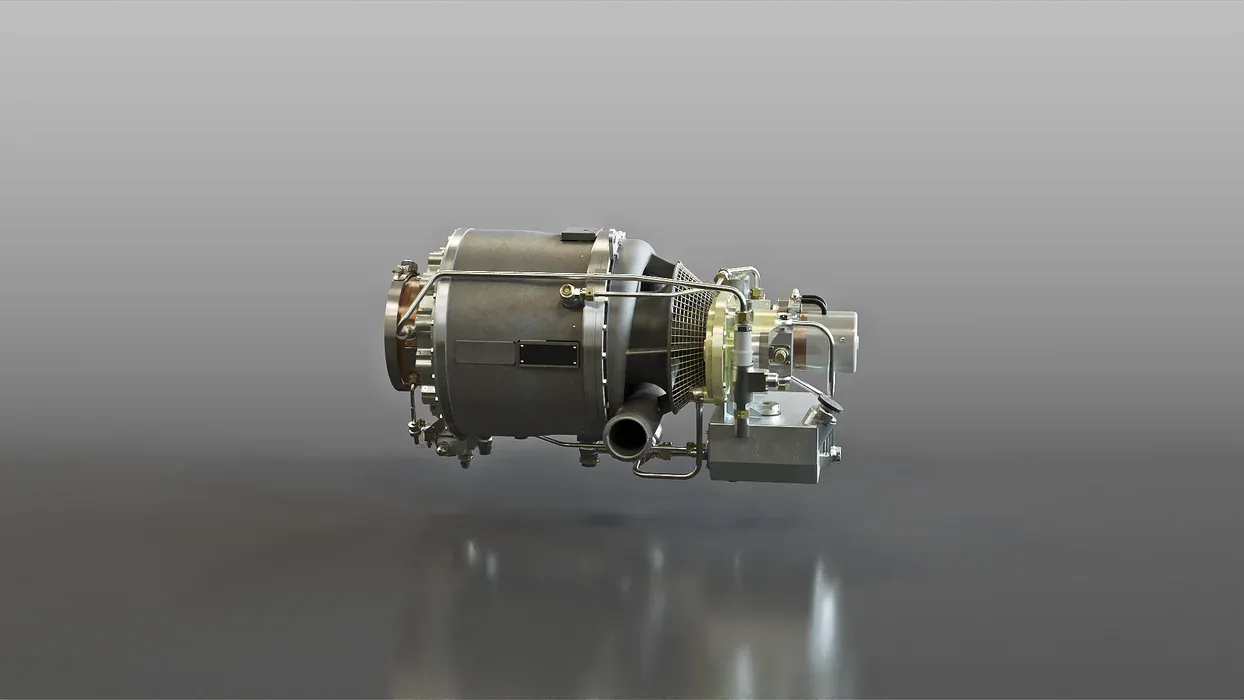

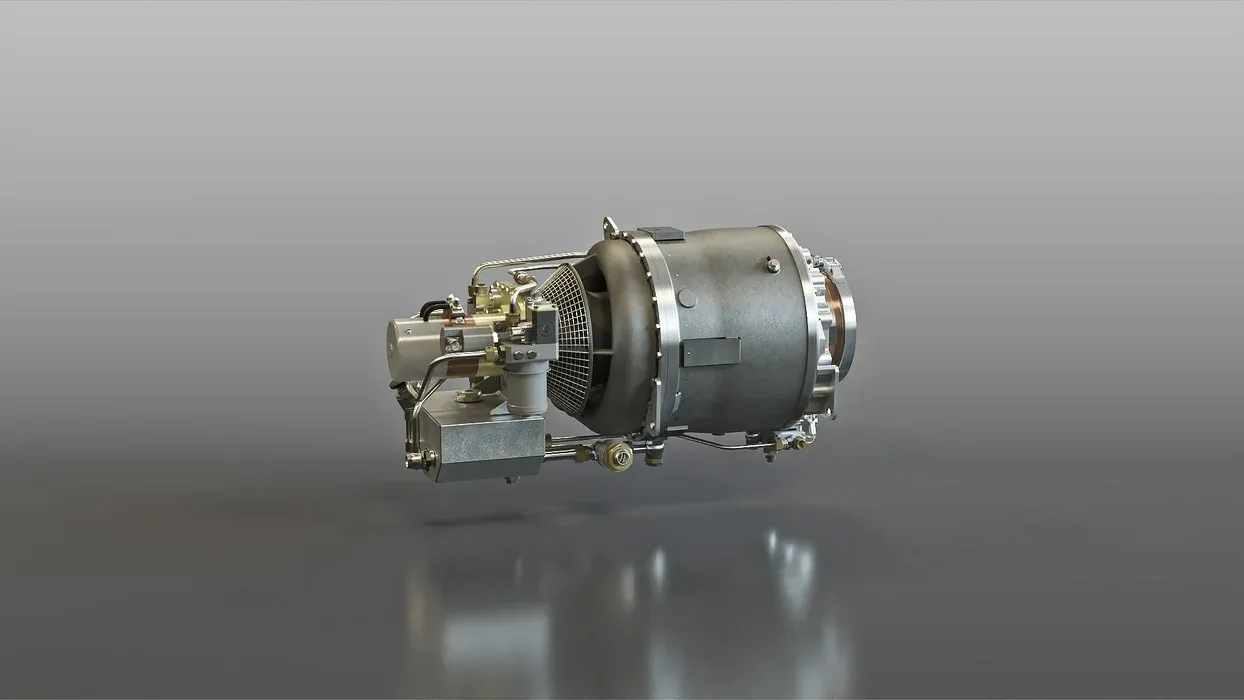

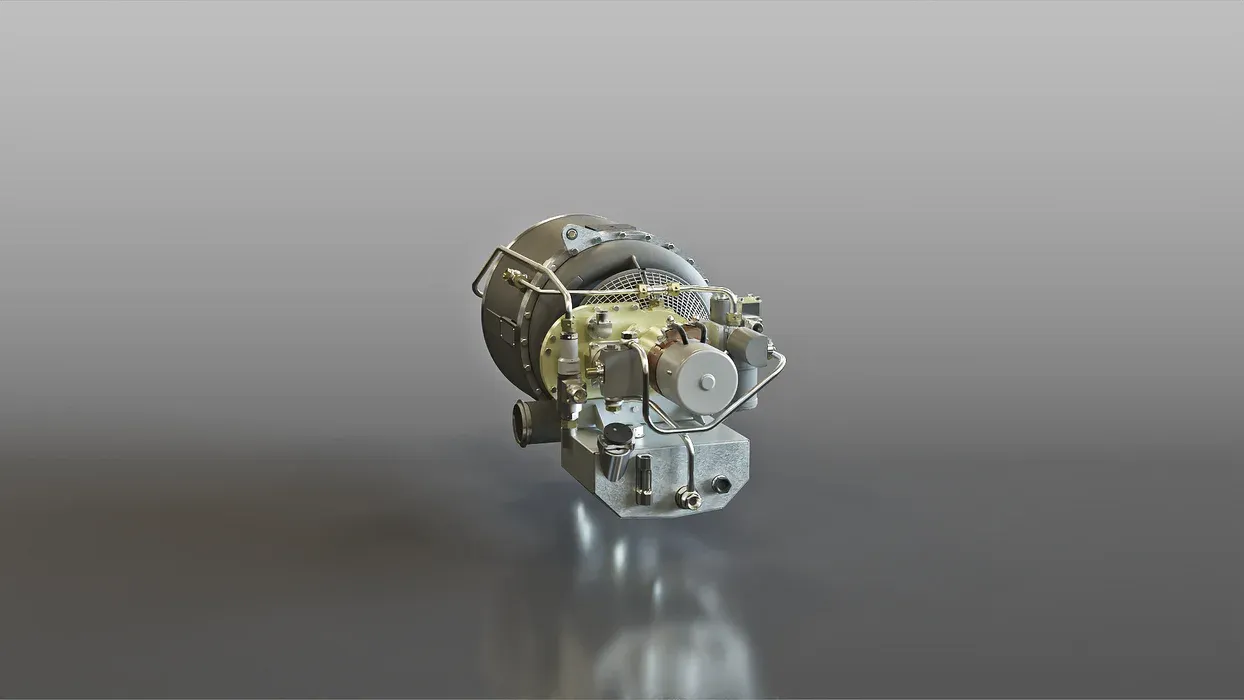

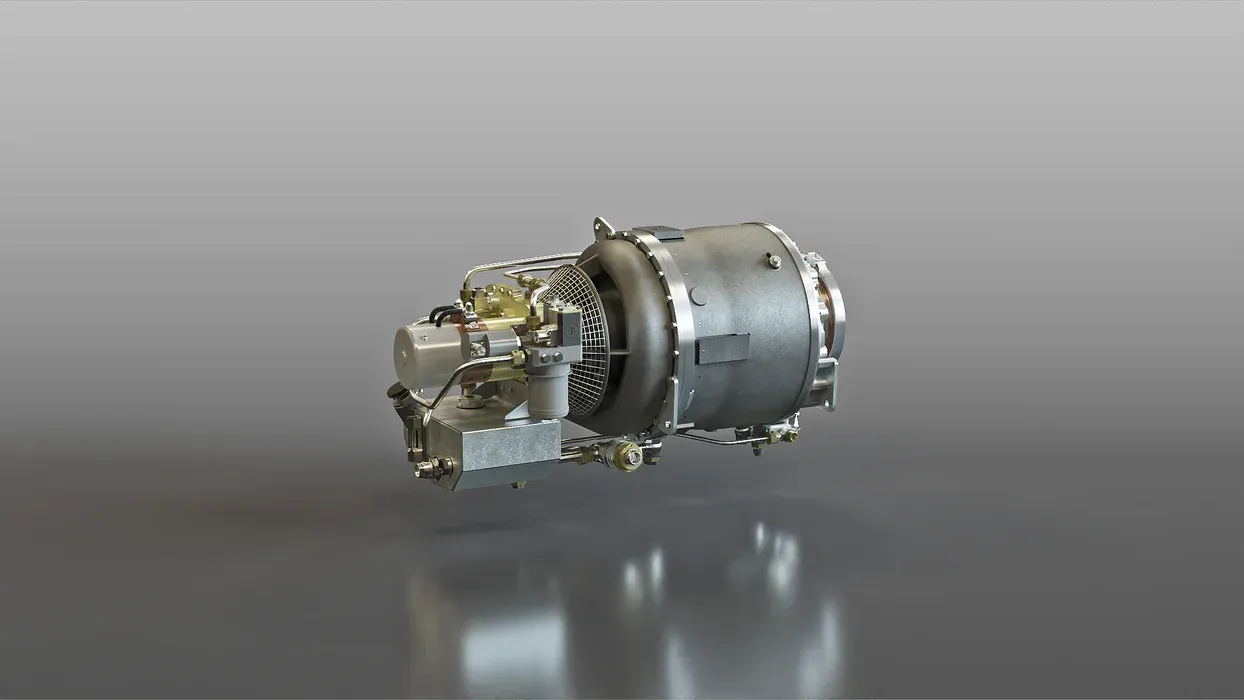

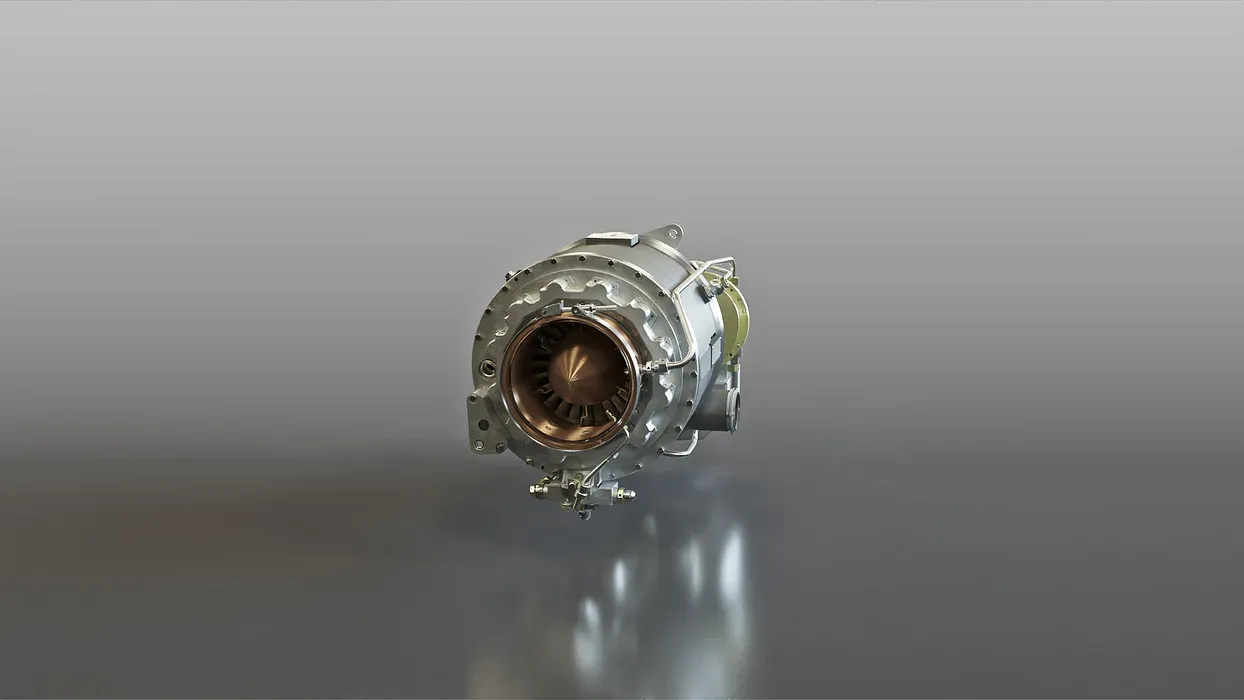

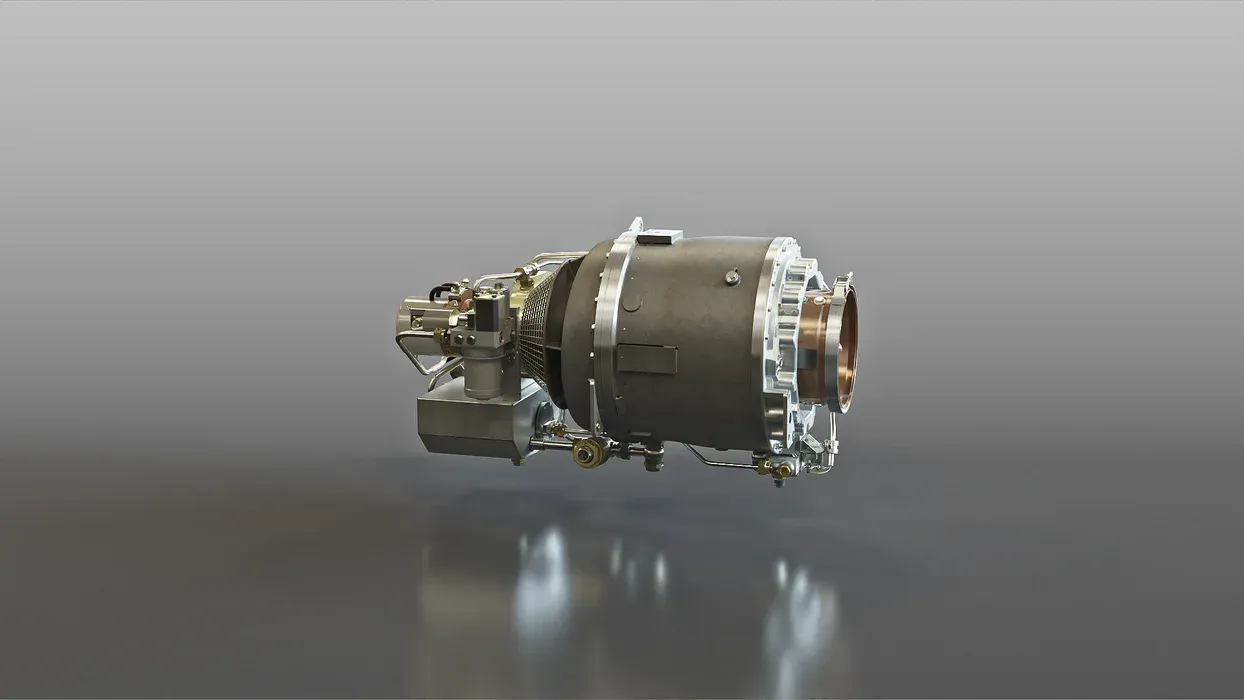

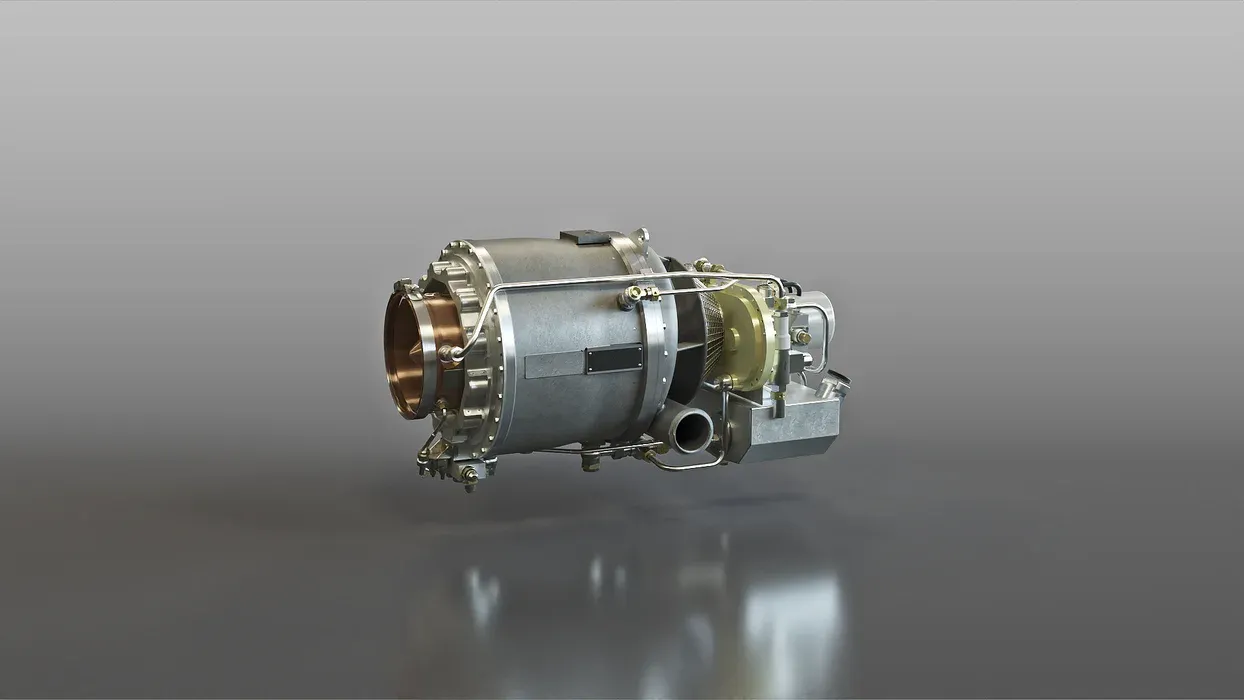

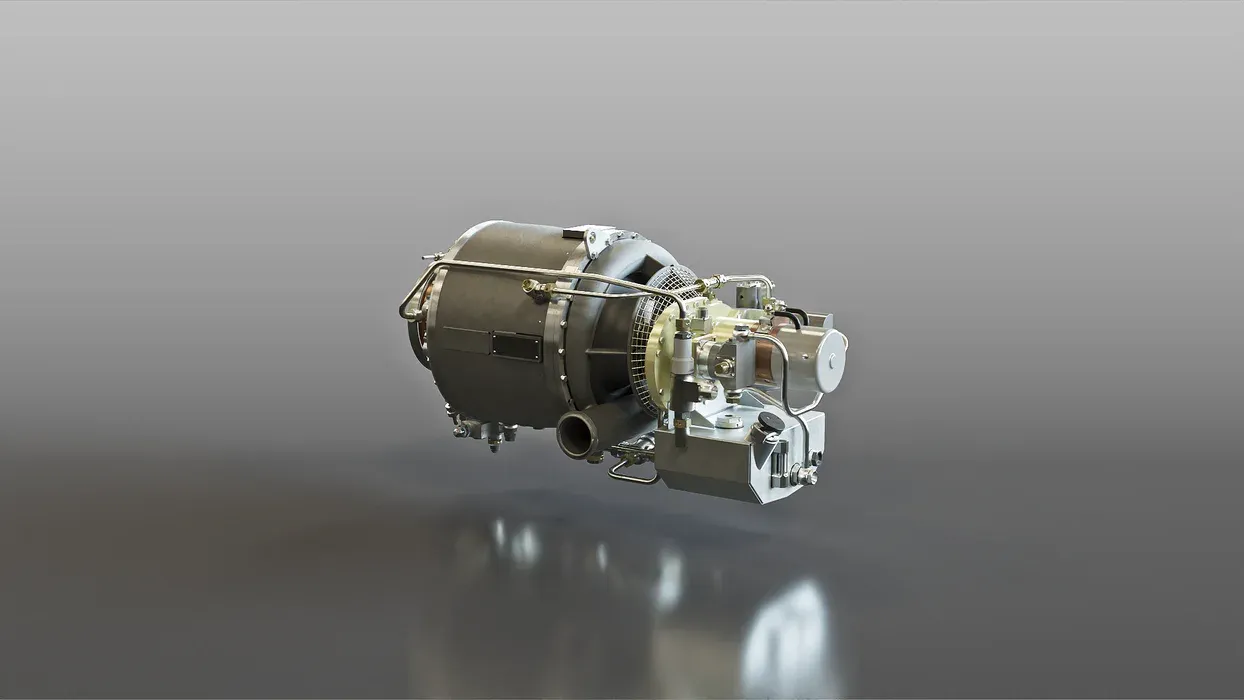

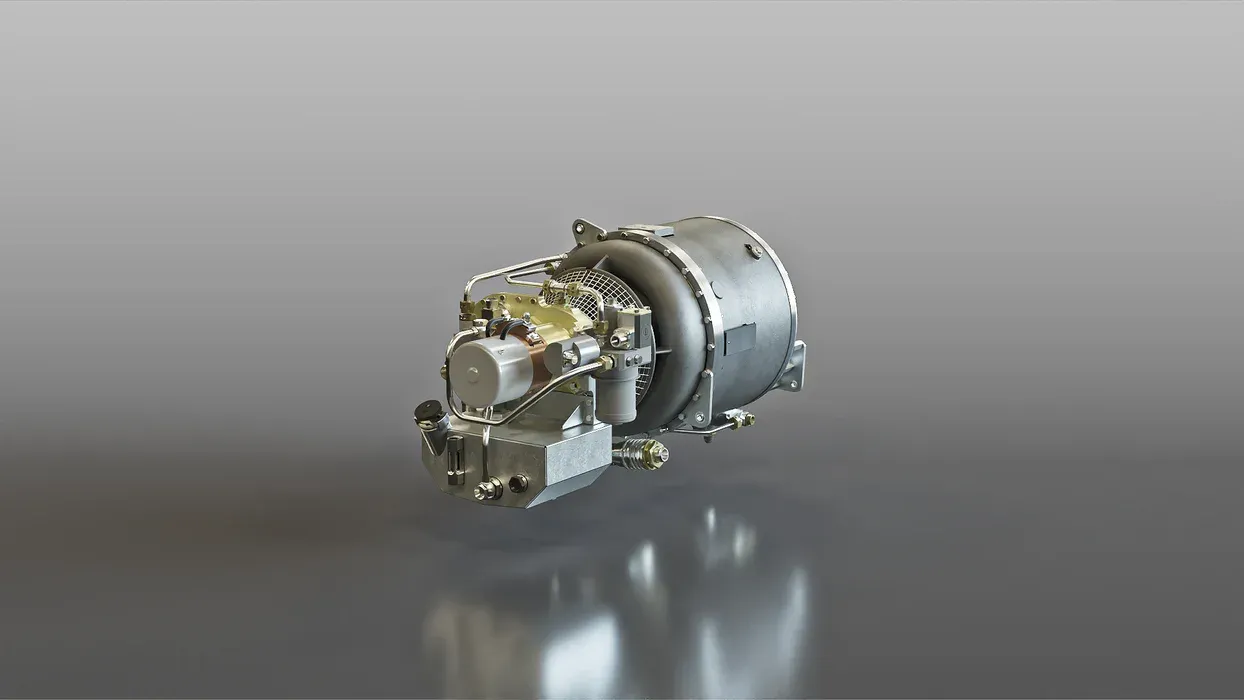

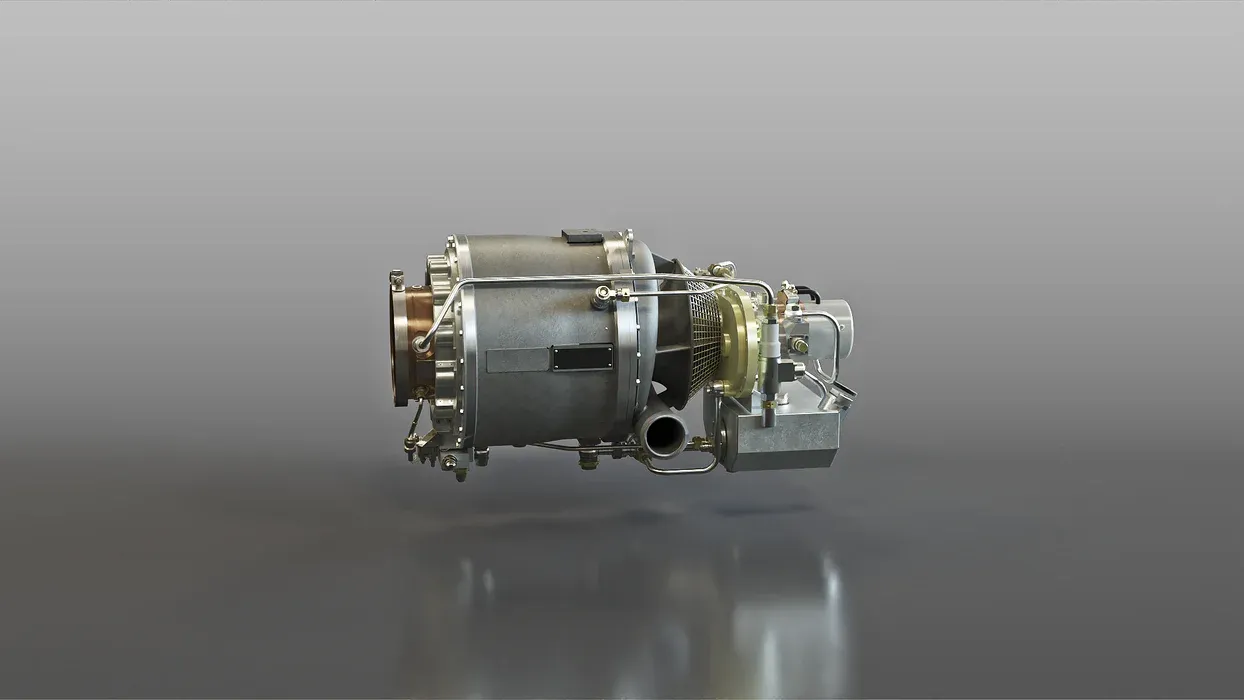

The SAFIR 5L is a compact auxiliary power unit designed to supply compressed air to aircraft engine starting systems. Its lightweight and space-saving design enables reliable engine starts even under demanding environmental and altitude conditions.

The unit is optimized for use in modern trainer, multirole, and unmanned aircraft. With its high performance, low weight, and minimal installation space requirements, the SAFIR 5L is ideal for integration into limited fuselage compartments.

The APU is equipped with an advanced automatic control system ensuring operational safety, fault indication, and digital communication with the aircraft systems. The cleanliness of the bleed air also allows its use for onboard environmental control systems.


Technical parameters

Technical parameters Metric units Imperial units
Nominal power N/A N/A
Power supply N/A N/A
Bleed air extraction 32 kg/min 70.5 lb/min
Weight 42 kg 92.6 lb
Height x width 443 x 319 mm 17.44 x 12.56 in
Length 796 mm 31.34 in
Max. altitude 8,000 m 26,247 ft

Key parameters

  • Continuous operation at maximum power for 2 hours
  • High reliability
  • Long service life
  • Easy maintenance
  • Clean bleed air suitable for air conditioning
  • Automatic turbine protection and fault indication

Why us?

Easy maintenance

Easy maintenance

As with other types of PBS auxiliary power units, the maintenance of Safir 5K/G Z8 is easy.
Ecological fuel drainage

Ecological fuel drainage

Another advantage of this auxiliary power unit is the optimized signaling of the status of operating fluids and the ecological drainage of fuel.

Service, spare parts and overhauls of aerospace technology

We provide service of the highest quality for all users of our aerospace technology products.

We have long been working to extend the service life of our products, e.g. by introducing new technologies to produce the most exposed parts. Our turbine-based aircraft equipment regularly receives very good references.
