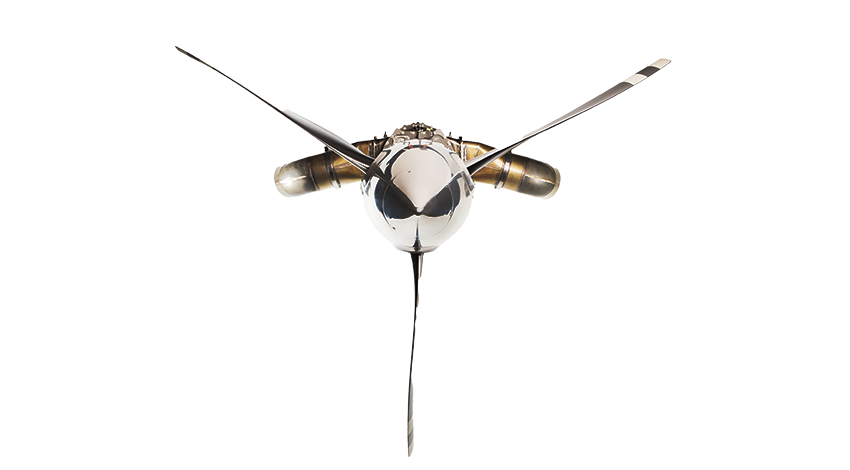

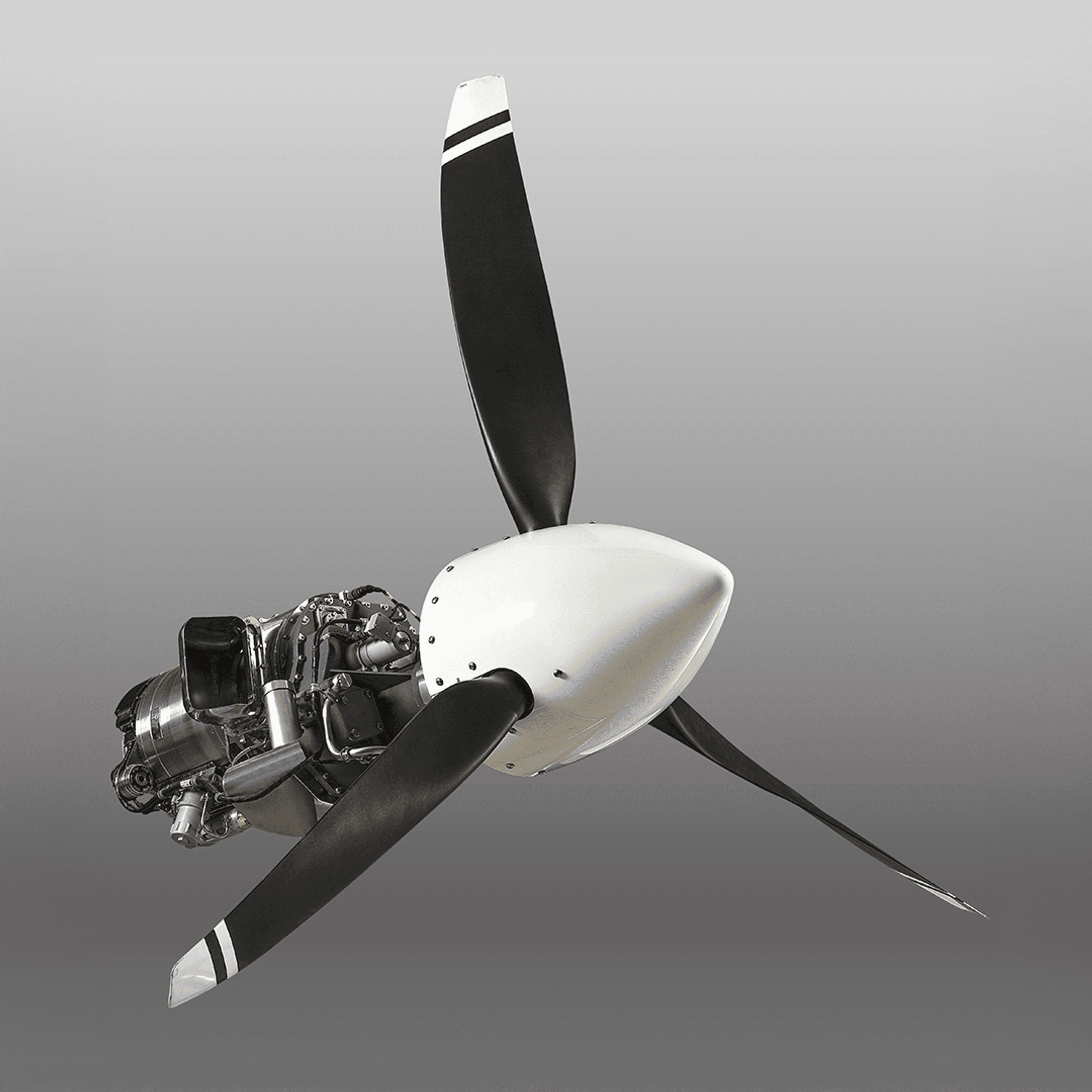

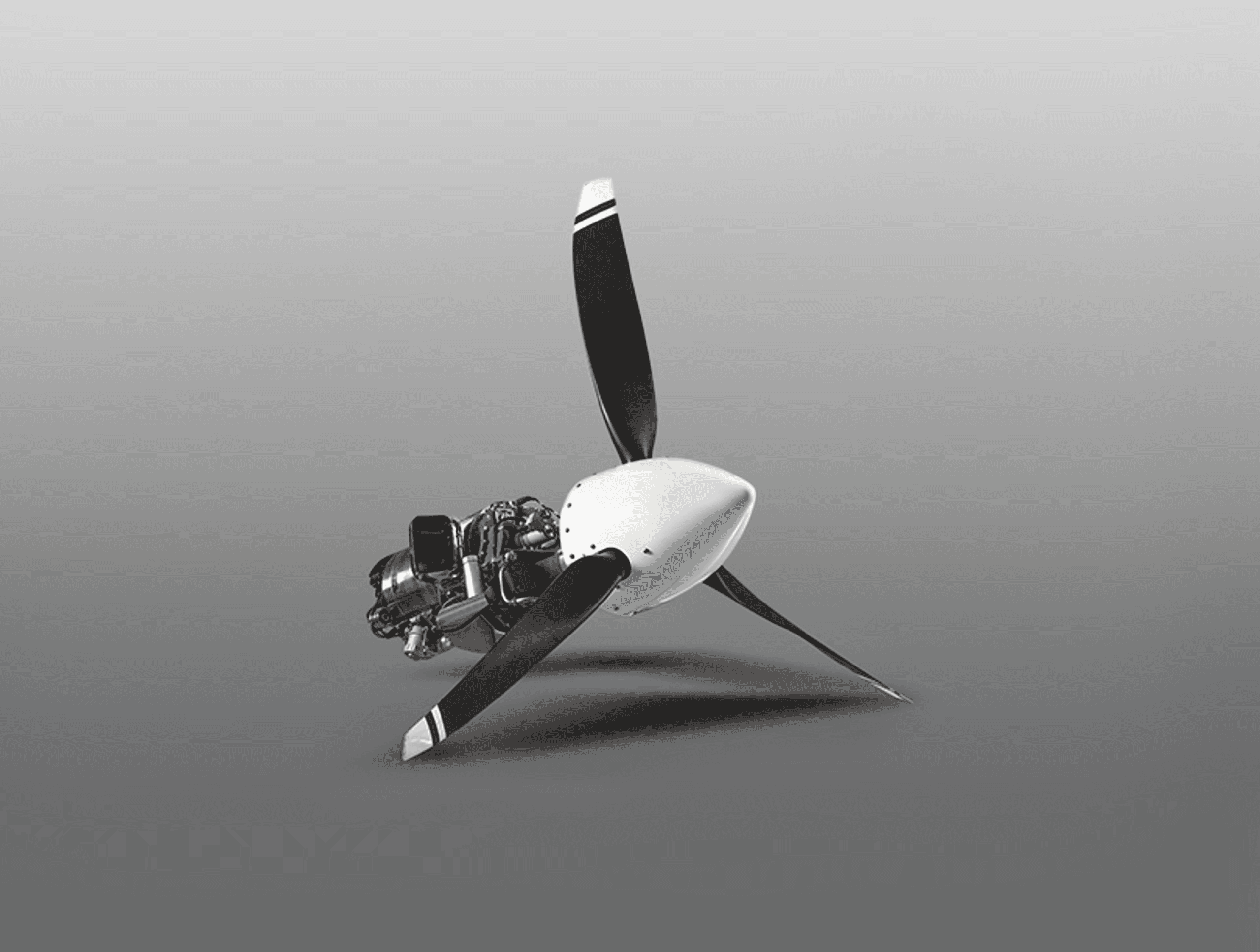

Turboprop Engine PBS TP100

The PBS TP100 turboprop engine is suitable for small aircraft and UAVs. The system is designed for use in both pusher and tractor configuration.

Its main advantage is low weight, power of 180 kW and its capacity to achieve flight altitude of 9,000 m with a maximum starting altitude of 6,000 m. The turbine engine is able to start in cold conditions as low as - 30 °C without preheating.

The engine is equipped with autonomous oil and fuel systems, BLDC electric starter-generator and digital engine control unit (ECU). The ECU ensures automatic after-cooling of hot parts after an engine stop. The propeller governor maintains a constant propeller speed.

The engine could be controlled by the analogue interface (control voltage) or by the digital interface (based on CAN Aerospace V1.7 protocol). The engine parameters for cockpit multifunction display are available only in digital format.

Standard accessories: digital control system (ECU), connecting cable
Required accessories: ignition, electromagnetic fuel valve, boost pump, speed governor, speed limiter, oil cooler
Optional accessories: alternator, EMS display unit, control lever, thermostatic valve, and others

Technical parameters

Technical parameters	Metric units	Imperial units
Maximum power	180 kW	241 HP
Electrical output power	720 W - 3 700 W	720 W - 3,700 W
Weight	61,6 kg	135.8 lb
Height x width - without exhaust	398 x 330 mm	15.67 x 13.00 in
Length	891 mm	35.08 in

Main Features

Low weight
Small installation dimensions
Excellent power-to-weight ratio
Digital interface for control and monitoring
Stable operation at high altitudes and high temperatures
Ability to run at cold temperatures below -30 °C without preheating
Two output shaft speed configurations

Light weight

For its light weight and power of 180 kW, this turboprop engine is designed for the category of ultra-light manned and unmanned (UAV) devices.

Both push and pull versions can be used

Depending on its location in the aircarft, the system is designed for use in both push and pull configurations.

Service, spare parts and overhauls of aerospace technology

We provide service of the highest quality for all users of our aerospace technology products.

We have long been working to extend the service life of our products, e.g. by introducing new technologies to produce the most exposed parts. Our turbine-based aircraft equipment regularly receives very good references.
