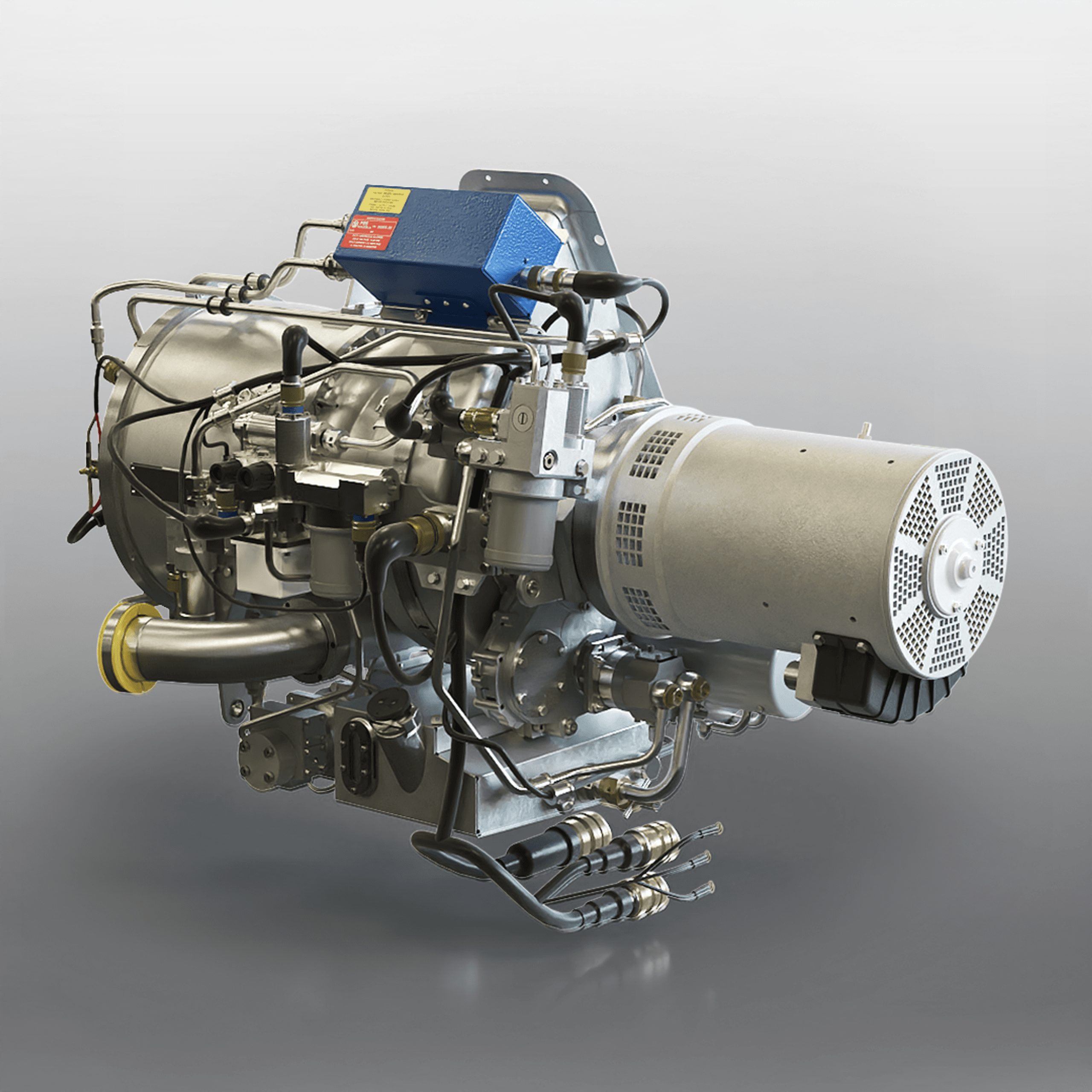

SAFIR 5K/G Z8 APU

SAFIR 5K/G Z8 APU

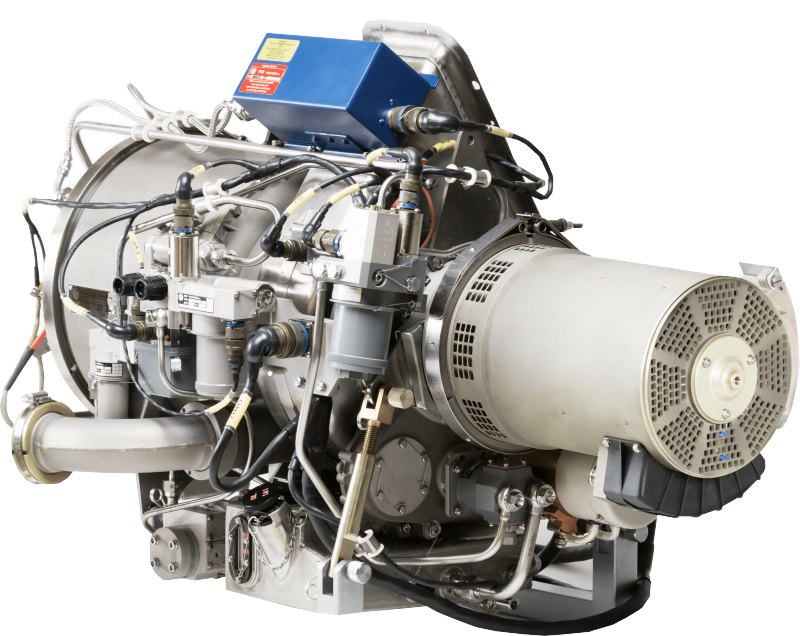

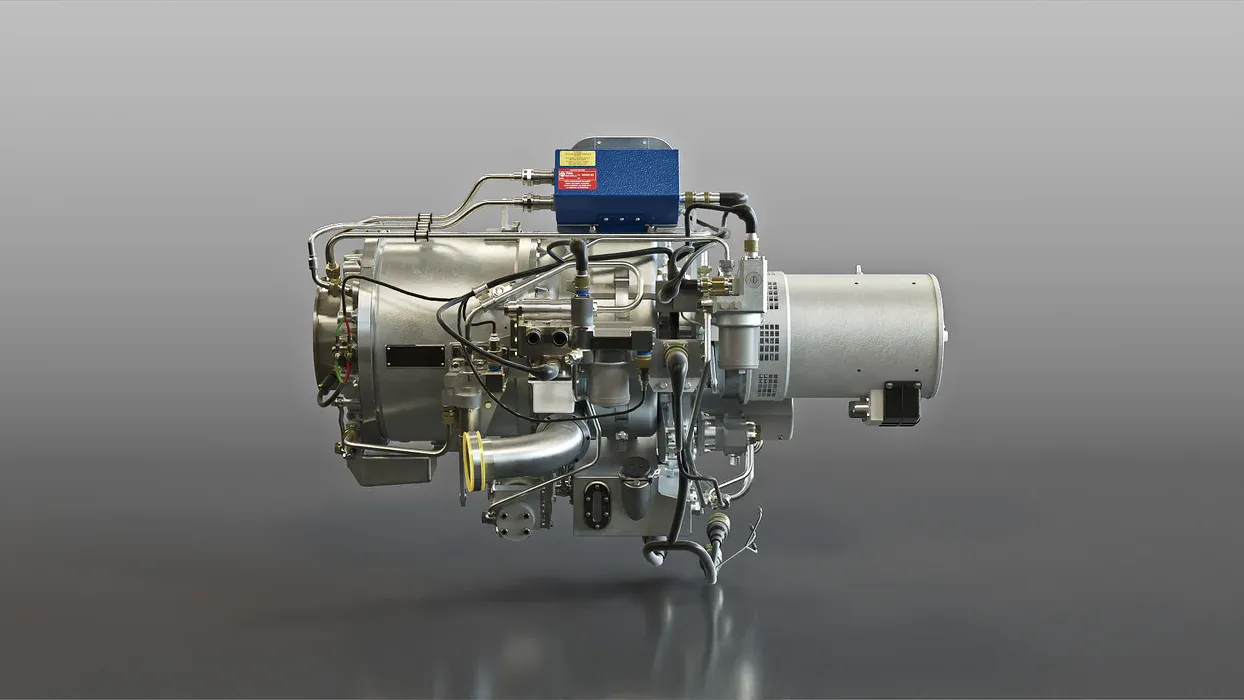

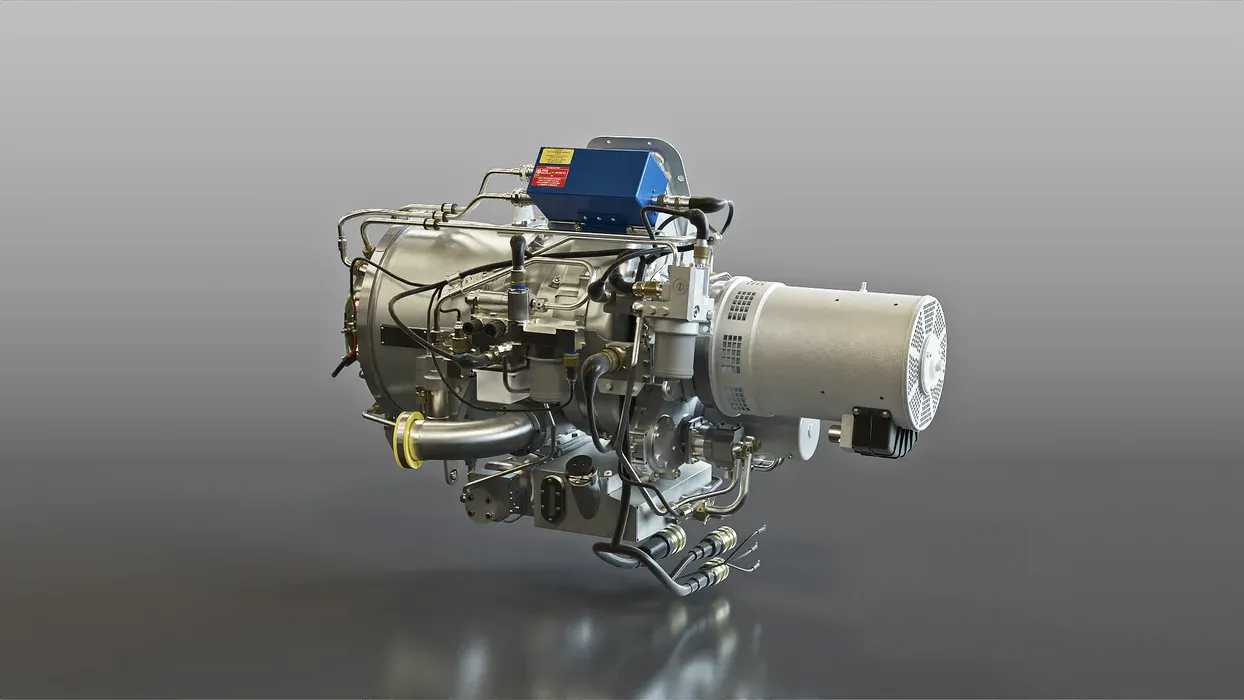

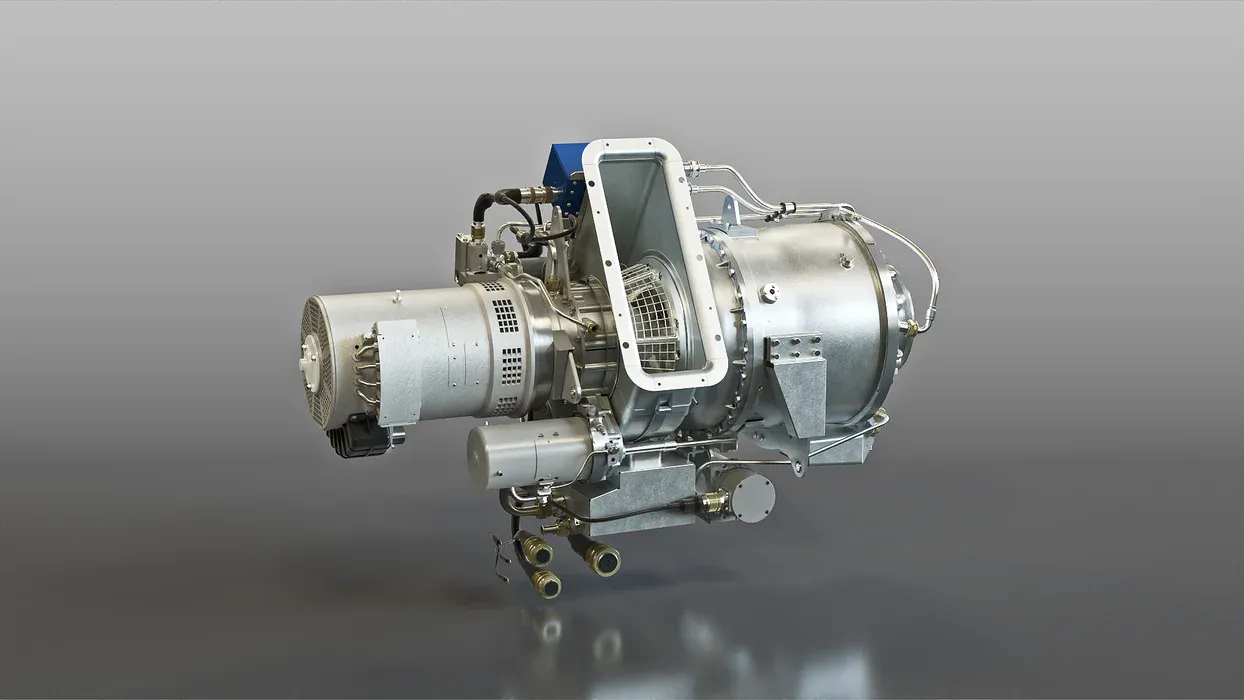

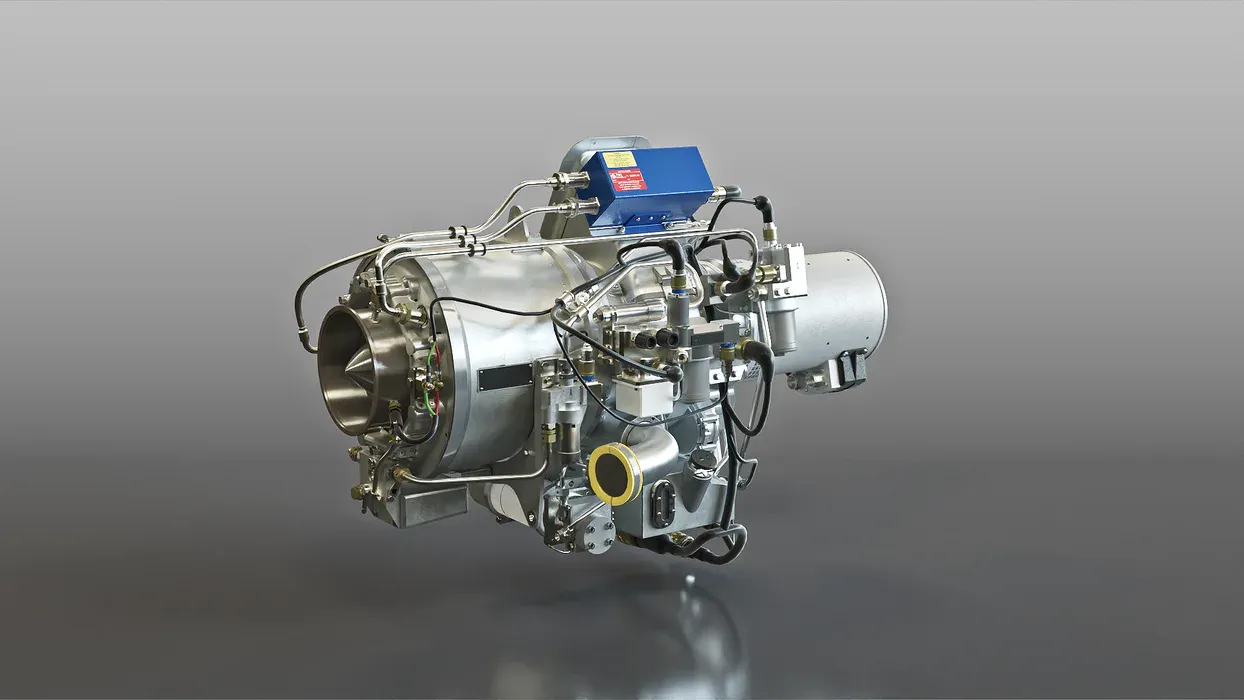

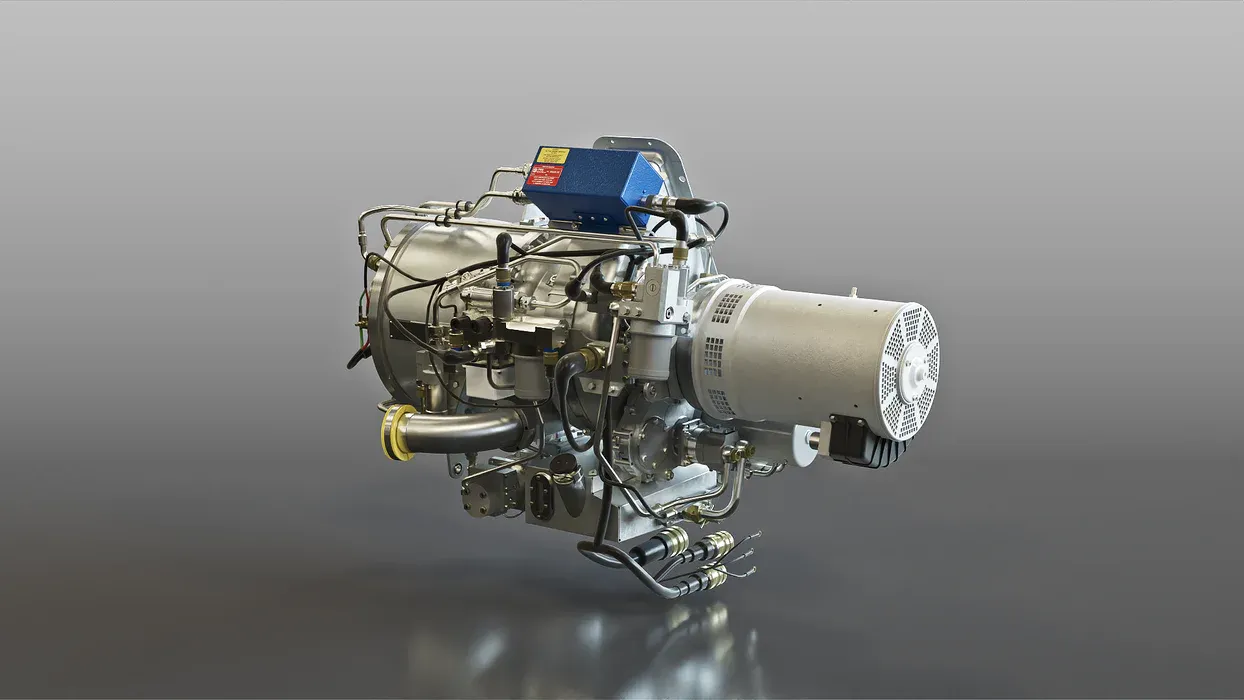

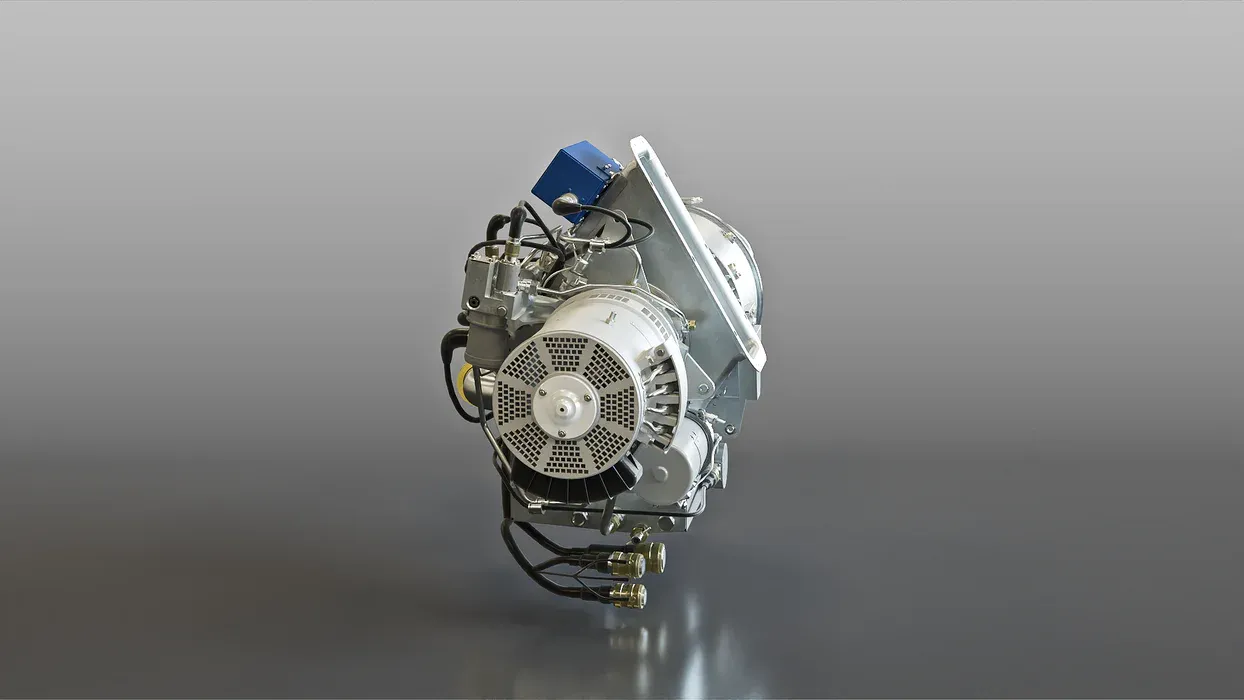

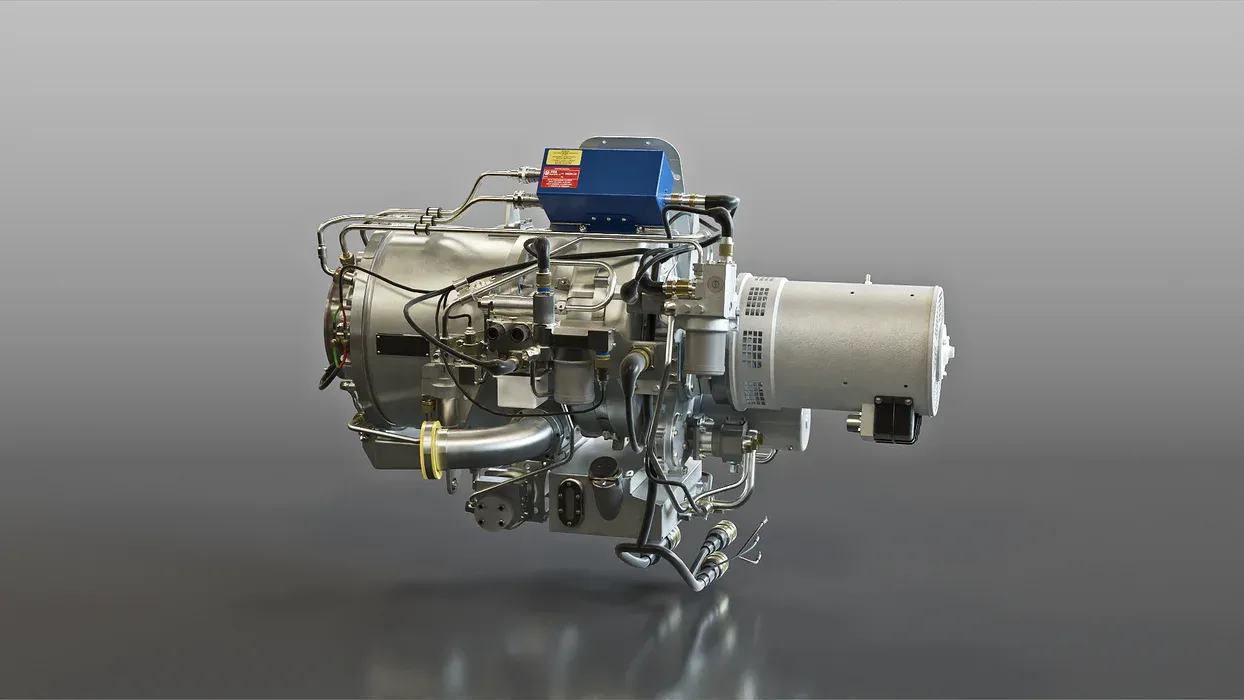

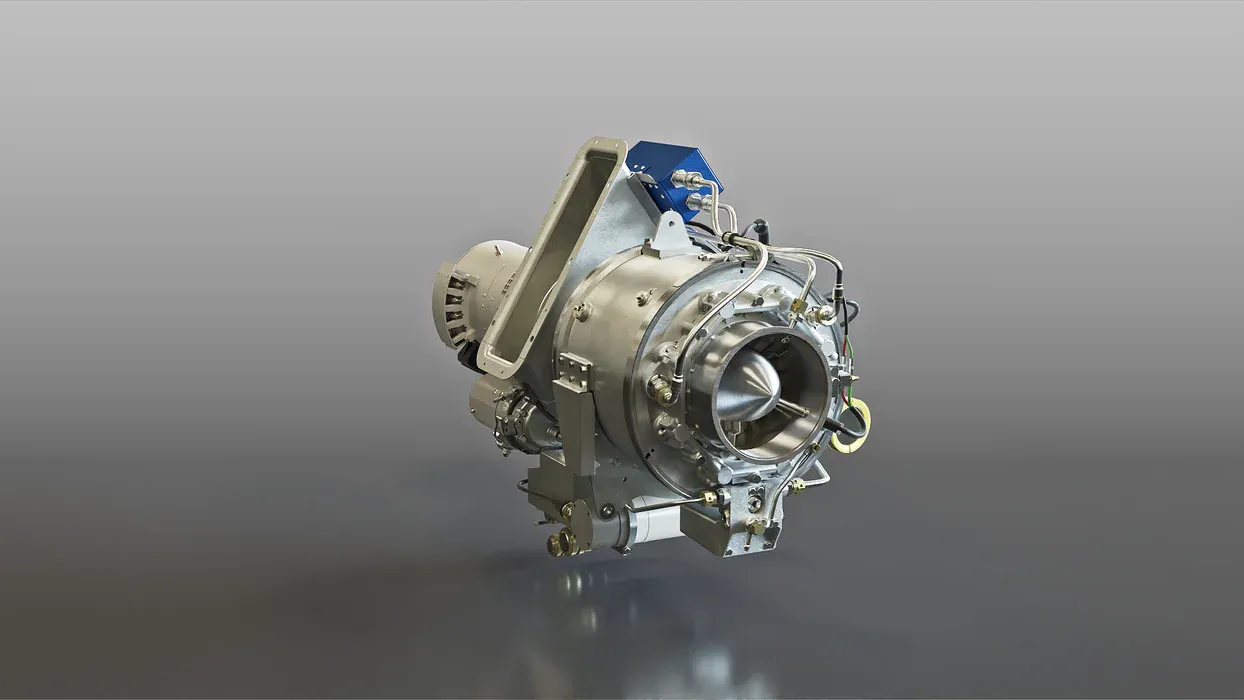

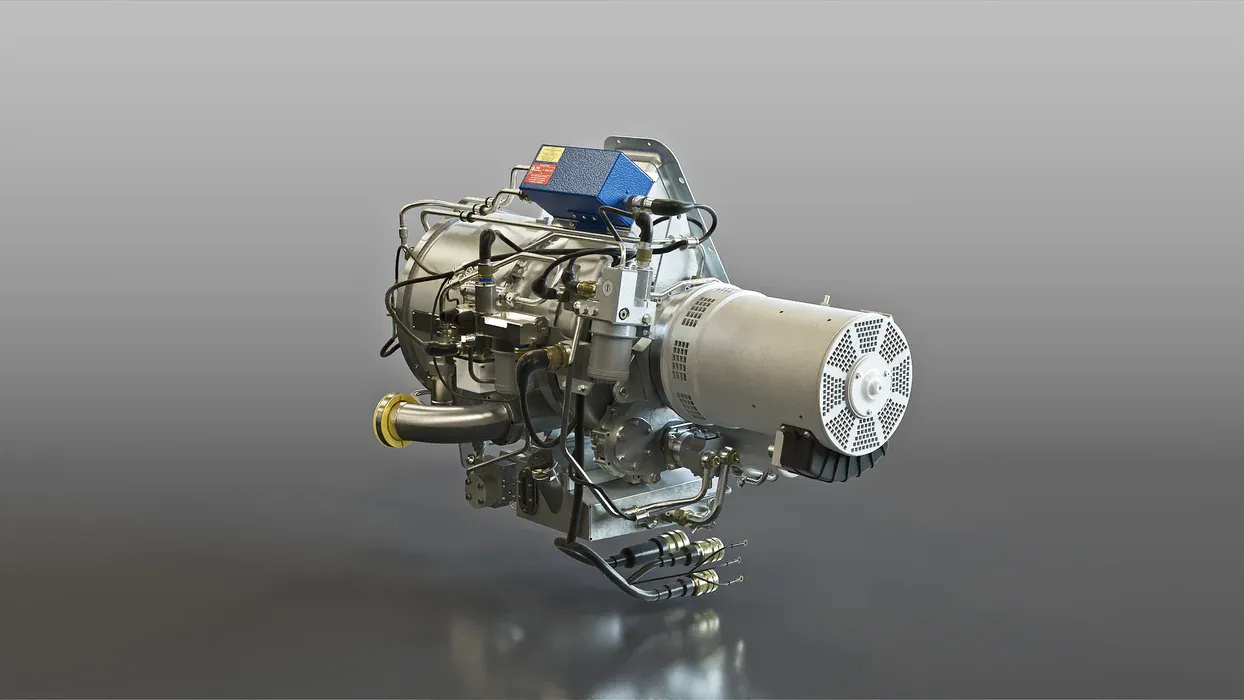

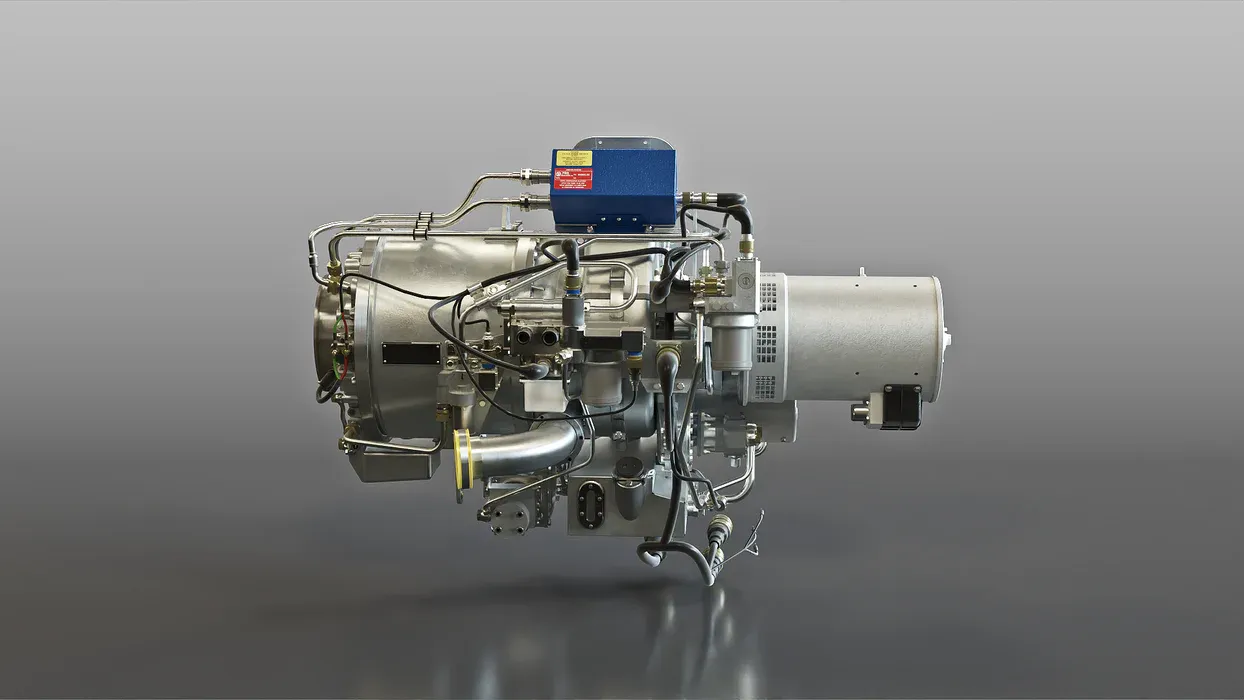

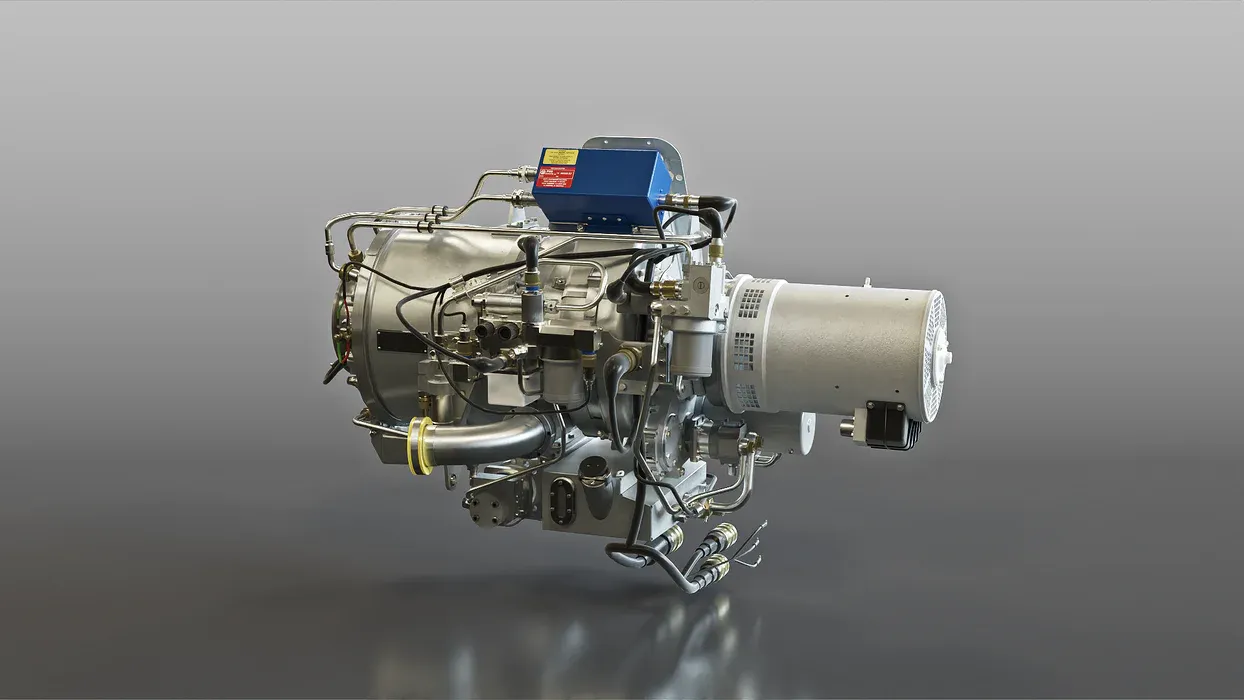

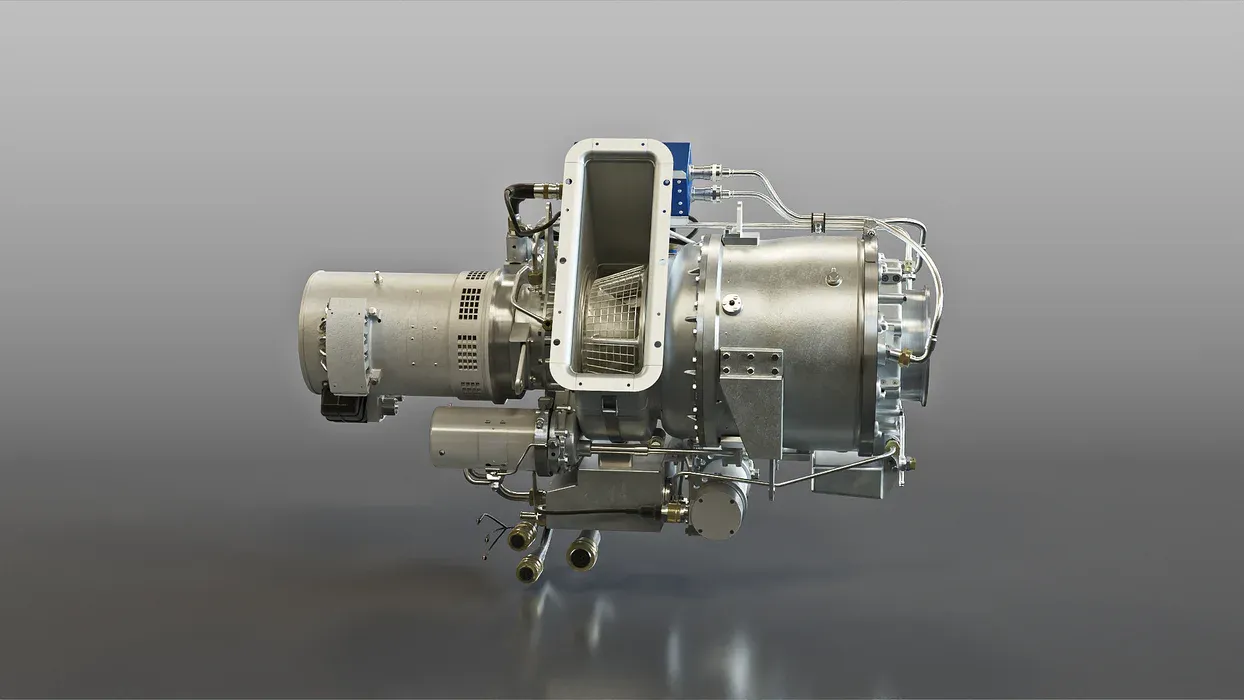

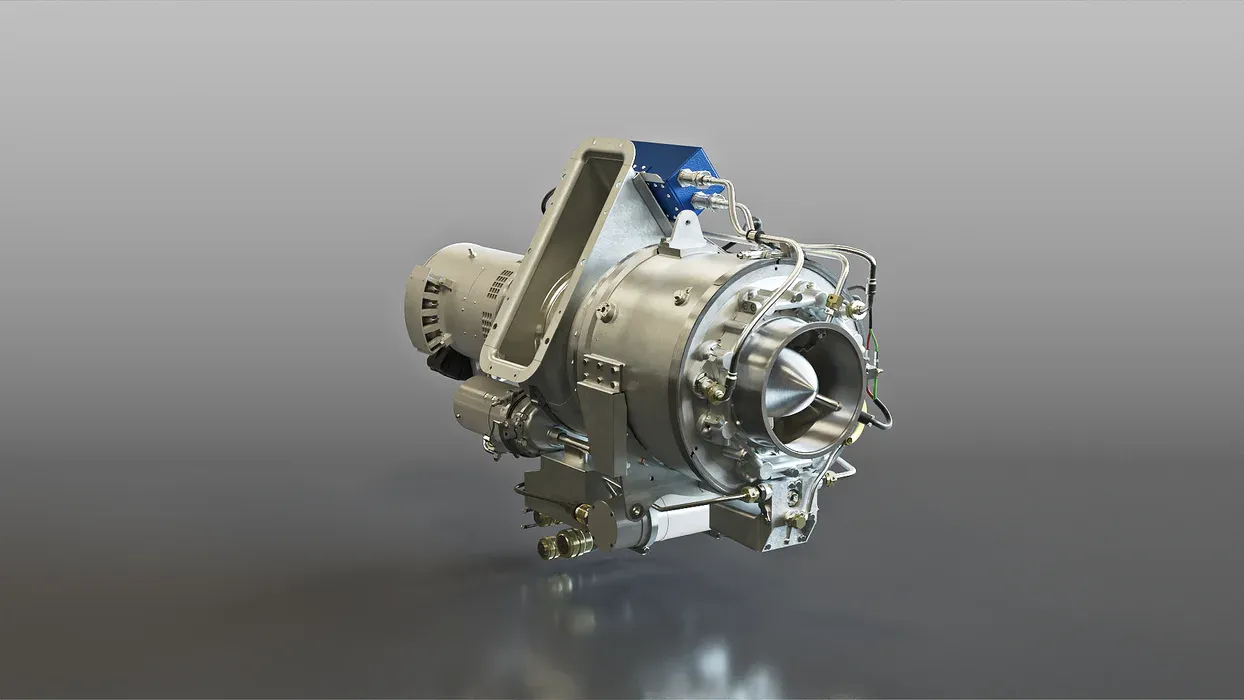

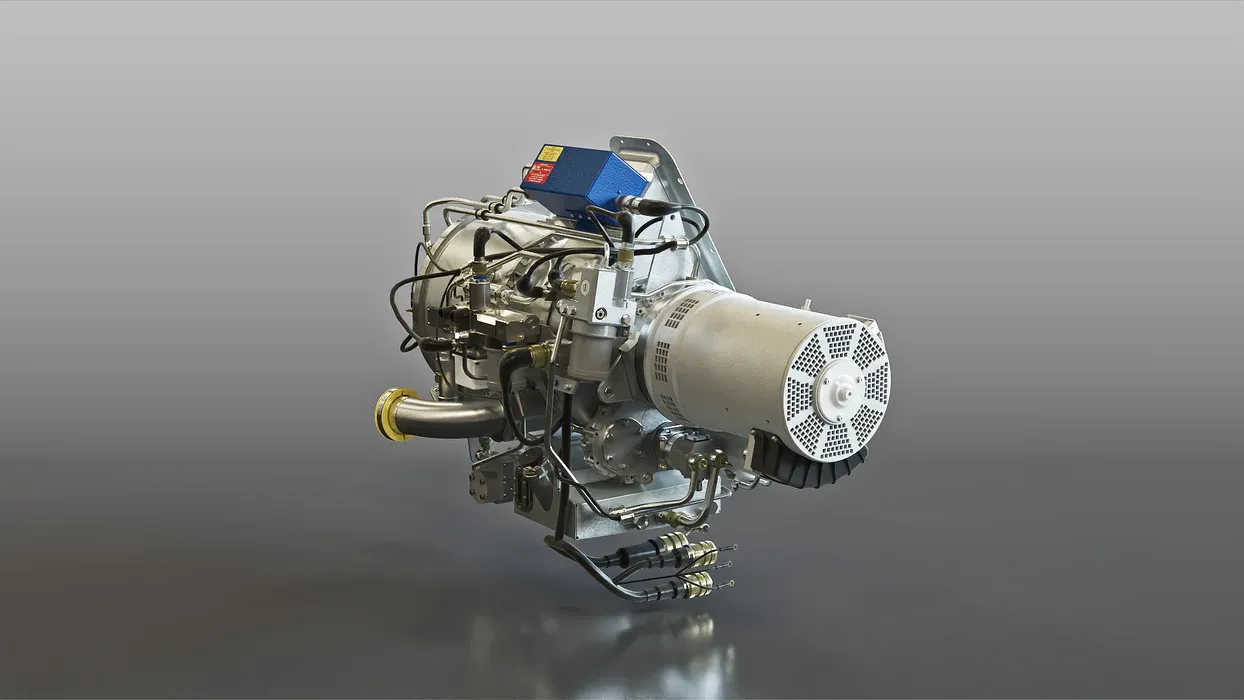

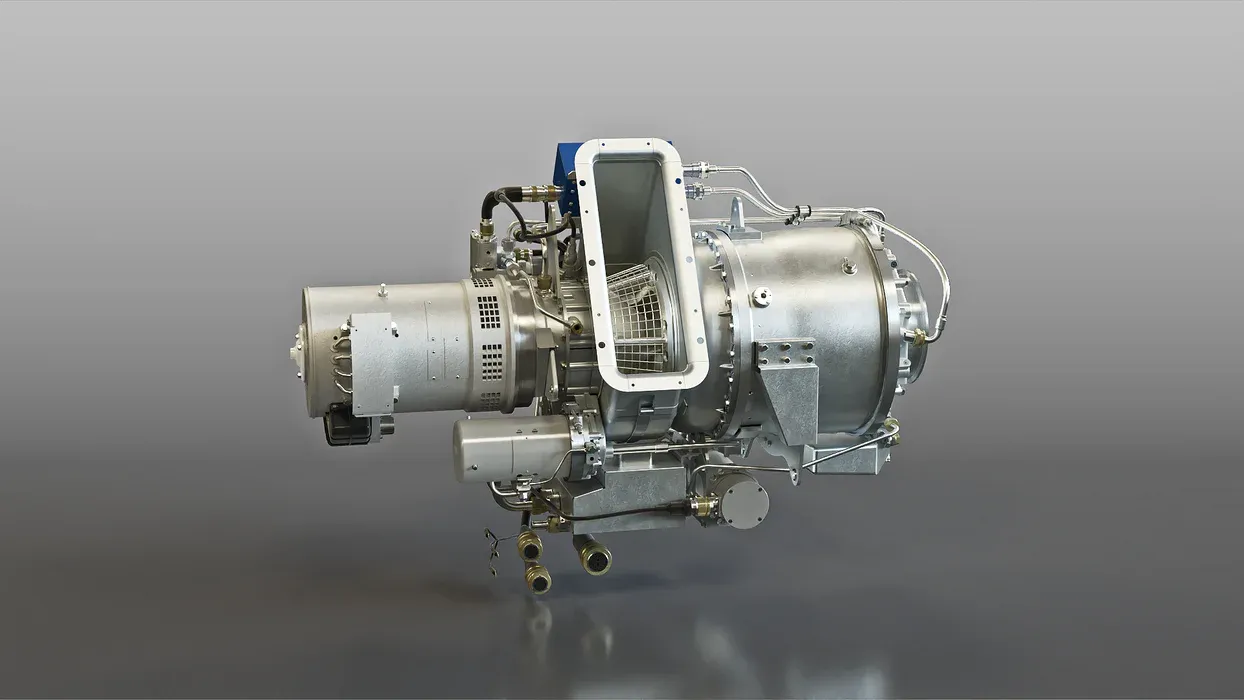

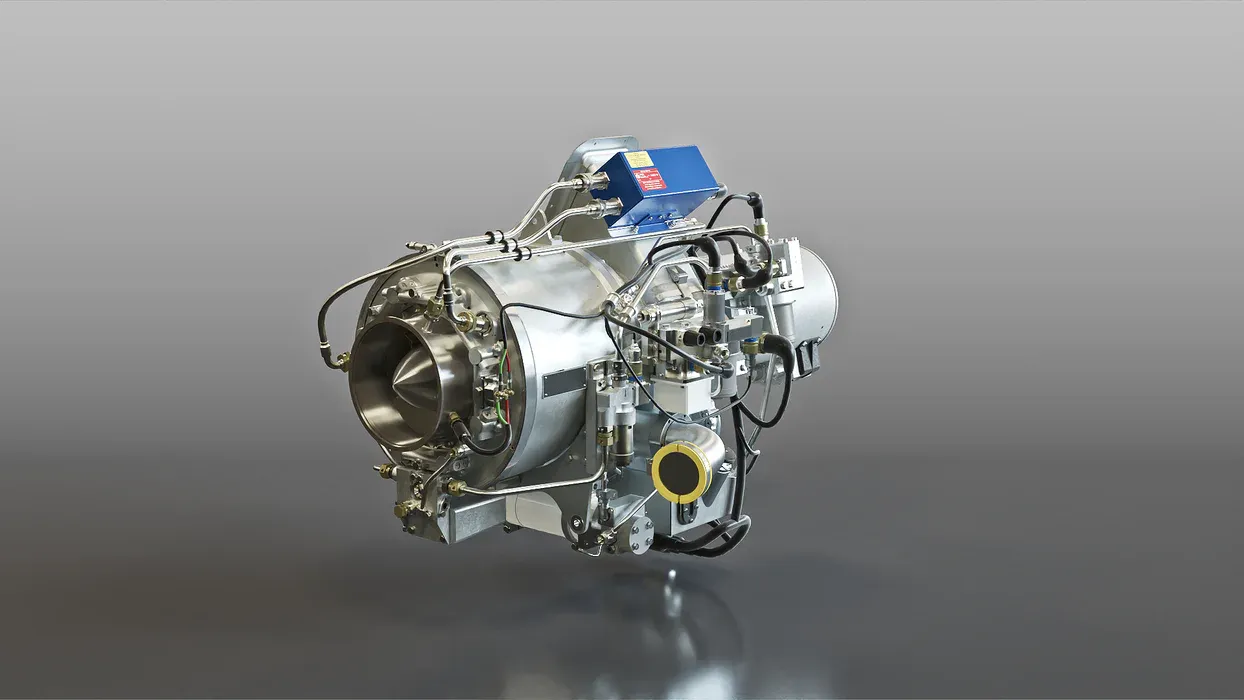

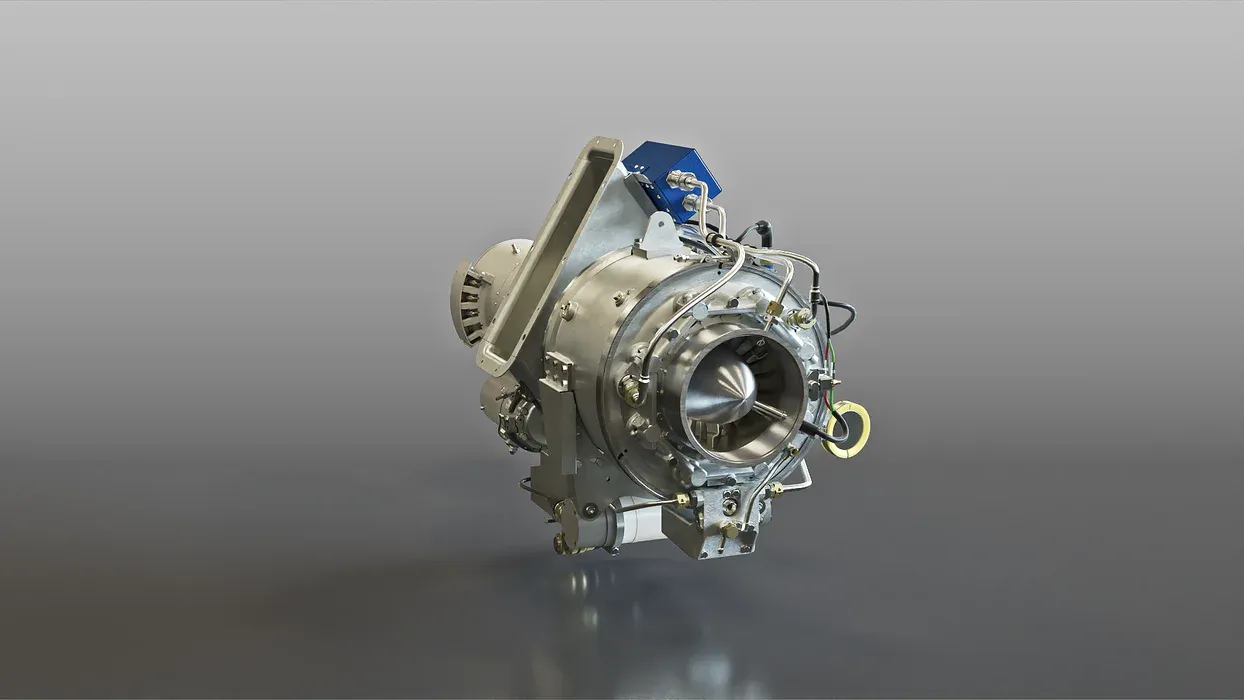

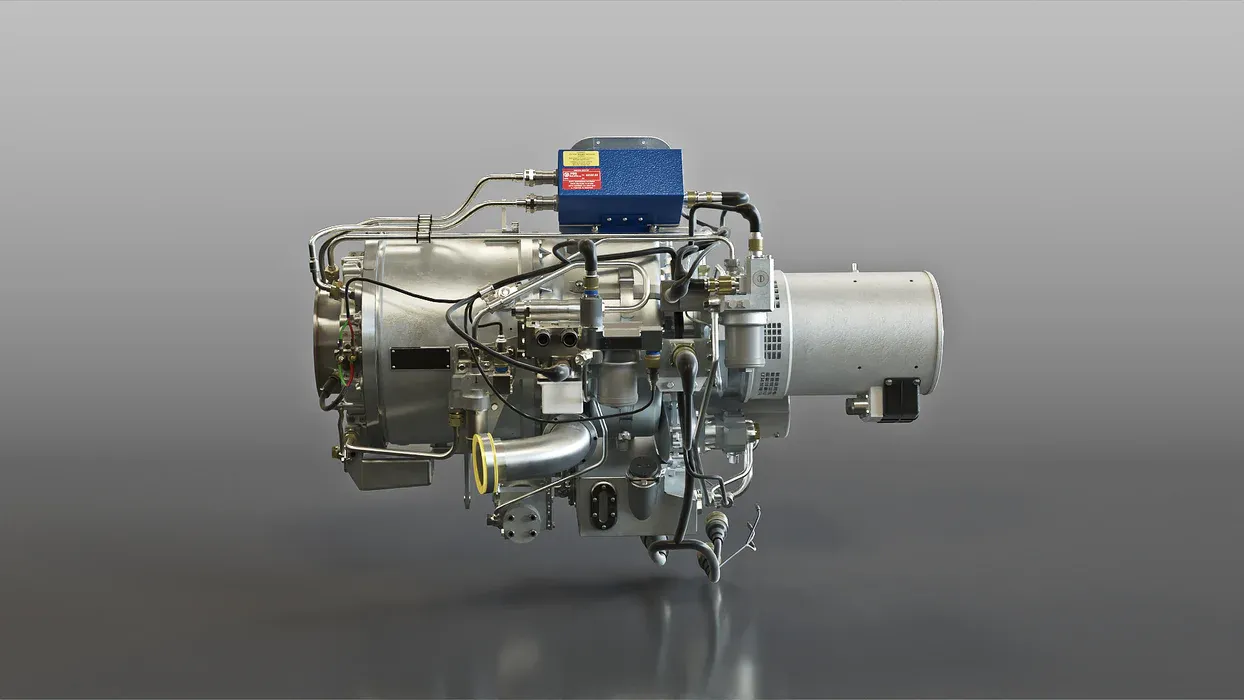

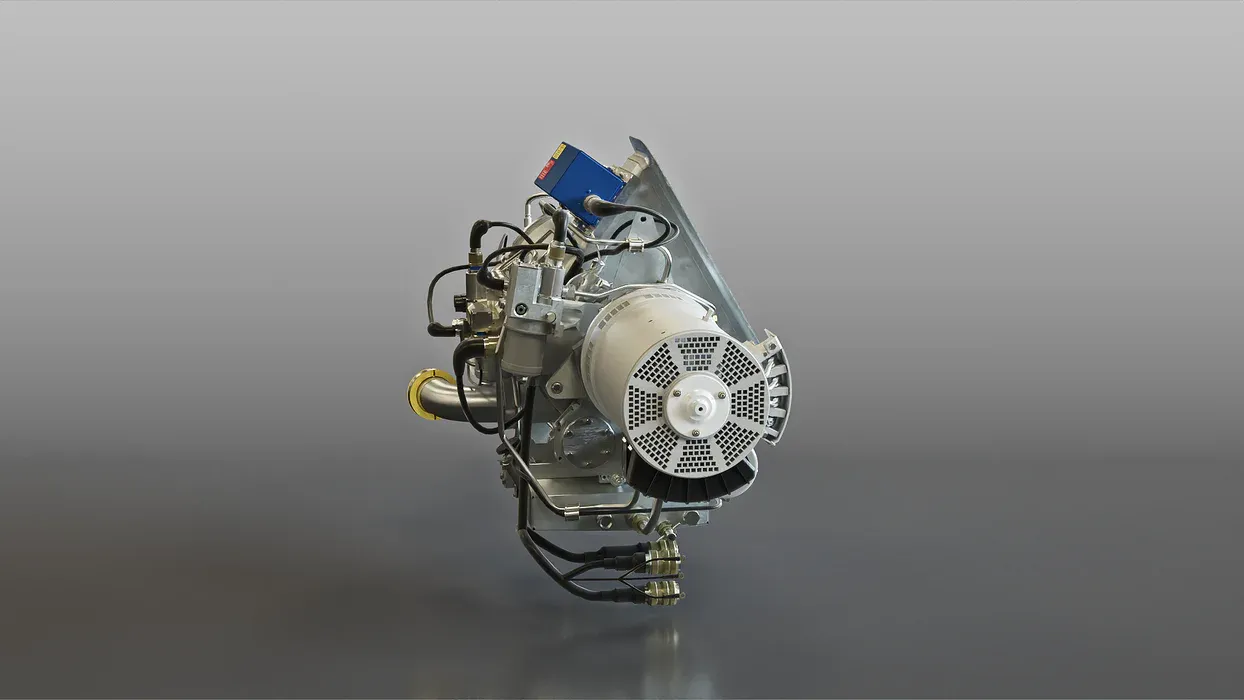

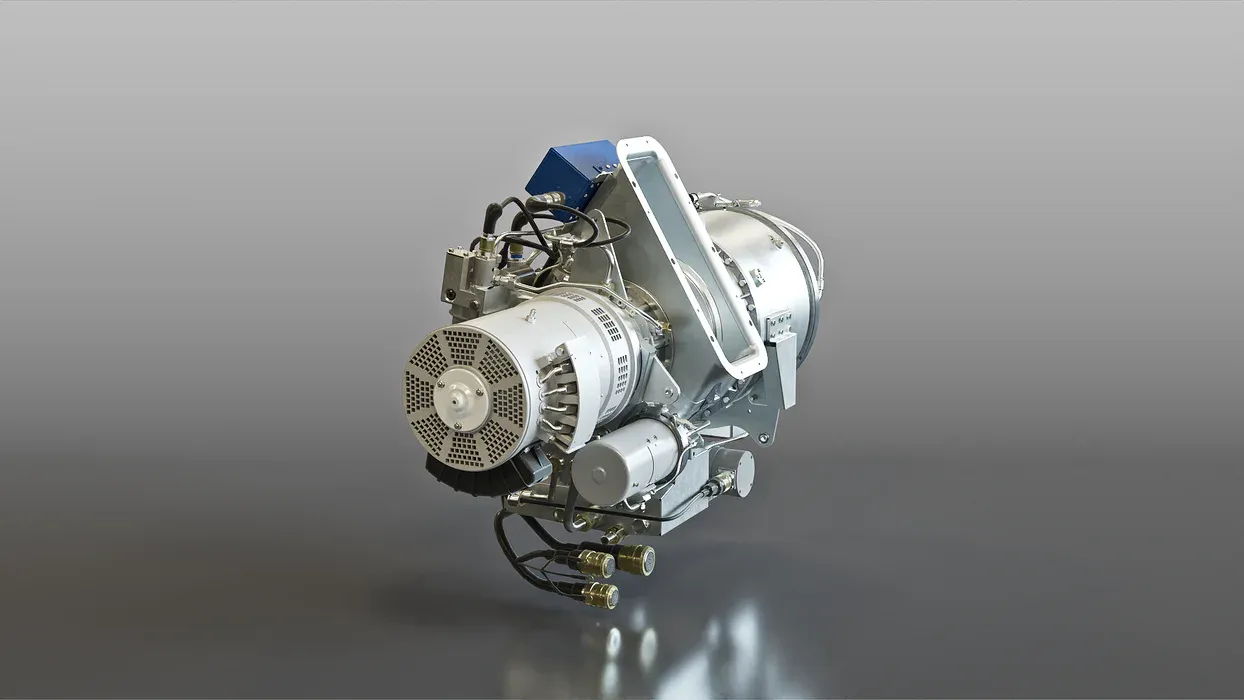

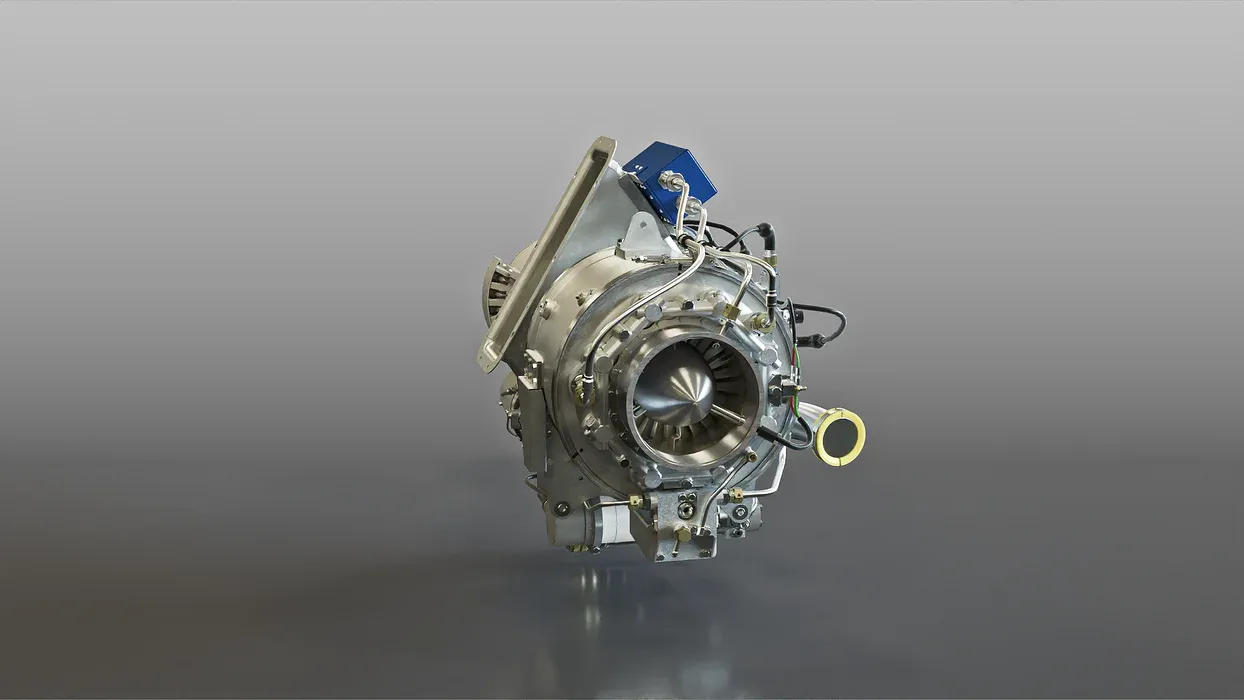

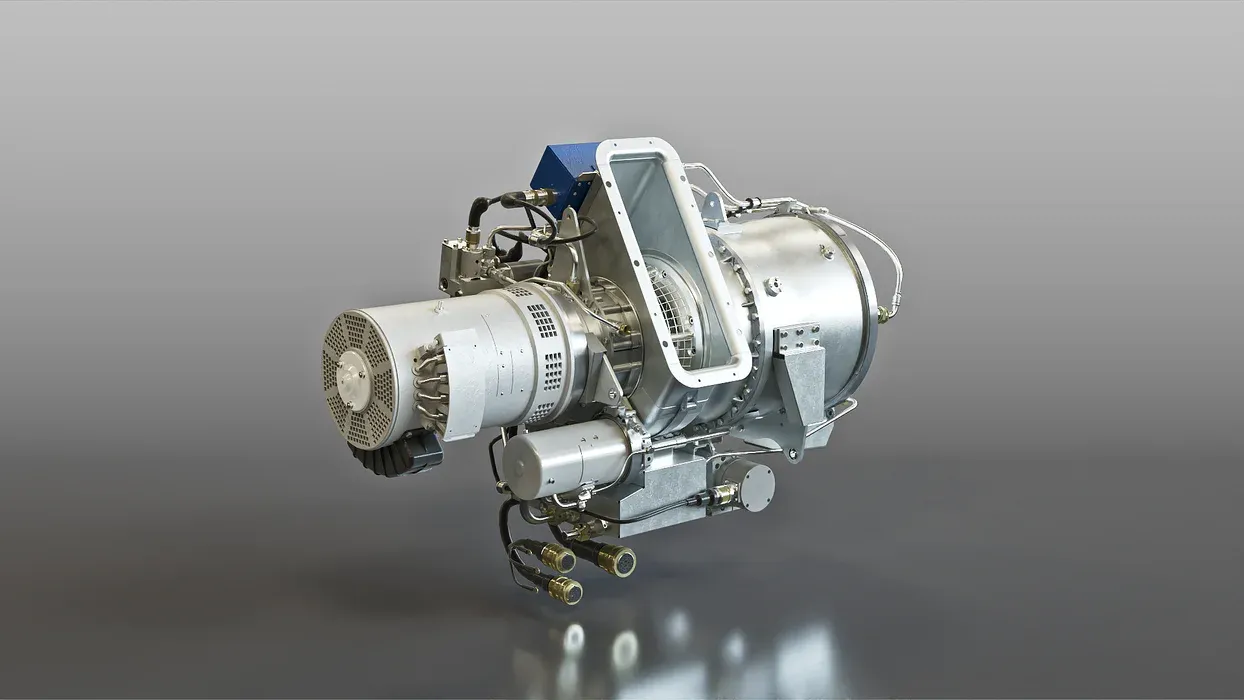

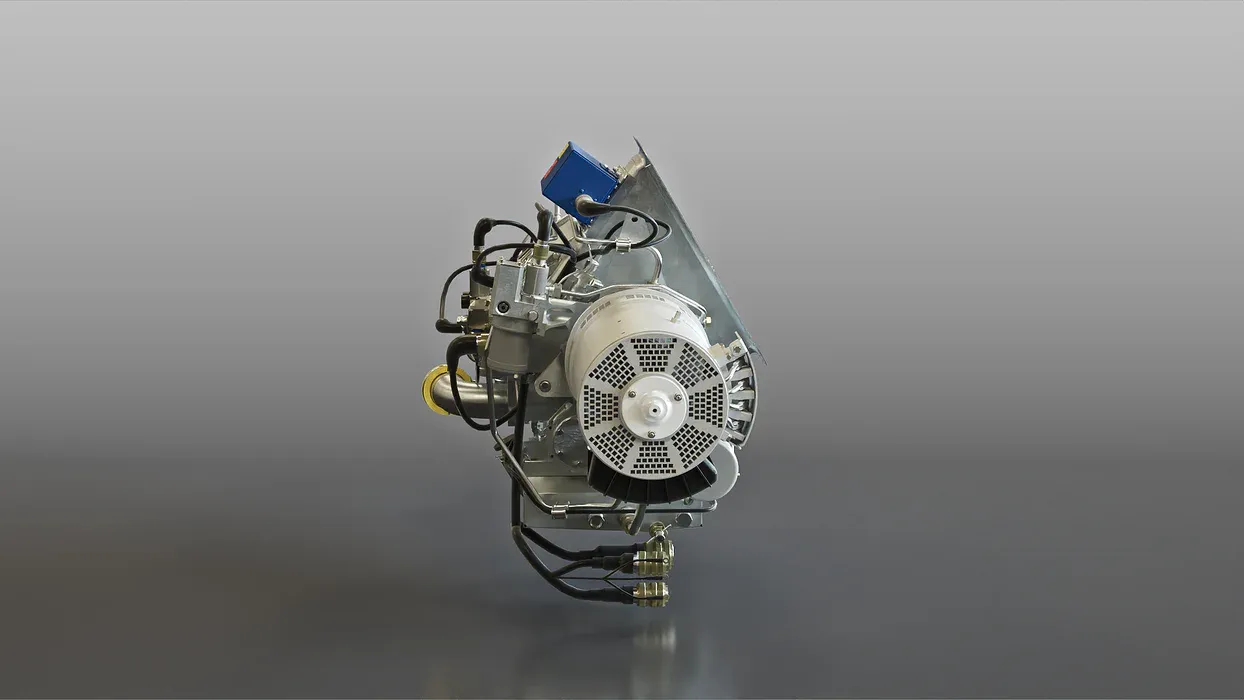

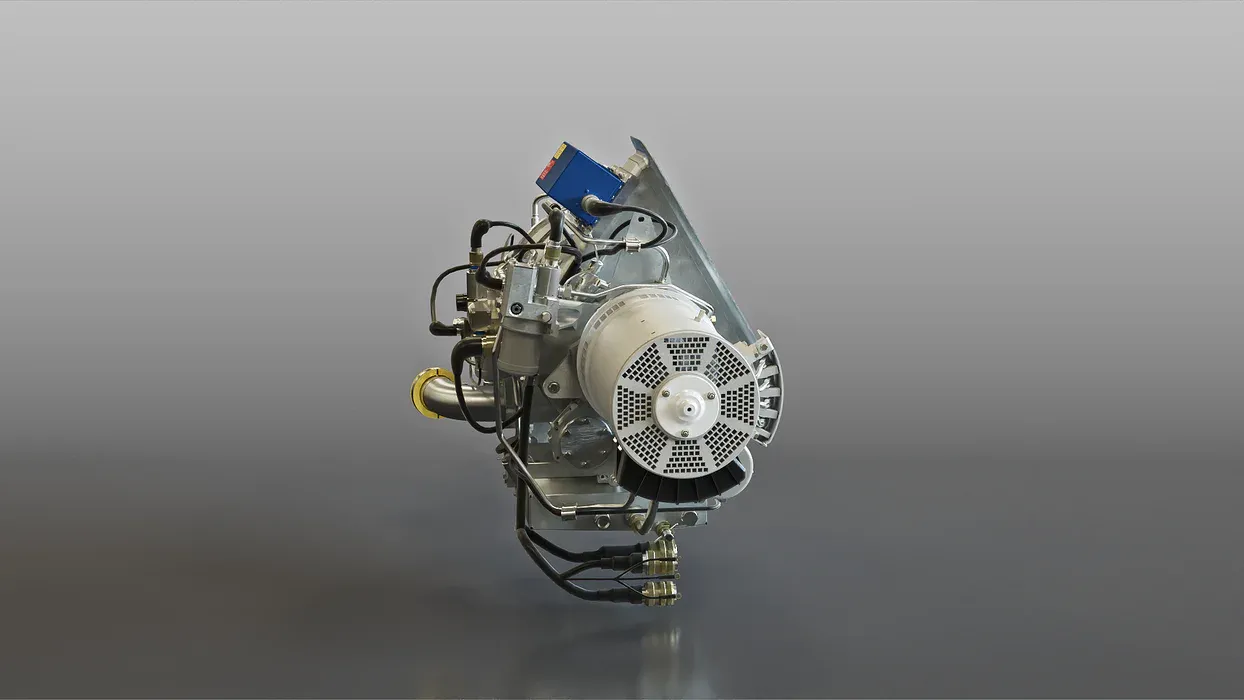

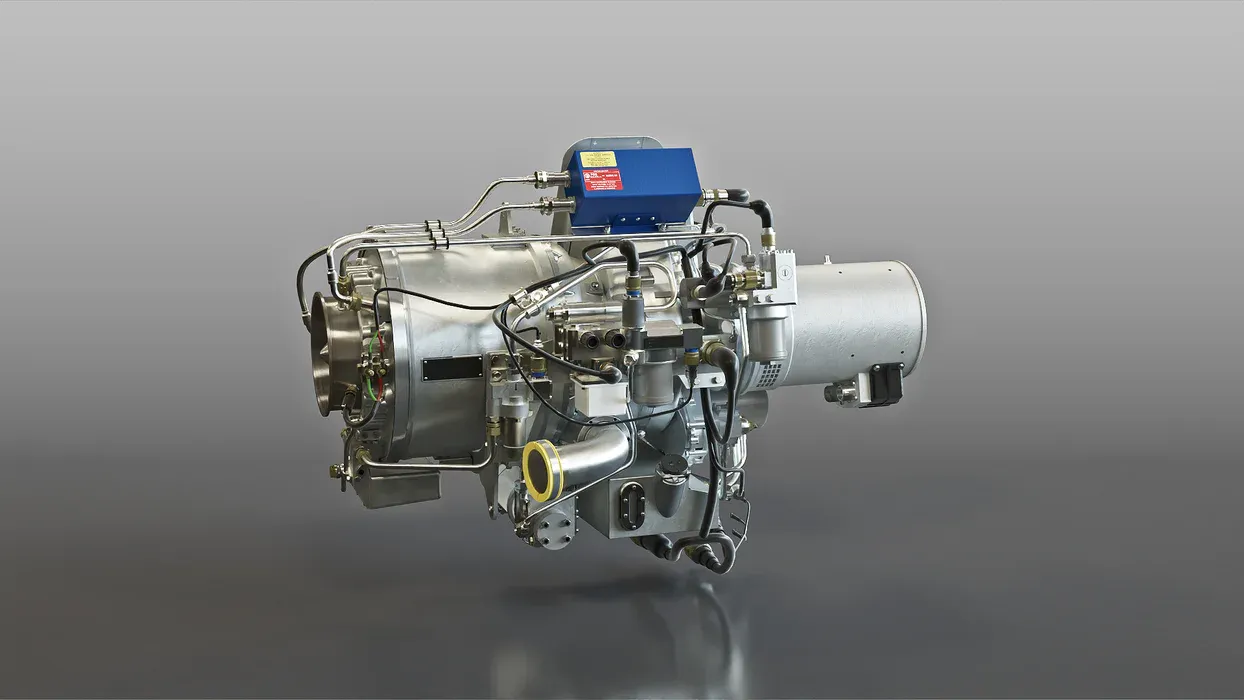

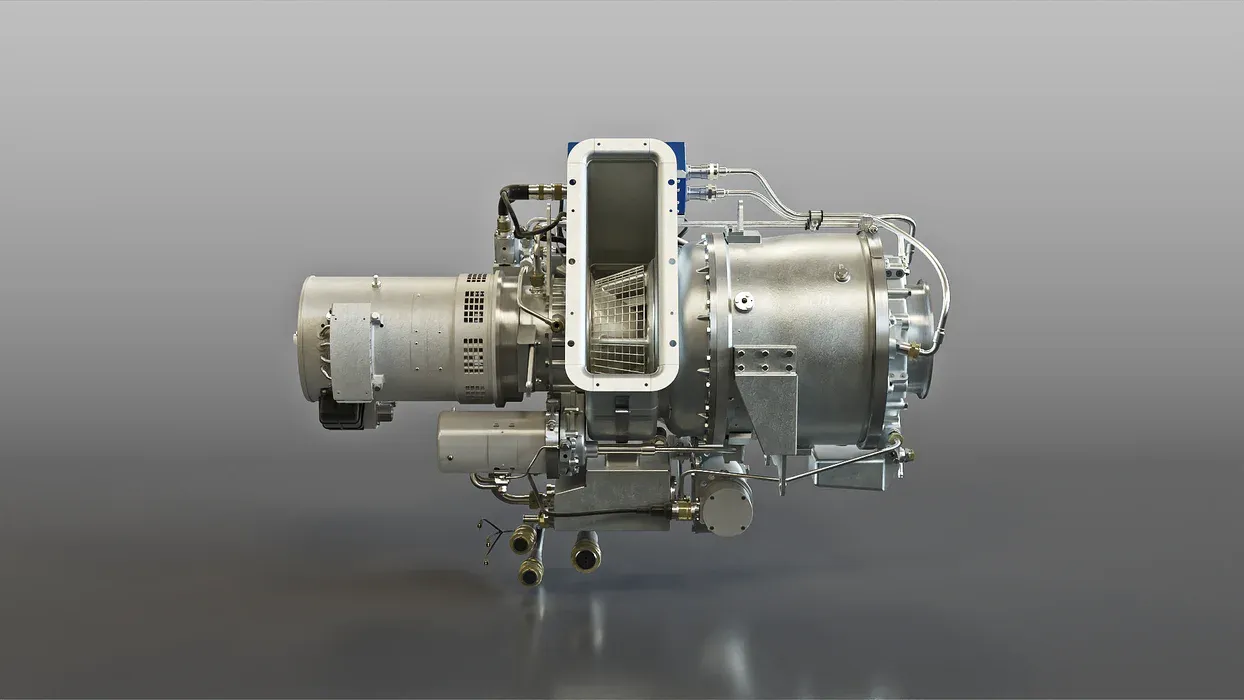

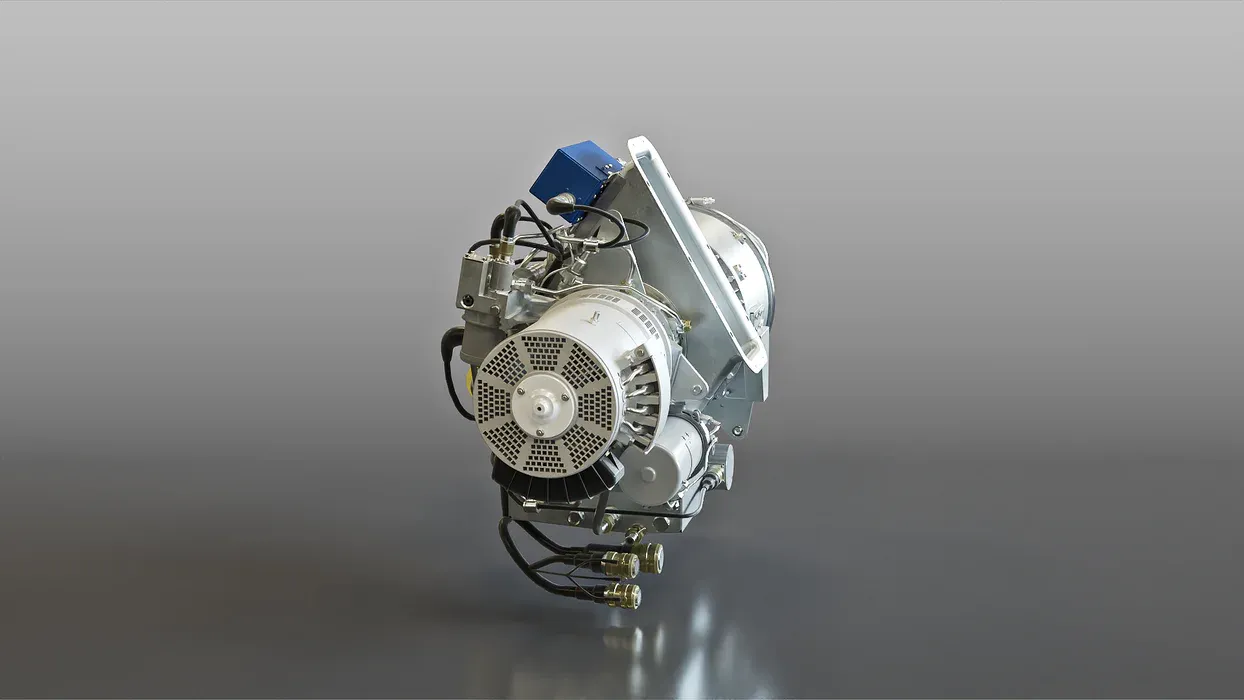

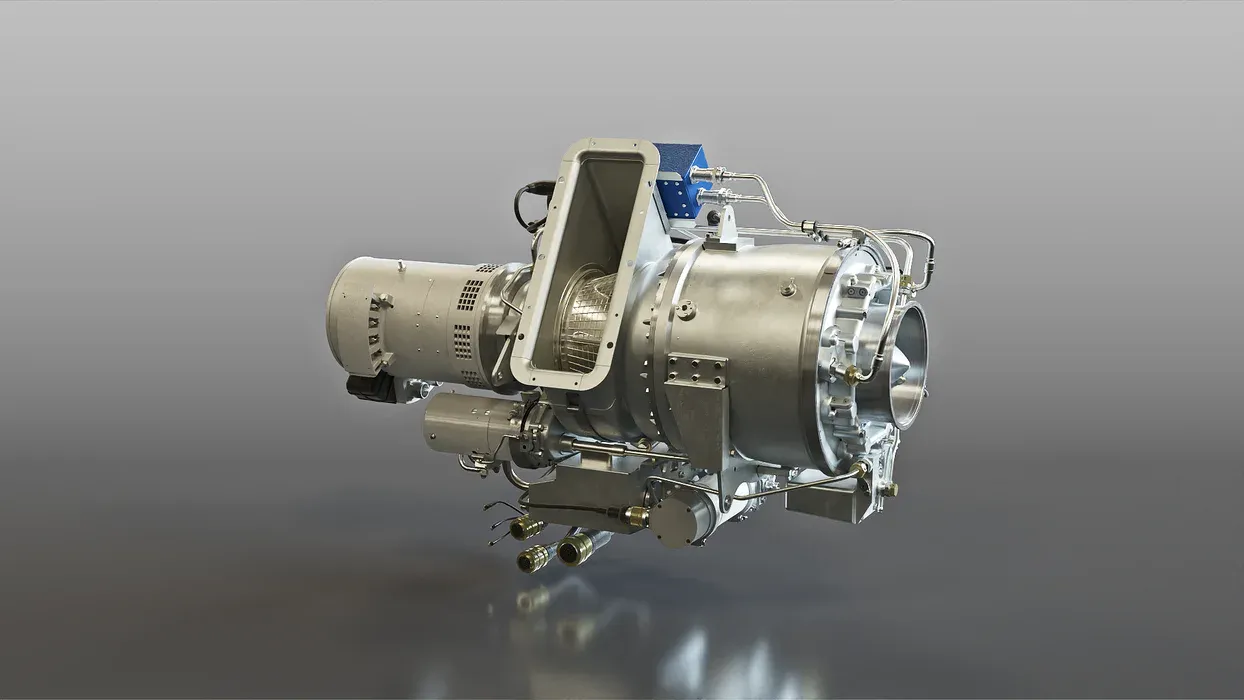

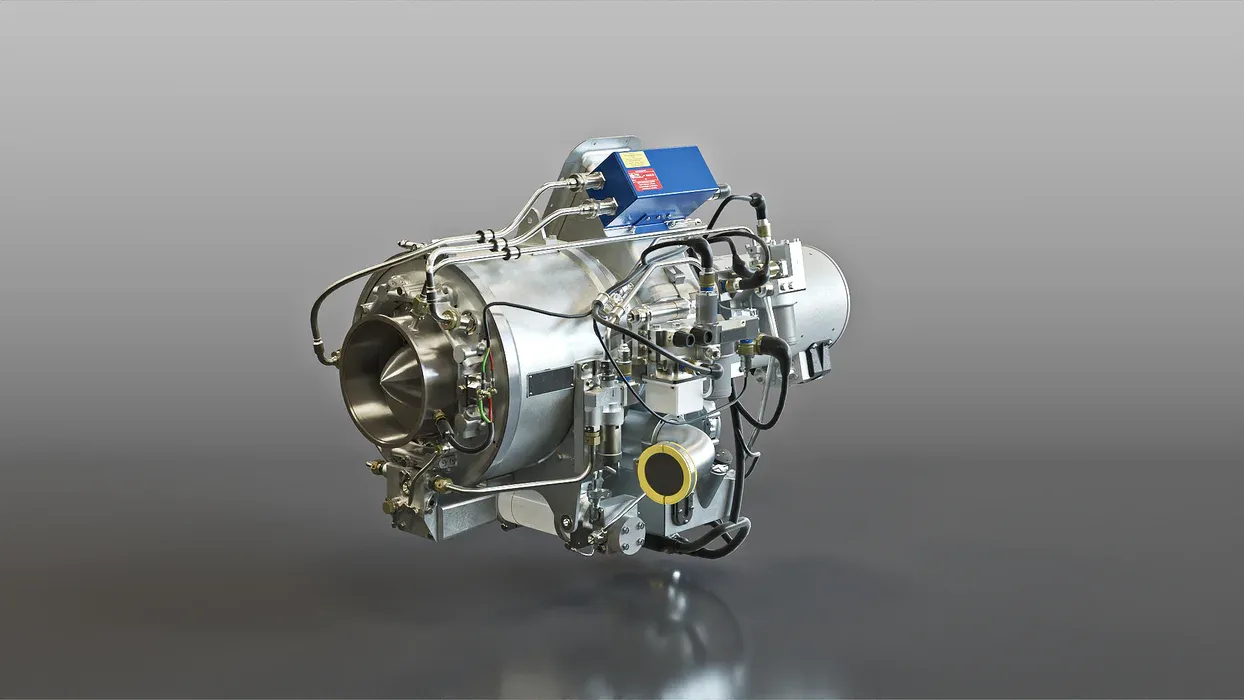

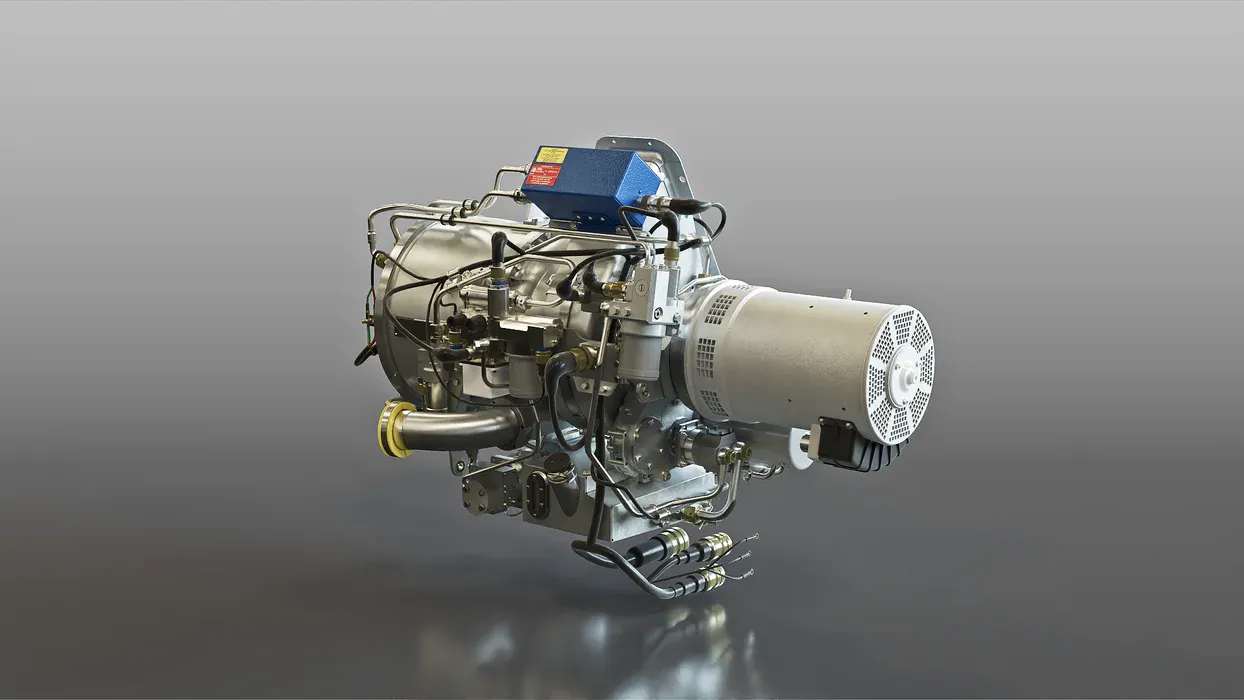

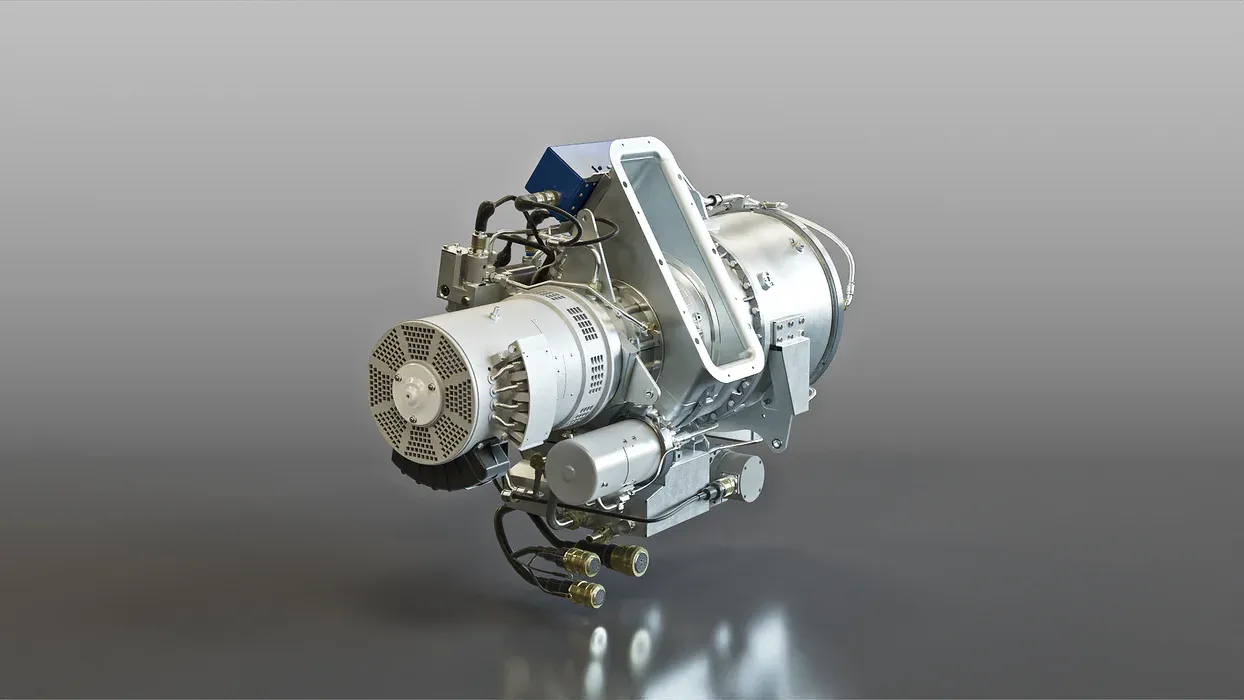

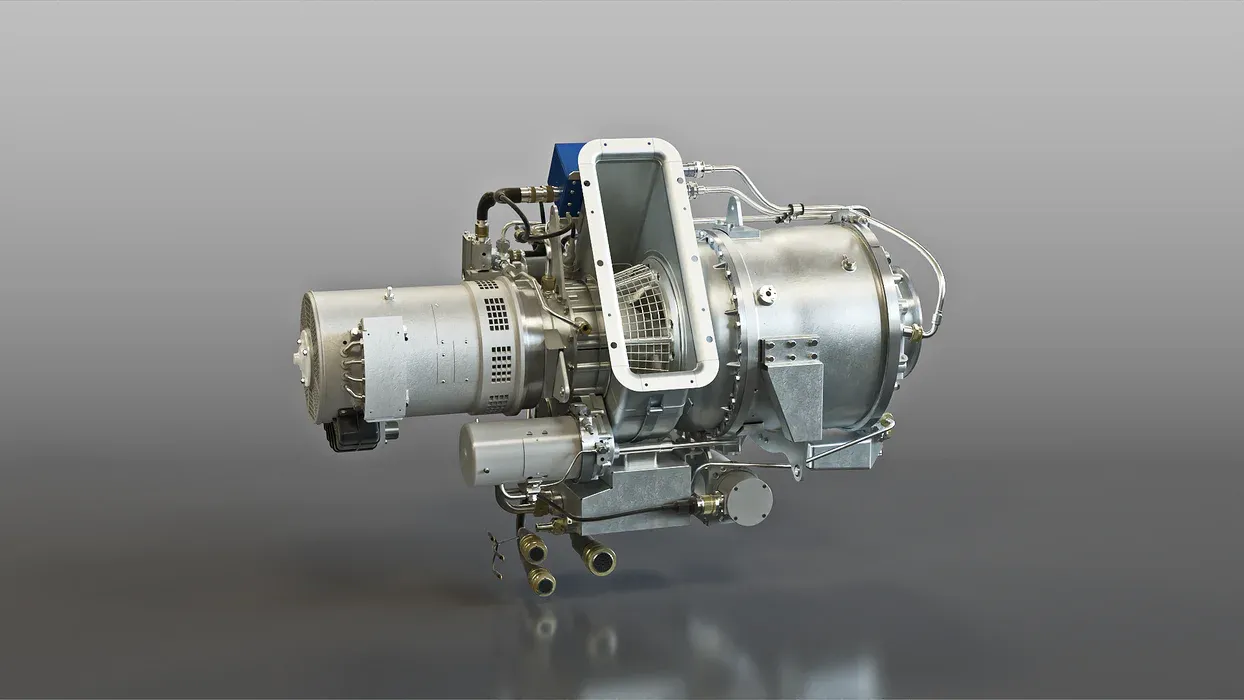

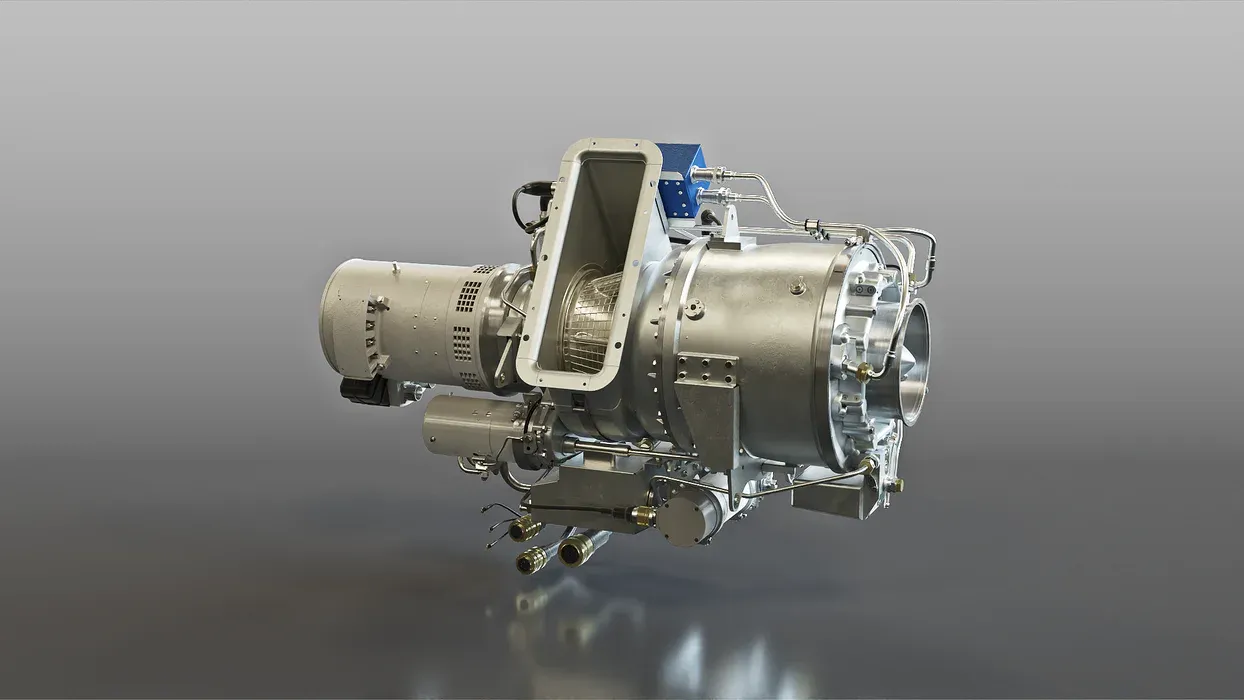

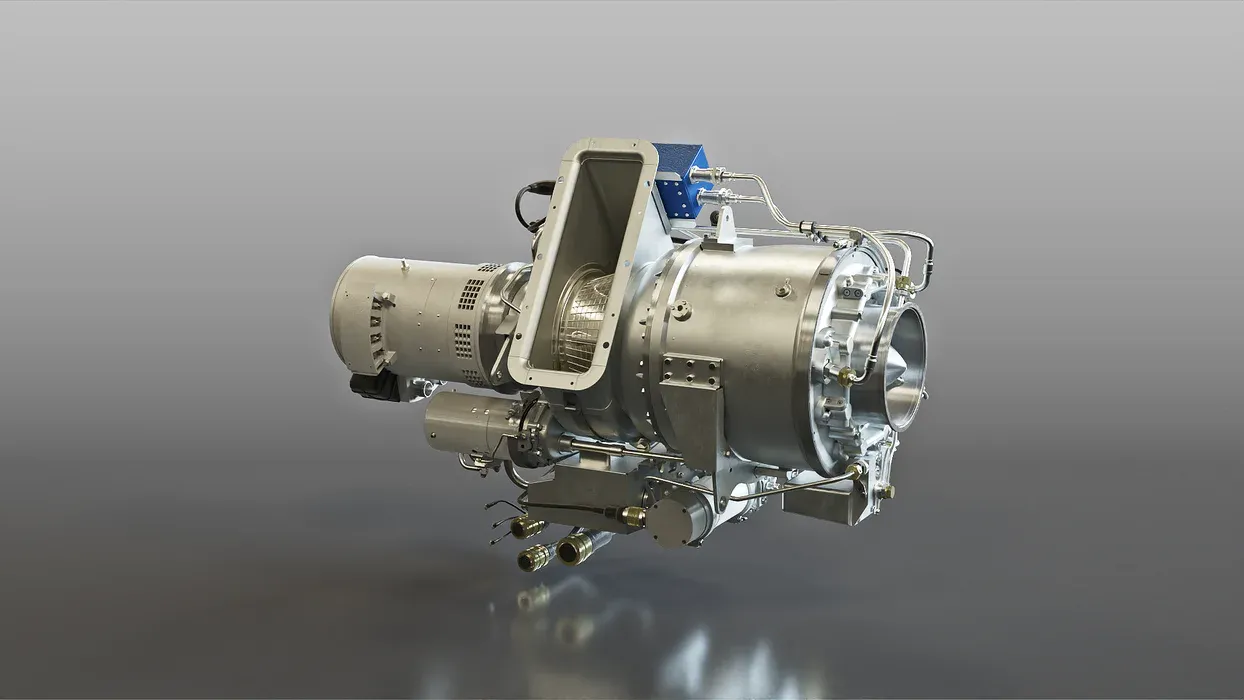

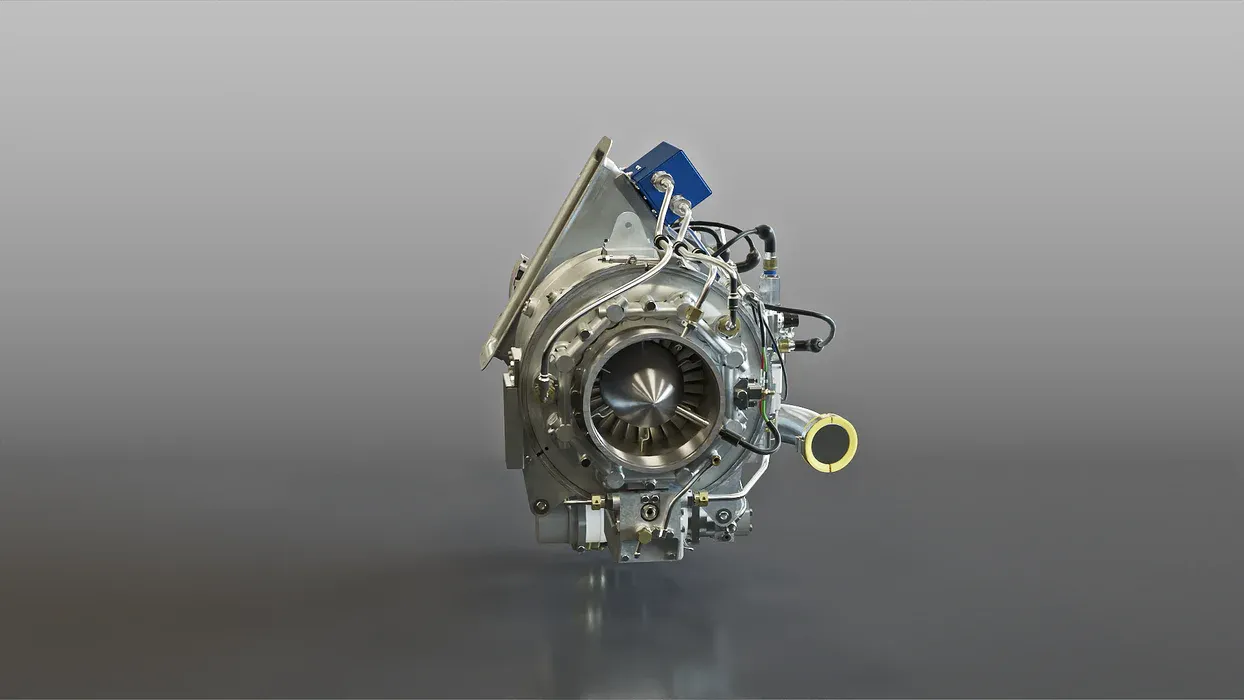

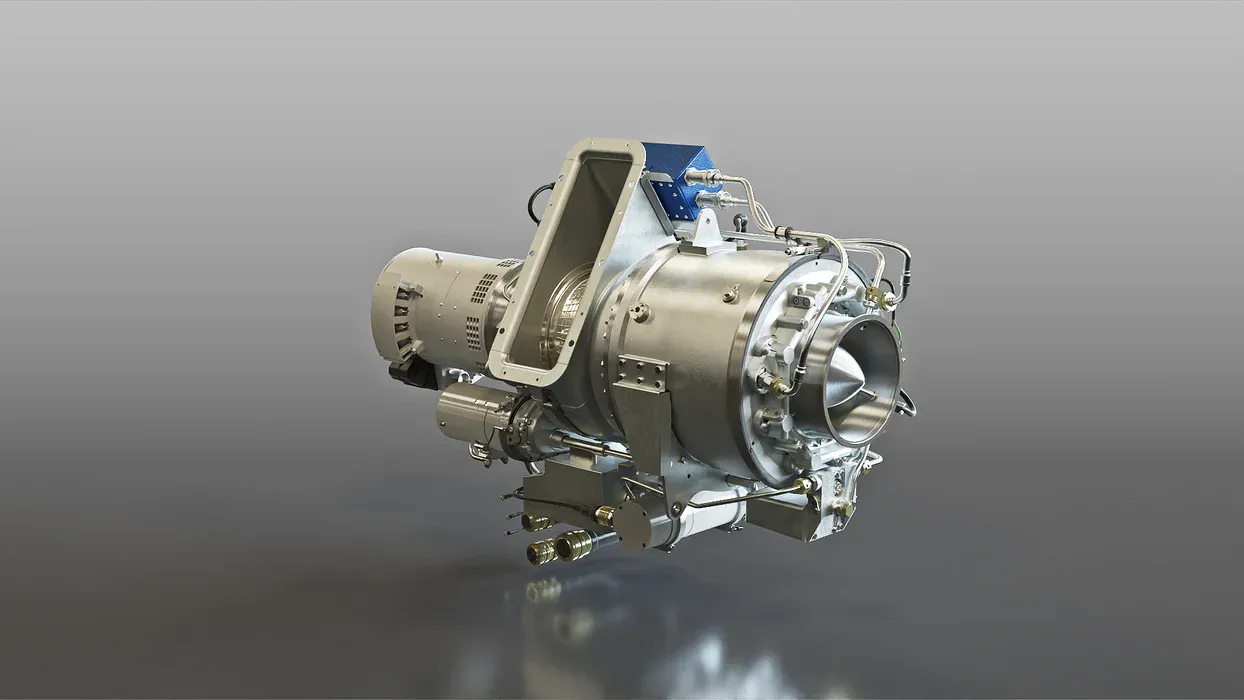

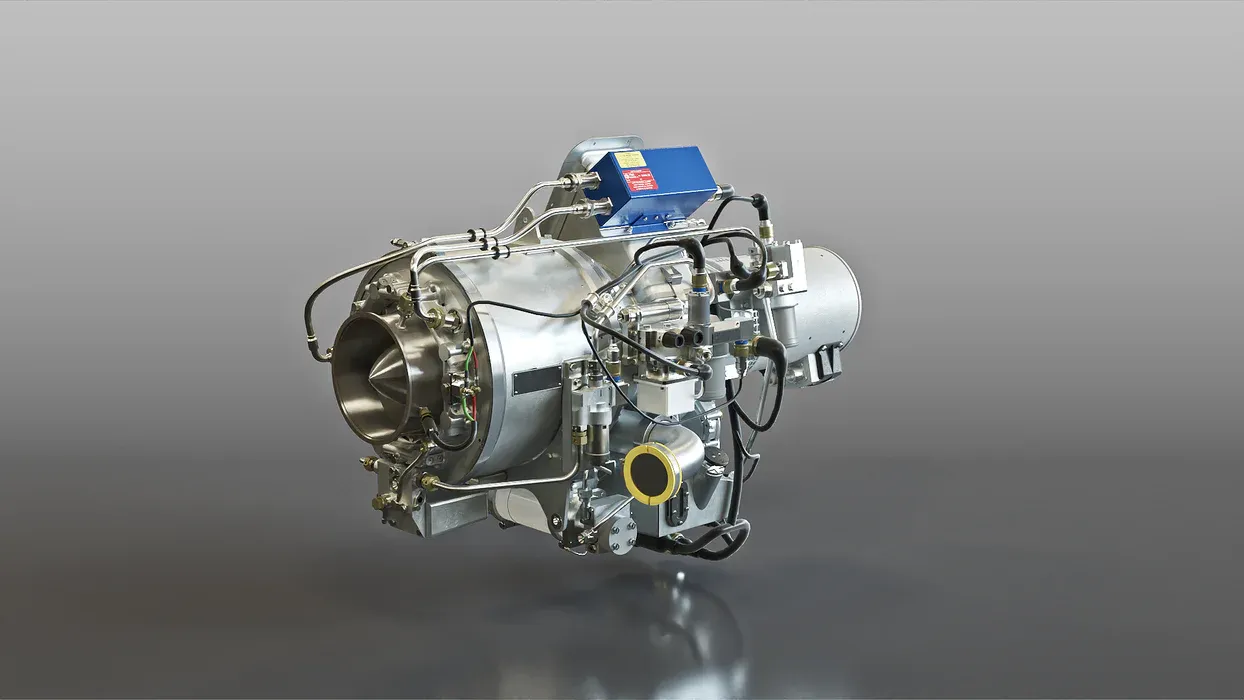

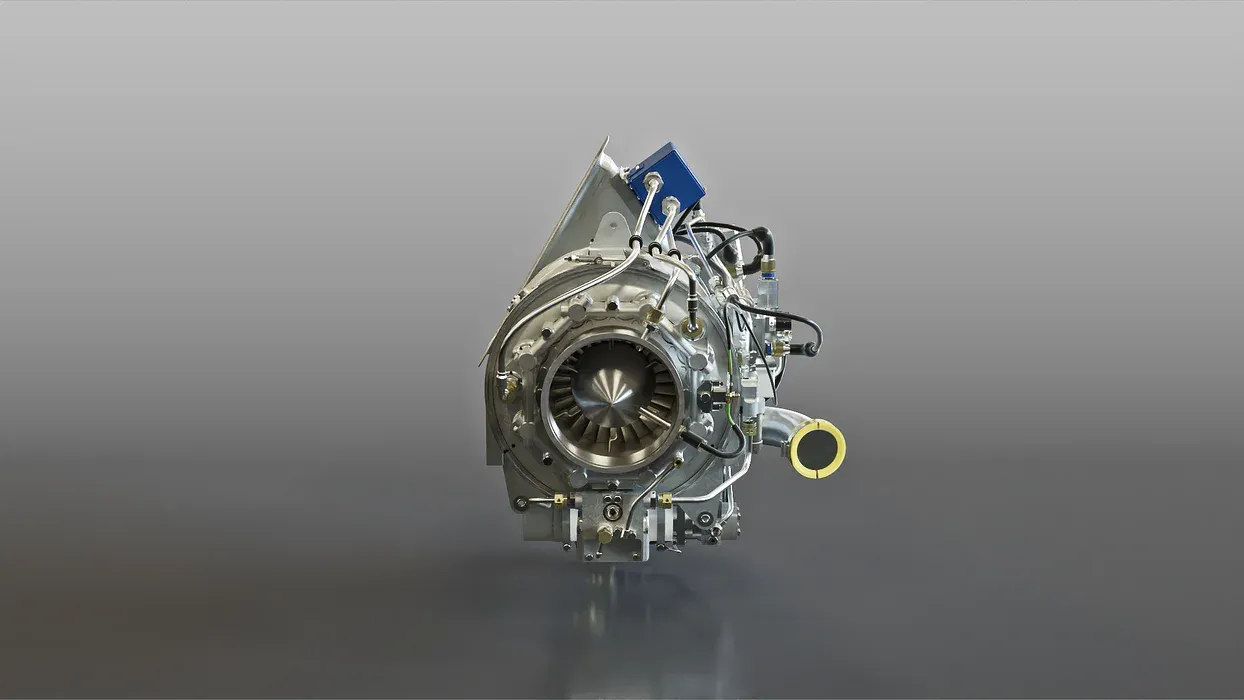

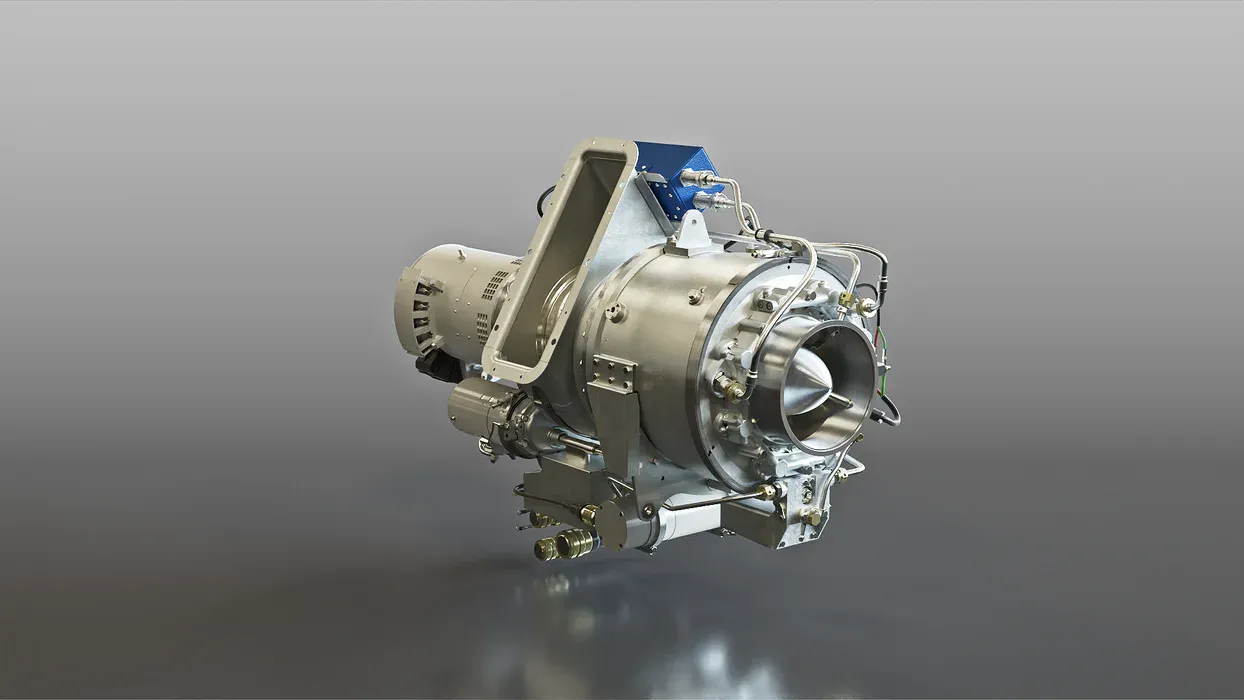

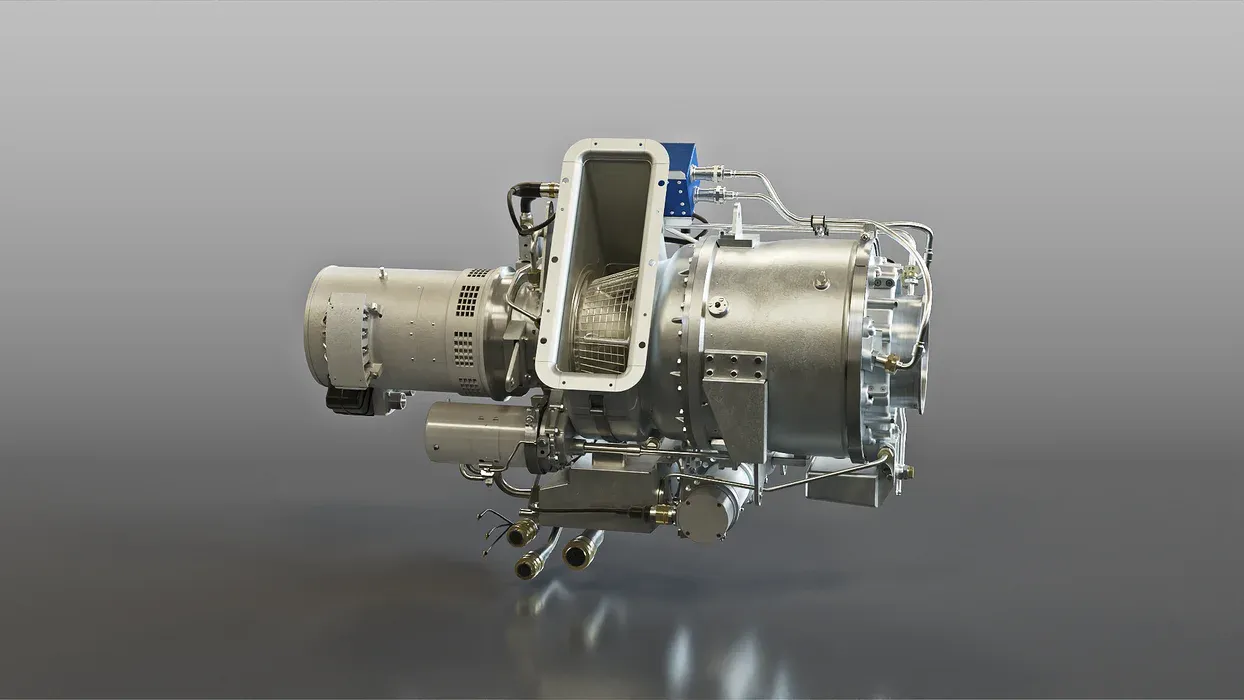

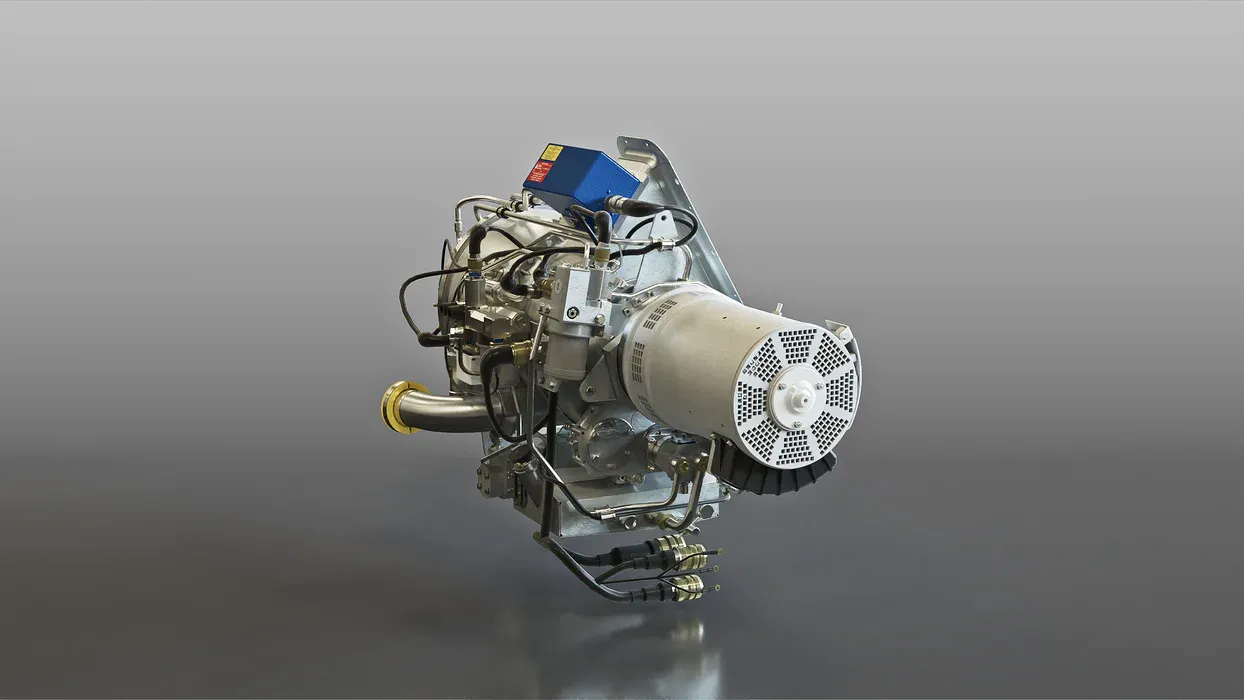

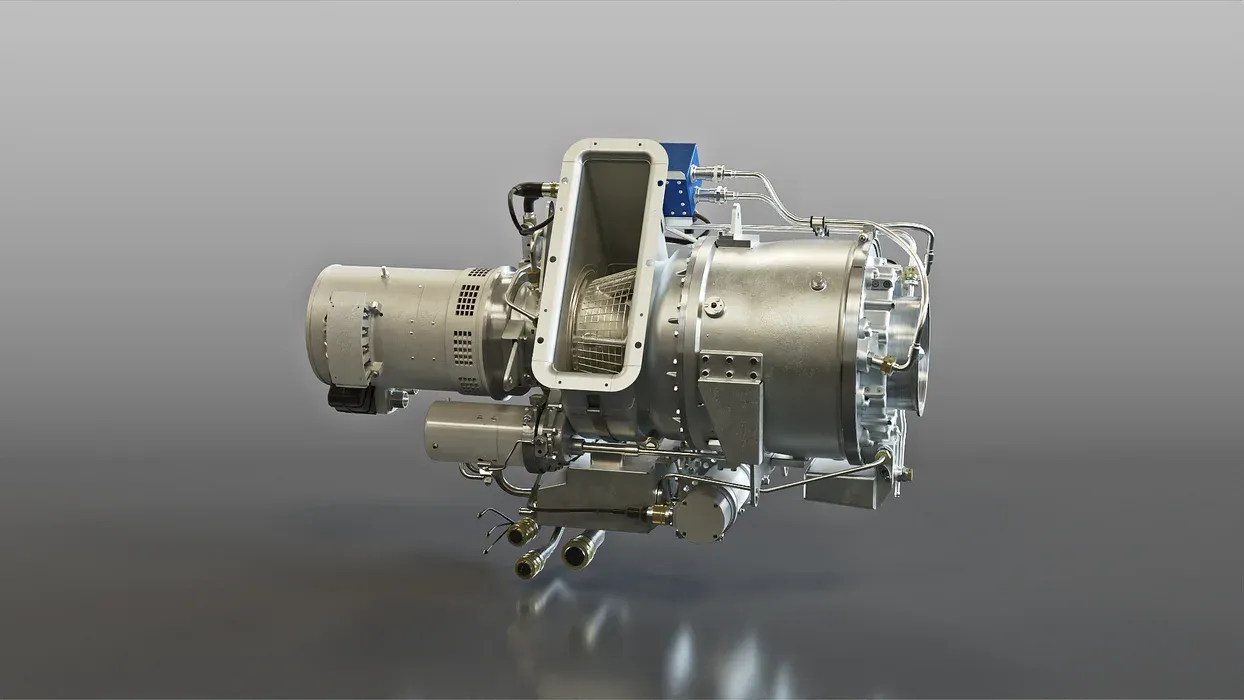

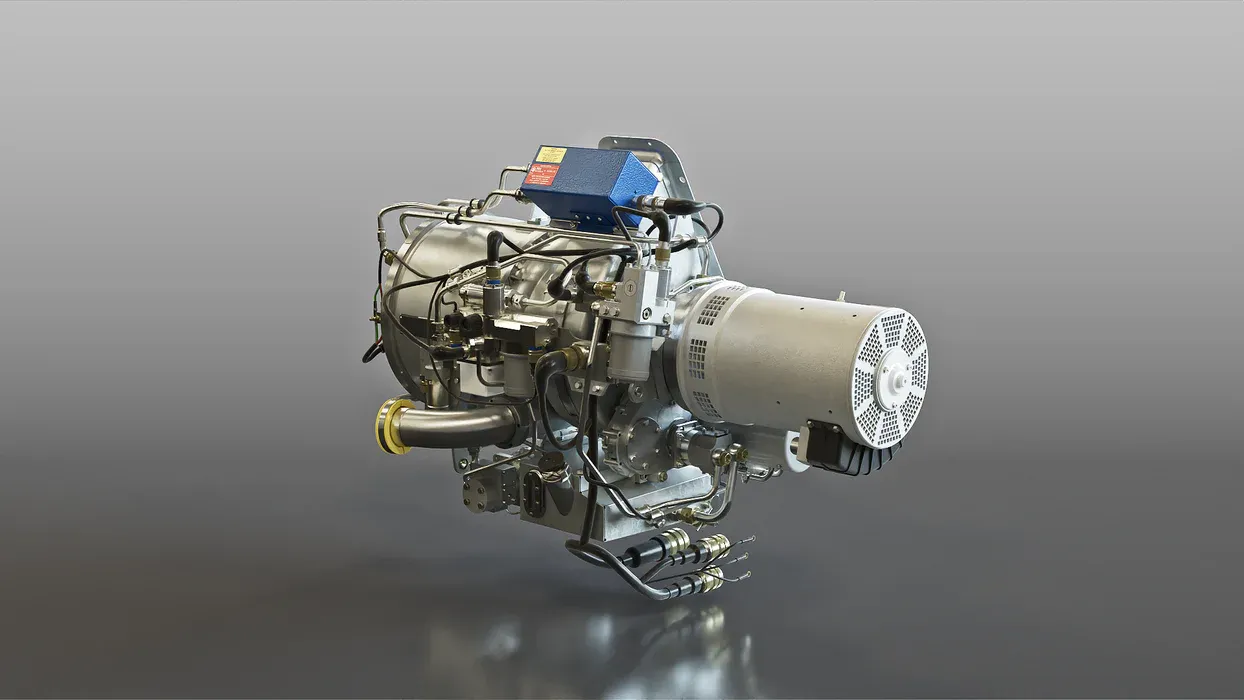

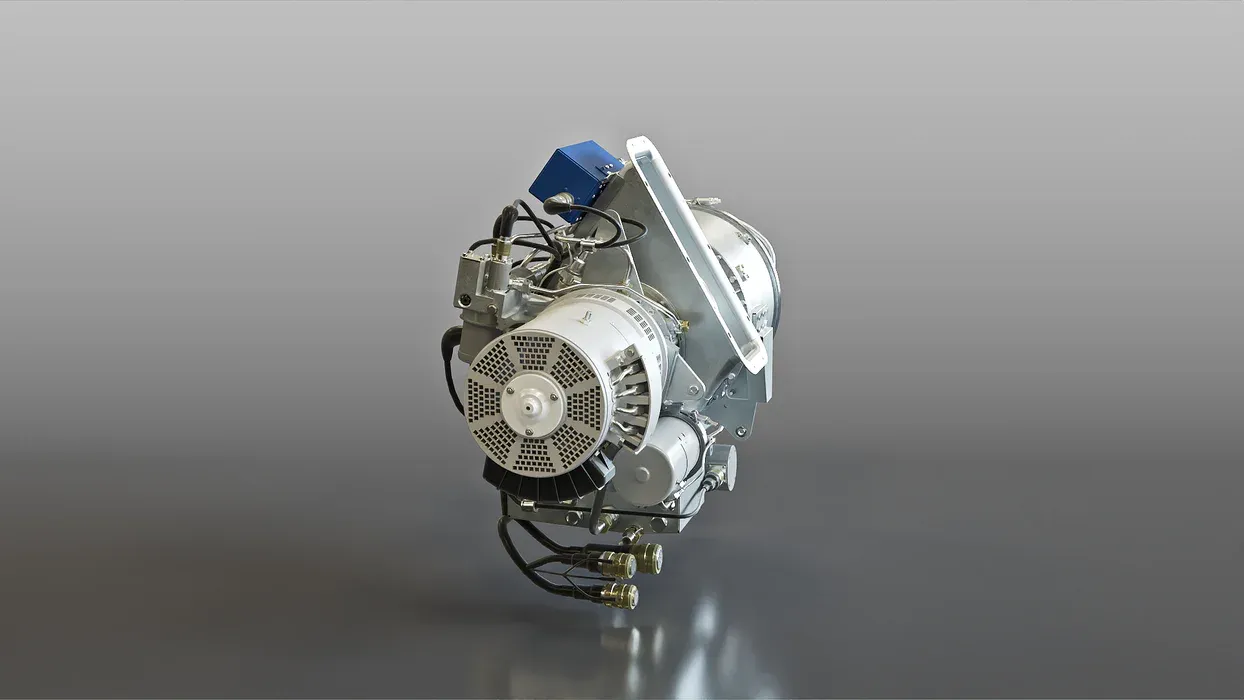

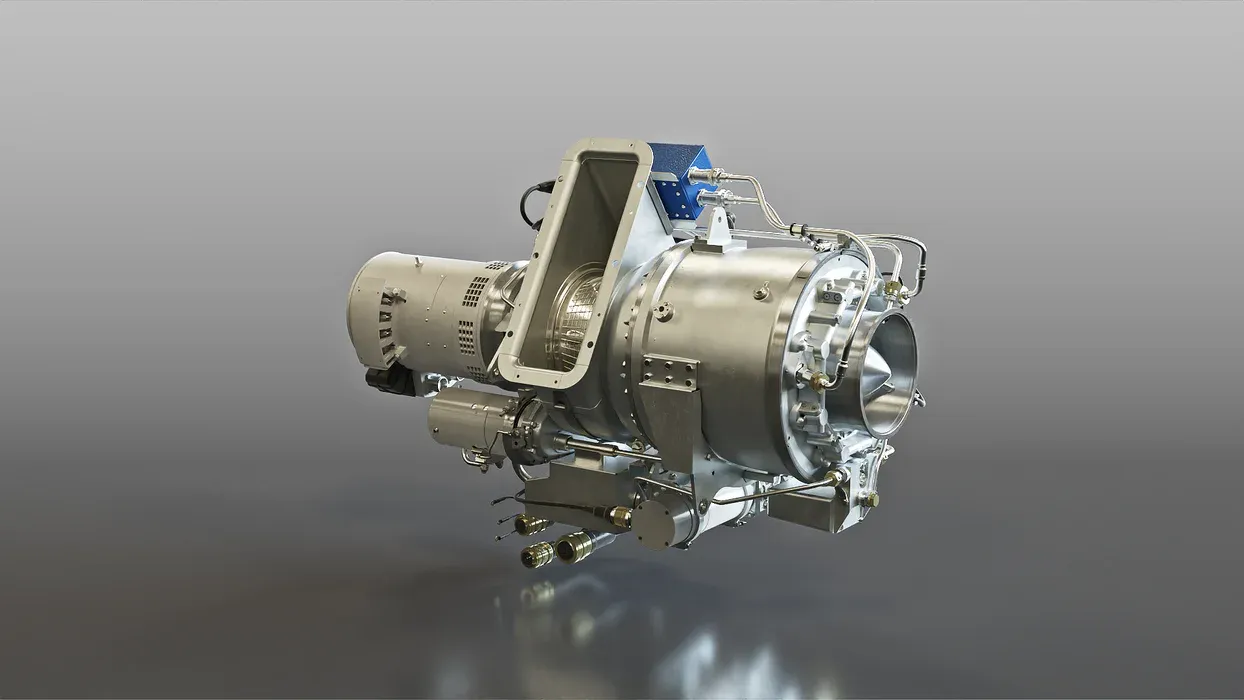

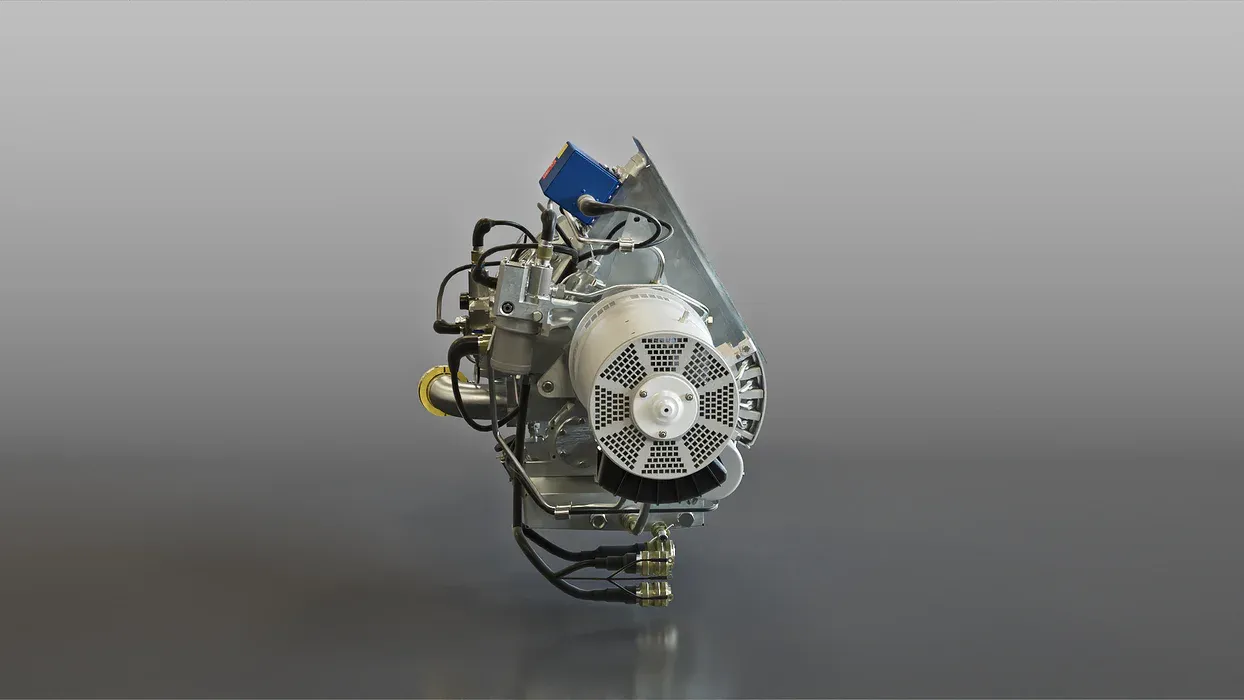

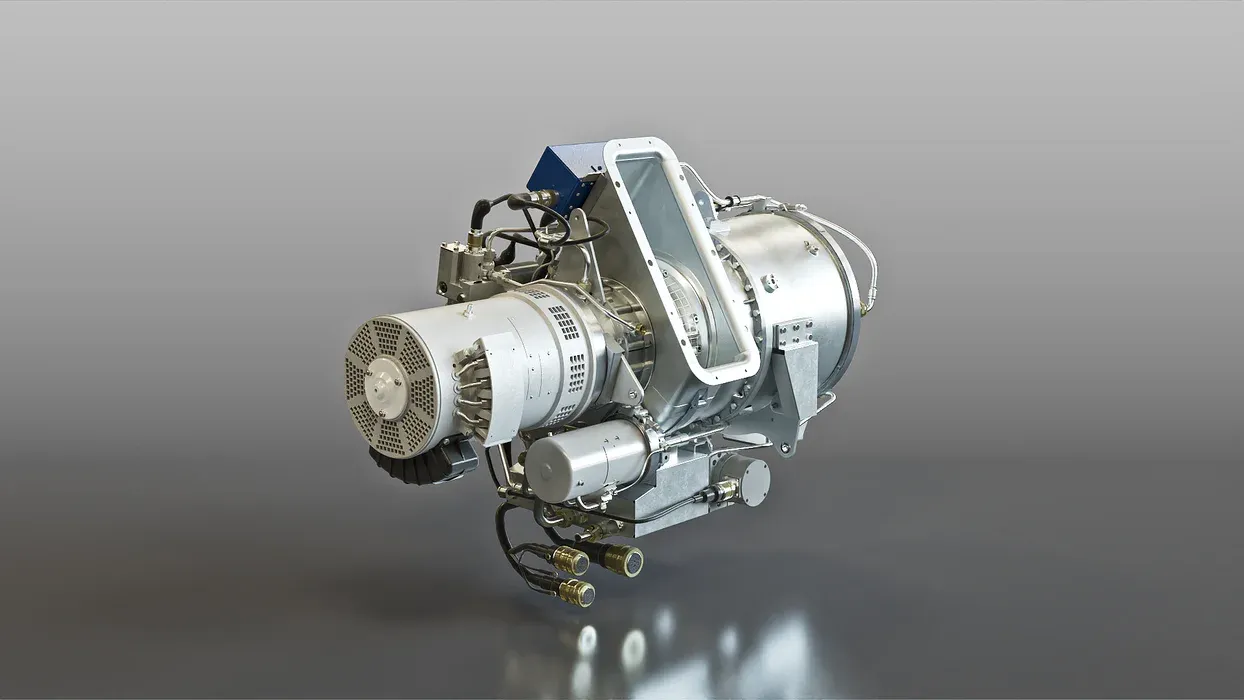

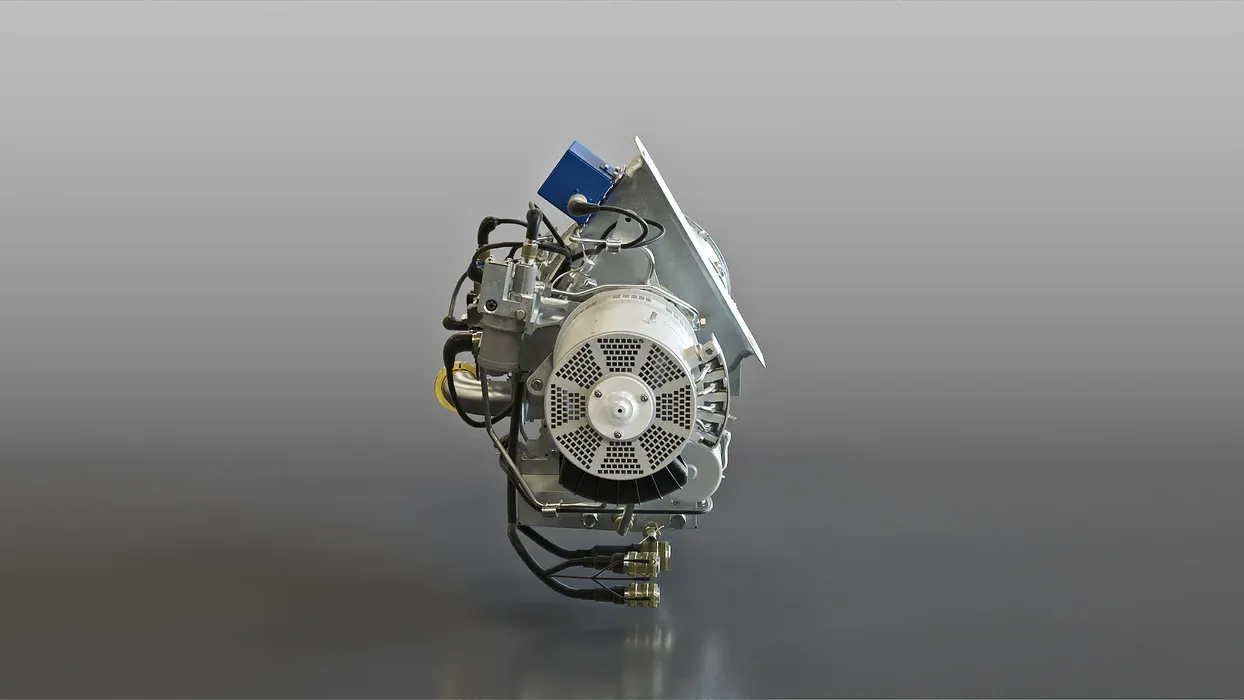

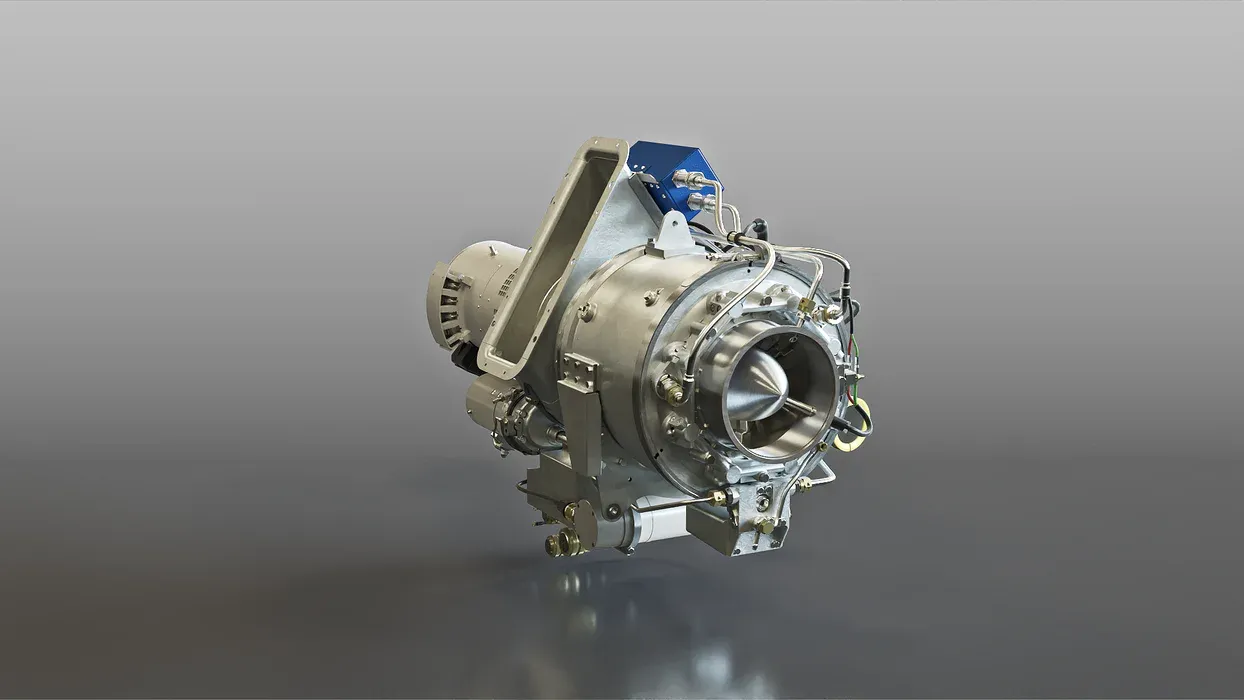

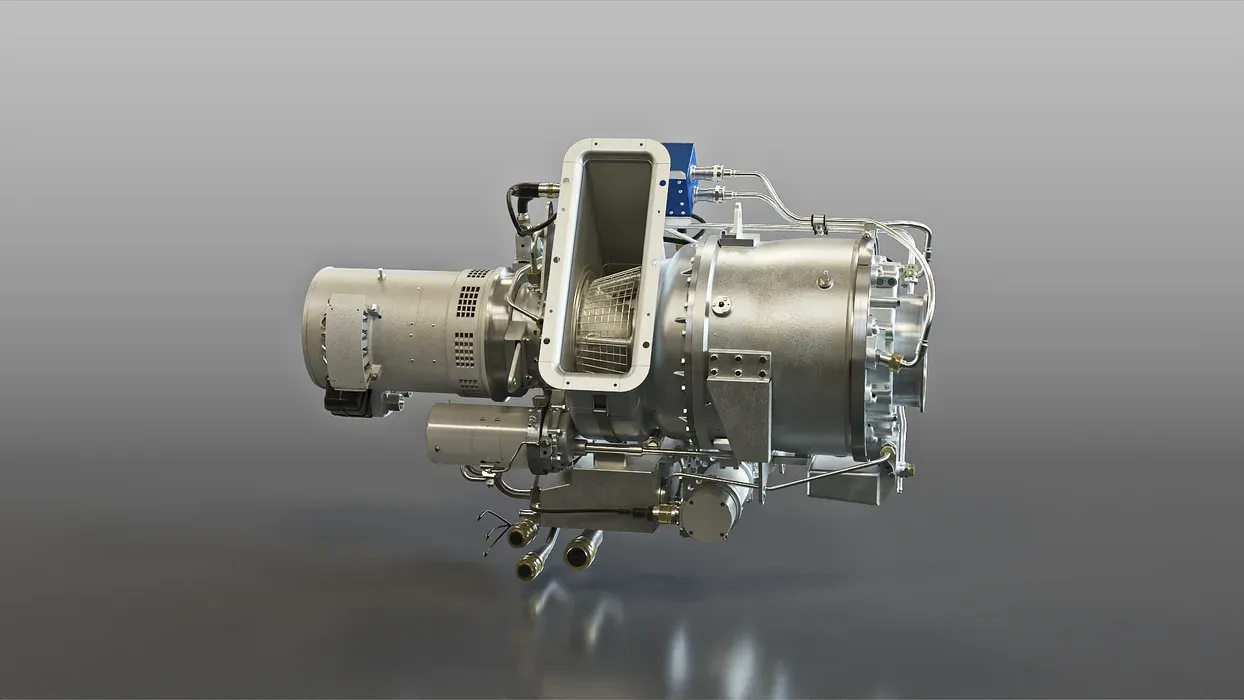

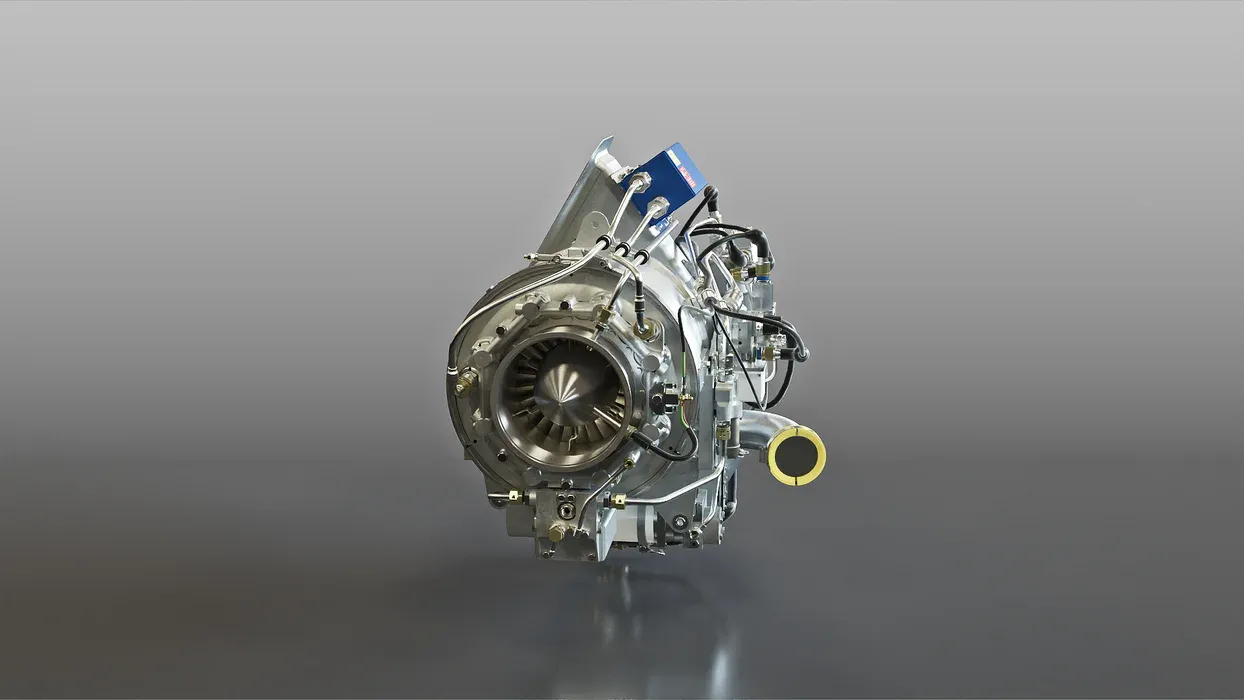

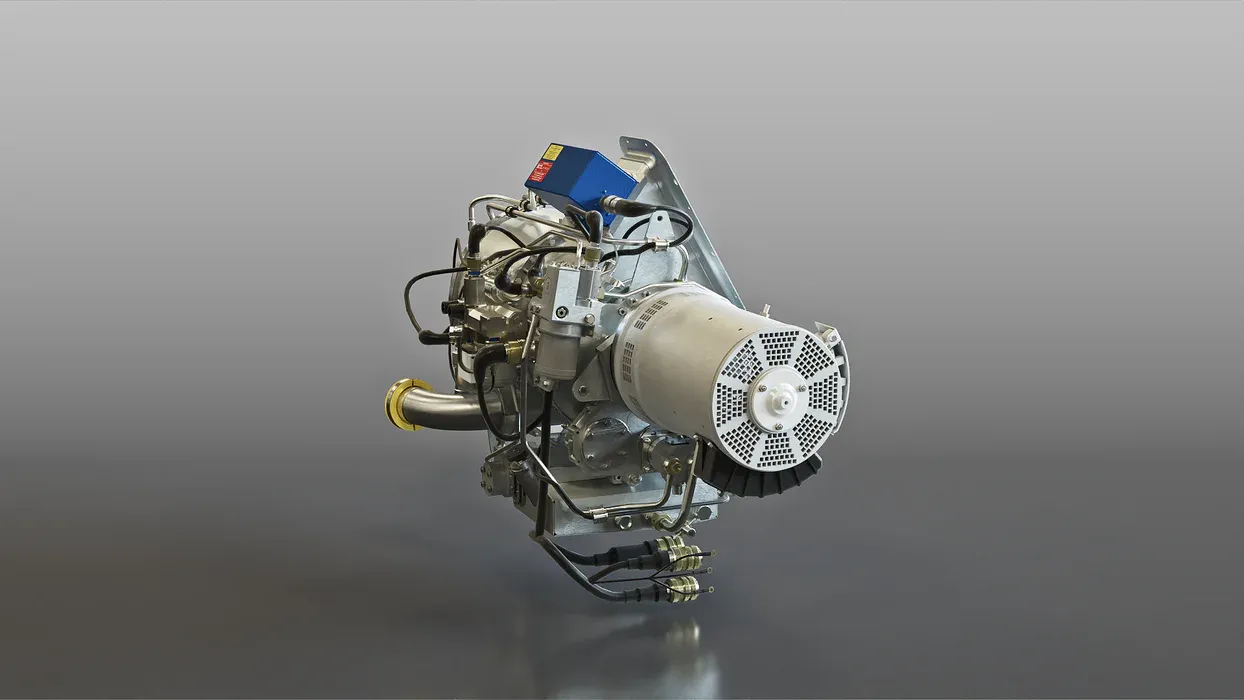

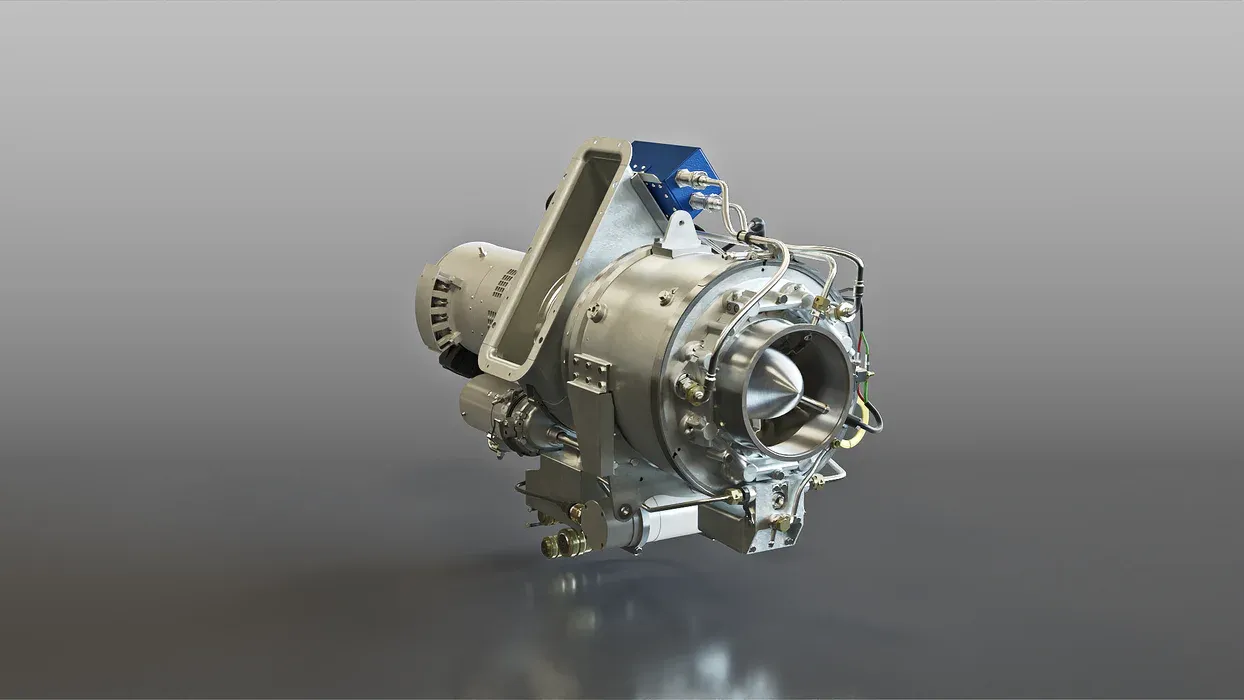

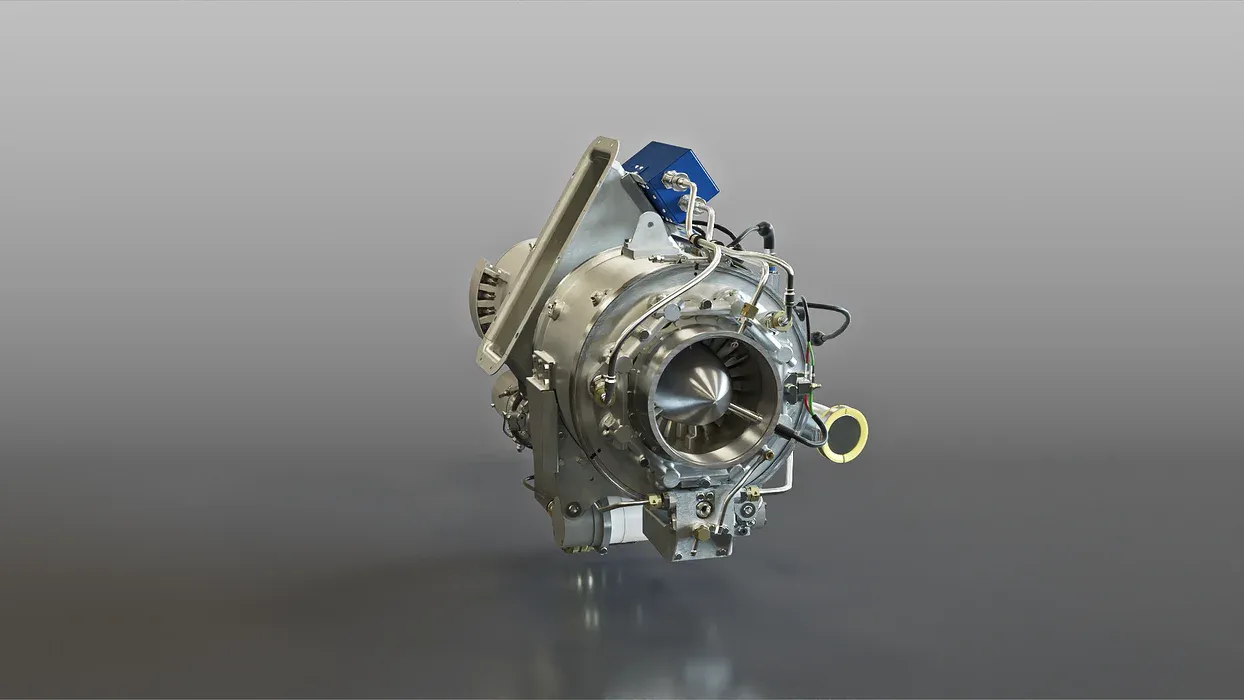

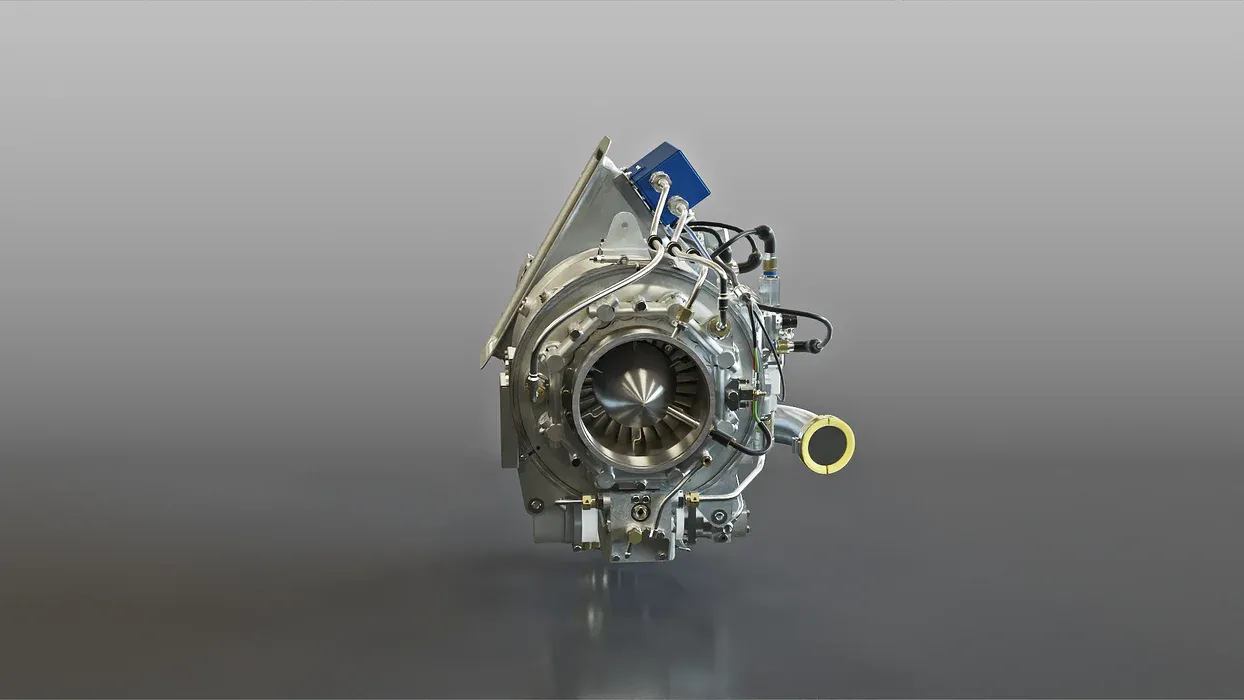

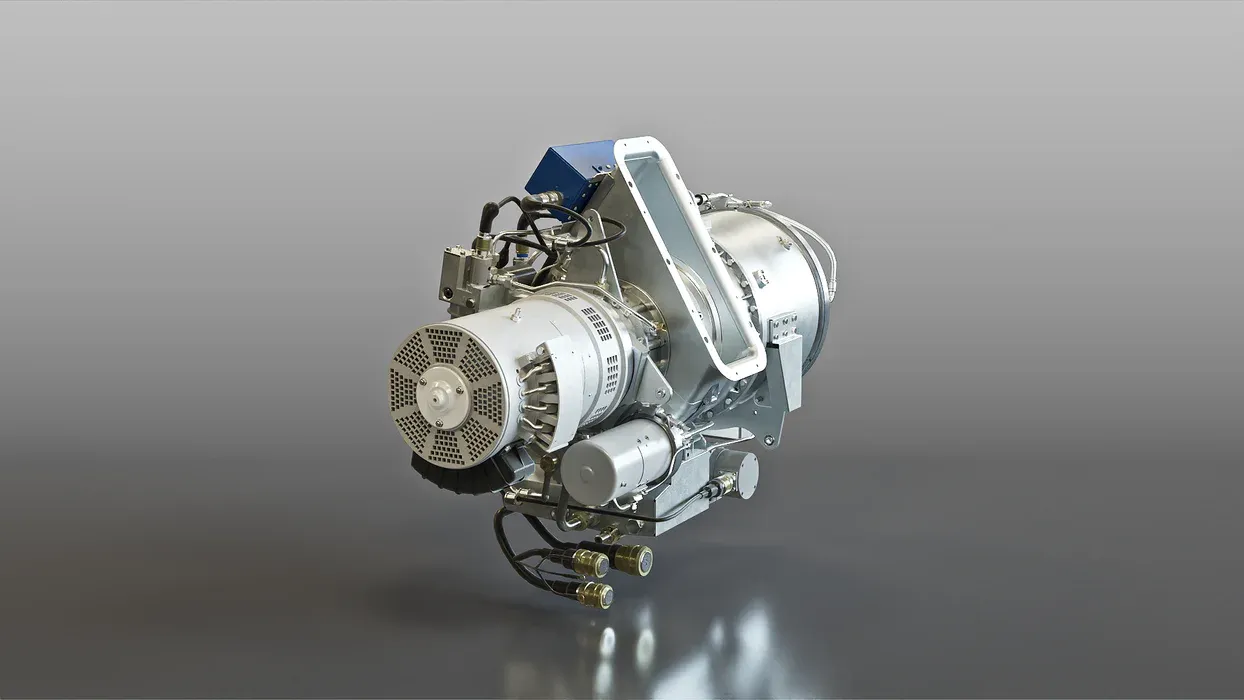

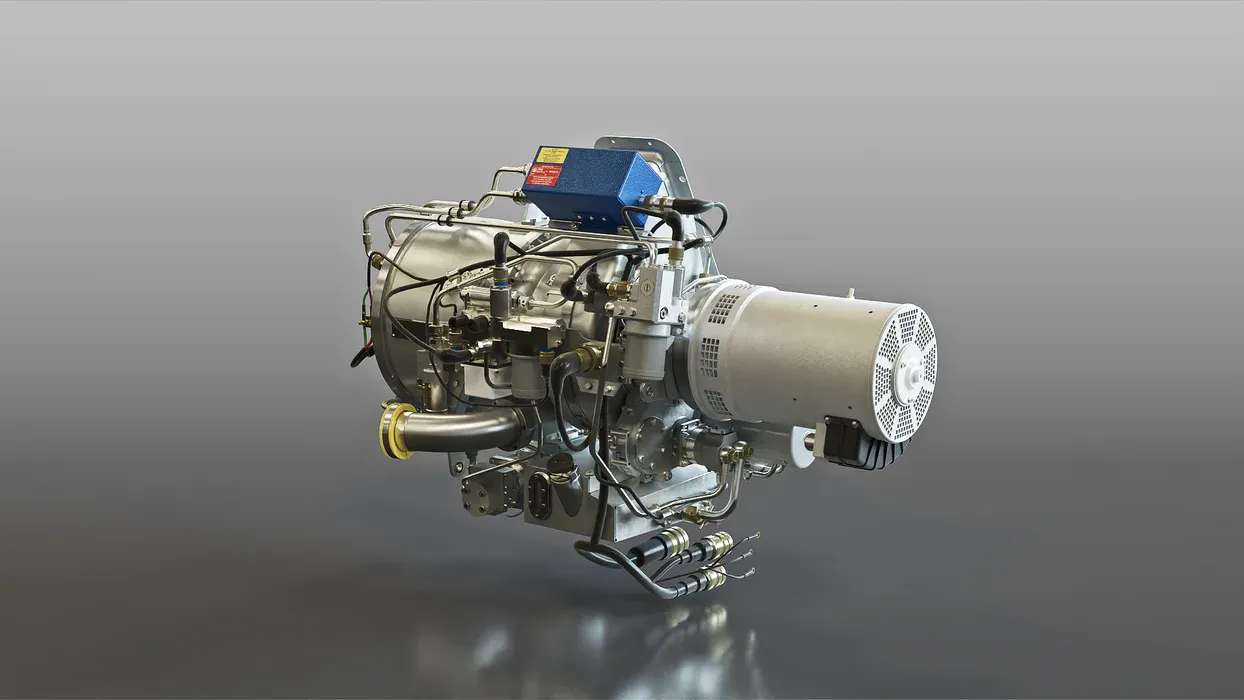

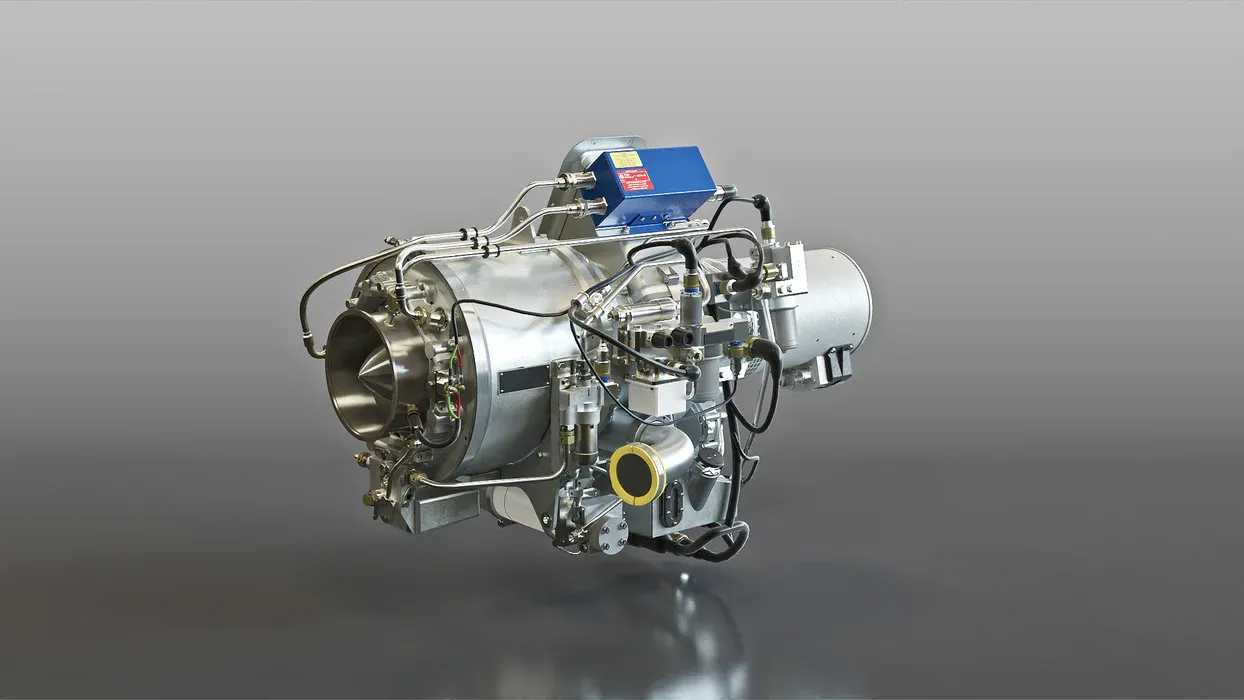

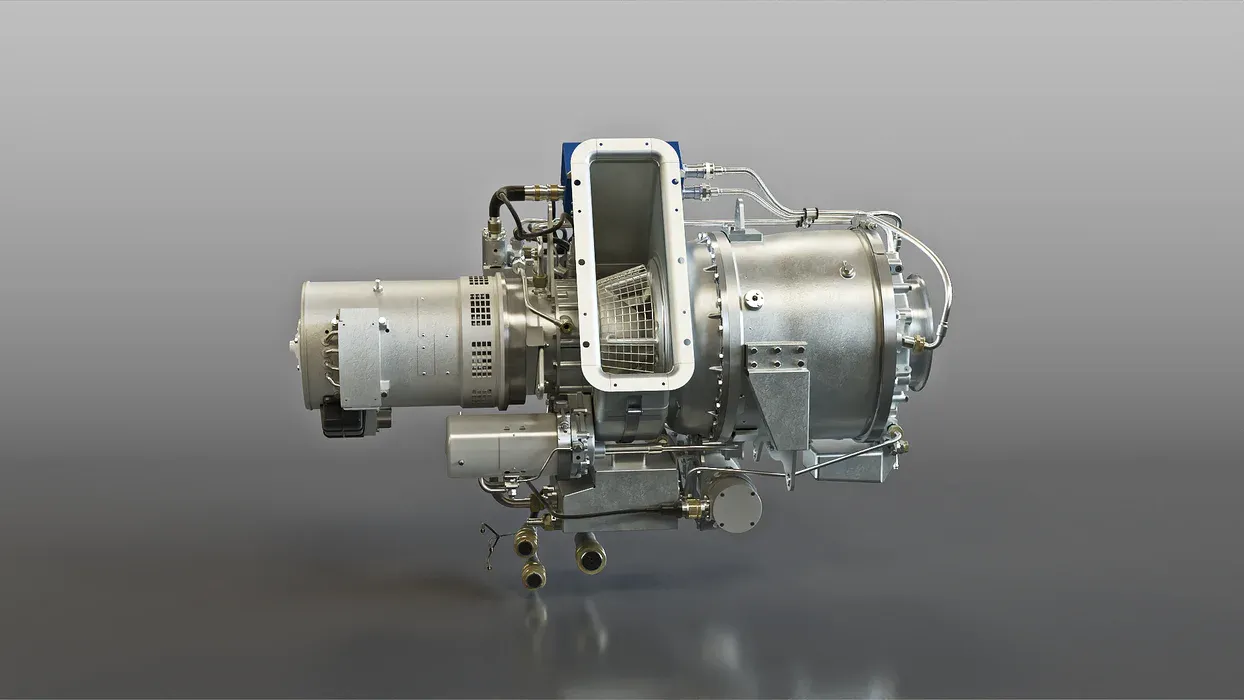

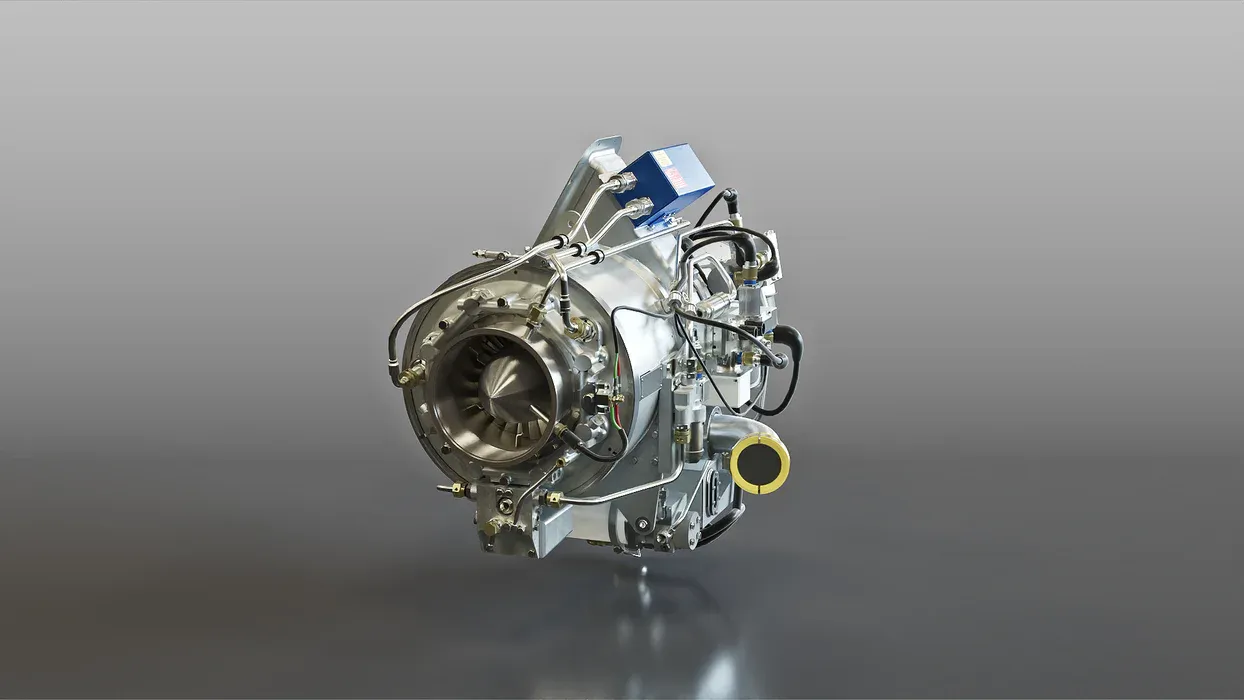

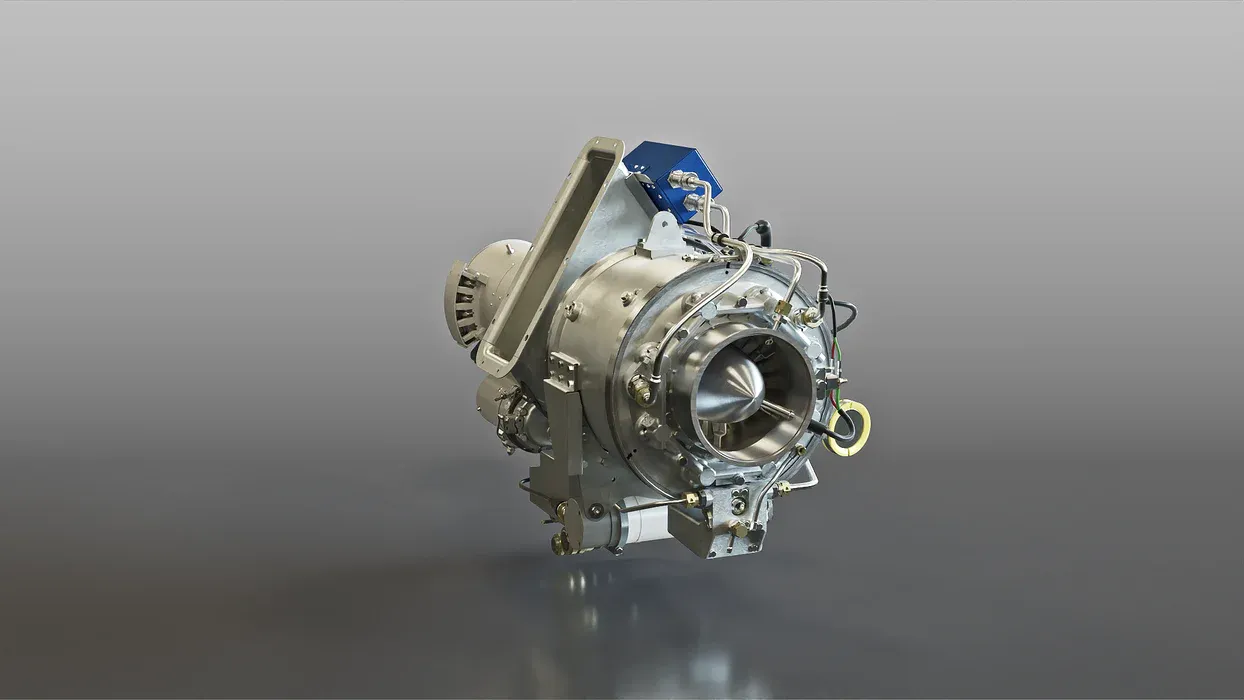

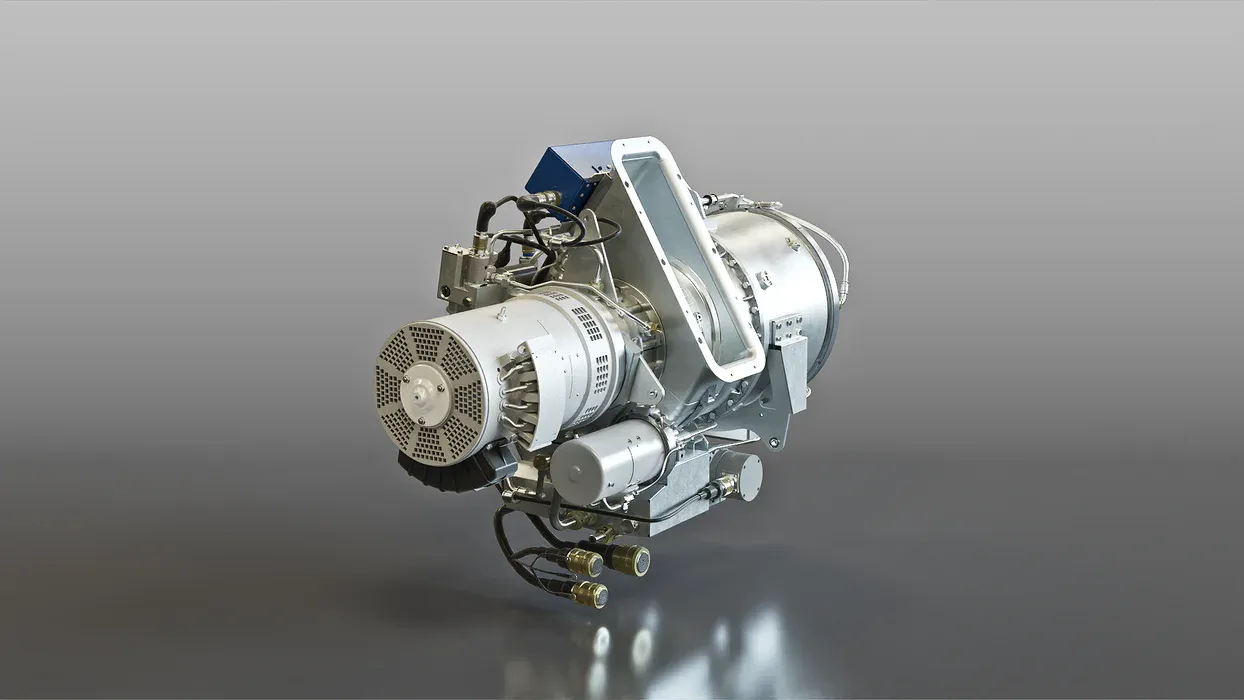

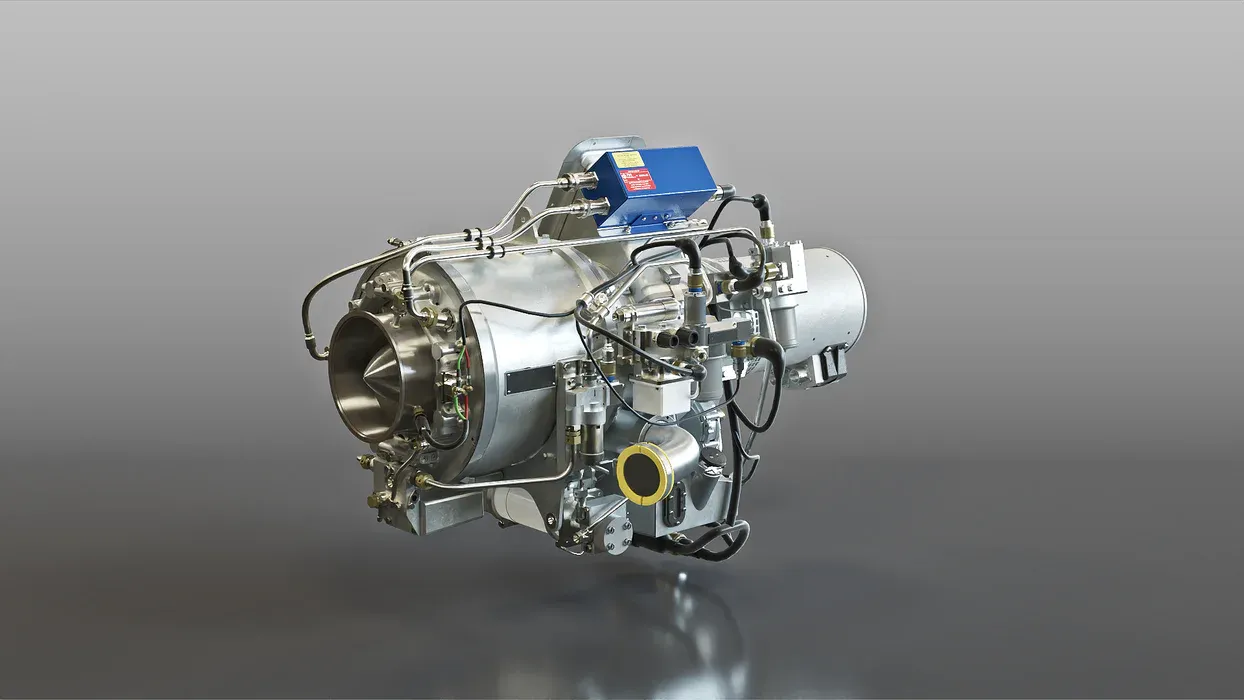

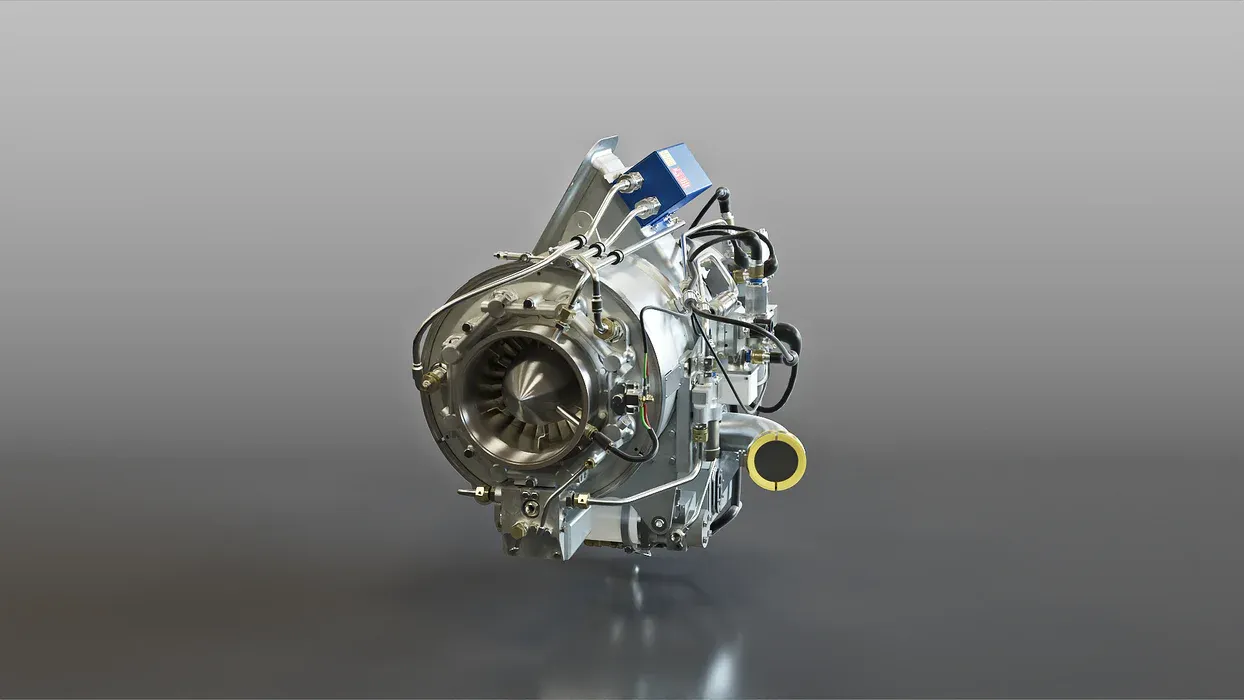

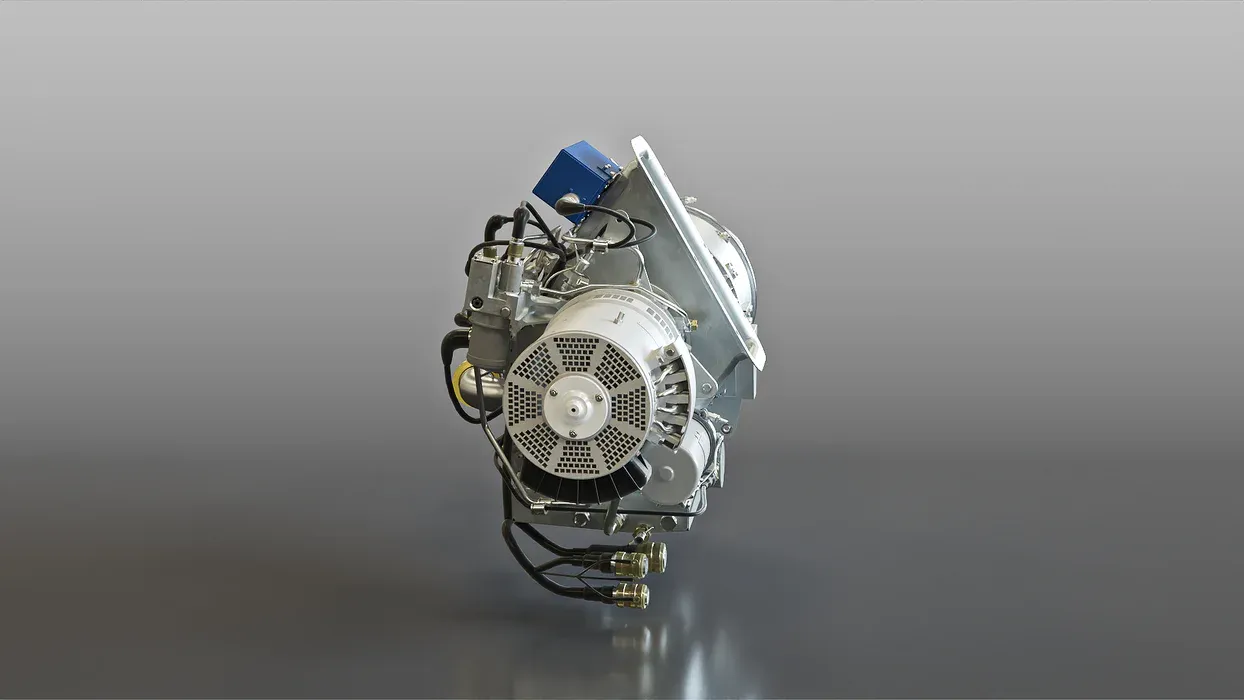

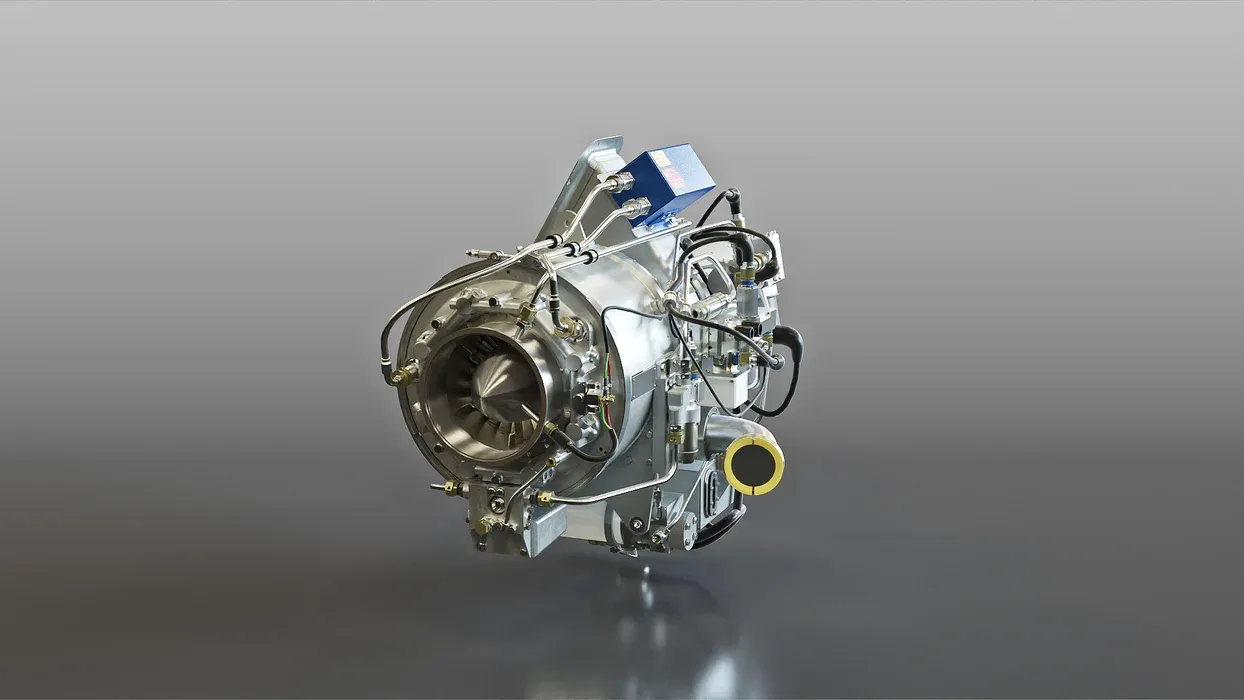

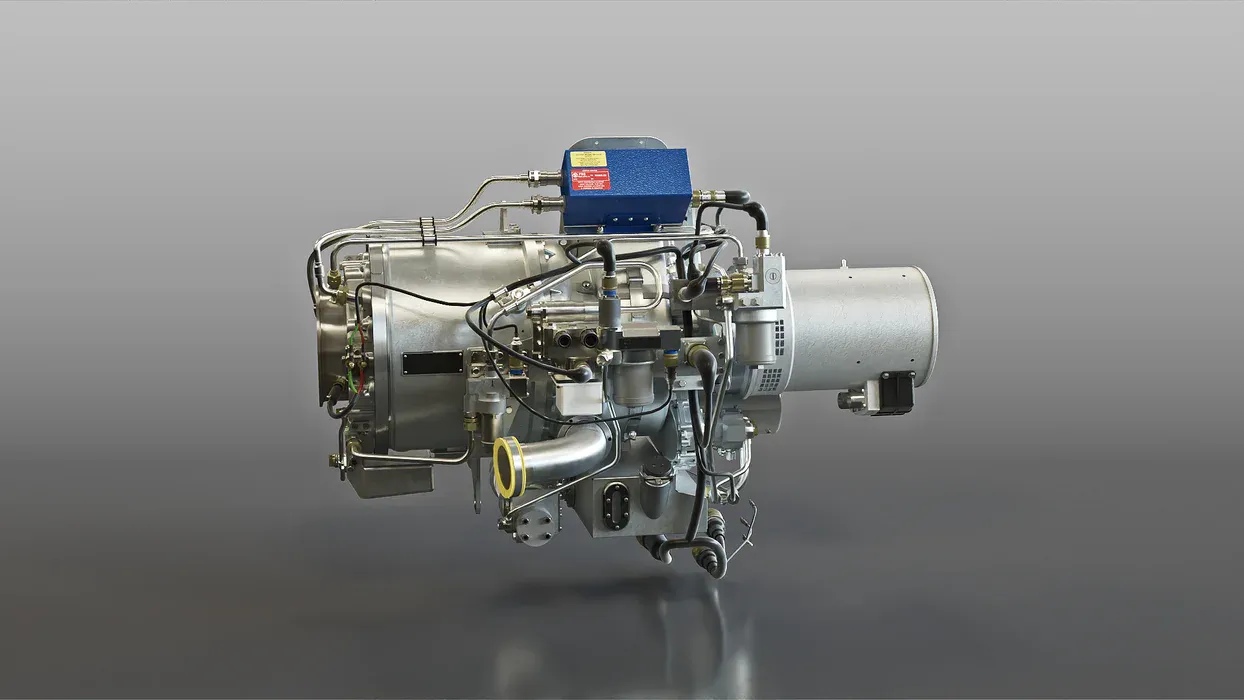

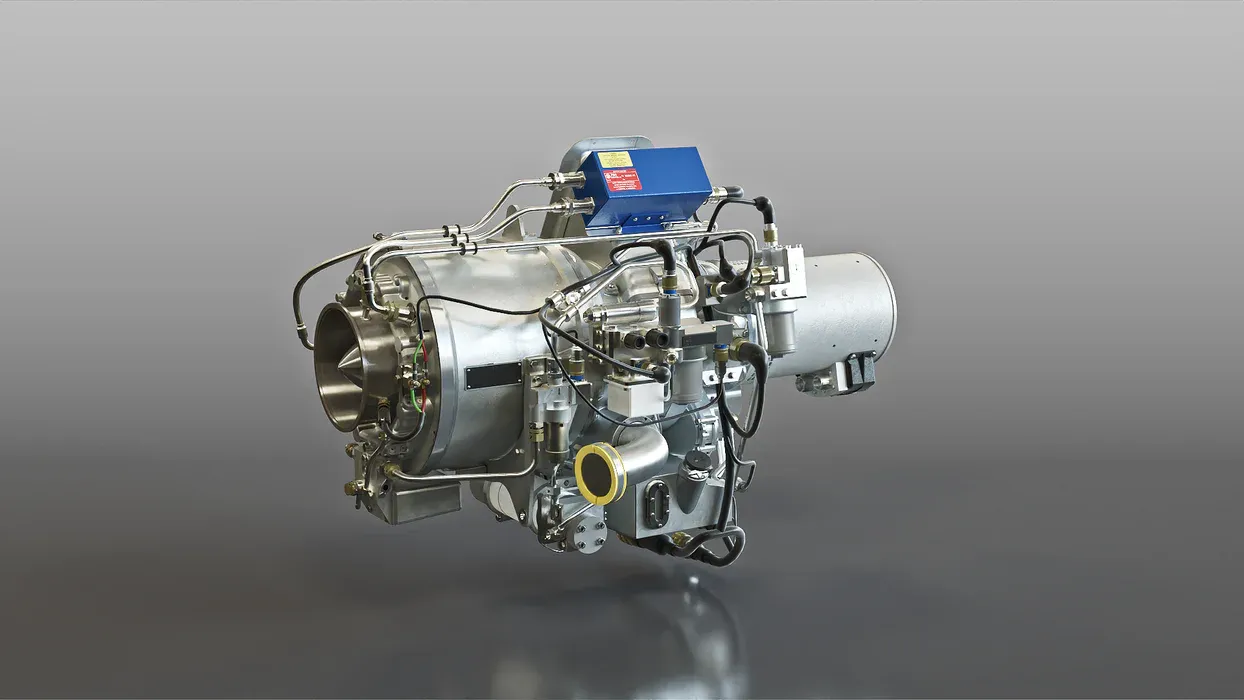

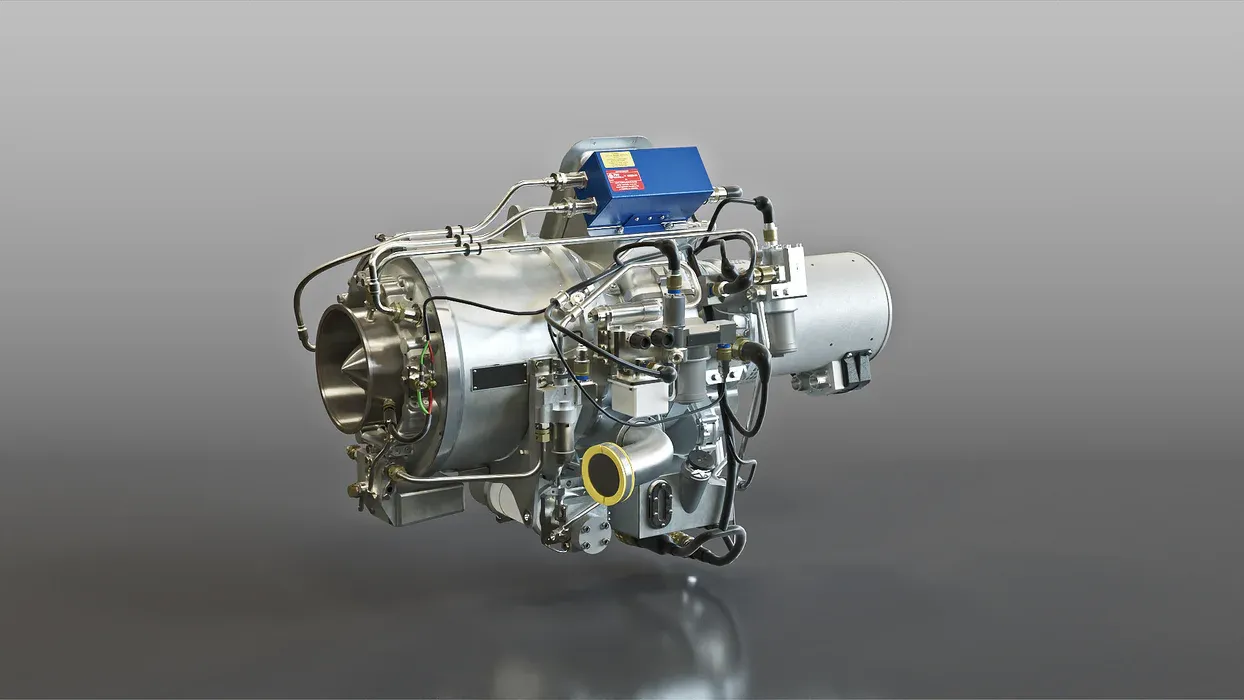

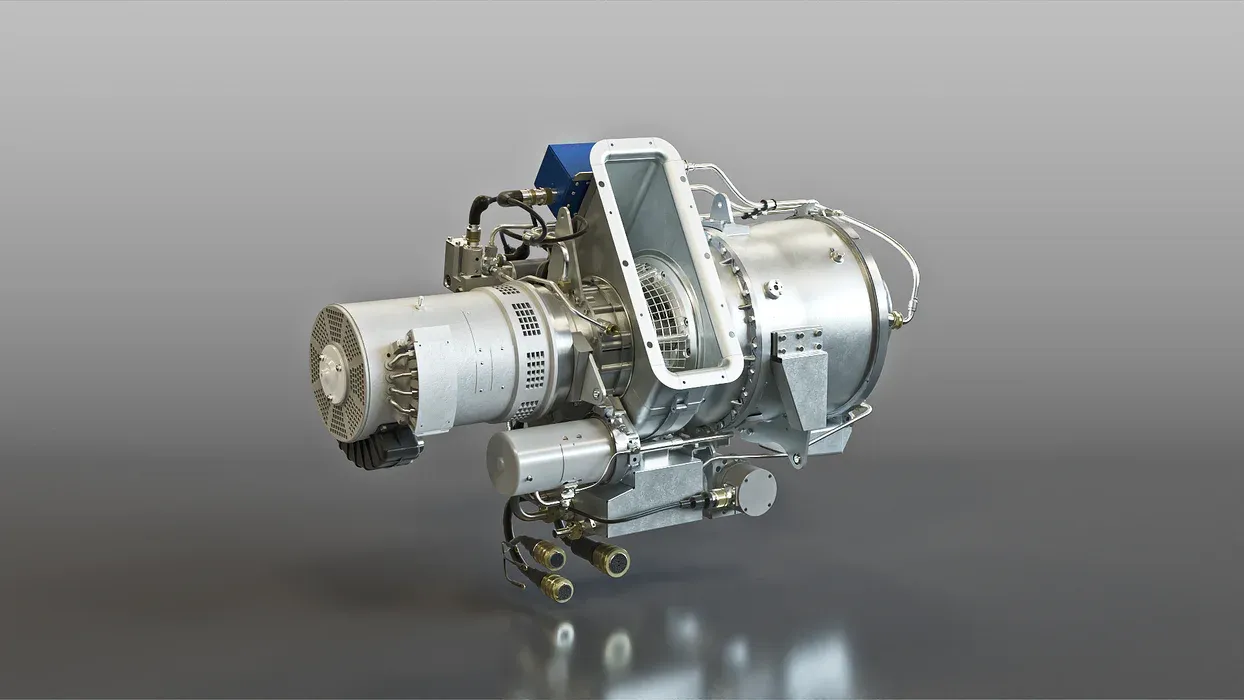

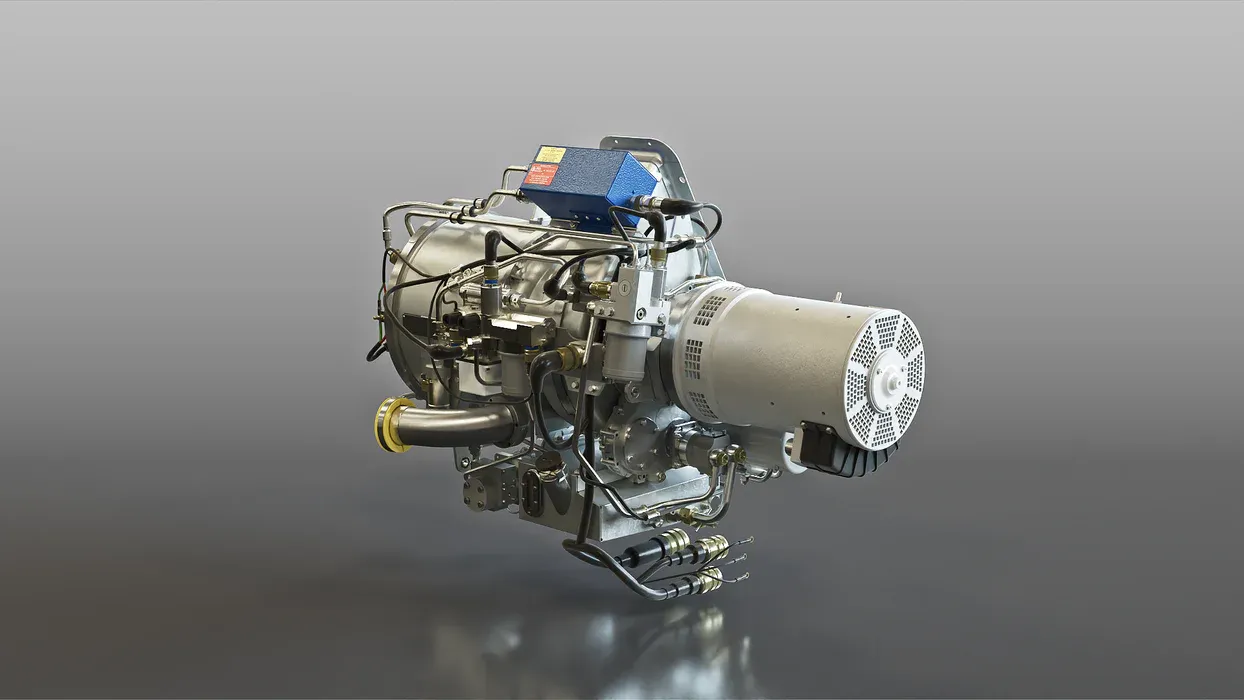

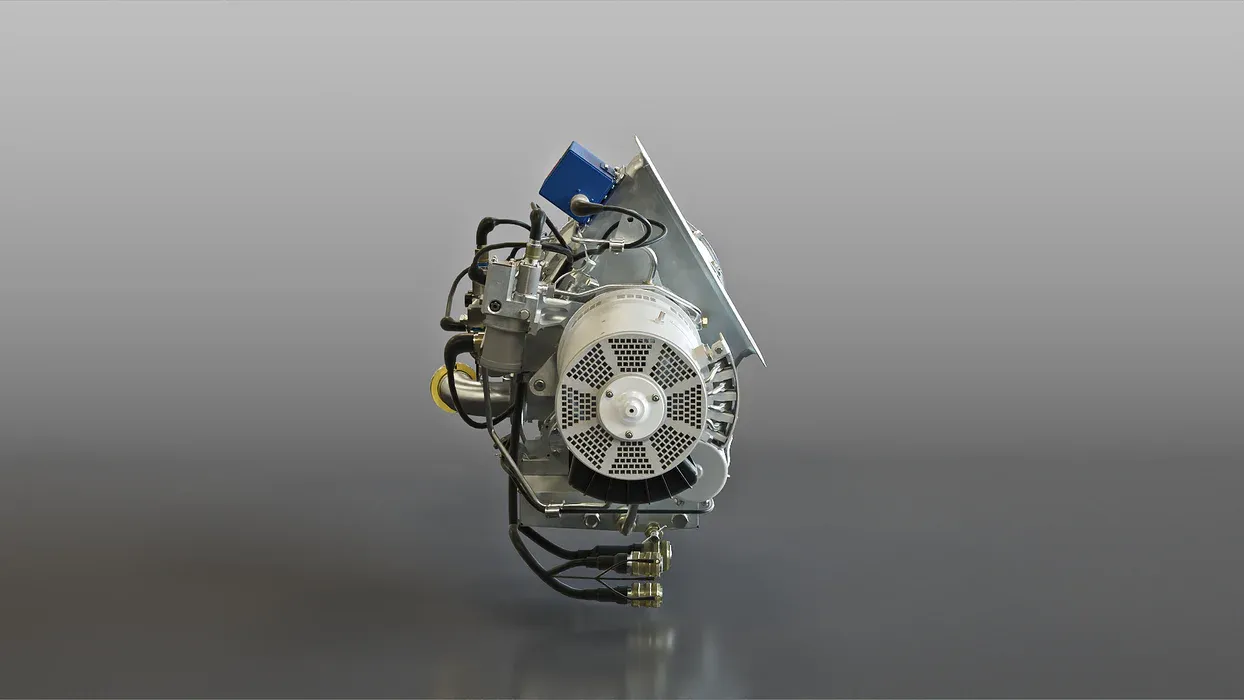

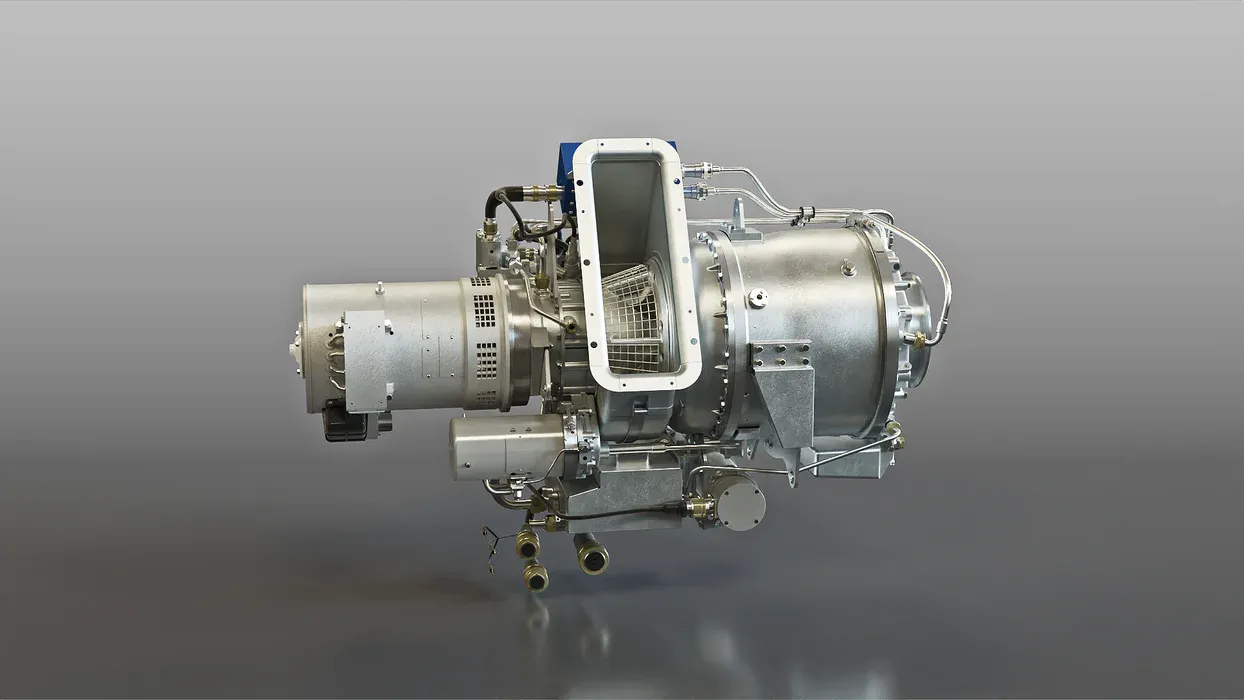

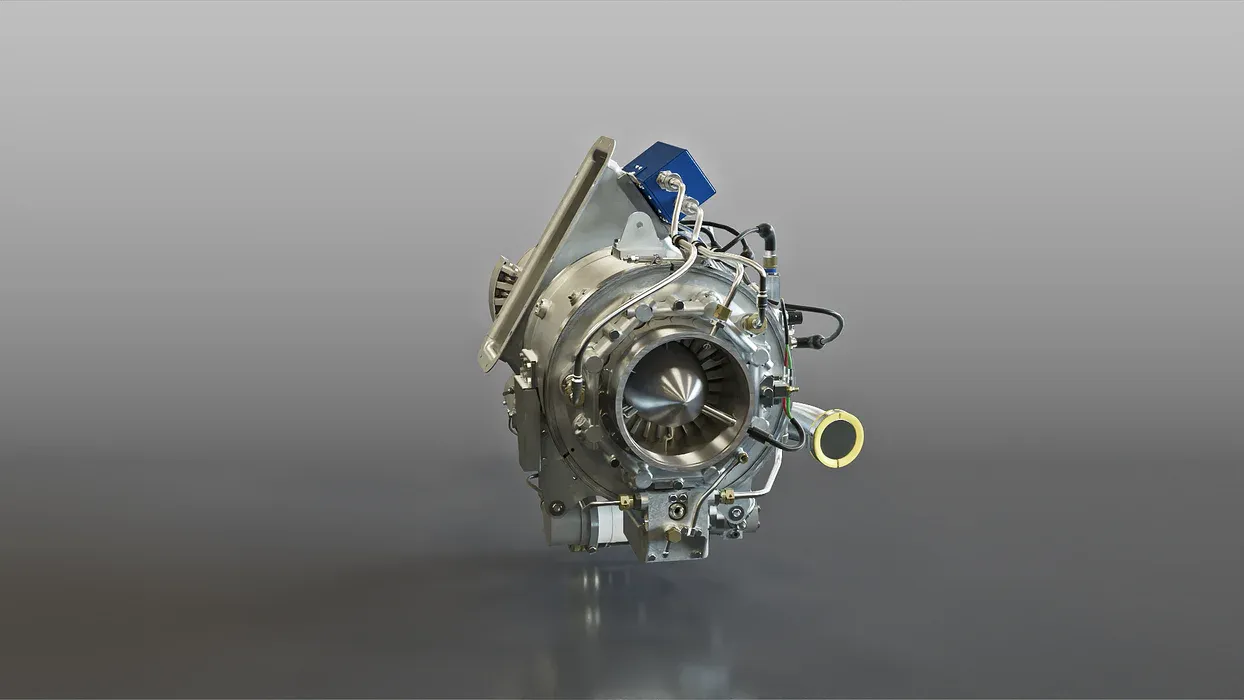

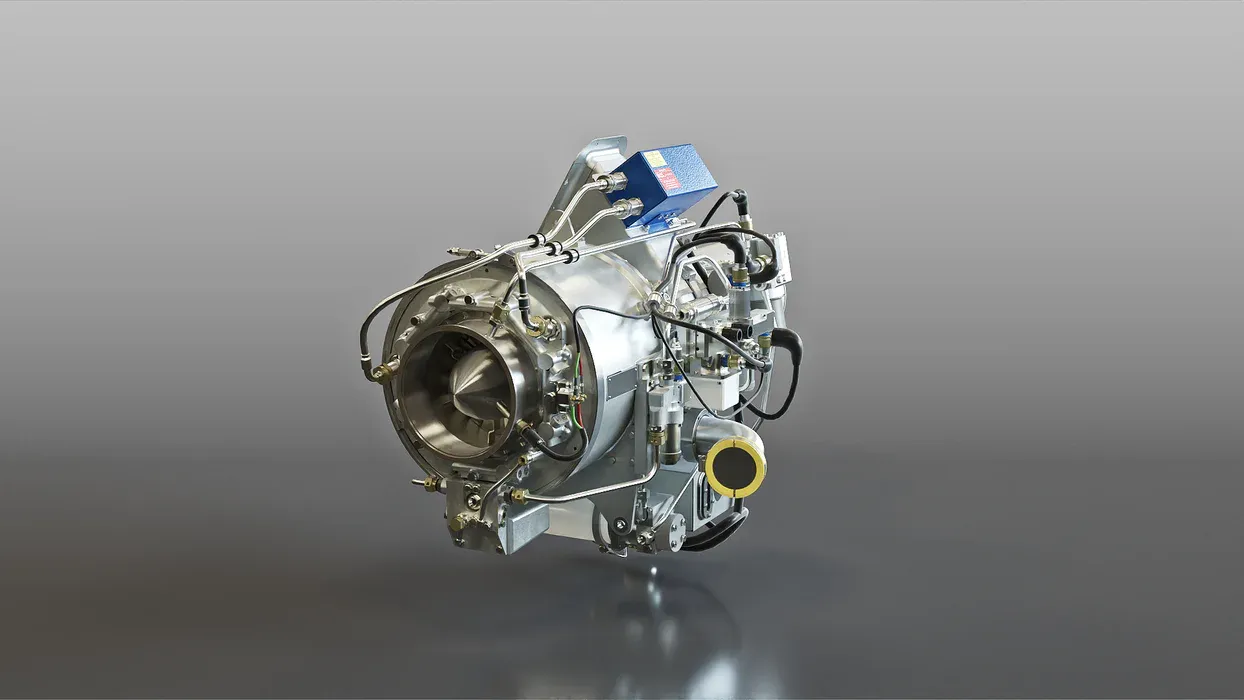

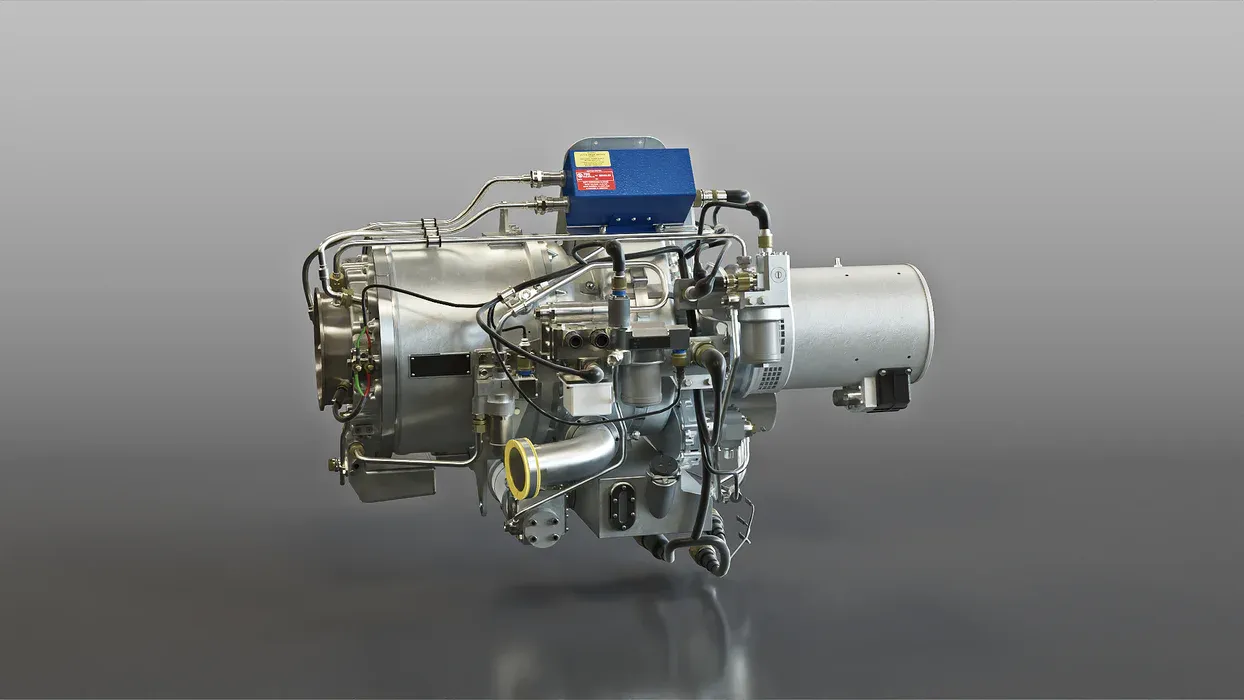

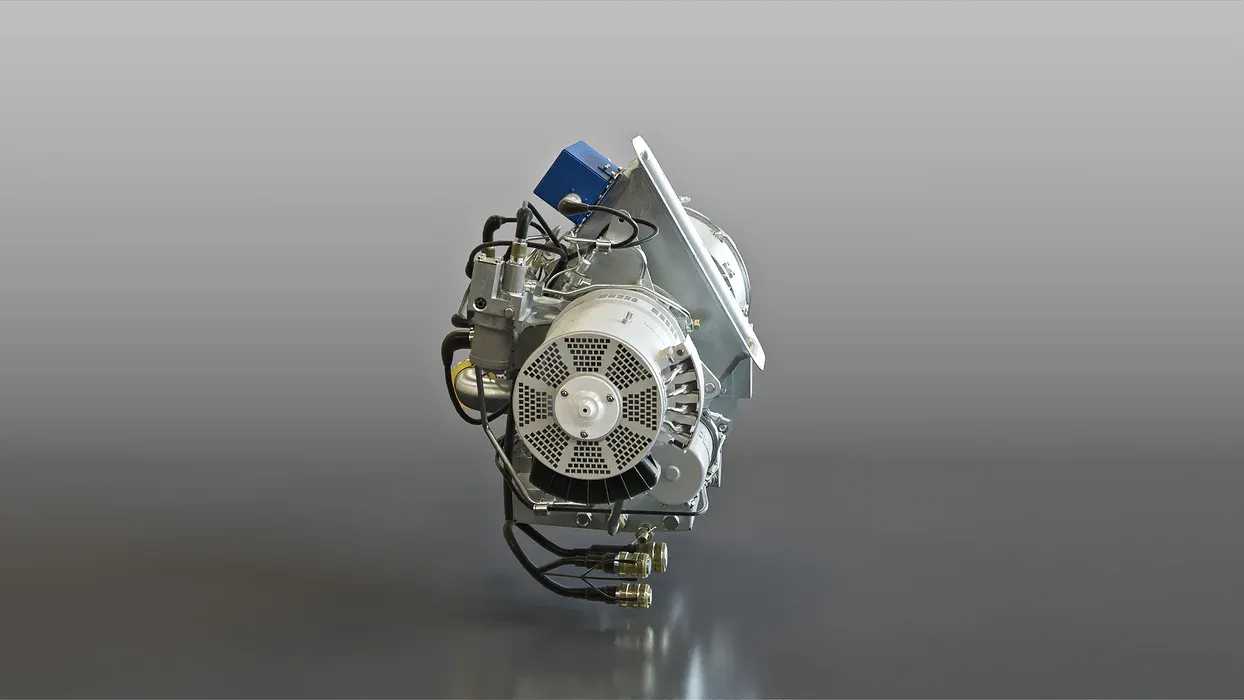

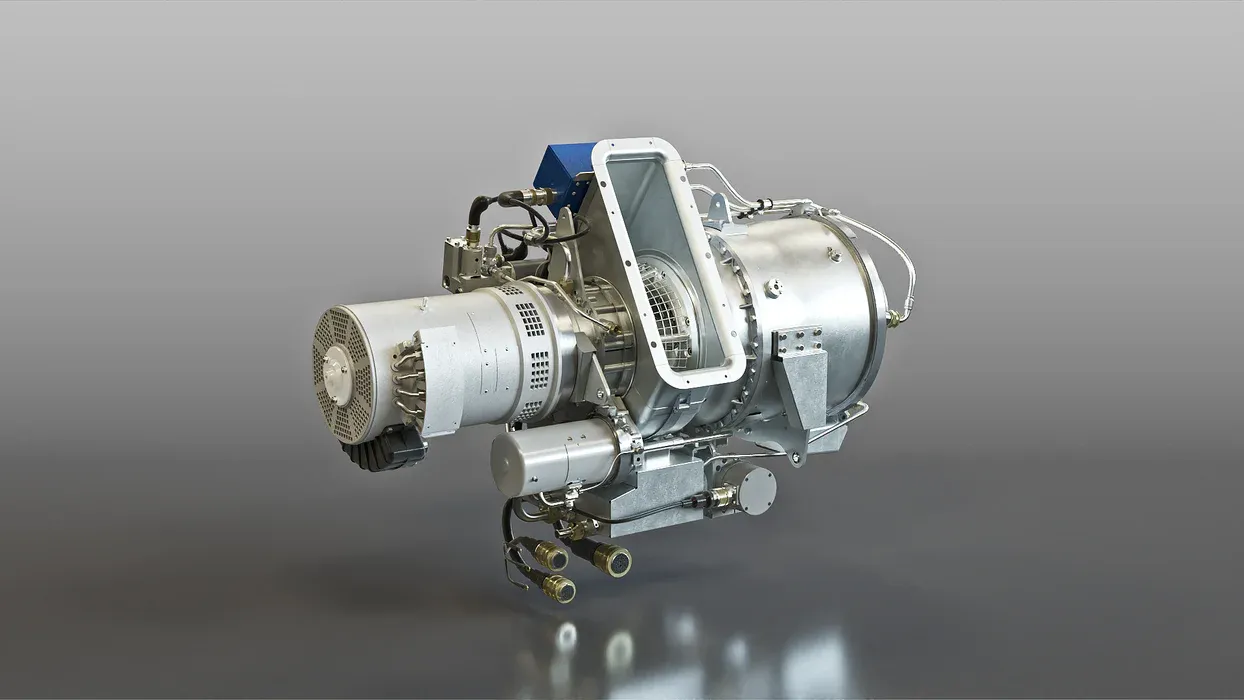

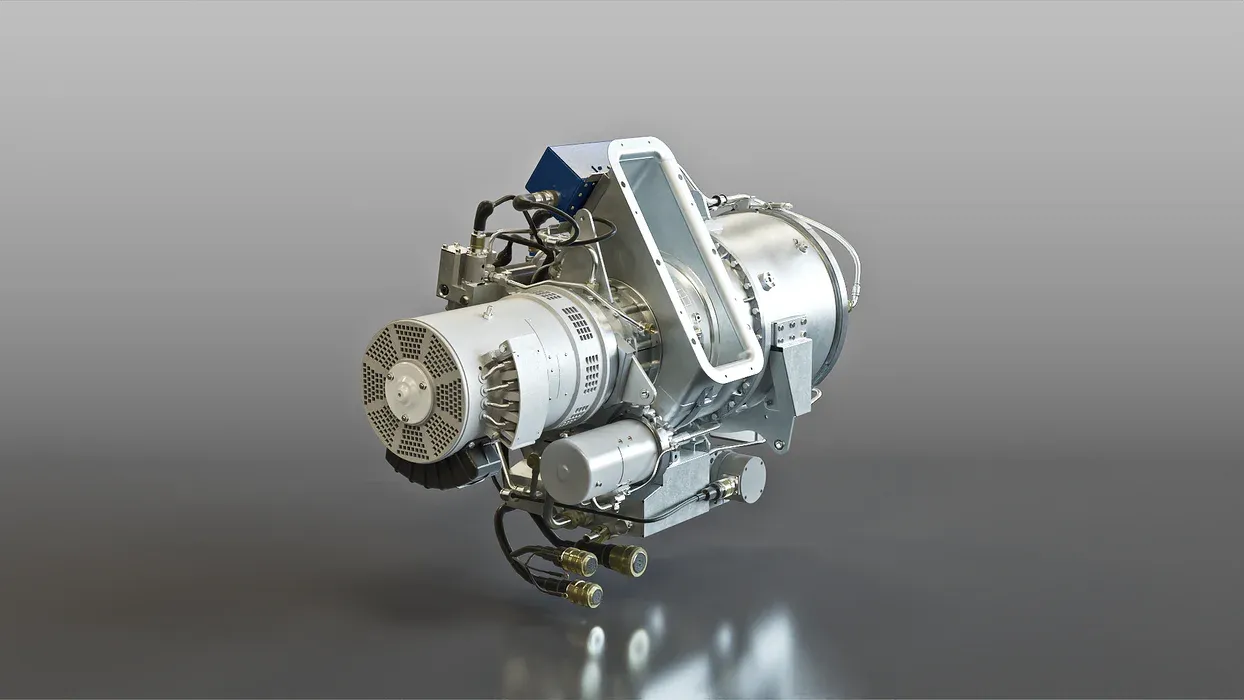

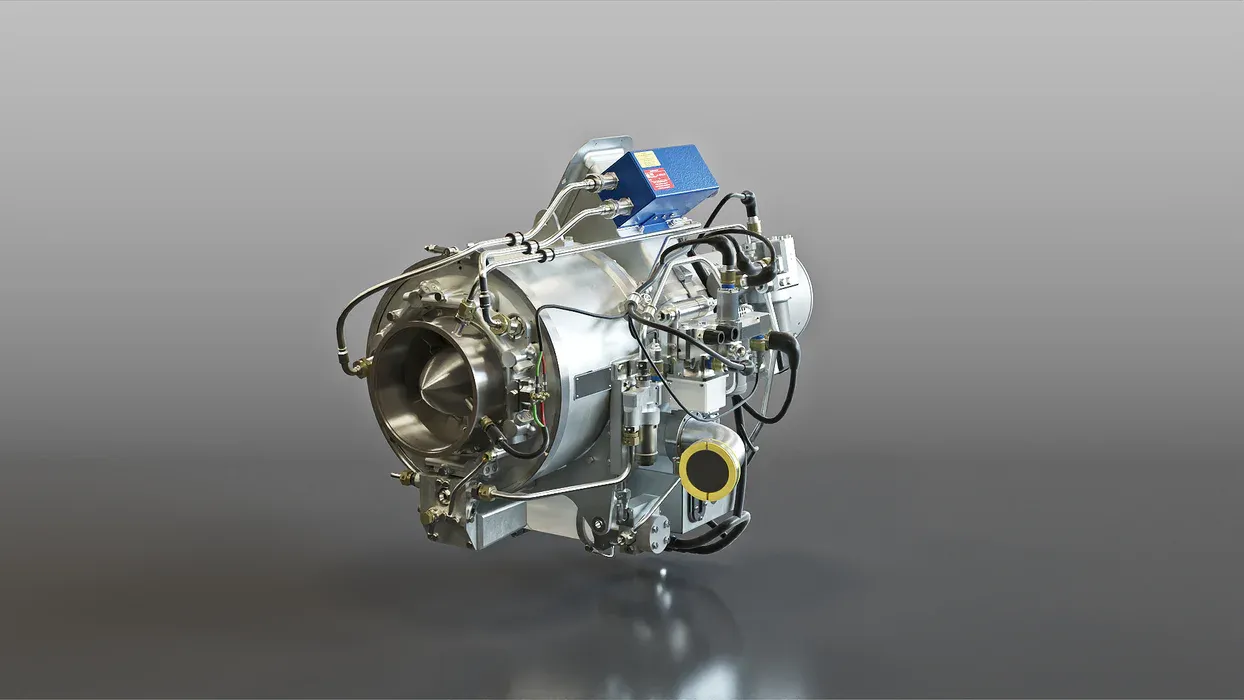

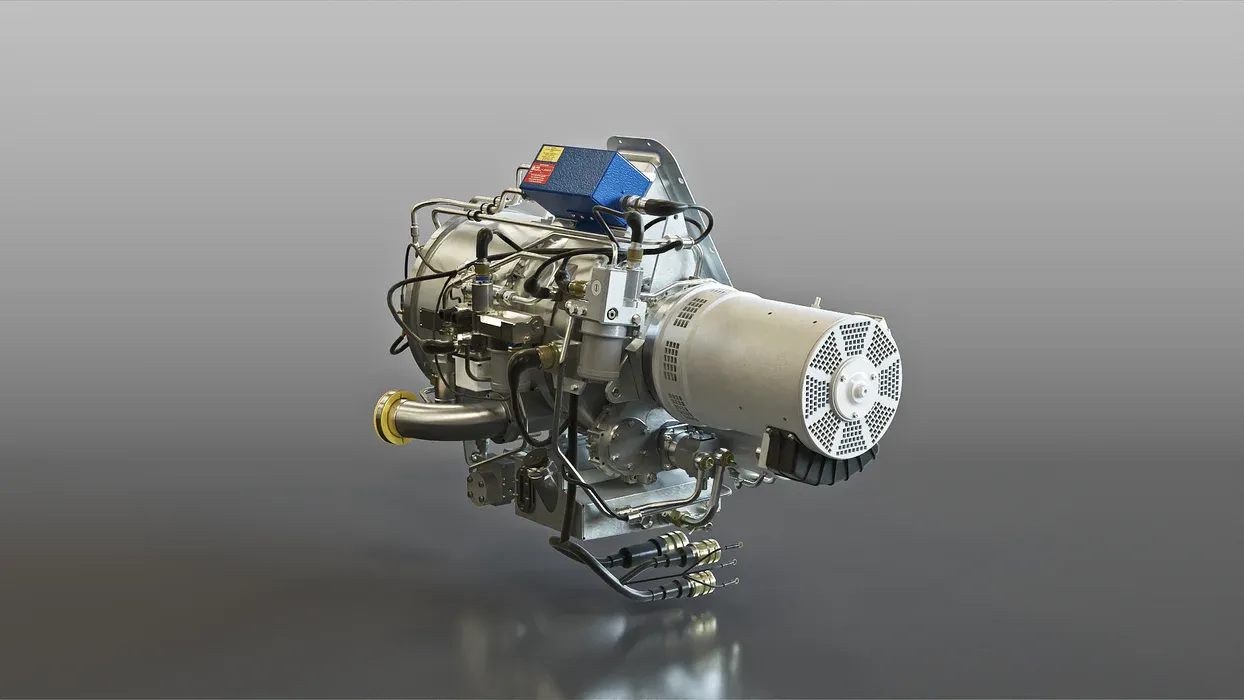

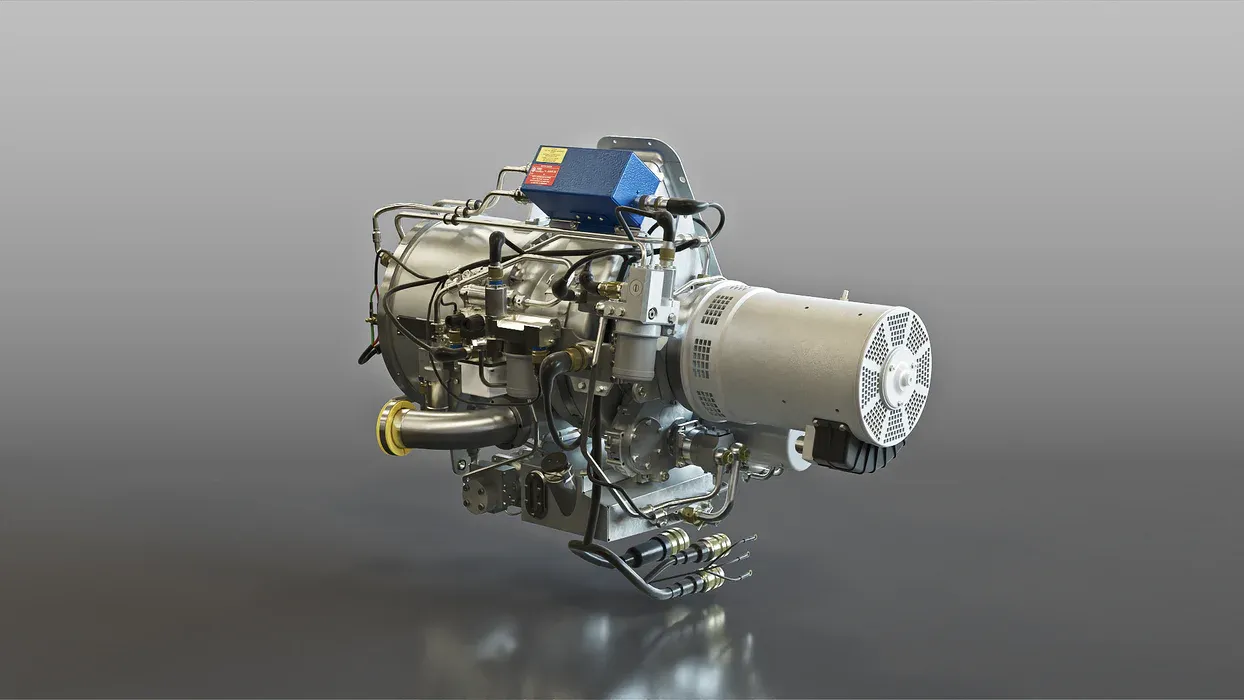

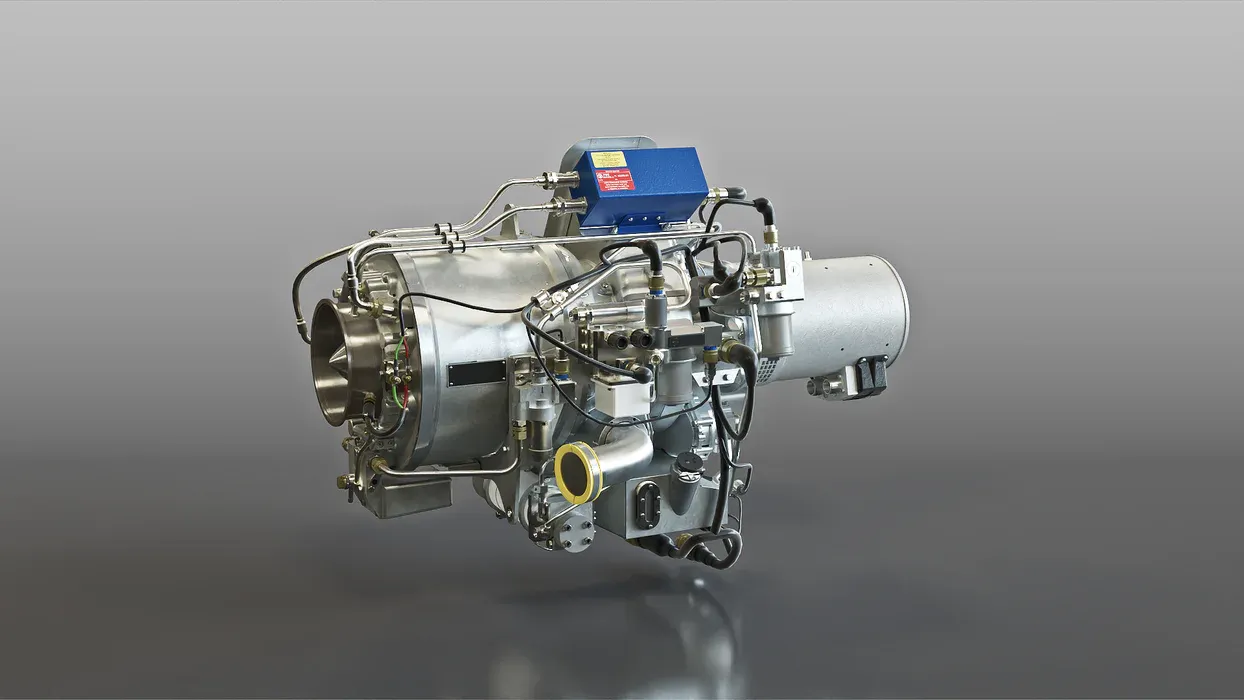

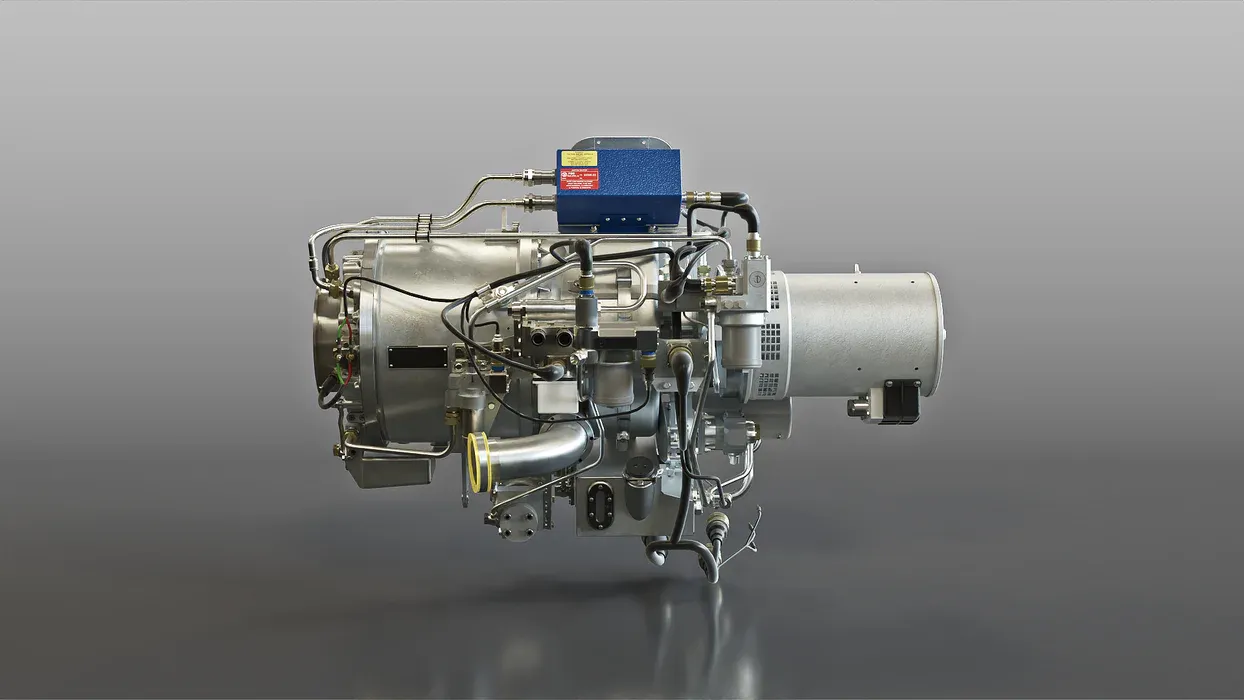

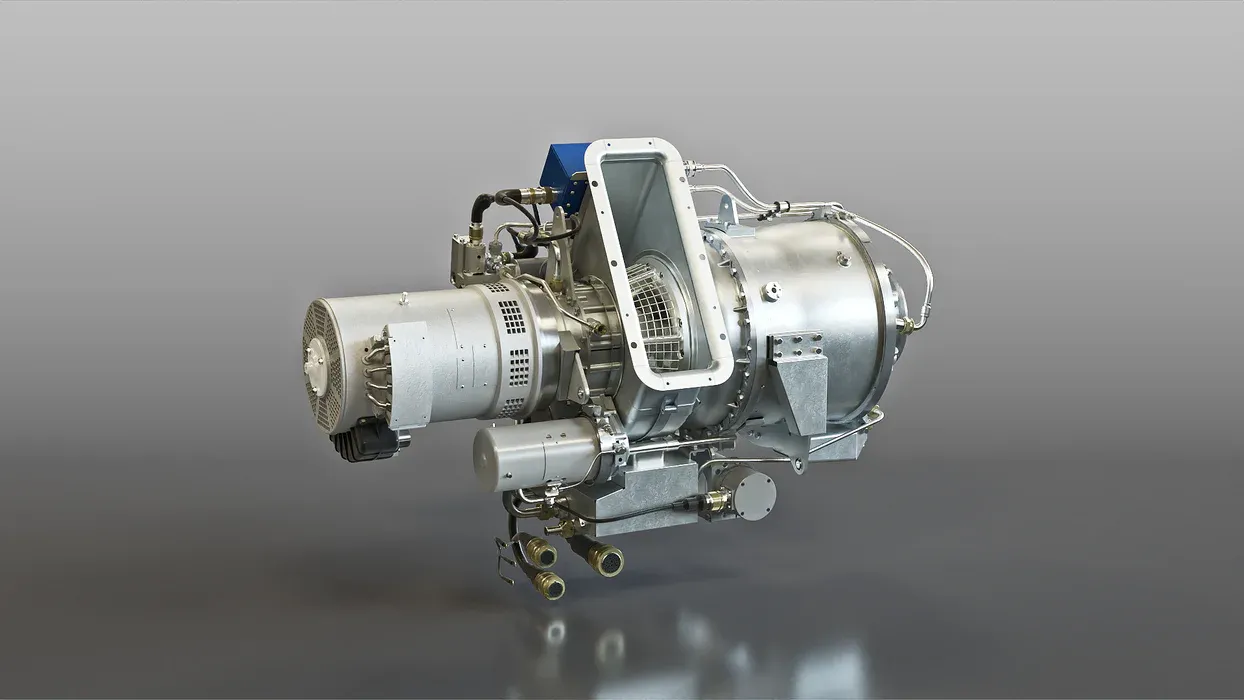

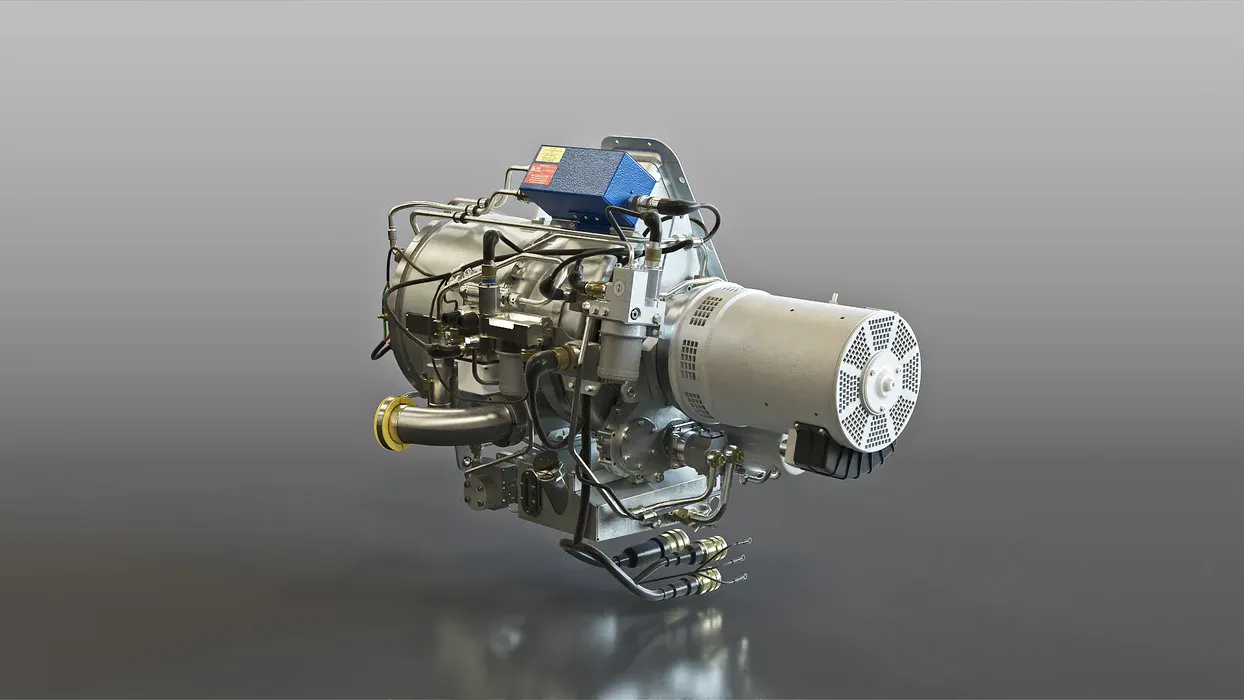

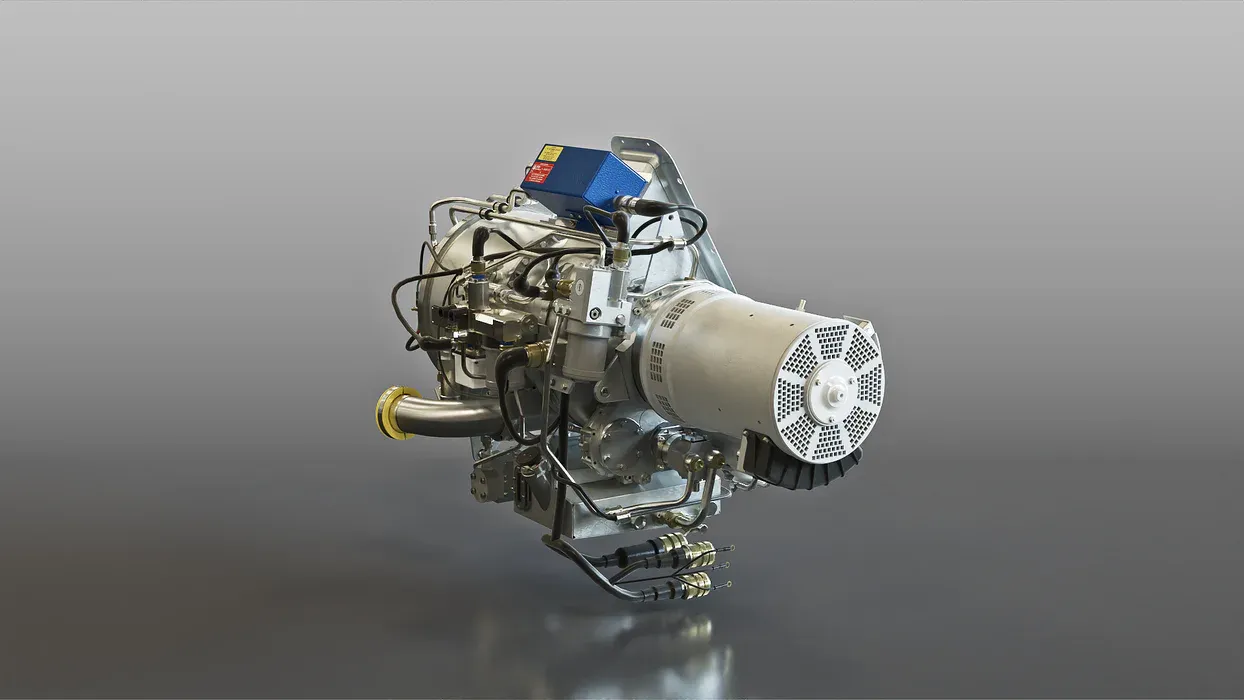

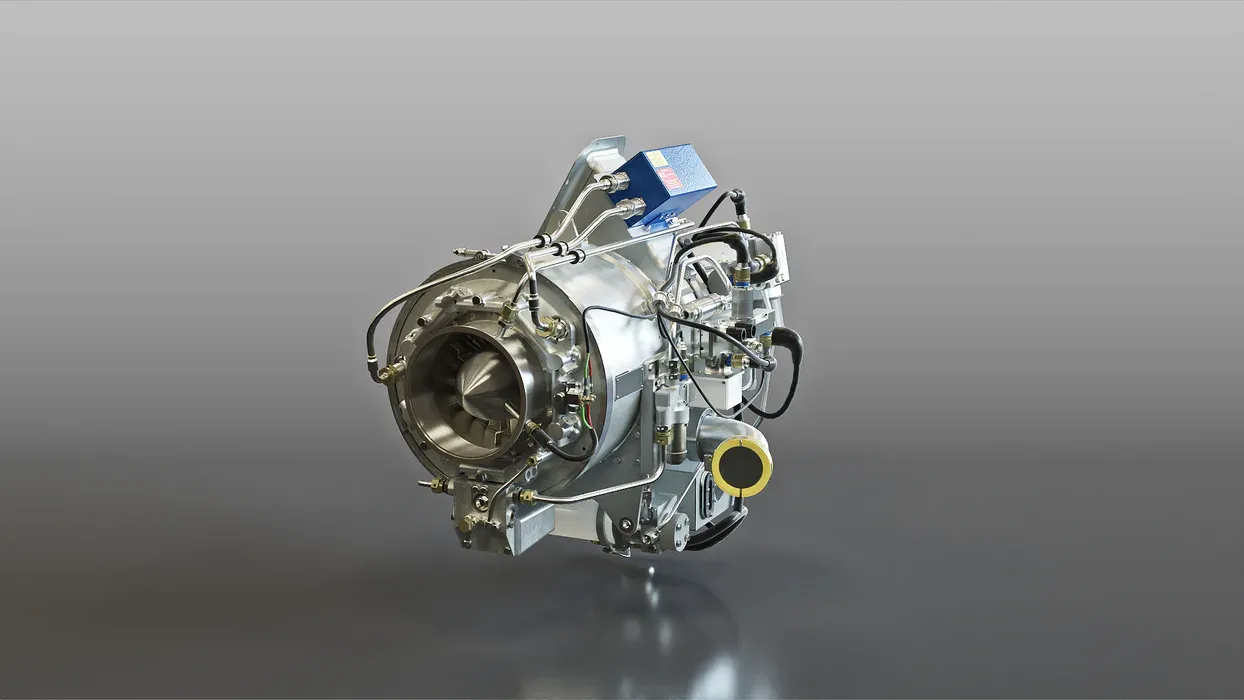

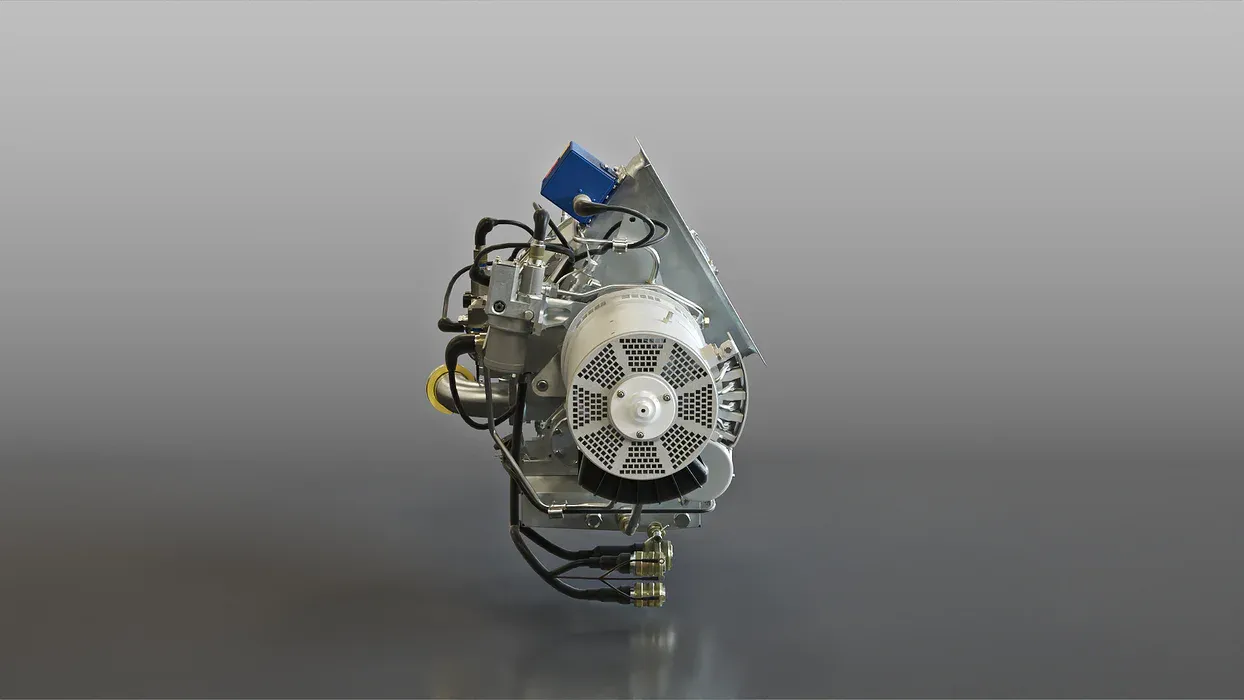

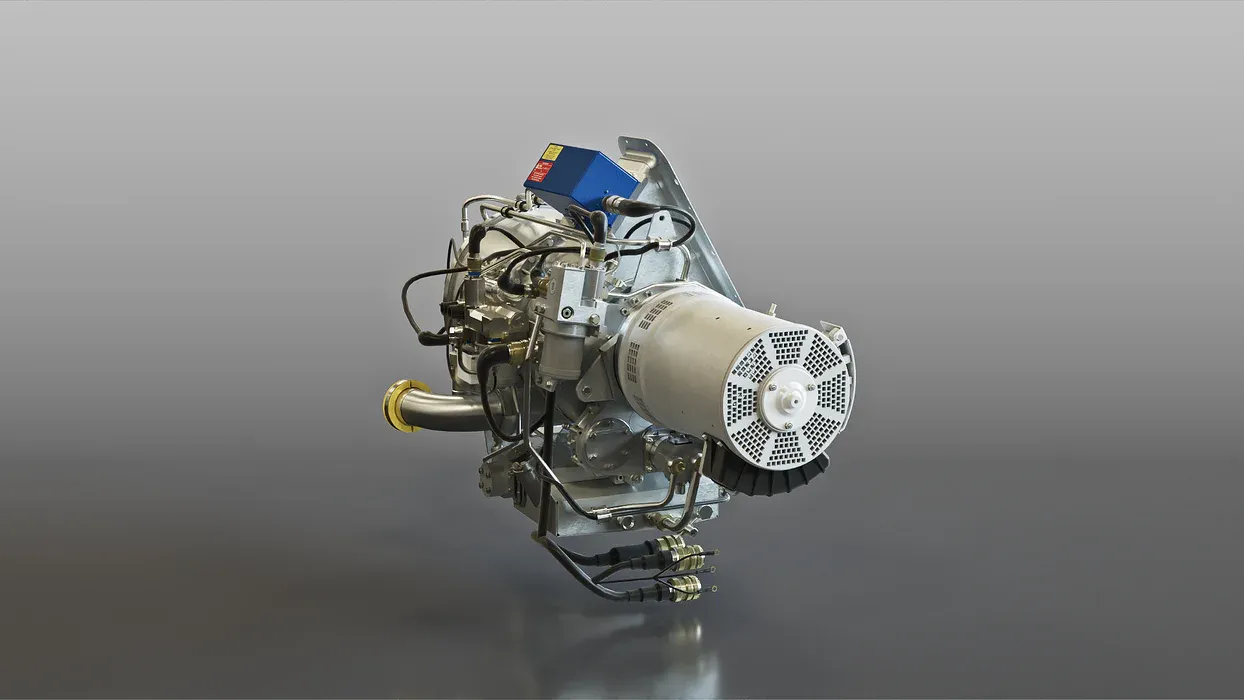

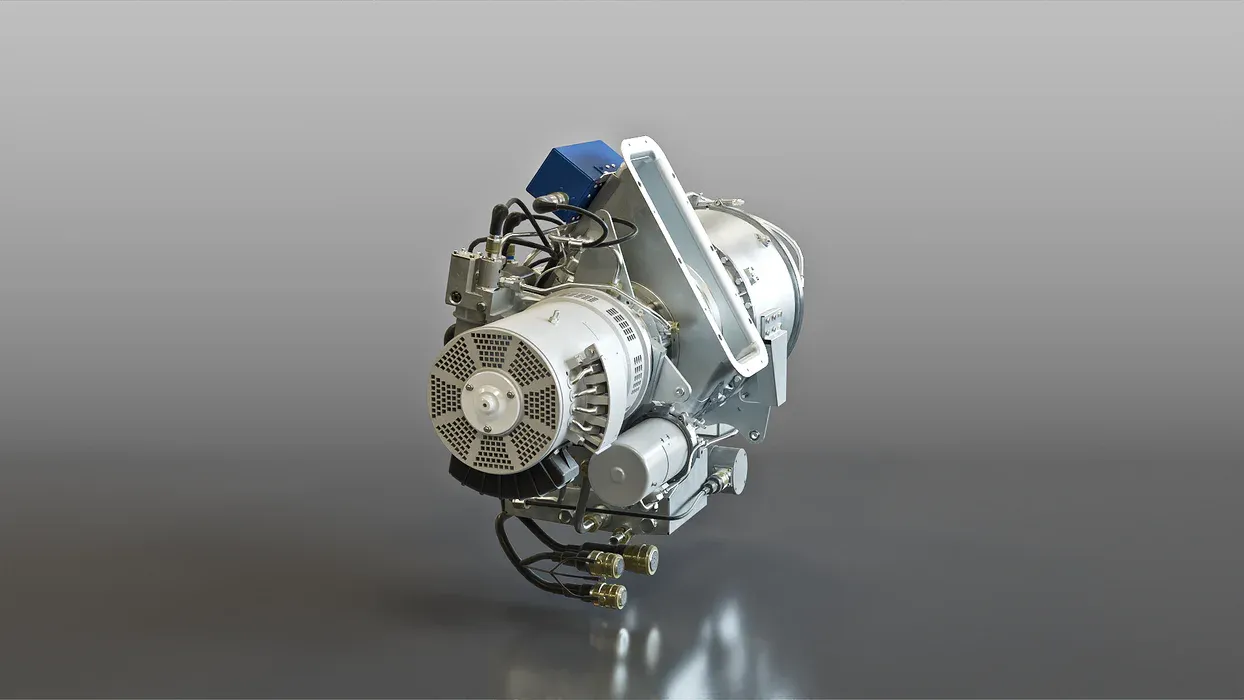

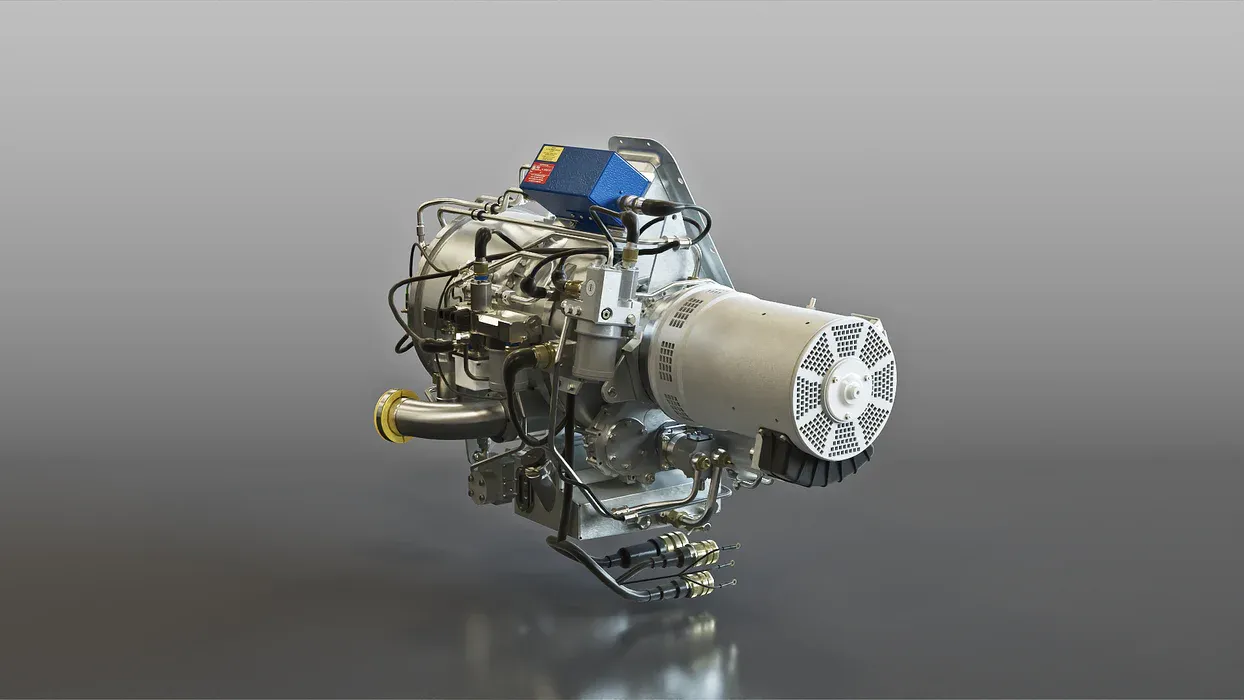

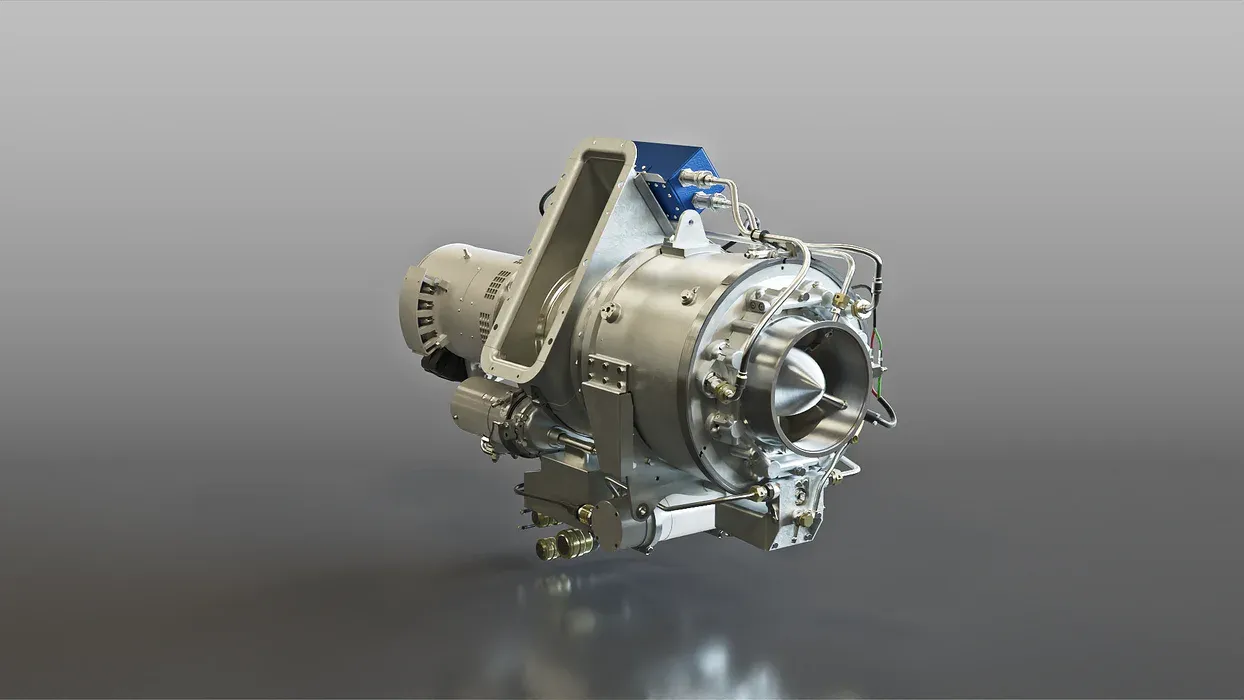

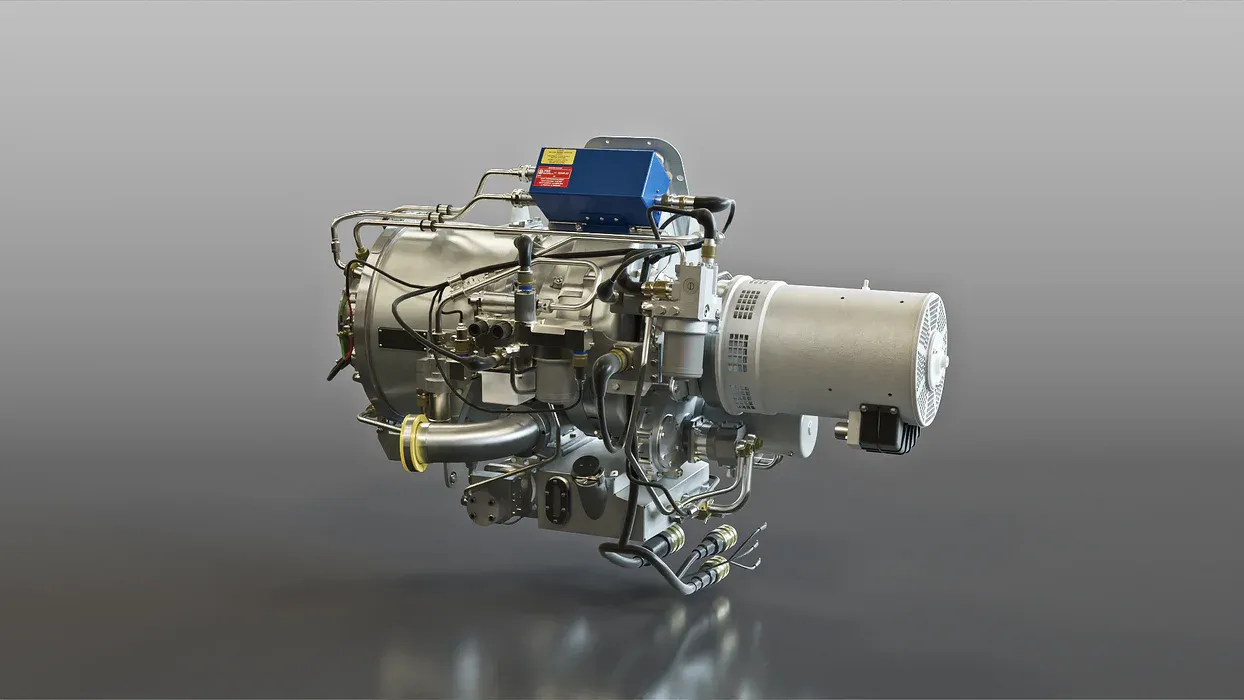

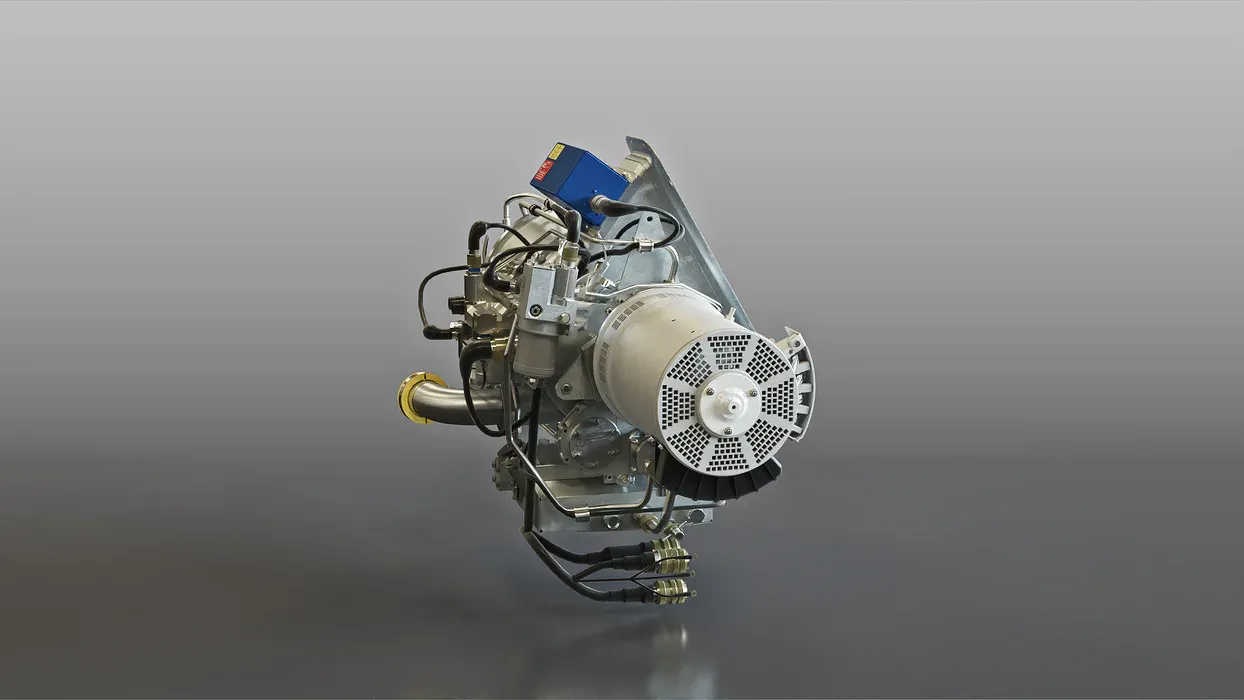

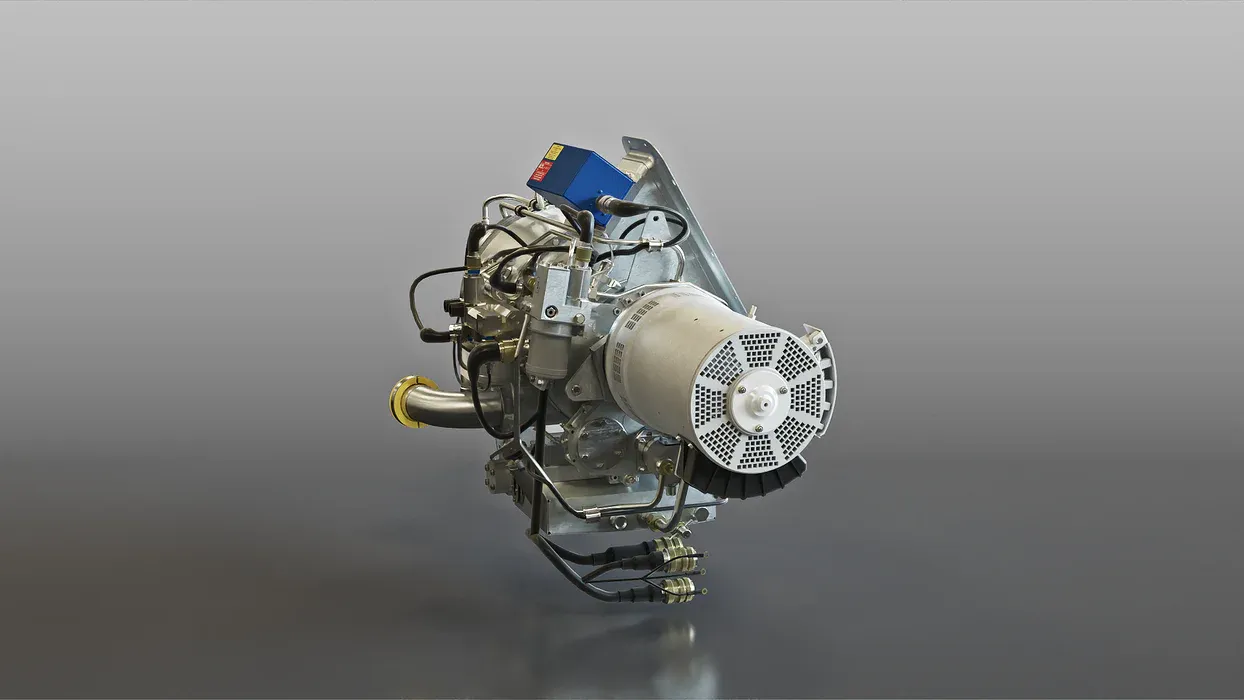

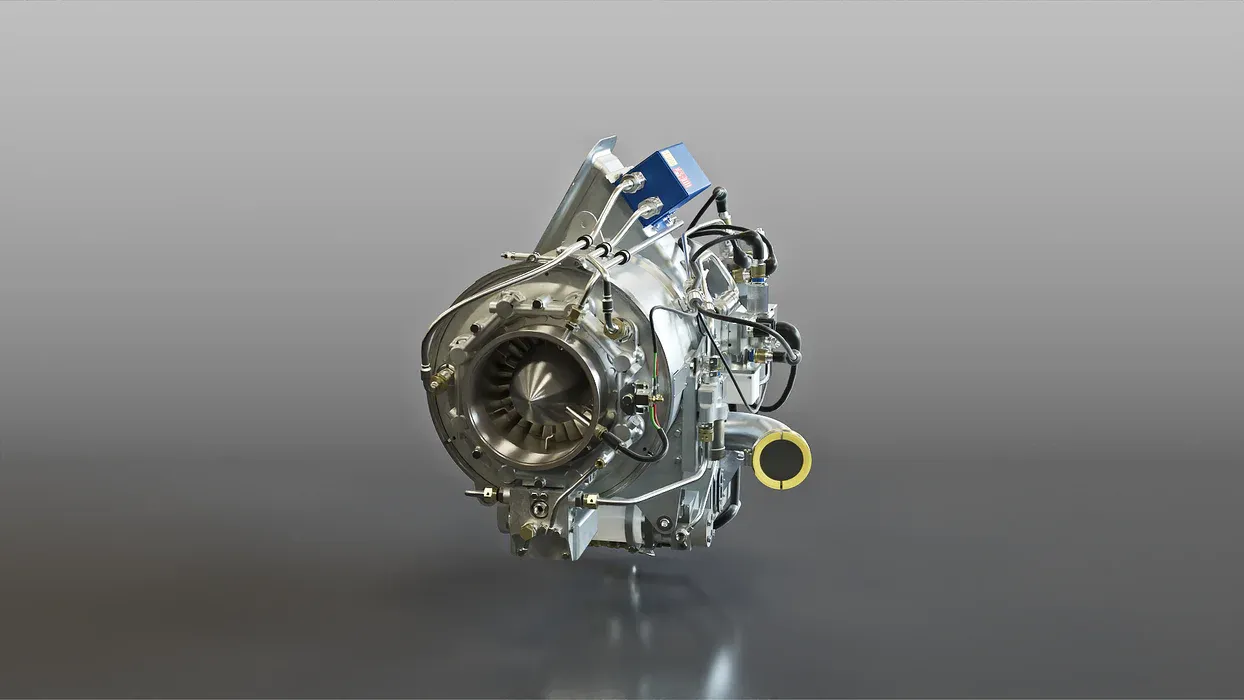

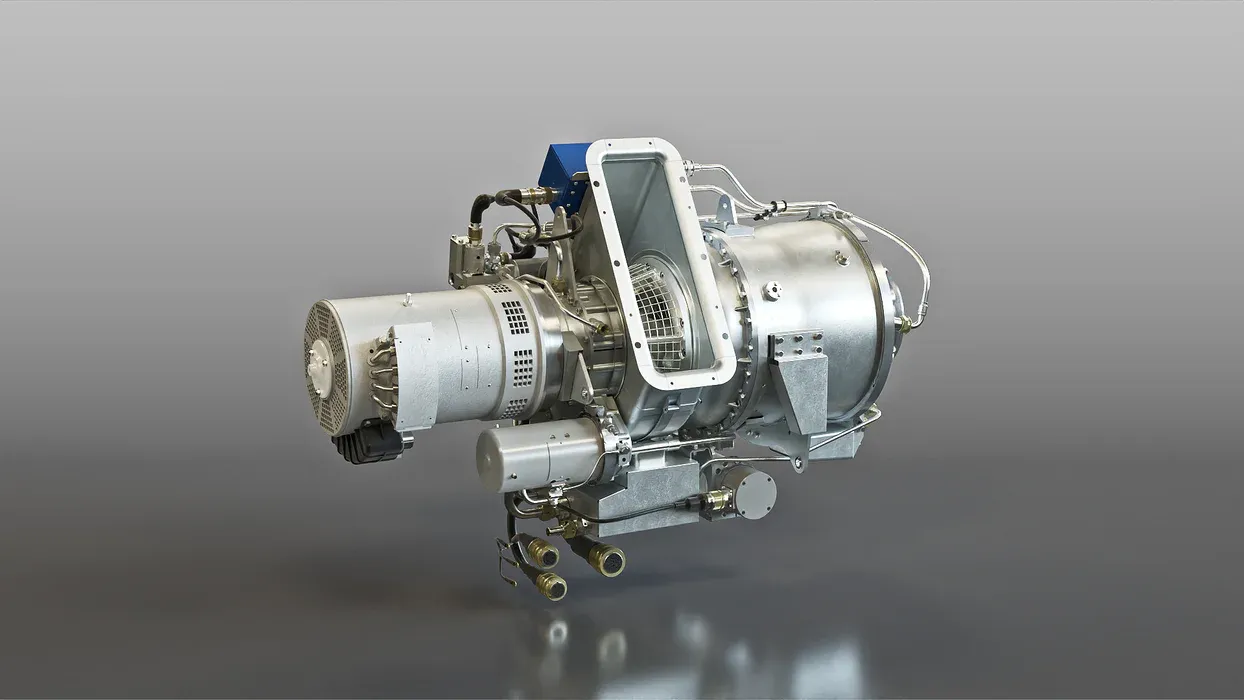

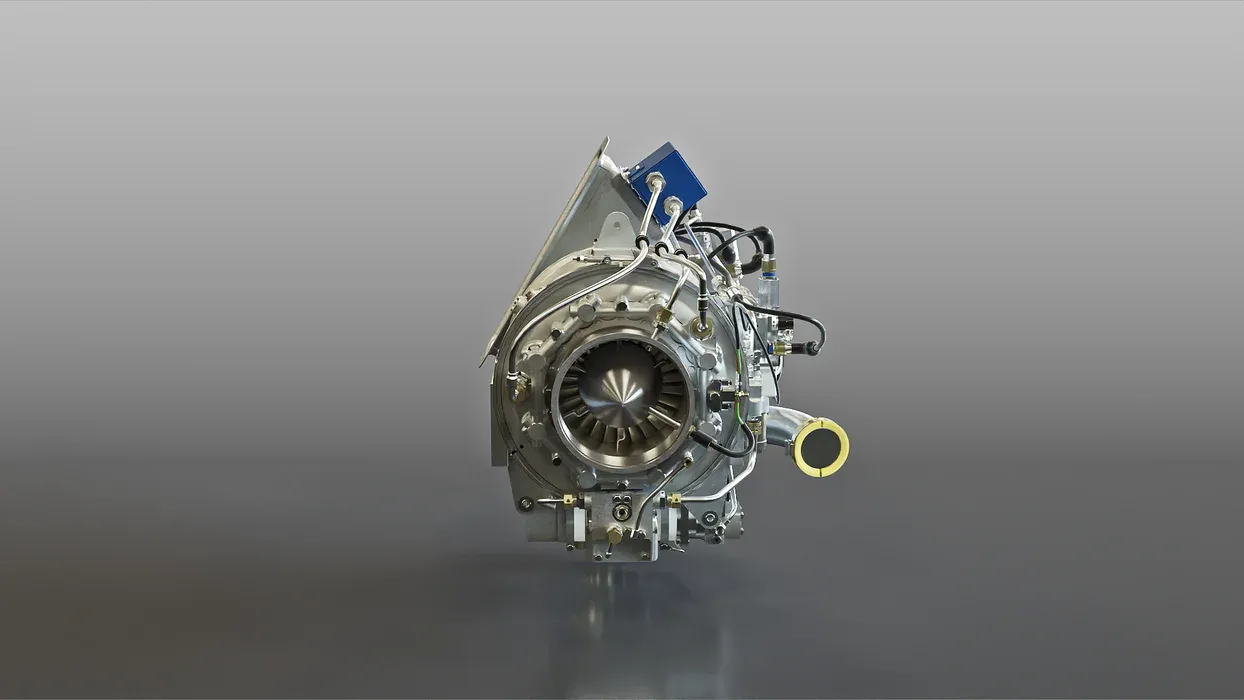

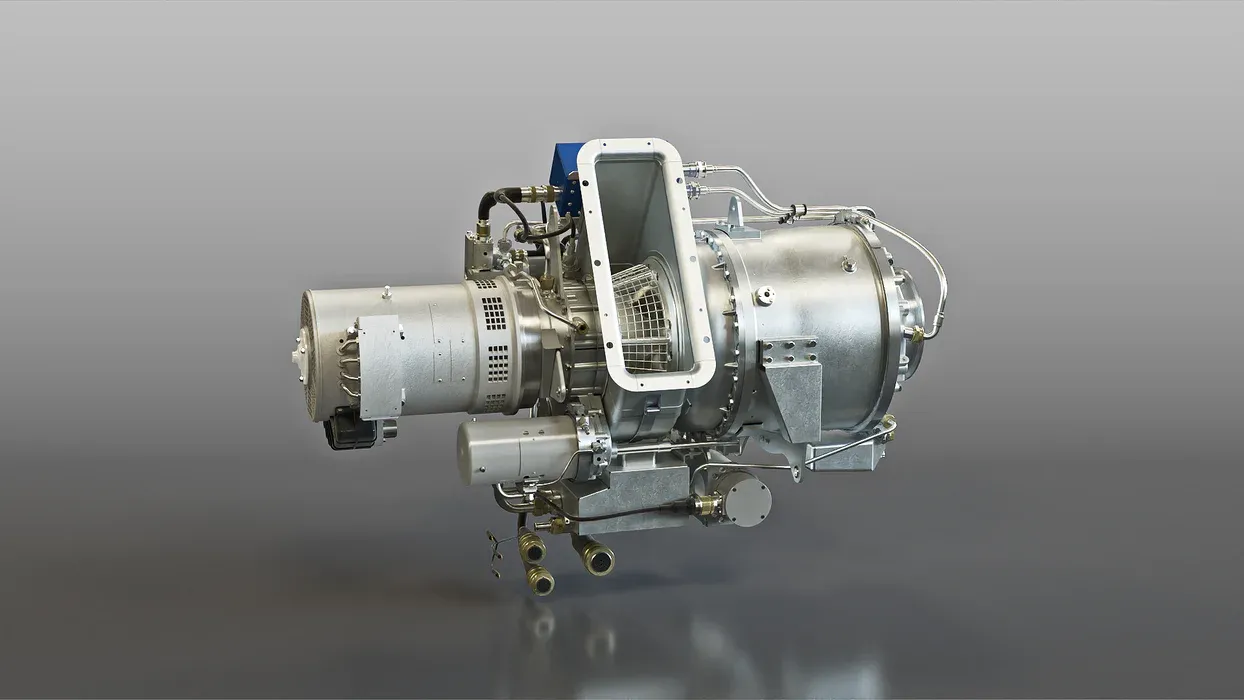

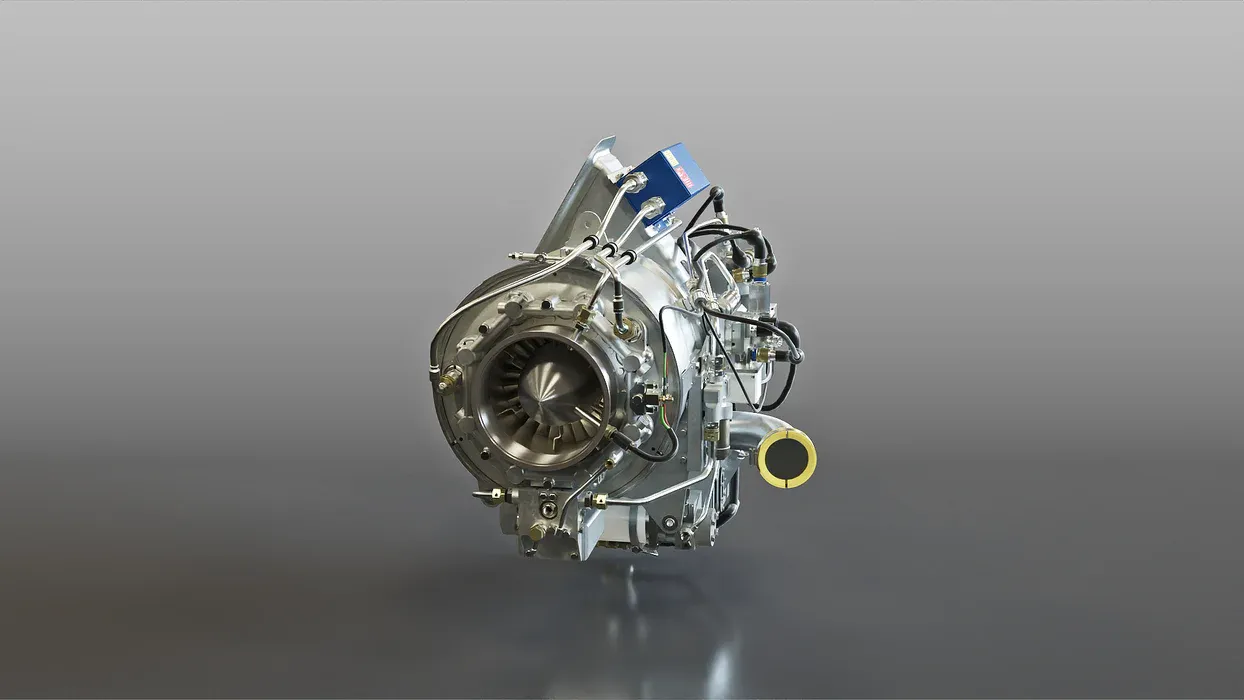

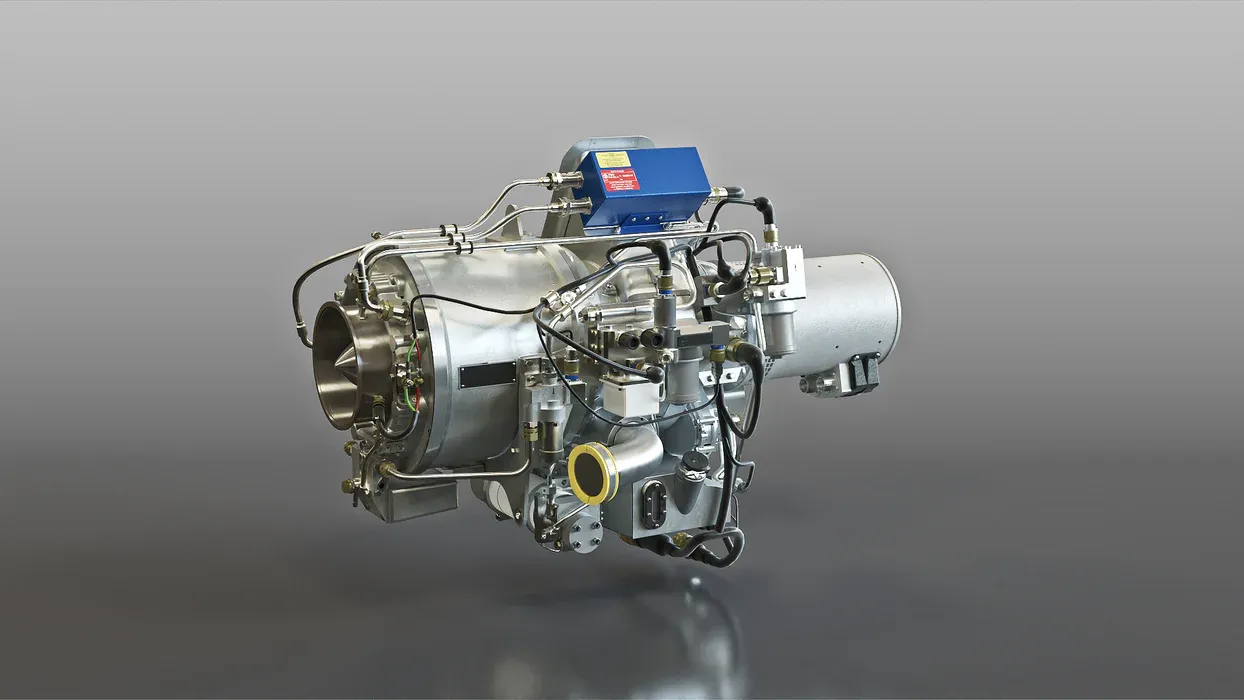

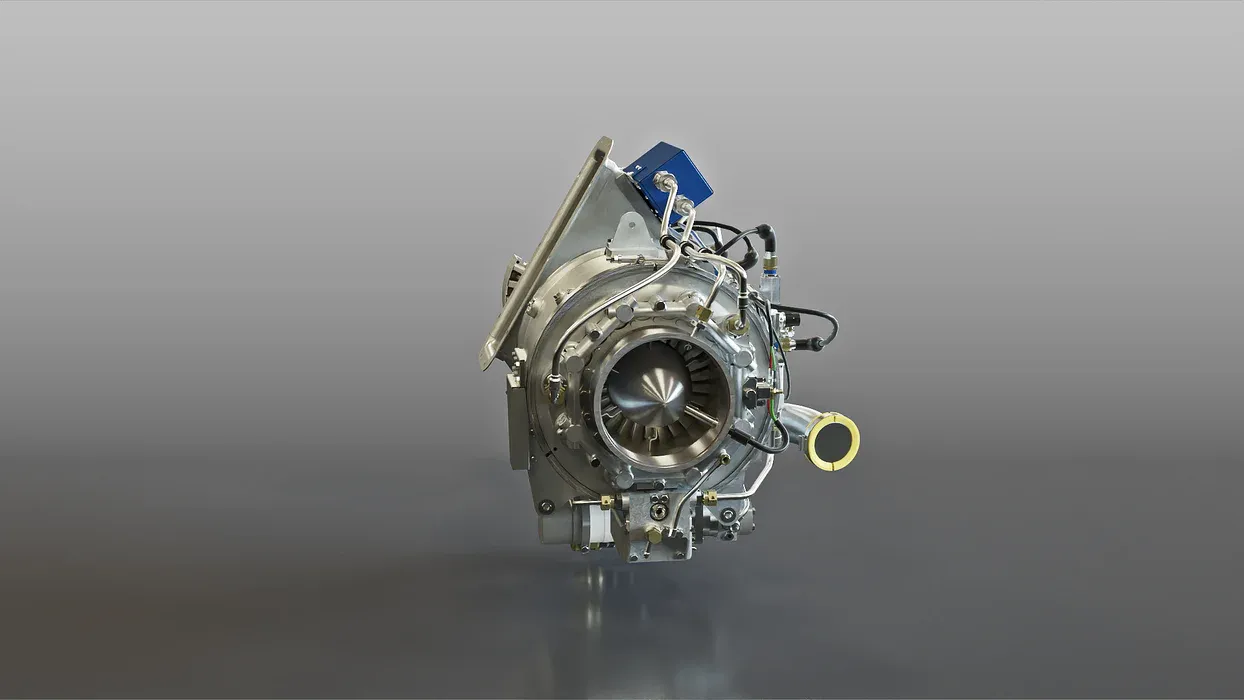

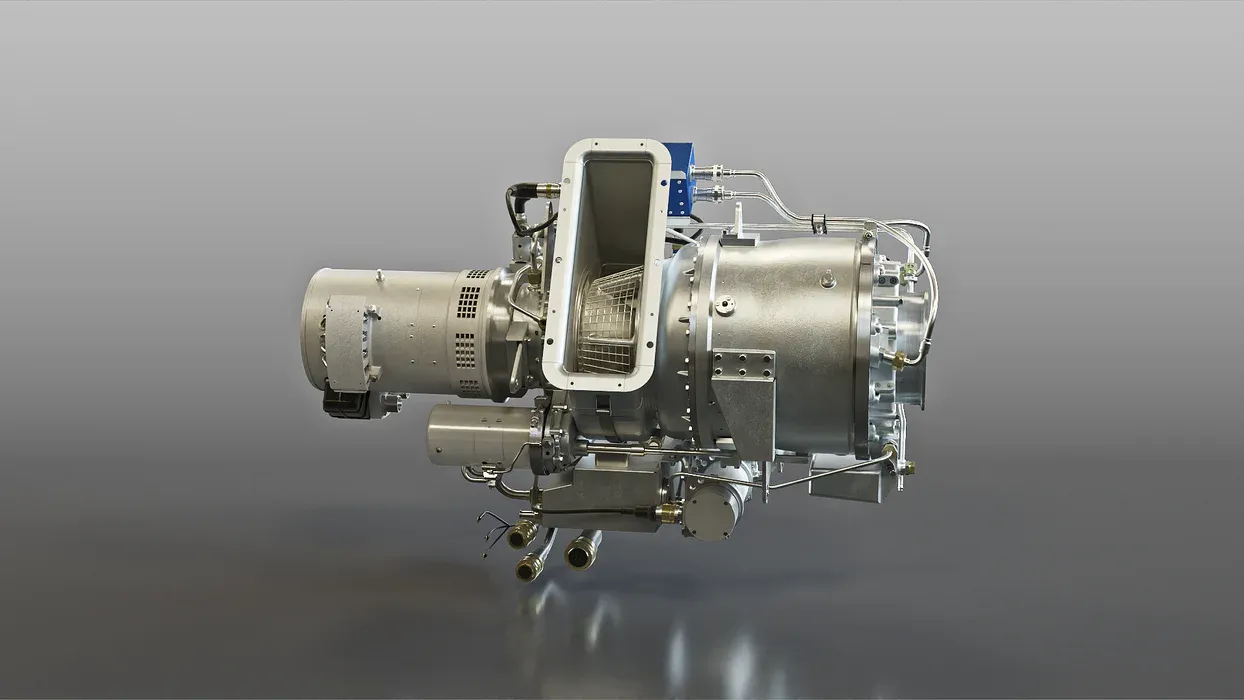

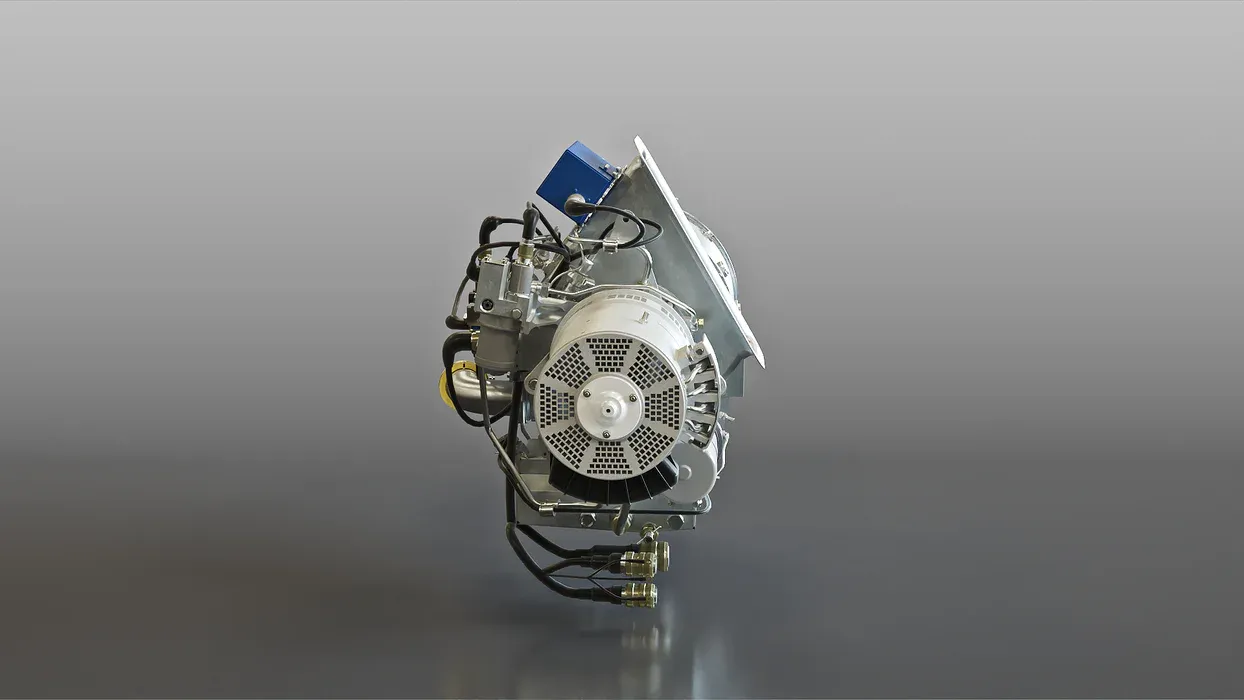

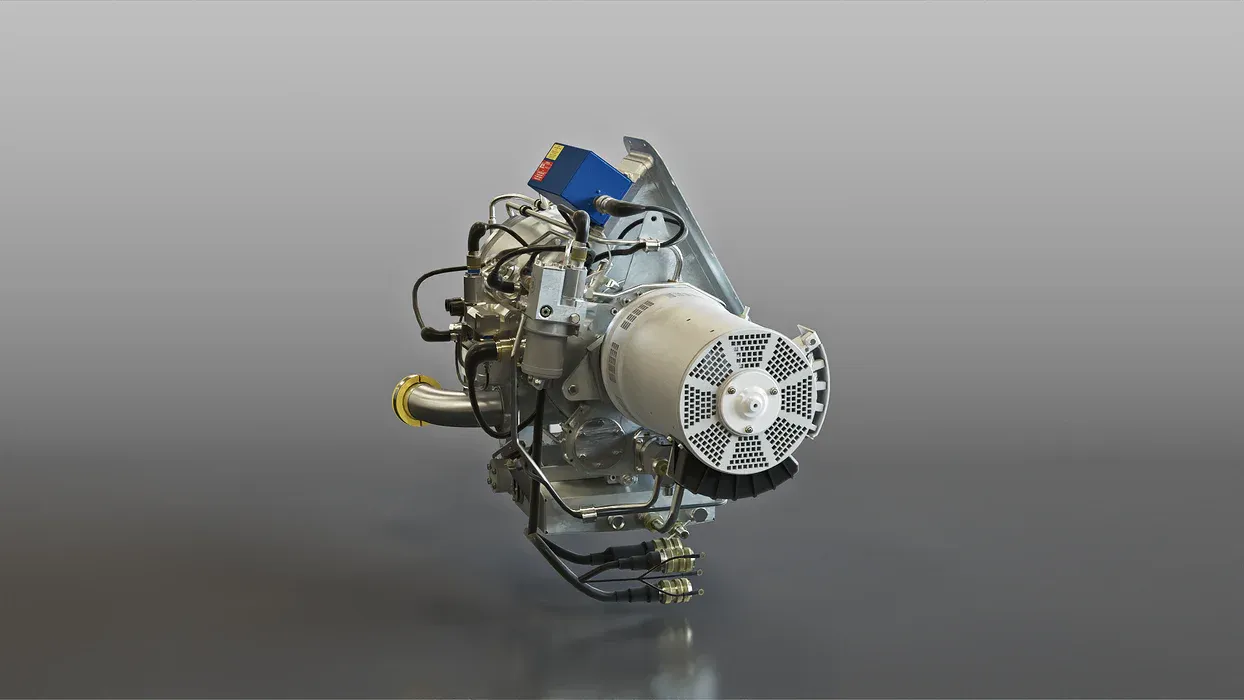

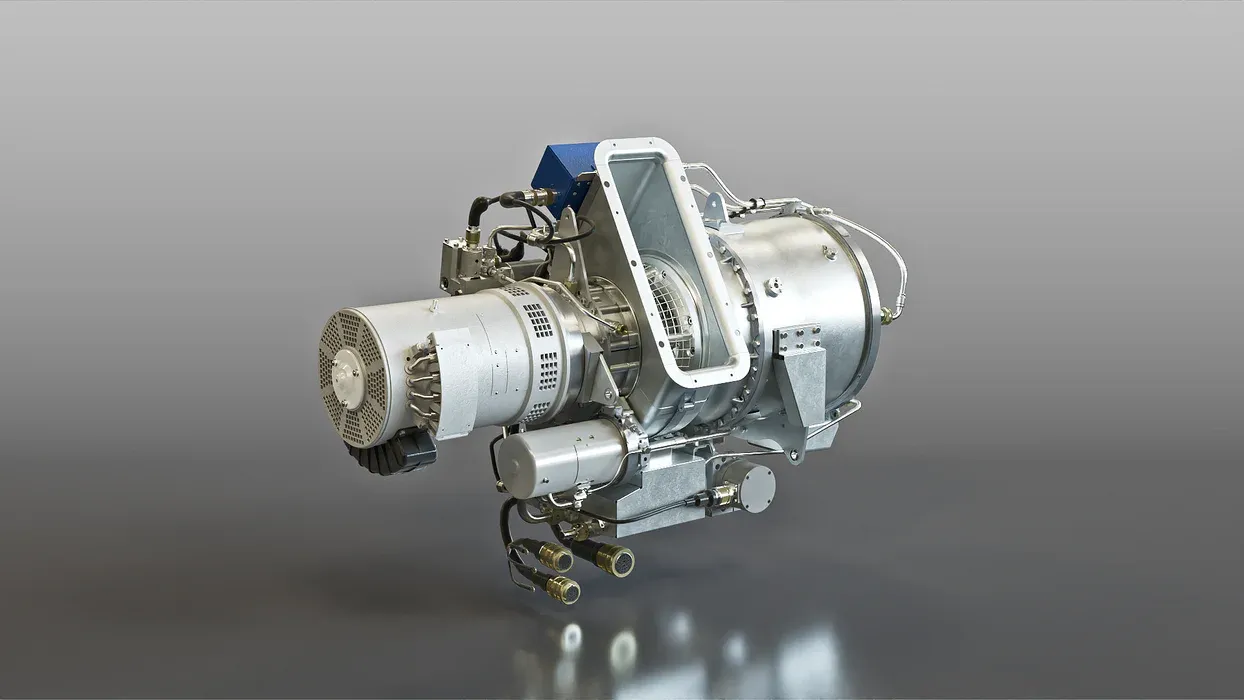

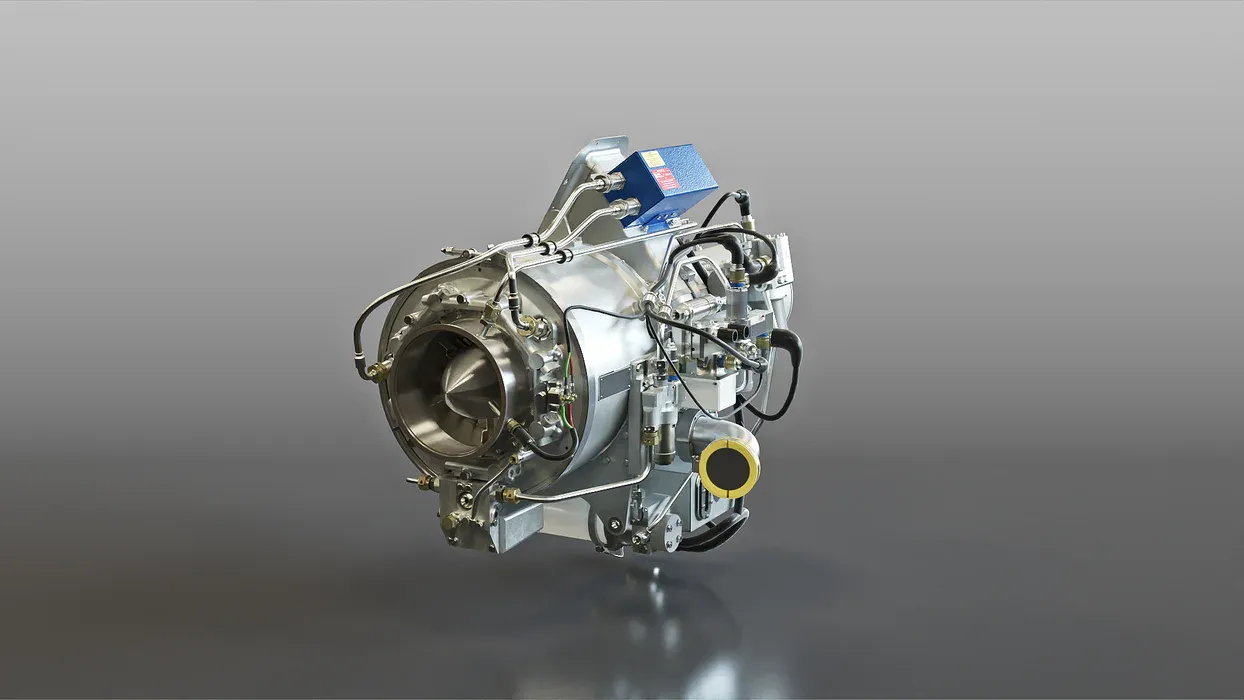

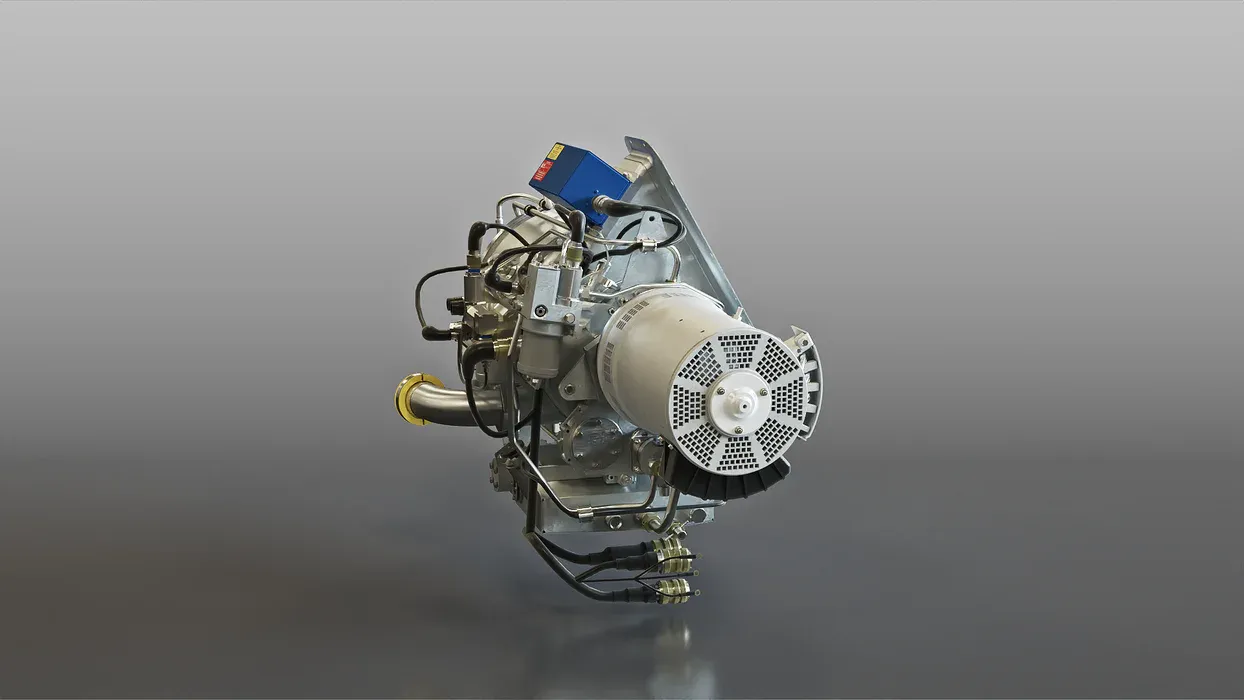

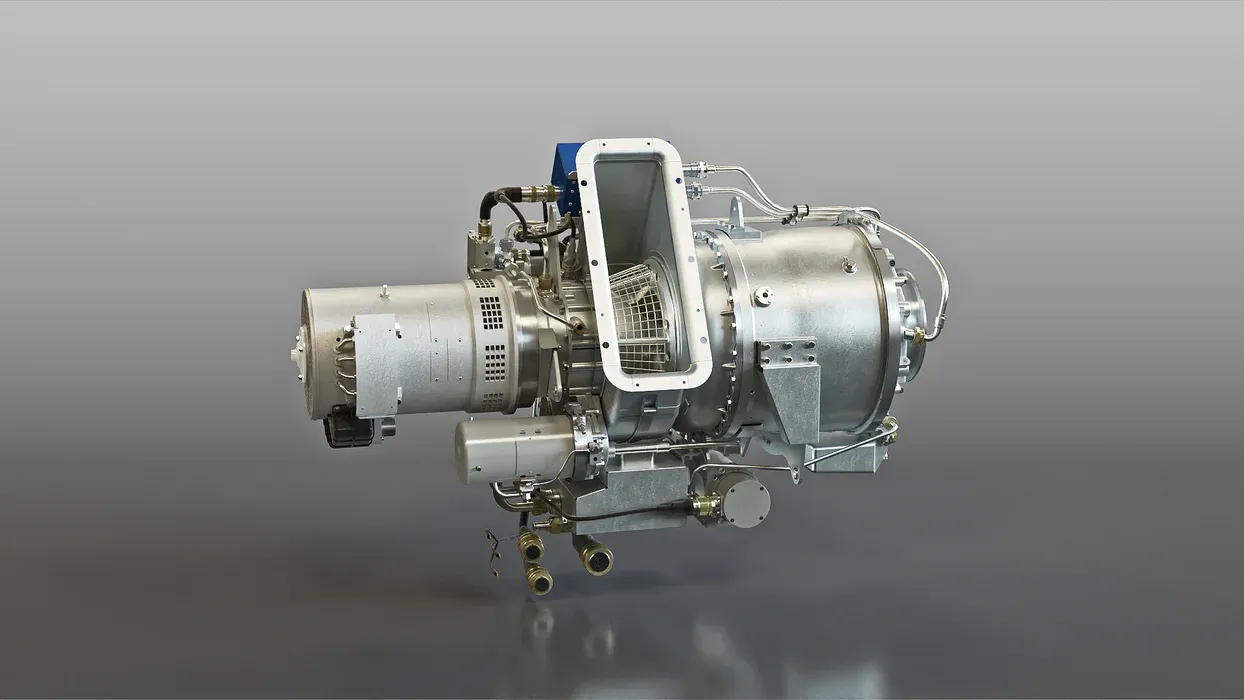

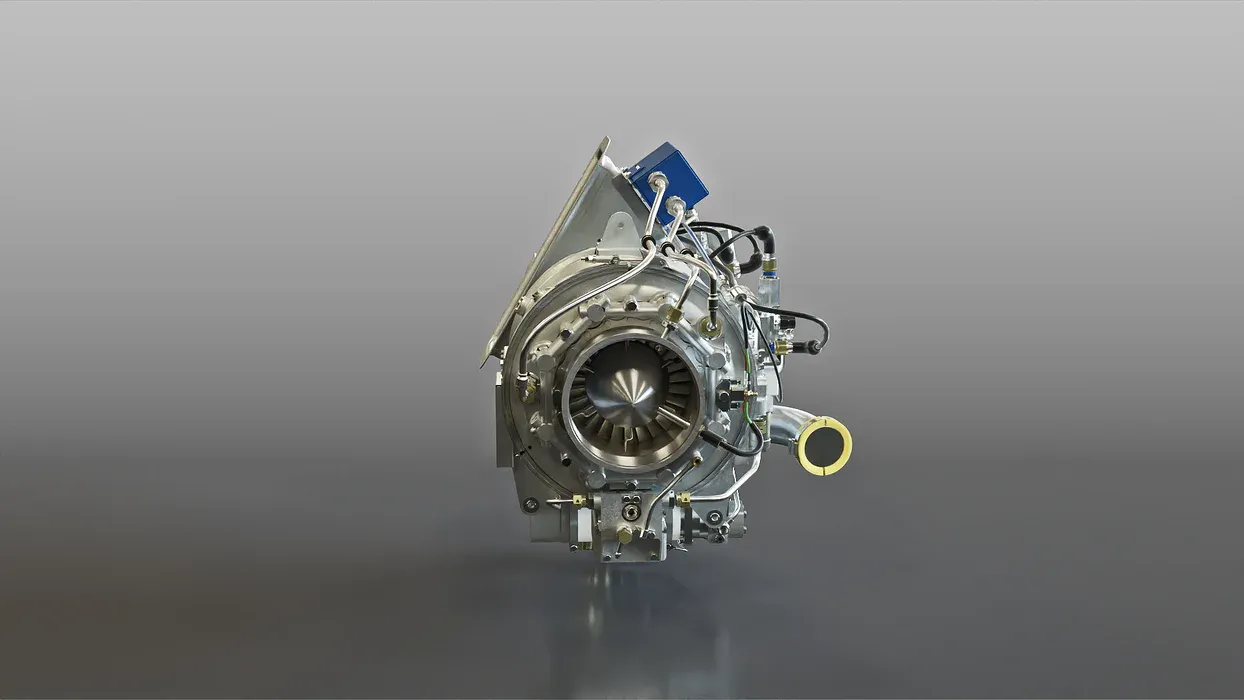

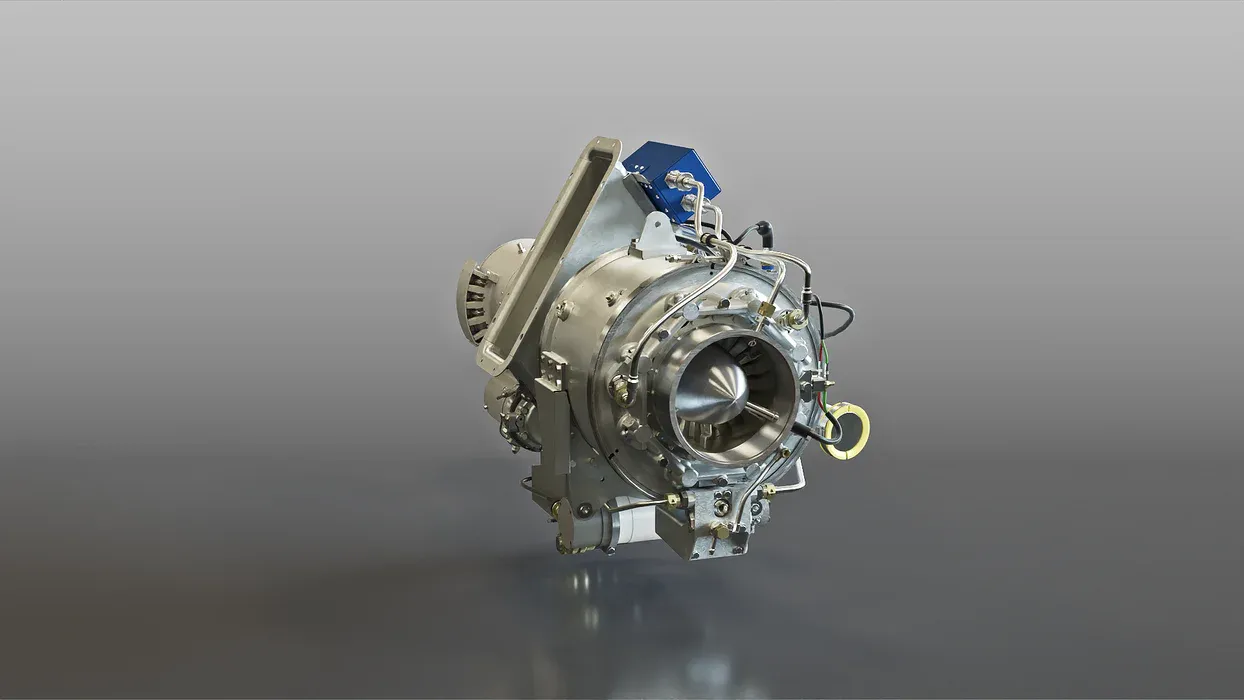

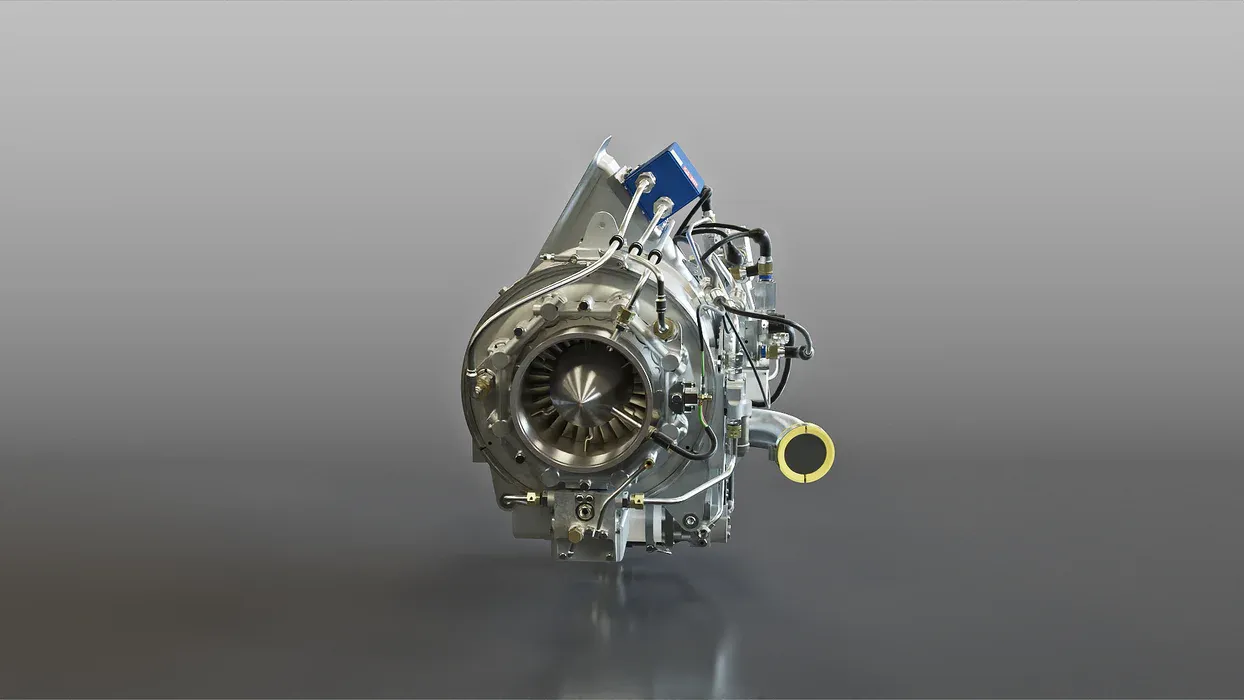

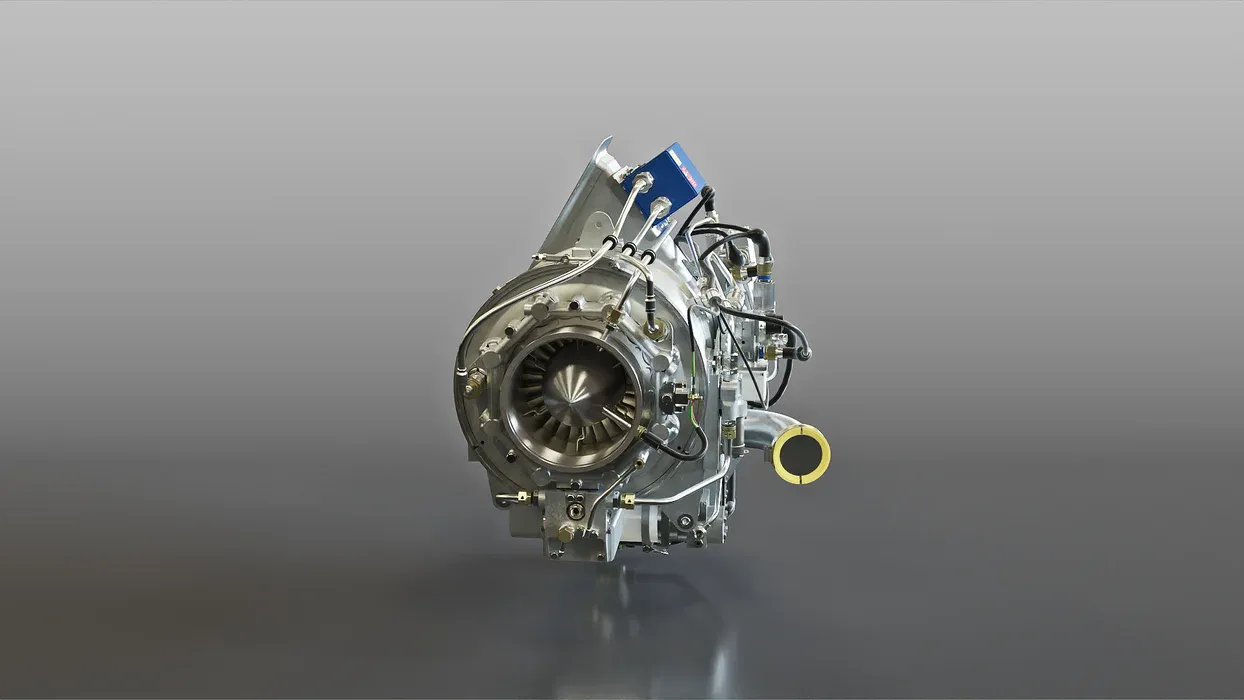

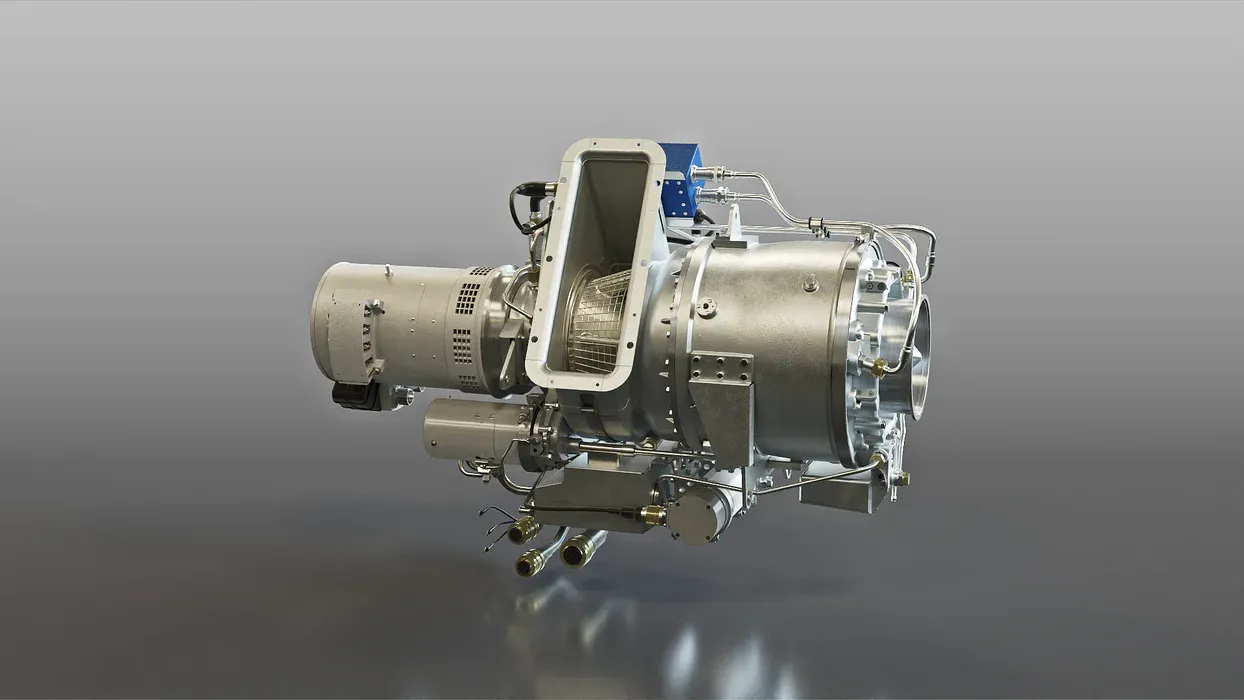

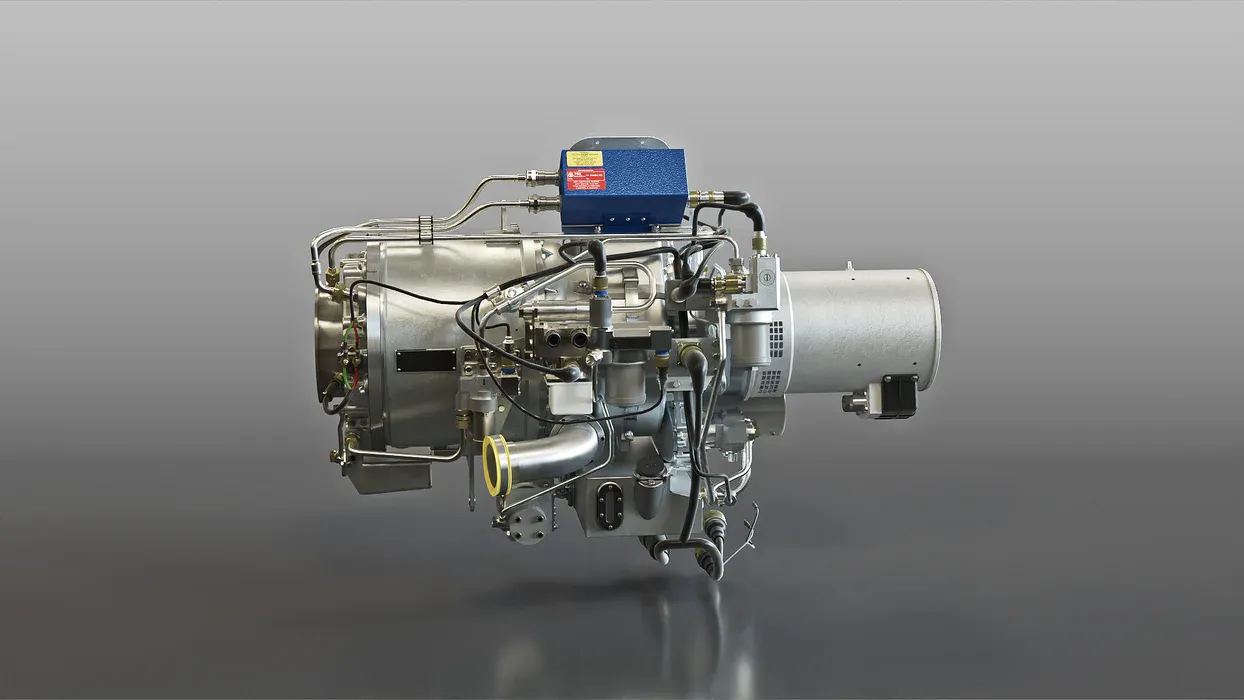

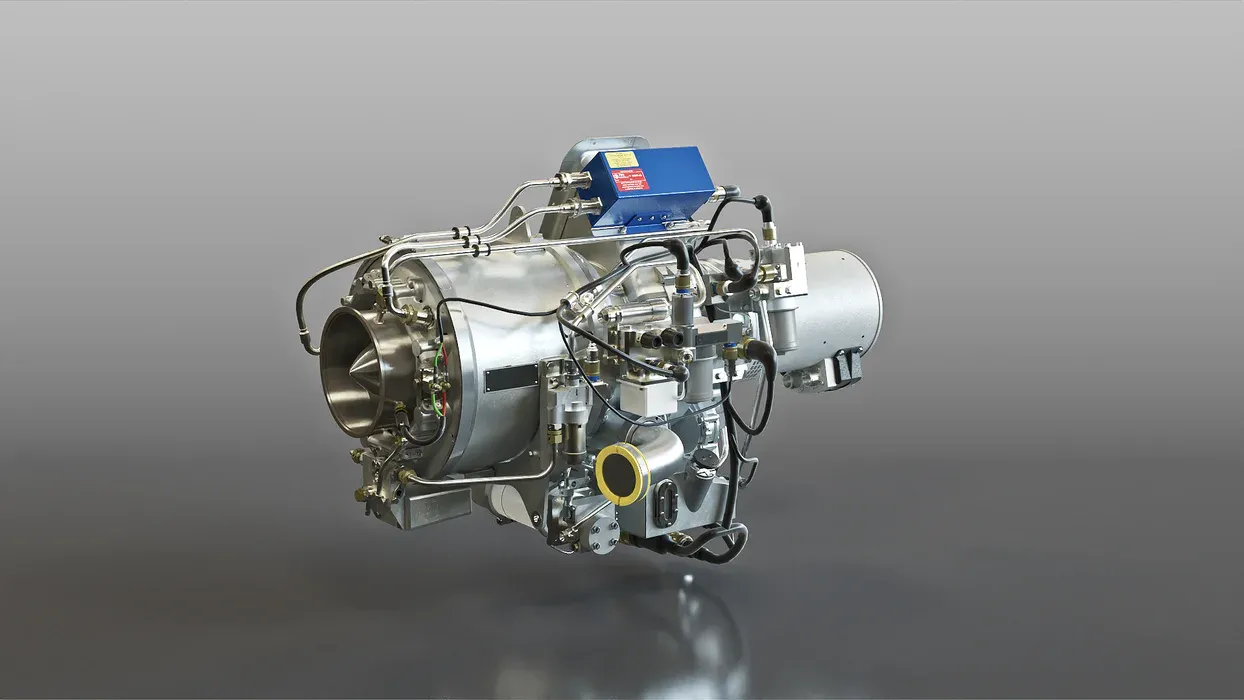

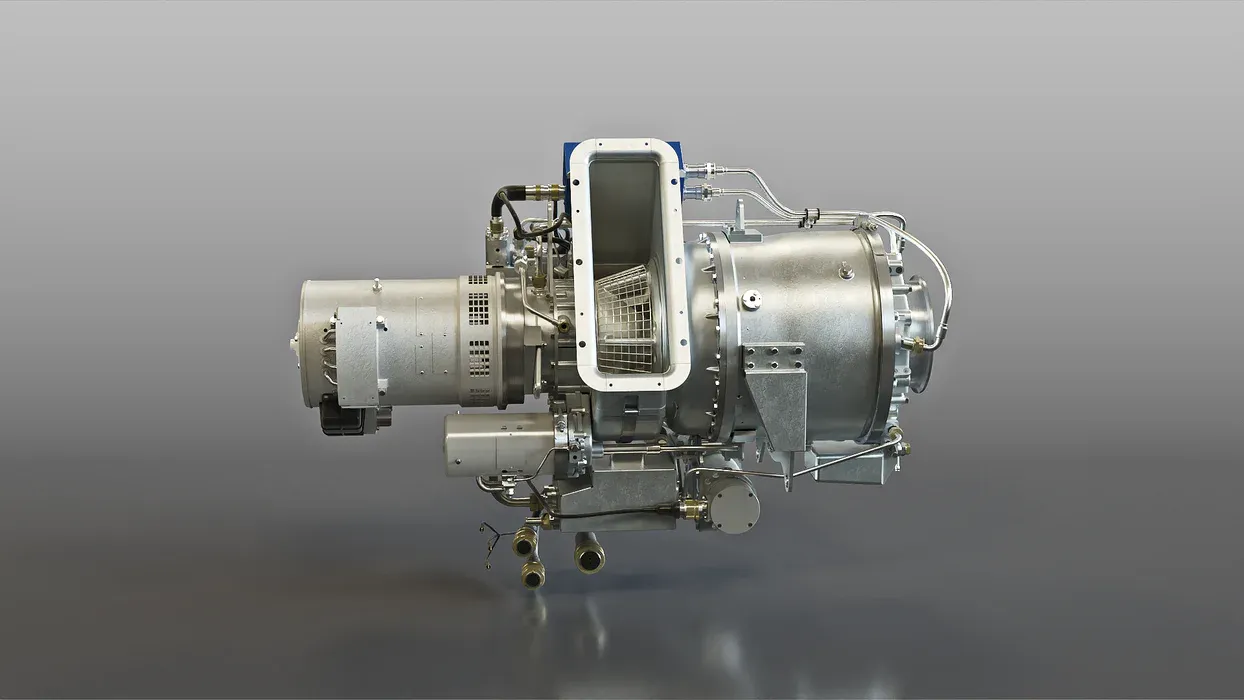

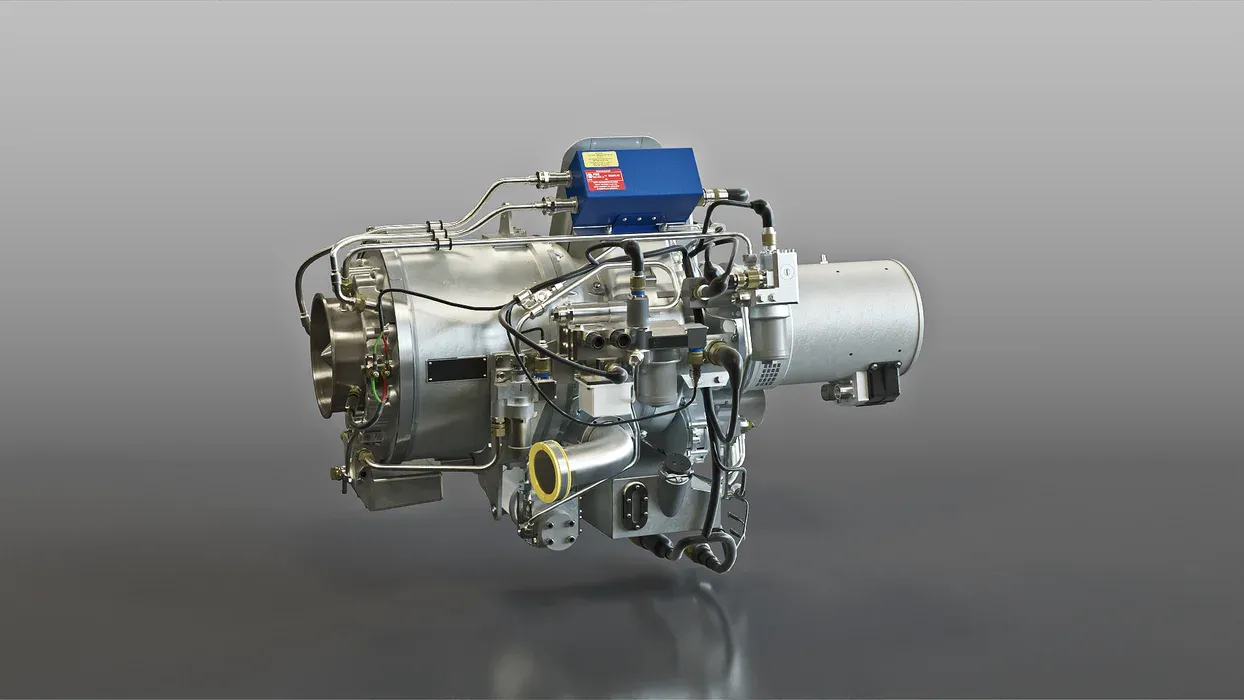

Safir 5K/G Z8 is an auxiliary power unit designed primarily to supply AC for starting the main engines, as well as to the deck network.
  • Continuous operation for 6 hours
  • High reliability
  • Long service life
  • Easy maintenance
  • Ecological fuel drainage
  • Optimized operating fluid status signaling
PBS.TopImage.Btn.Scroll
The auxiliary power unit contains all the necessary accessories (the AC generator is currently not supplied standardly) for safe operation and momentary as well as long-term diagnostics of the unit.

The exhaust gas temperature, revolutions and other indicators are constantly monitored. The fuel and oil filter status is also signalled. All data are recorded by the control unit equipped with a RS 422 communication interface. This APU was certified for civil aviation by EASA according to CS-APU, and by CAAC according to TSO-C77b.


Look at the Auxiliary power unit brochure here.

Auxiliary power unit parameters


Technical parameters SI units Imperial units
Nominal power 40 kVA 40 kVA
Power supply 3x 115 V/200 V/ 400 Hz 3x 115 V/200 V/ 400 Hz
Weight 48,5 kg 107 lb
Height x width 398 x 520 mm 15,6 x 20,4 in
Length 638 mm 25,1 in
Max. altitude 6,000 m 19,700 ft



Why us?

Easy maintenance

Easy maintenance

As with other types of PBS auxiliary power units, the maintenance of Safir 5K/G Z8 is easy.
Ecological fuel drainage

Ecological fuel drainage

Another advantage of this auxiliary power unit is the optimized signaling of the status of operating fluids and the ecological drainage of fuel.

Service, spare parts and overhauls of aerospace technology

We provide service of the highest quality for all users of our aerospace technology products.

We have long been working to extend the service life of our products, e.g. by introducing new technologies to produce the most exposed parts. Our turbine-based aircraft equipment regularly receives very good references.
