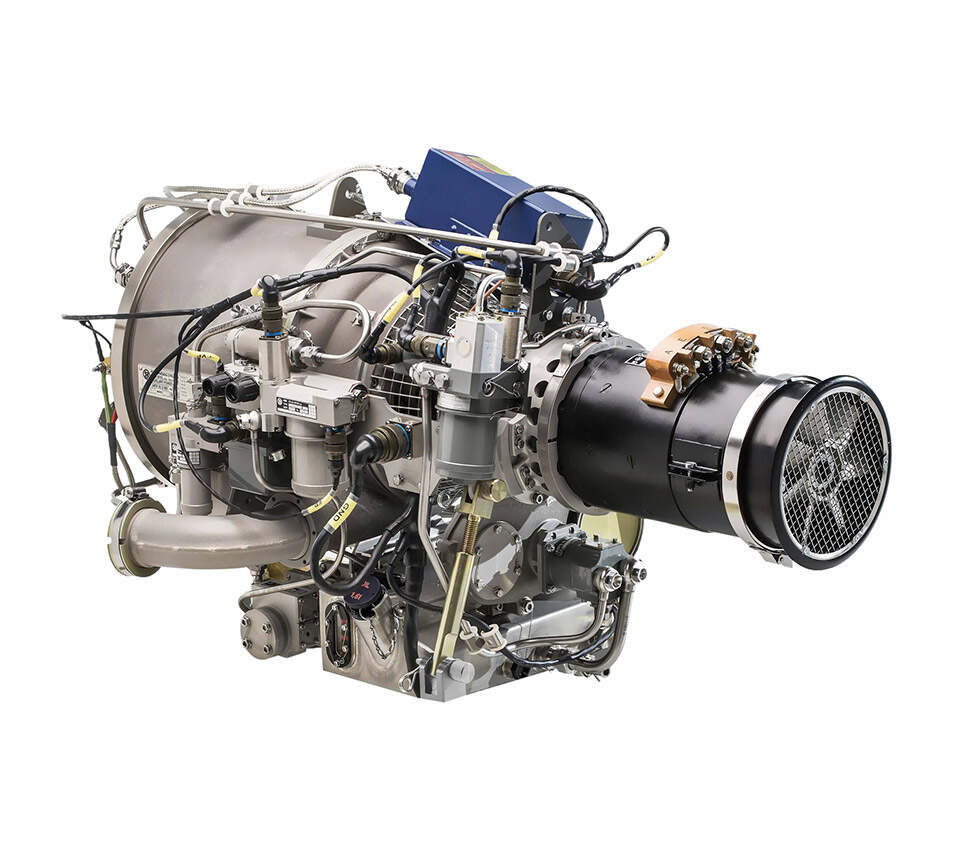

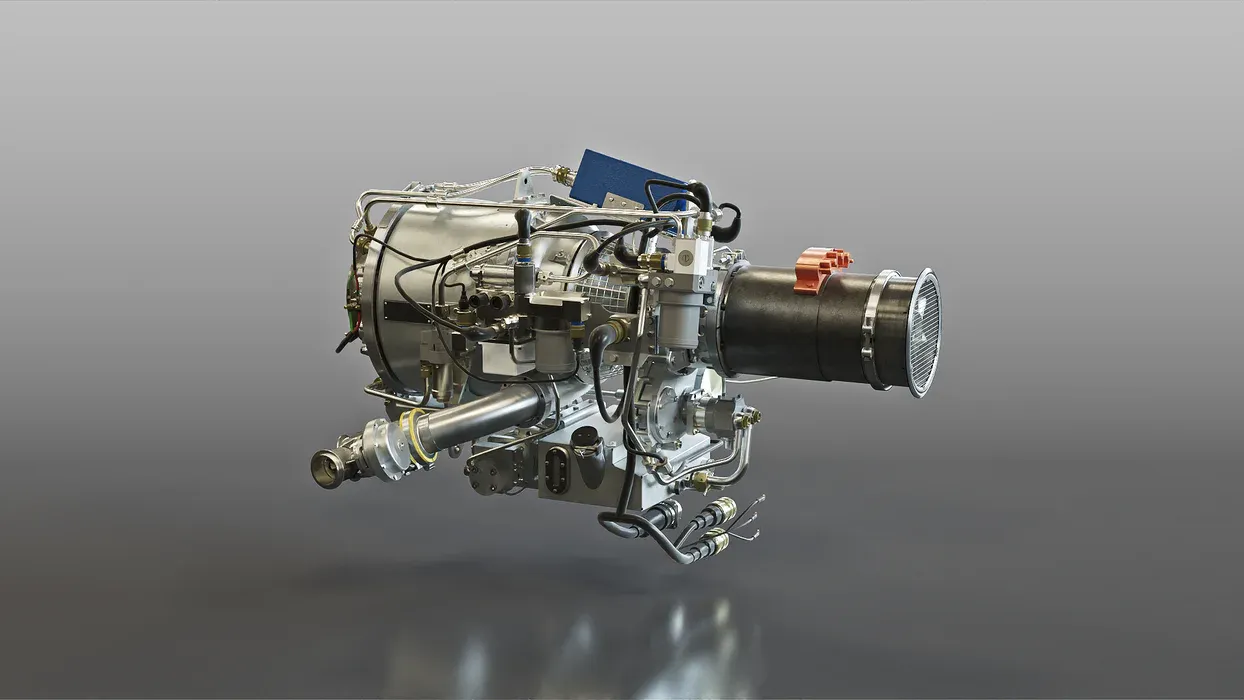

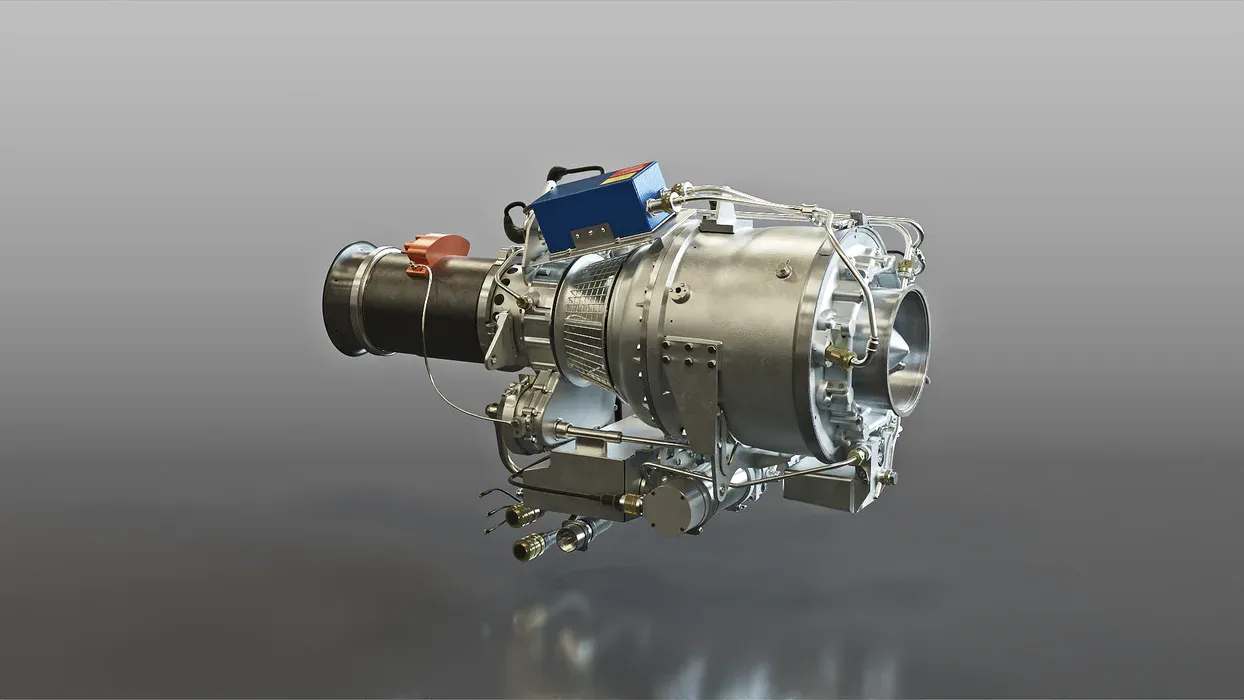

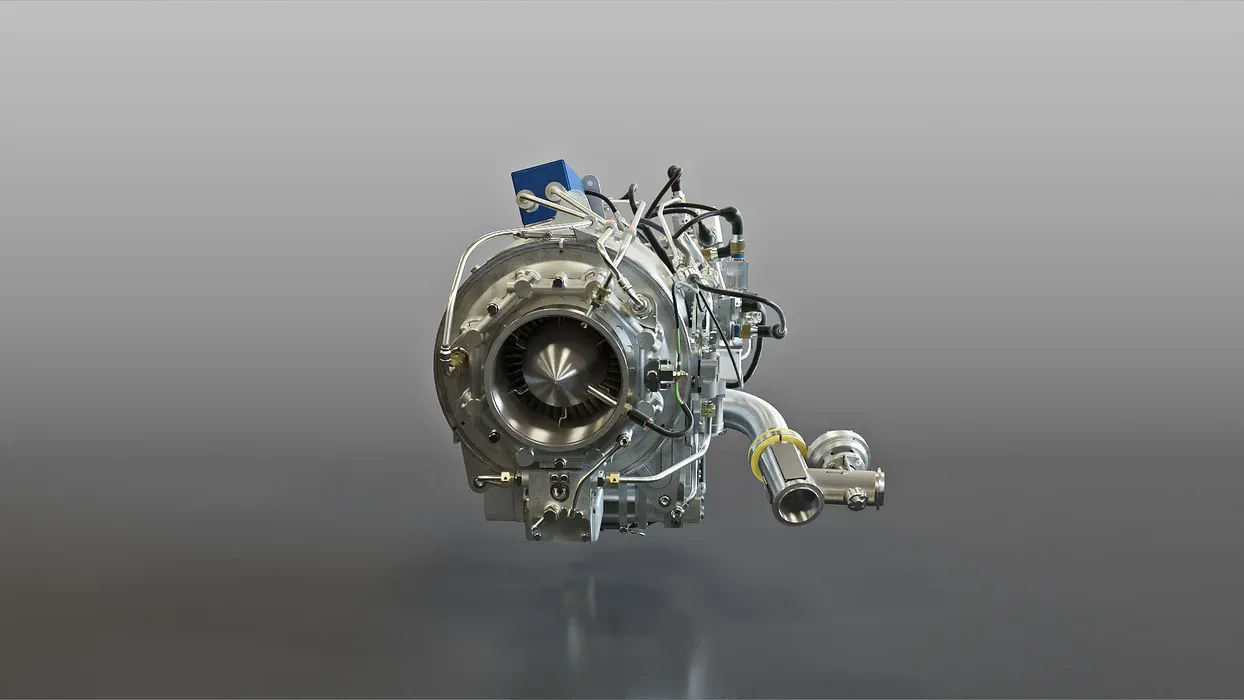

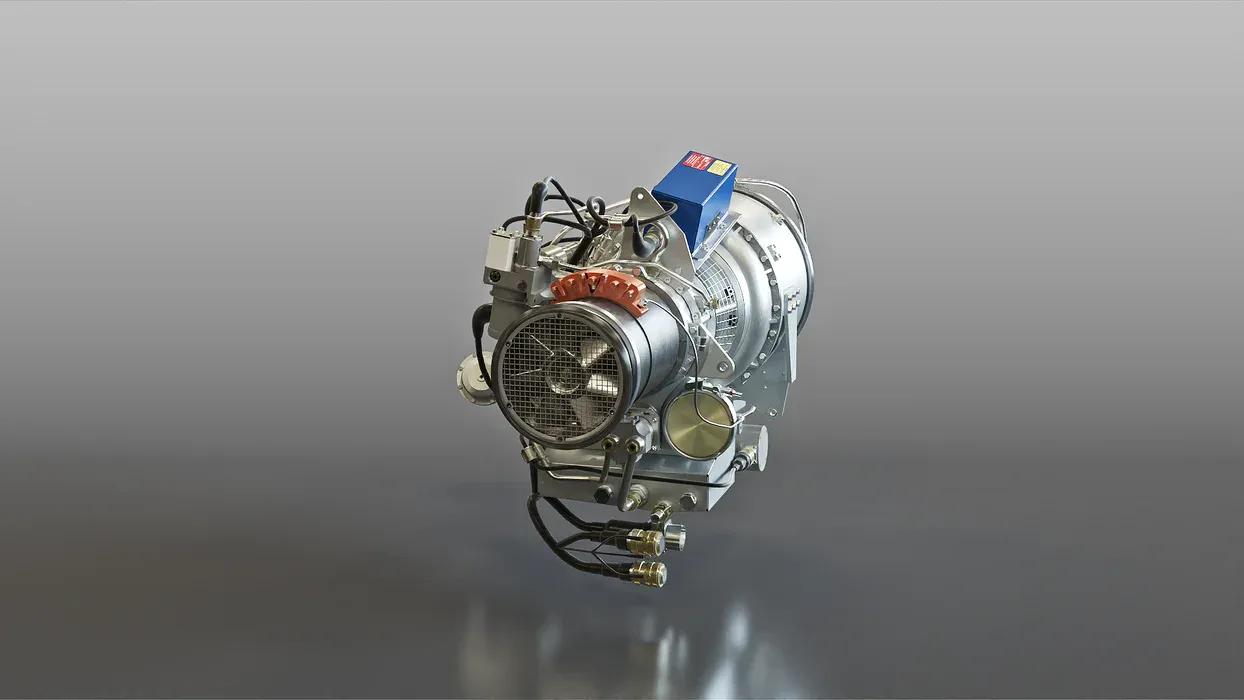

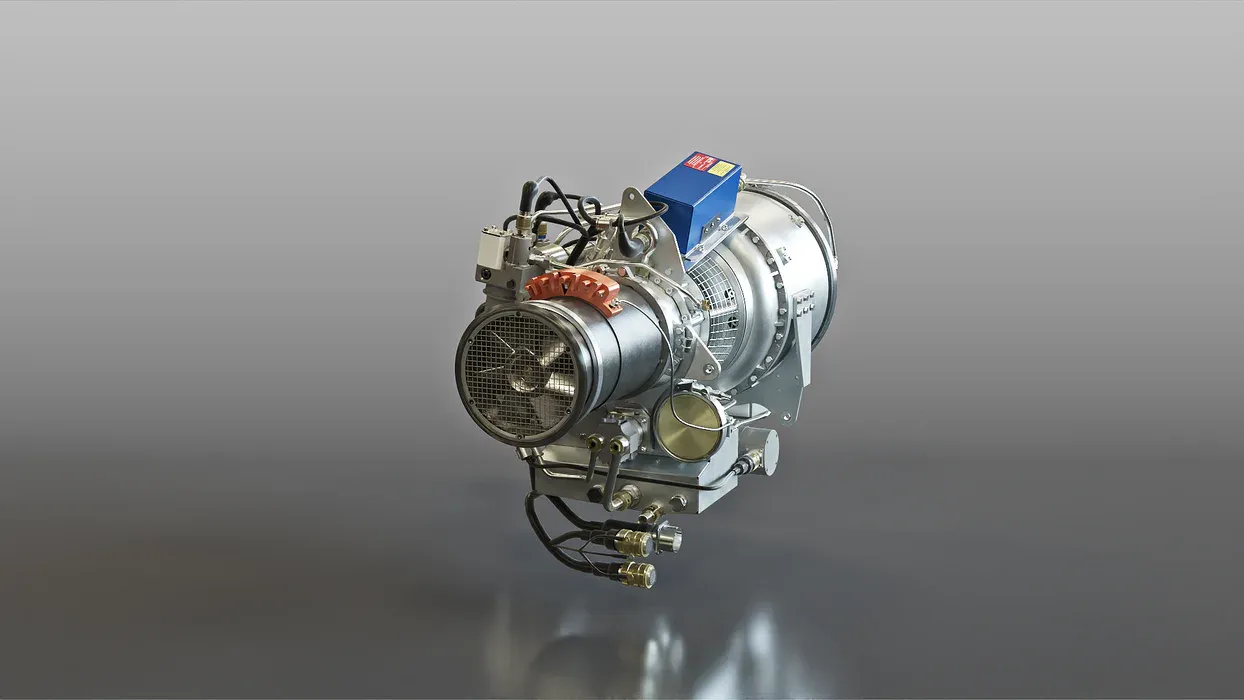

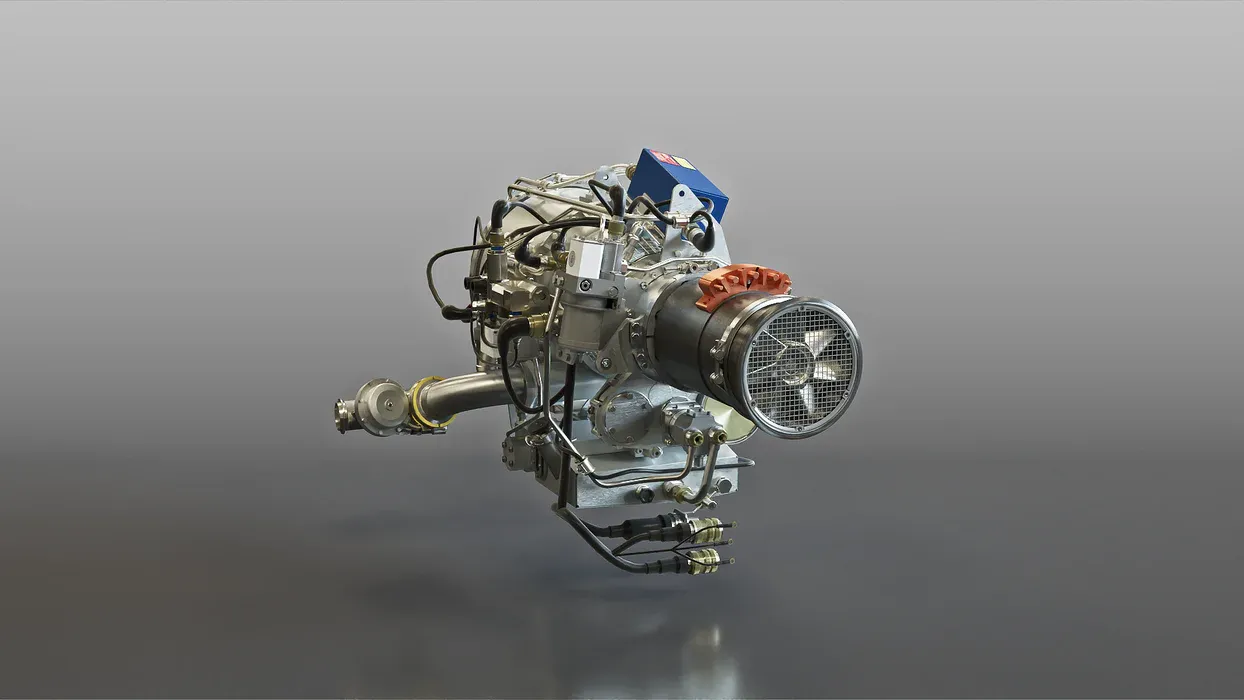

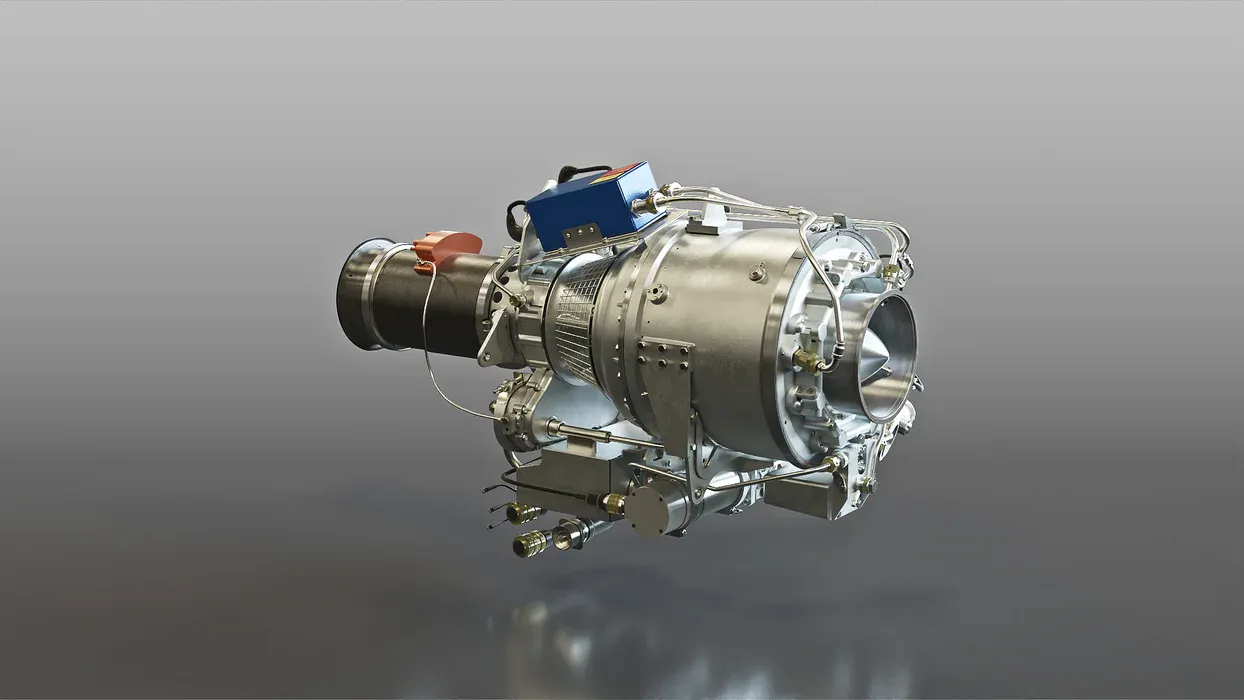

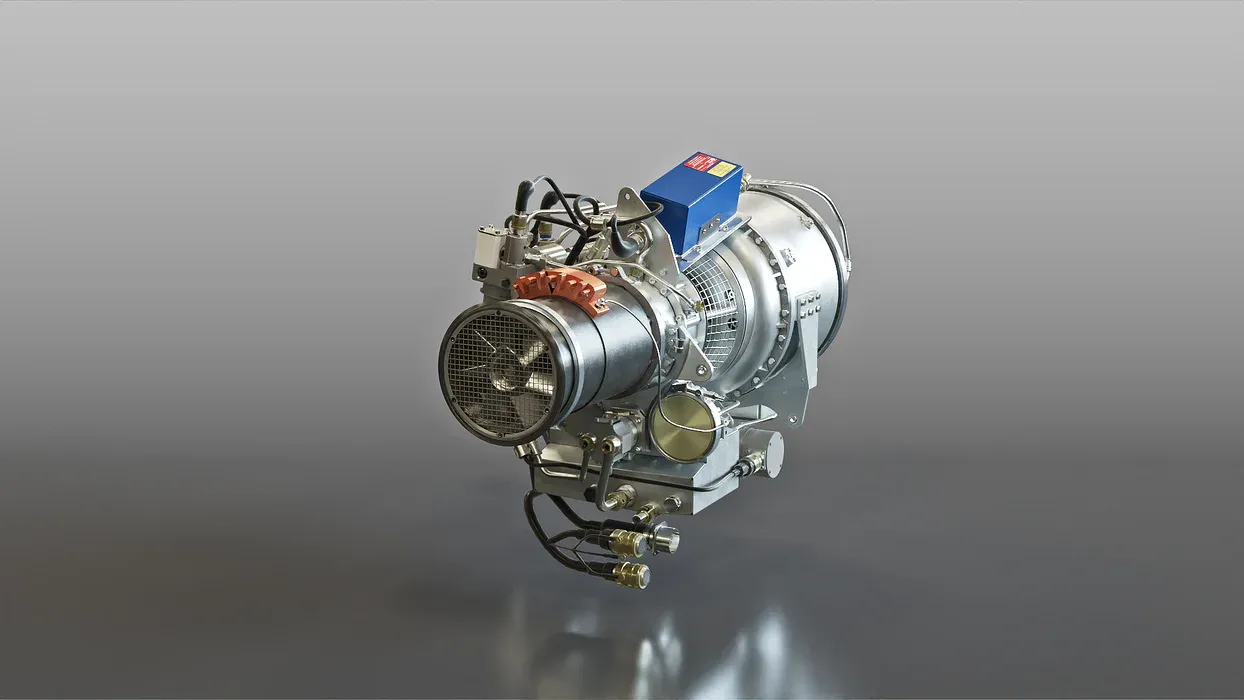

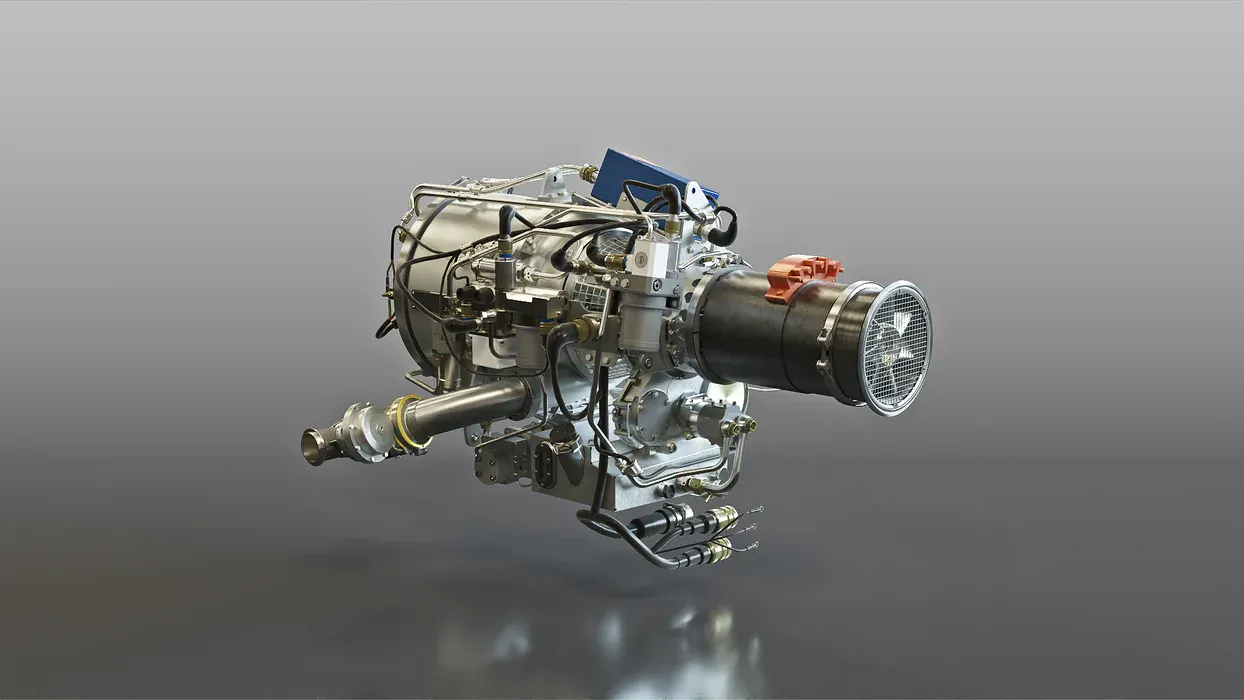

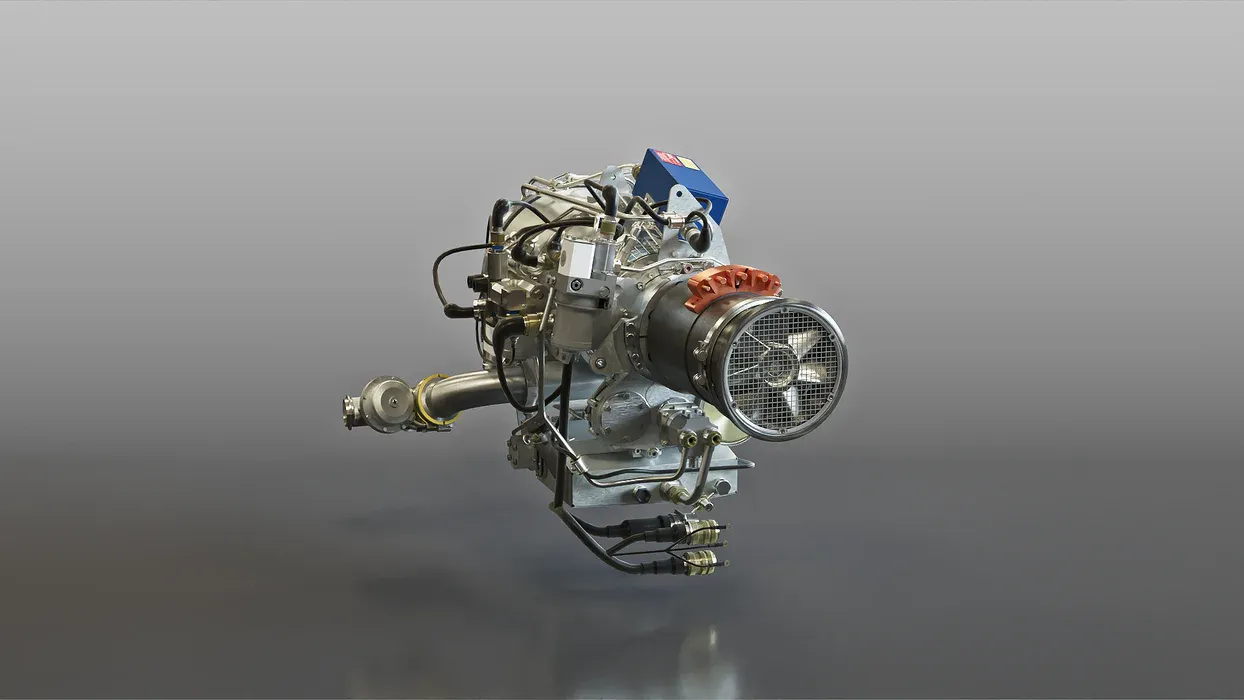

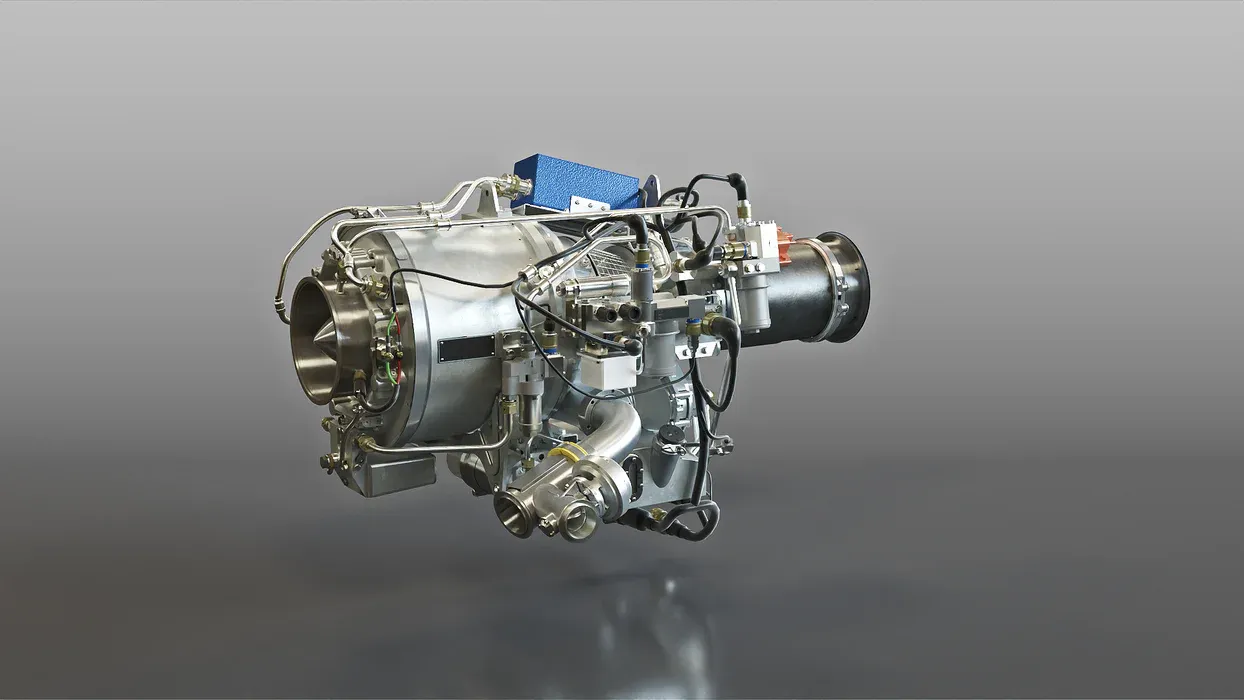

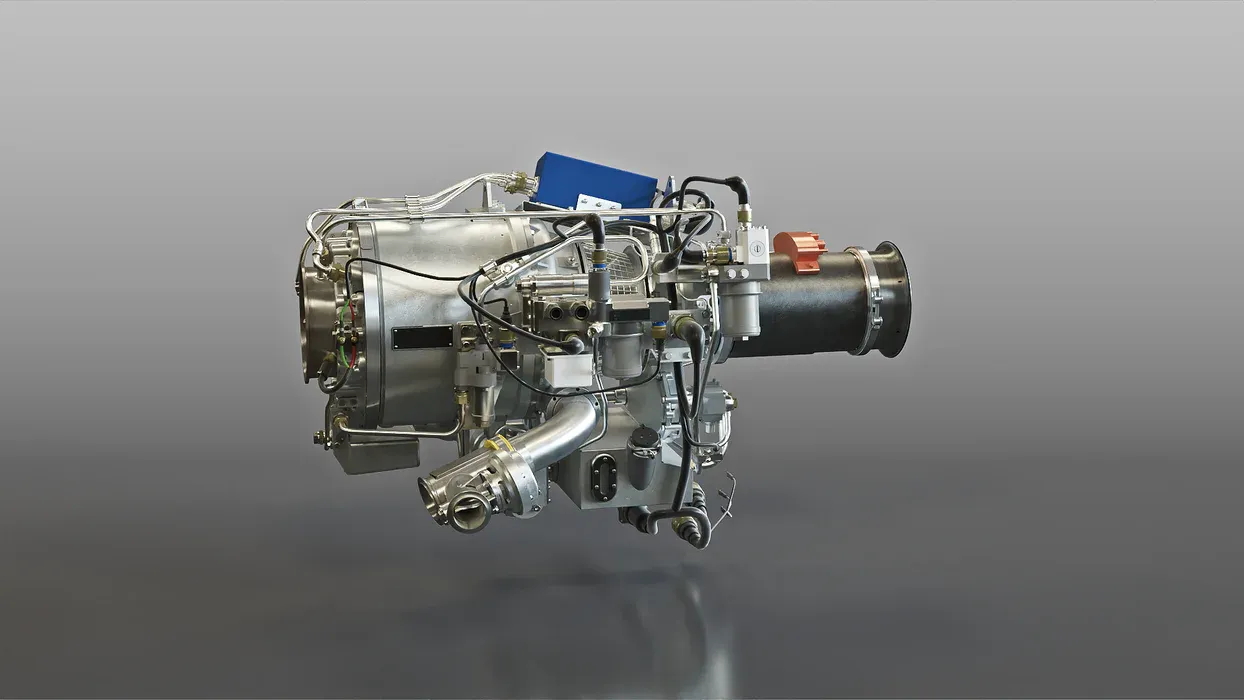

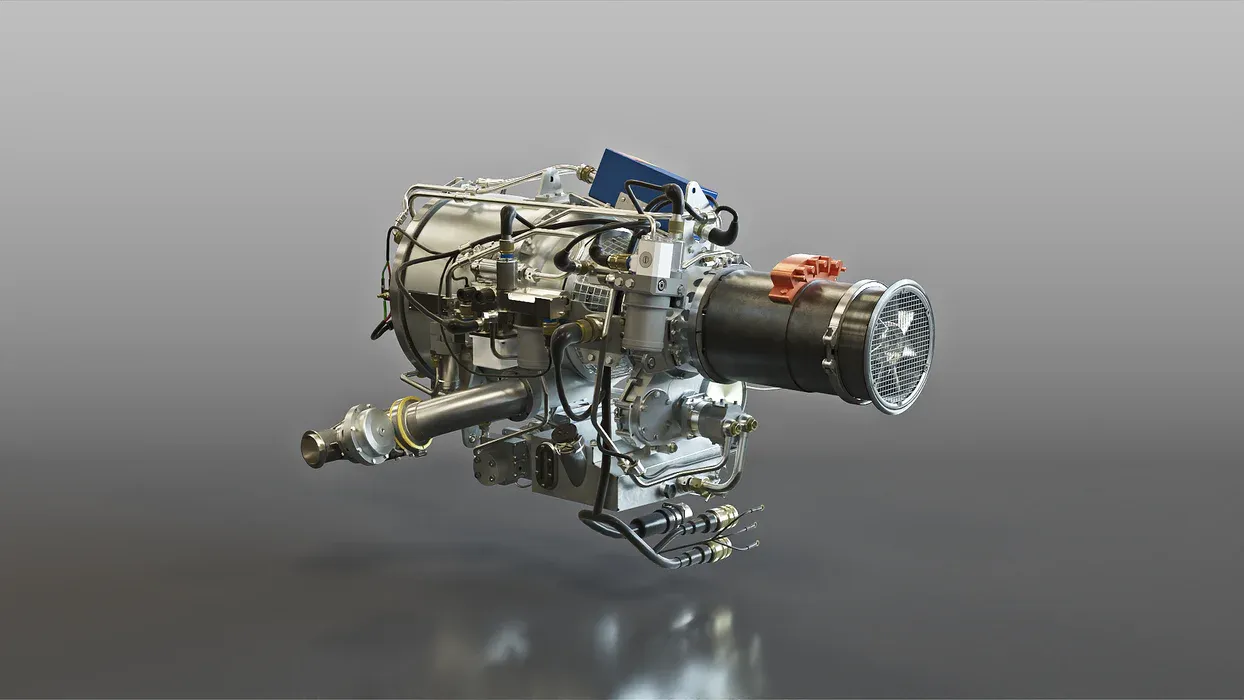

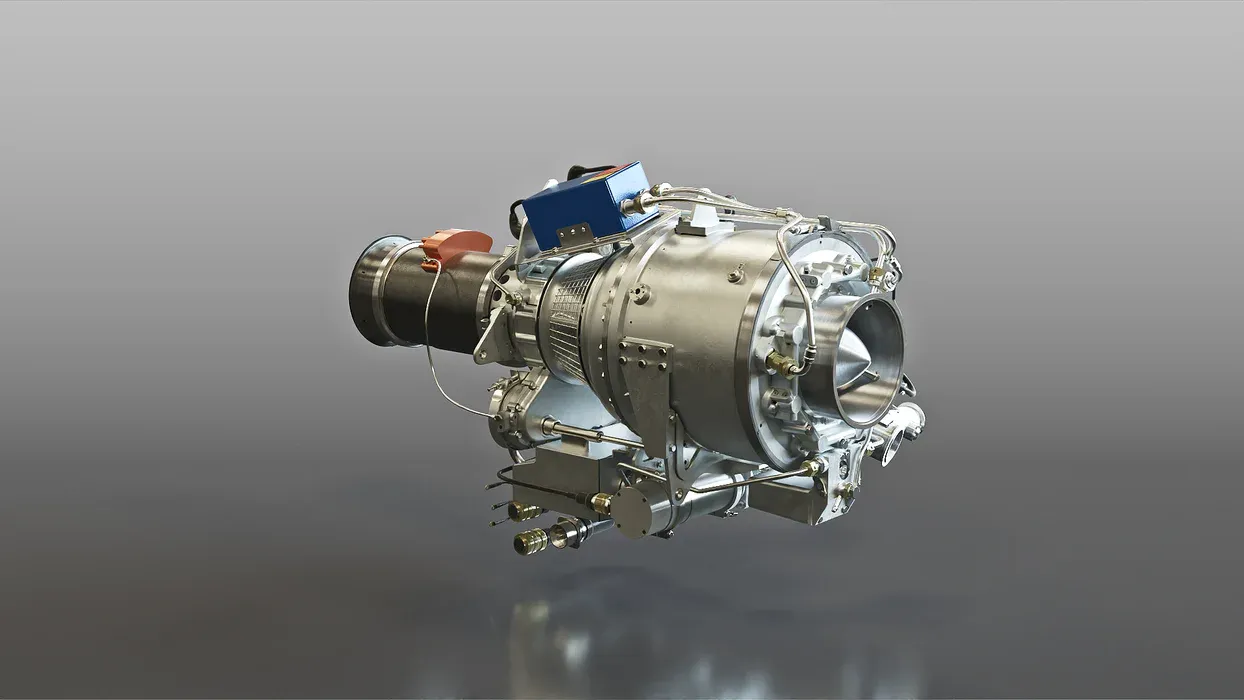

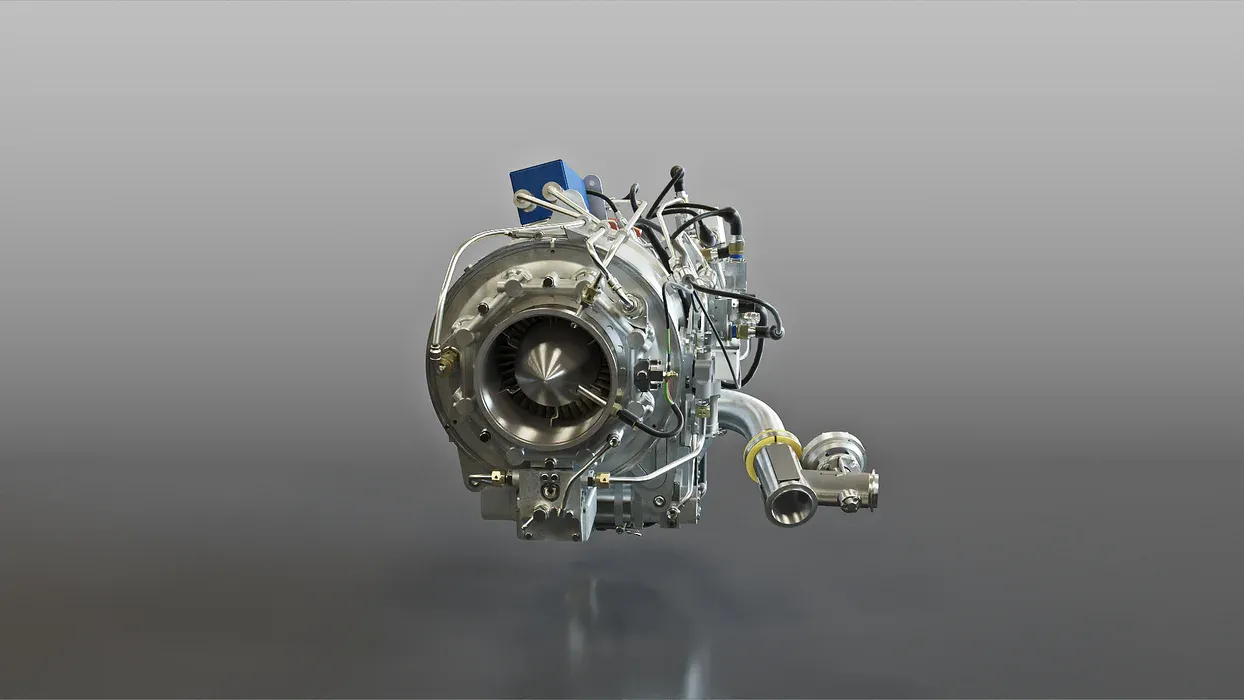

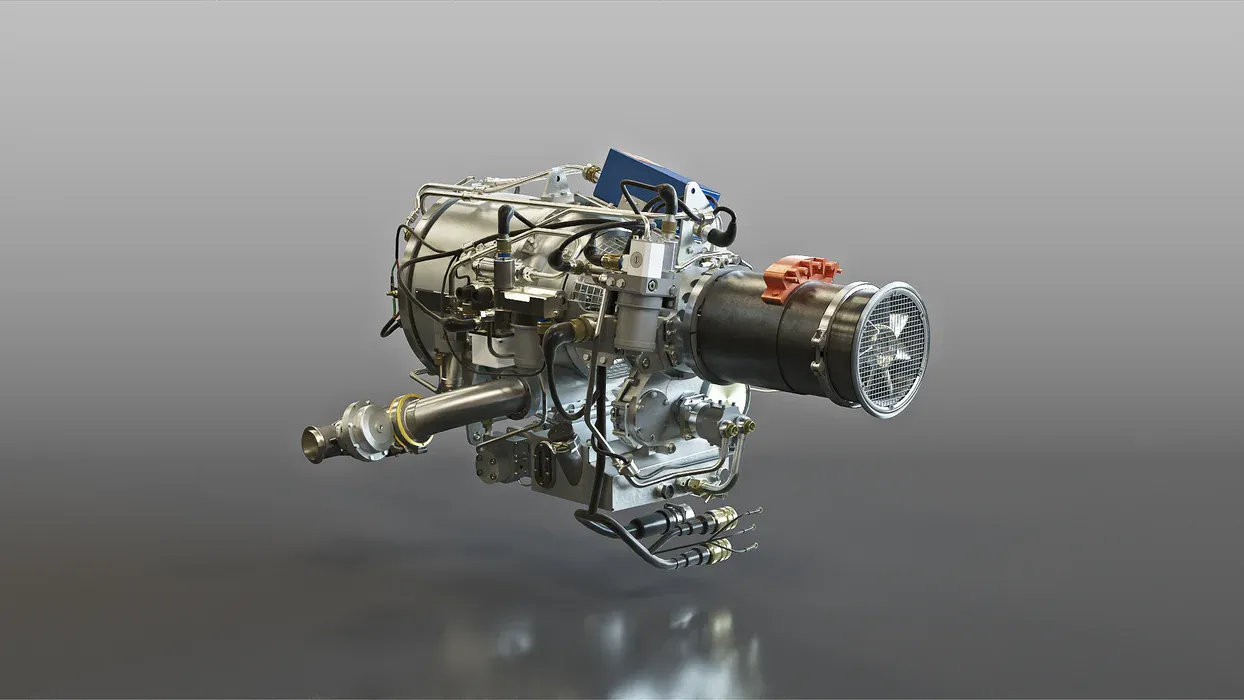

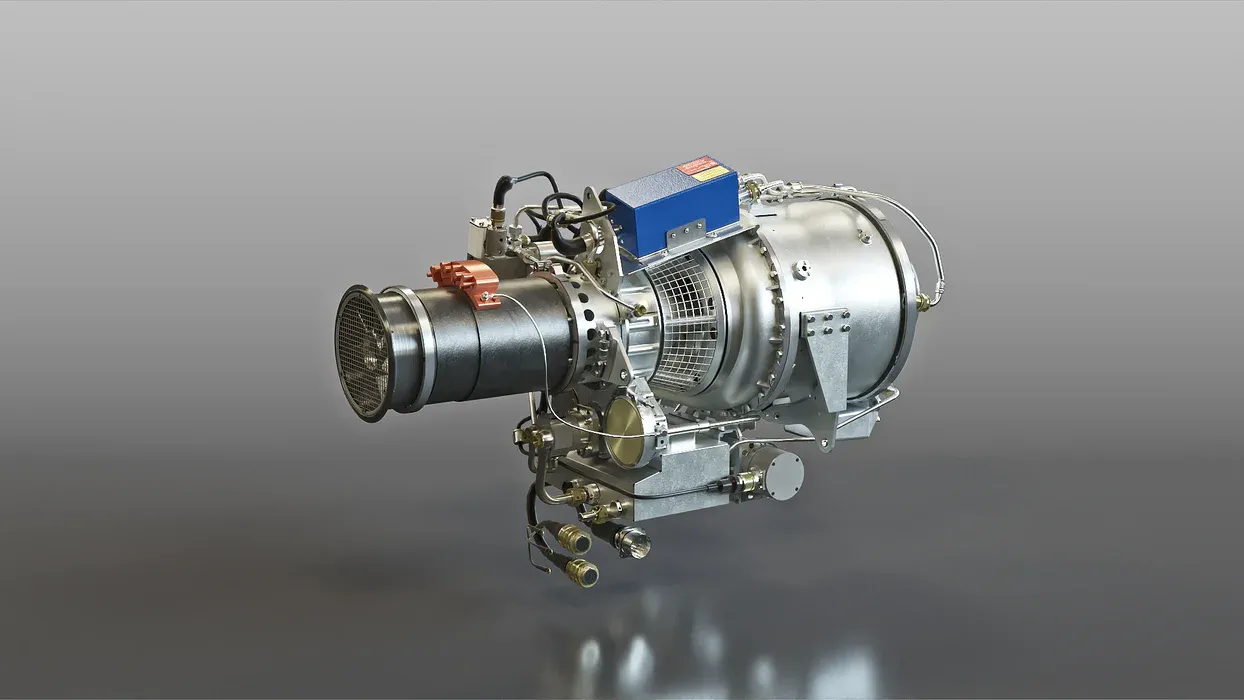

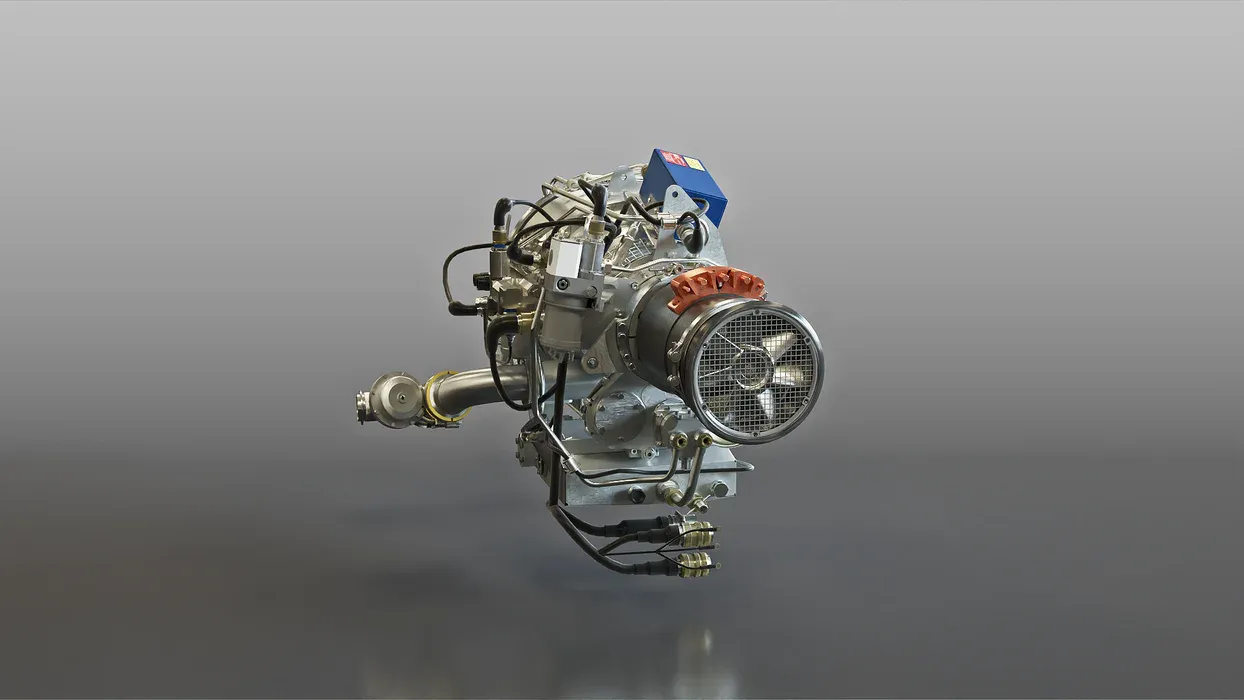

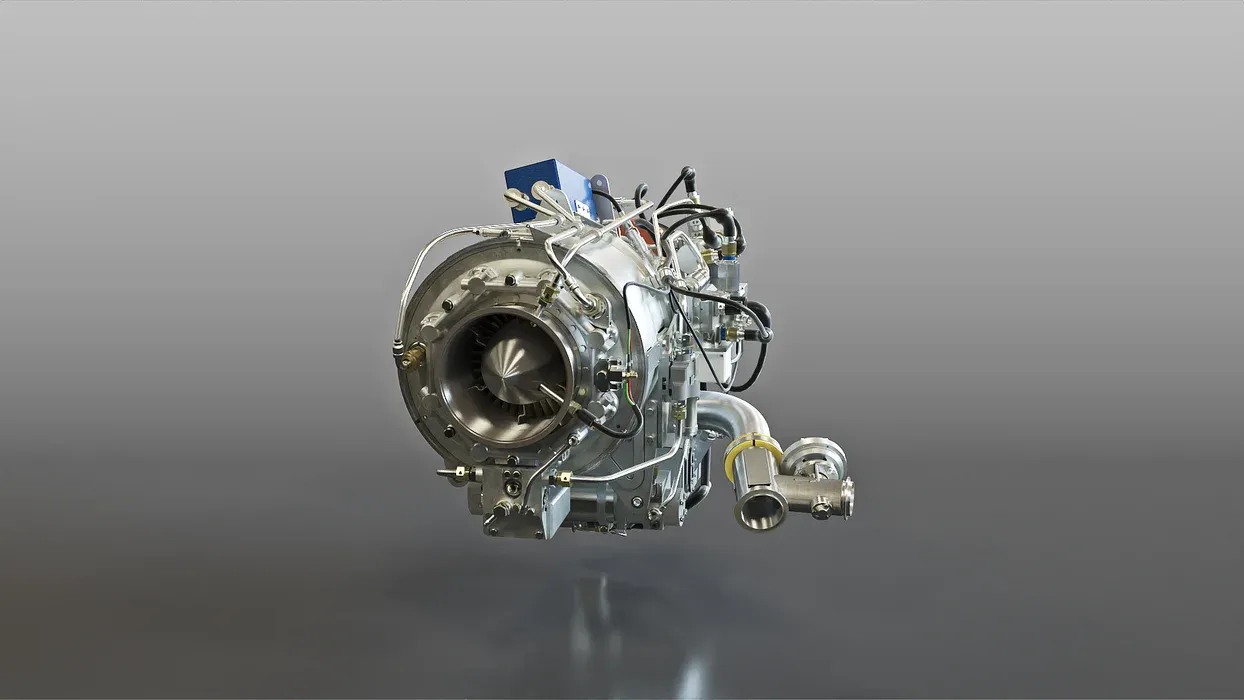

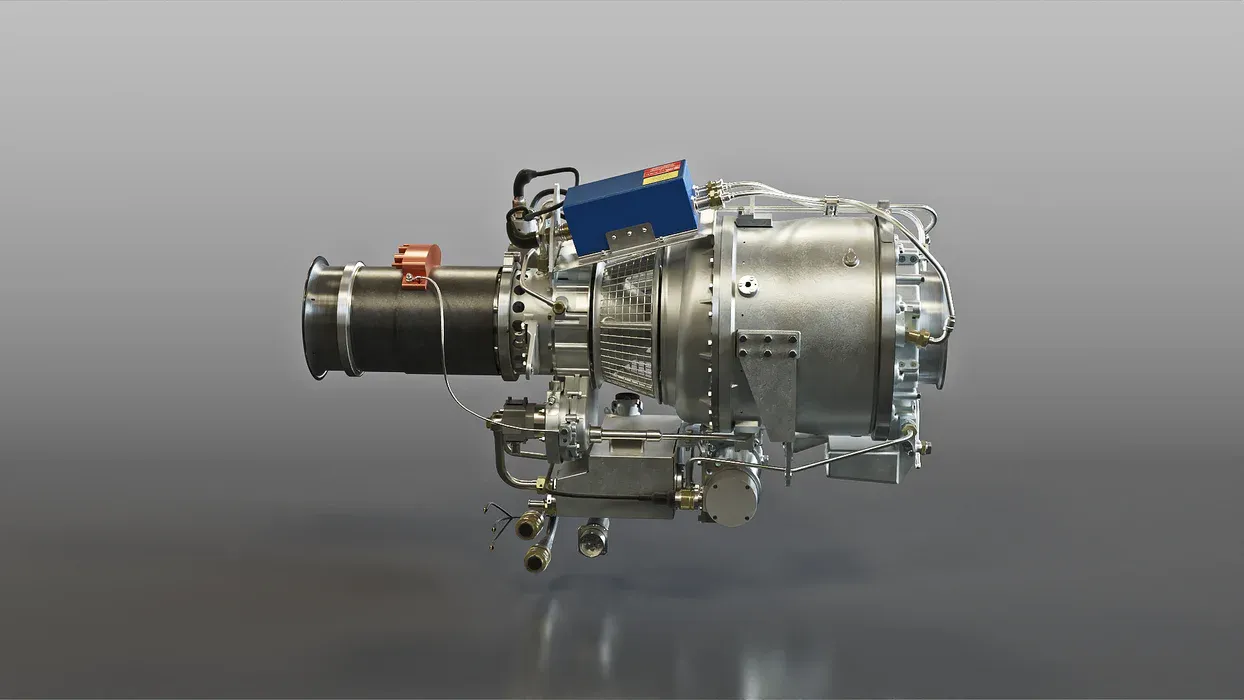

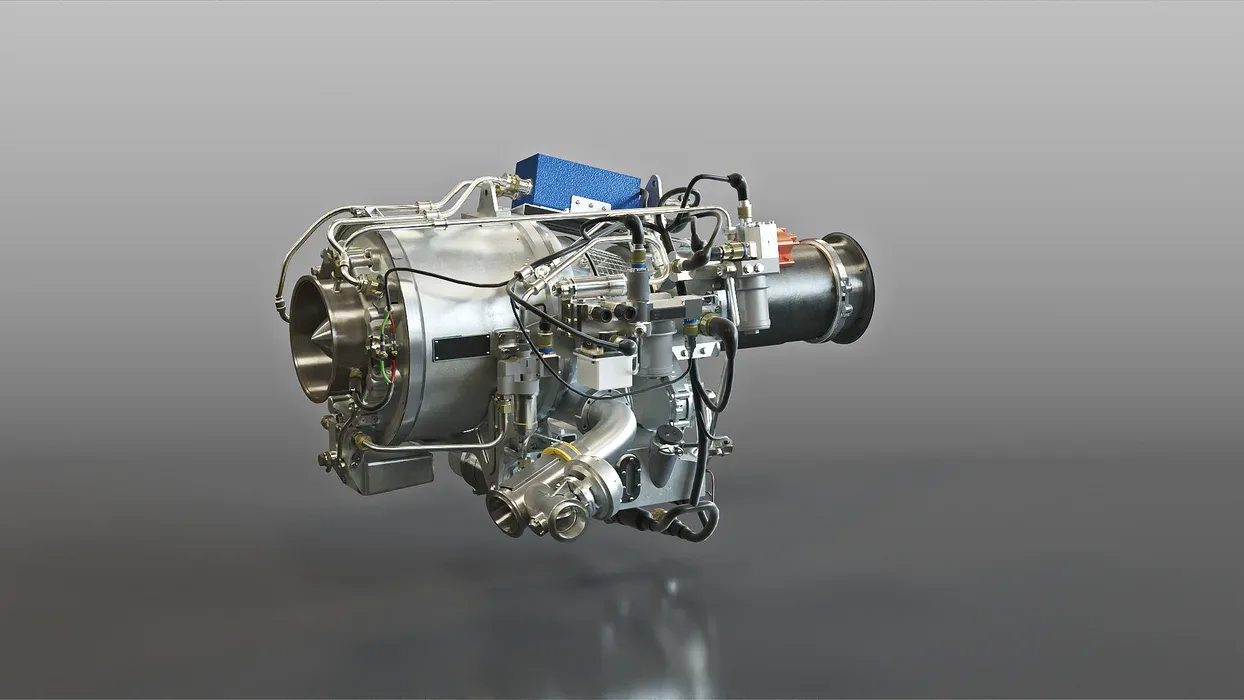

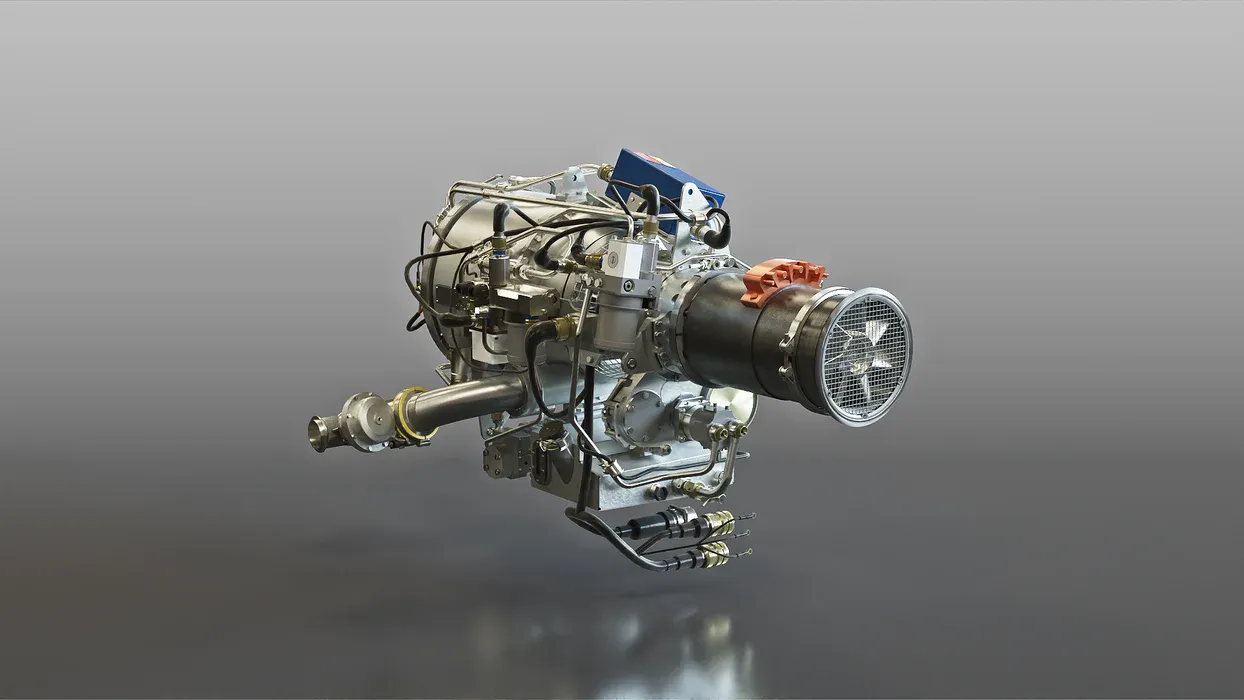

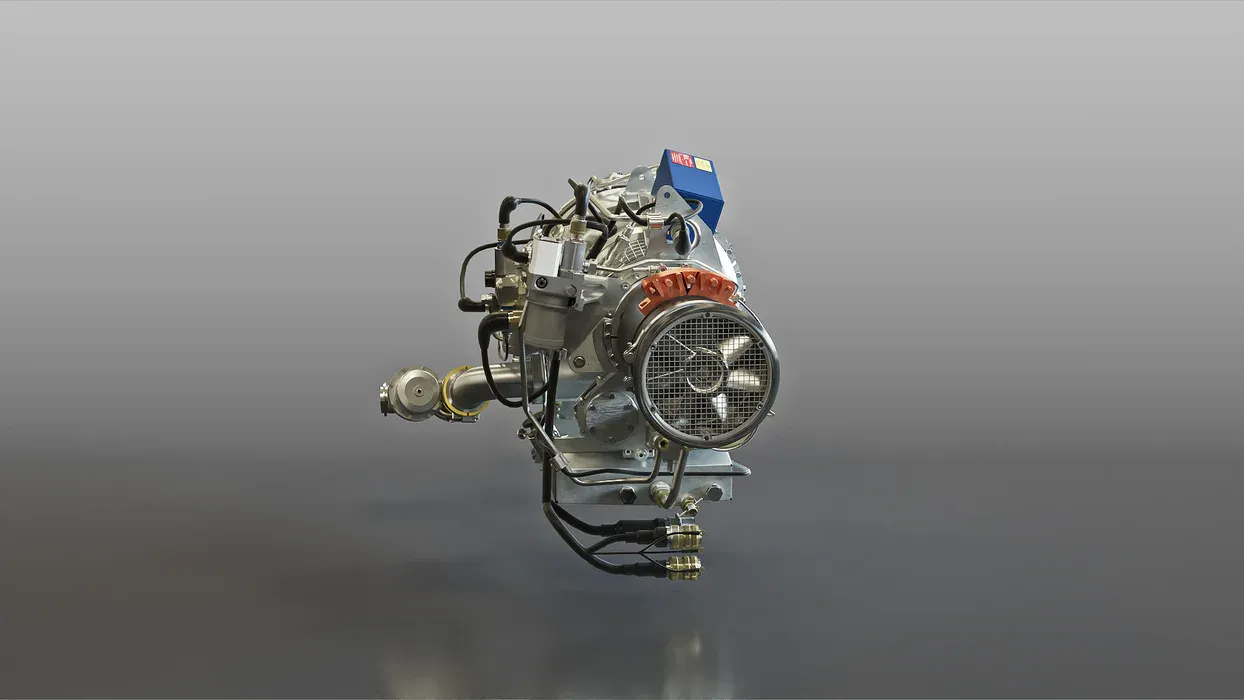

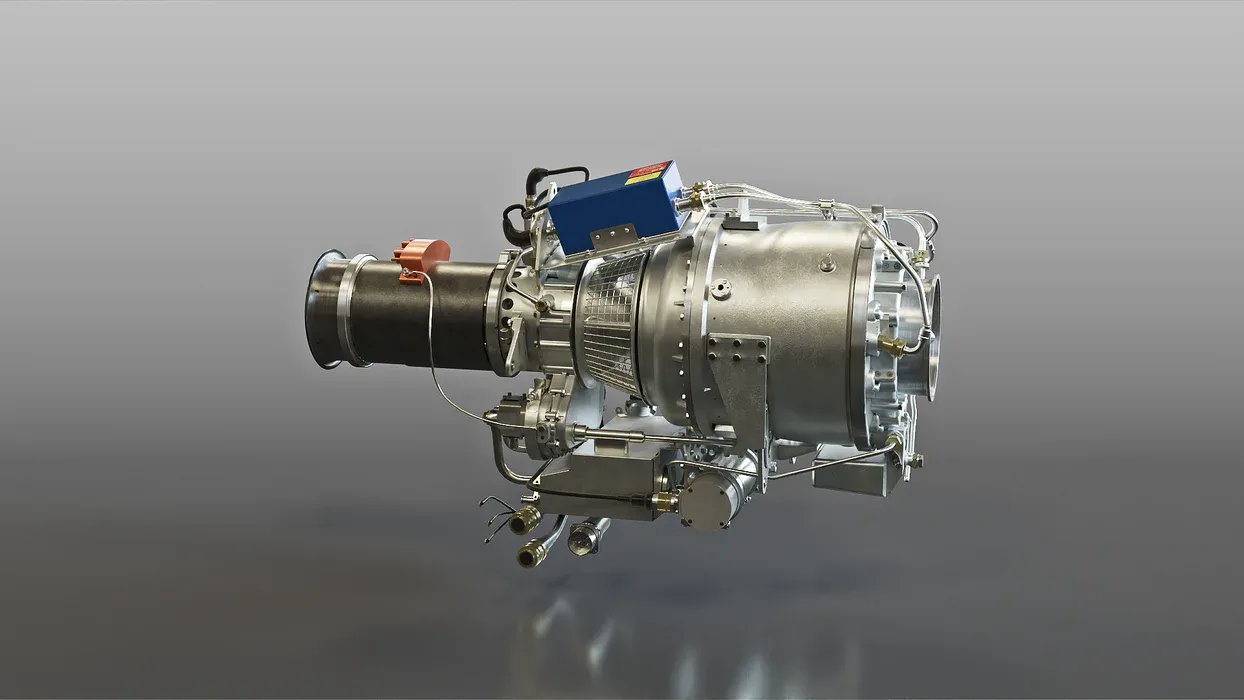

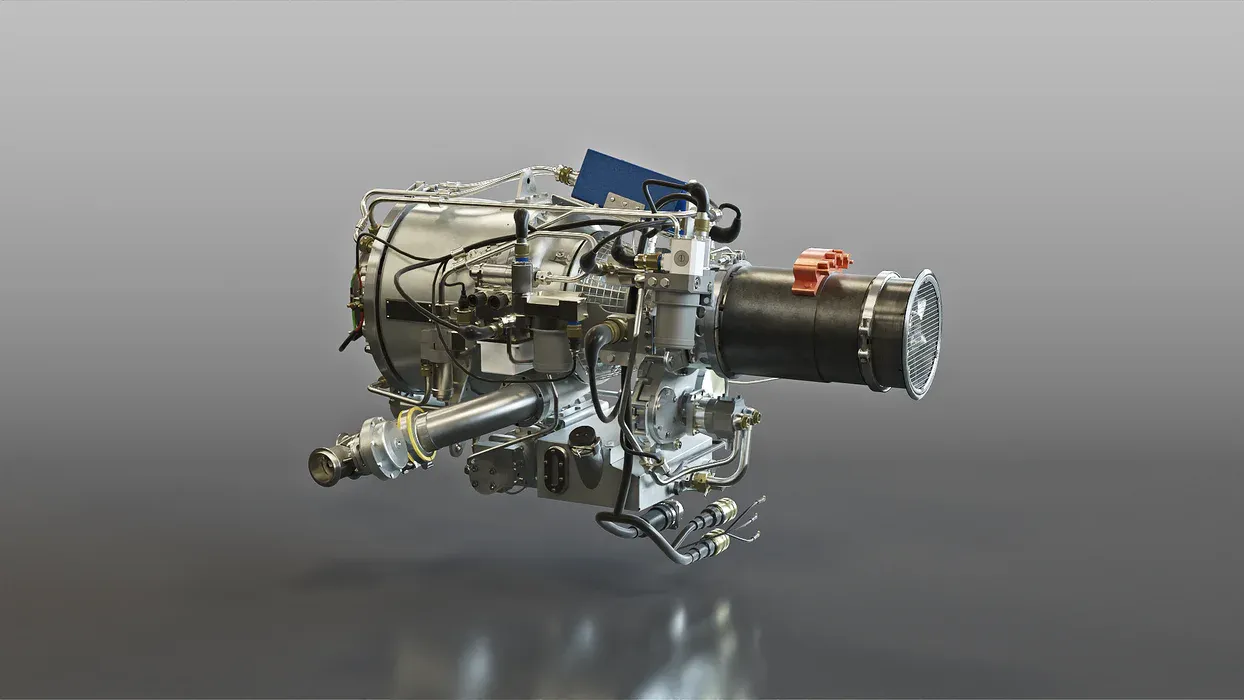

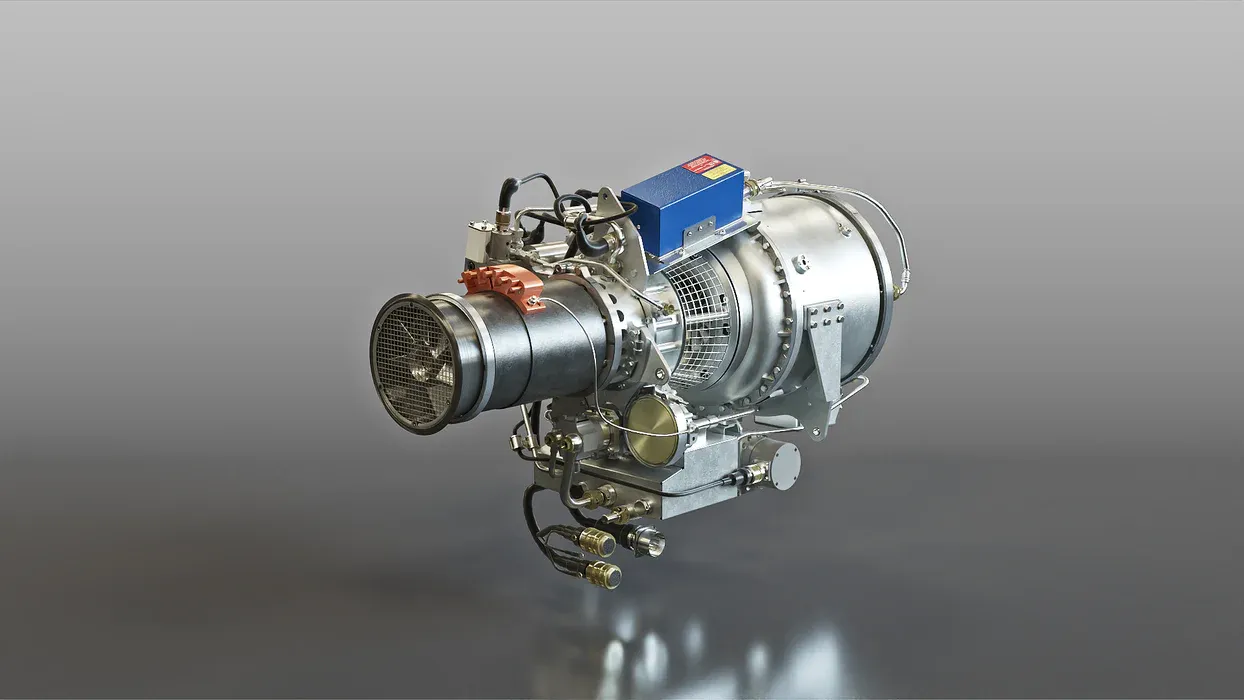

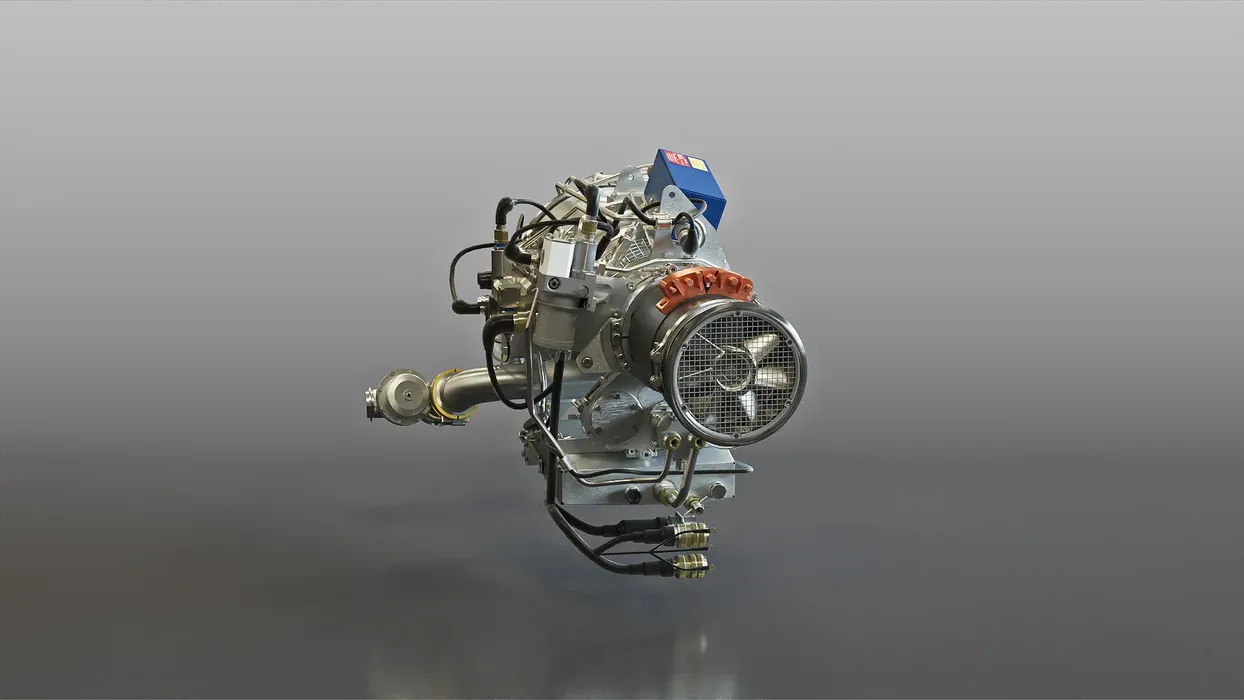

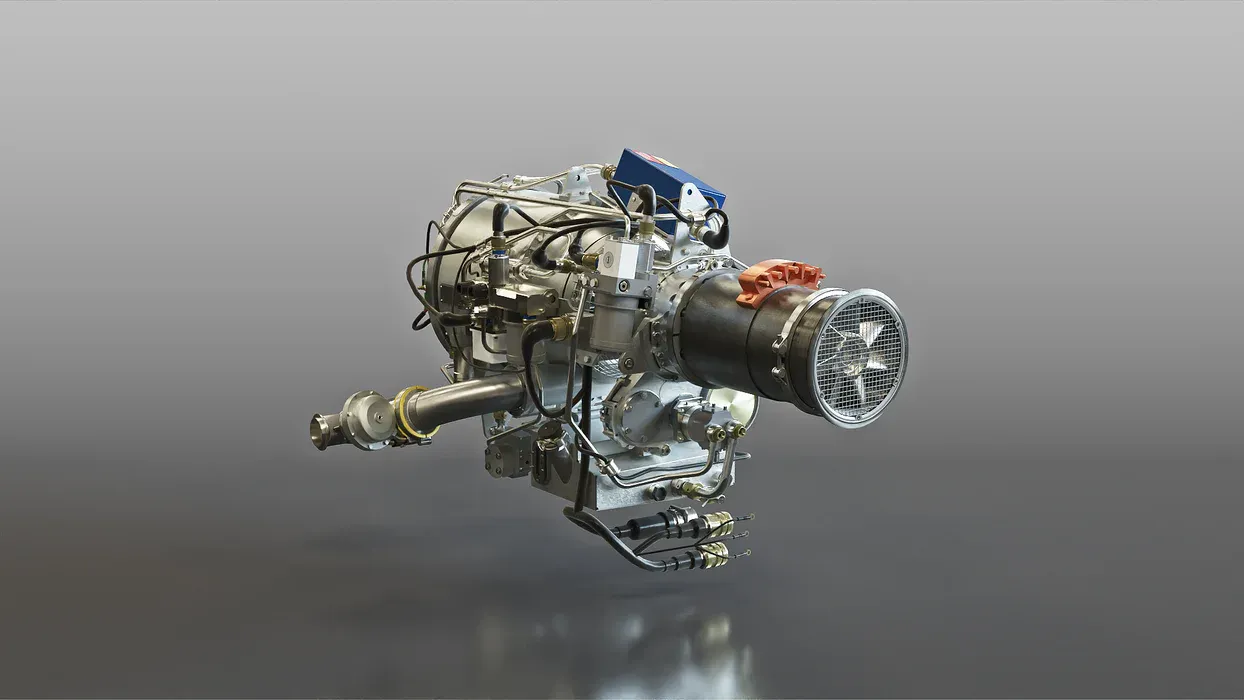

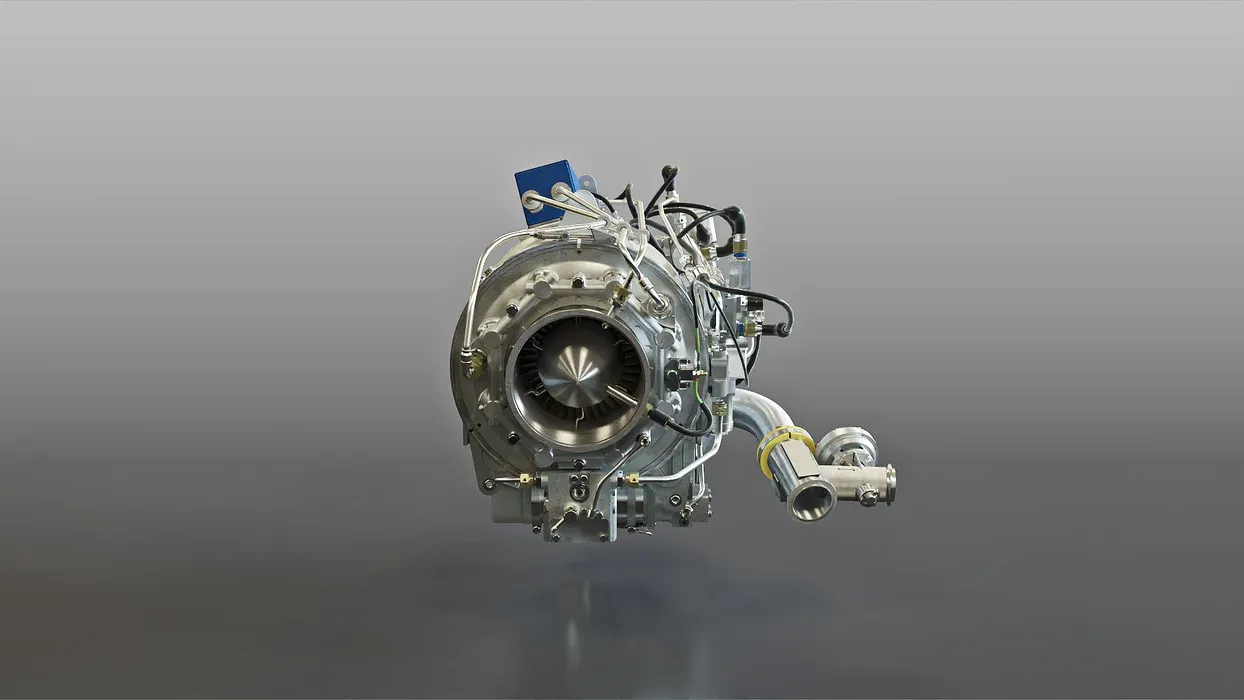

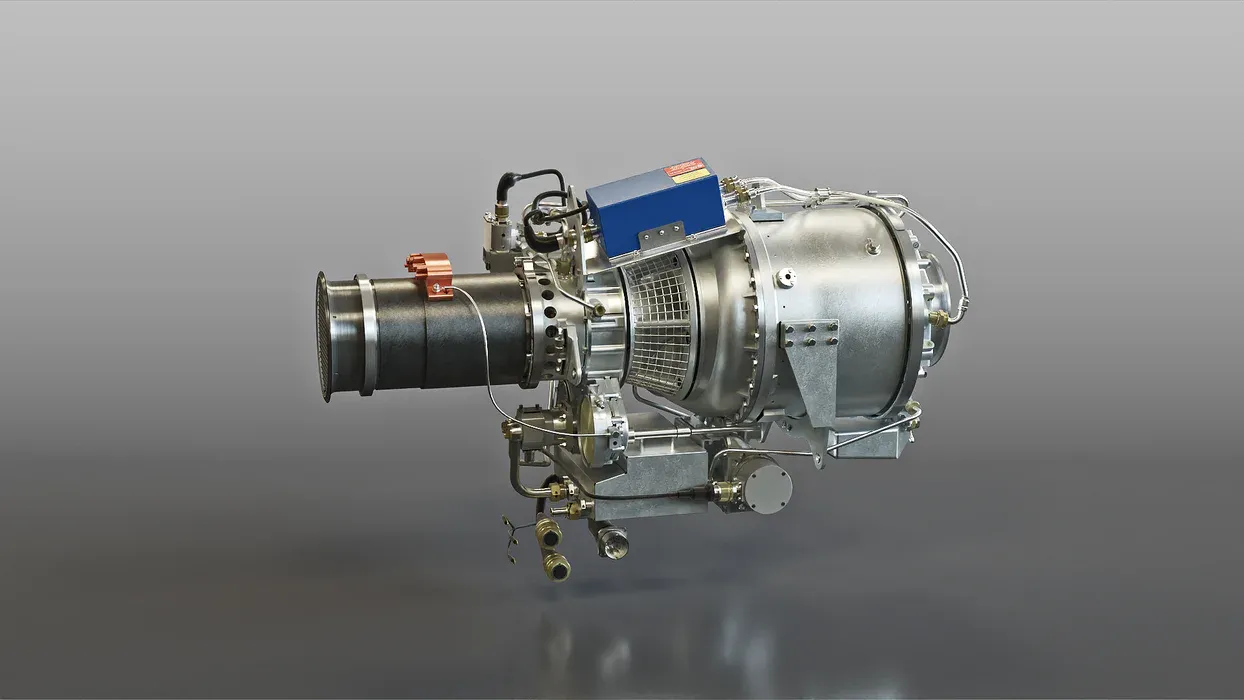

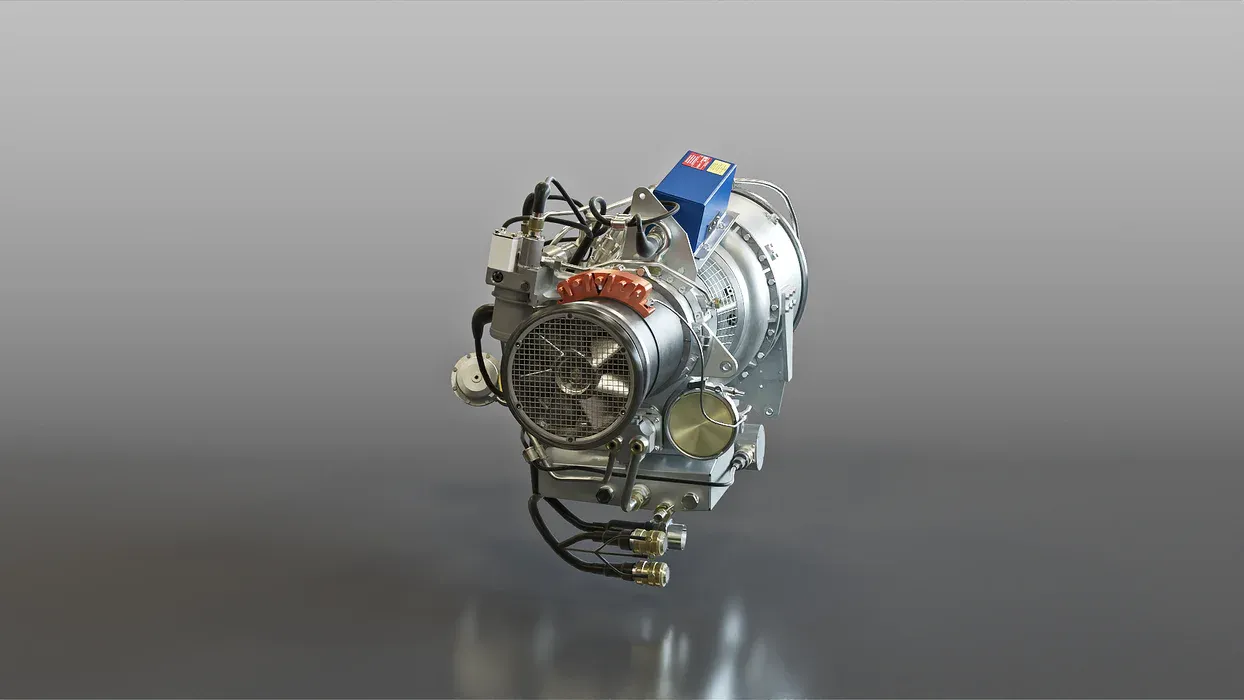

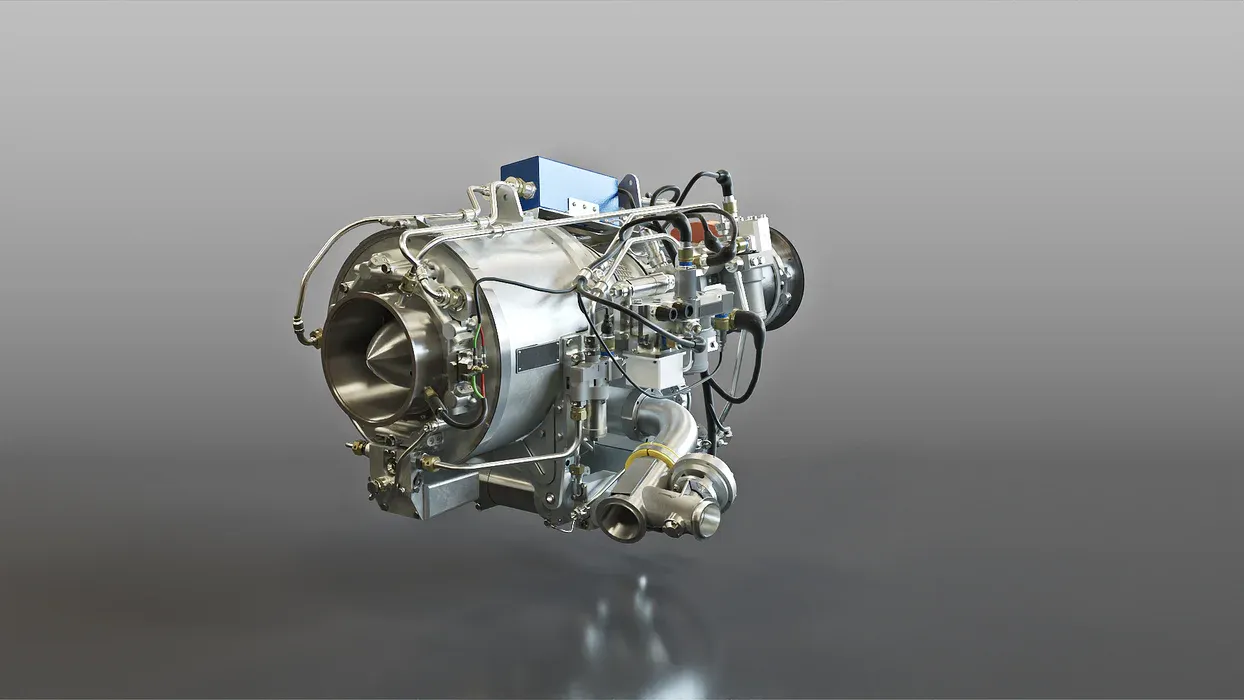

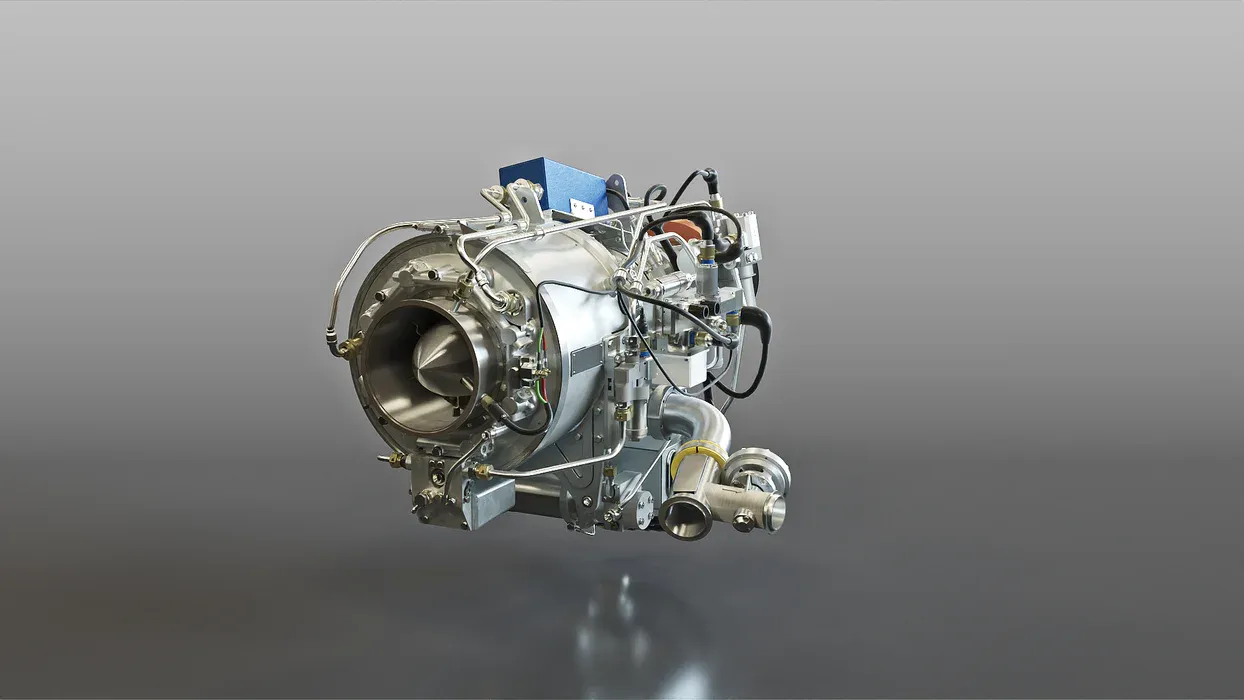

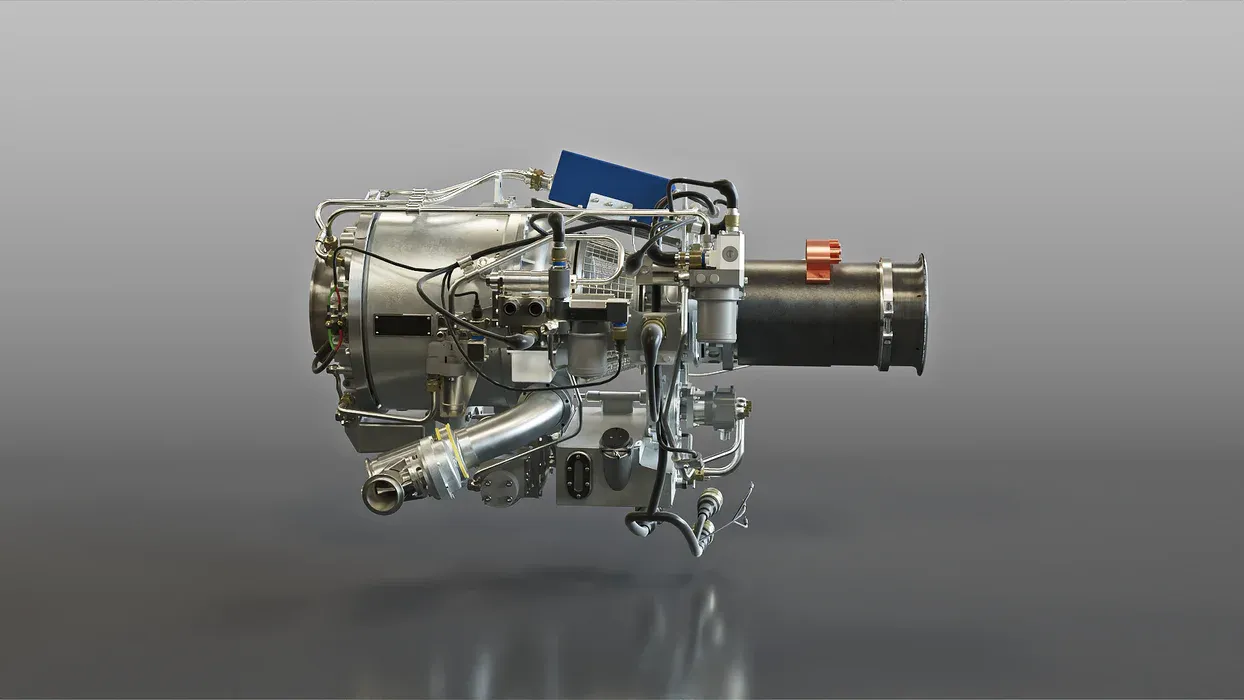

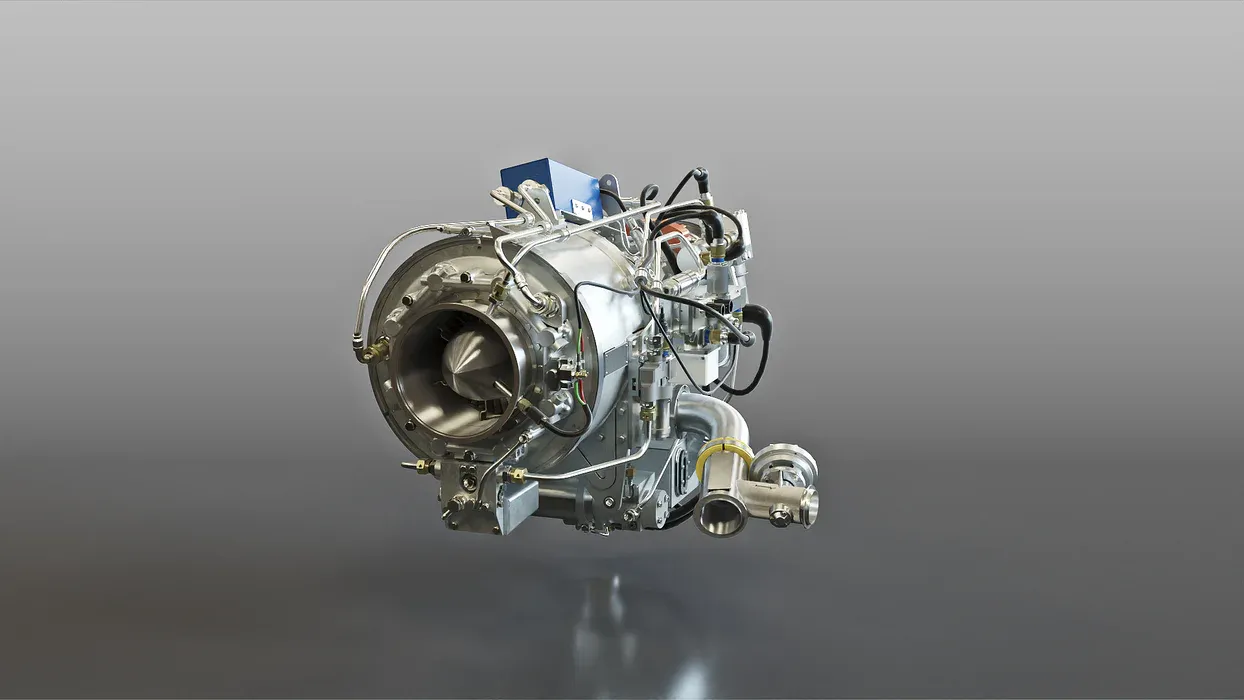

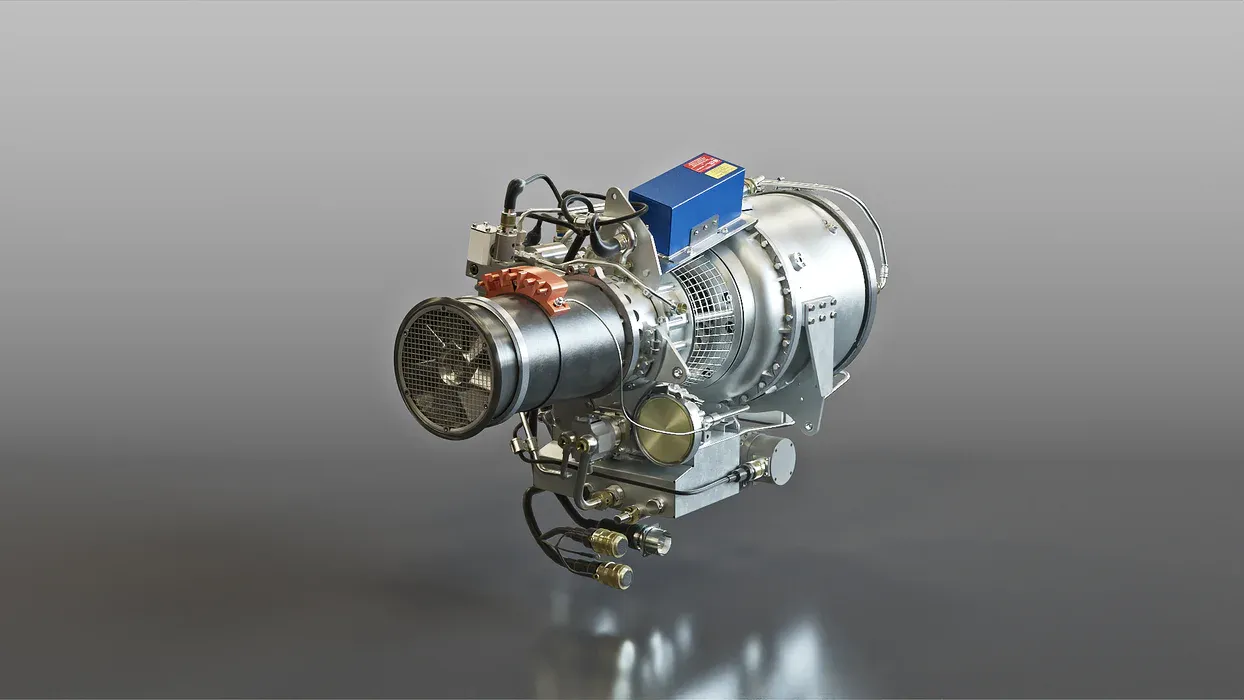

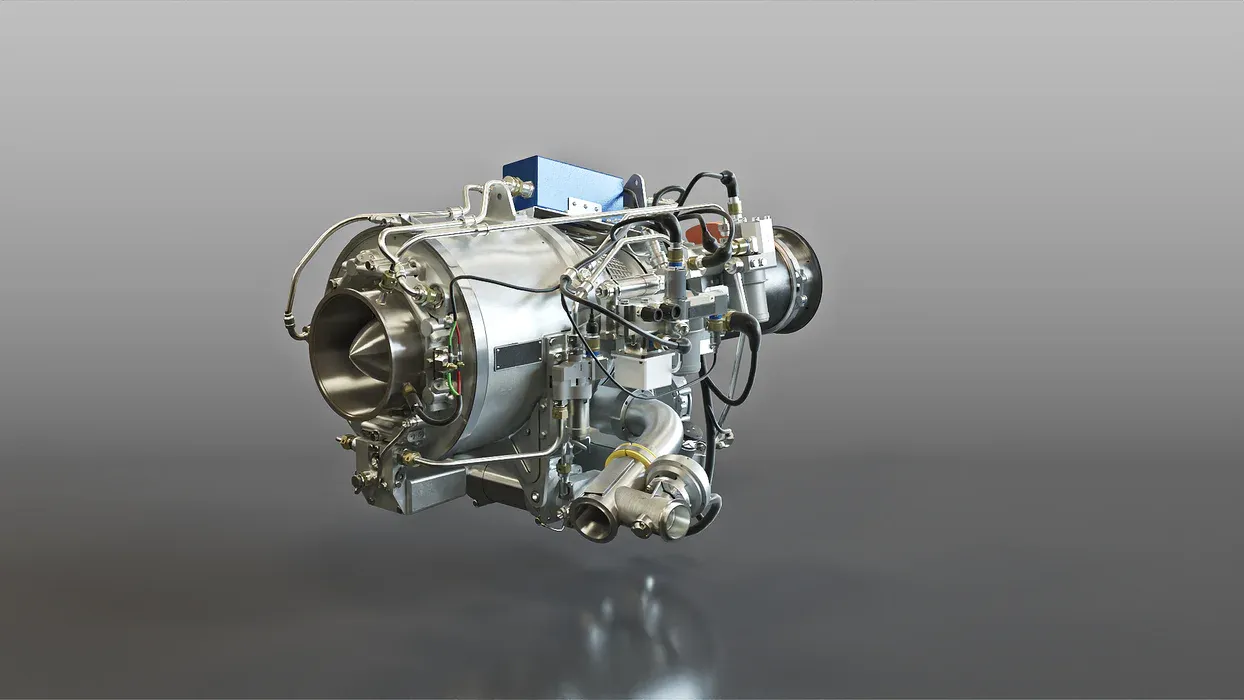

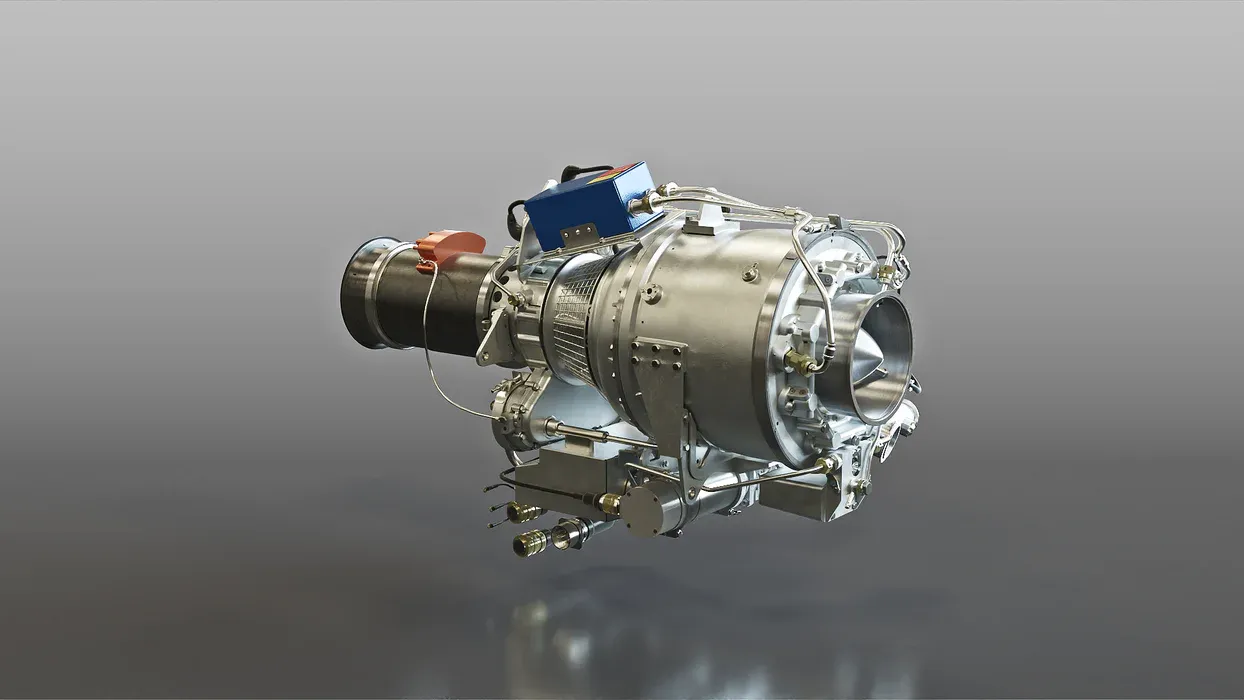

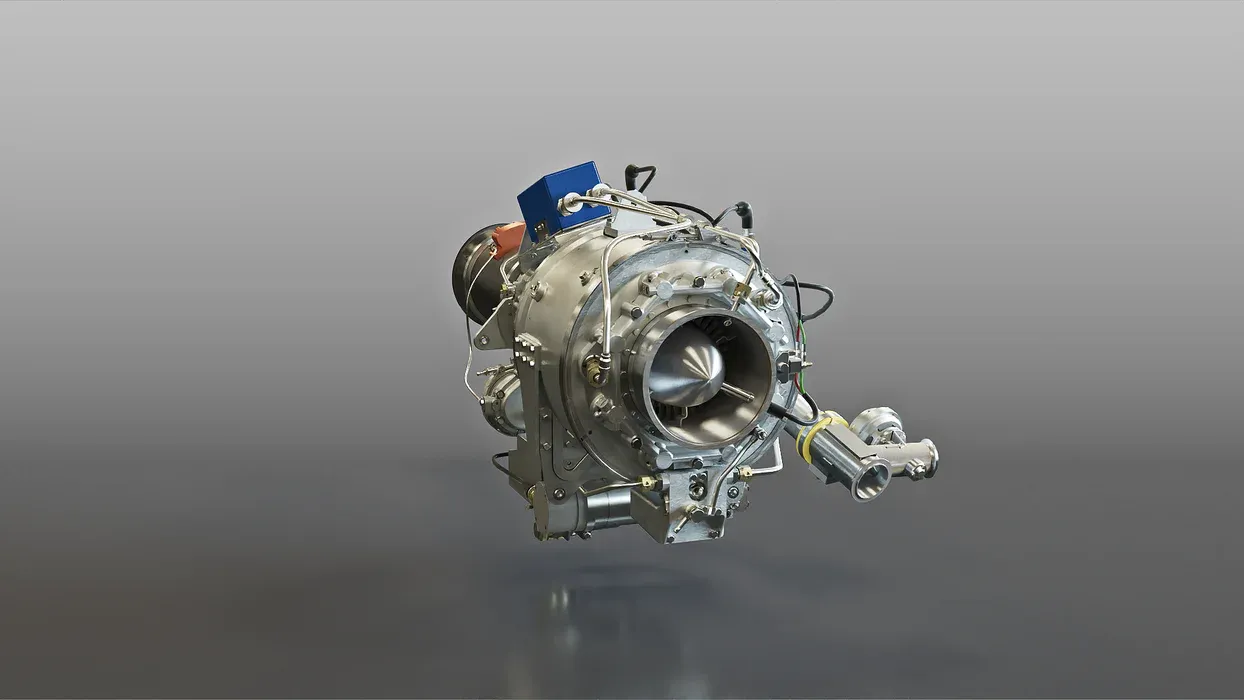

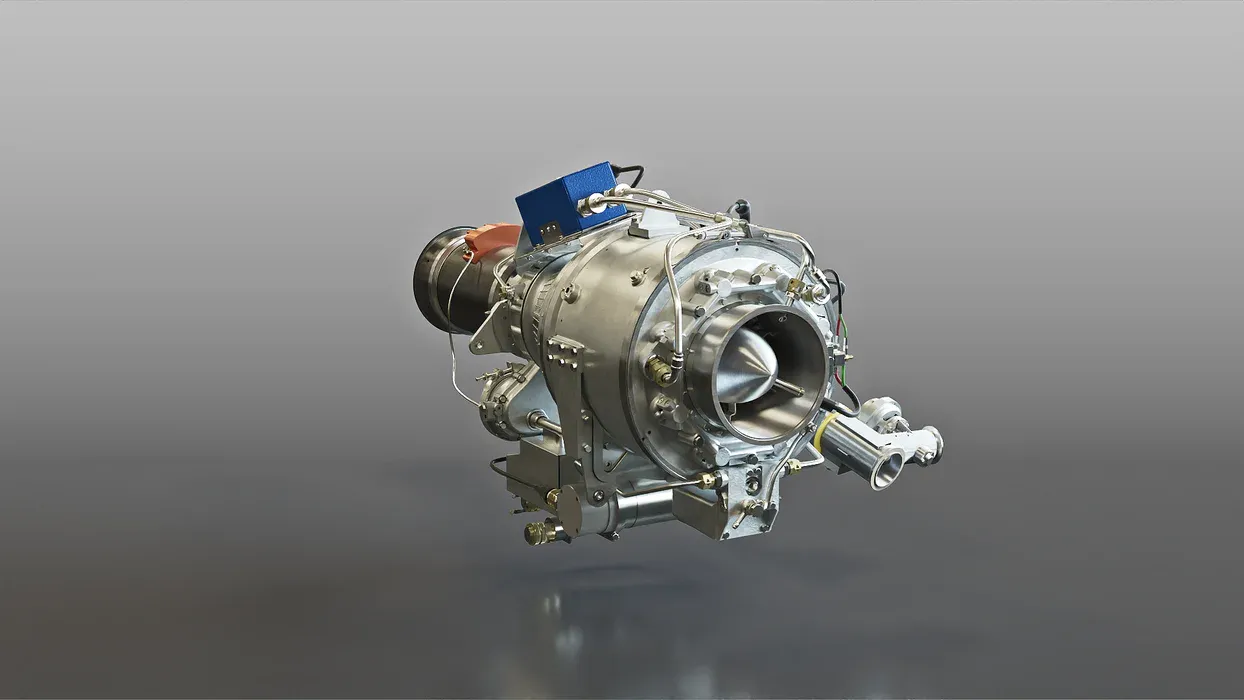

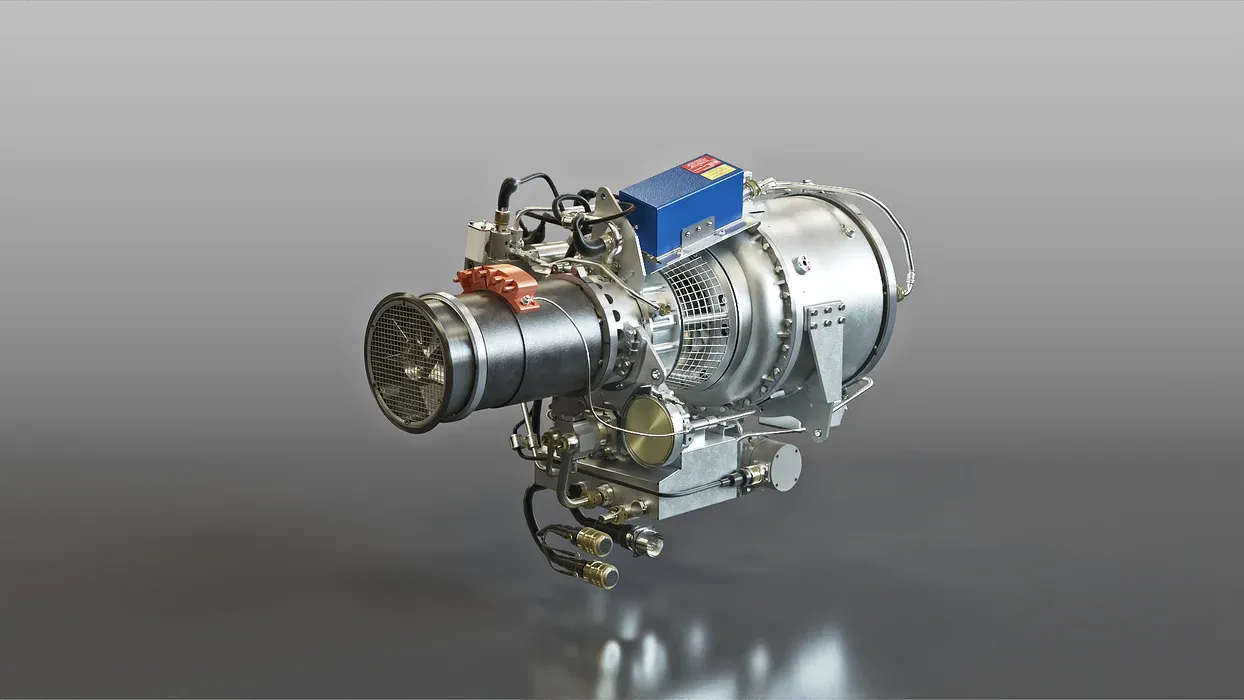

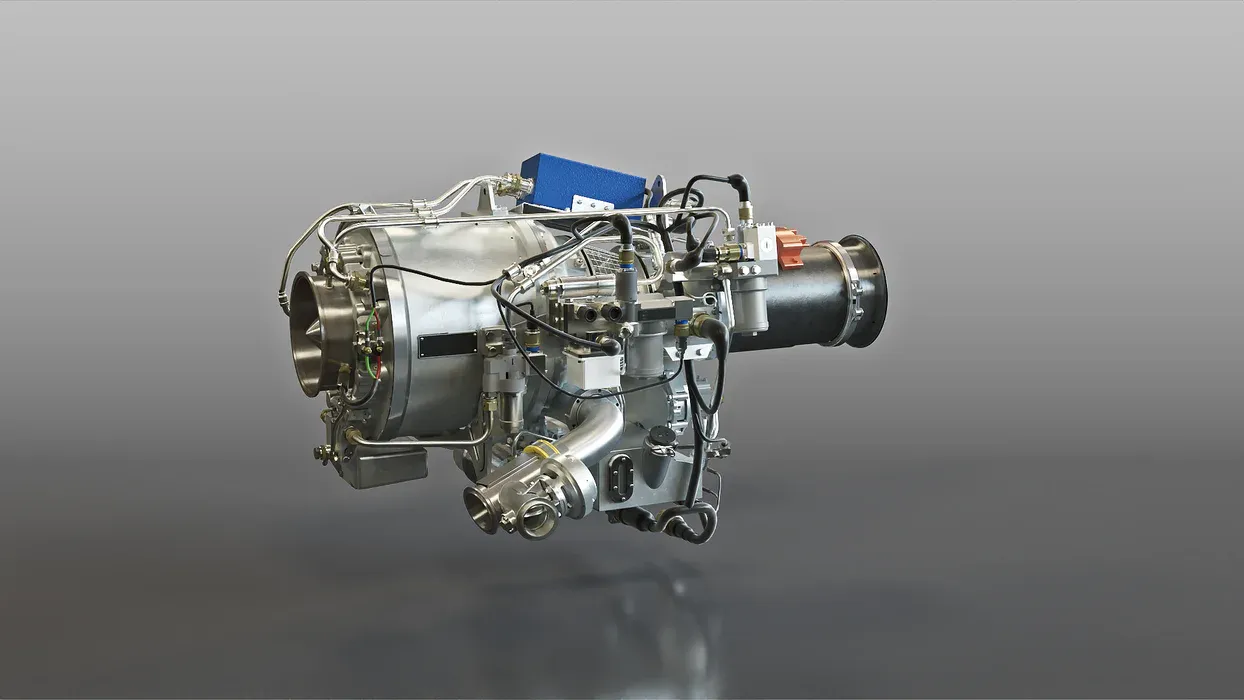

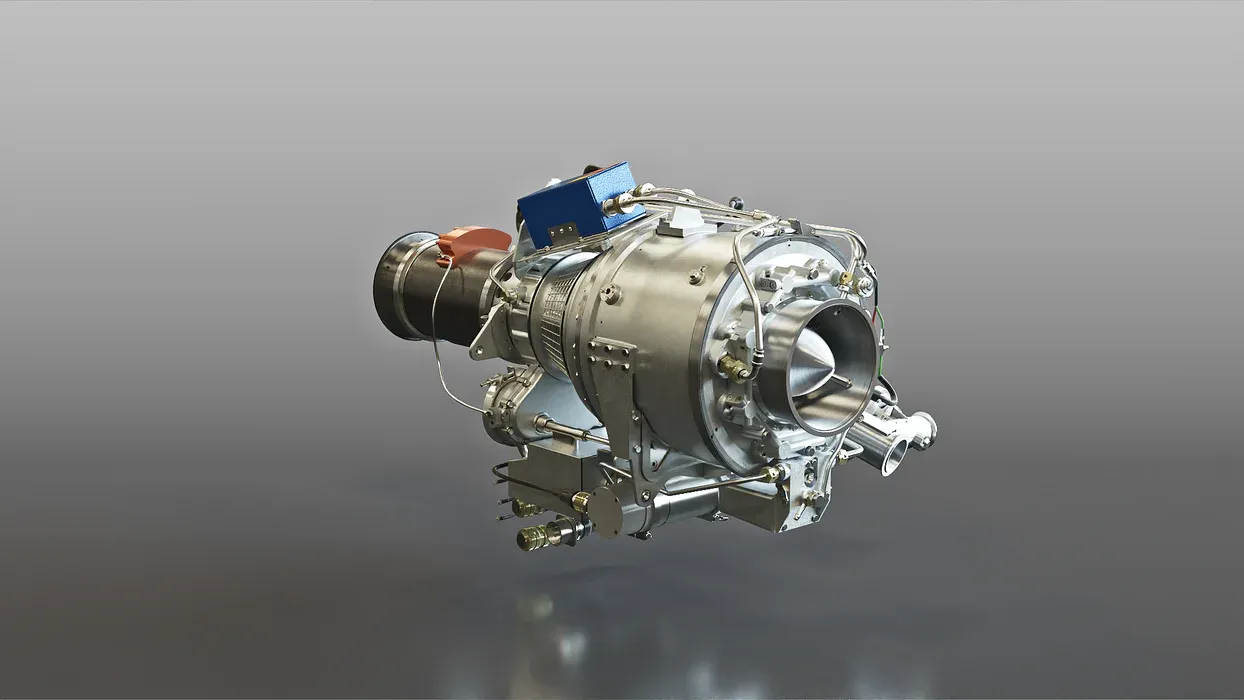

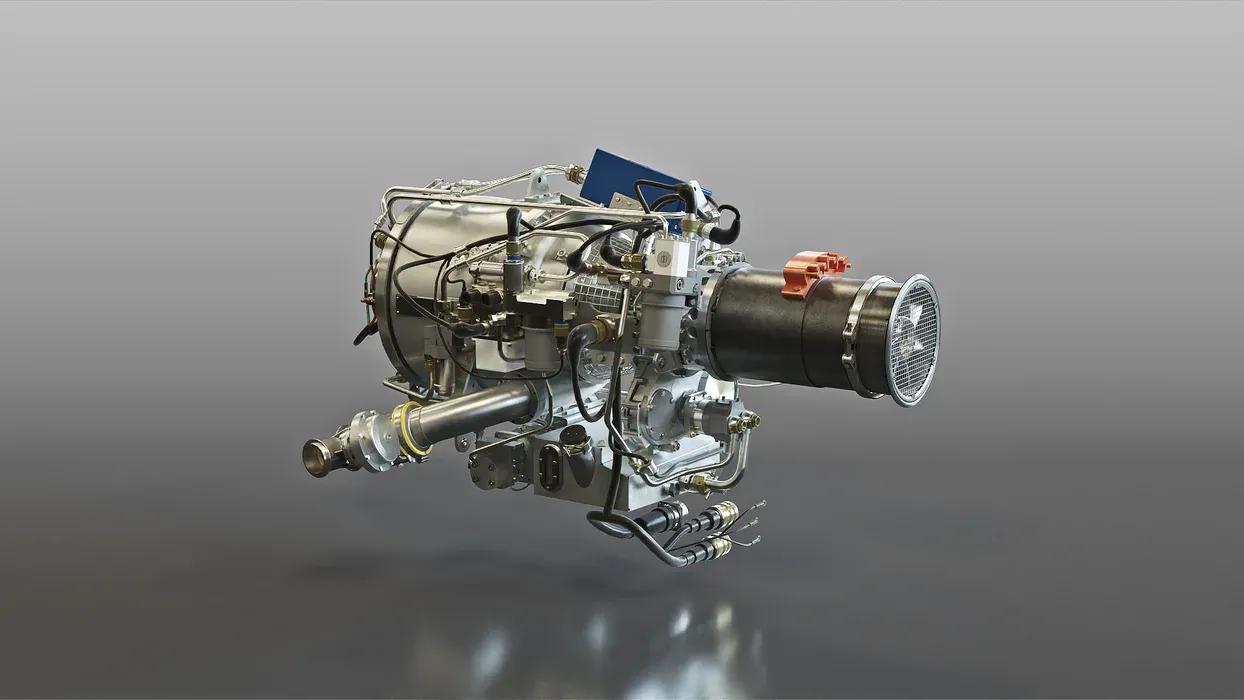

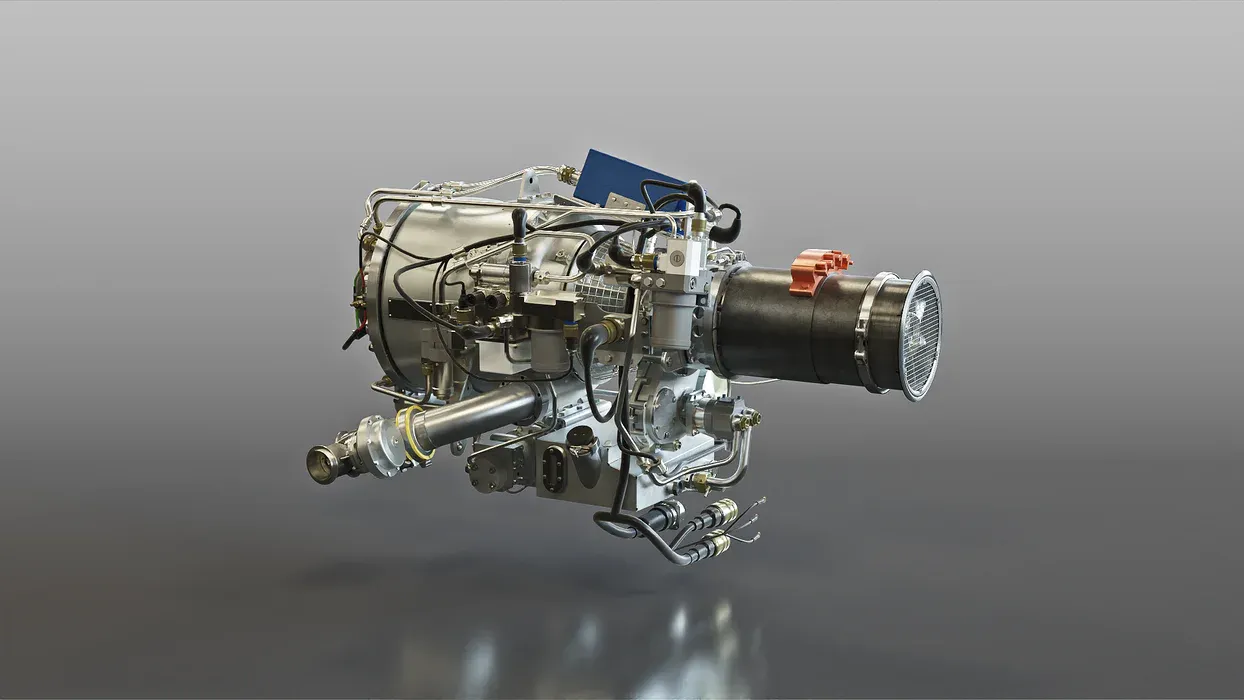

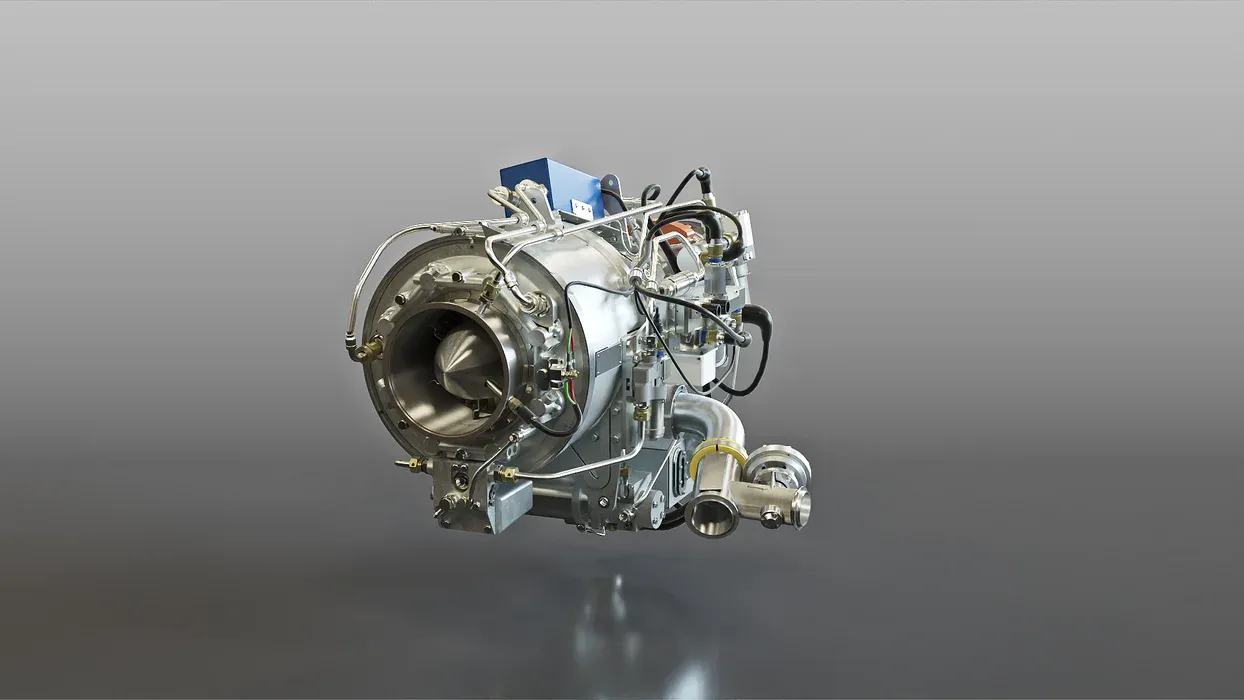

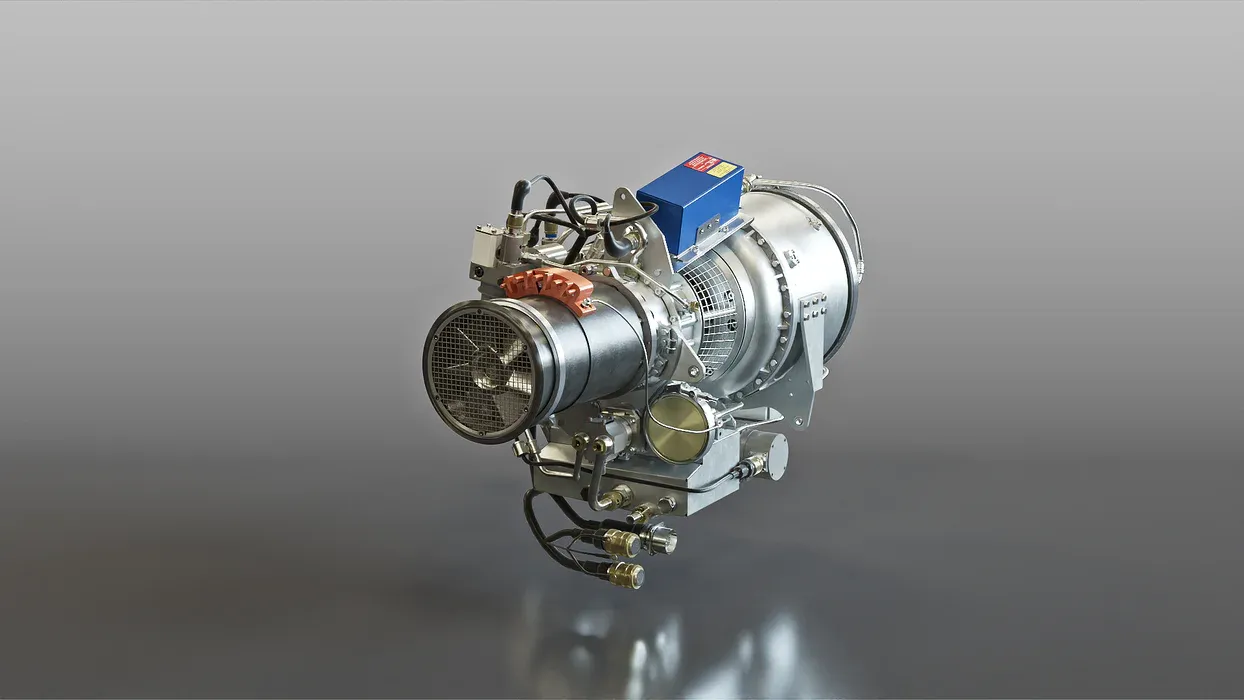

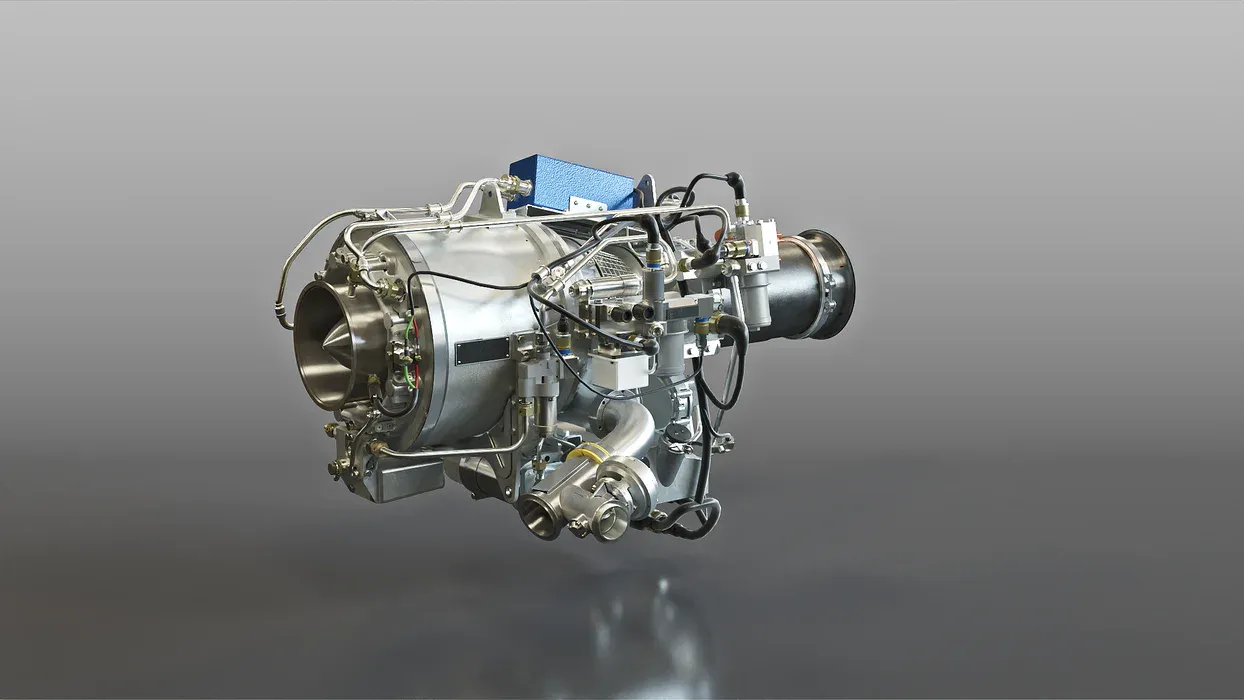

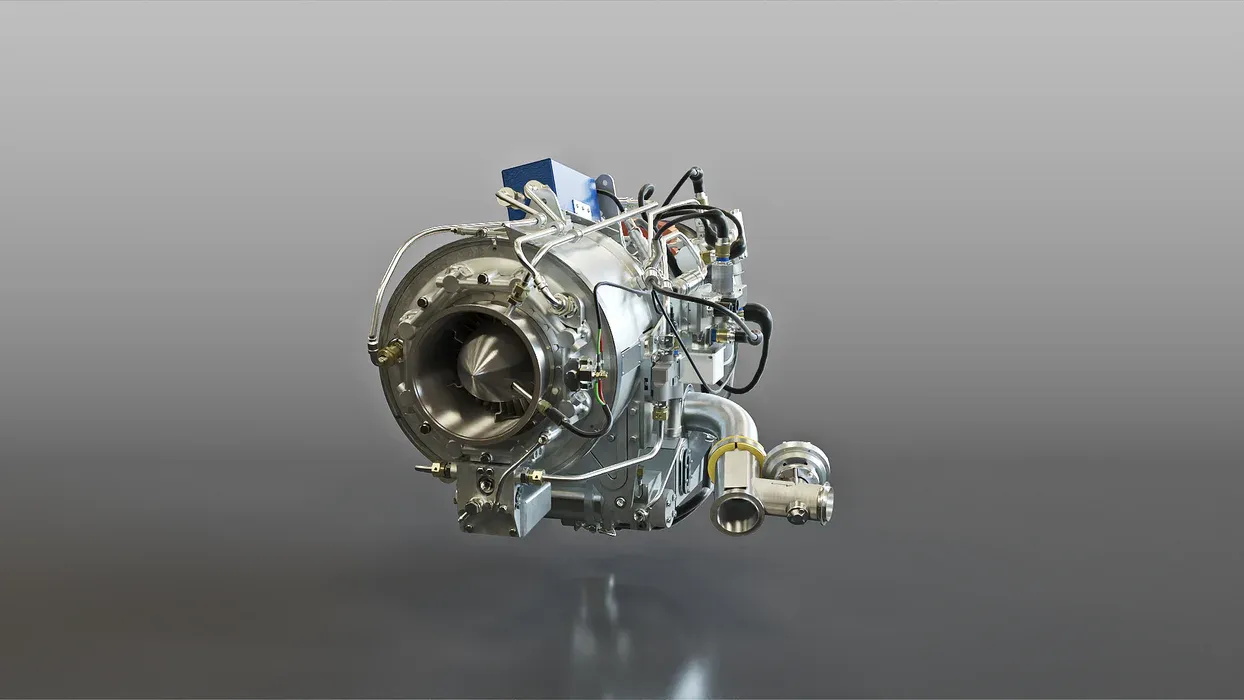

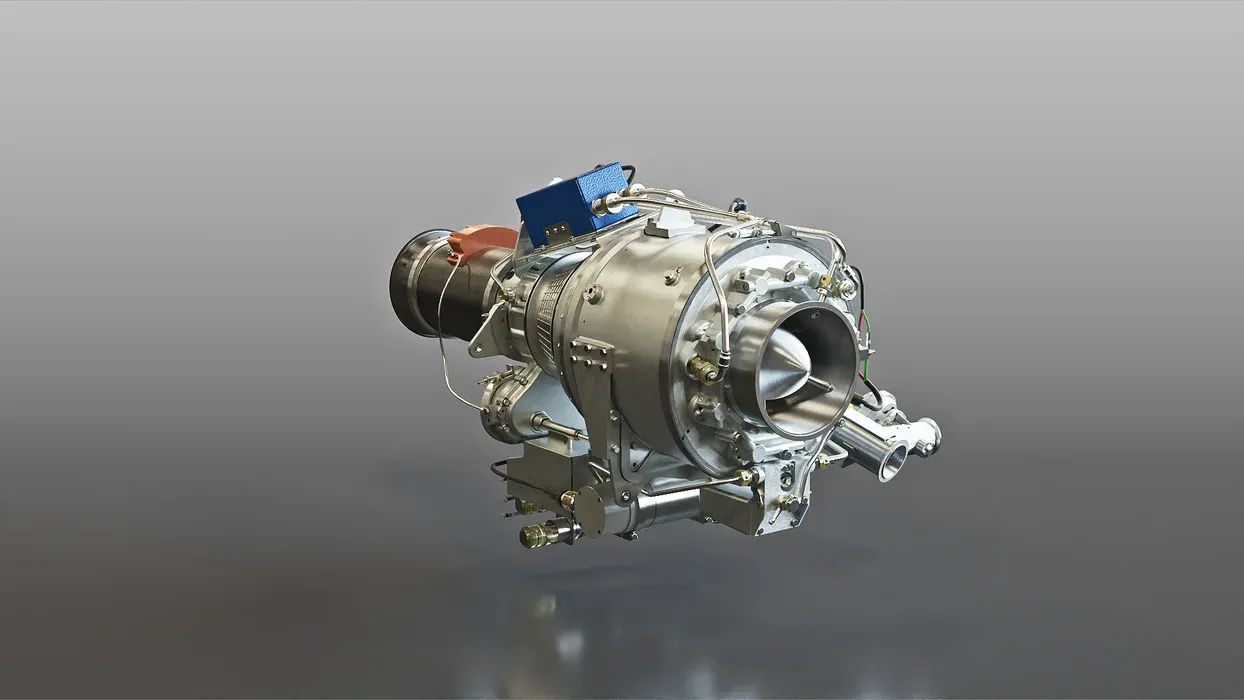

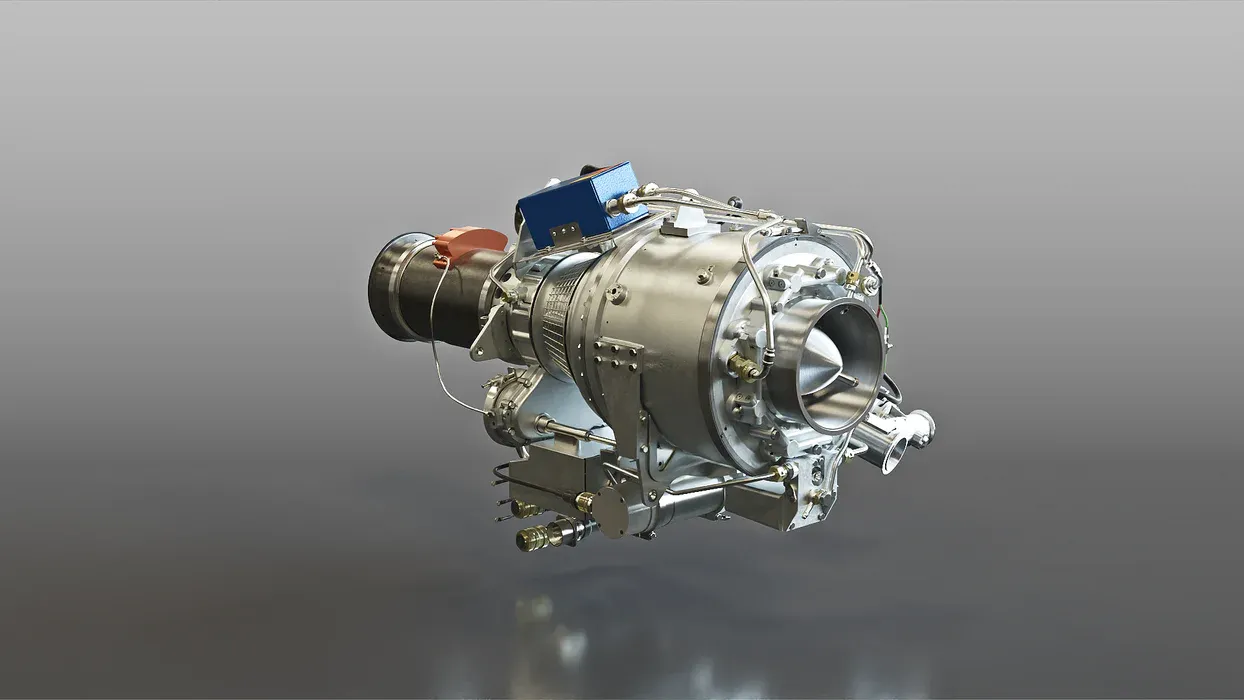

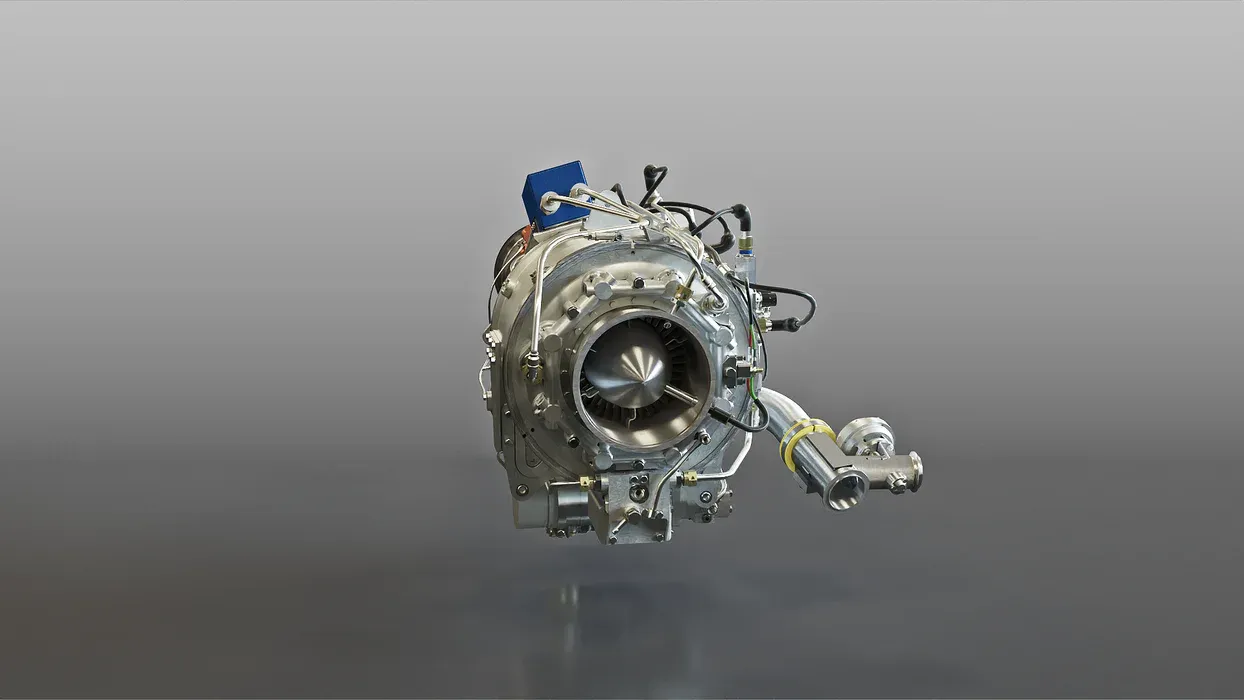

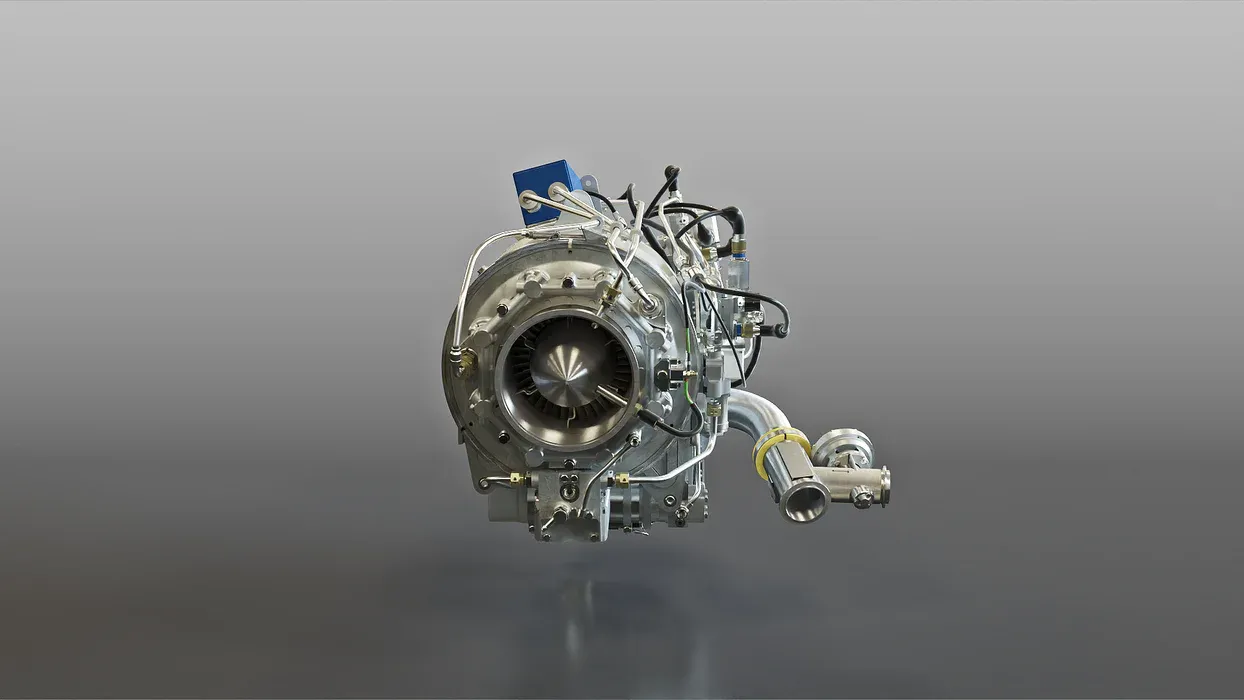

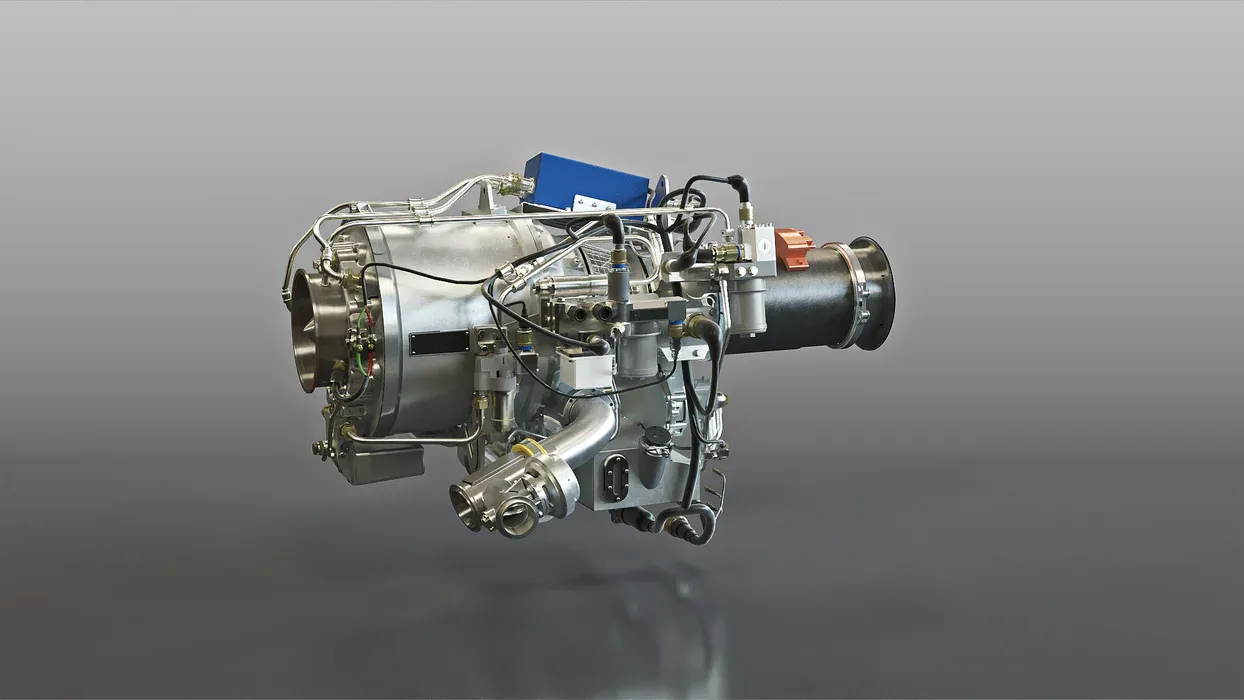

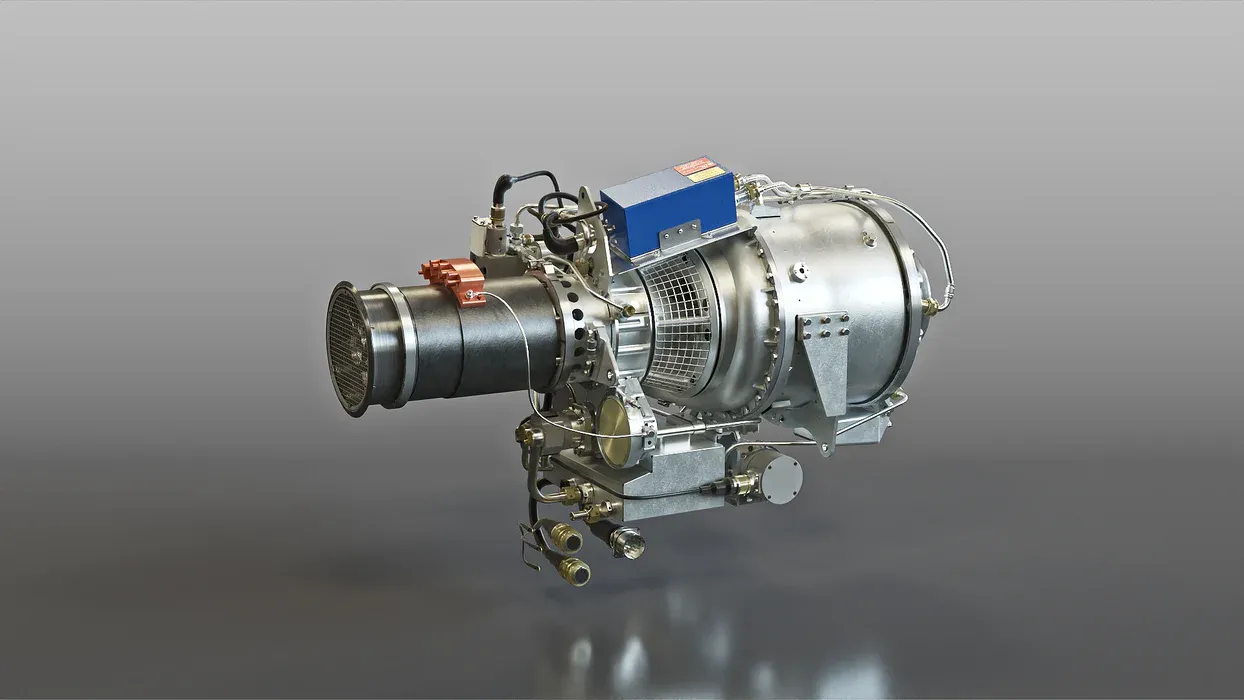

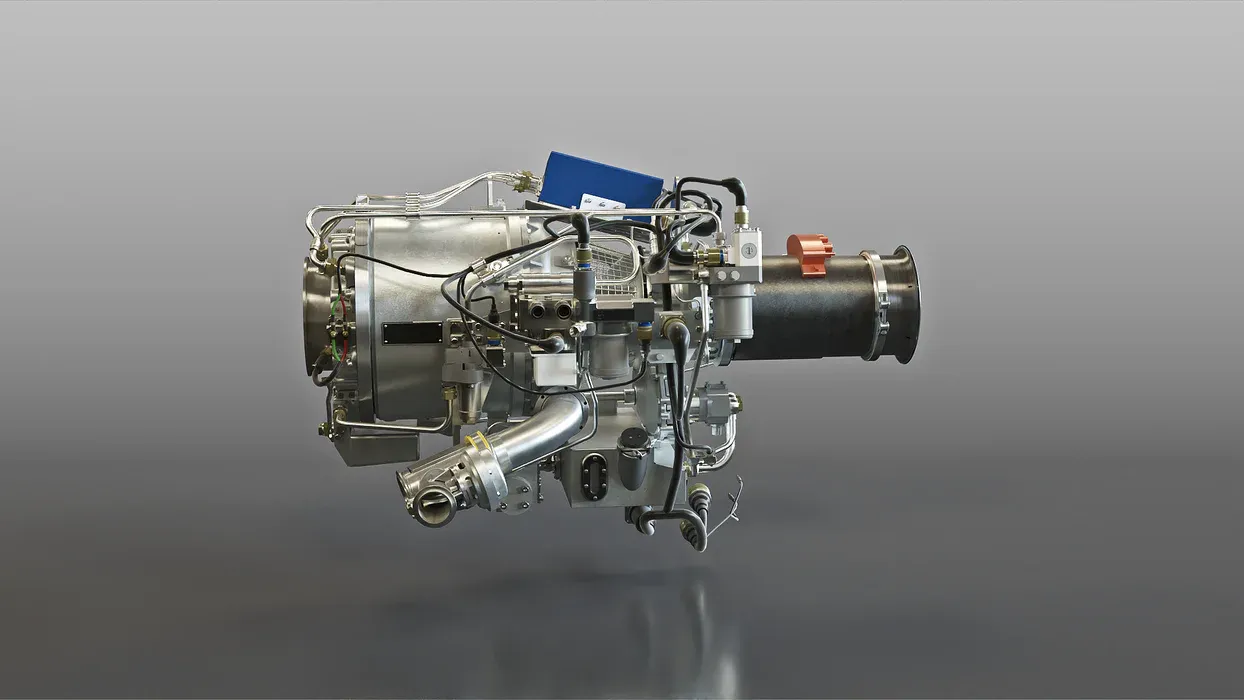

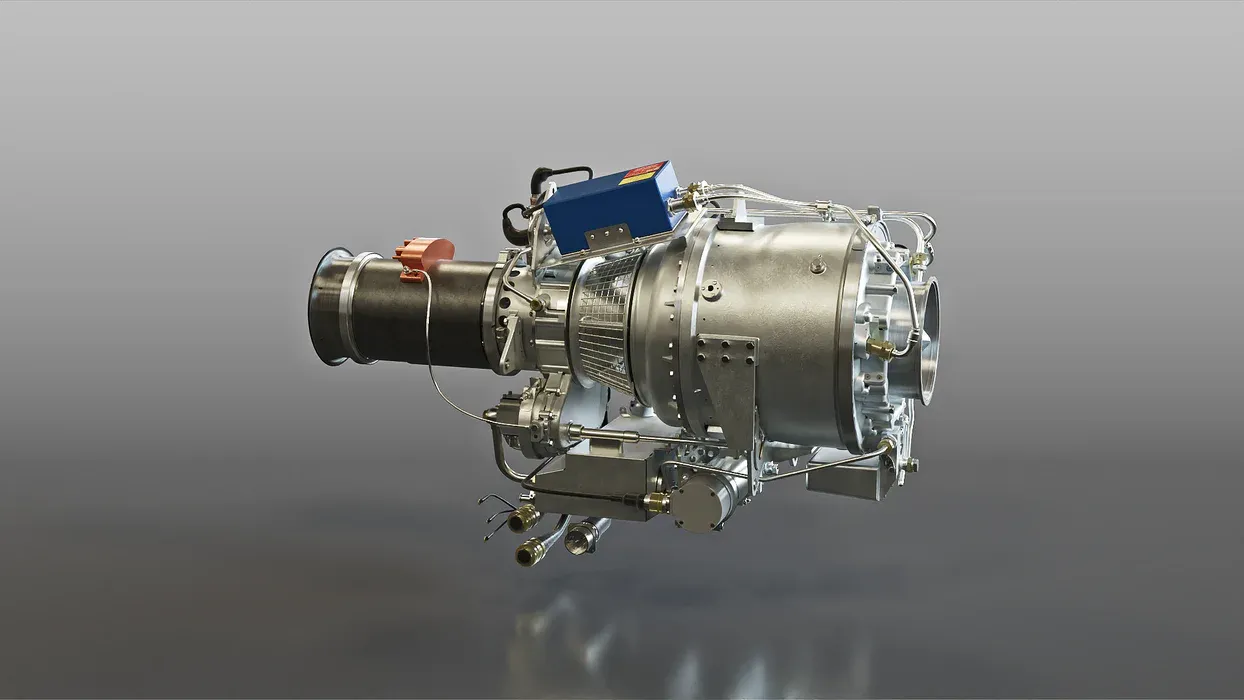

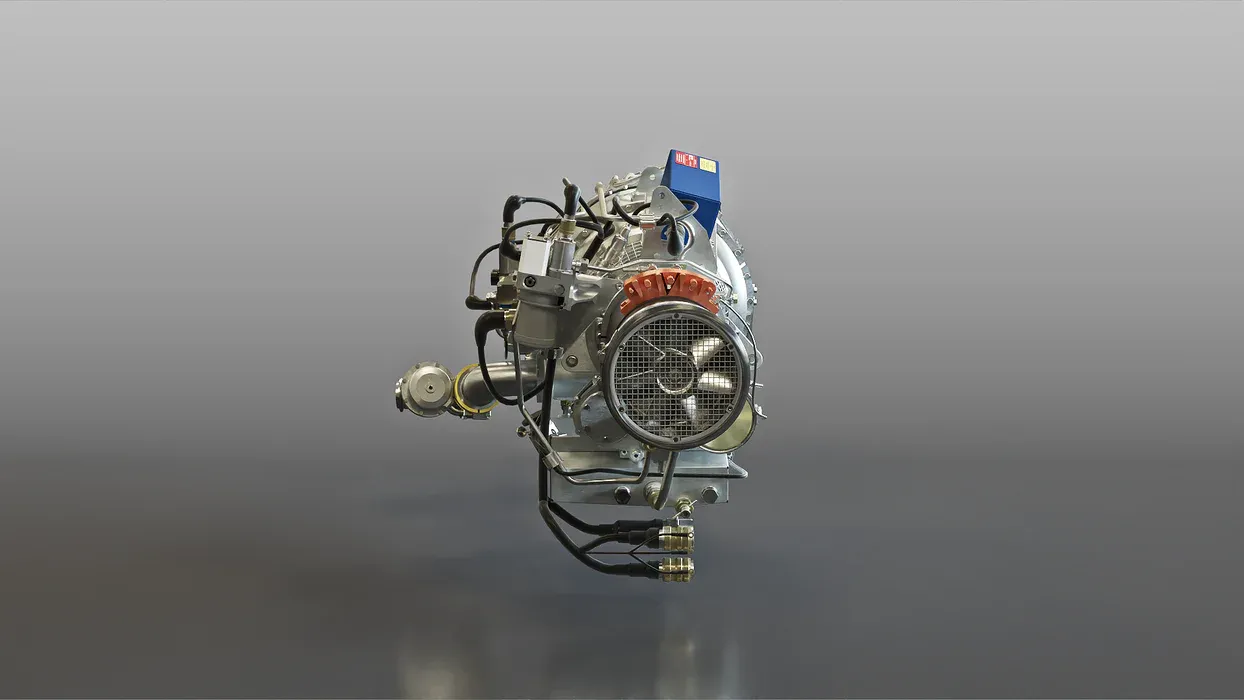

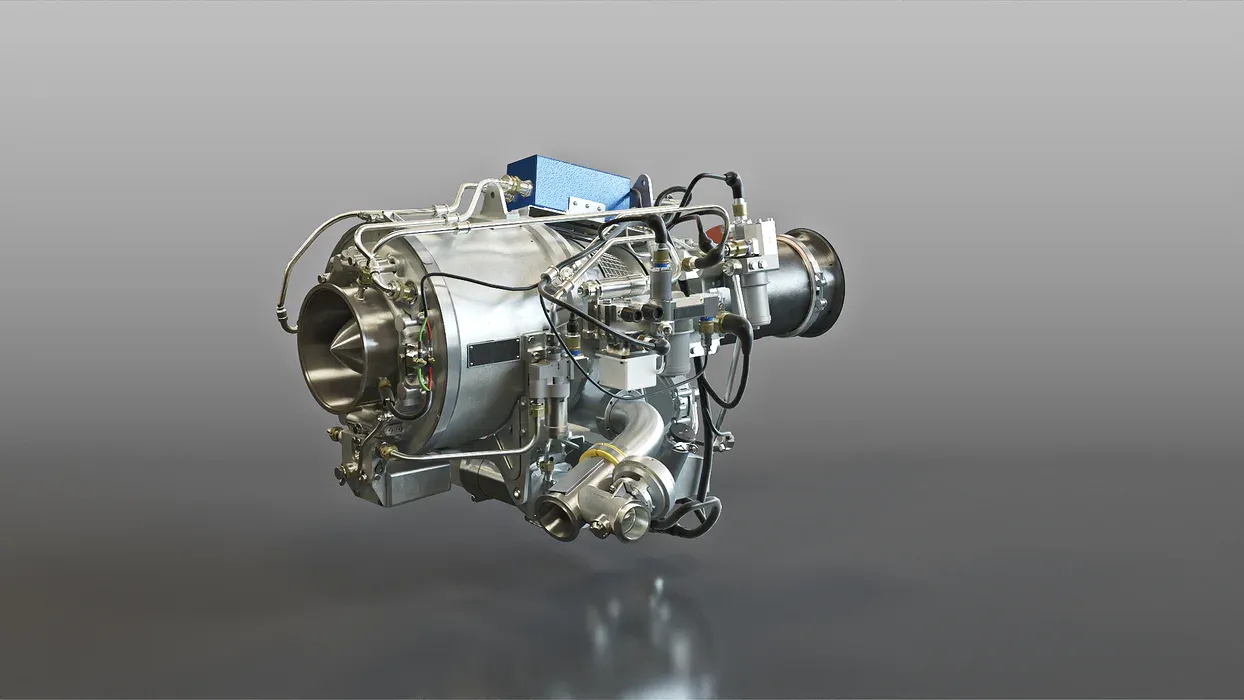

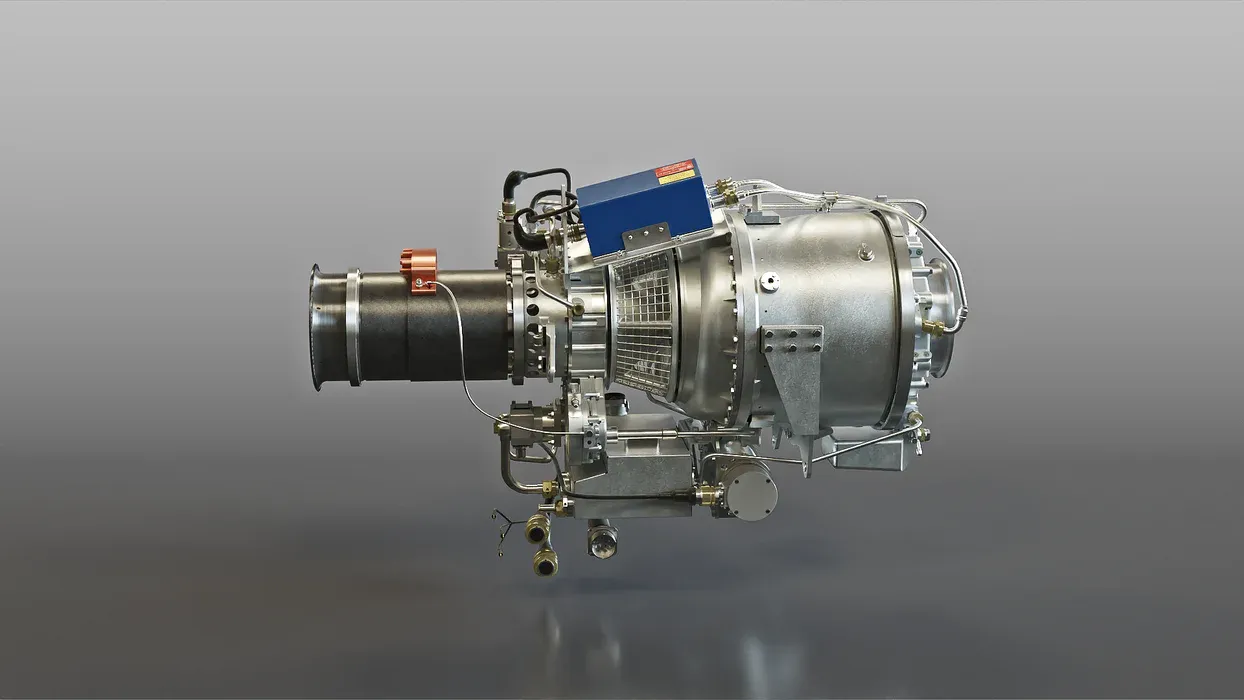

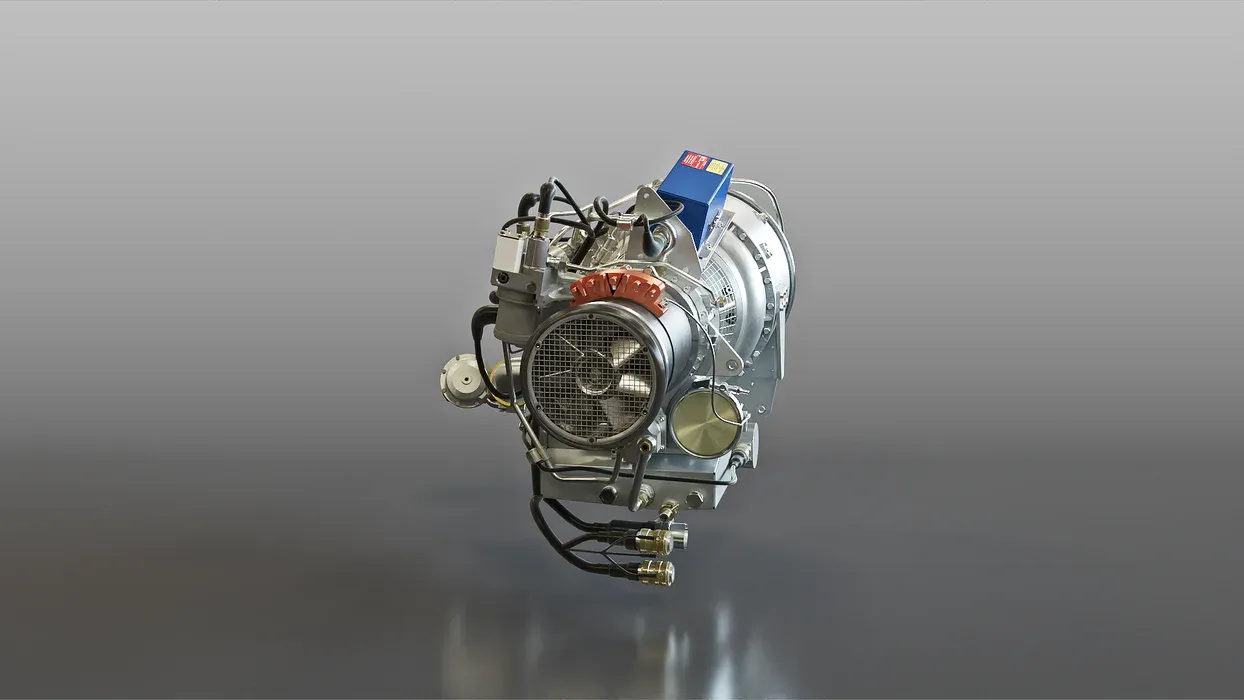

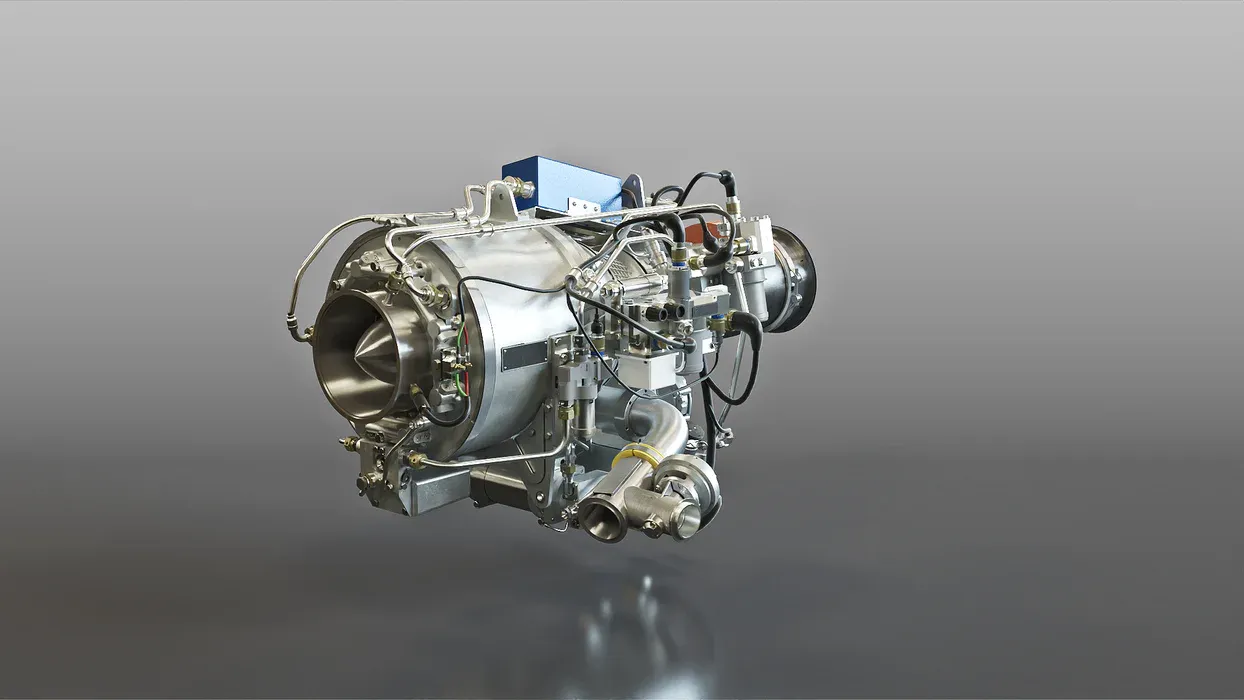

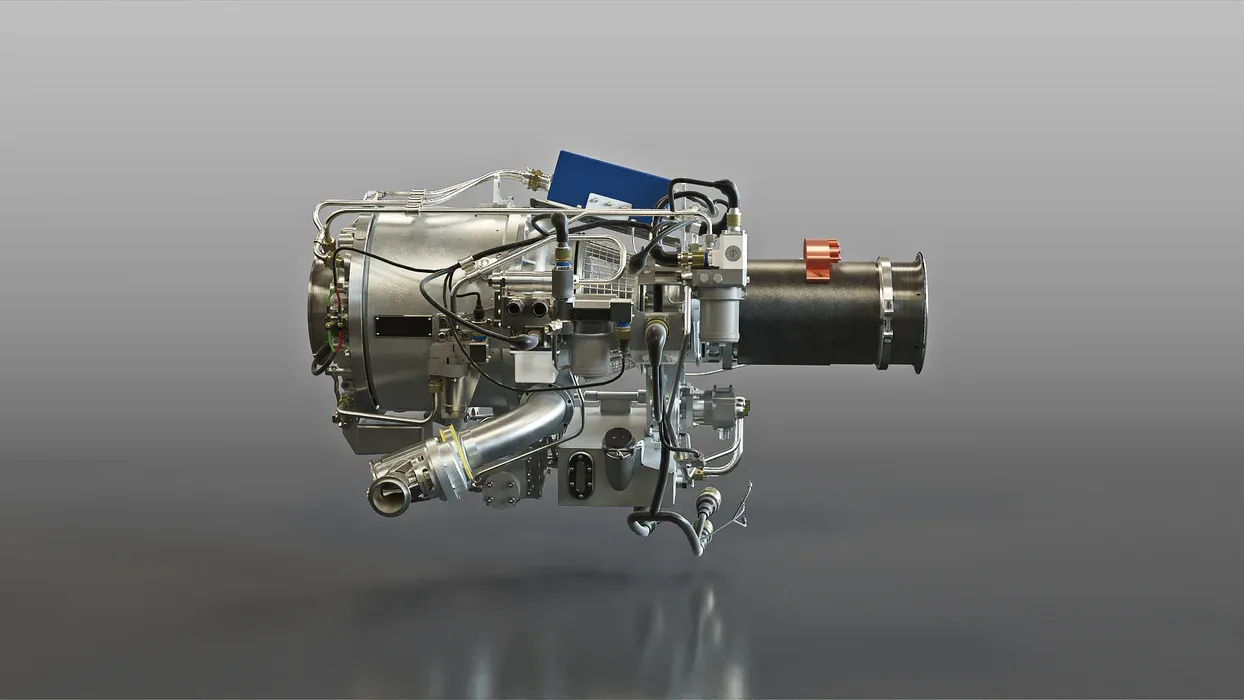

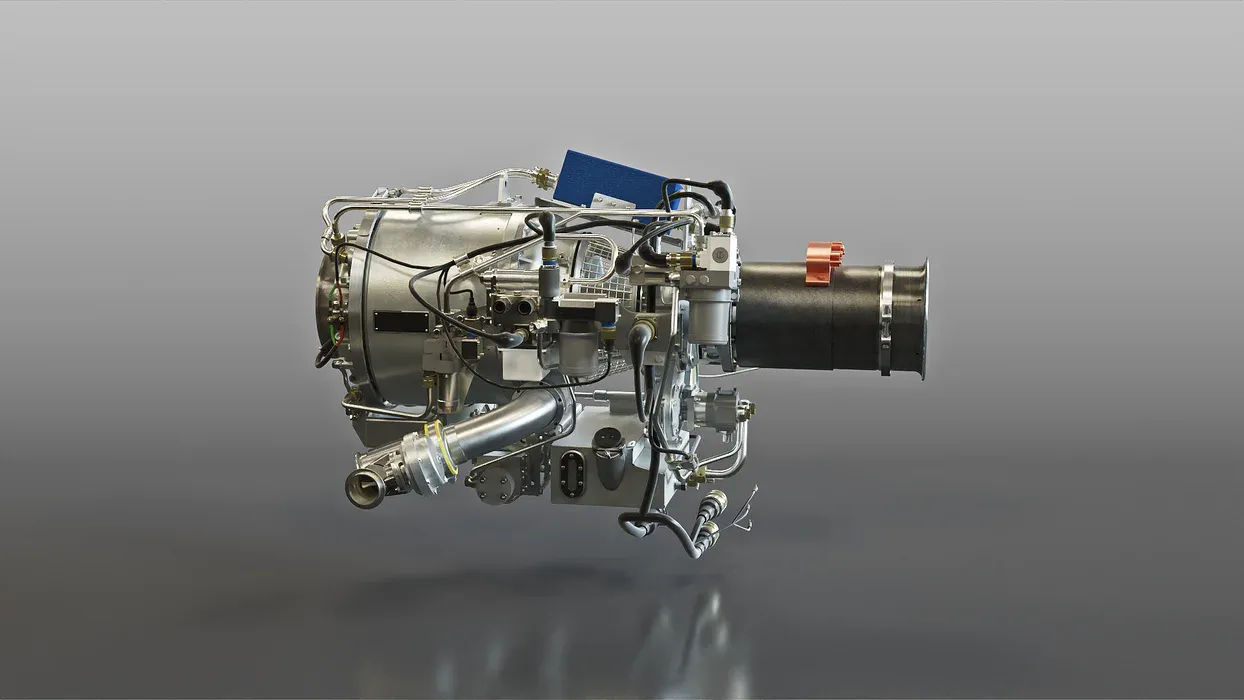

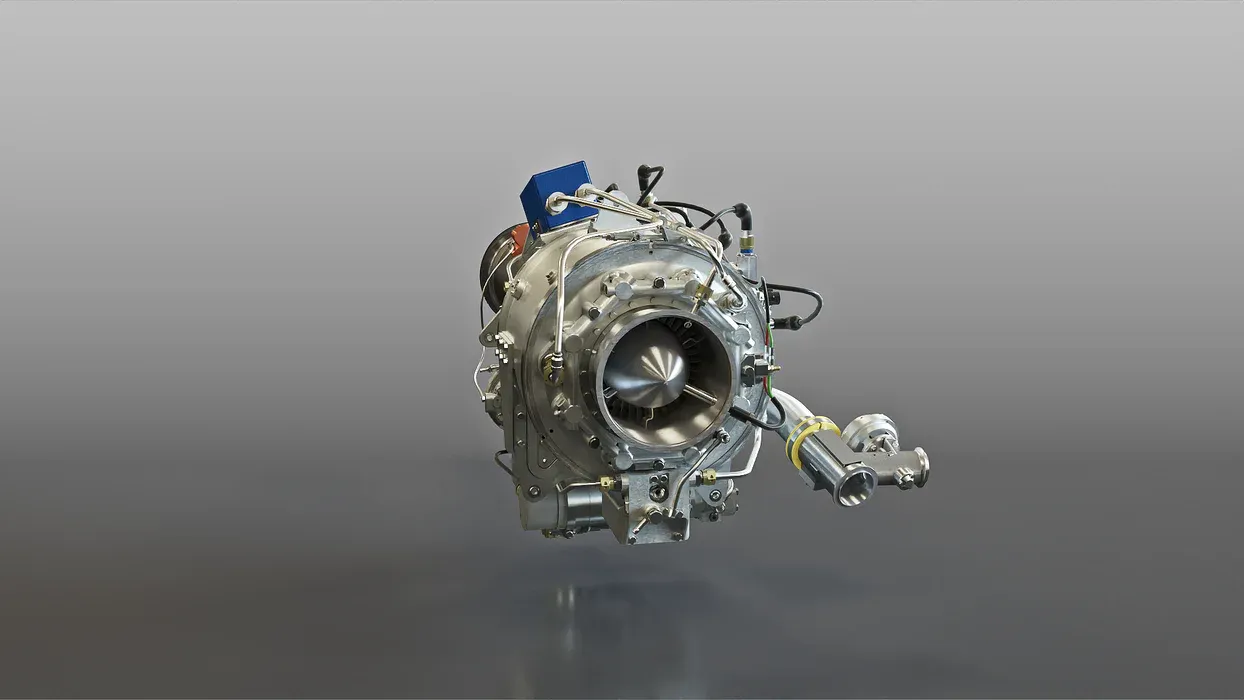

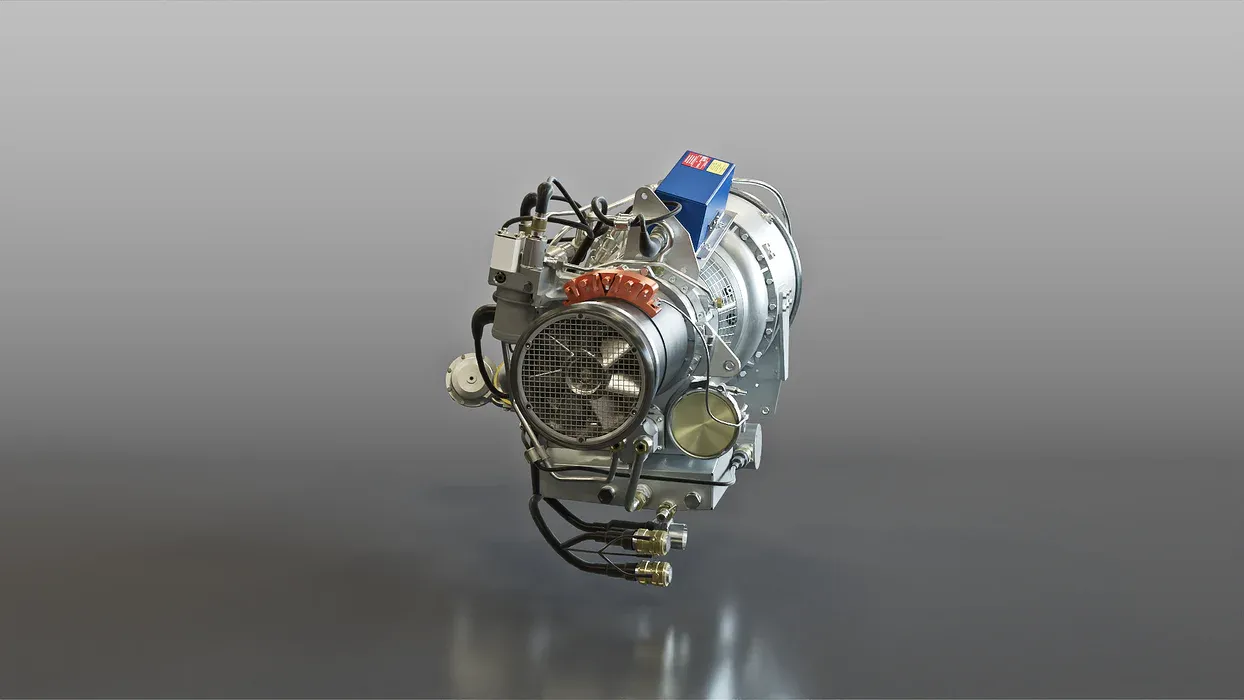

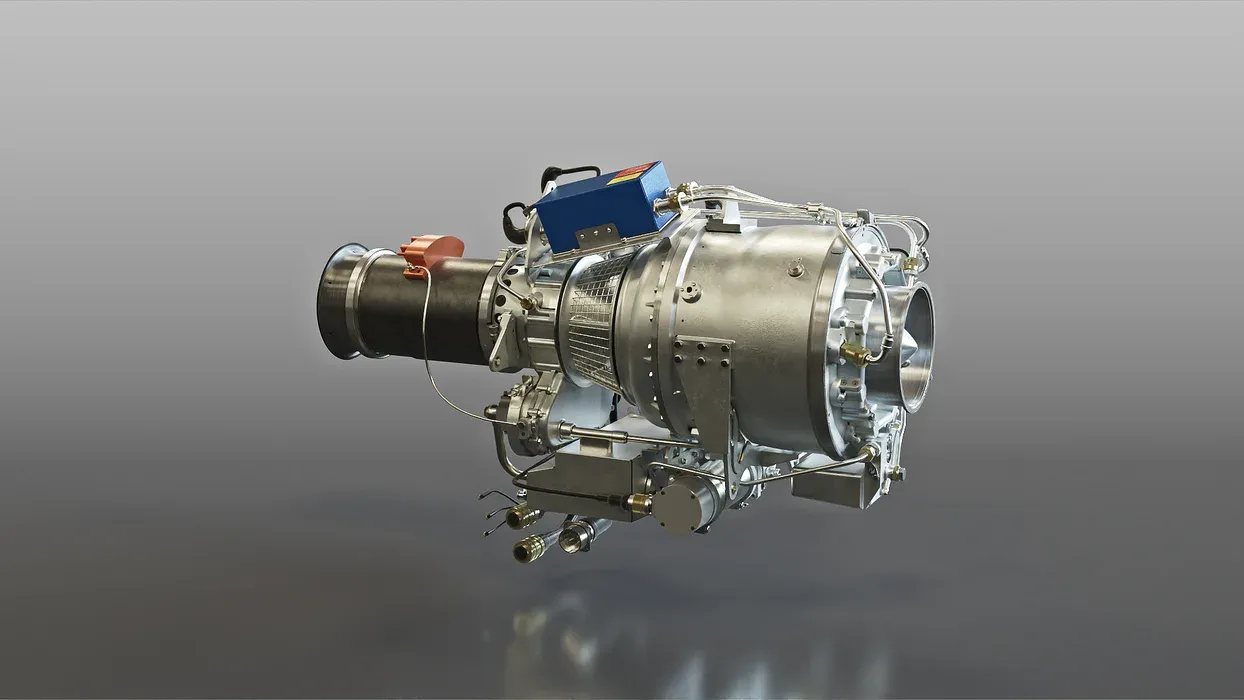

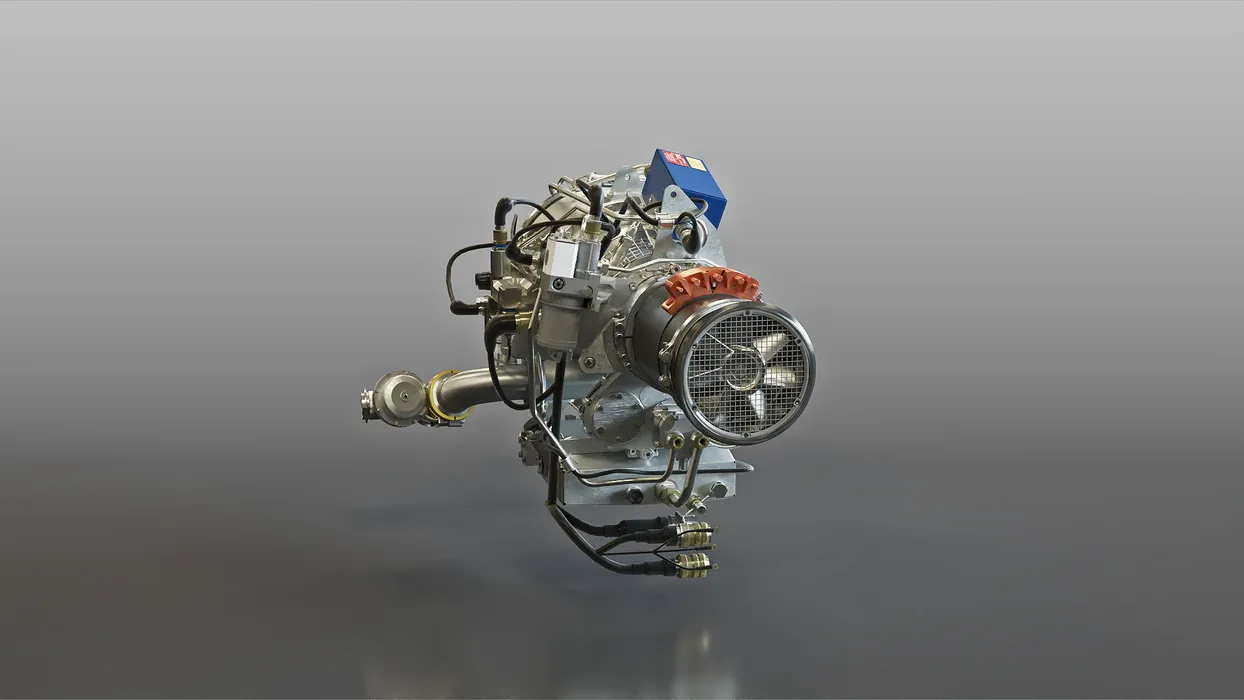

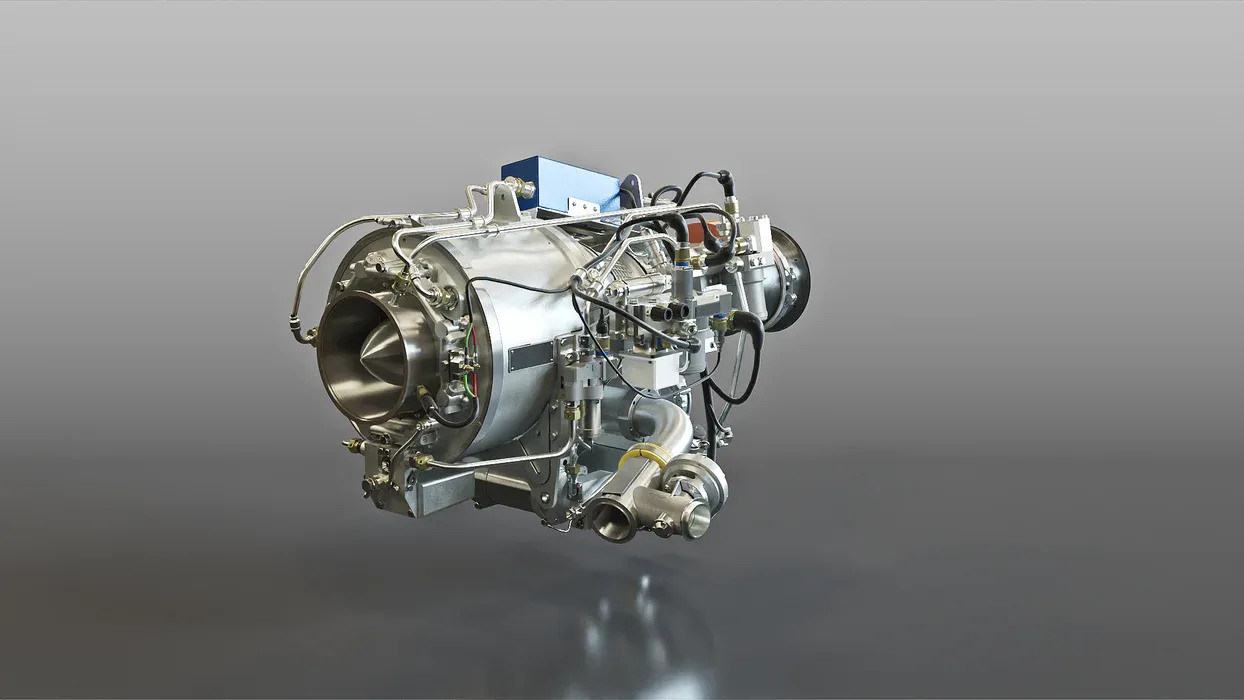

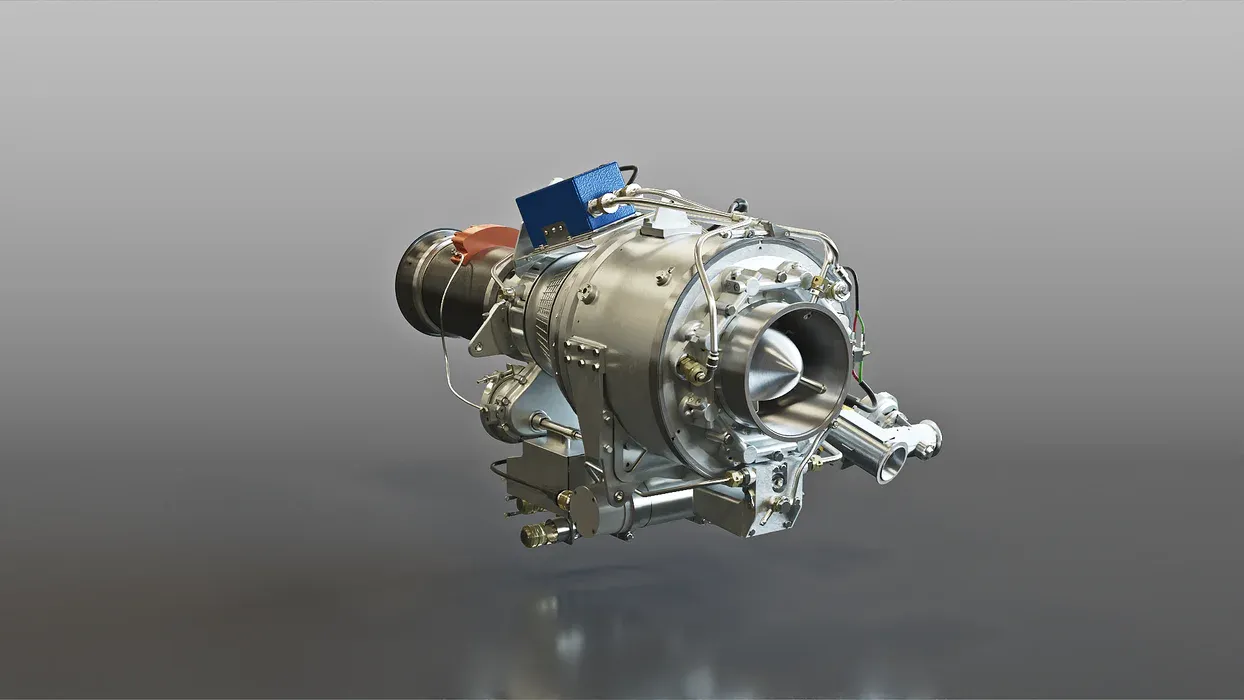

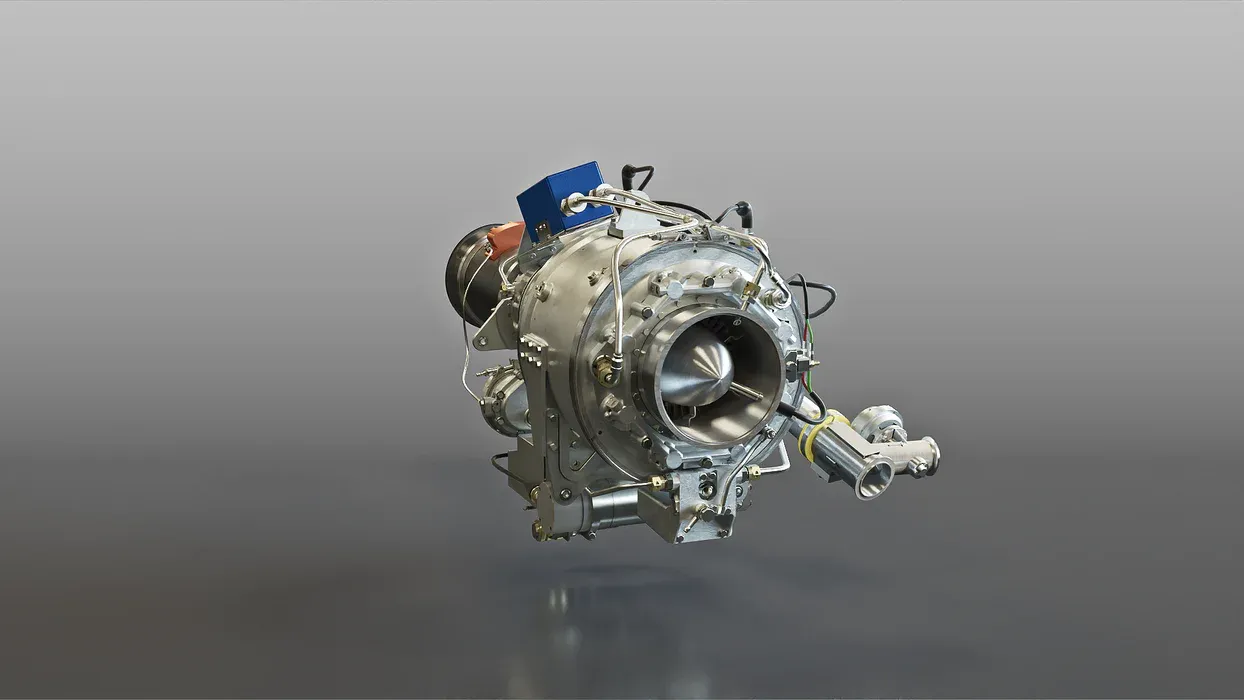

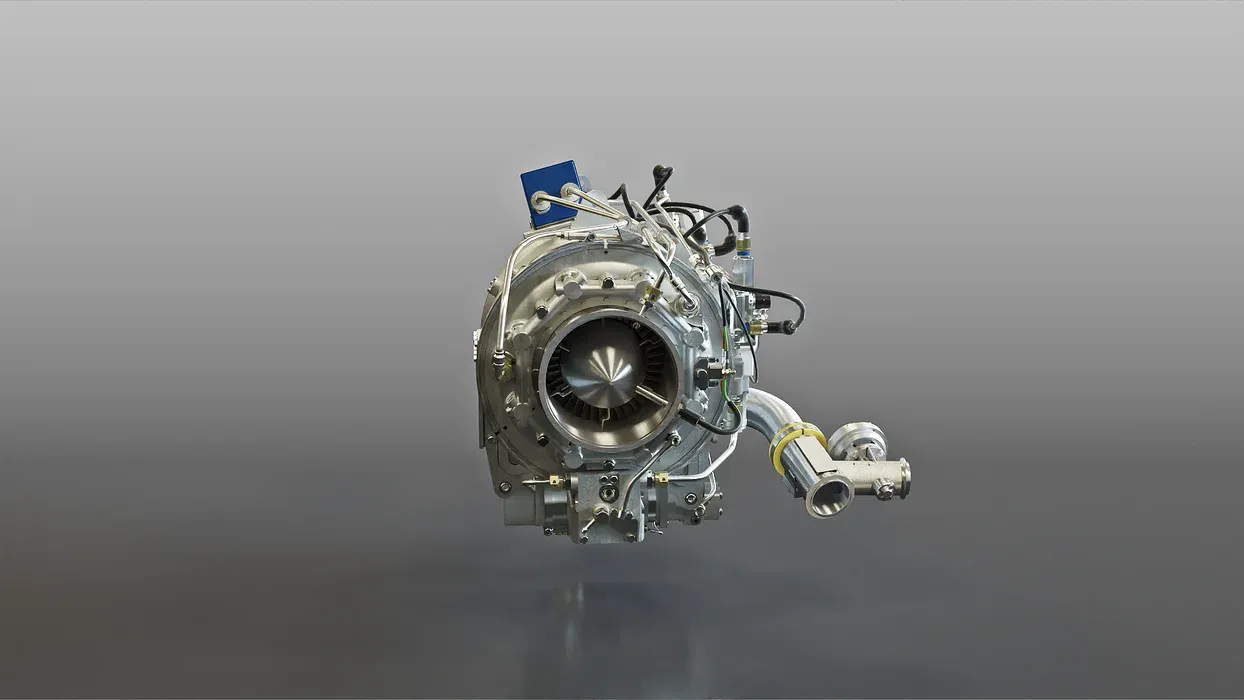

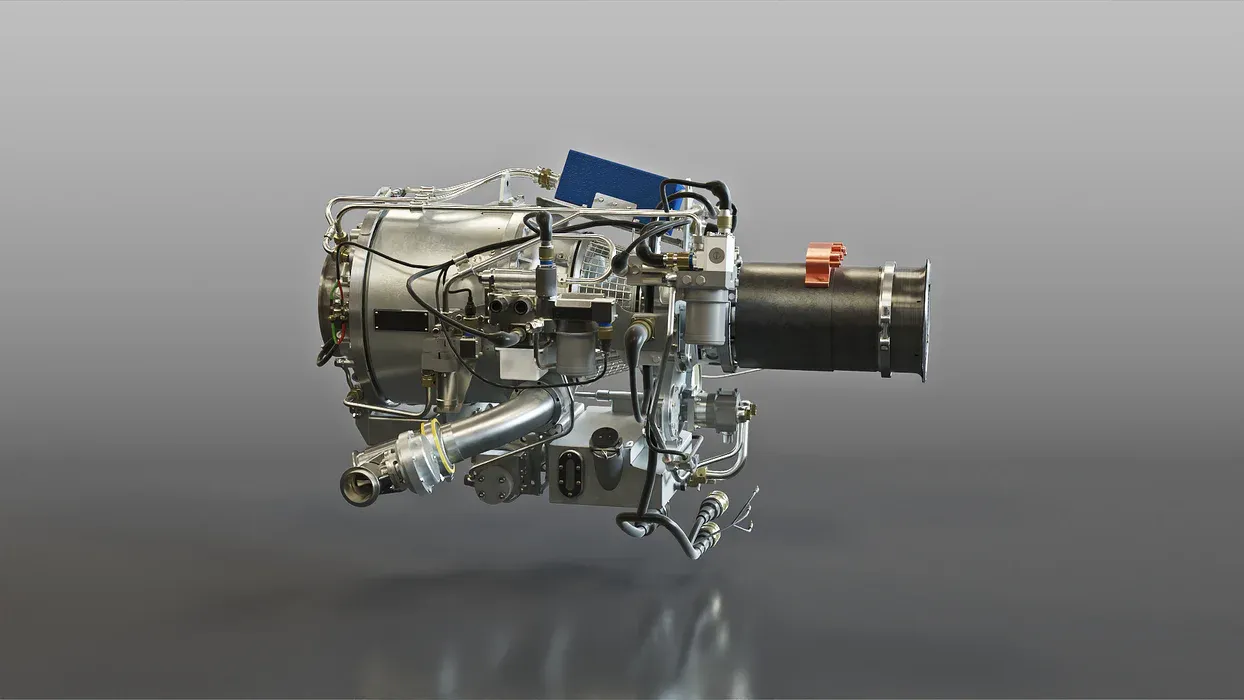

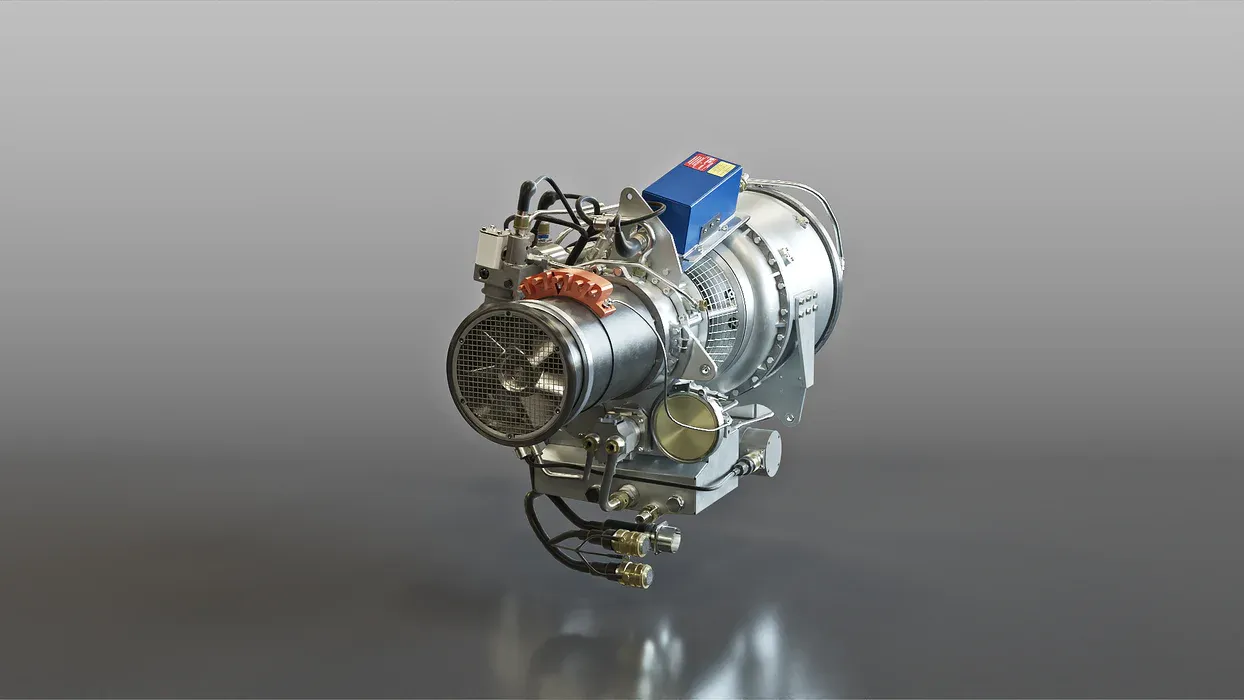

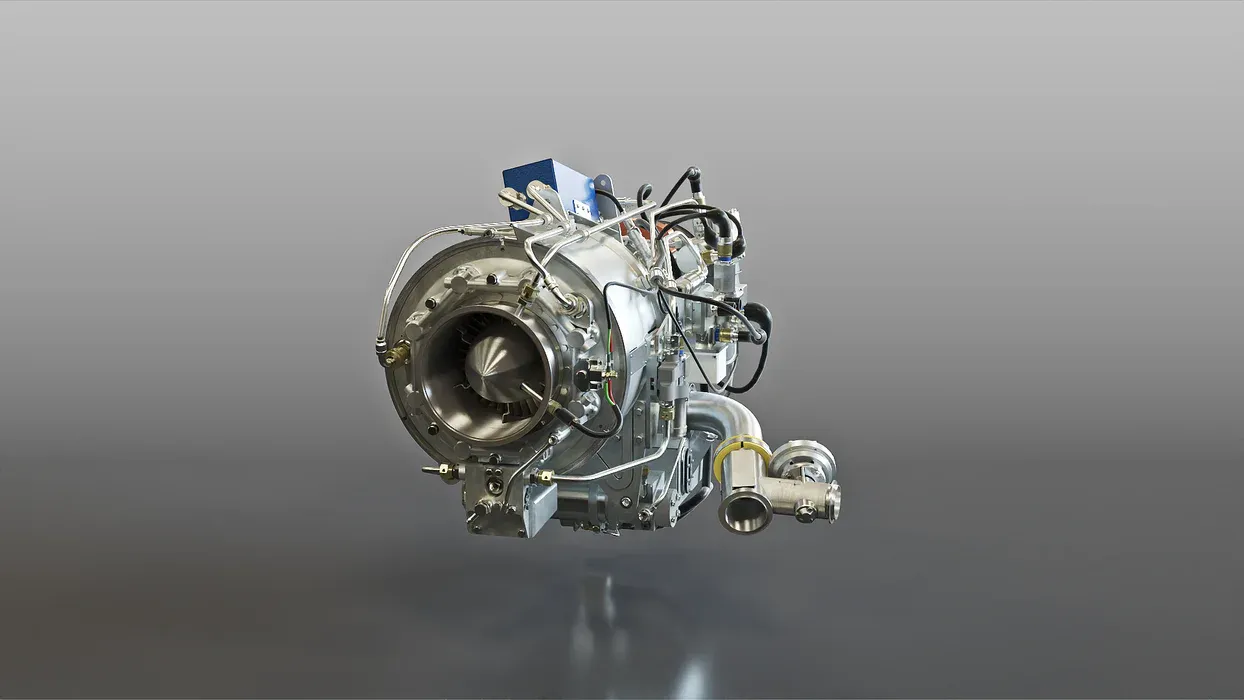

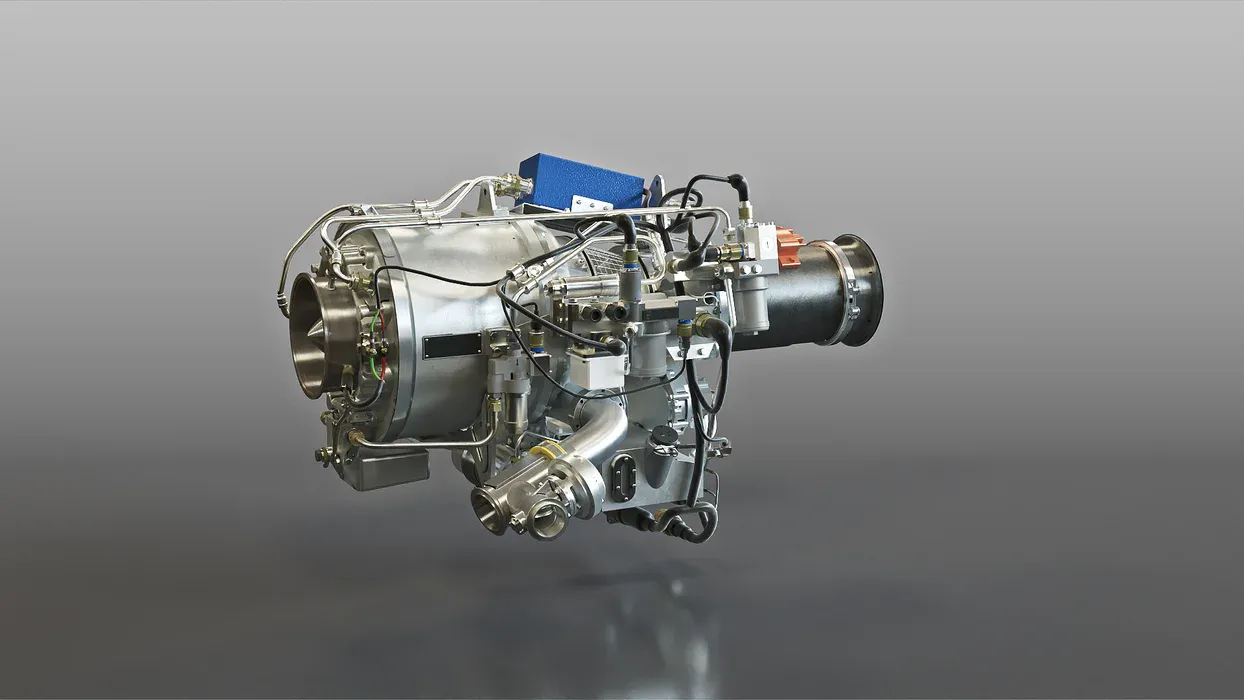

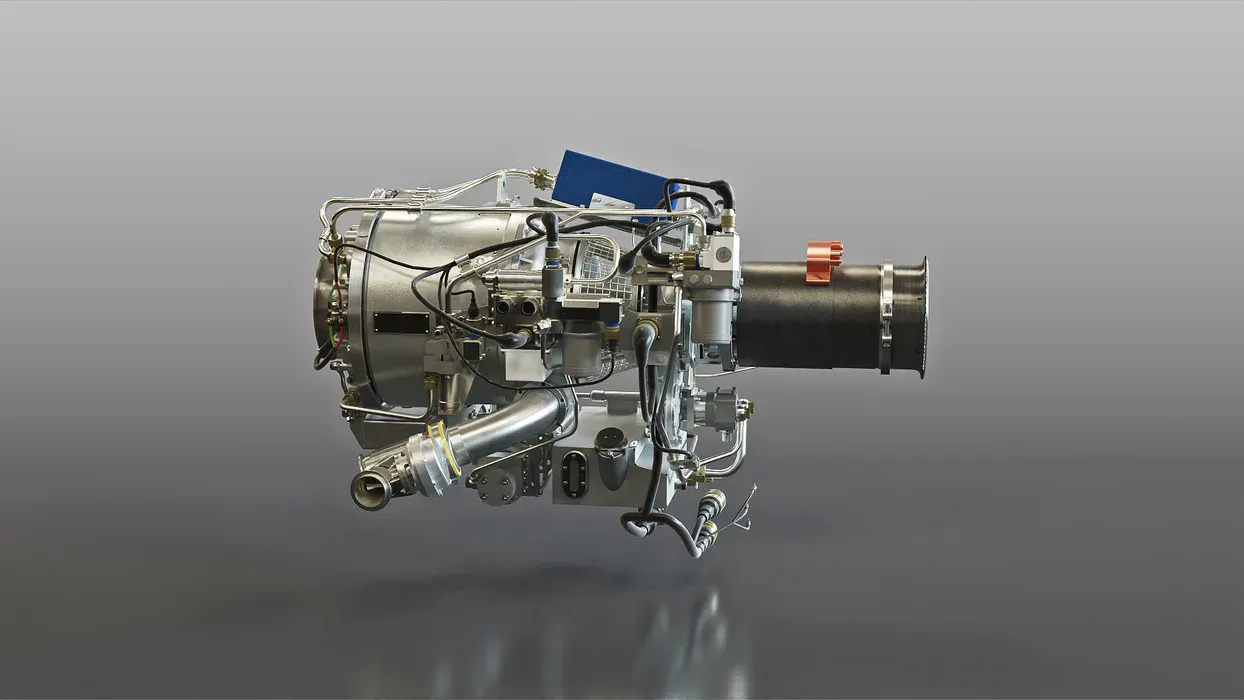

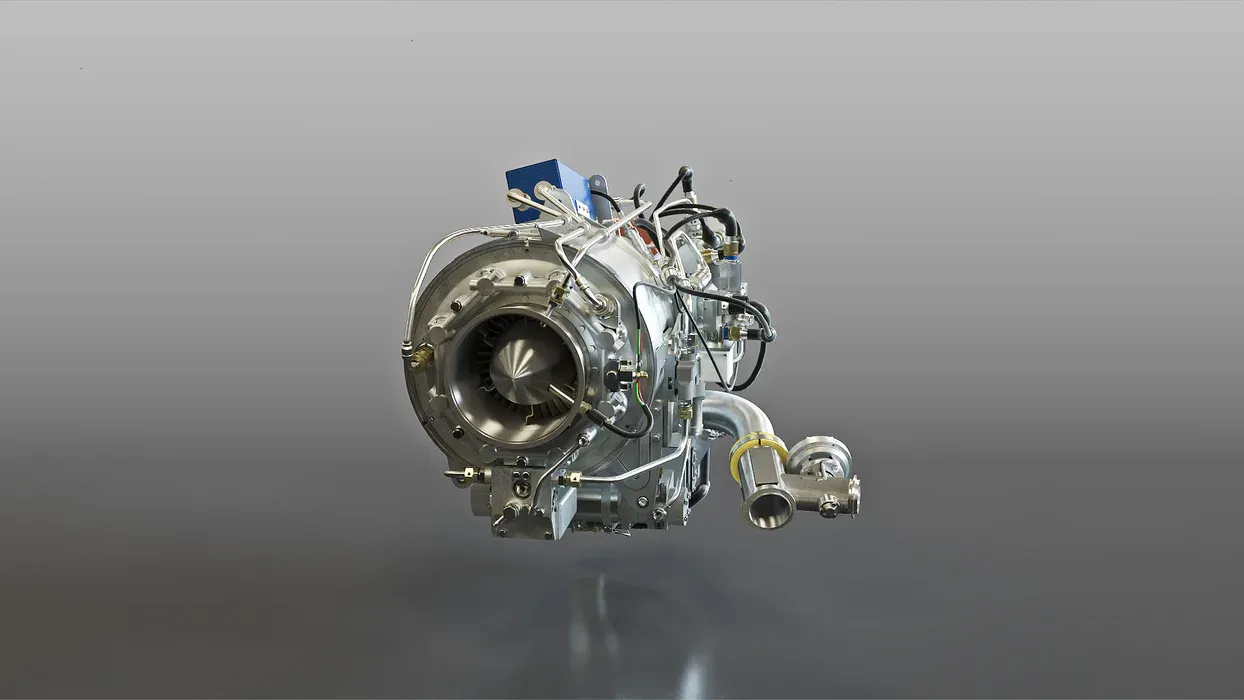

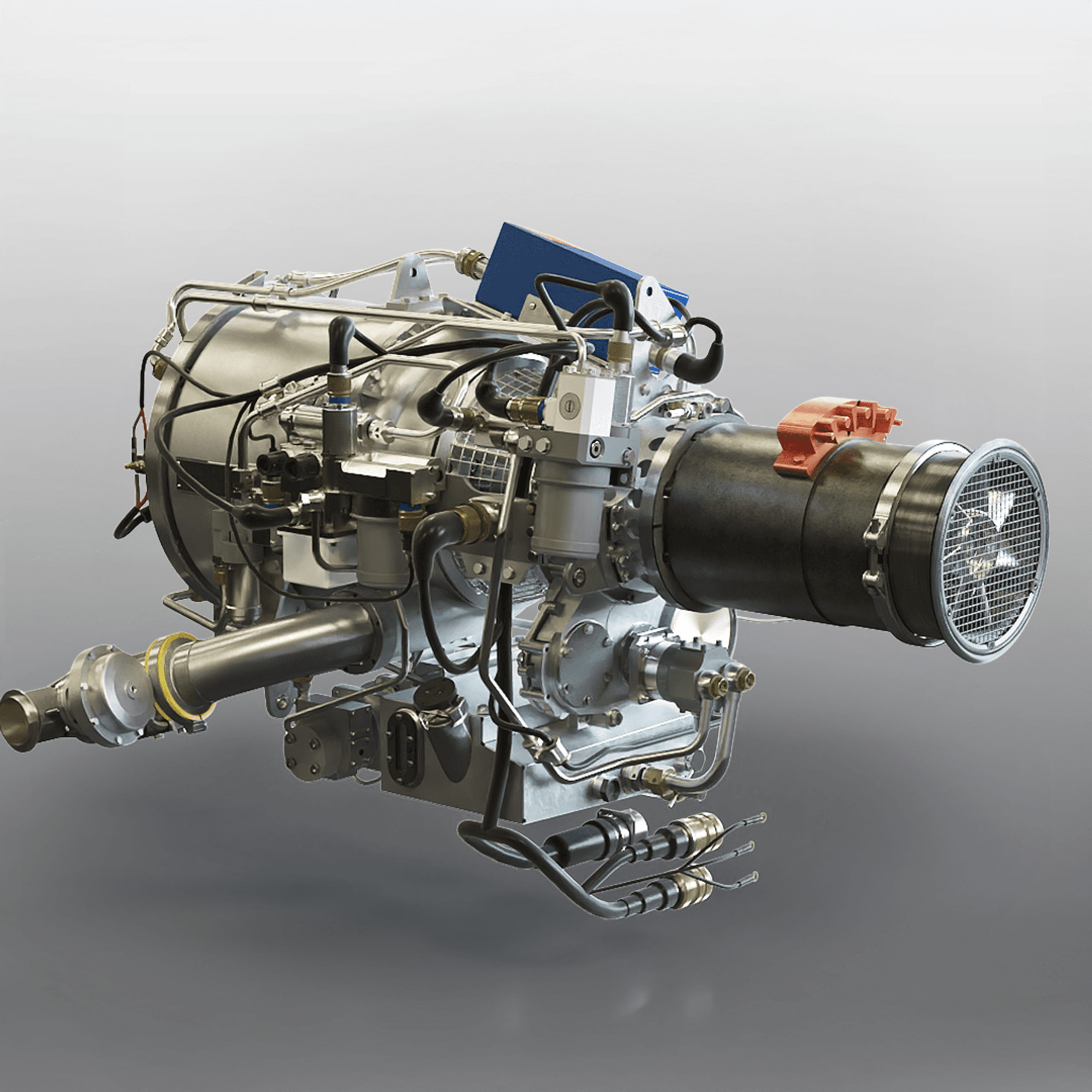

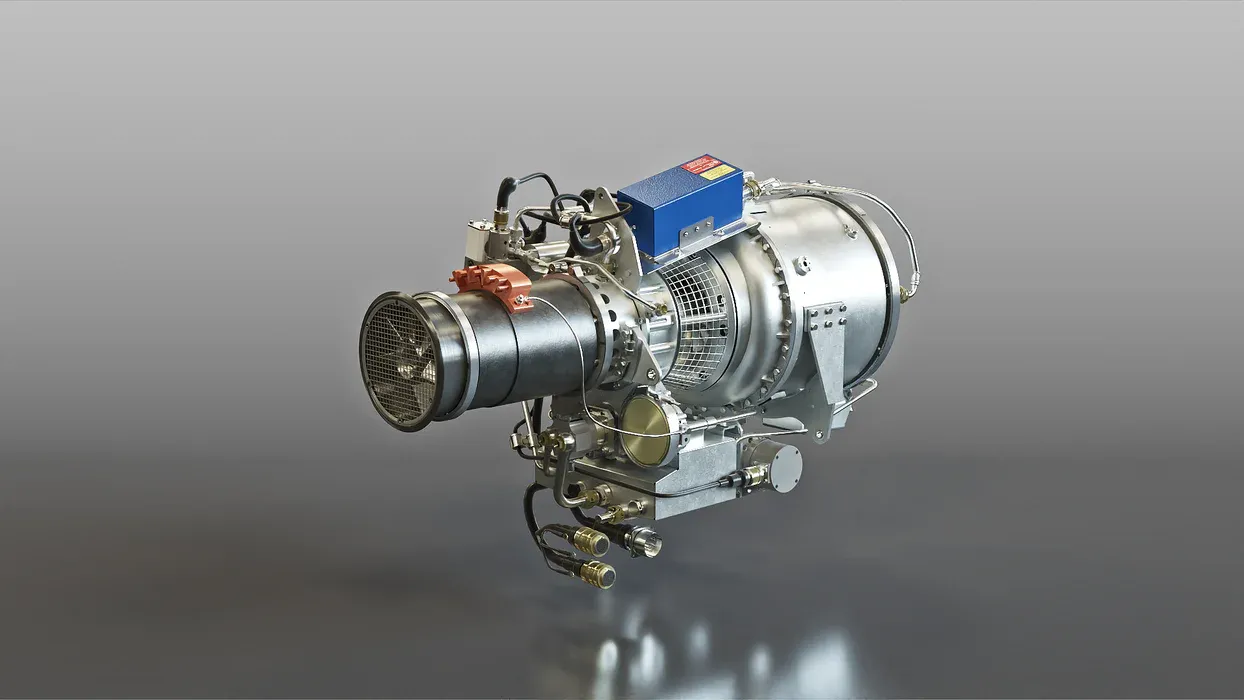

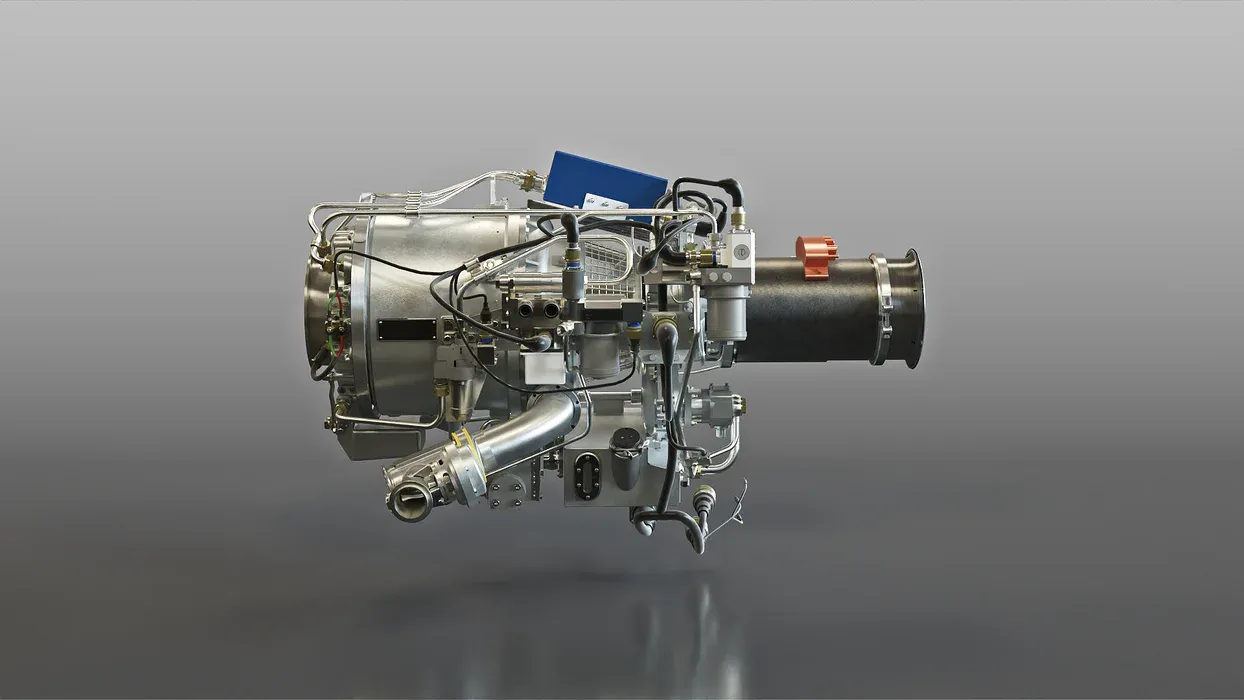

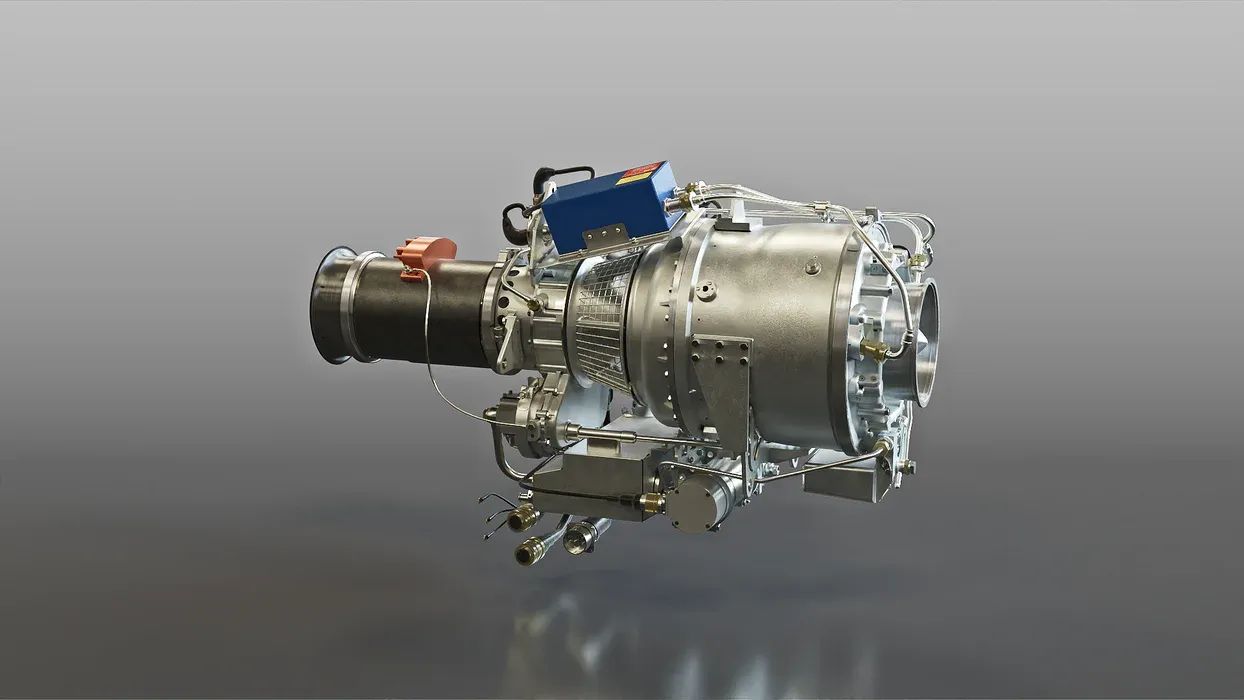

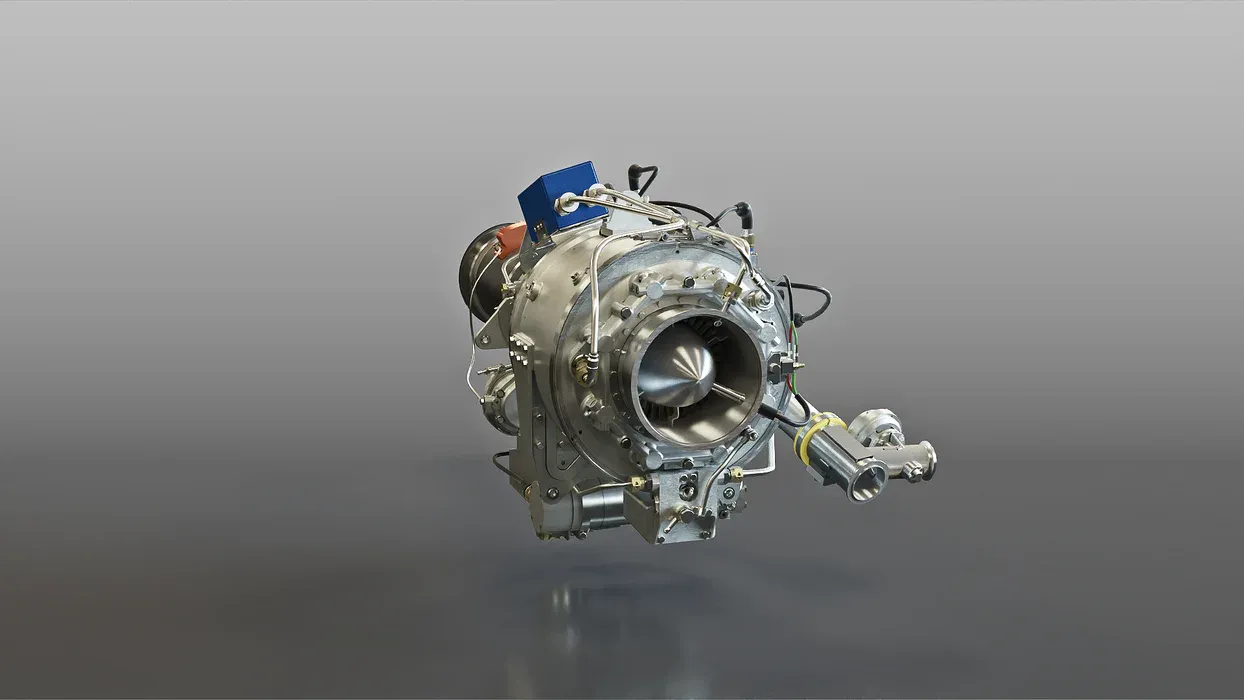

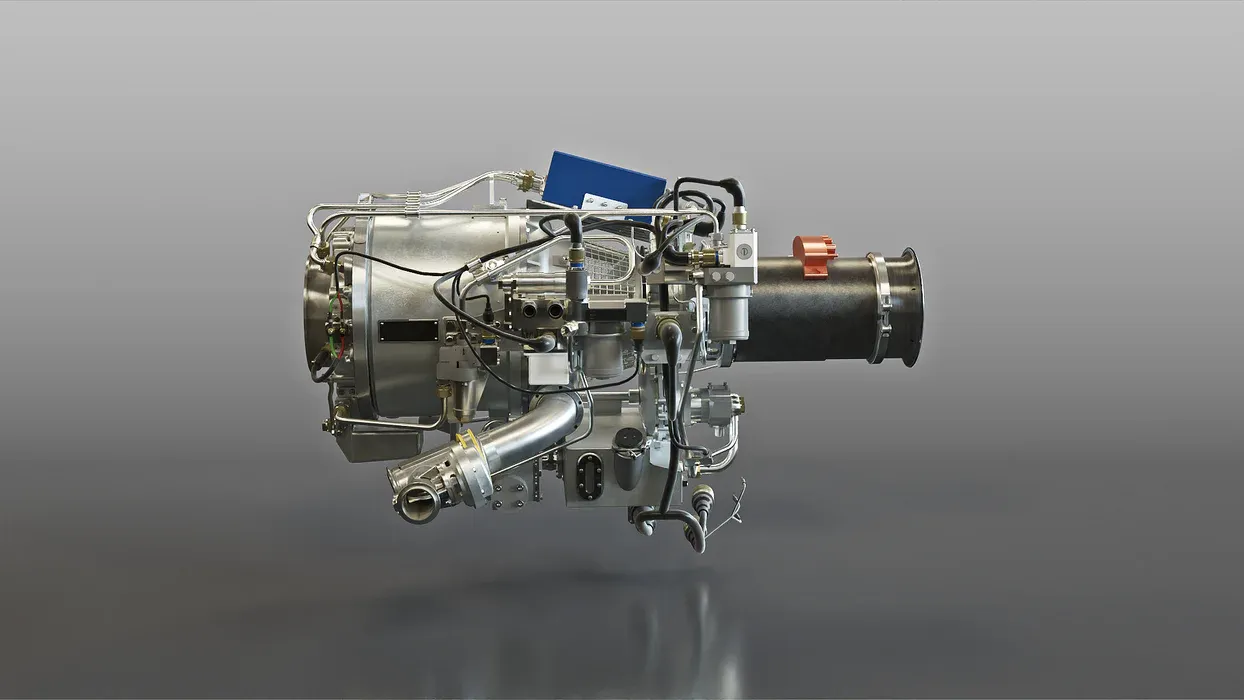

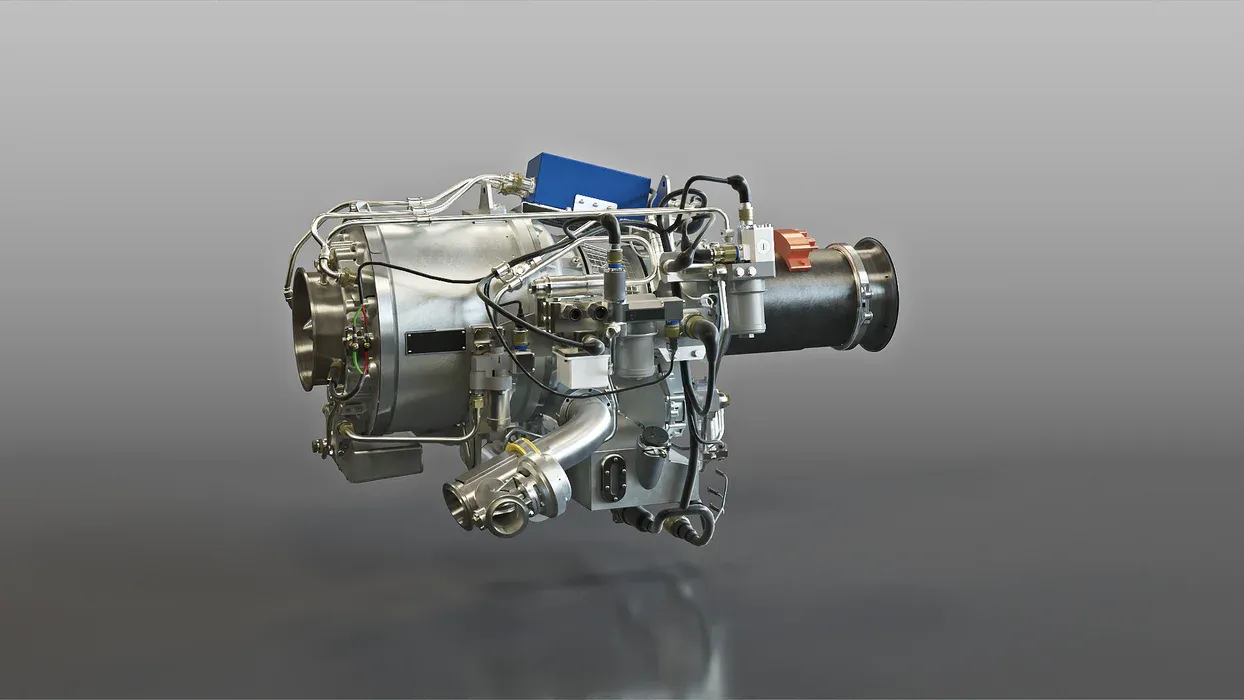

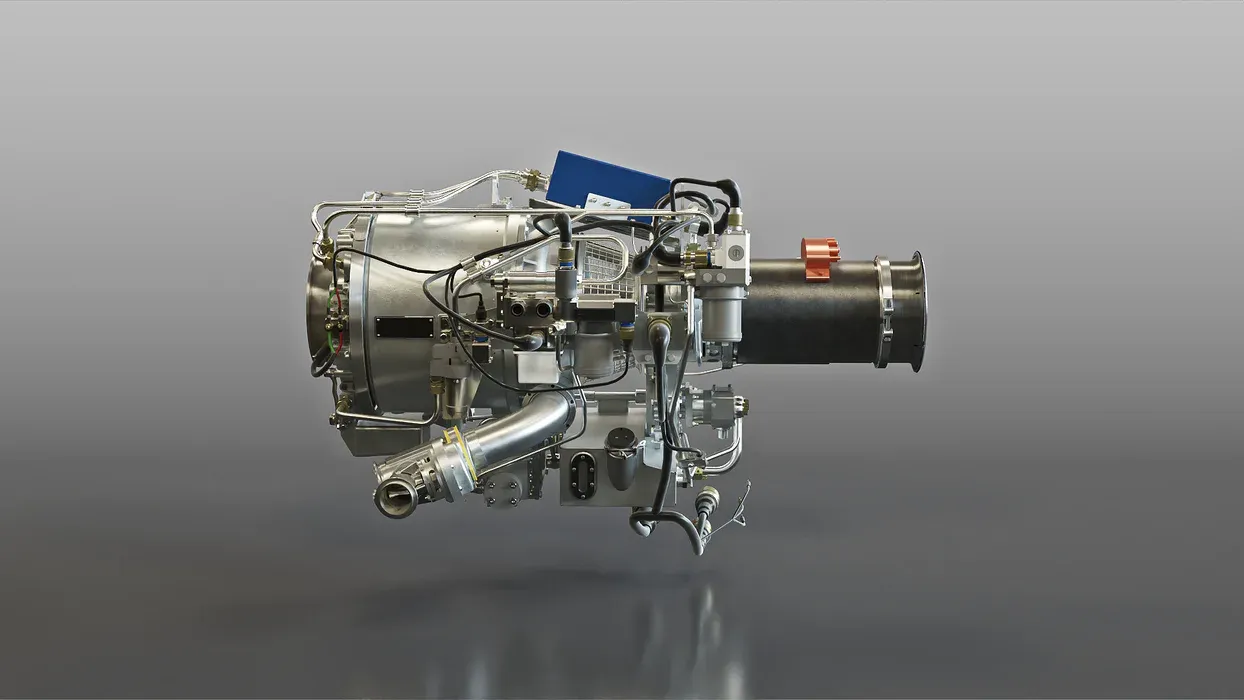

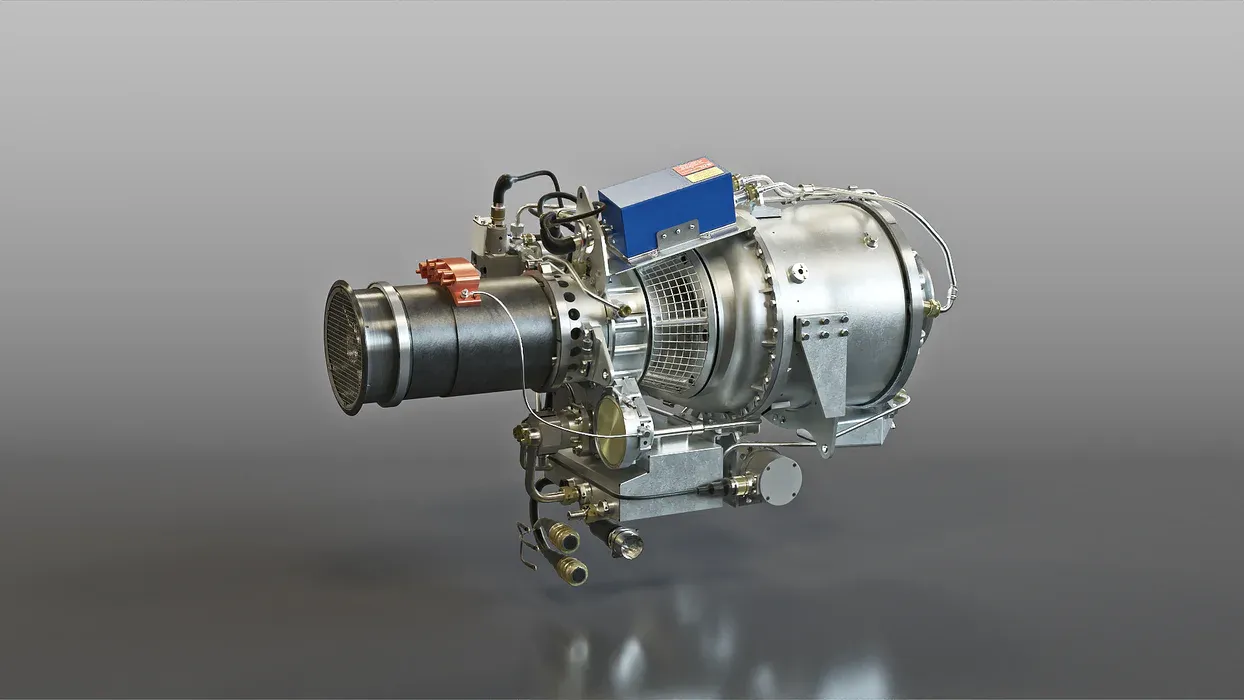

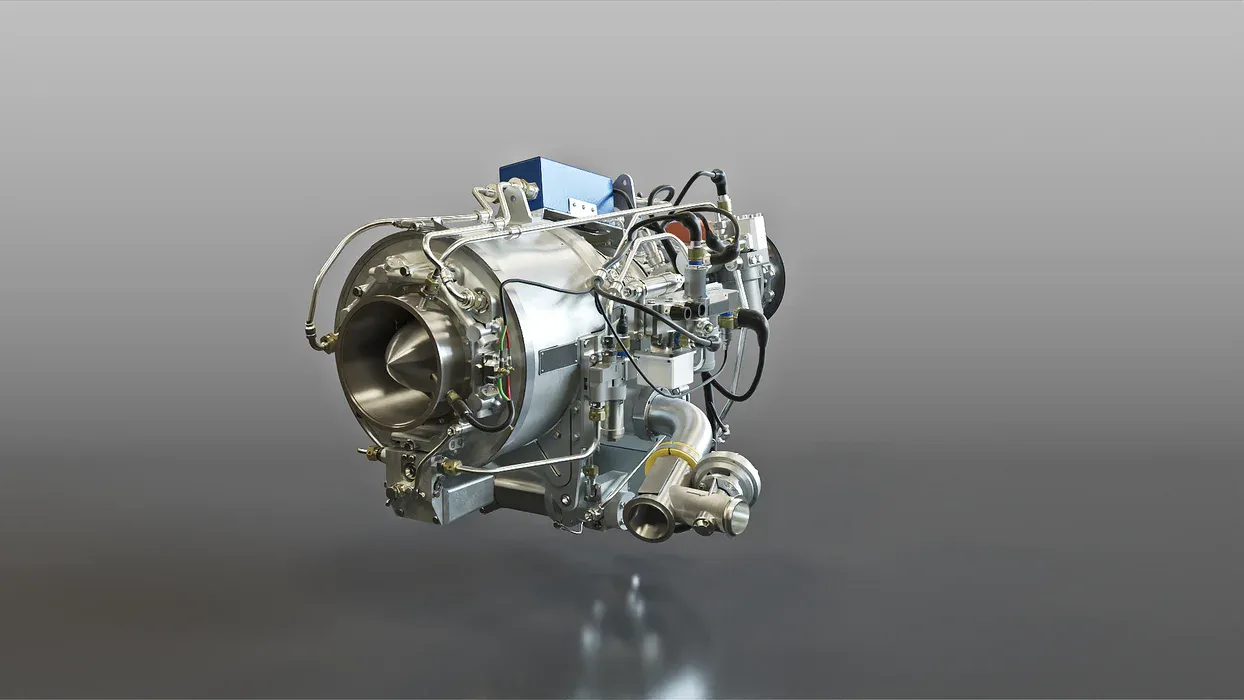

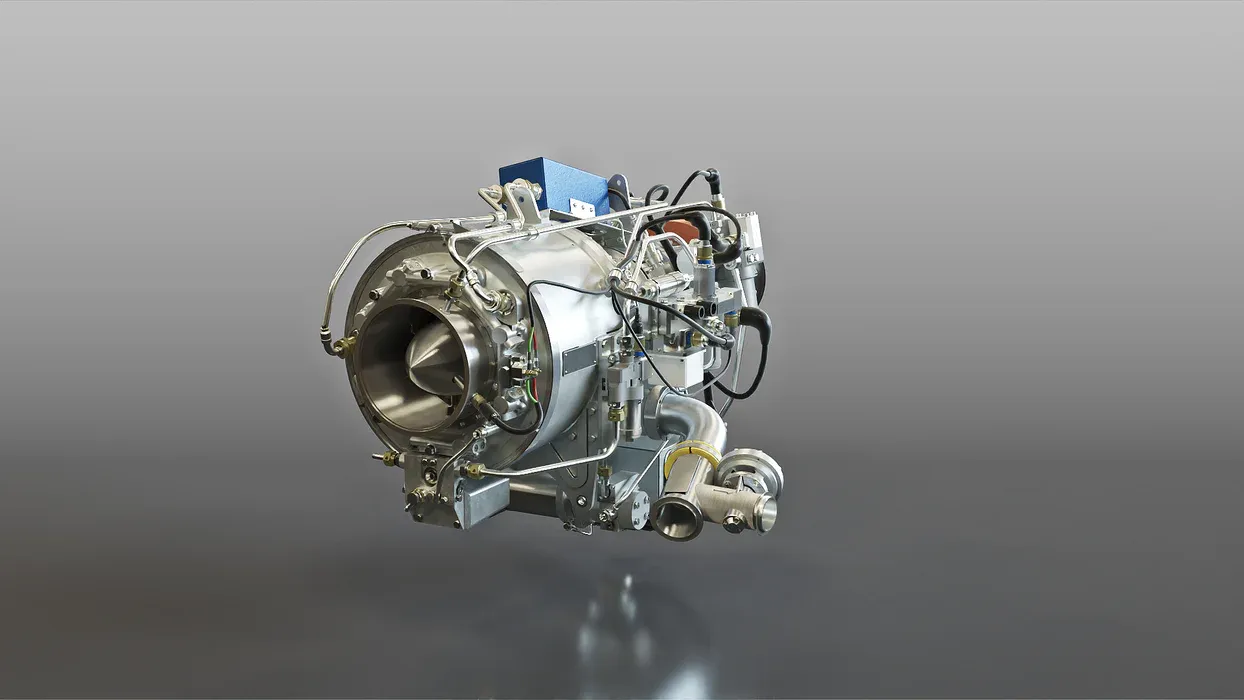

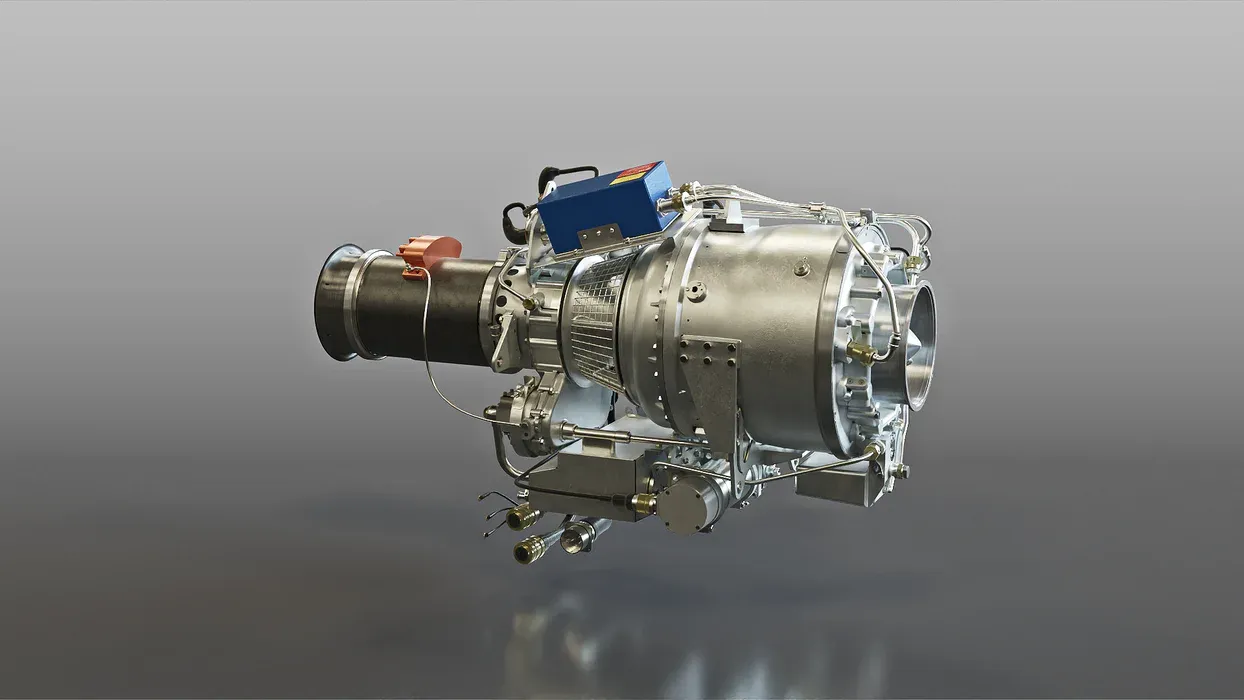

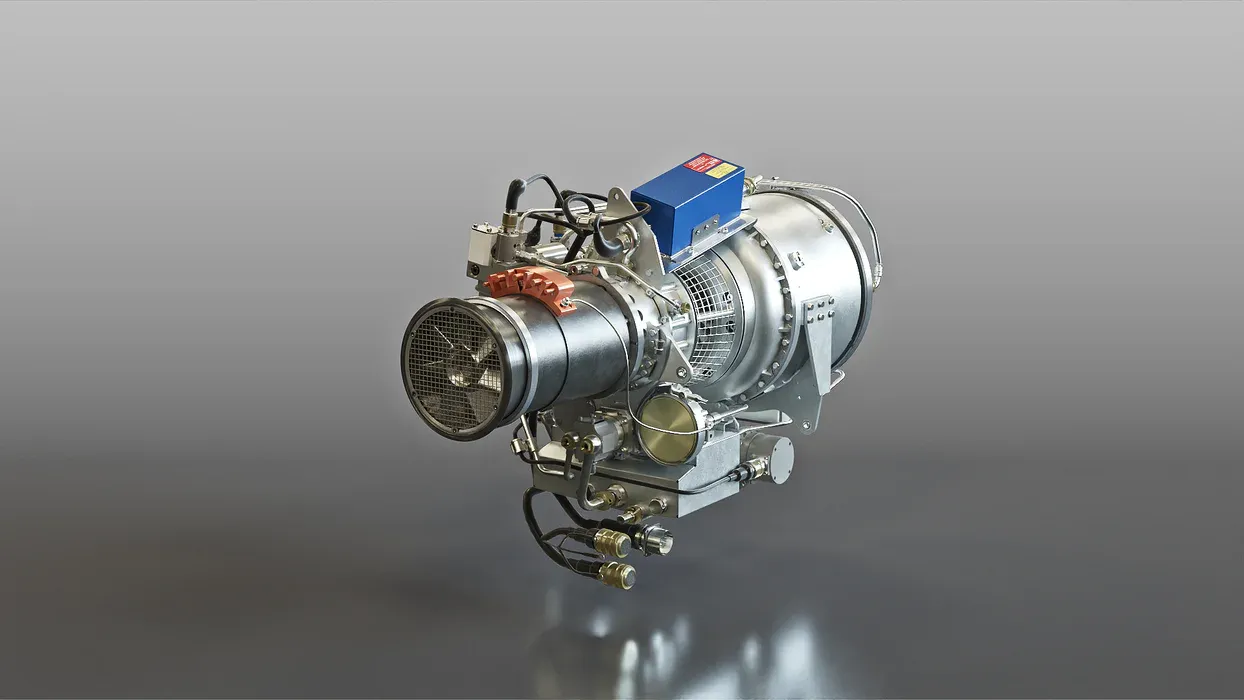

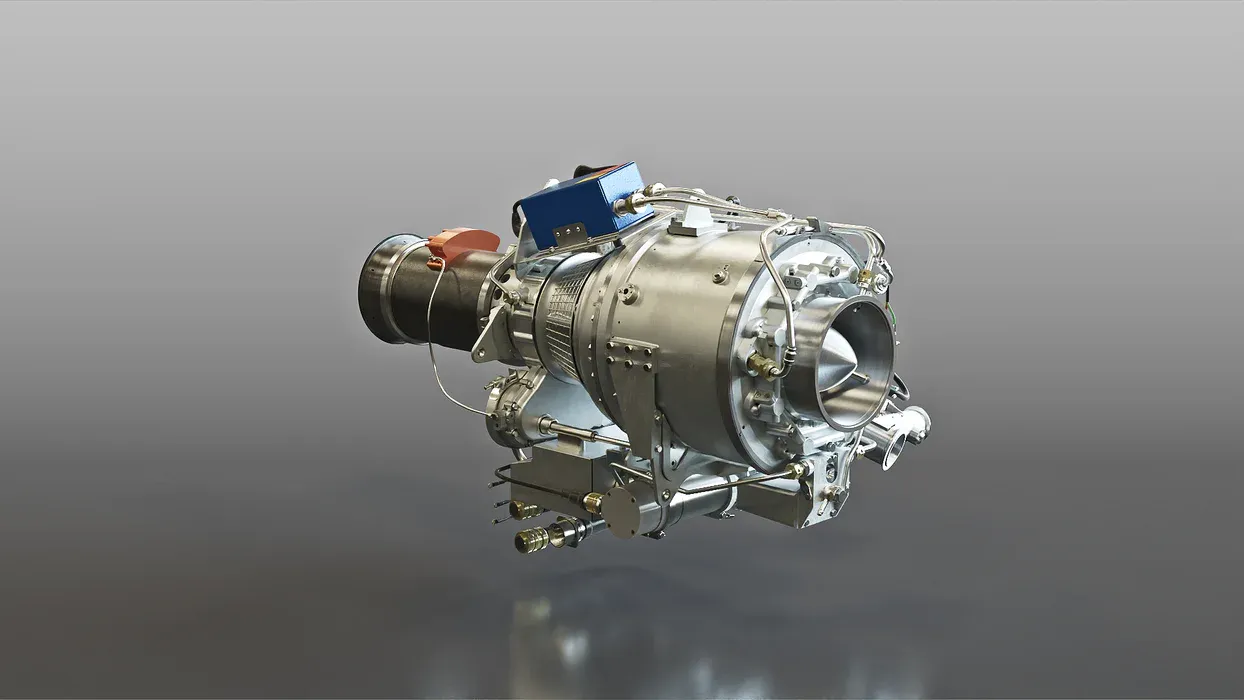

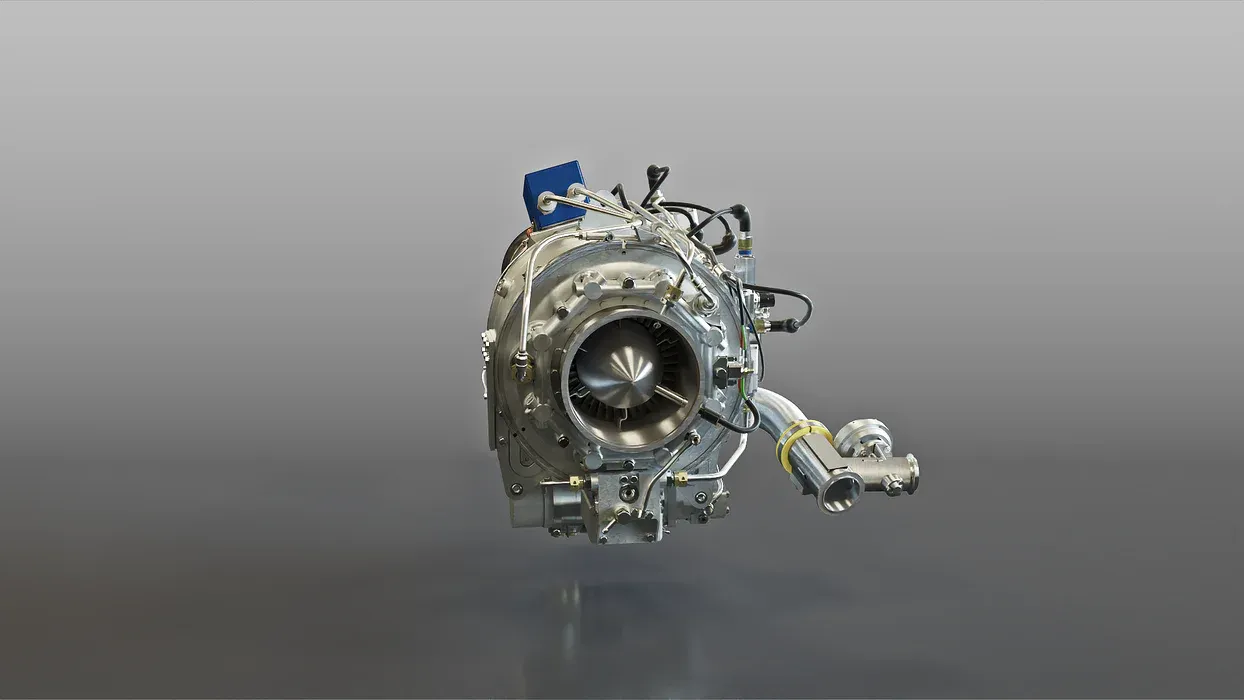

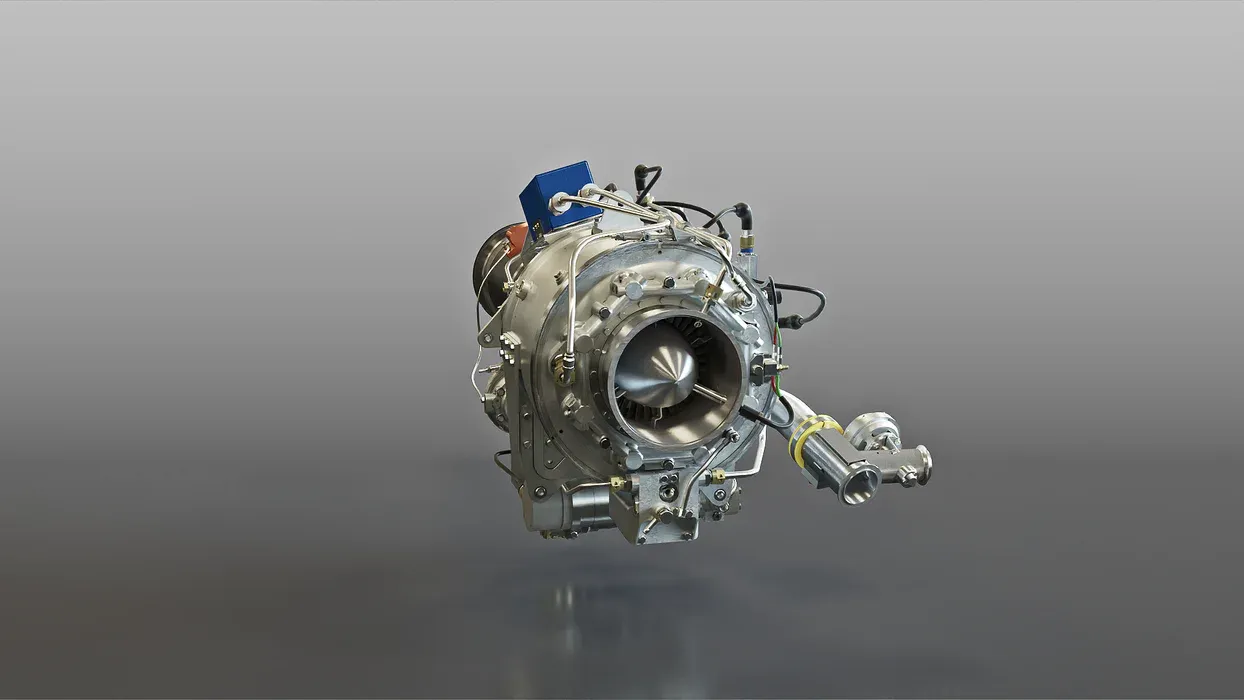

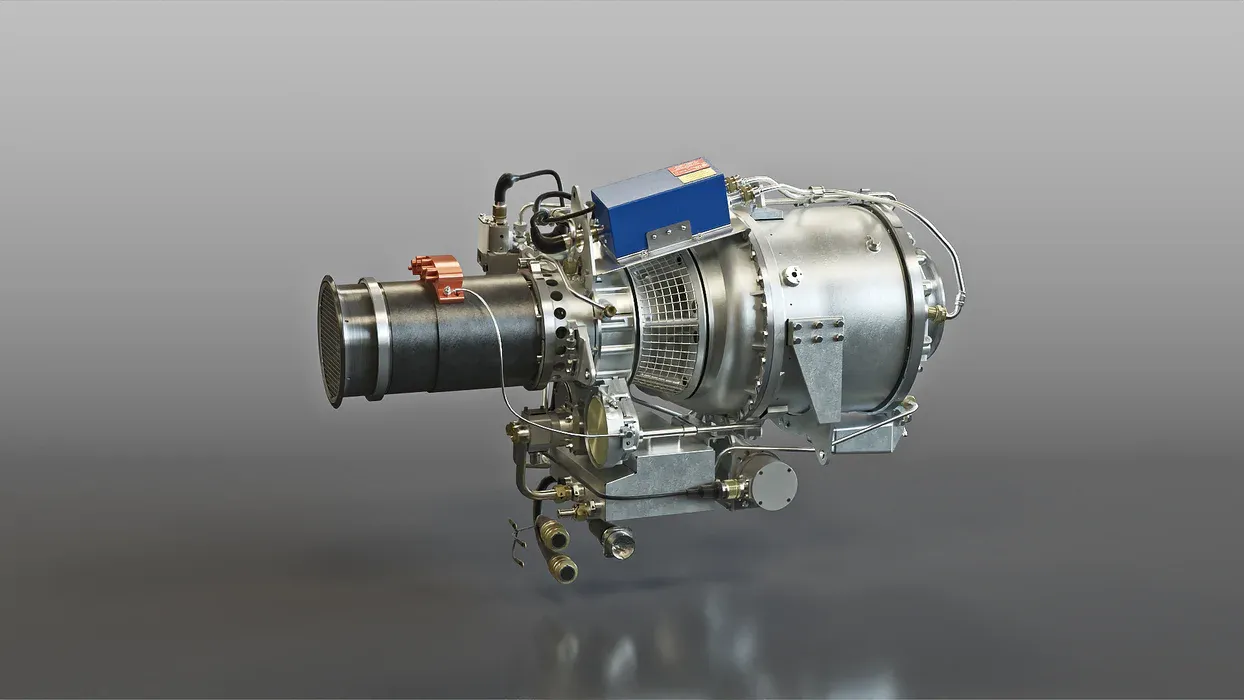

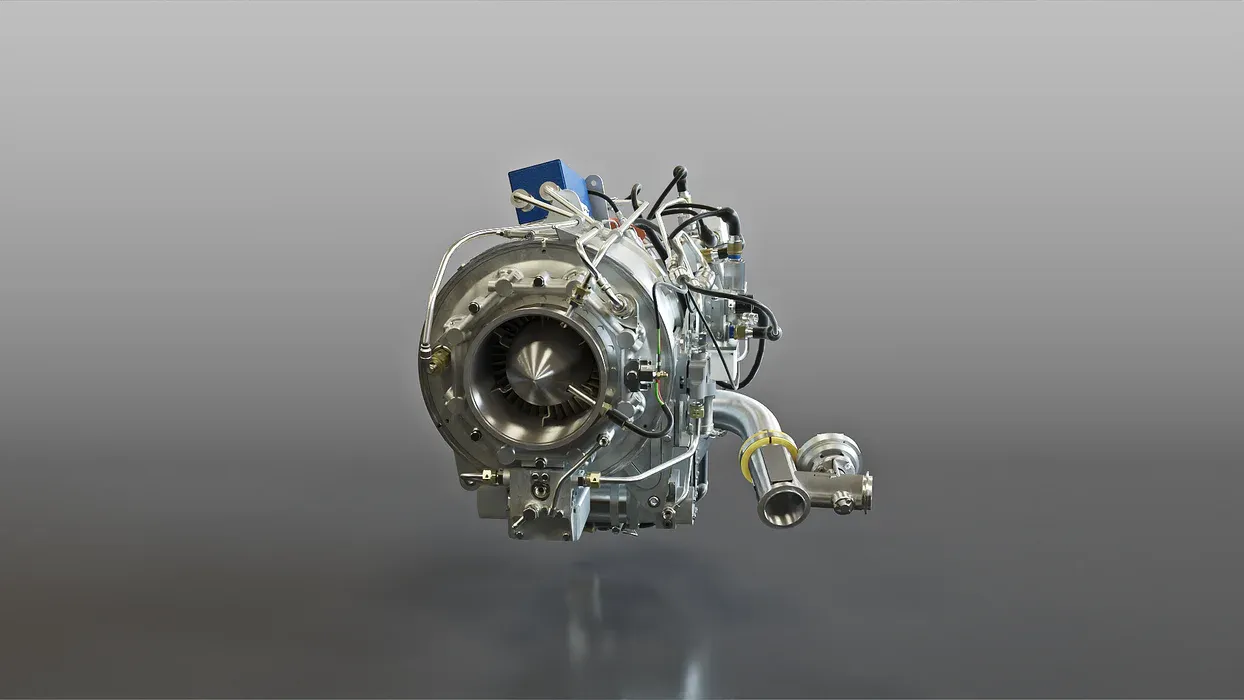

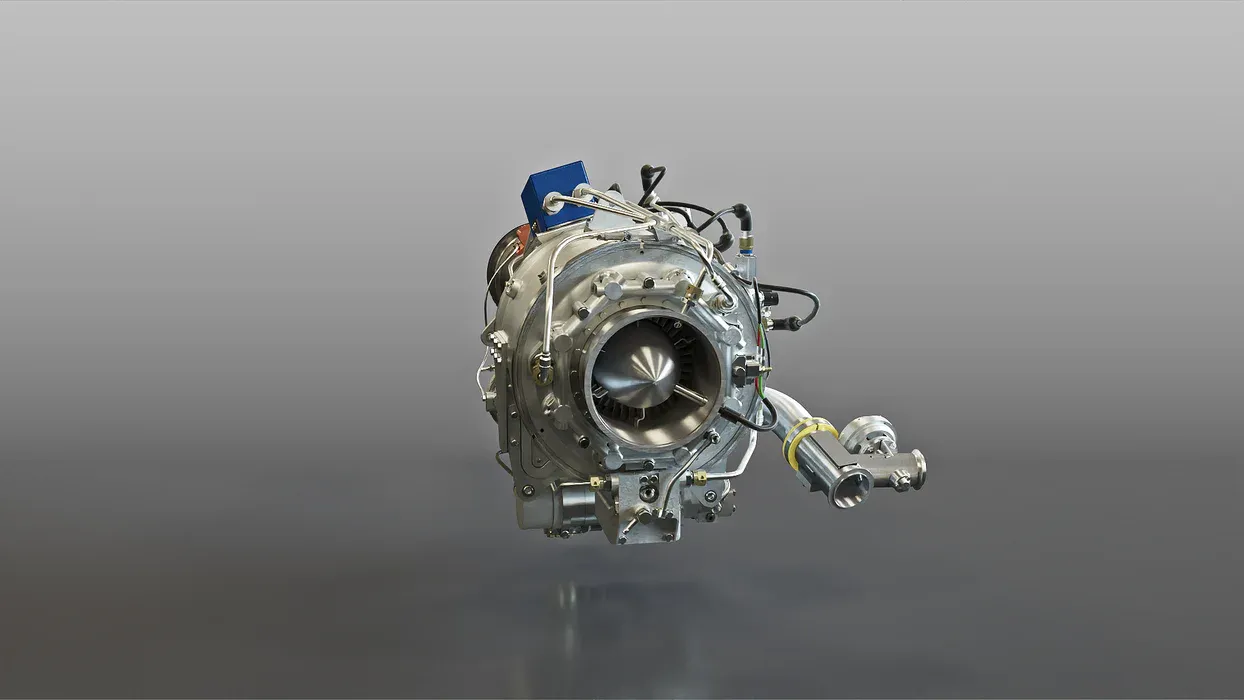

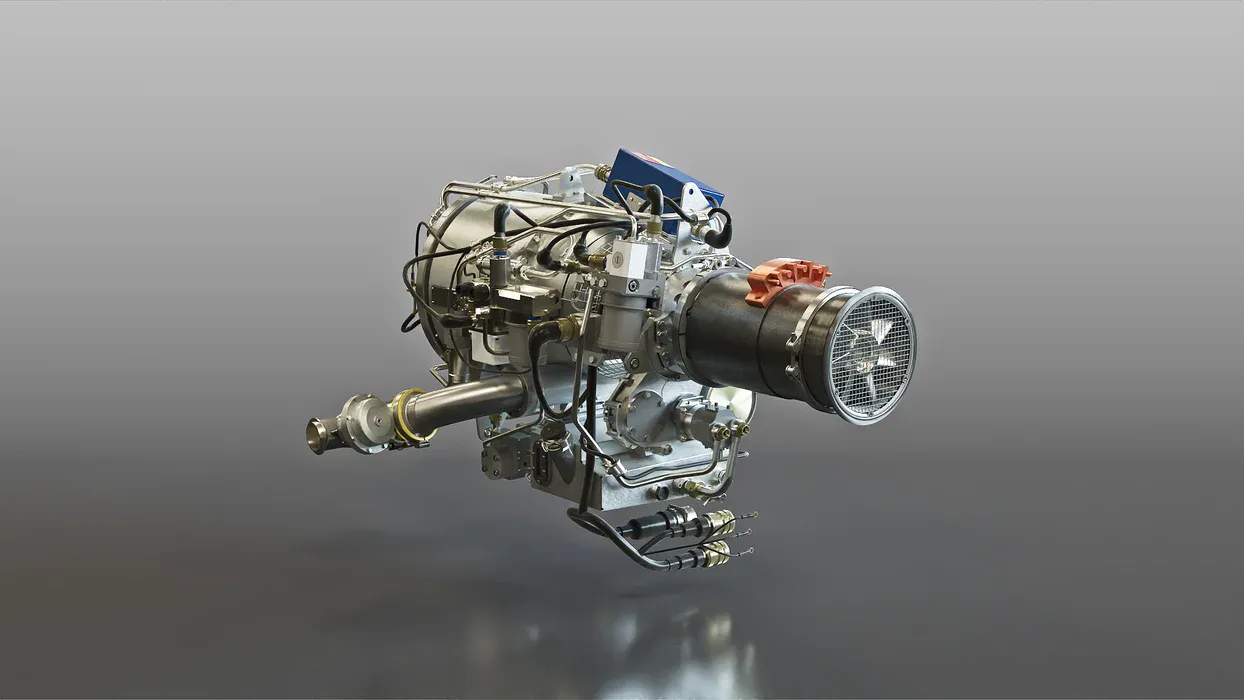

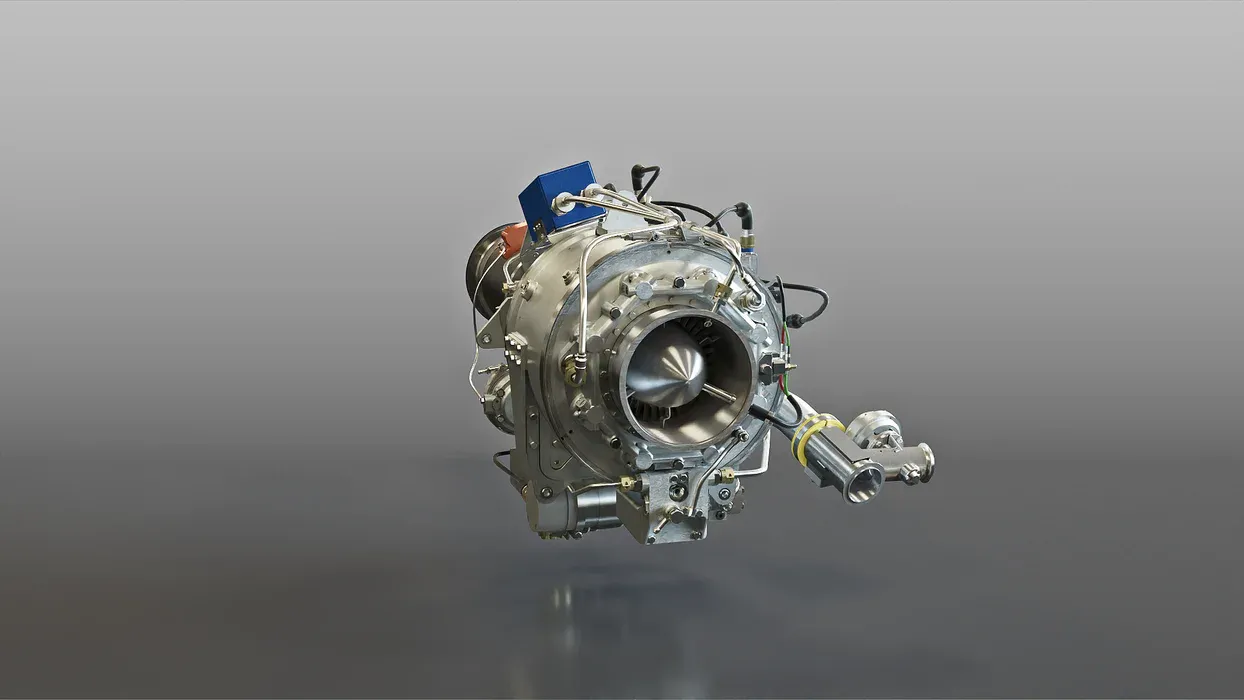

SAFIR 5K/G MIS APU

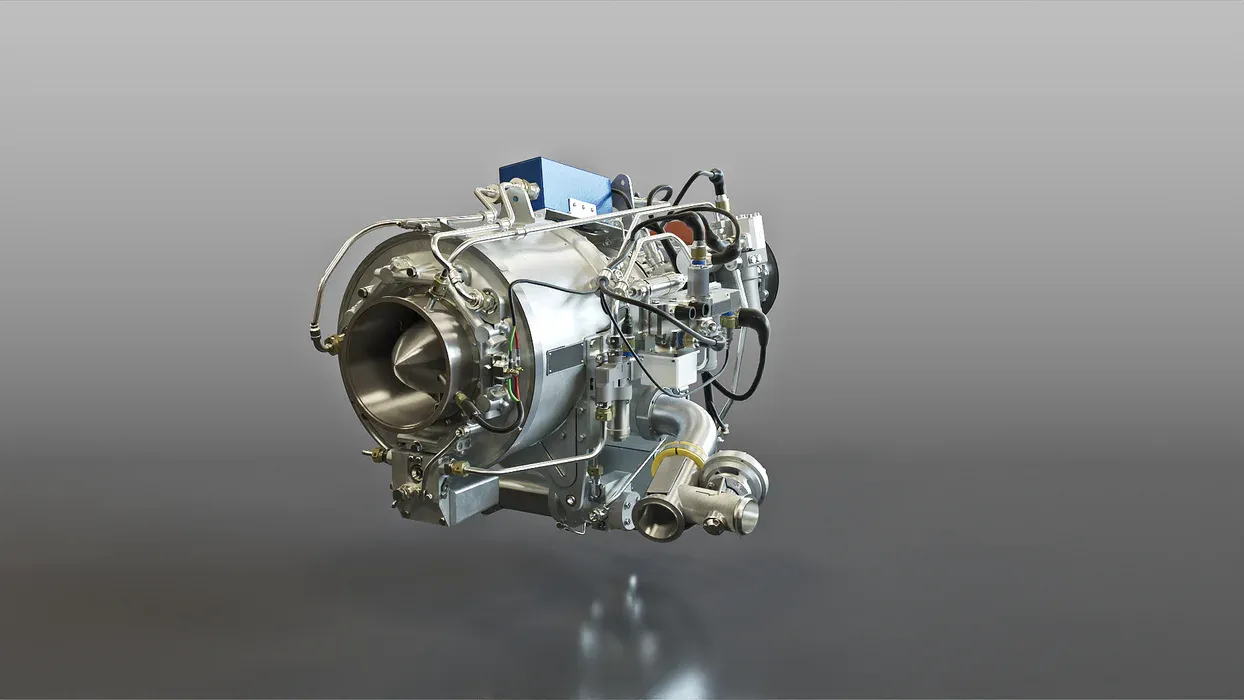

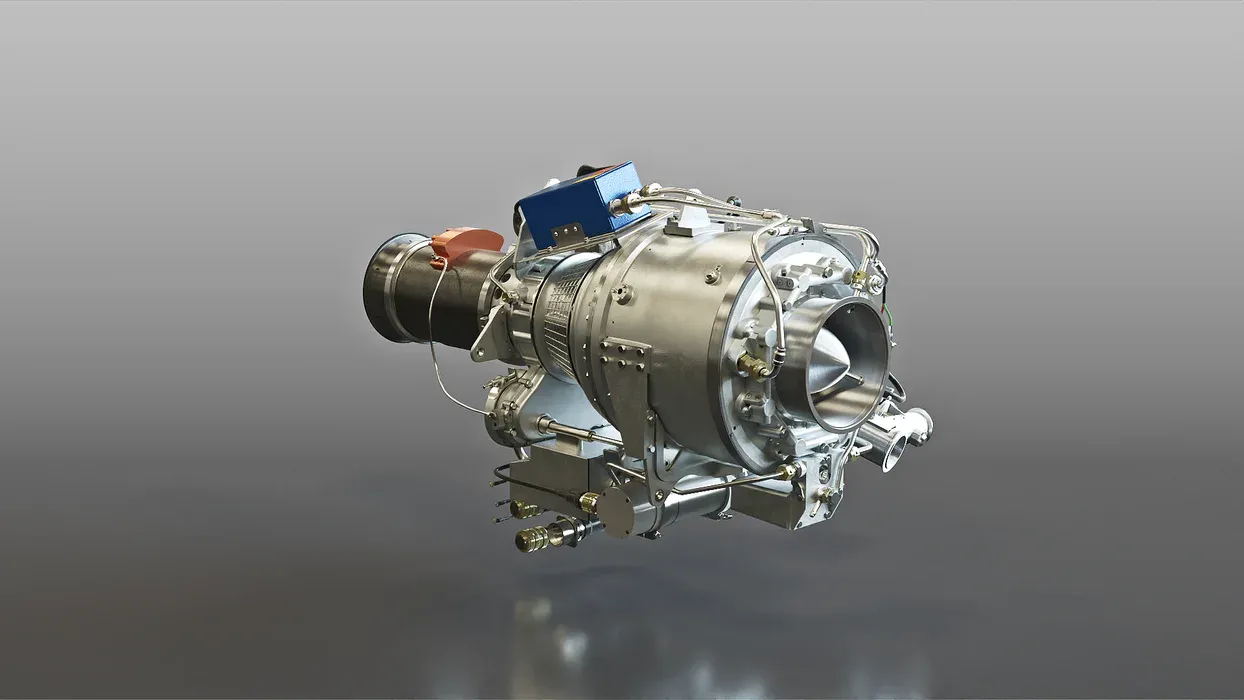

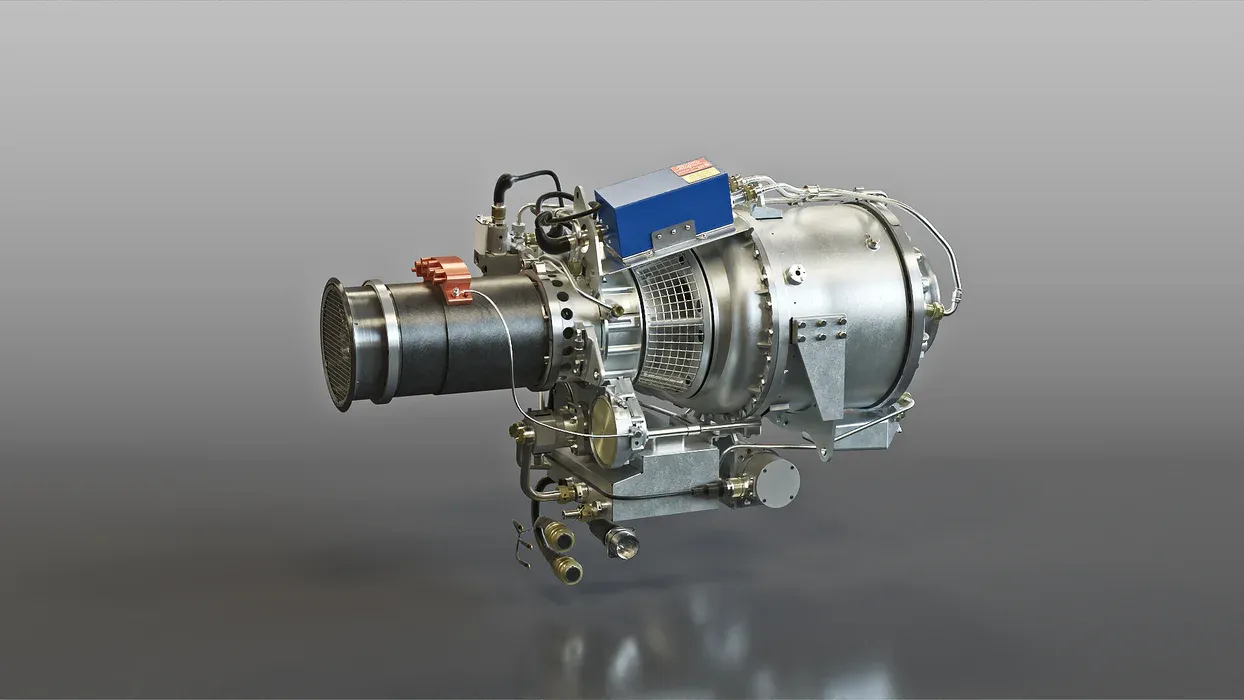

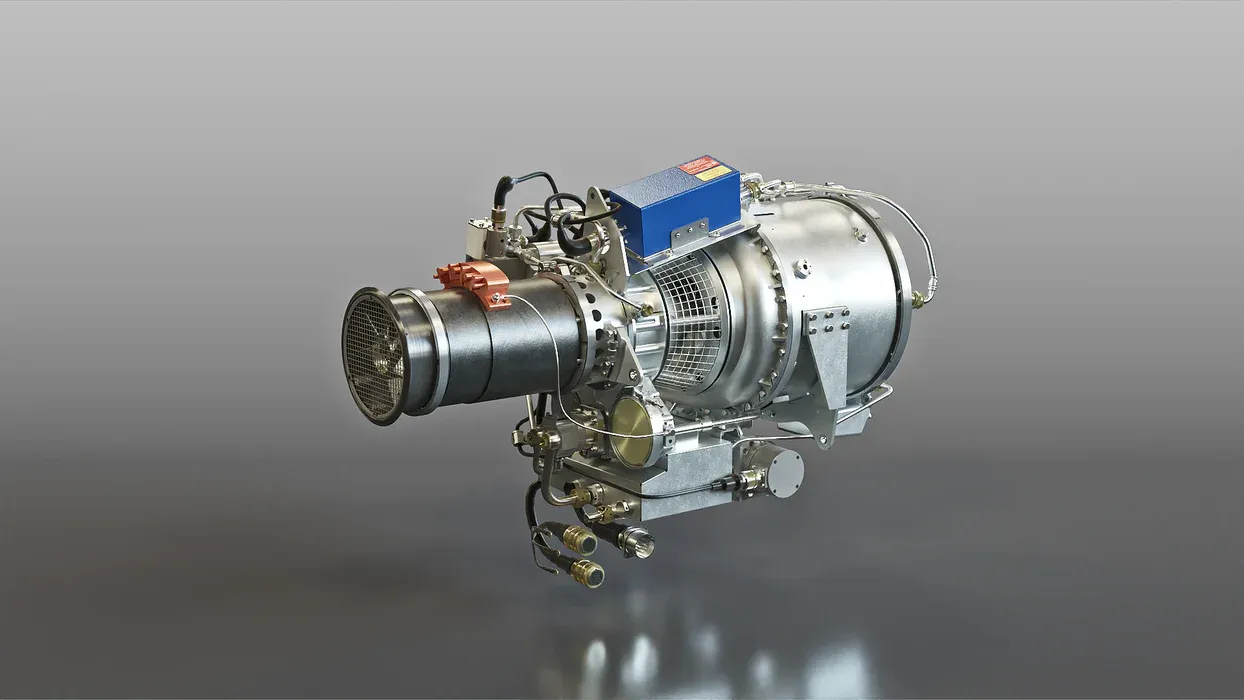

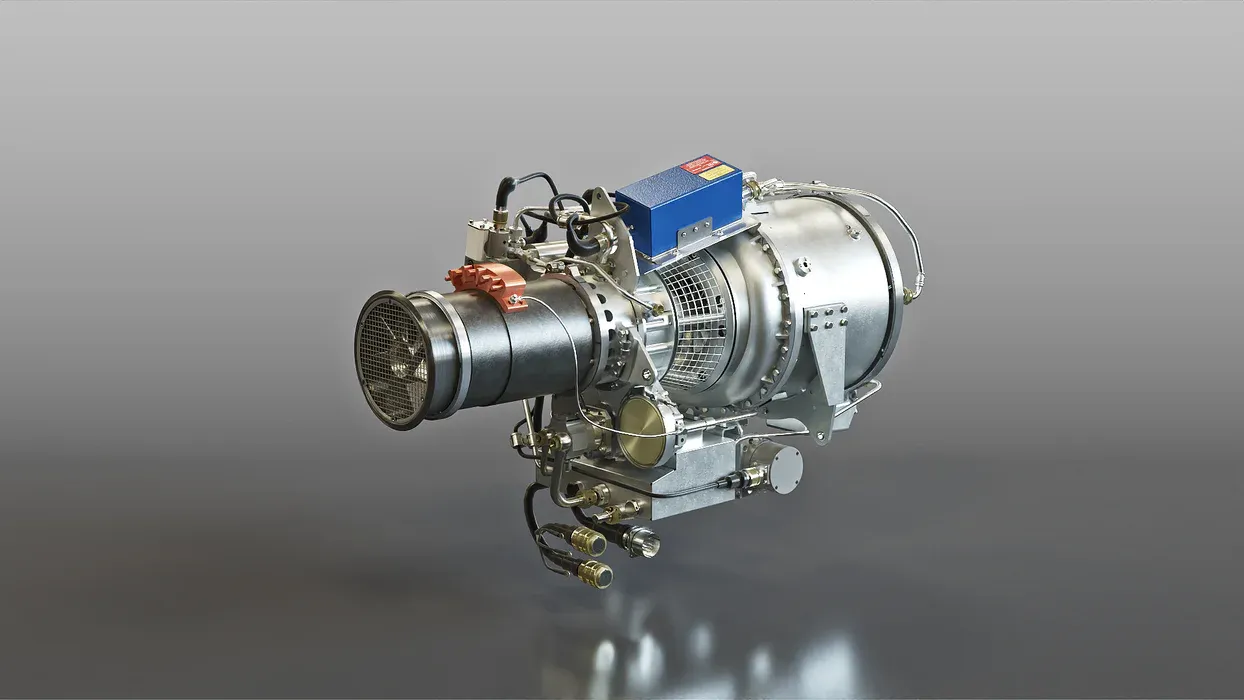

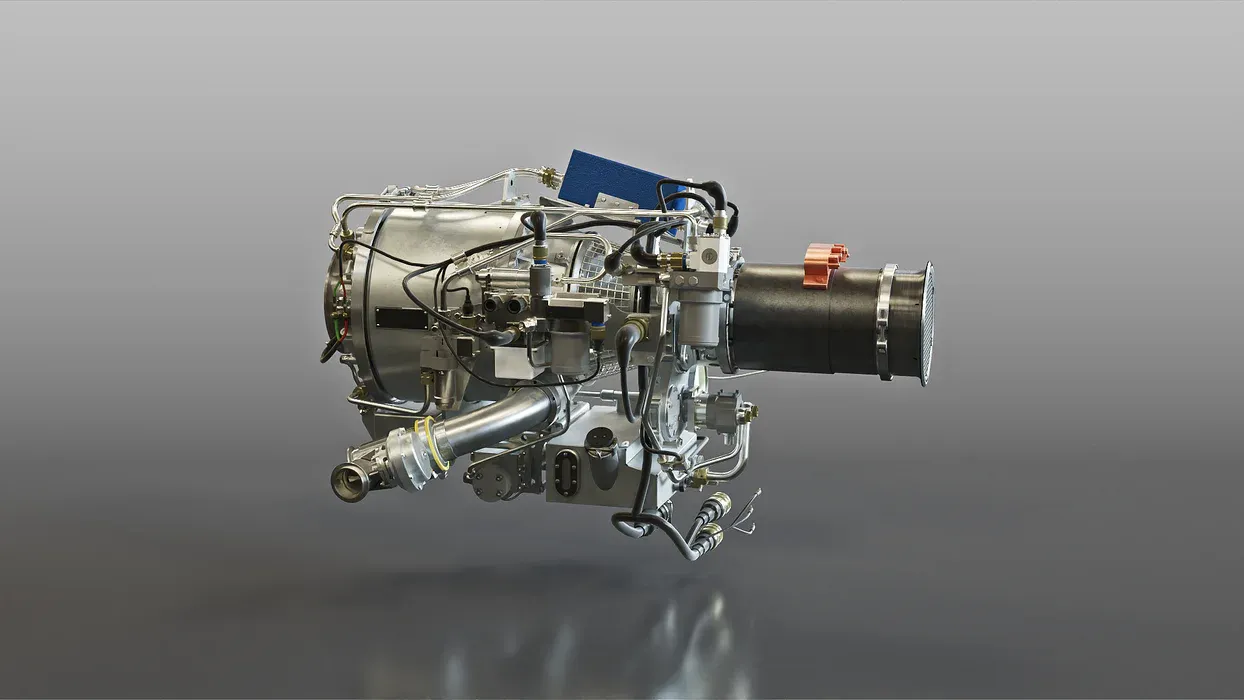

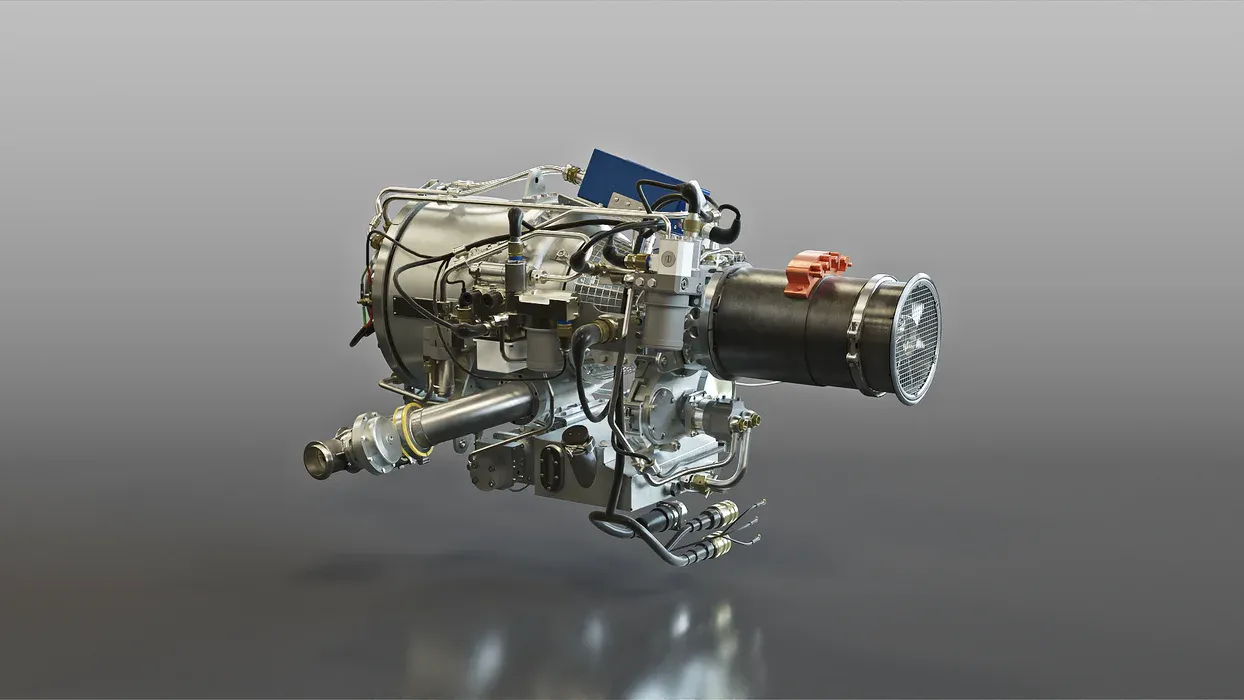

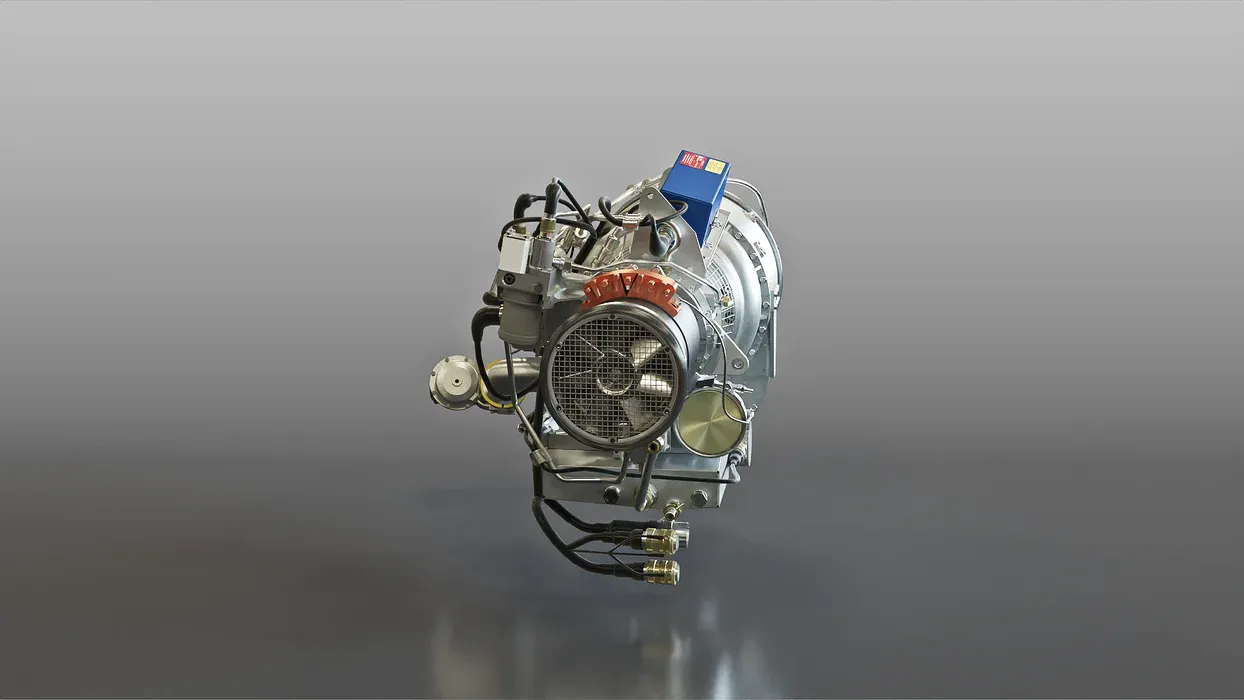

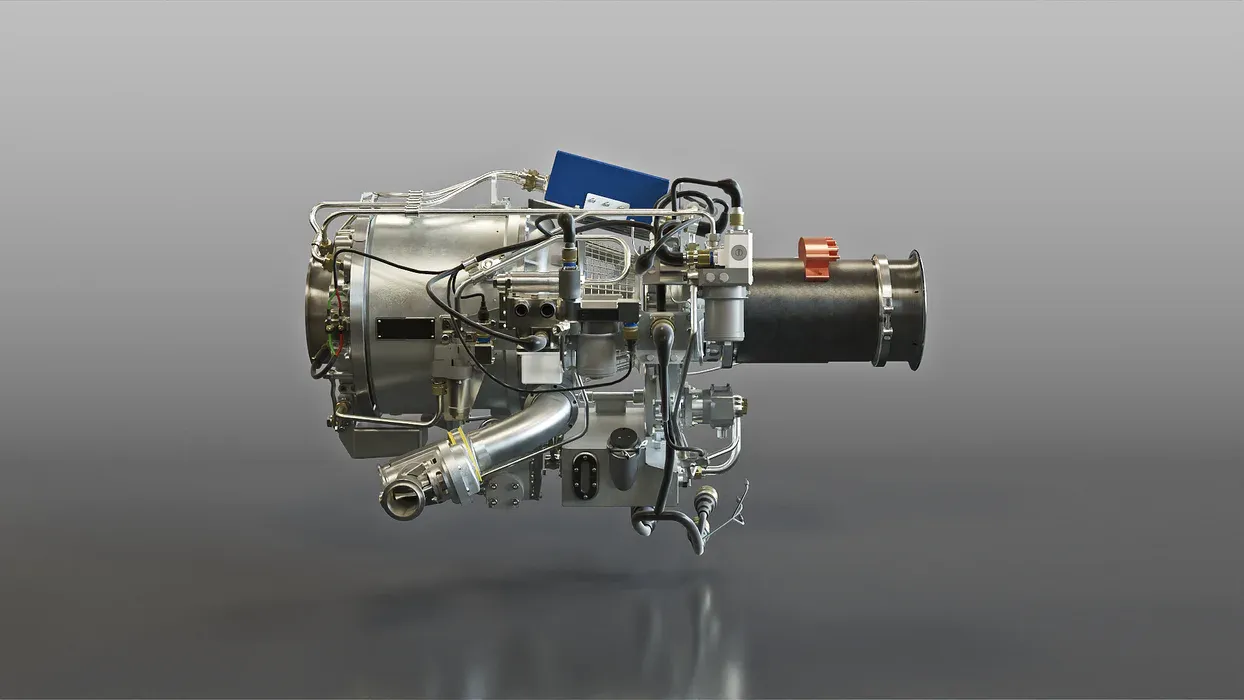

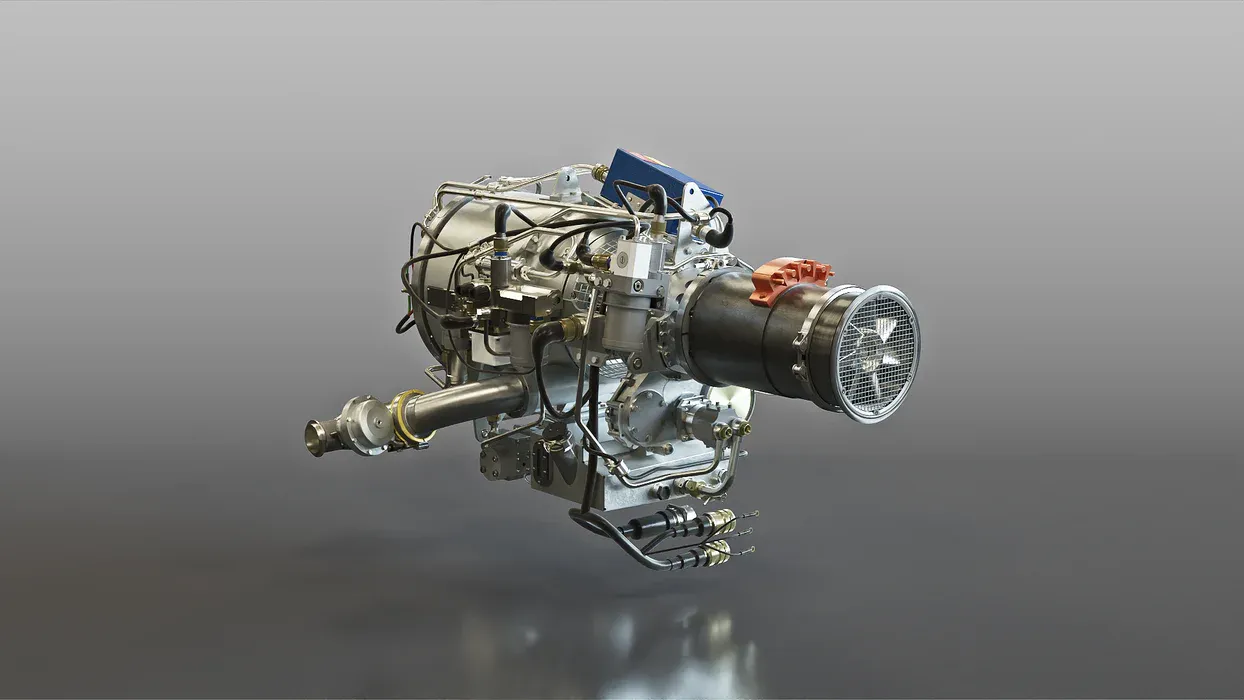

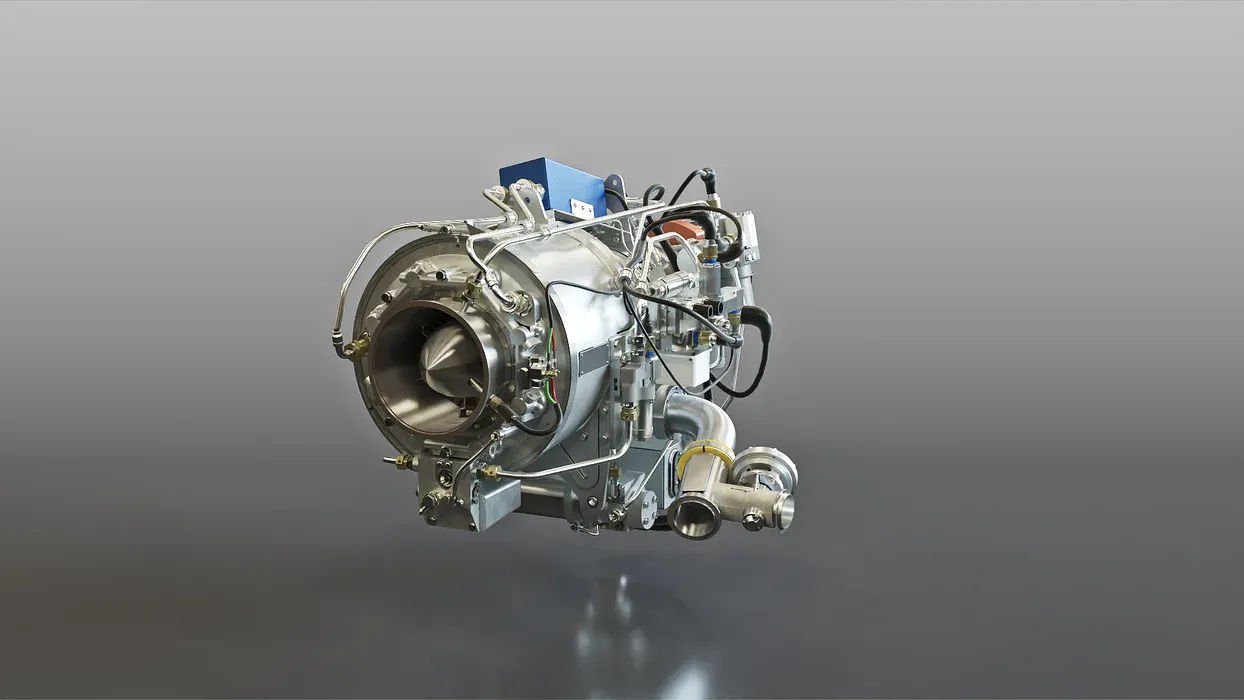

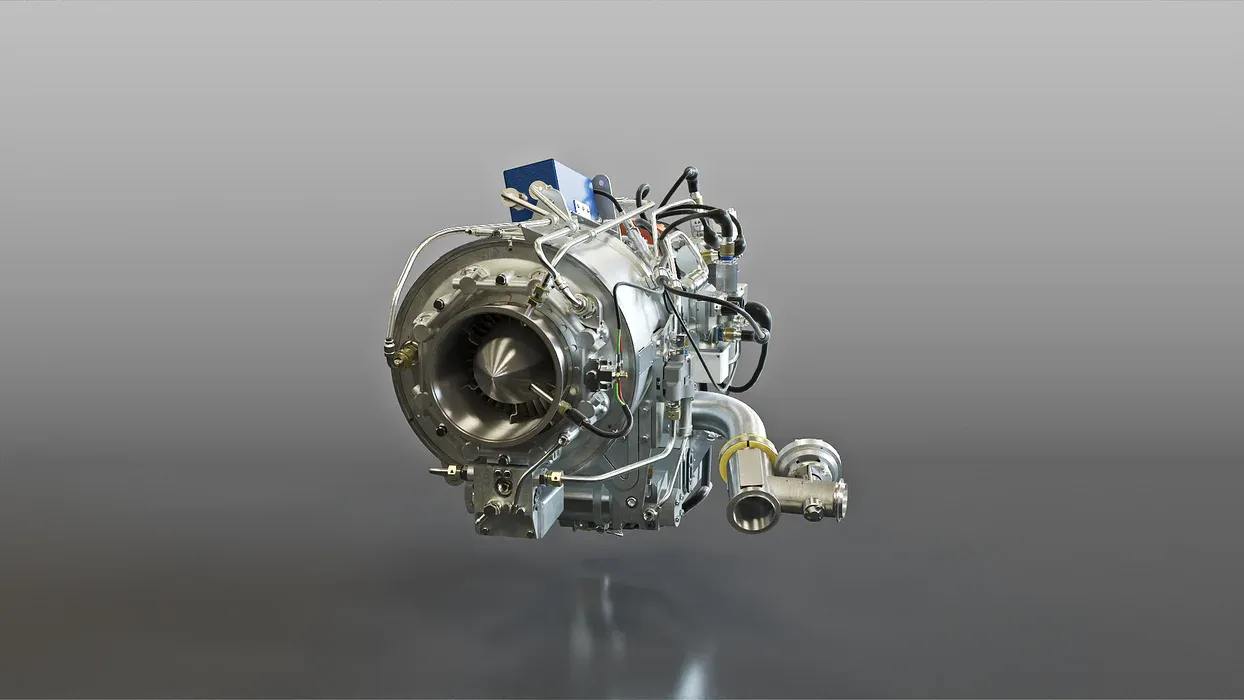

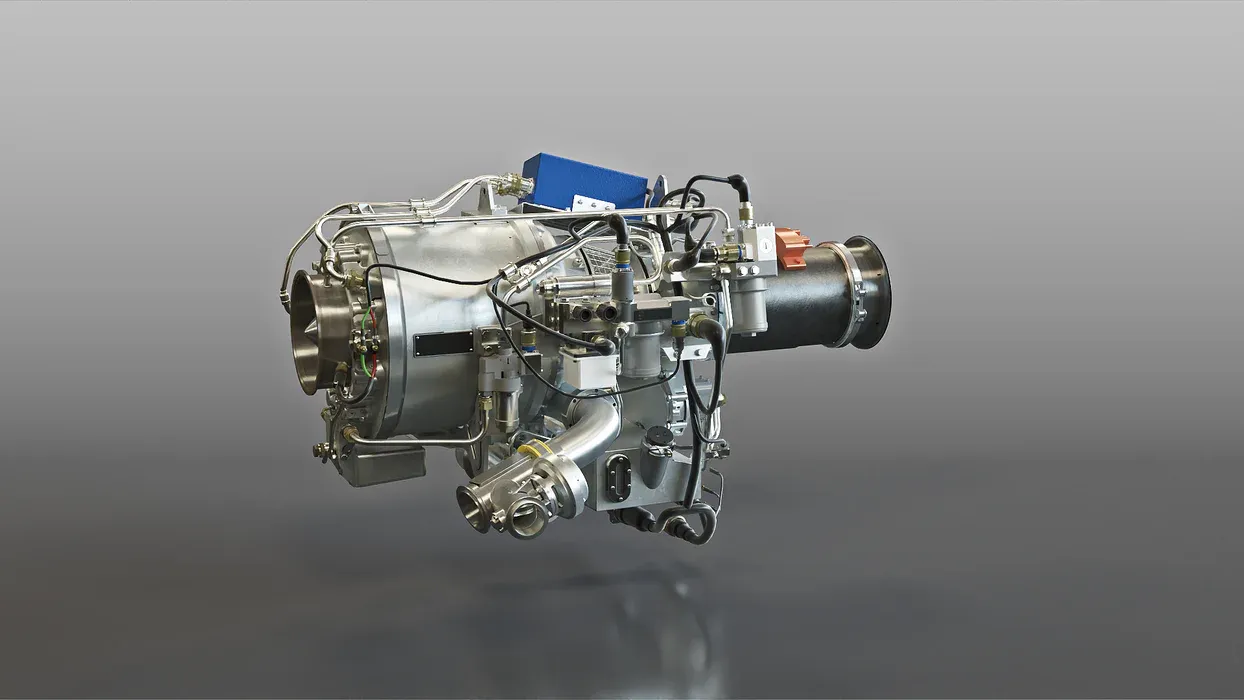

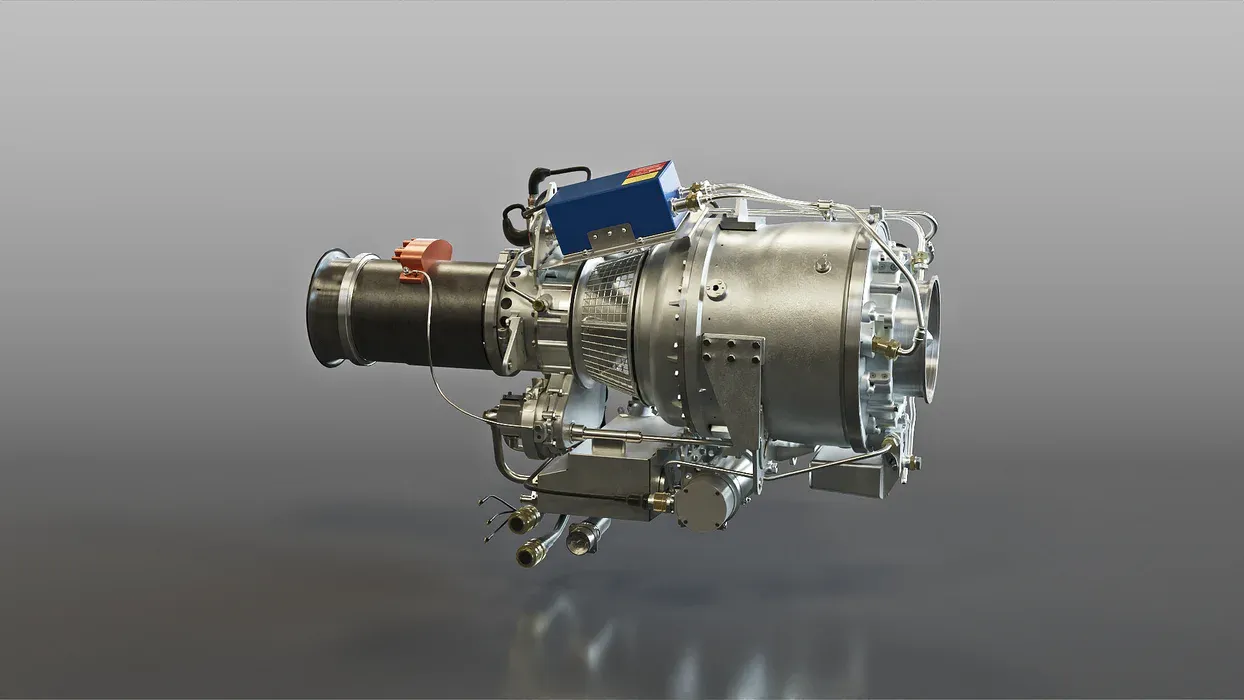

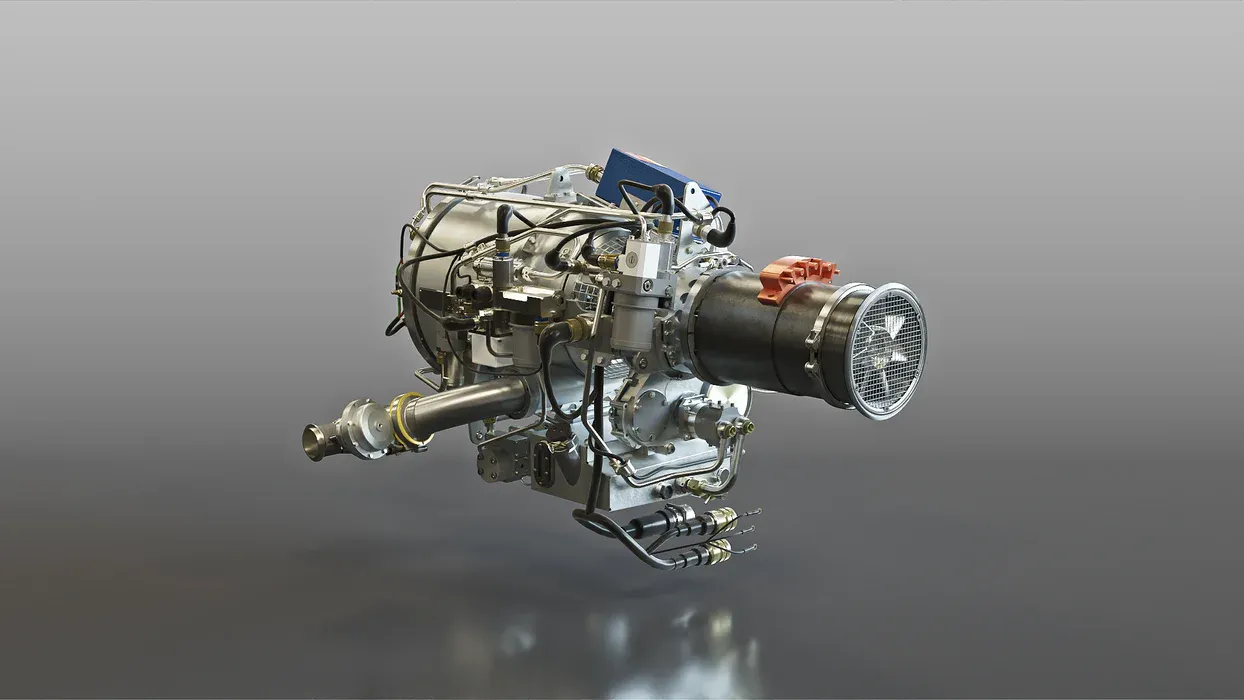

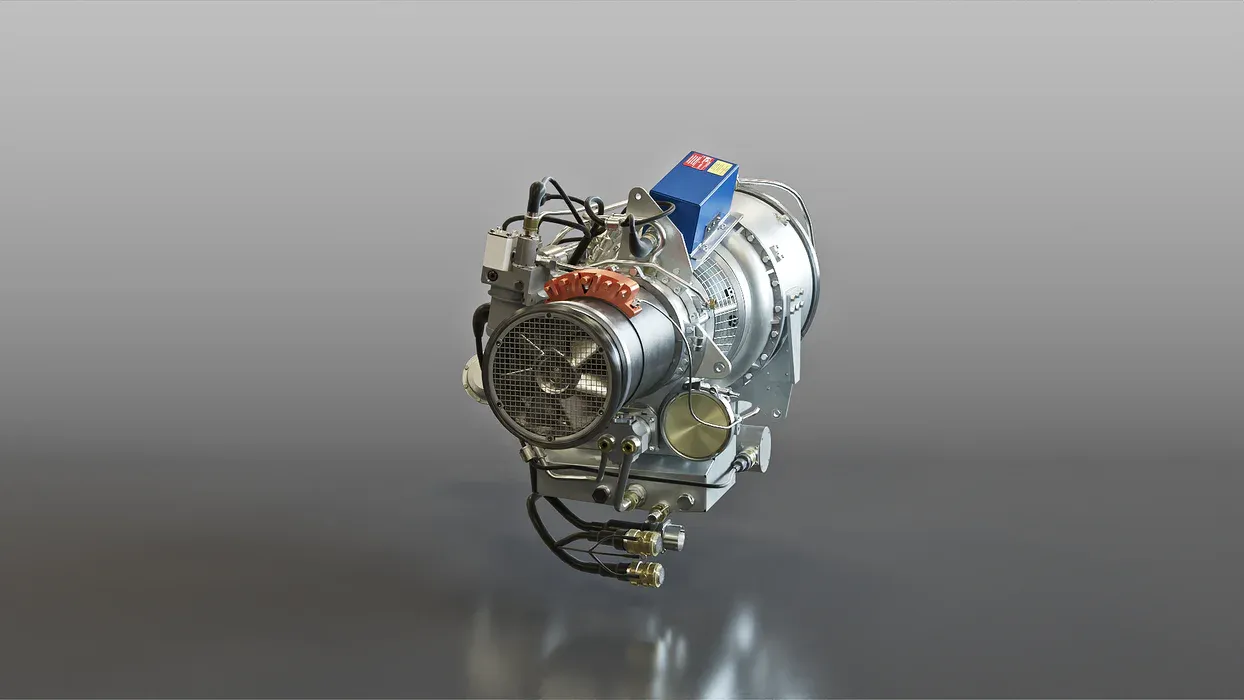

Safir 5K/G MIS is an auxiliary power unit designed to deliver compressed air for starting the main engines, and to supply DC to the deck network.

The Safir 5K/G MIS is one of PBS's most reliable Auxiliary Power Units and one of the most competitive APUs on the market. This is thanks to several favorable factors in the designing and production of this unit. The Safir 5K/G MIS distinguishes itself from our other APUs because it is the only one to supply DC voltage to the aircraft’s on-board network.

The compressed air can be used for the environmental control system. The auxiliary power unit contains all the necessary accessories for safe operation and momentary as well as long-term diagnostics of the unit. The exhaust gas temperature, revolutions and other indicators are constantly monitored. The fuel and oil filter status is also signalled. All data are recorded by the control unit equipped with a RS 422 communication interface.

This APU was certified for civil aviation by AR MAK according to AP-VD, and by EASA.

Technical parameters

Technical parameters	Metric units	Imperial units
Nominal power	6 kW	6 kW
Power supply	28 V DC	28 V DC
Max. bleed air	24 kg/min	52.9 lb/min
Weight	64.5 kg	142.2 lb
Height x width	468 x 524 mm	18,4 x 20,6 in
Length	819 mm	32,2 in
Max. altitude	6,000 m	19,700 ft

Key parameters

Simultaneous supply of electric power and compressed air
Continuous operation for 6 hours
High reliability
Purity of the air supplied to the air-conditioning system
Long service life
Easy maintenance
Ecological fuel drainage
Optimized operating fluid status signalling
Start and operation up to 6,000 m

We outcompete the competition

The Safir 5K/G MIS outperforms the competitor in every category. This APU was specifically designed in-house by expert PBS technicians to operate up to 6,000 meters of altitude and is able to run continuously for up to 6 hours.

Longer TBO times

The reliable operation of the PBS Safir 5K/G MIS auxiliary power unit allows for the progressive extention of the TBO (Time Between Overhaul) period, meaning a longer, more efficient life for the unit.

Service, spare parts and overhauls of aerospace technology

We provide service of the highest quality for all users of our aerospace technology products.

We have long been working to extend the service life of our products, e.g. by introducing new technologies to produce the most exposed parts. Our turbine-based aircraft equipment regularly receives very good references.
