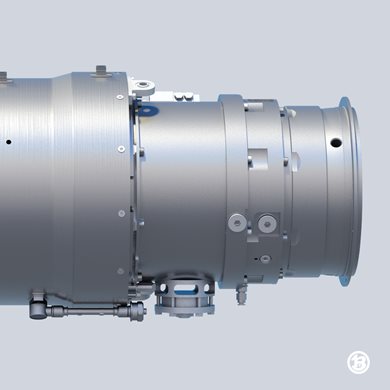

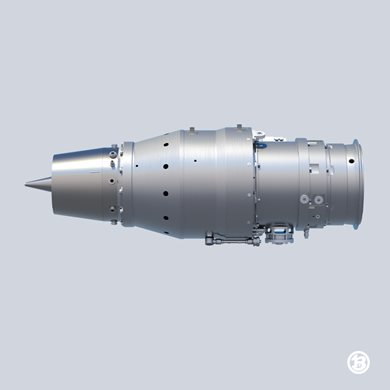

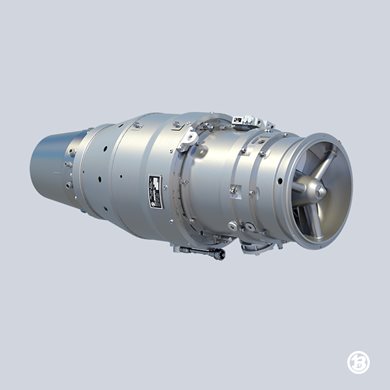

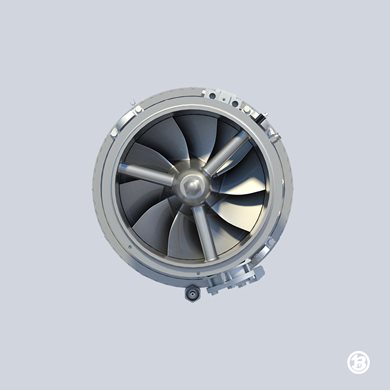

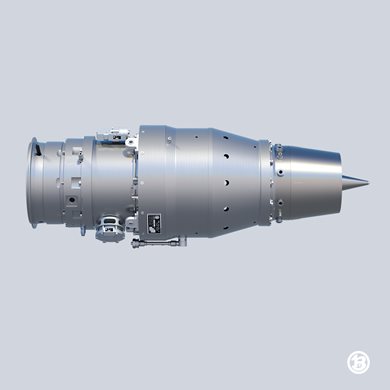

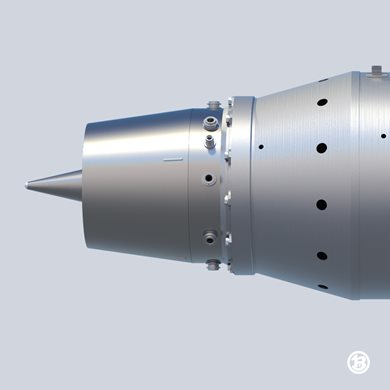

Turbine engine PBS TJ200

The PBS TJ200 turbojet engine has been developed for unmanned aerial vehicles (UAV & UCAV) and defence applications. With a thrust of up to 2,280 N, it will be the most powerful engine of the PBS jet engine portfolio.

Technical parameters

Basic technical parameters	Metric	Imperial
Max. thrust	2,280 N	512.54 Ibf
Weight	28 kg	61.73 lb
Outer diameter	246 mm	9.68 in
Length	730 mm	28.74 in
Max. altitude	10,000 m	32,808 ft
Max. speed	0.95 M	0.95 M
Electrical Power output	4.0 kW	4.0 kW

Description

The PBS TJ200 is designed primarily as a propulsion unit for modern UAV and UCAV systems and defence applications. It is an engine with small installation dimensions and a small frontal diameter, fuel lubricated, and equipped with a BLDC starter-generator, electric metering fuel pump, and electronic control system of FADEC type.

The device will be the most powerful engine in our family. Its advantages will be compact size, excellent thrust-to-weight ratio, and low fuel consumption in its category.

One of the versions of this power unit will be equipped with pyrotechnic ignition which will expand the in-flight start envelope up to 0.8 M, extending the engine's application to high-altitude air-launched defence systems.

The development programme for the new engine is well underway and we expect the engine to enter the testing phase later this year.

The final version of the engine is going to be available in 2024.

Key features

Pyrotechnic ignition

Engine start in seconds

Variability

Customization according to customer's needs (hinges, length of exit nozzle, possibility of landing on water)

Variants

Variant with standard or pyrotechnic ignition

Subsystems

Integrated starter-generator allows reliable starting and power supply to the on-board subsystems

Performance

Excellent weight-to-thrust ratio

Application

The PBS TJ200 engine has been designed with using of the latest technology and materials to deliver exceptional performance in the most demanding operating conditions.

One of its key features is versatility and compatibility. We have designed the PBS TJ200 to be easily installed into a wide range of missile defence platforms and unmanned aerial vehicles.

The engine is also ideal for aerial targets. Its design and materials allow it to be reused after landing in salt water.
With all these parameters, the PBS TJ200 offers unprecedented compatibility across applications. Its use guarantees maximum efficiency of operations while reducing logistical challenges.

Service, spare parts and overhauls of aerospace technology

We provide service of the highest quality for all users of our aerospace technology products.

We have long been working to extend the service life of our products, e.g. by introducing new technologies to produce the most exposed parts. Our turbine-based aircraft equipment regularly receives very good references.
