ECS-M1V

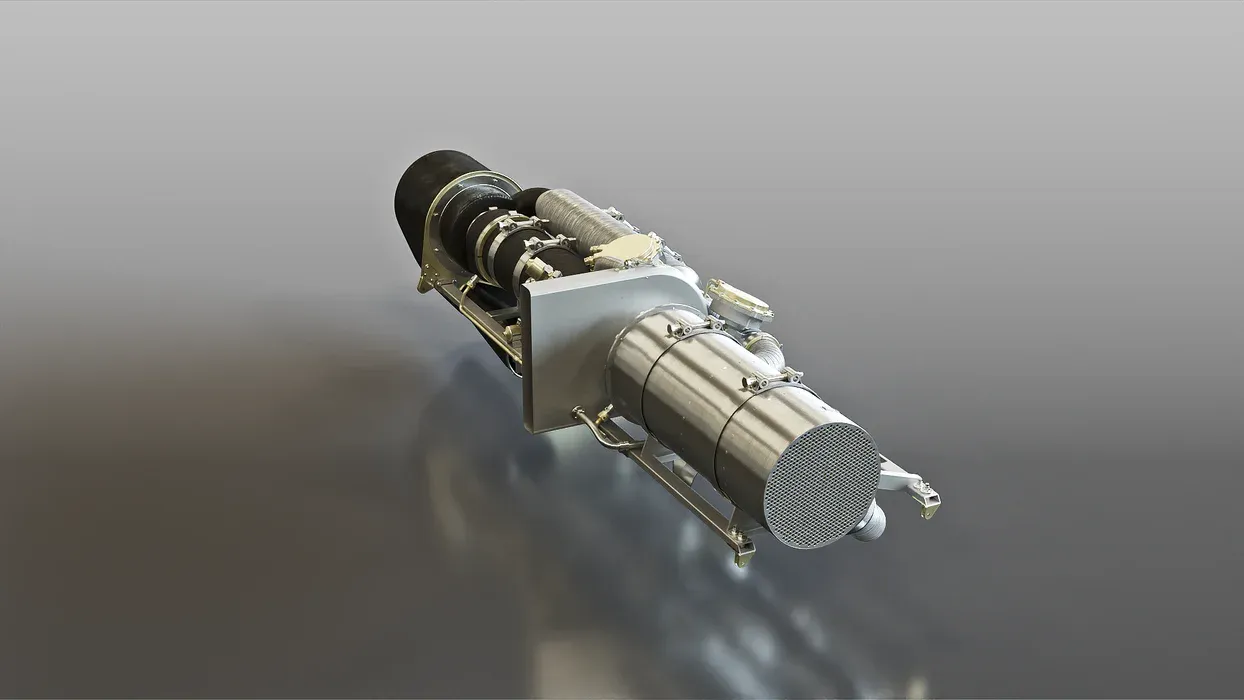

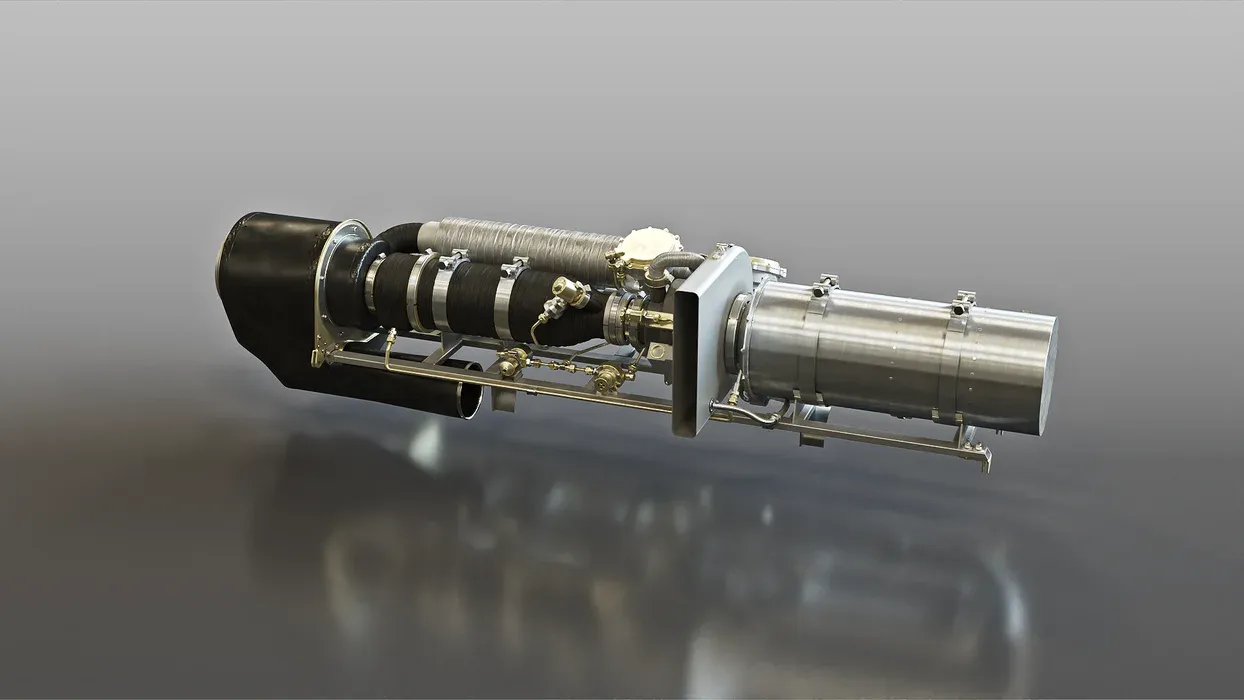

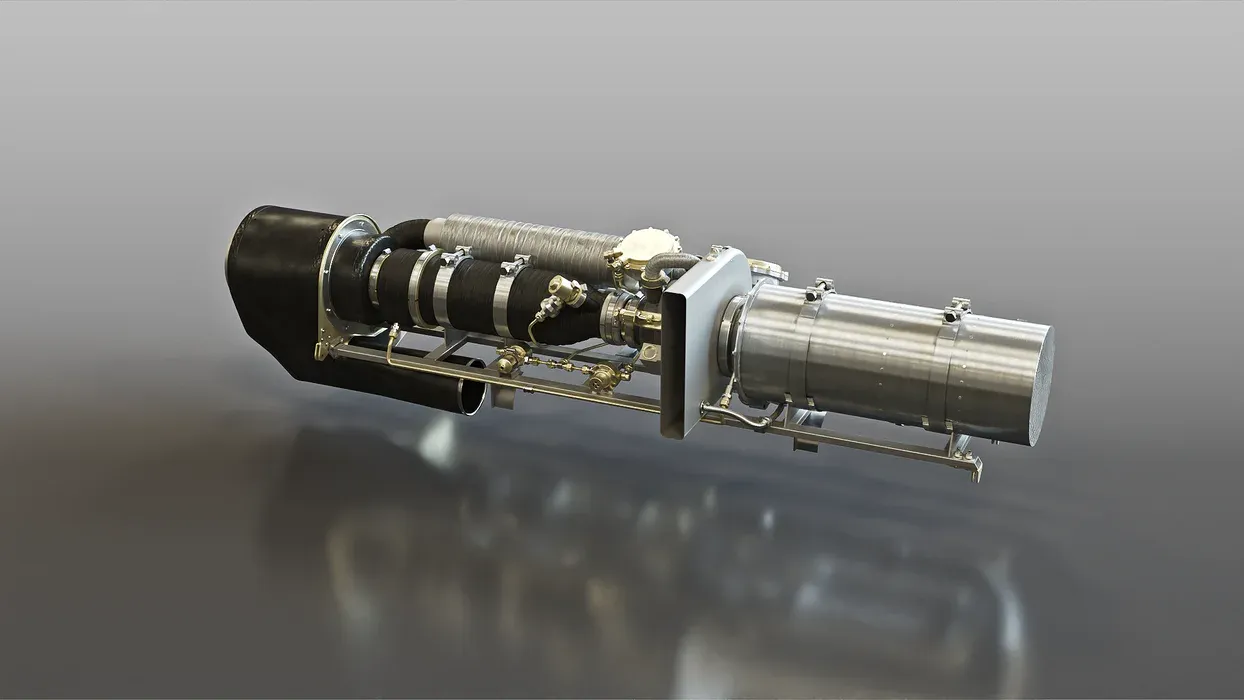

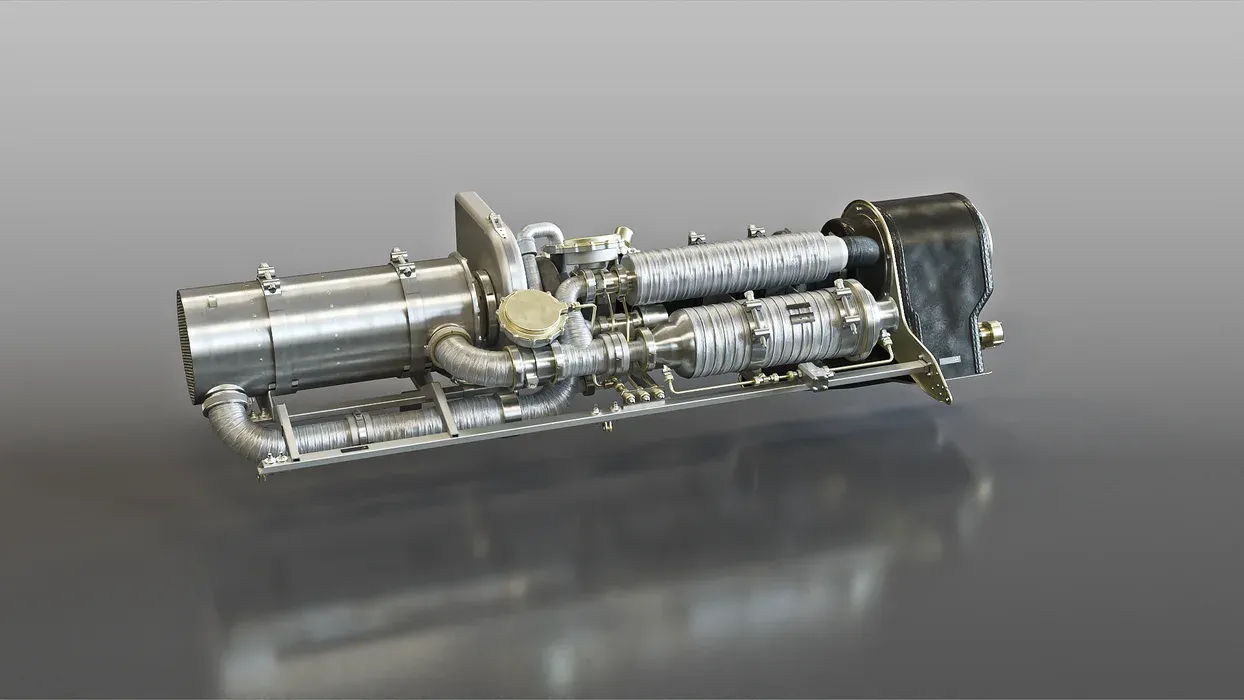

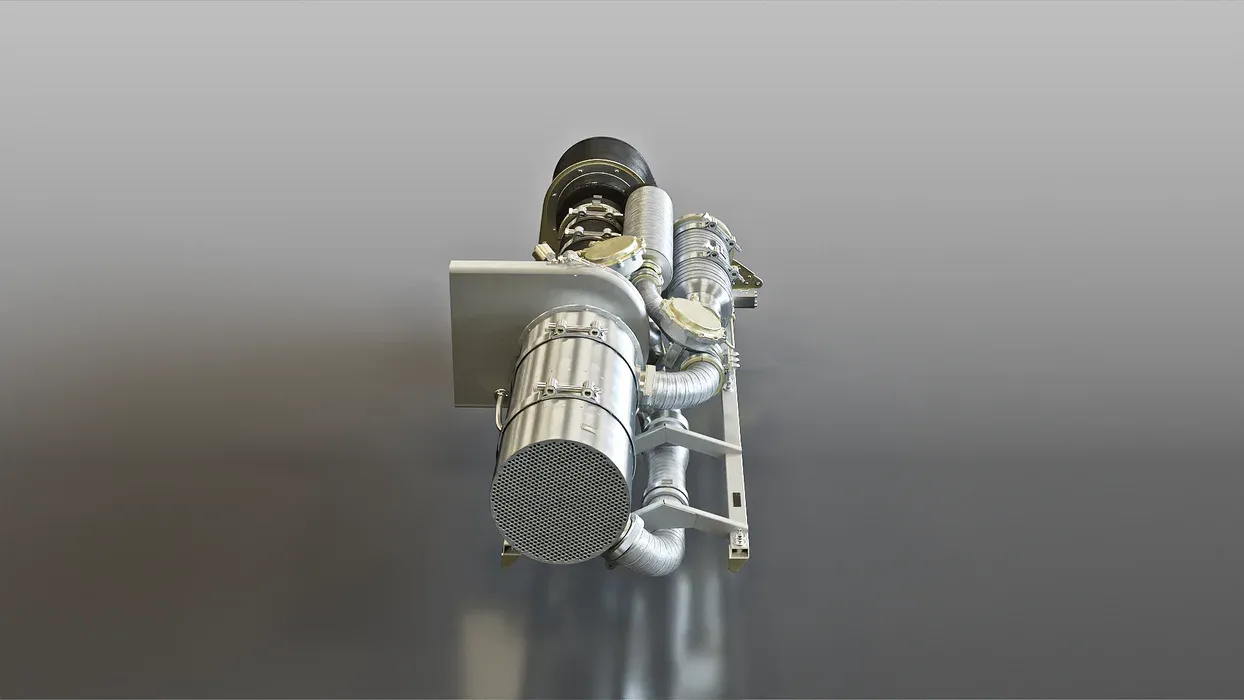

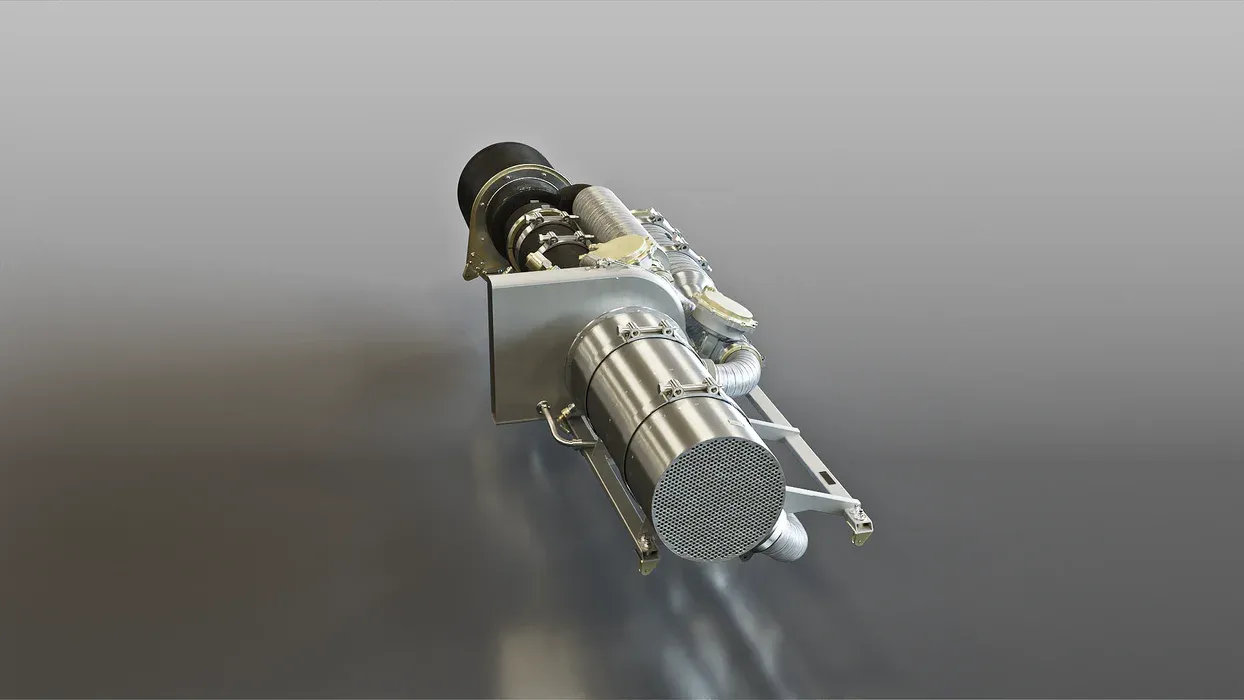

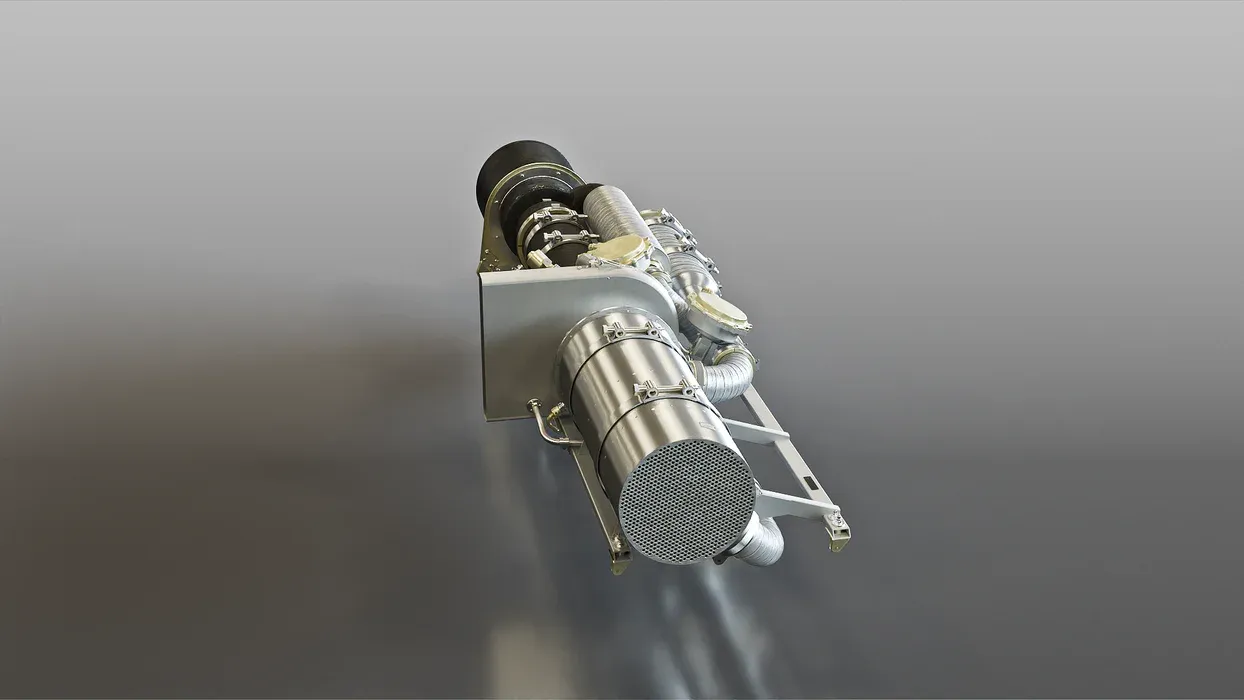

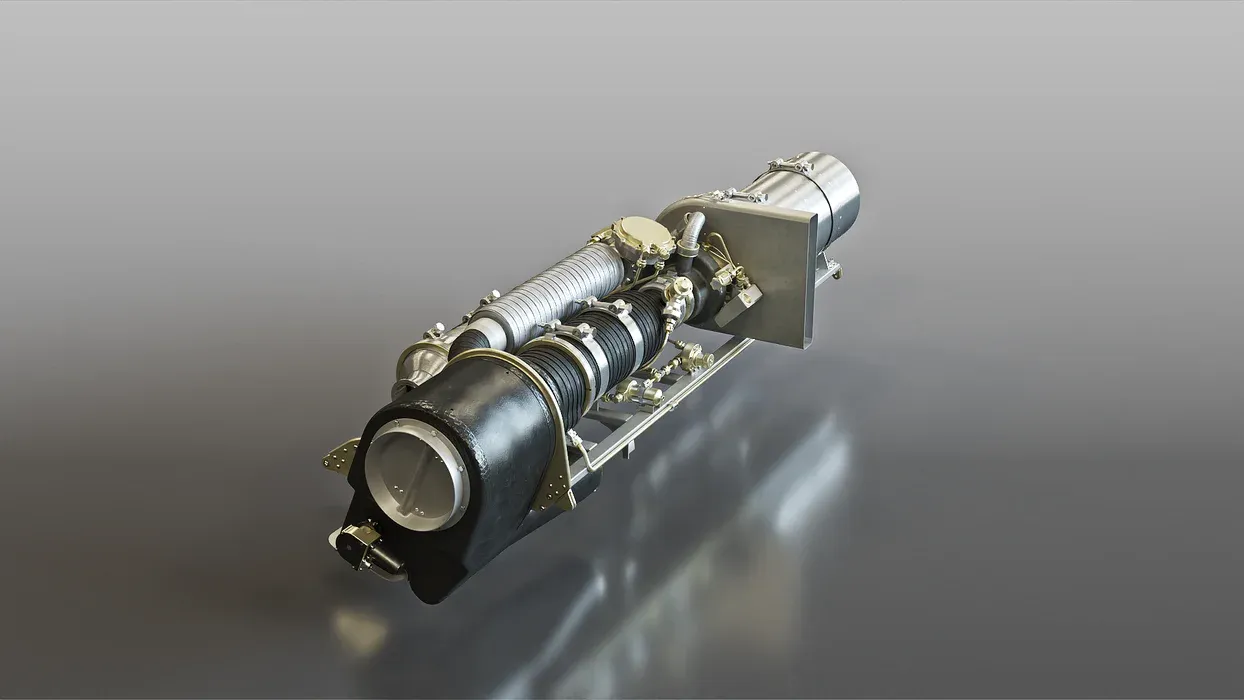

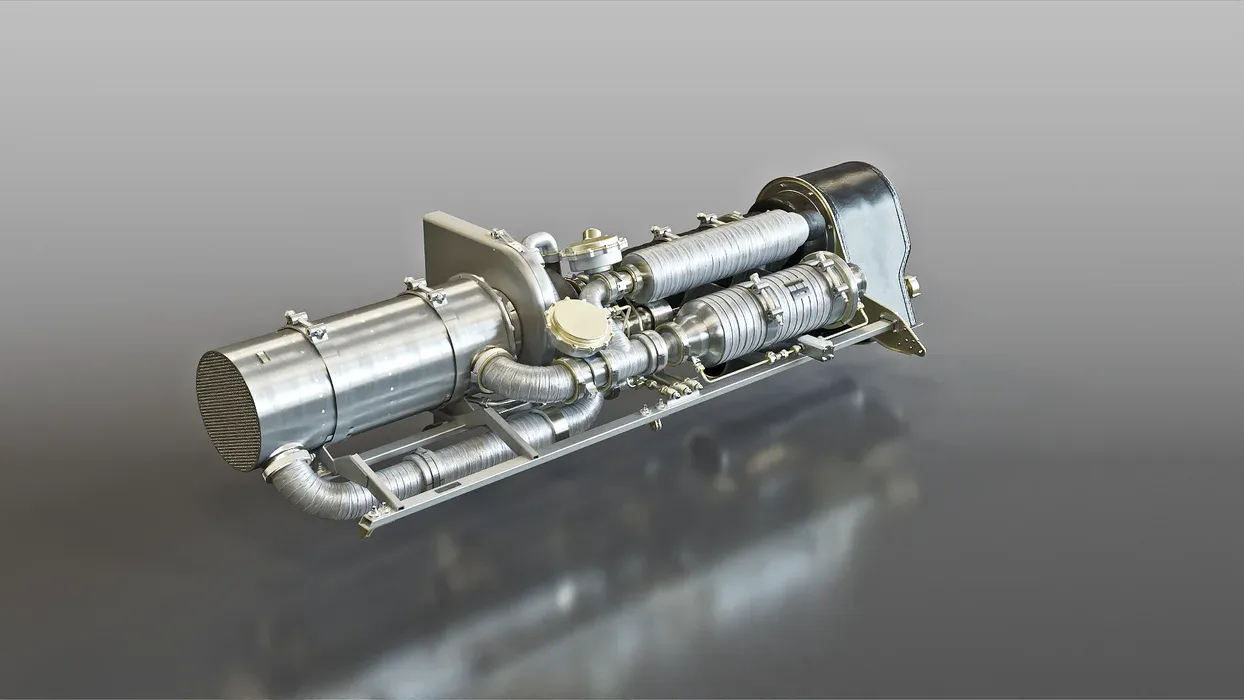

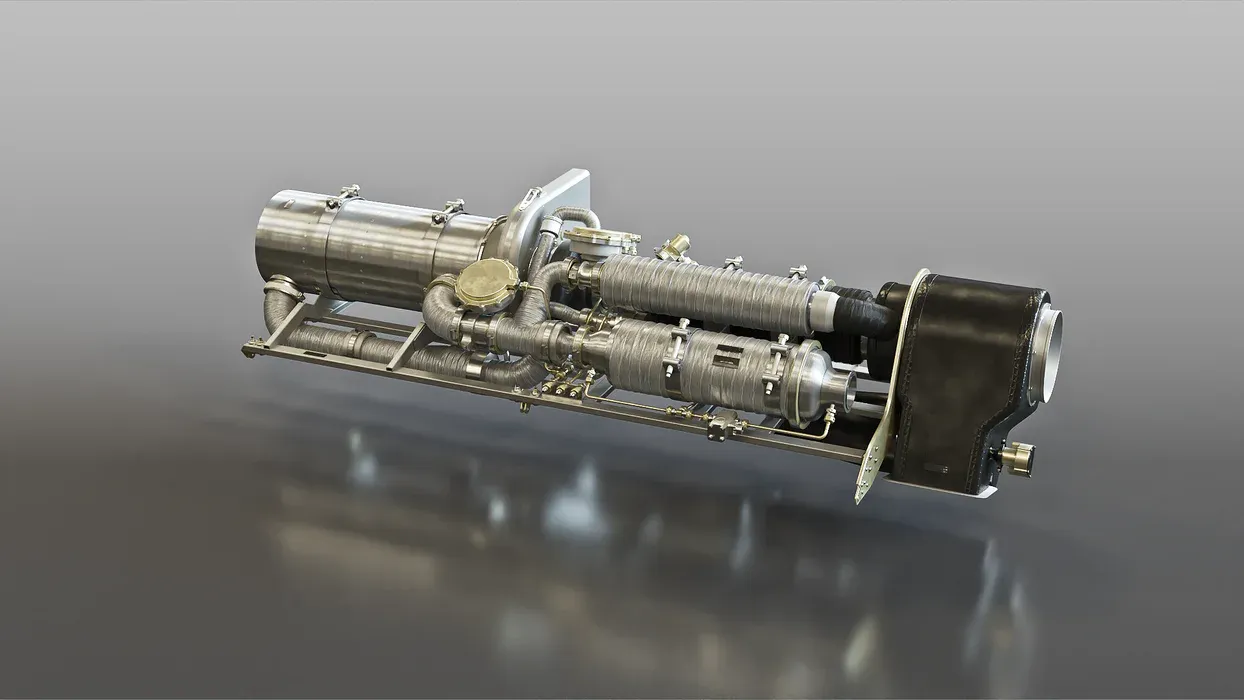

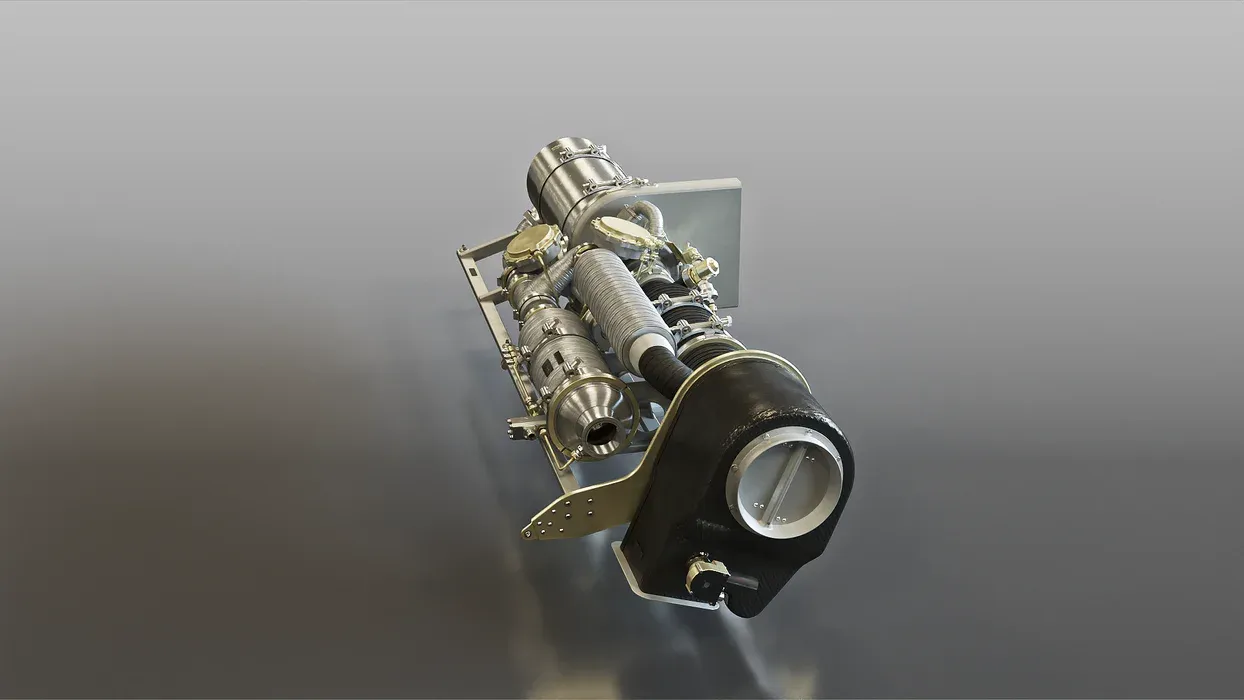

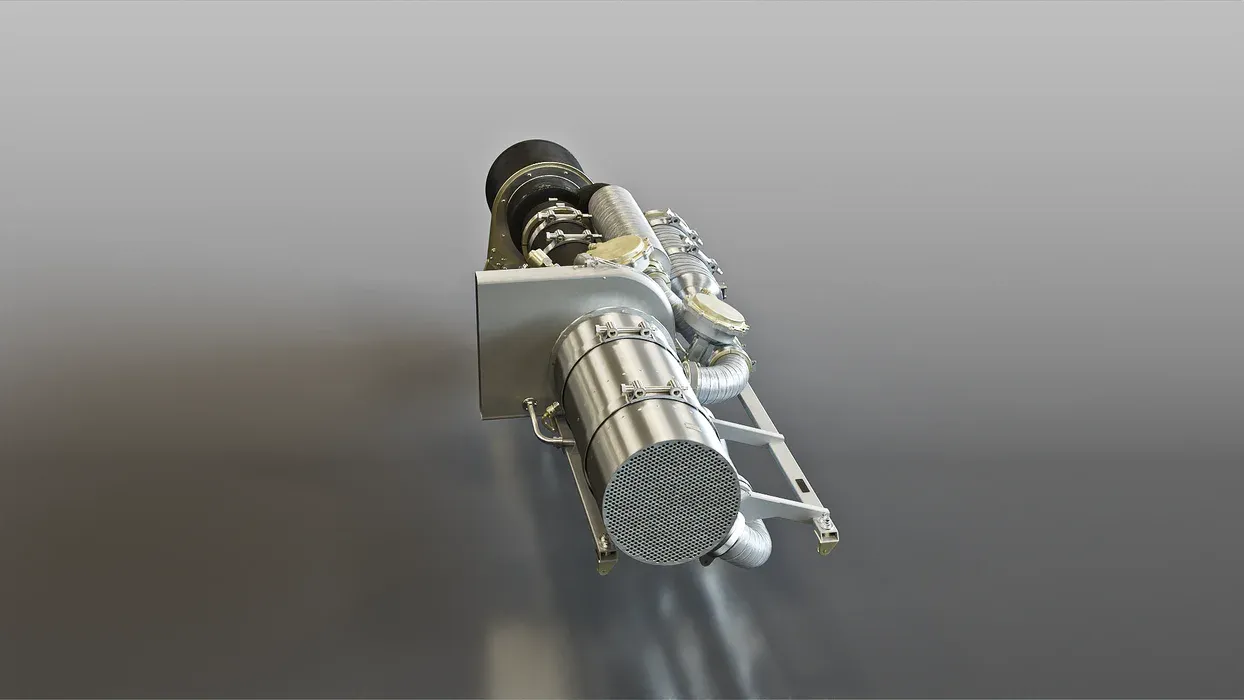

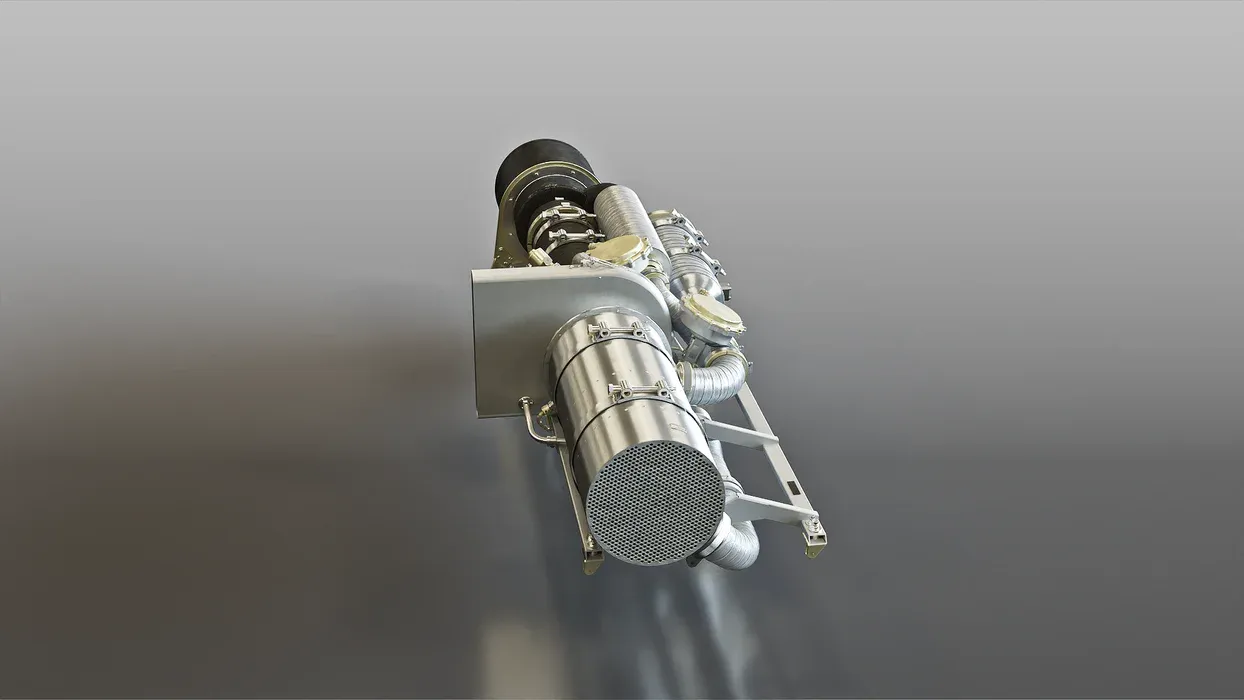

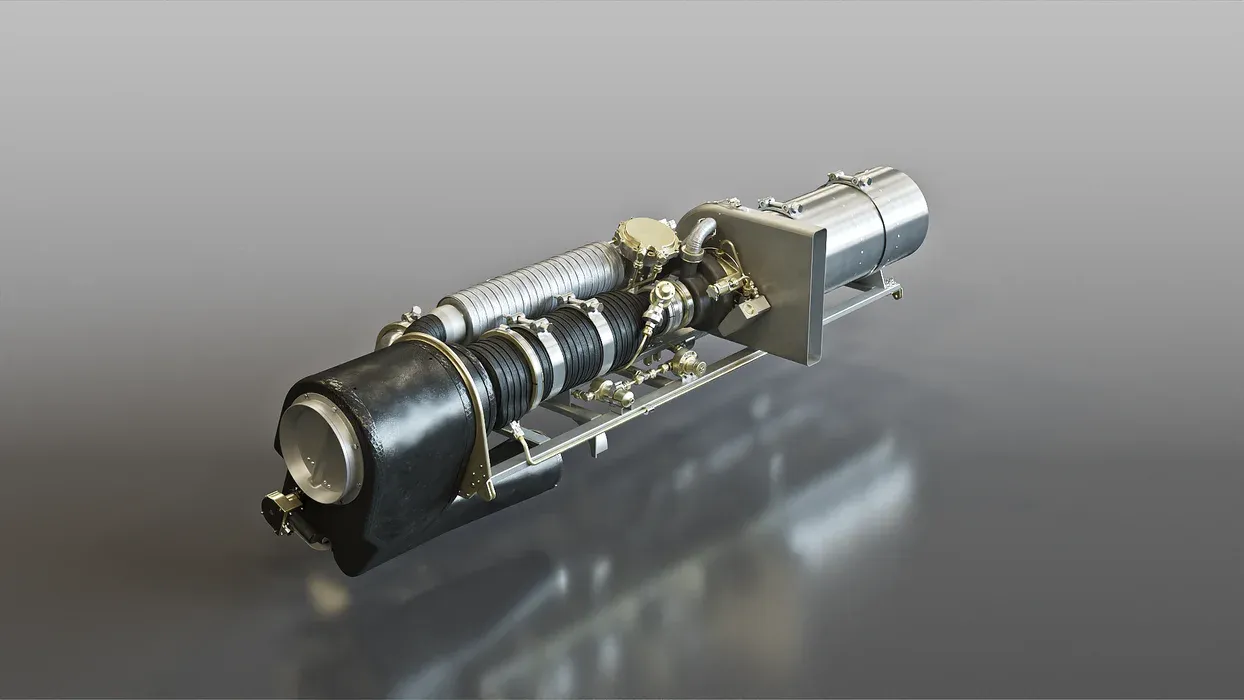

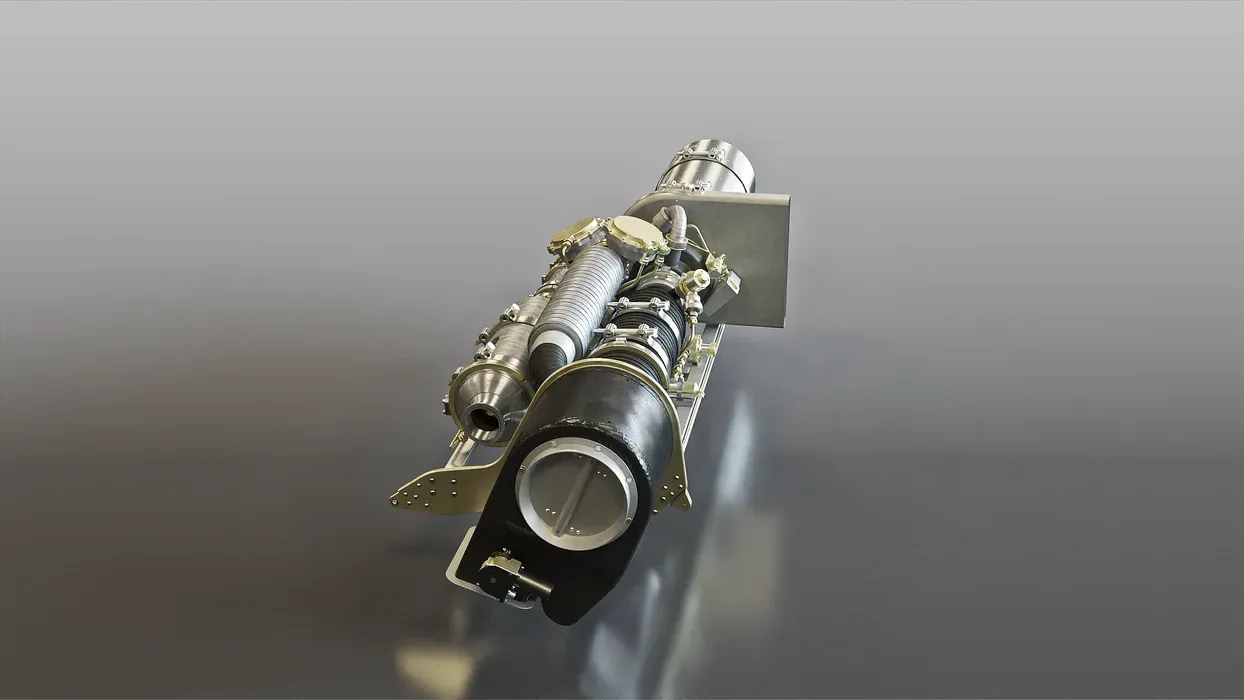

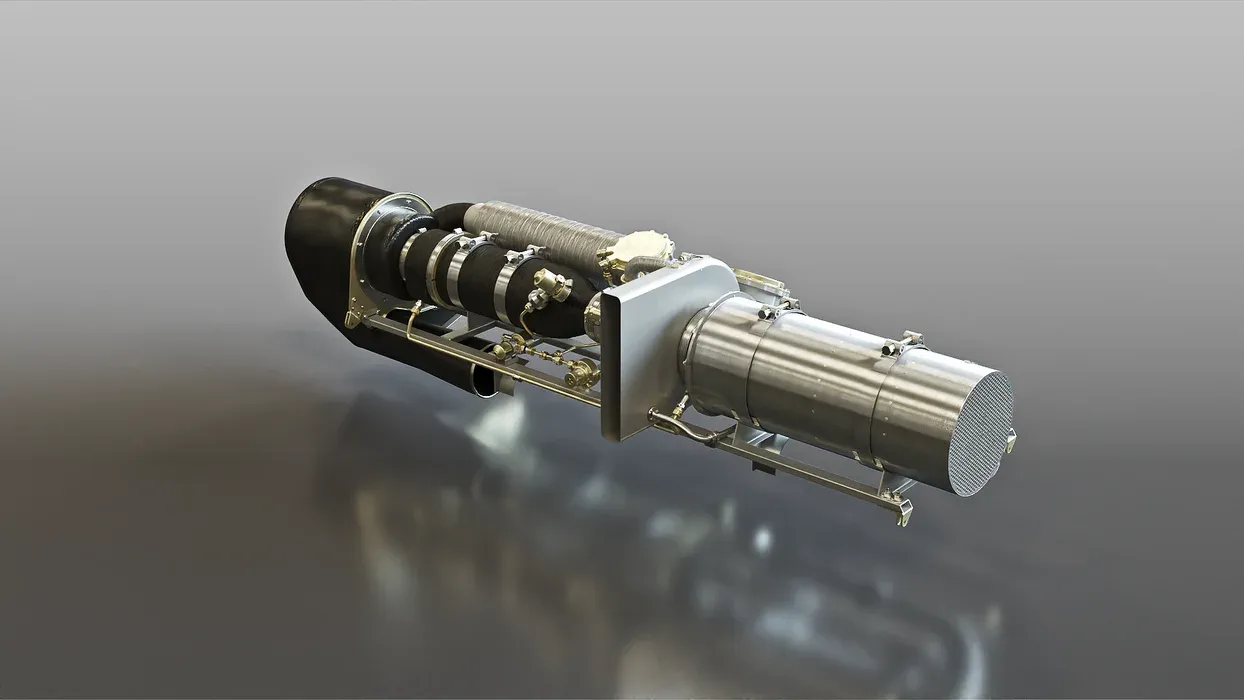

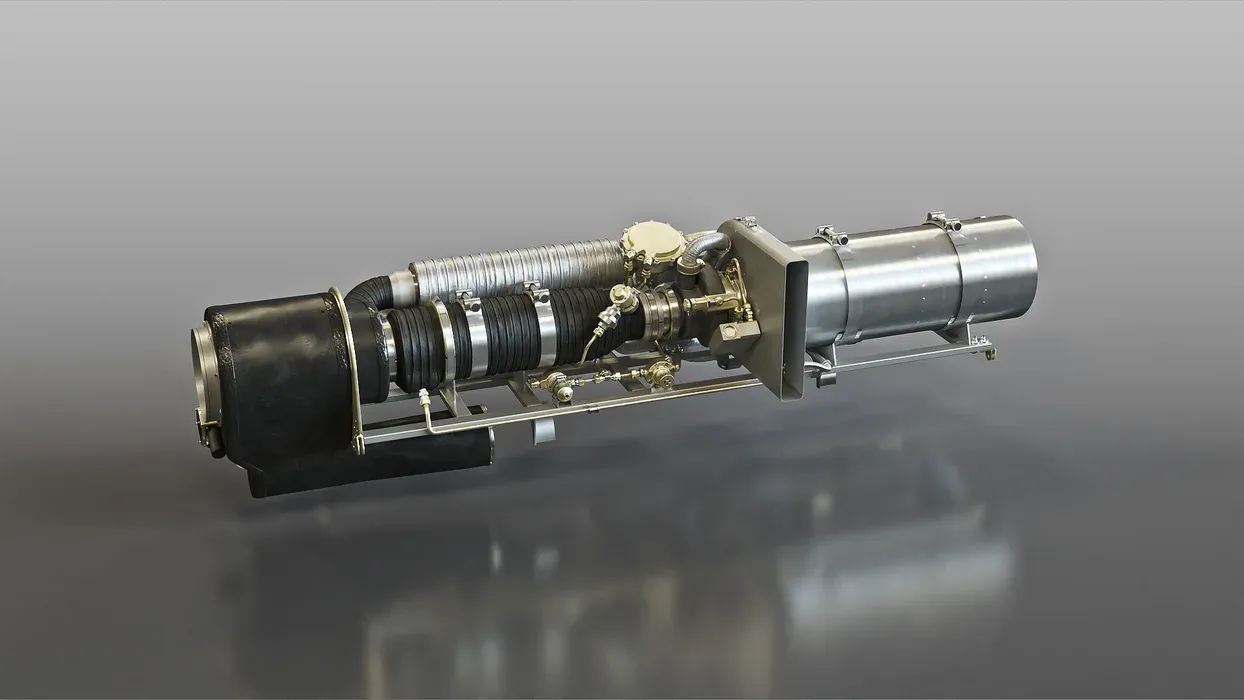

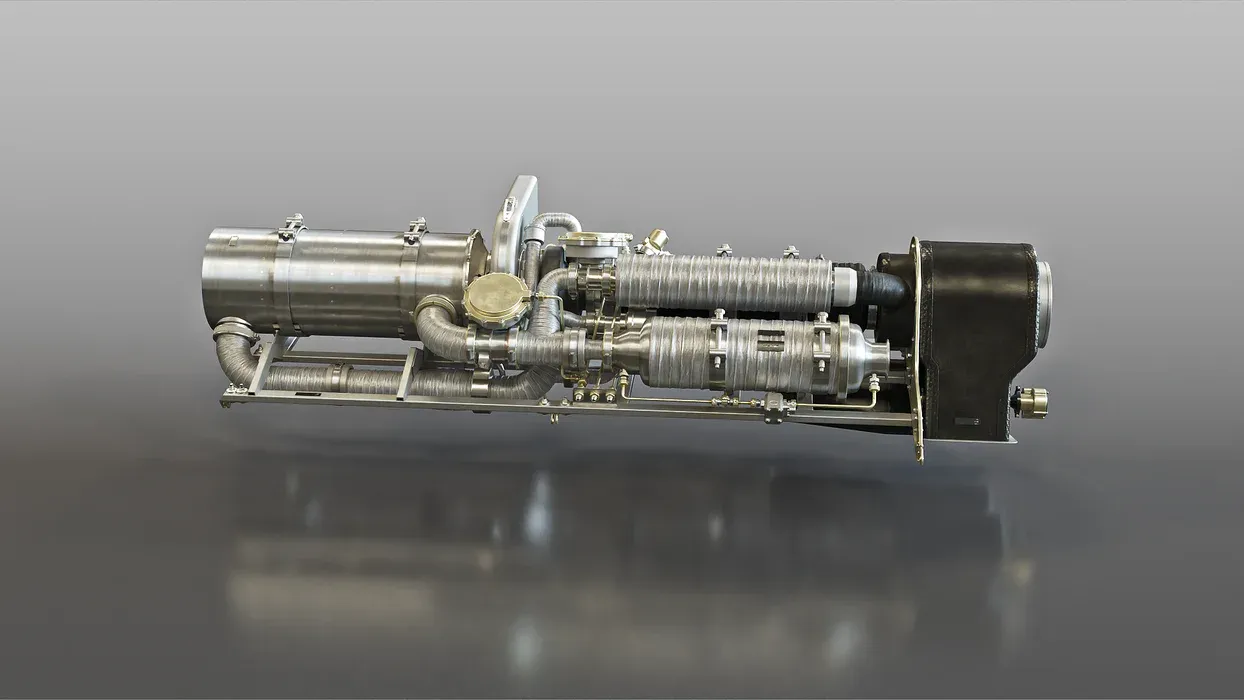

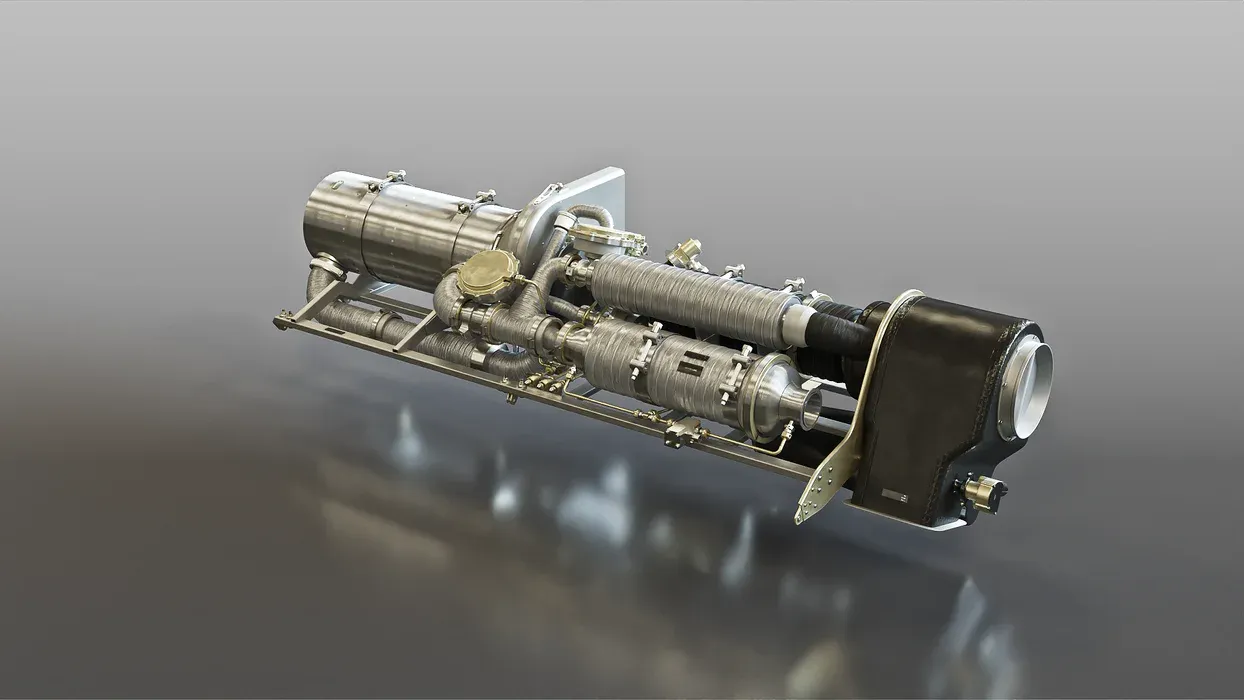

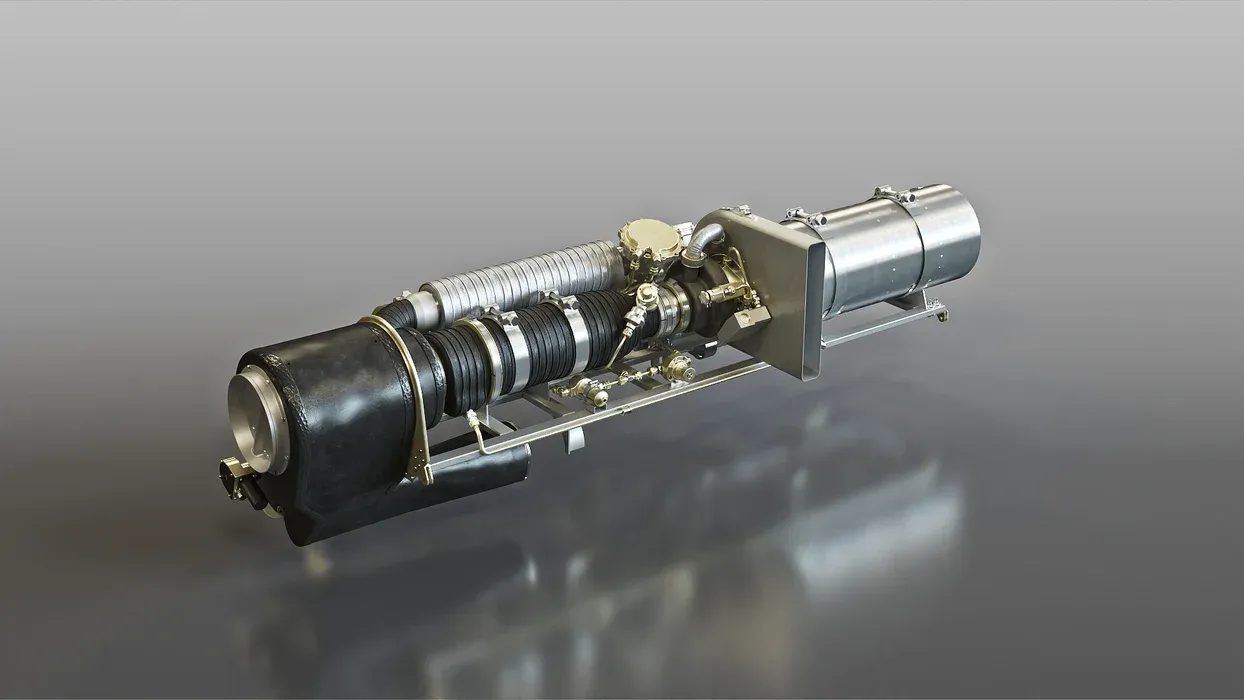

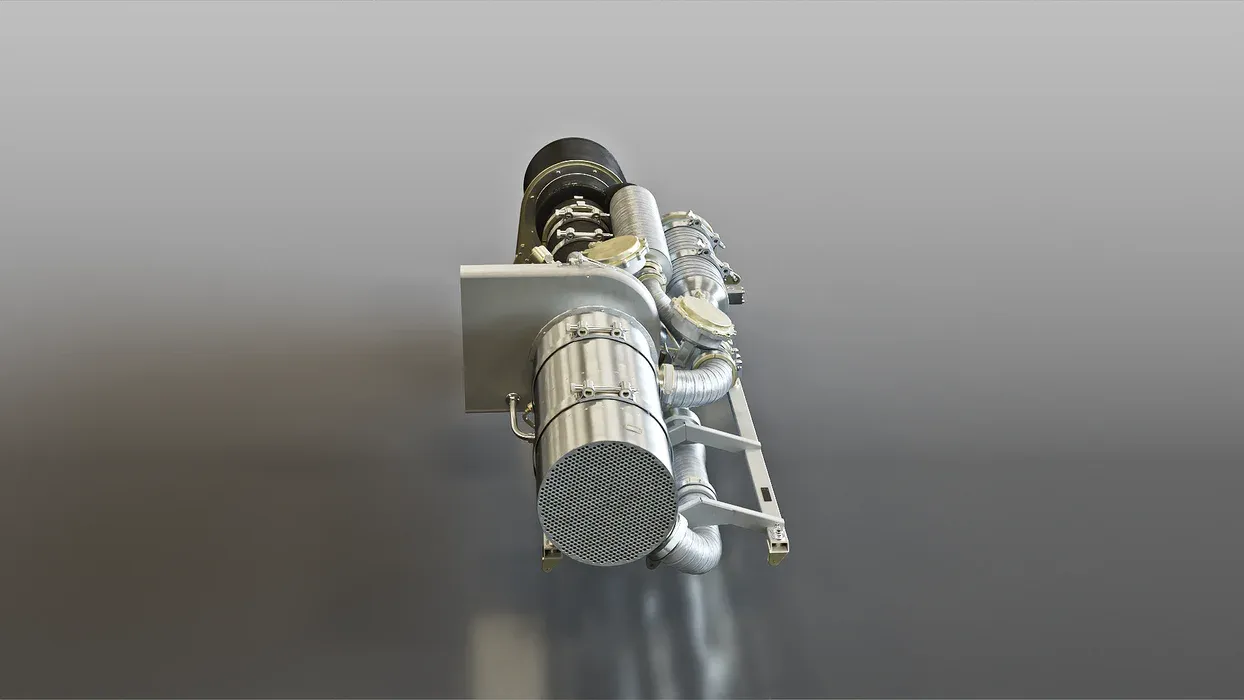

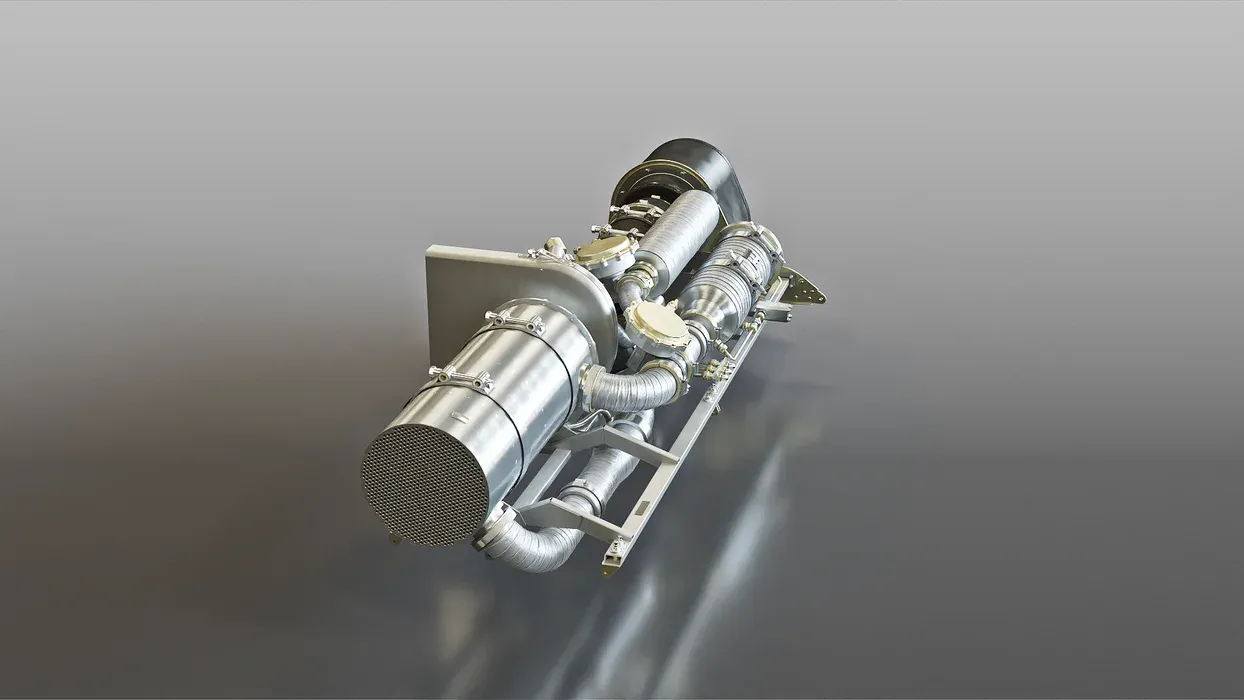

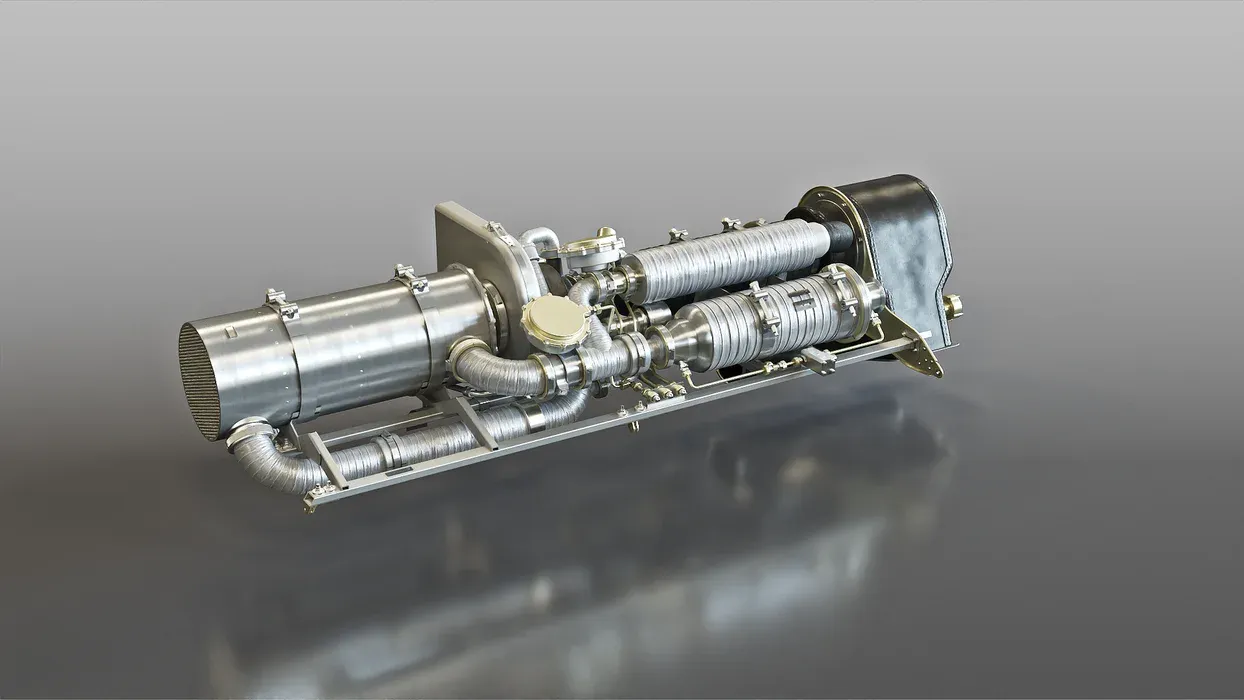

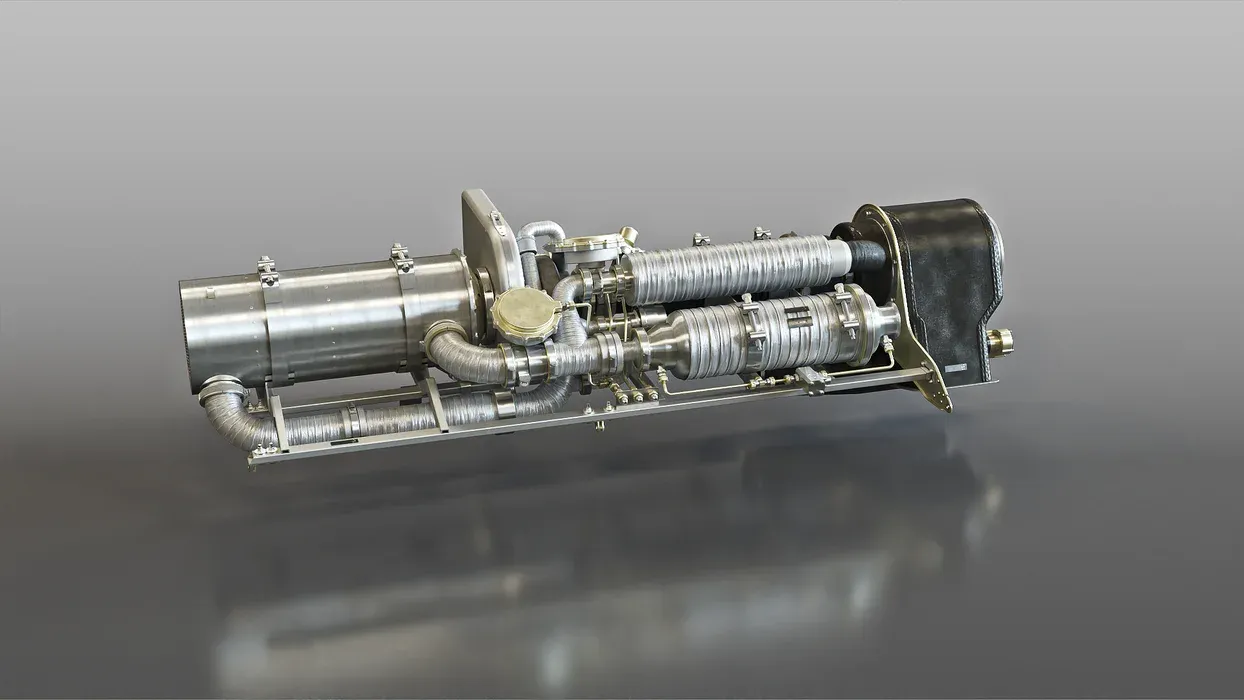

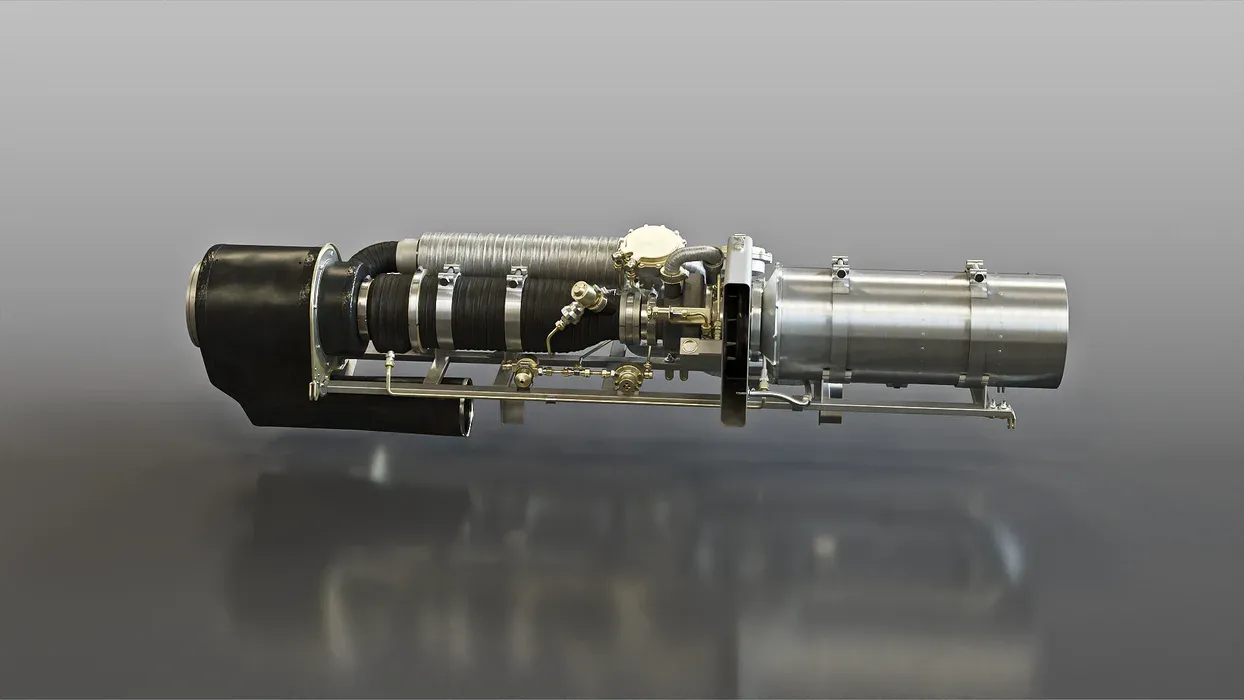

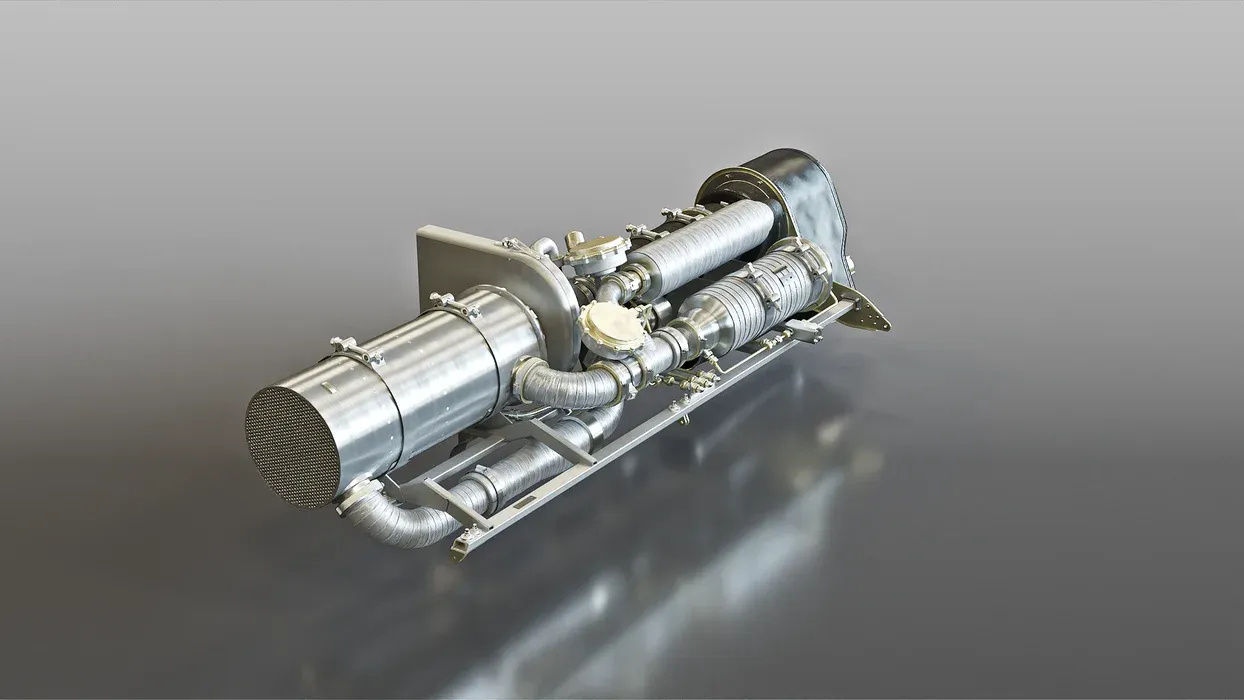

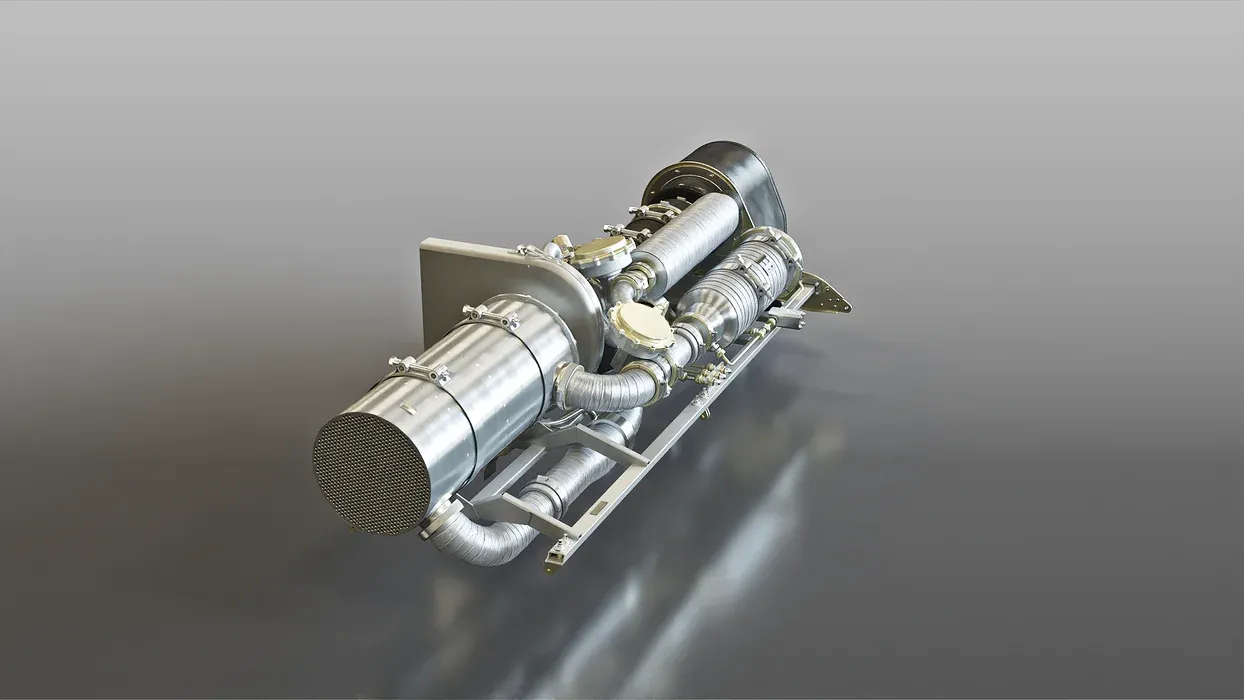

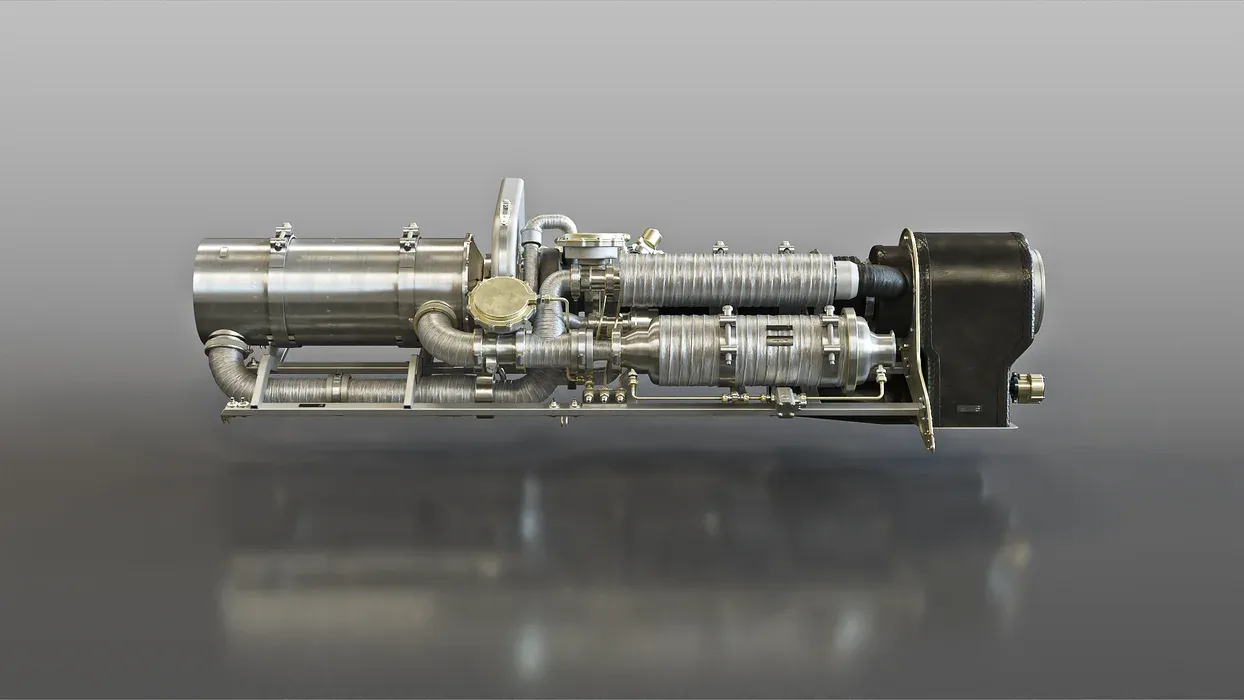

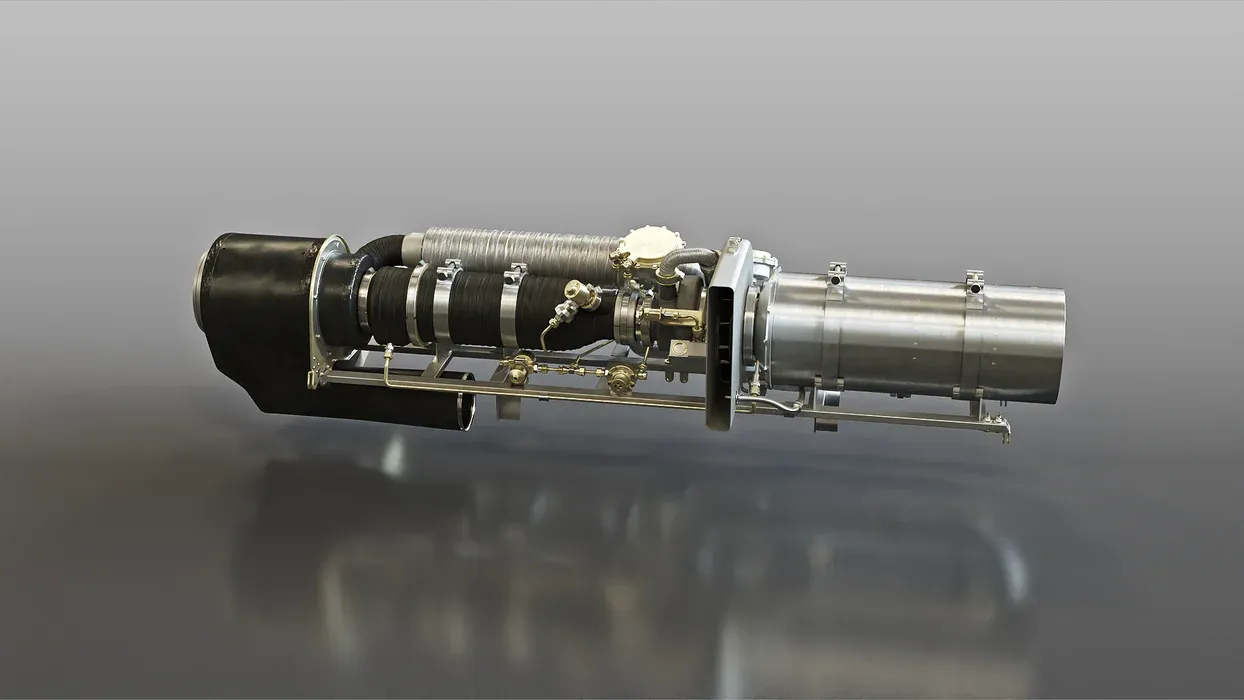

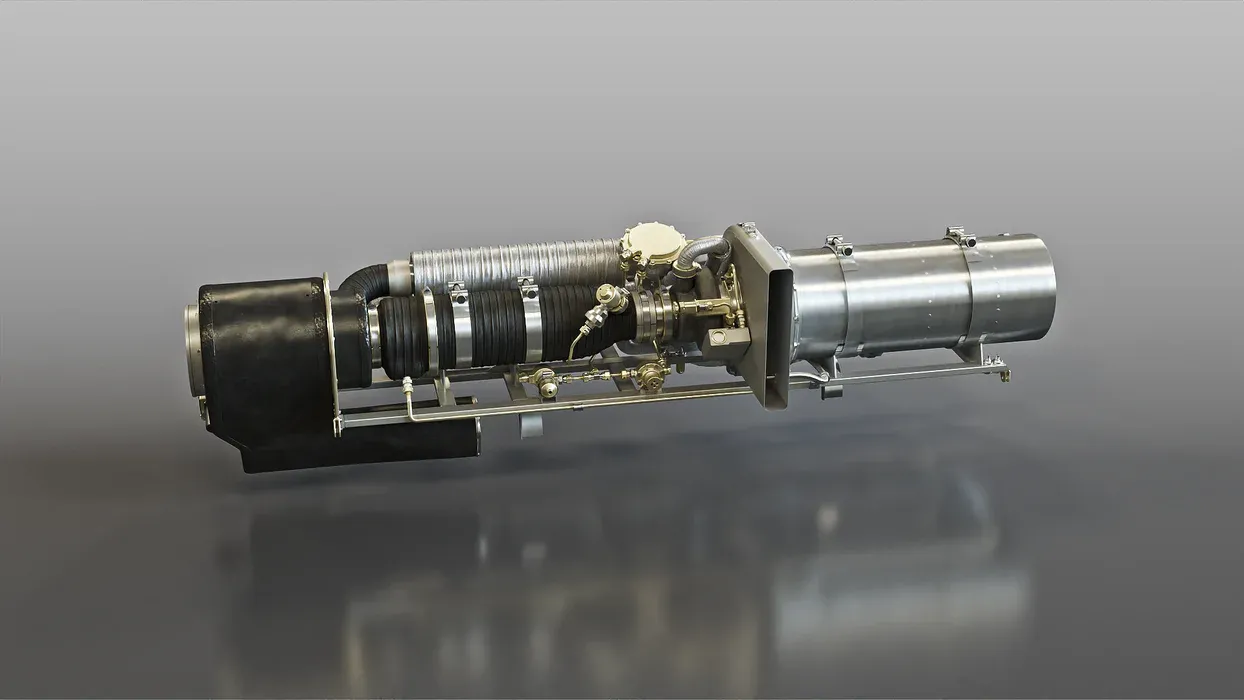

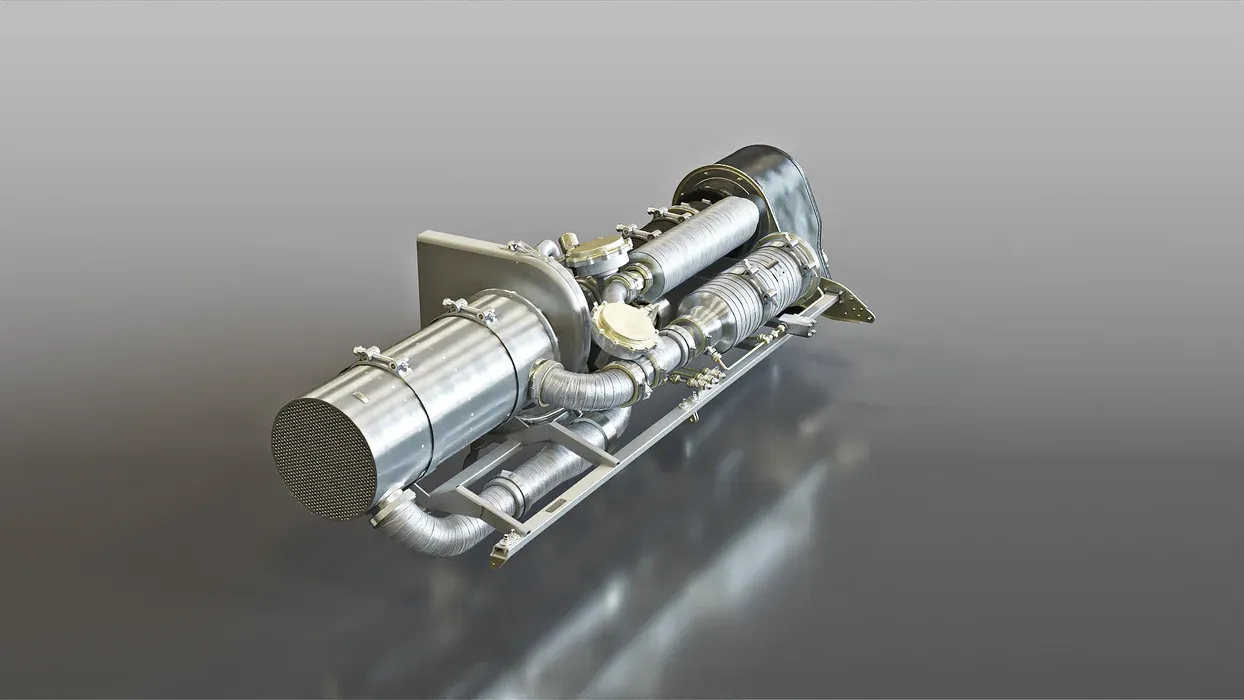

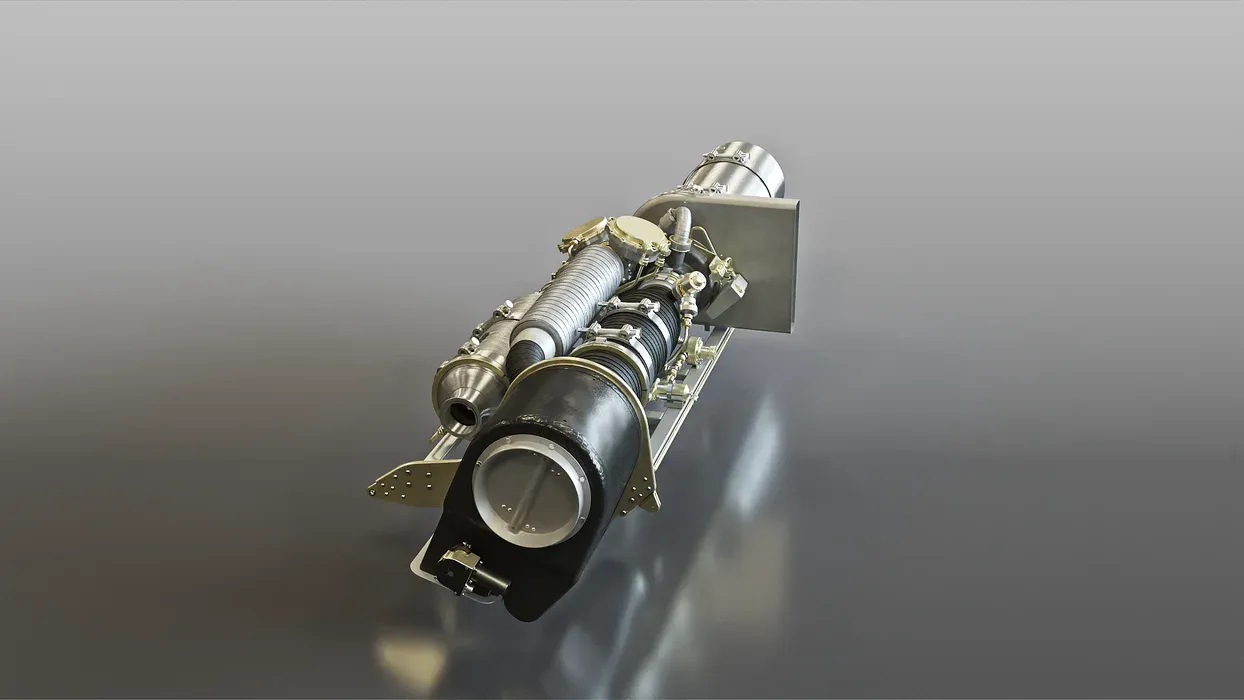

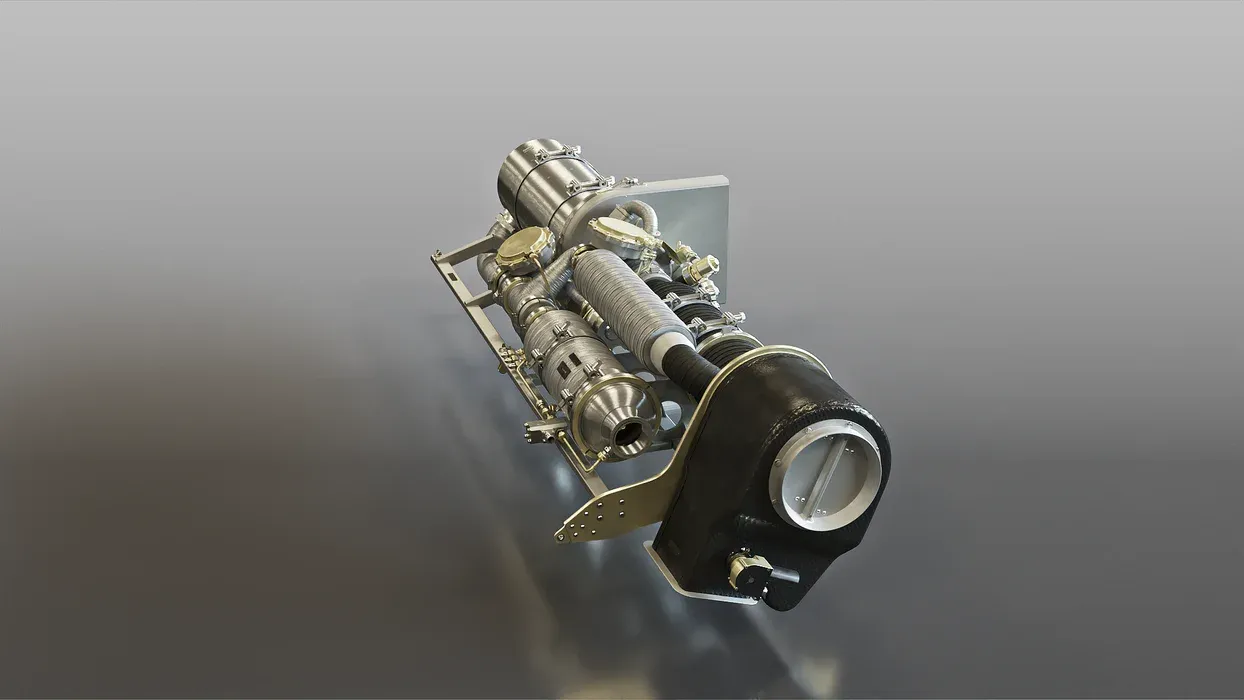

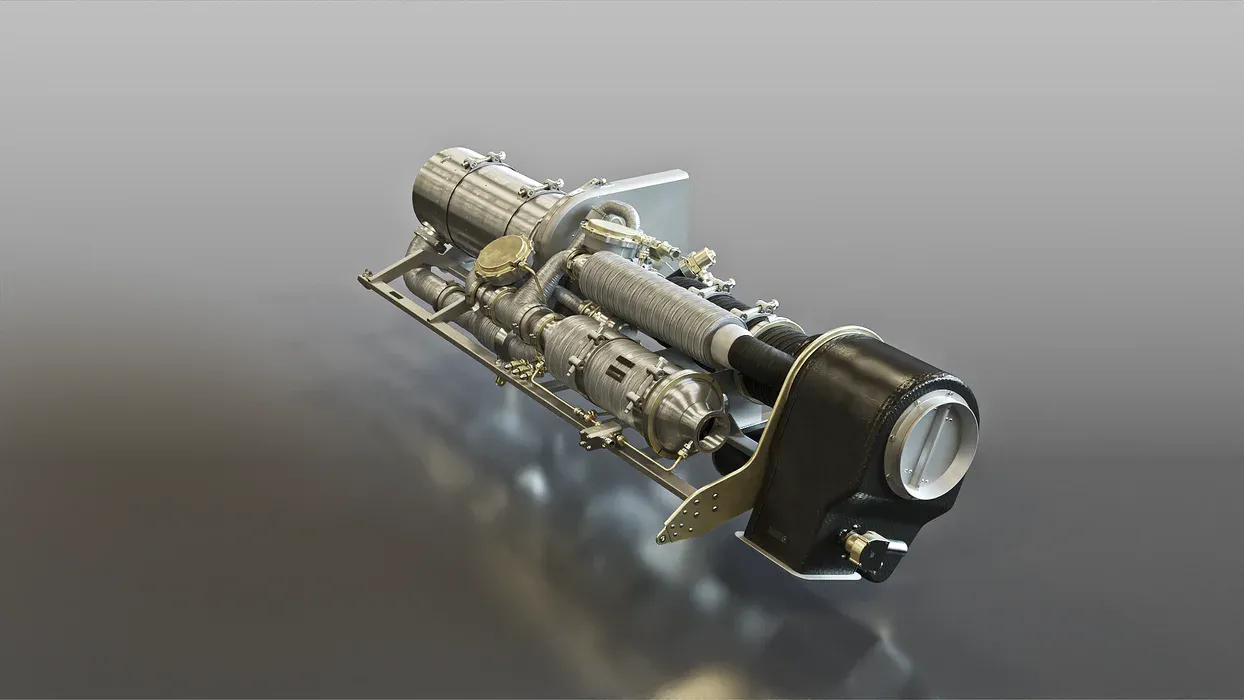

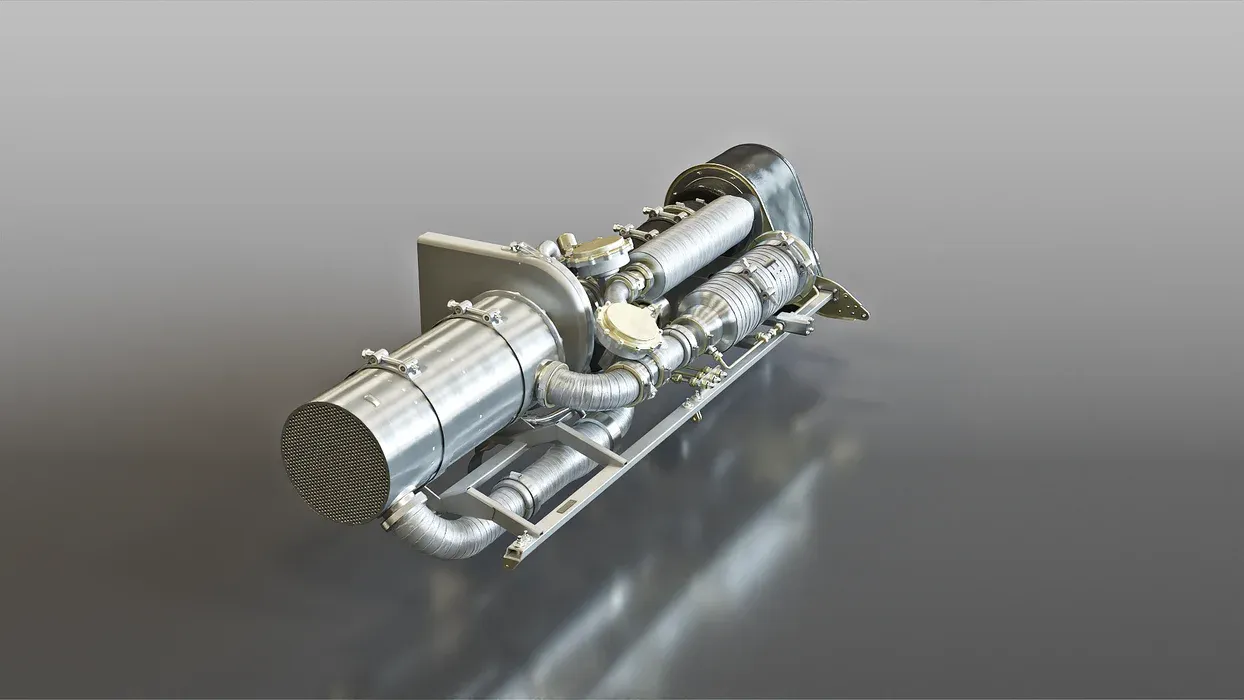

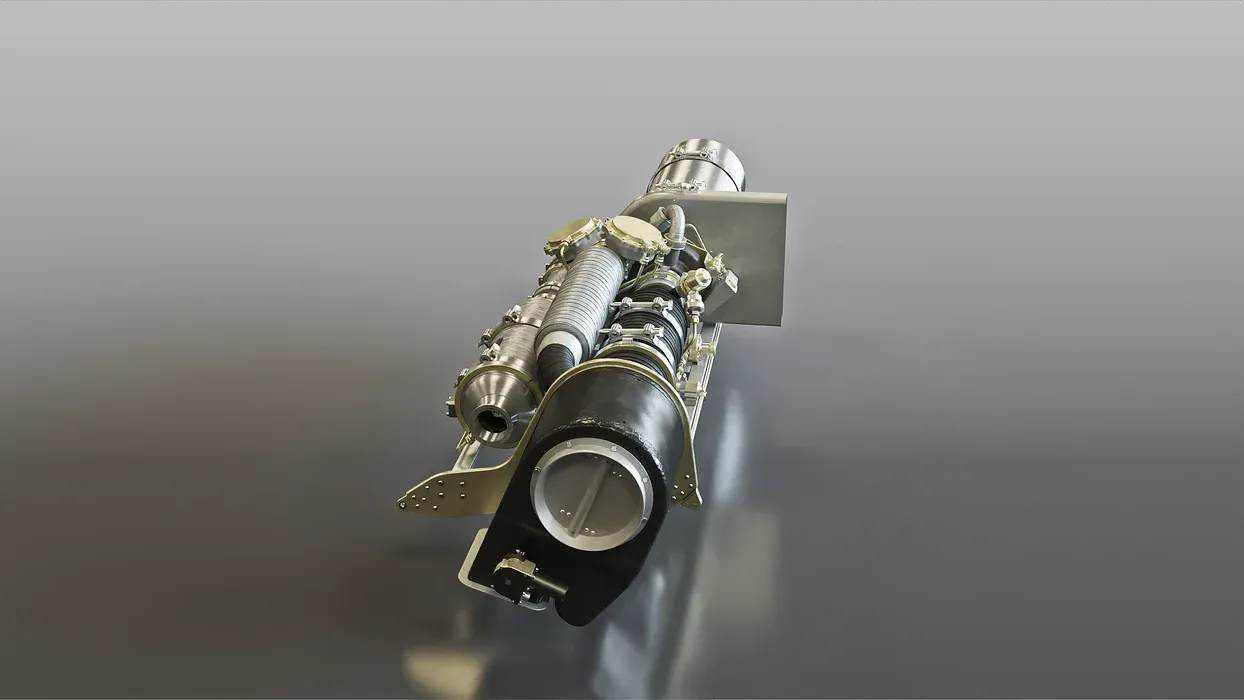

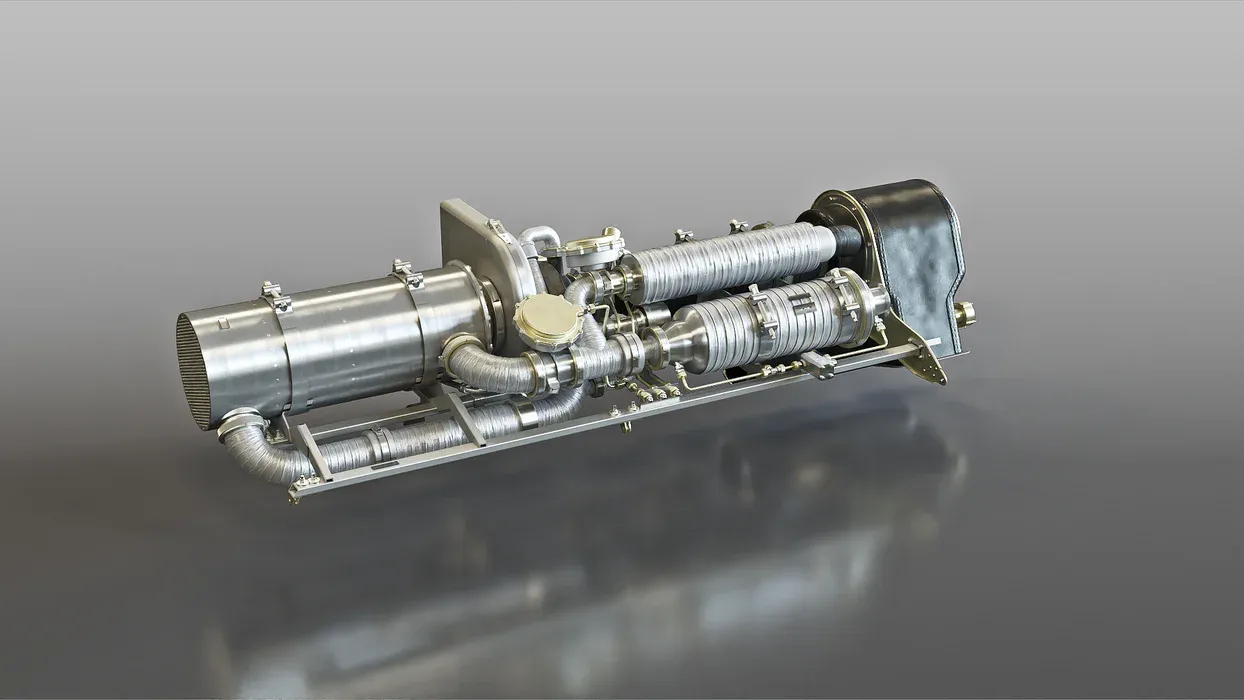

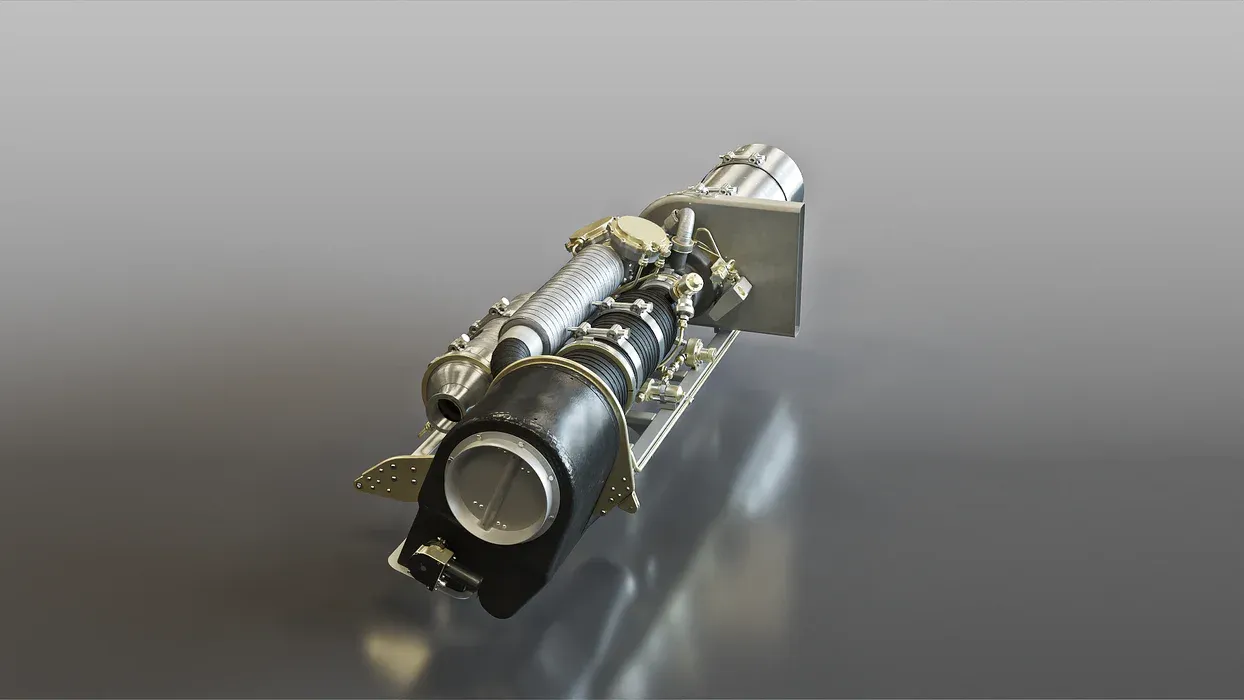

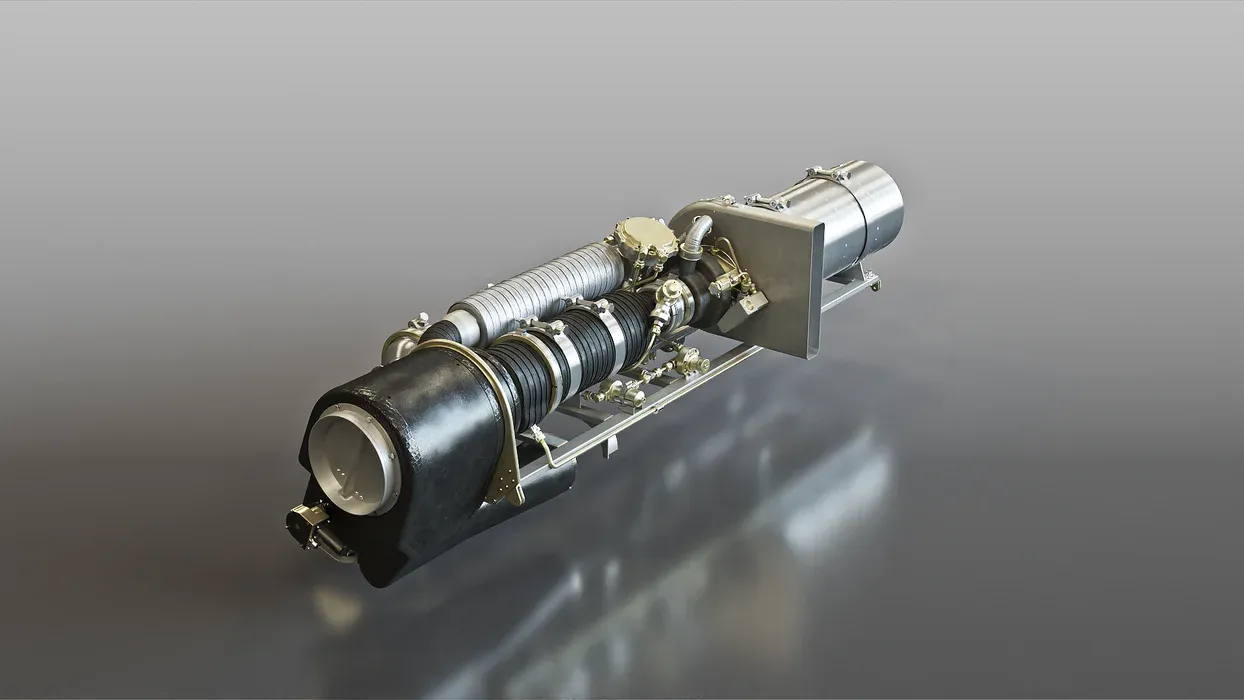

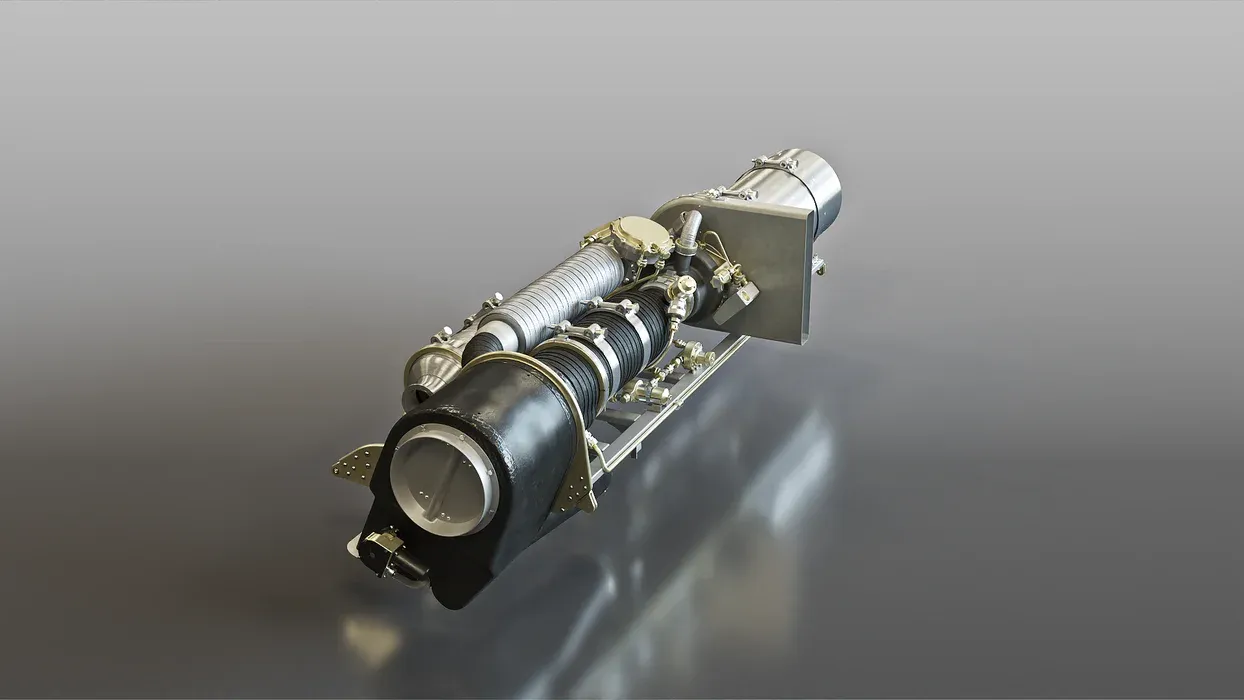

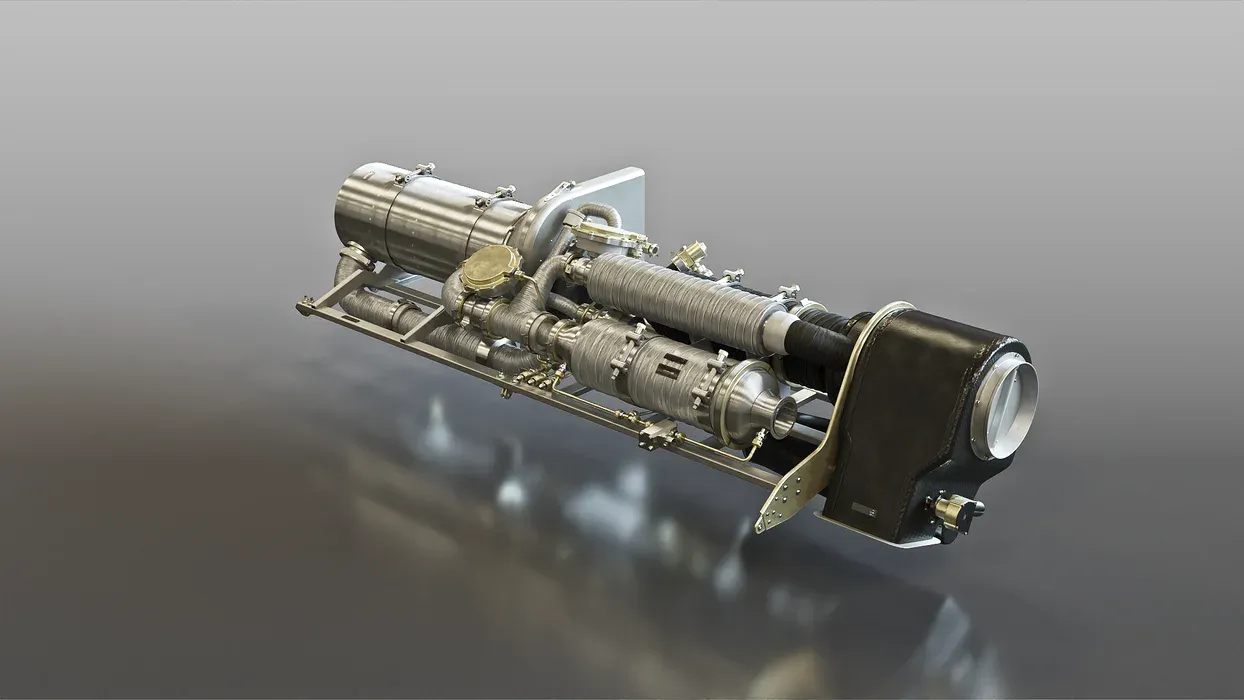

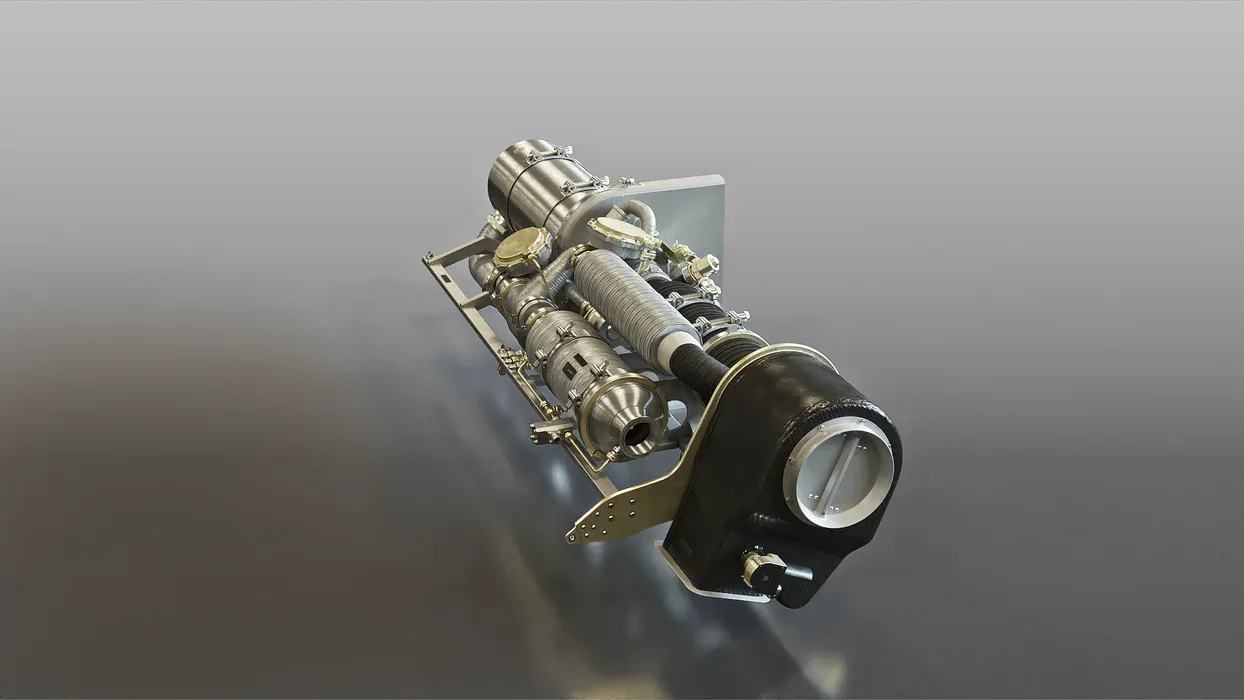

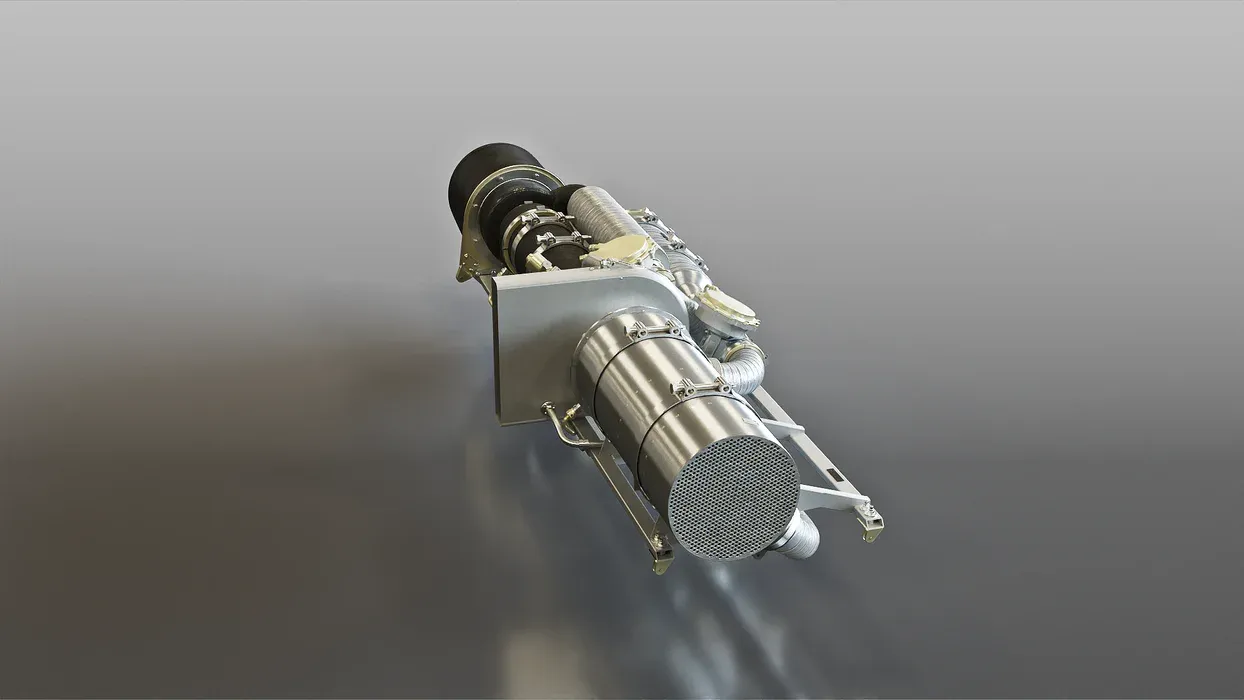

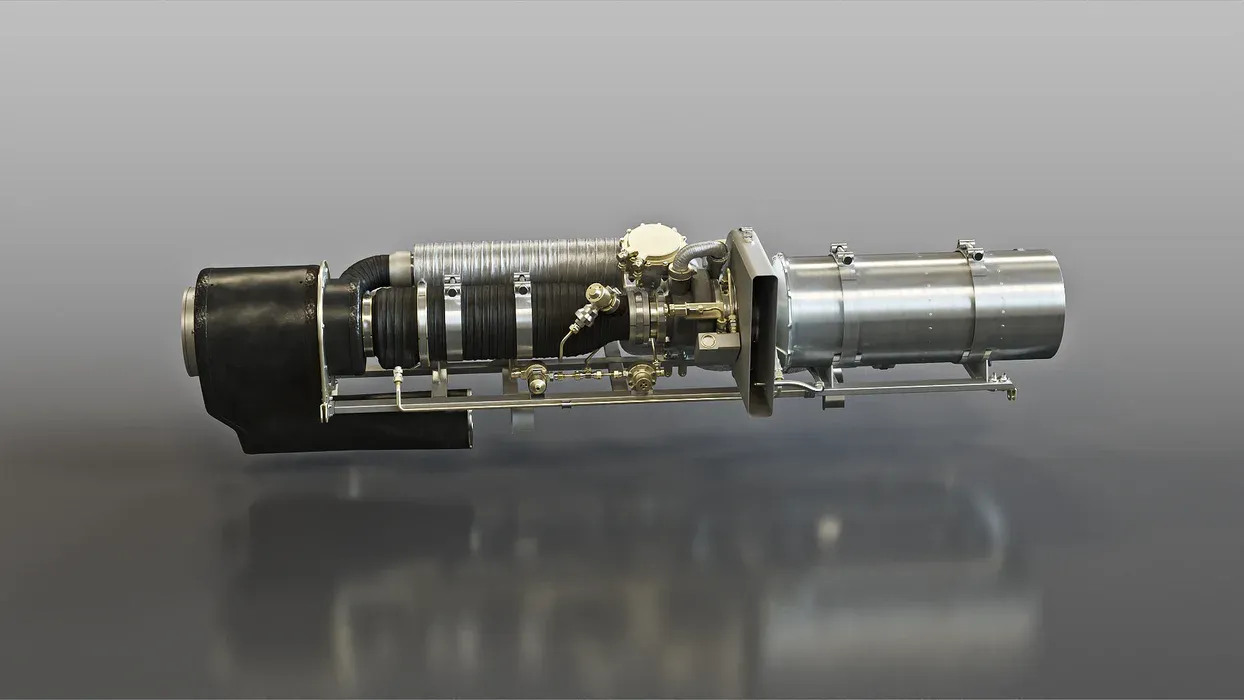

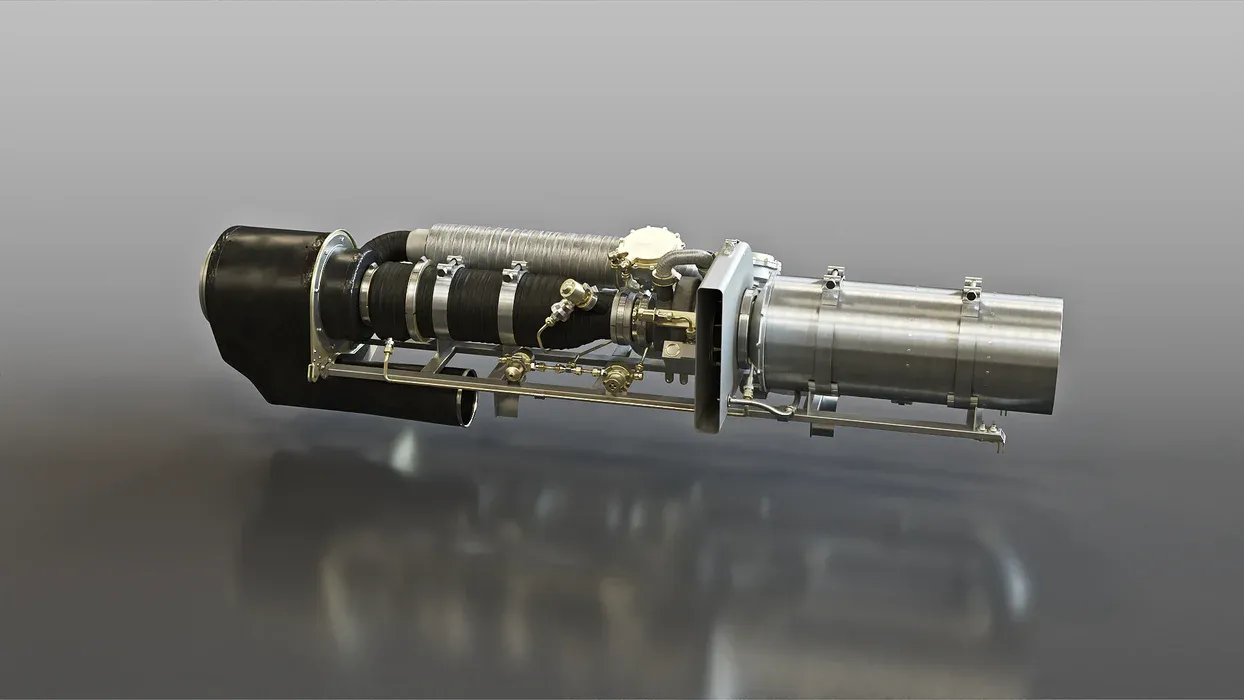

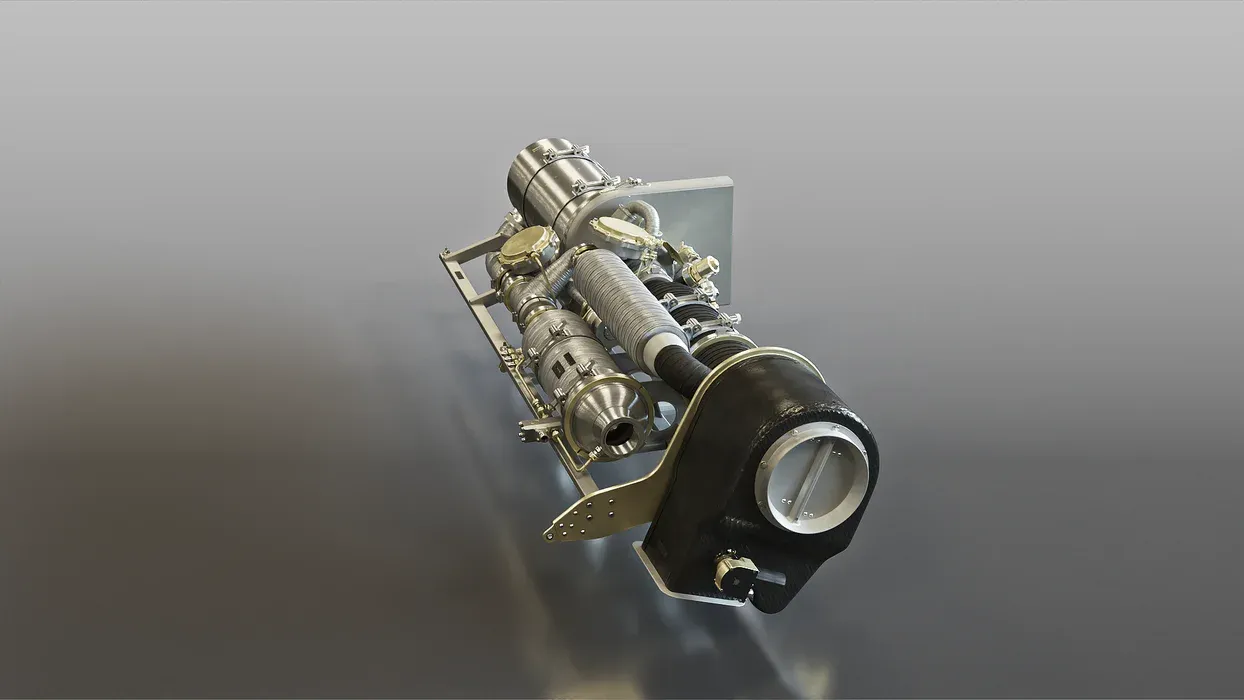

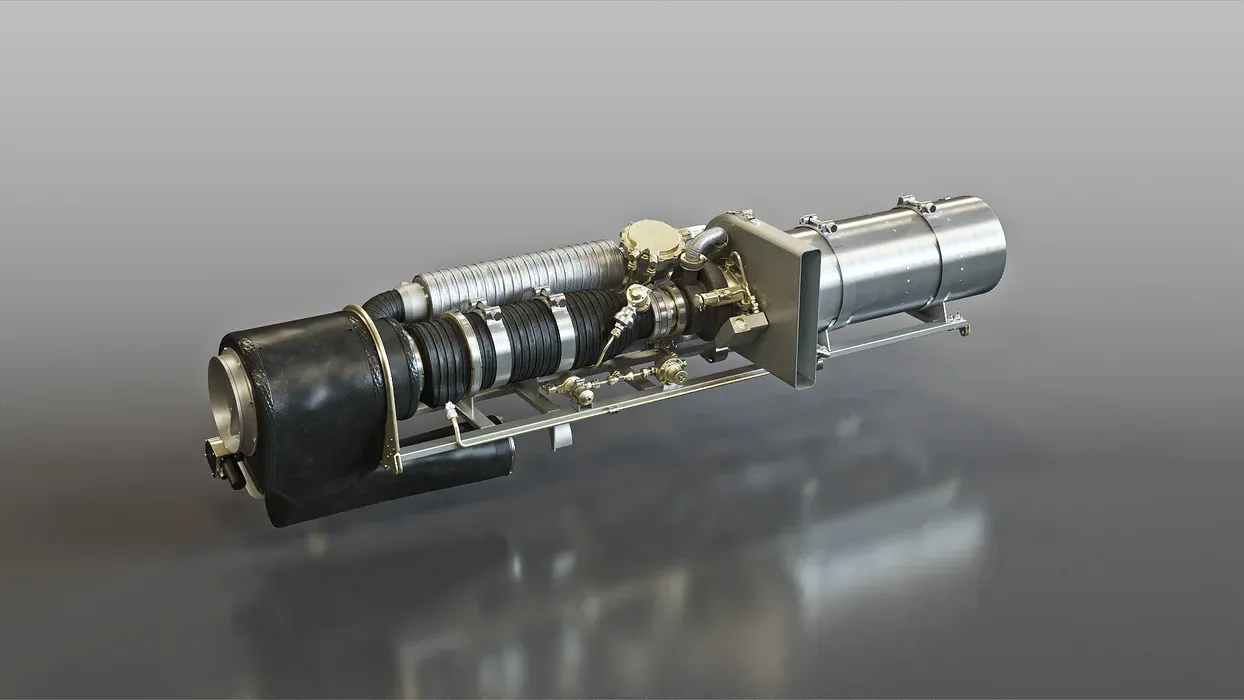

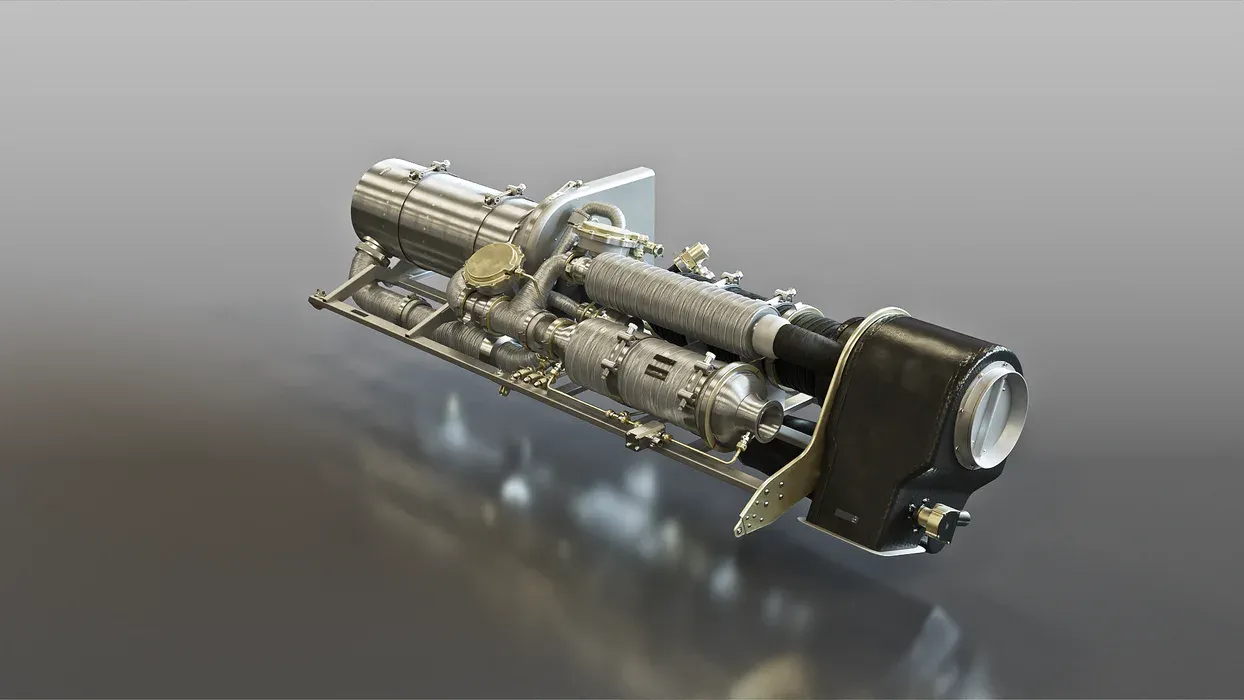

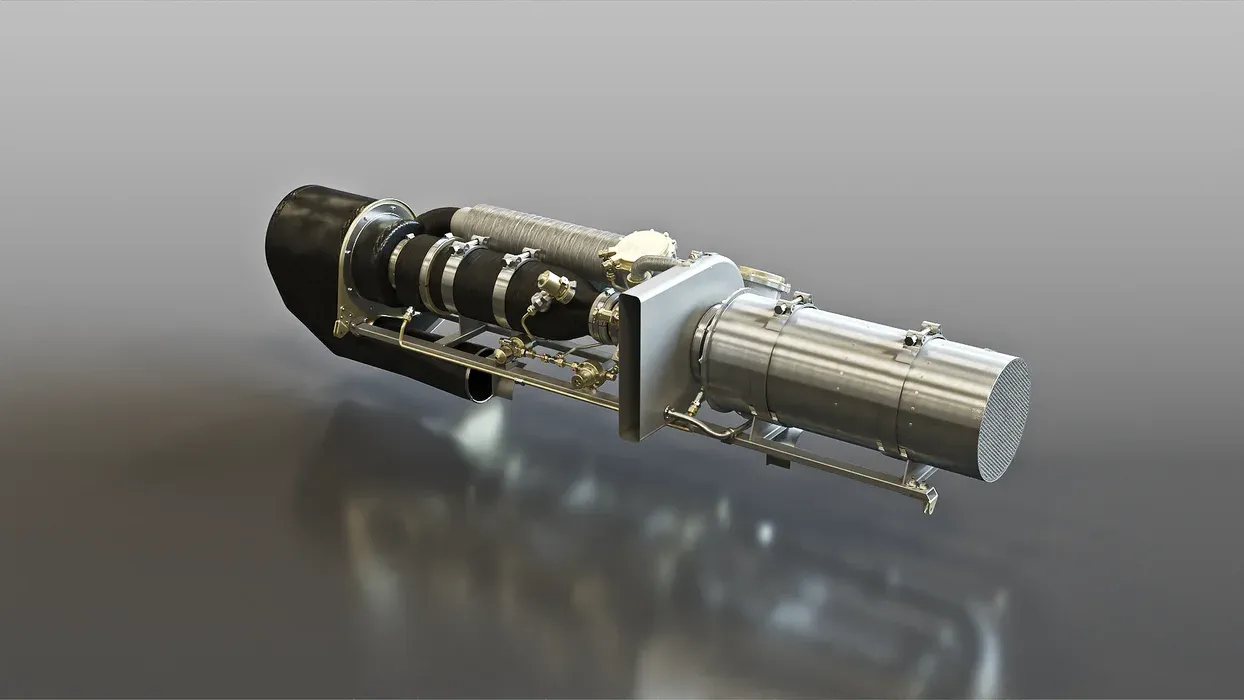

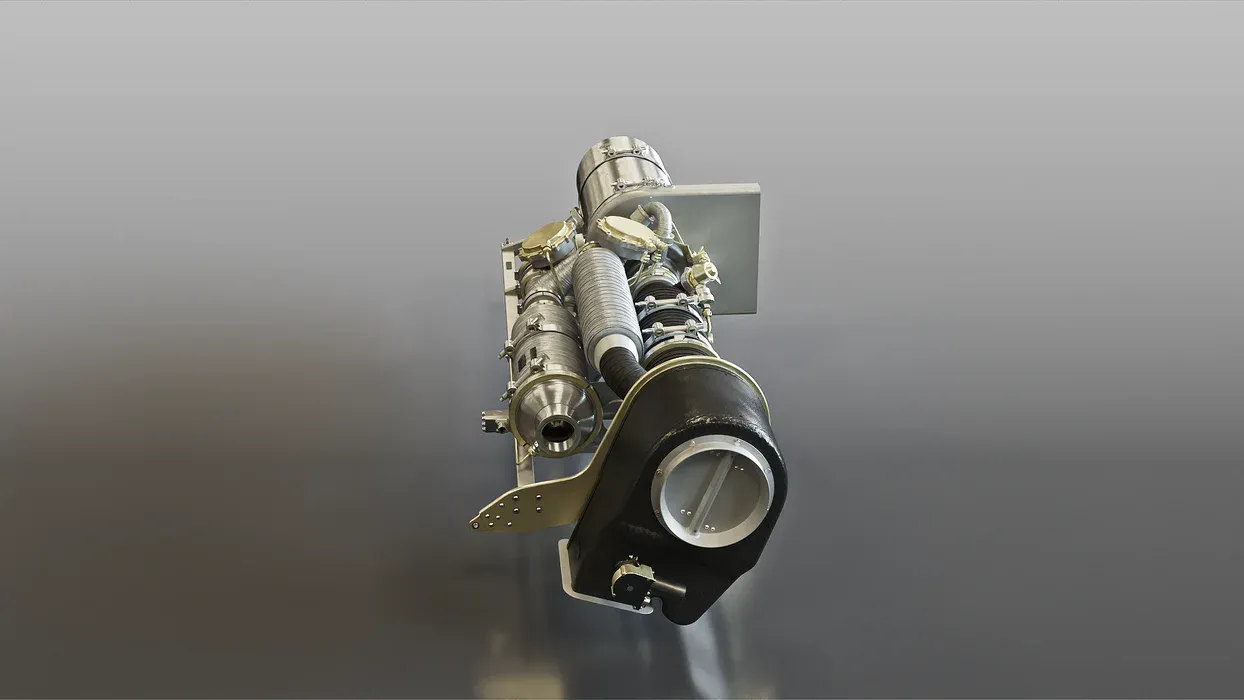

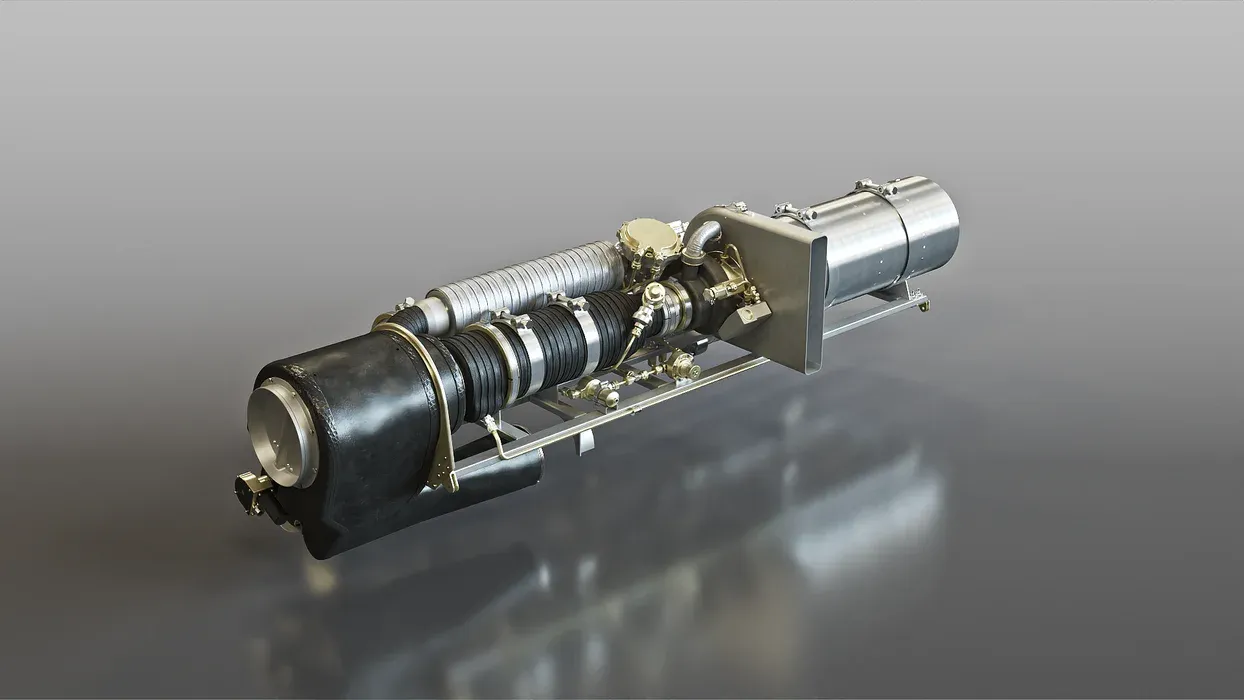

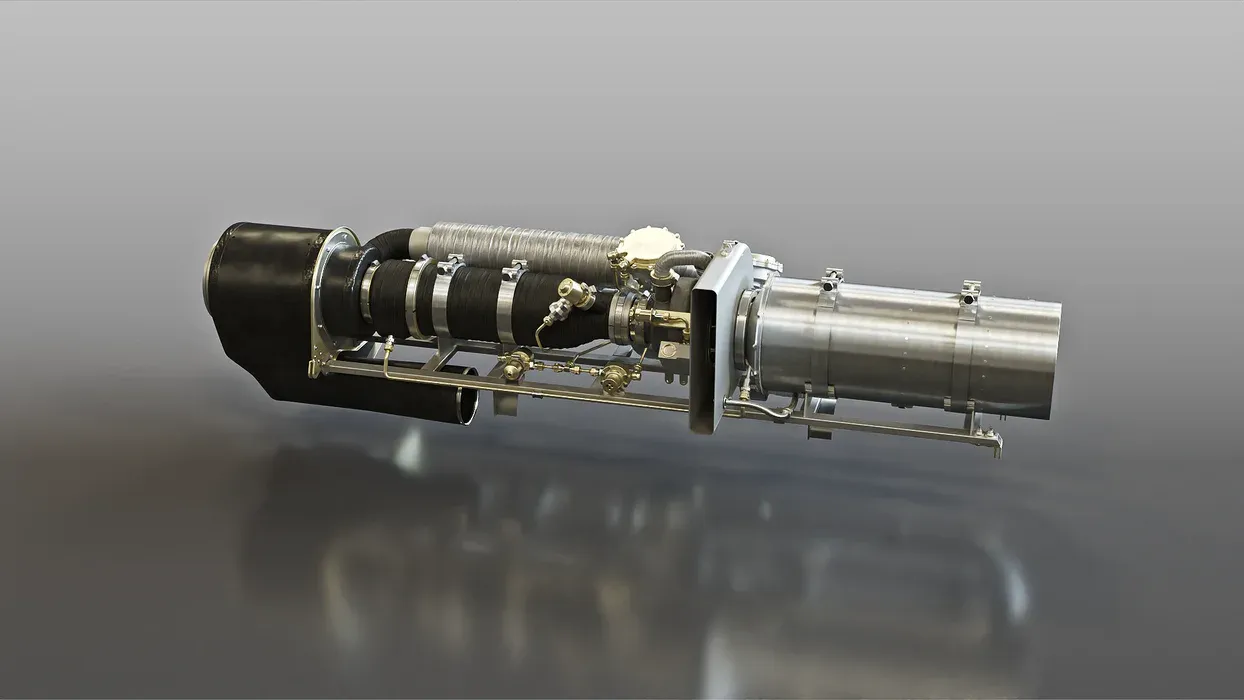

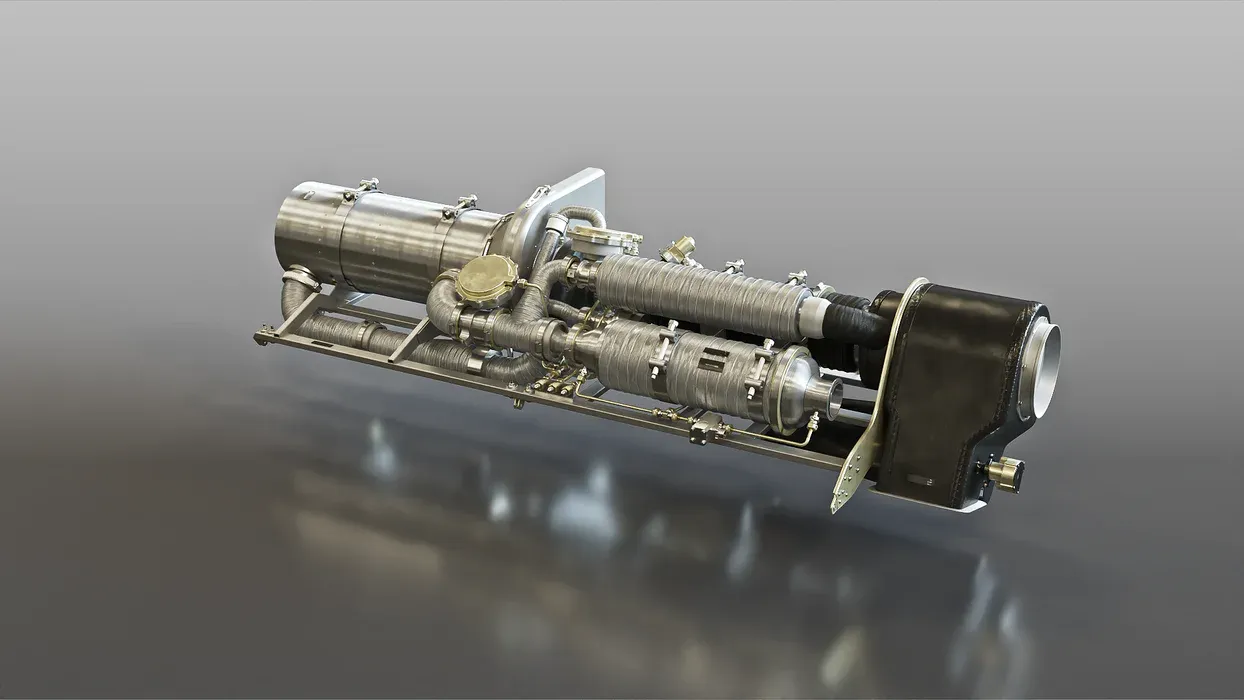

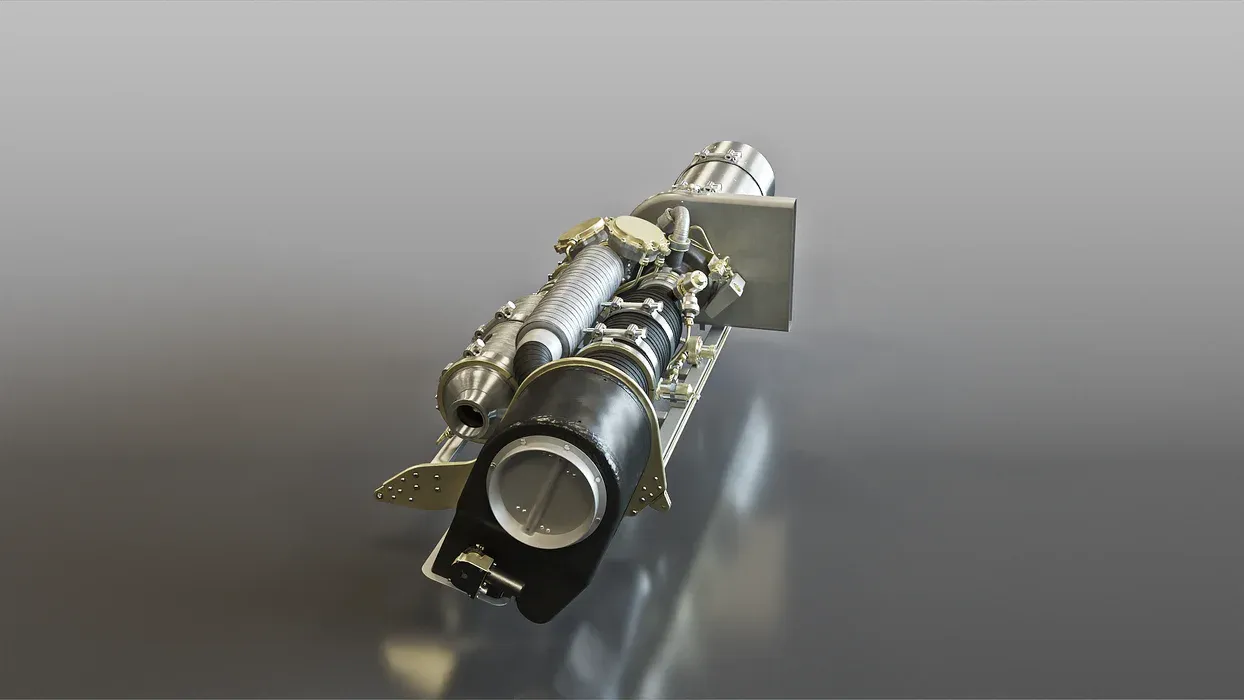

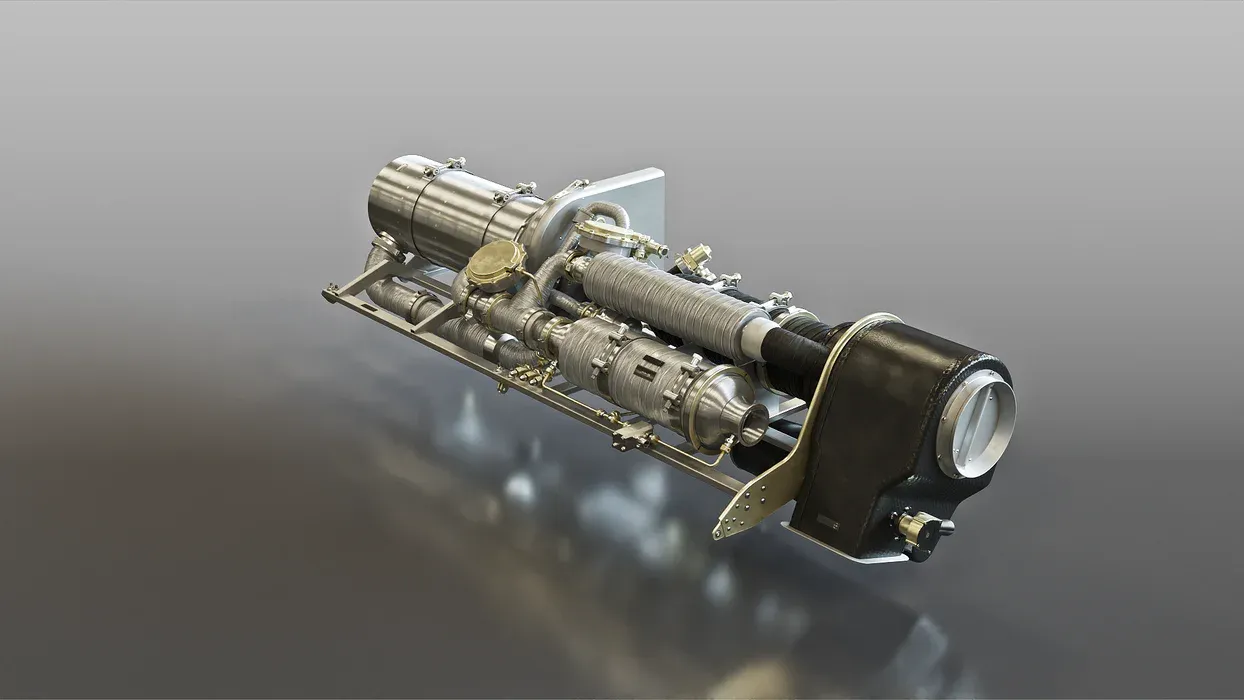

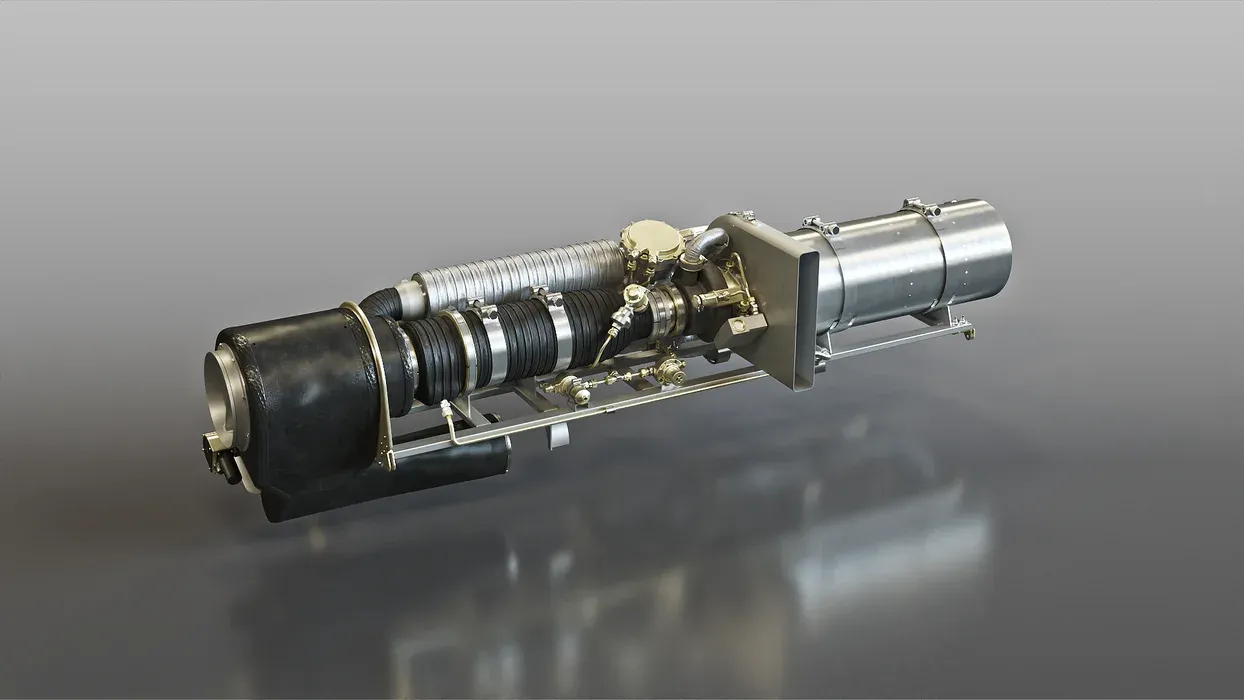

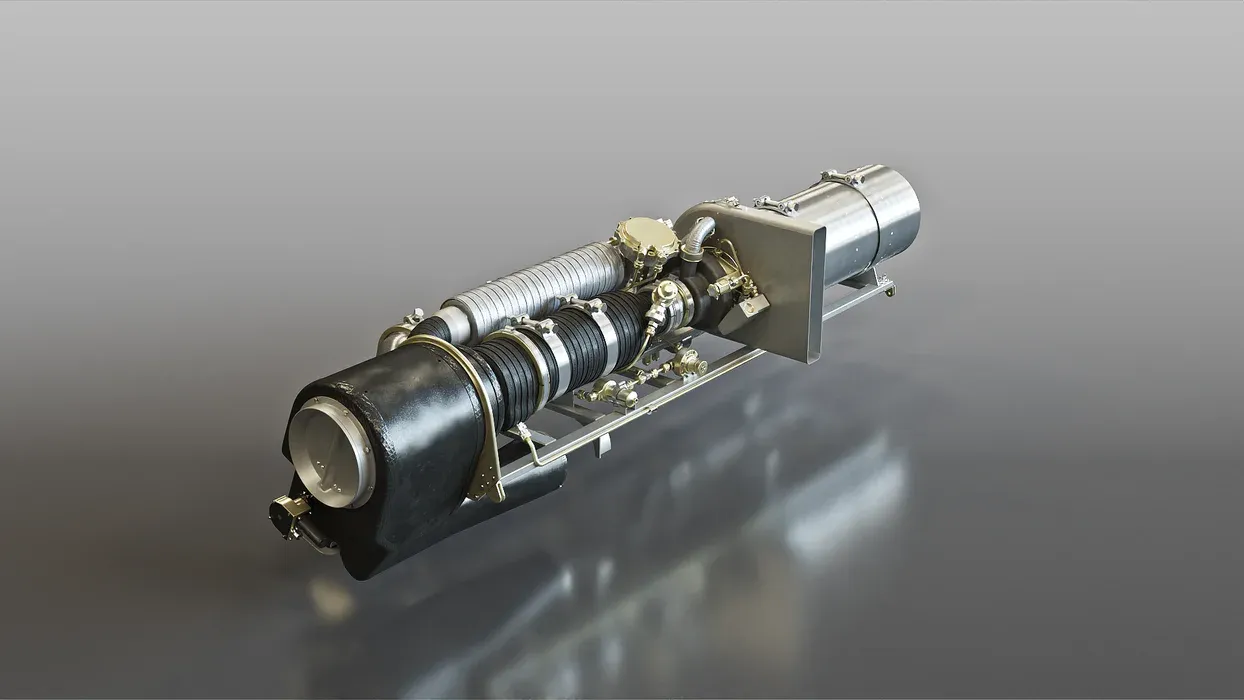

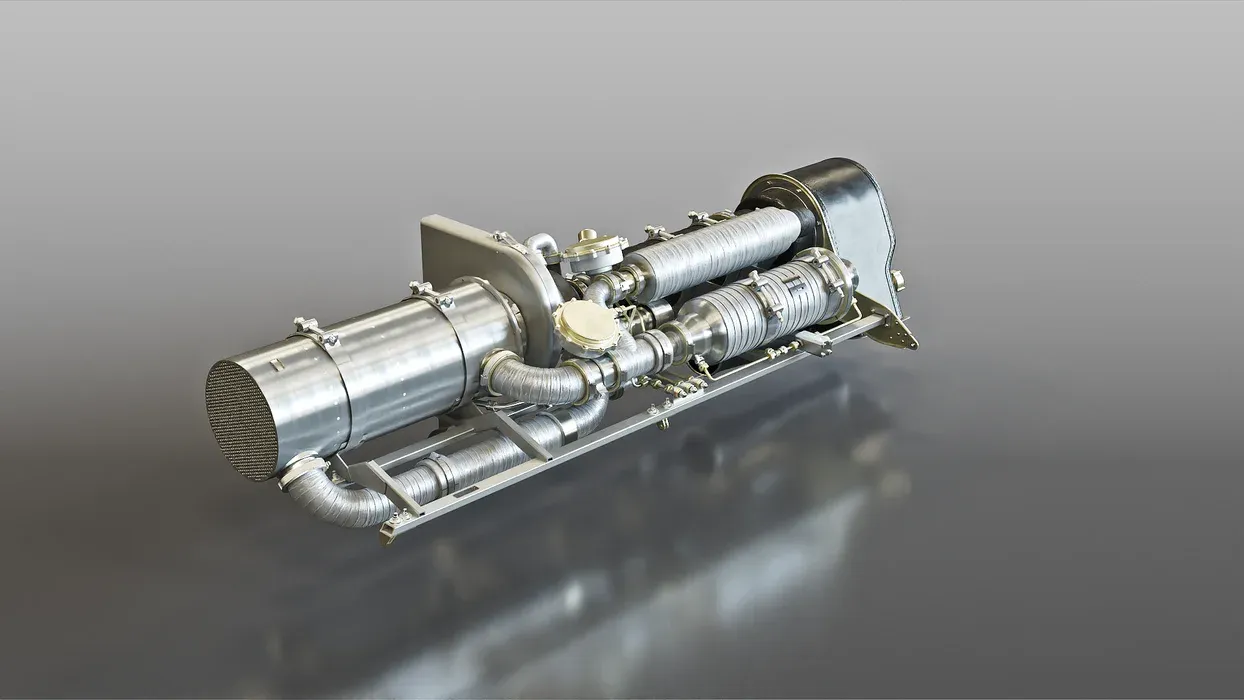

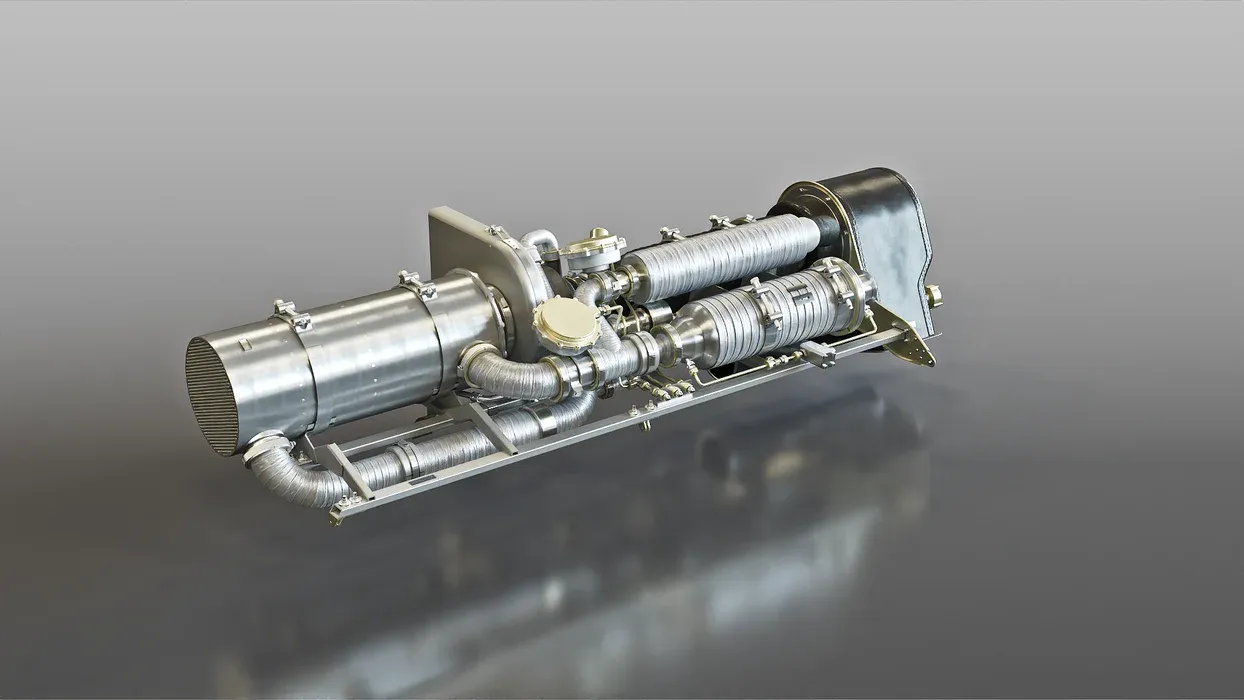

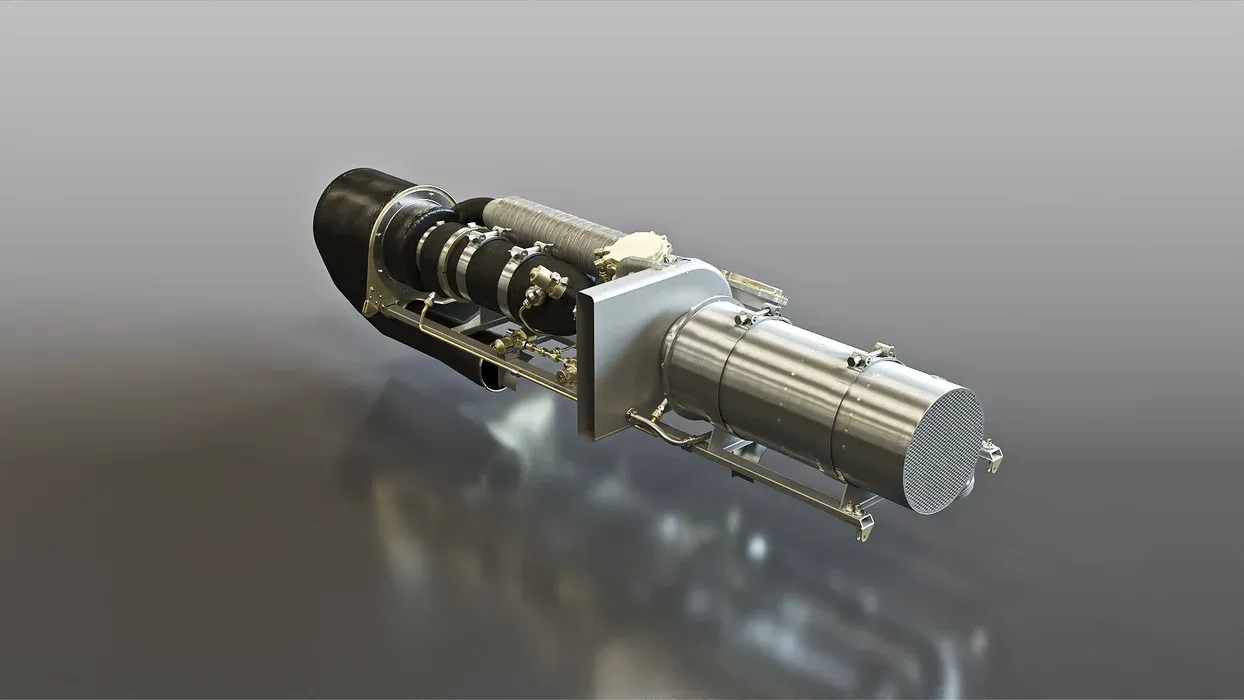

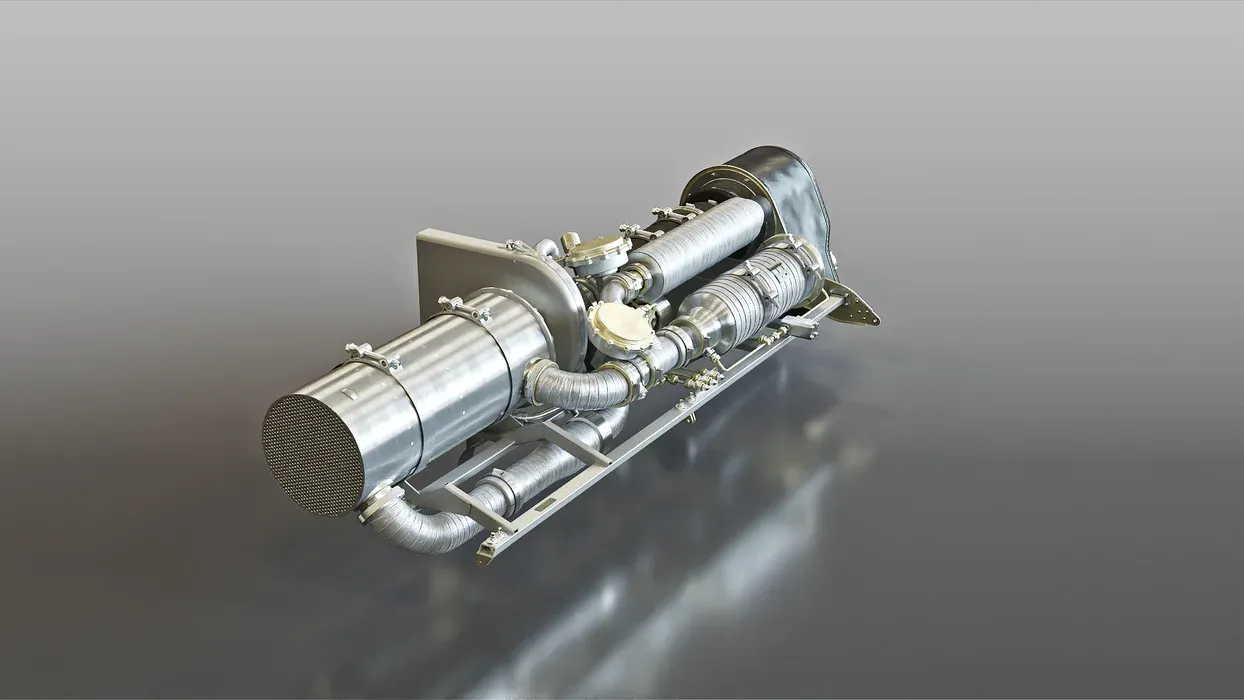

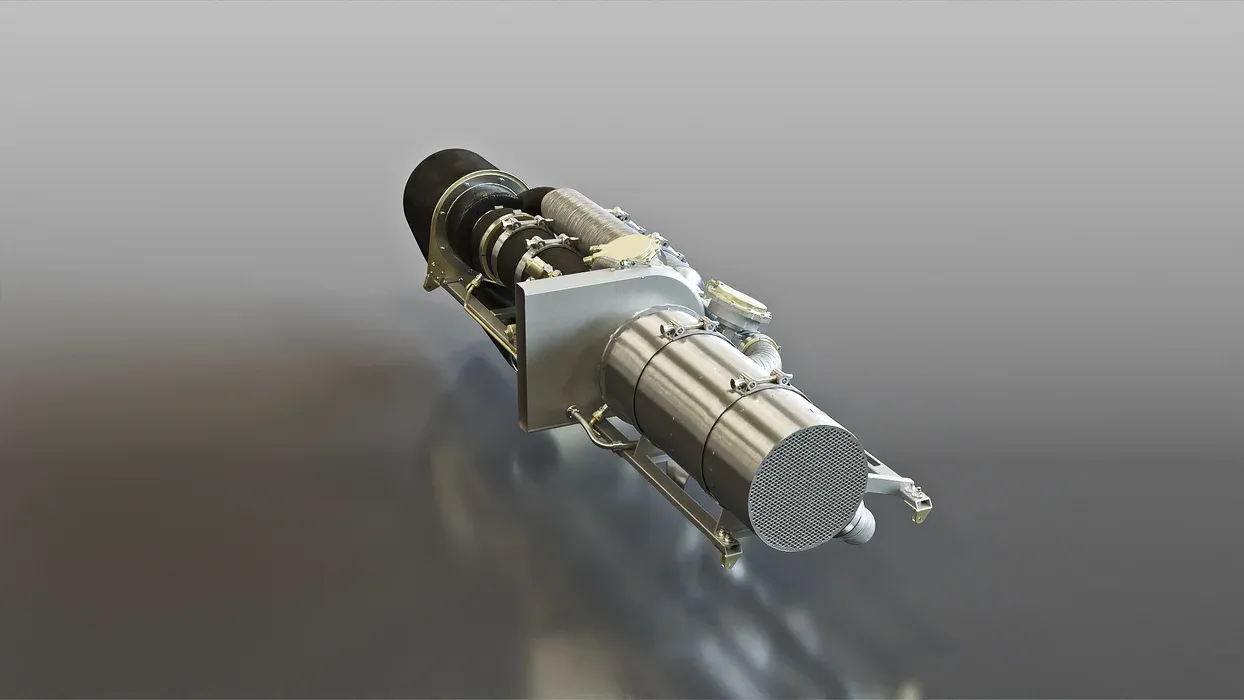

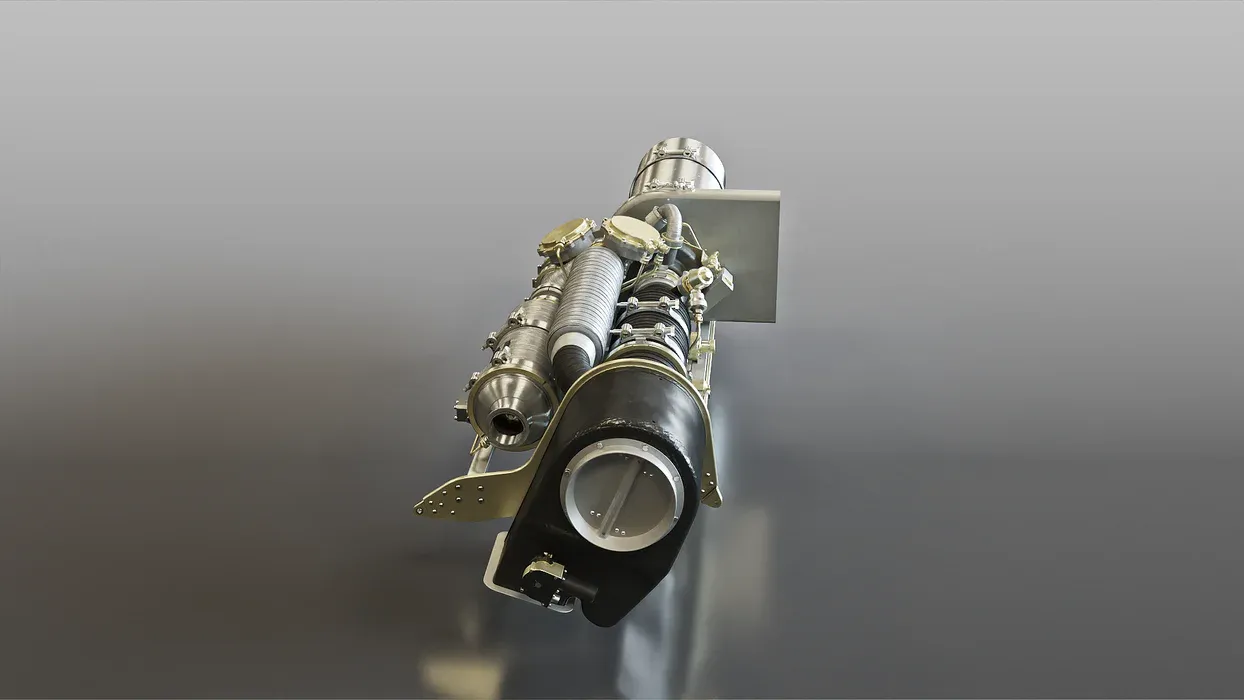

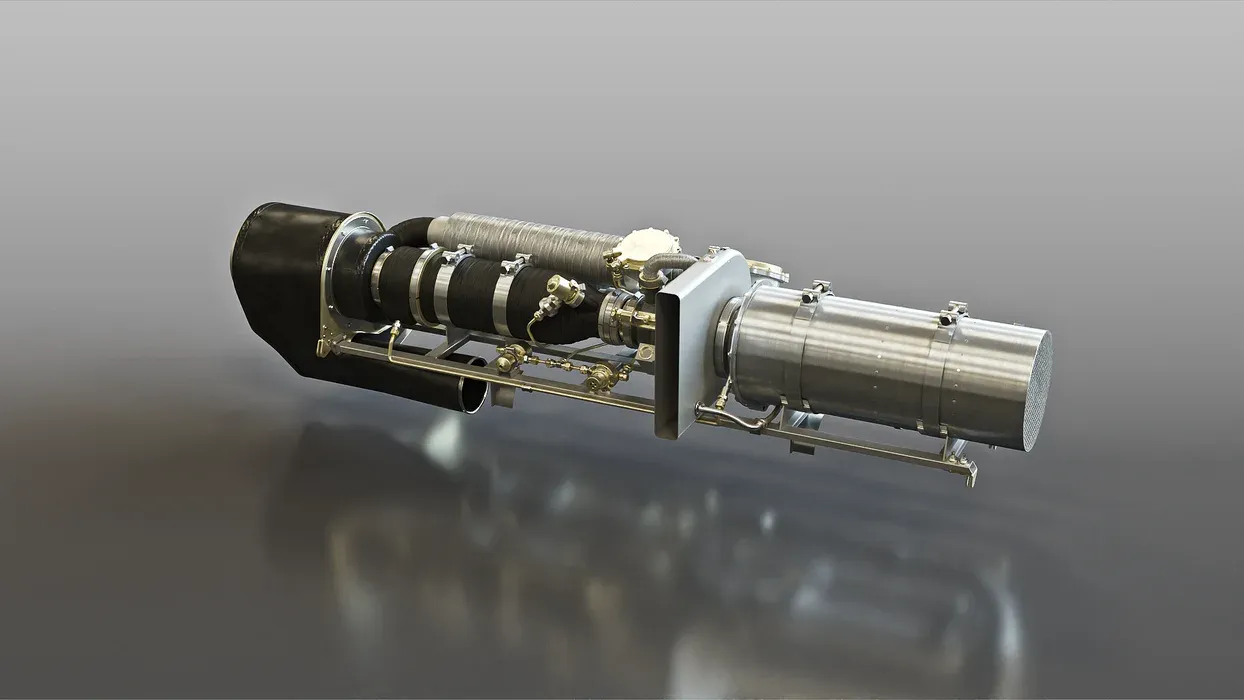

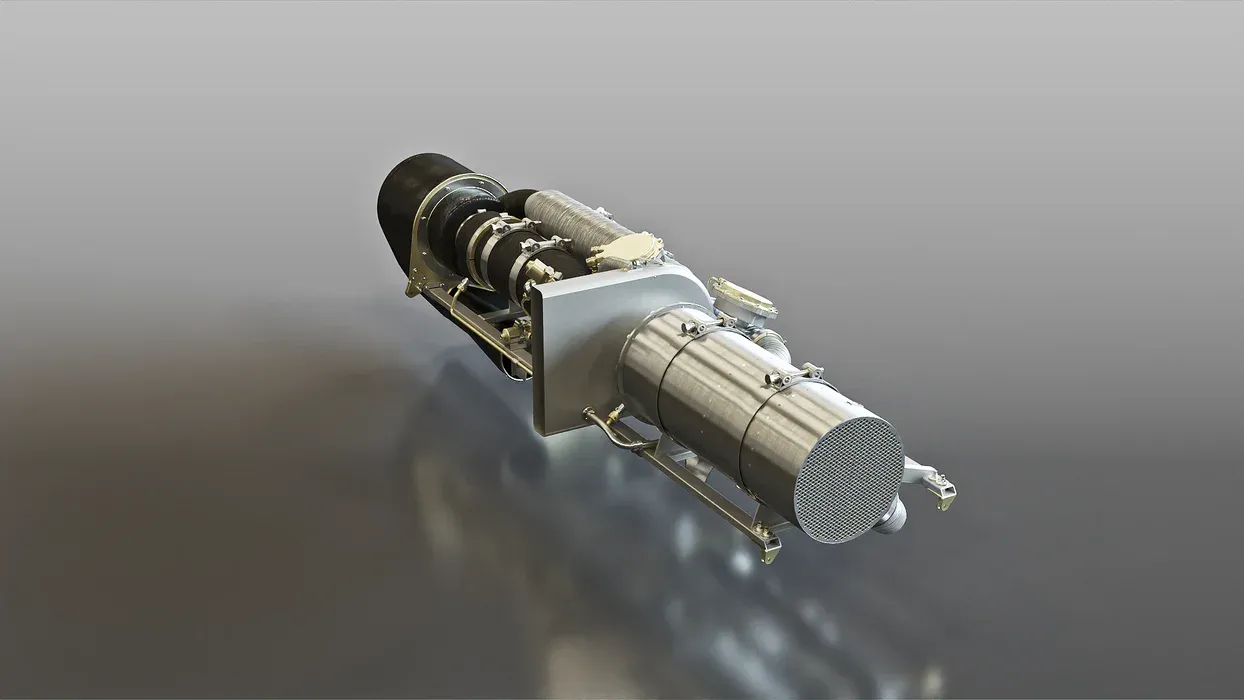

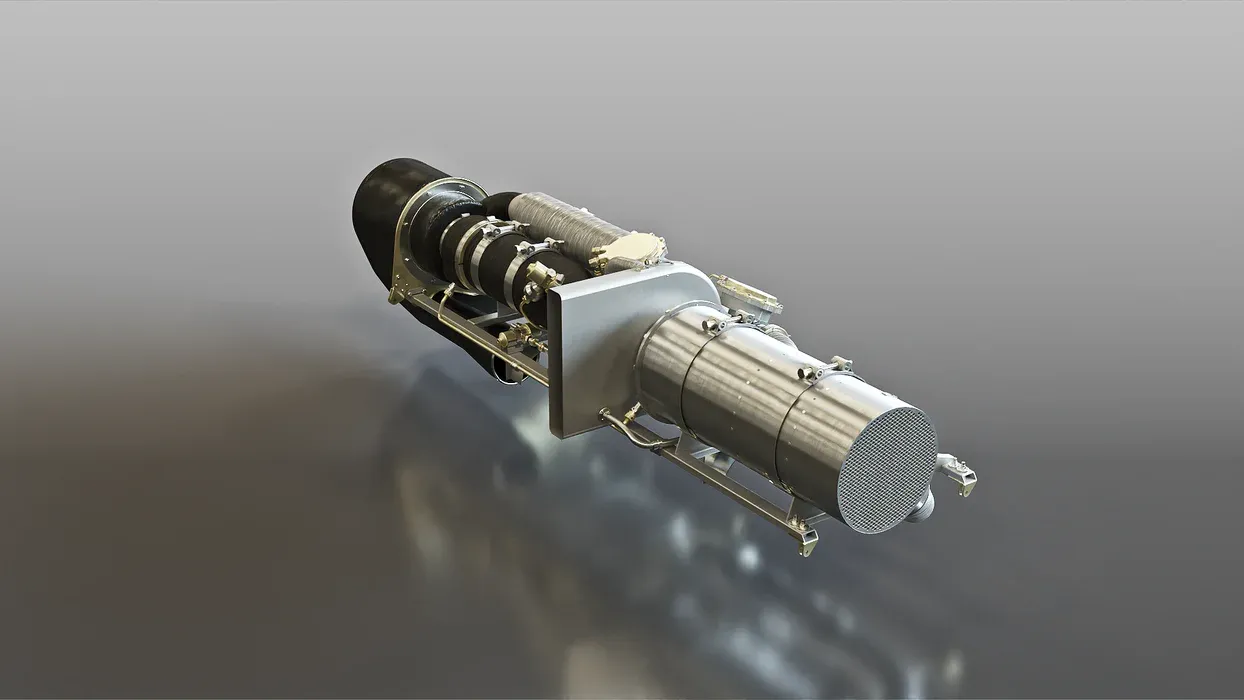

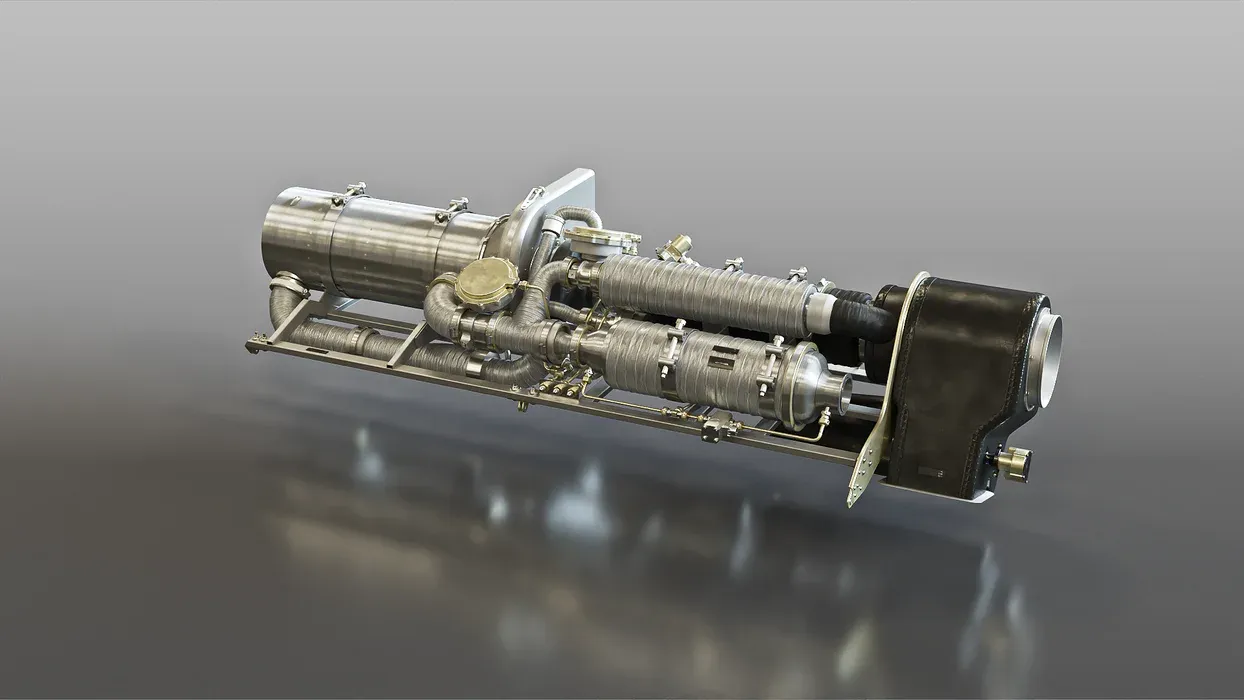

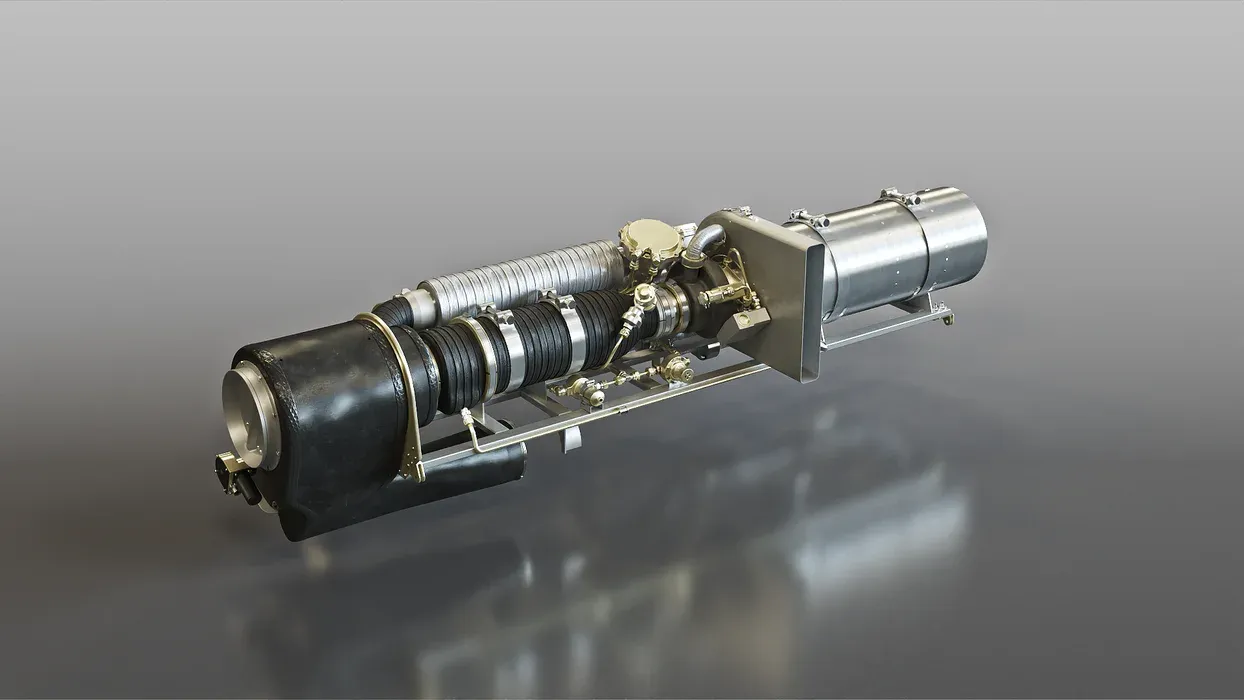

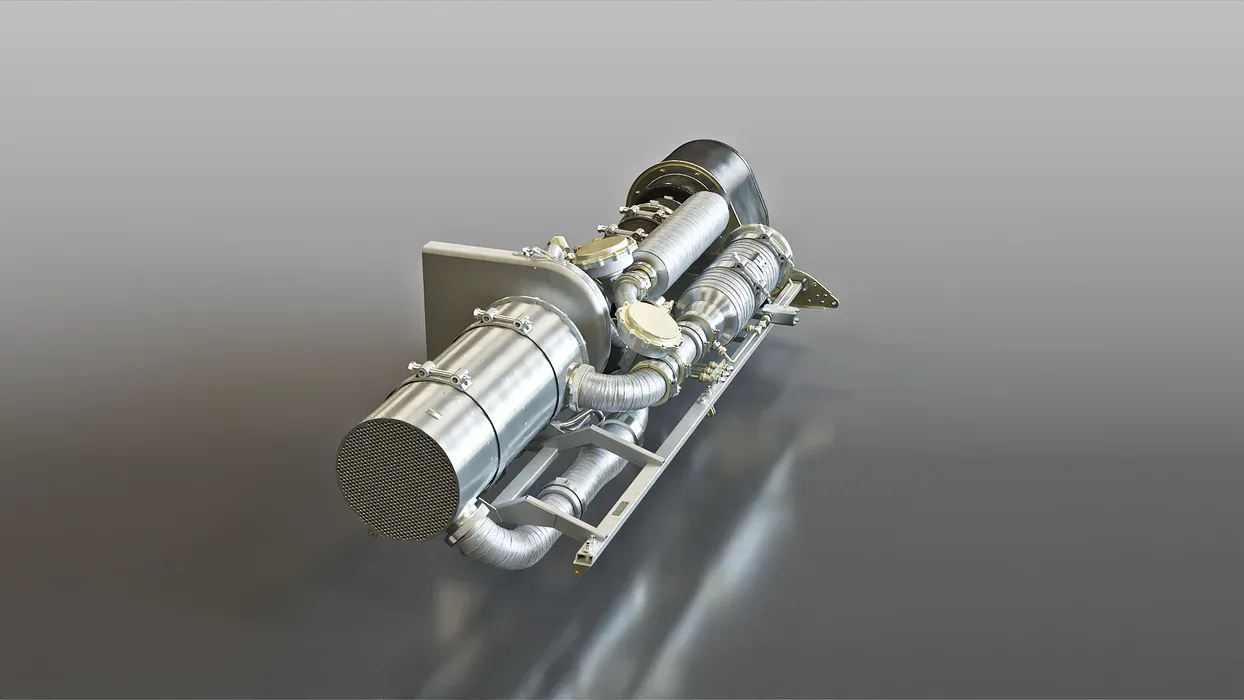

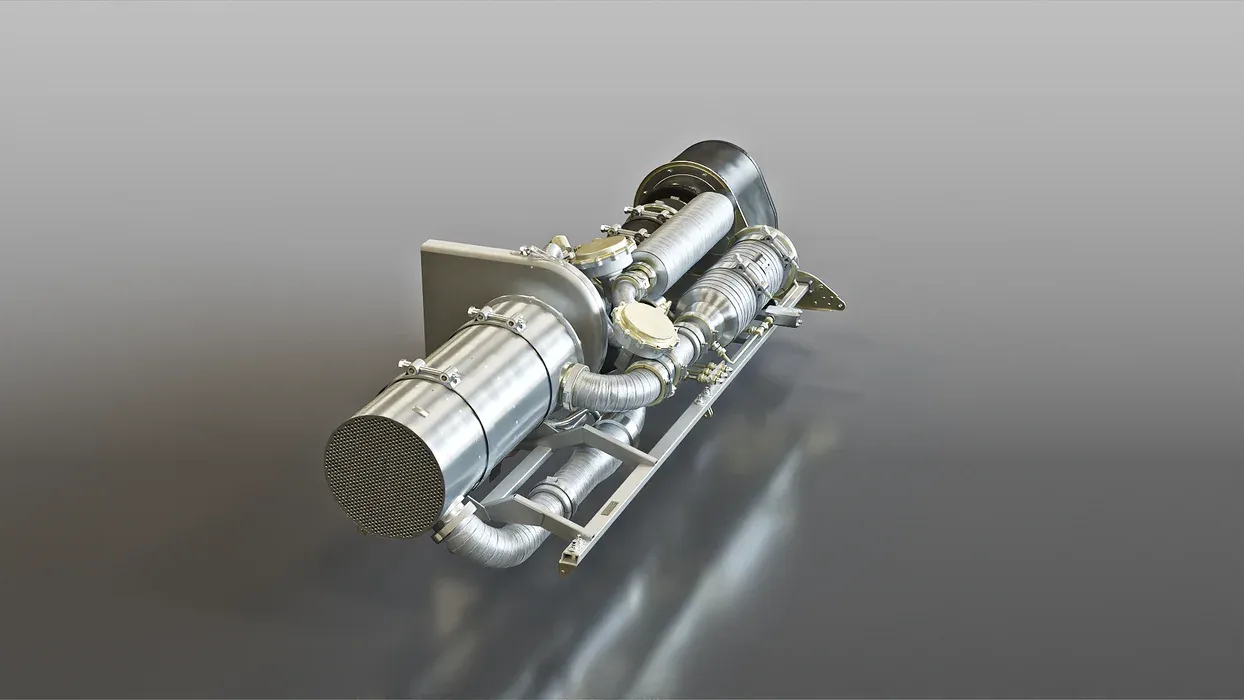

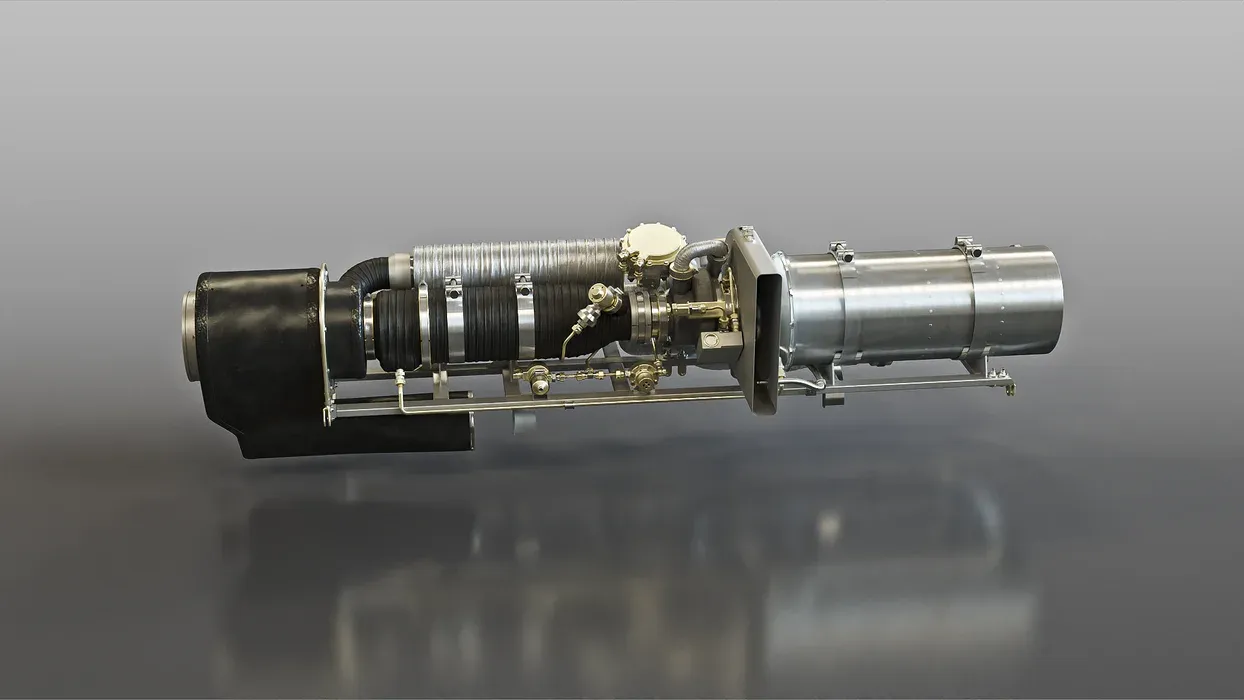

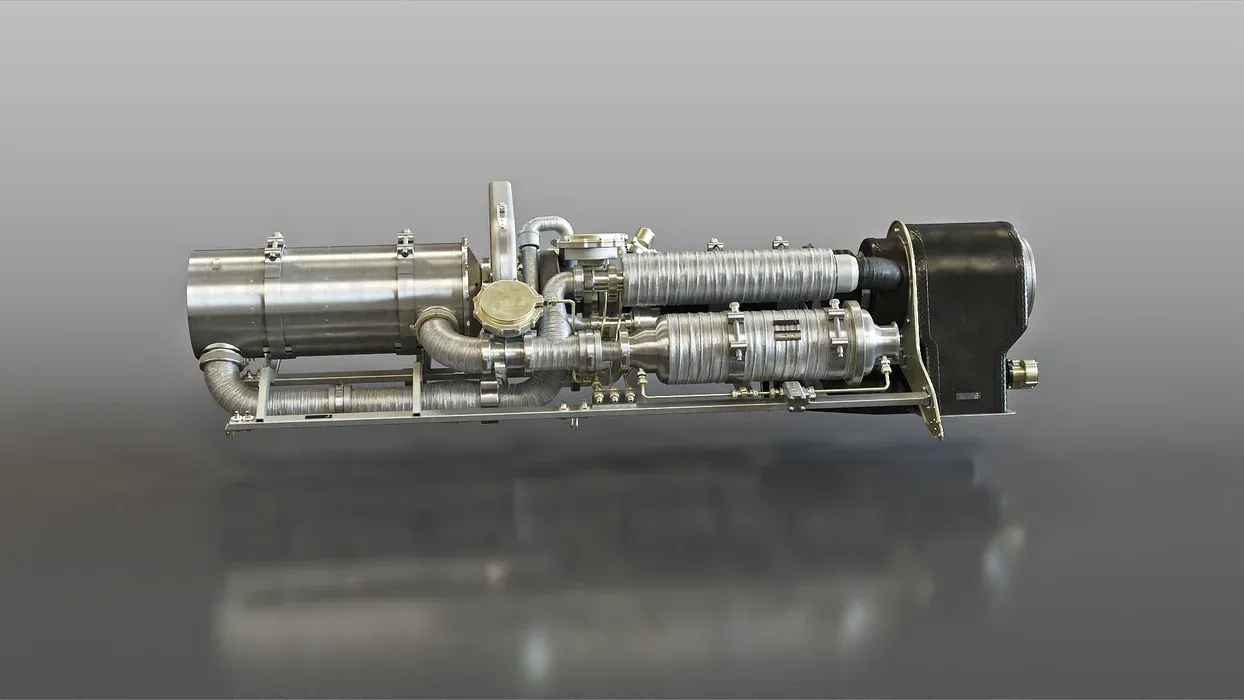

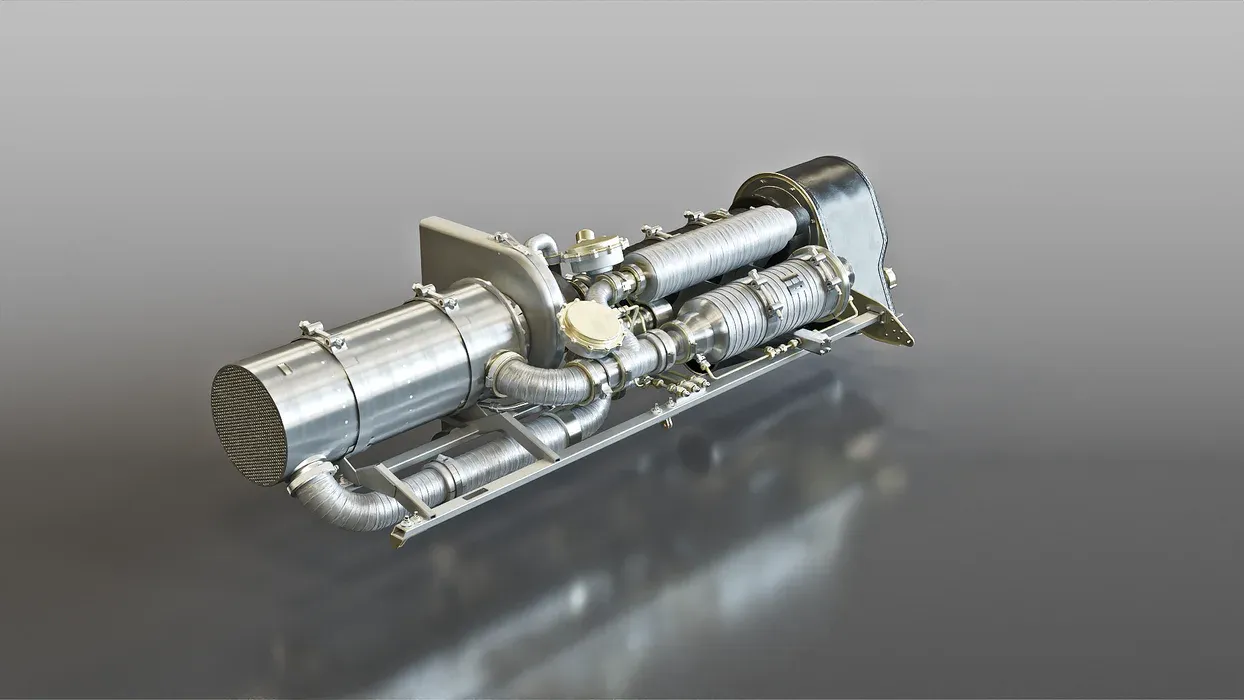

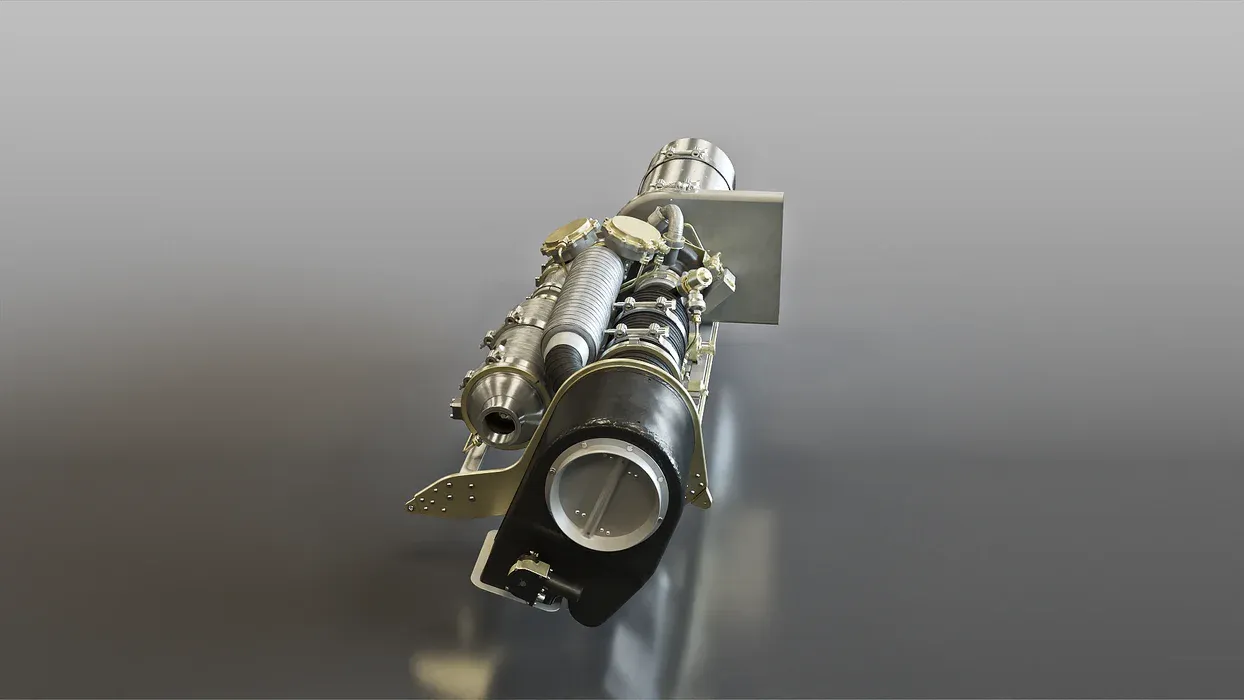

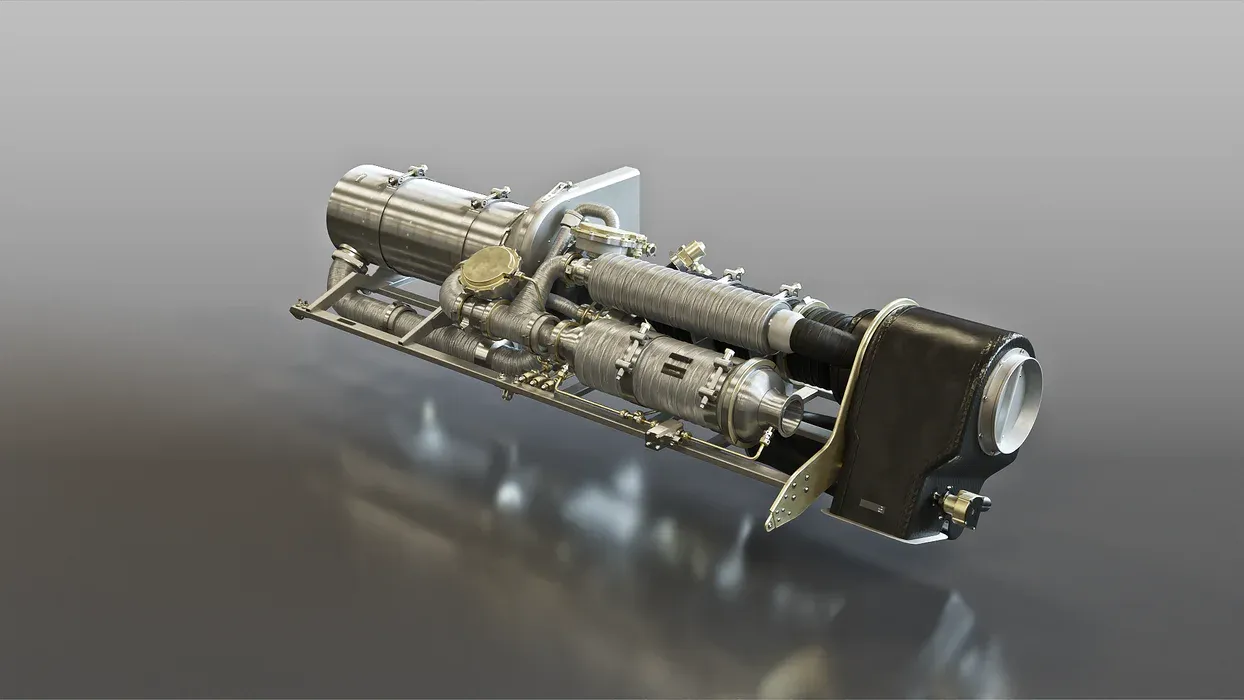

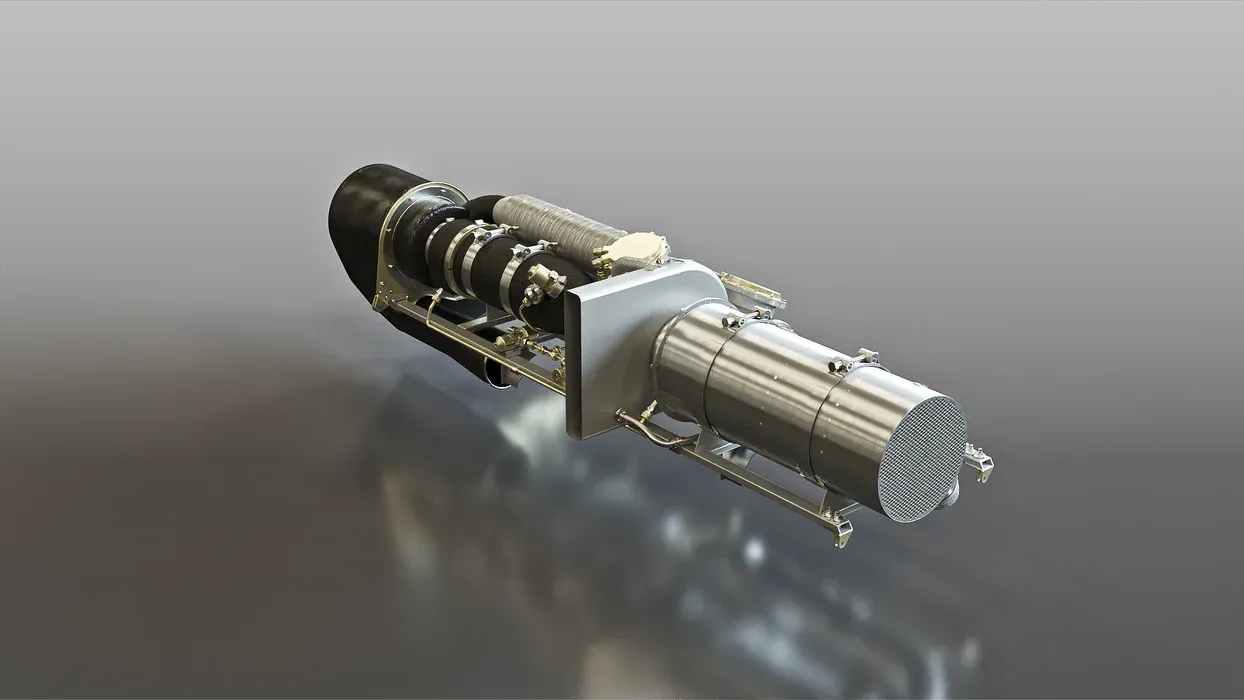

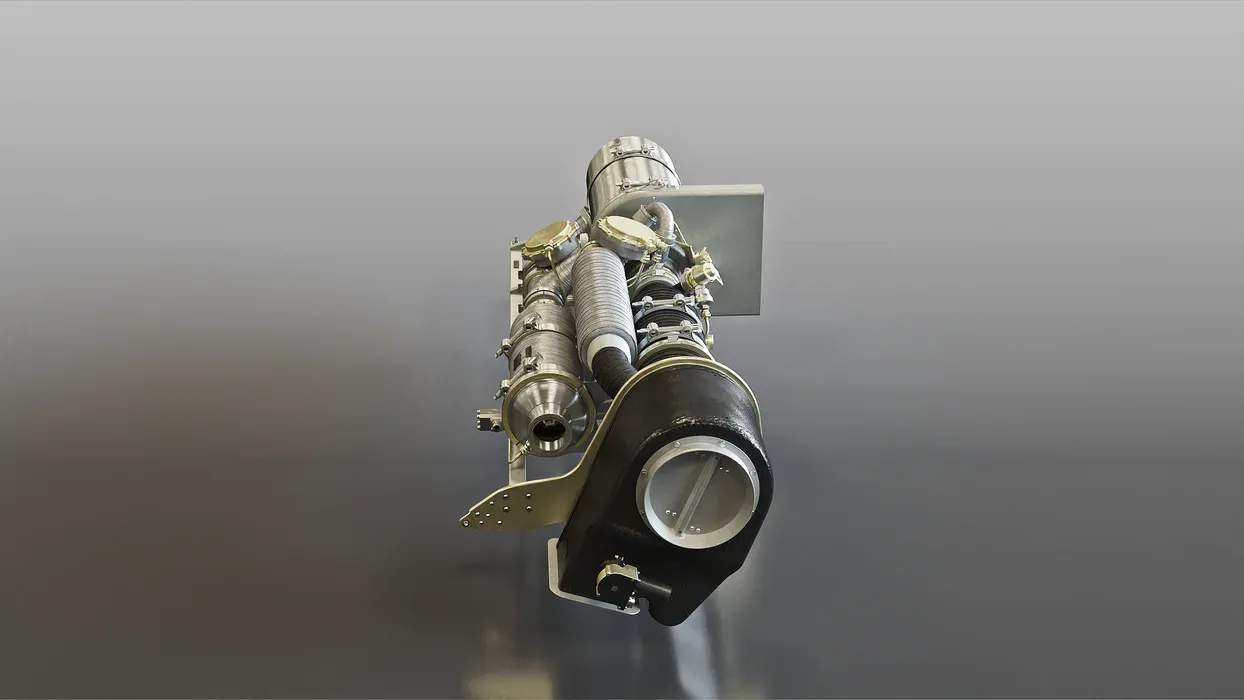

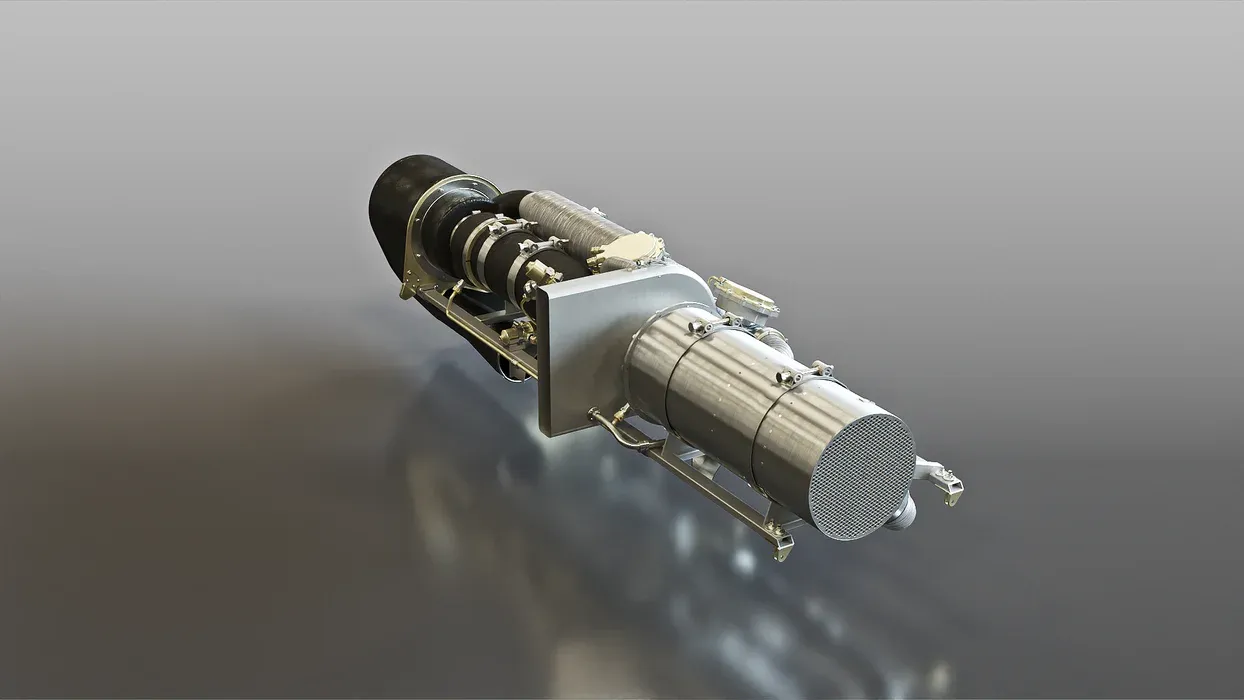

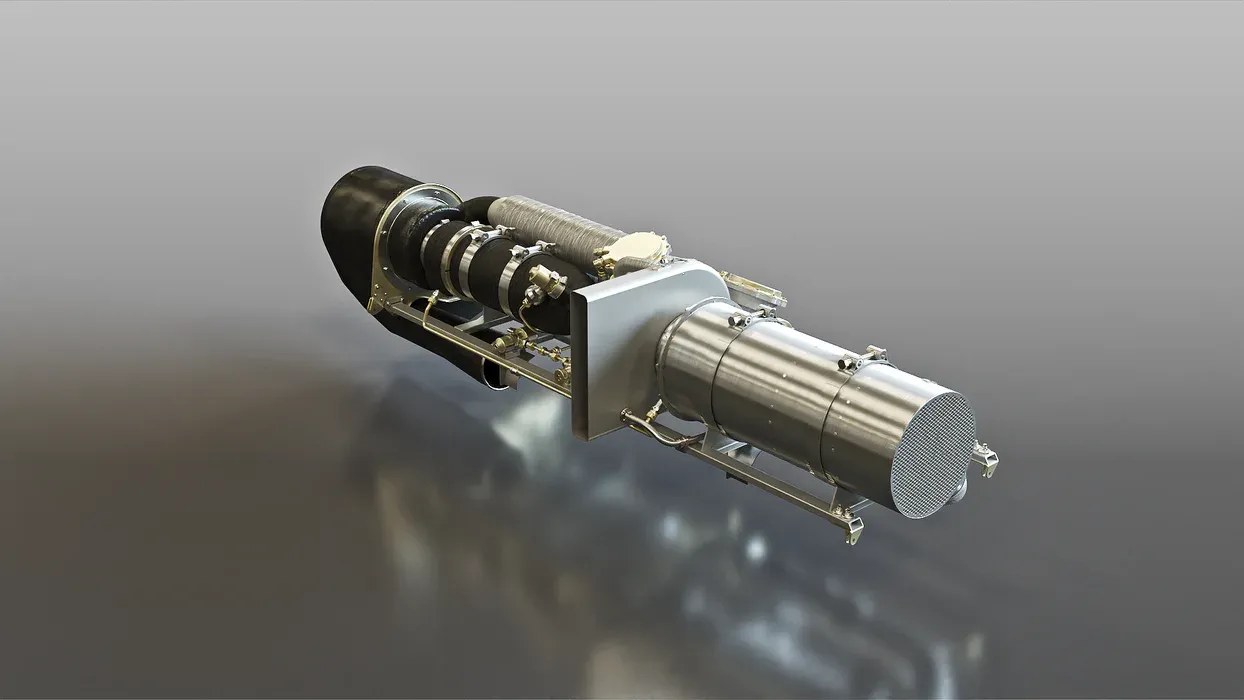

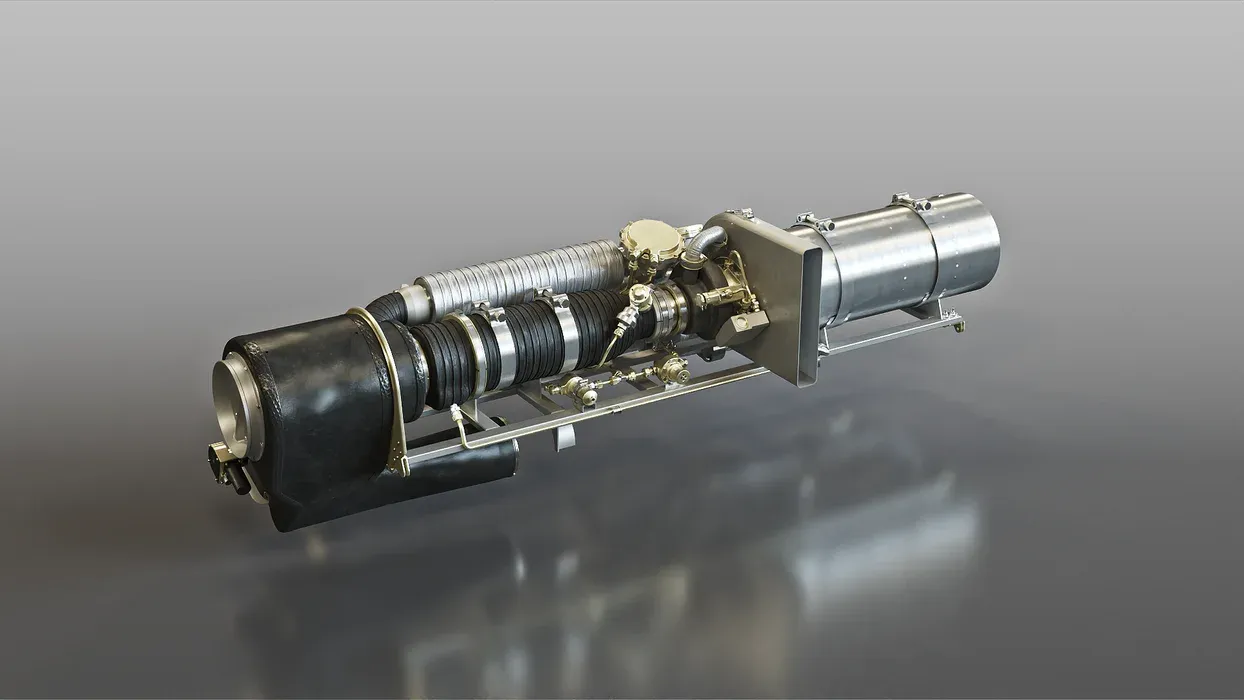

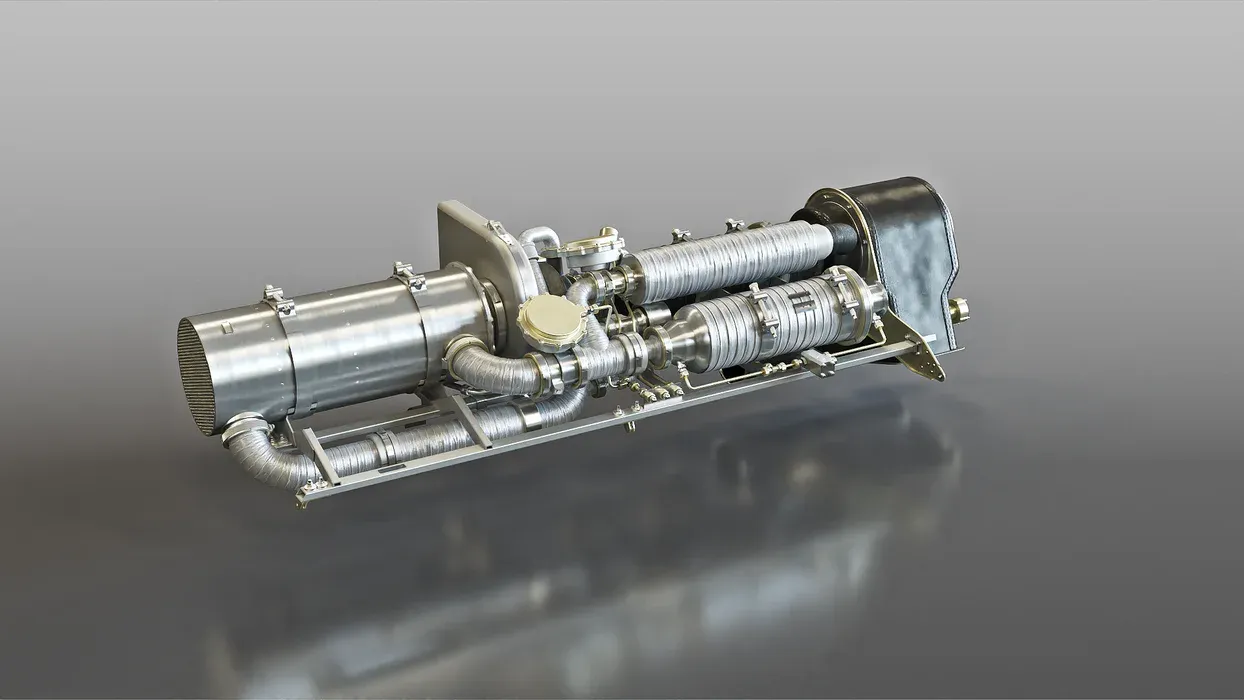

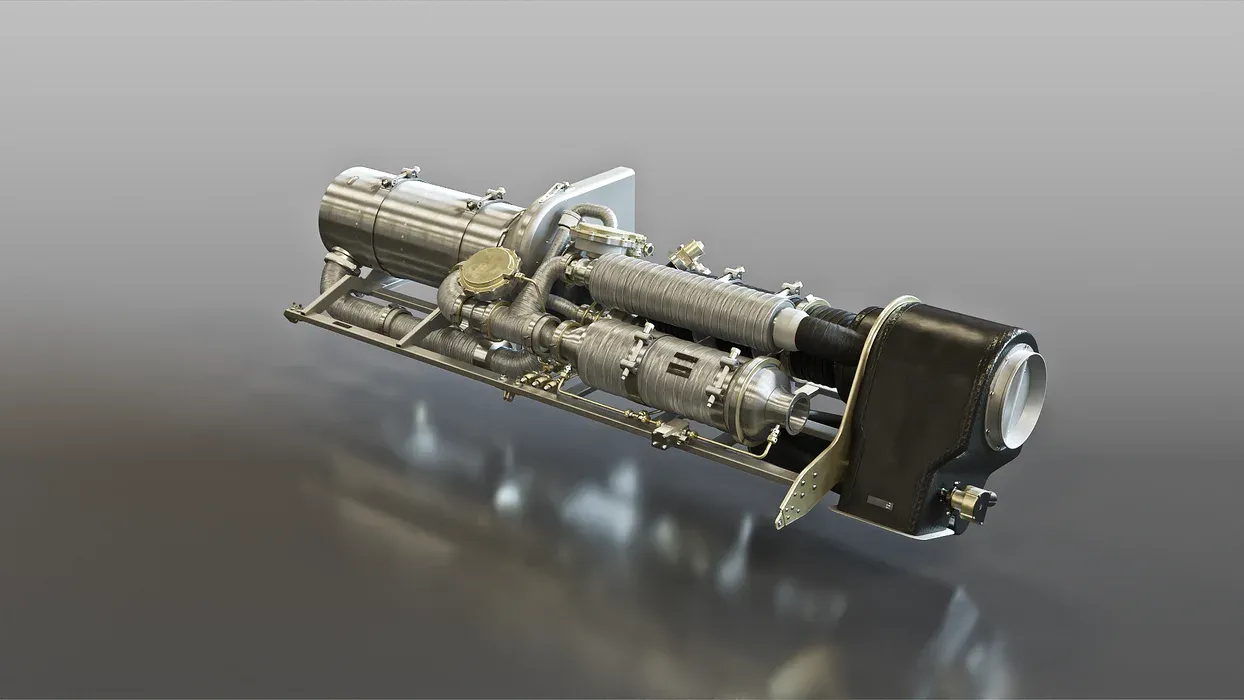

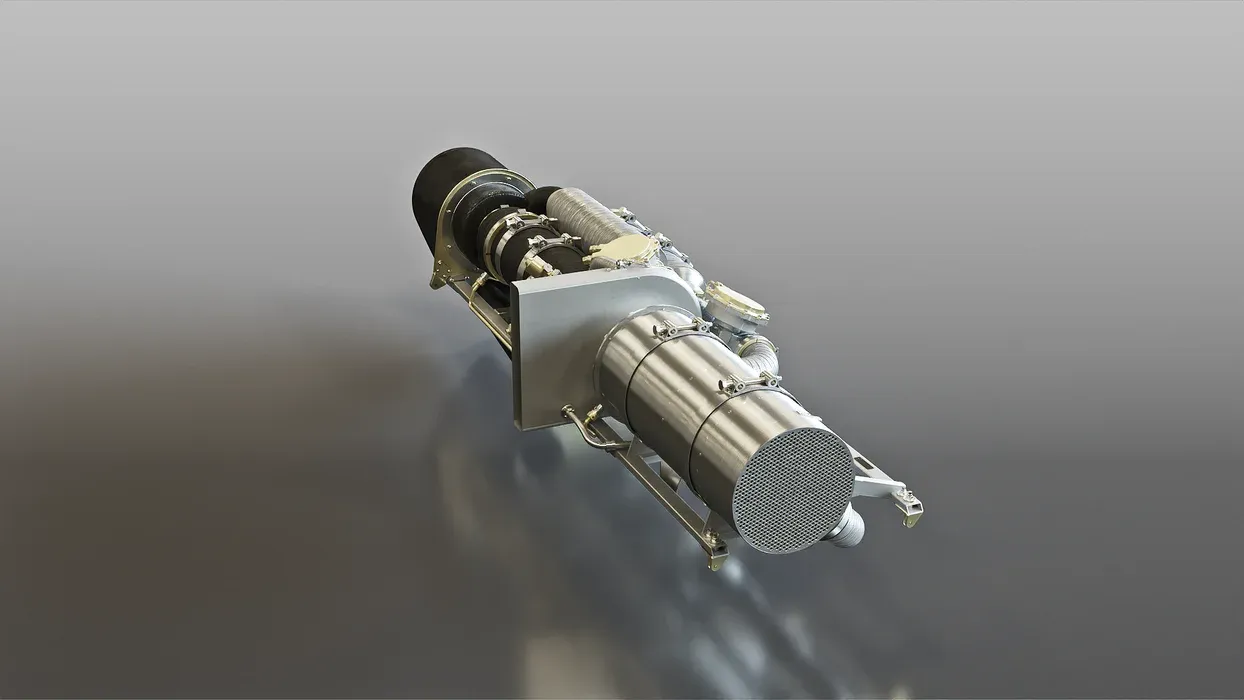

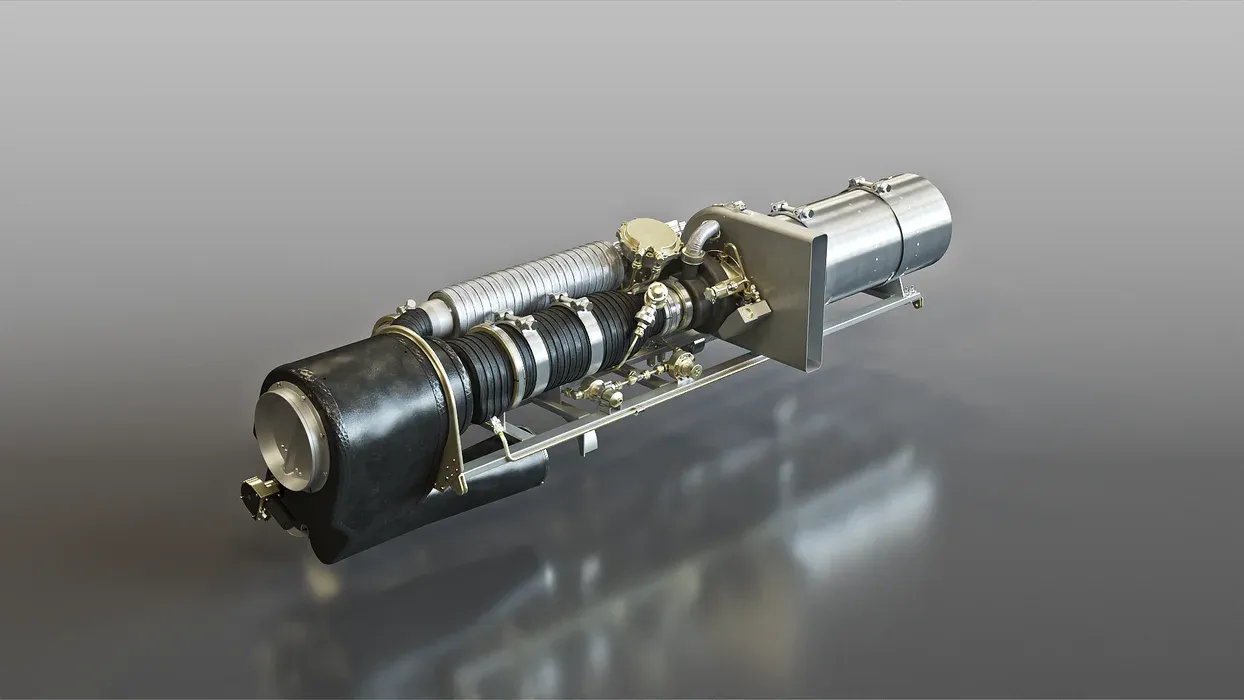

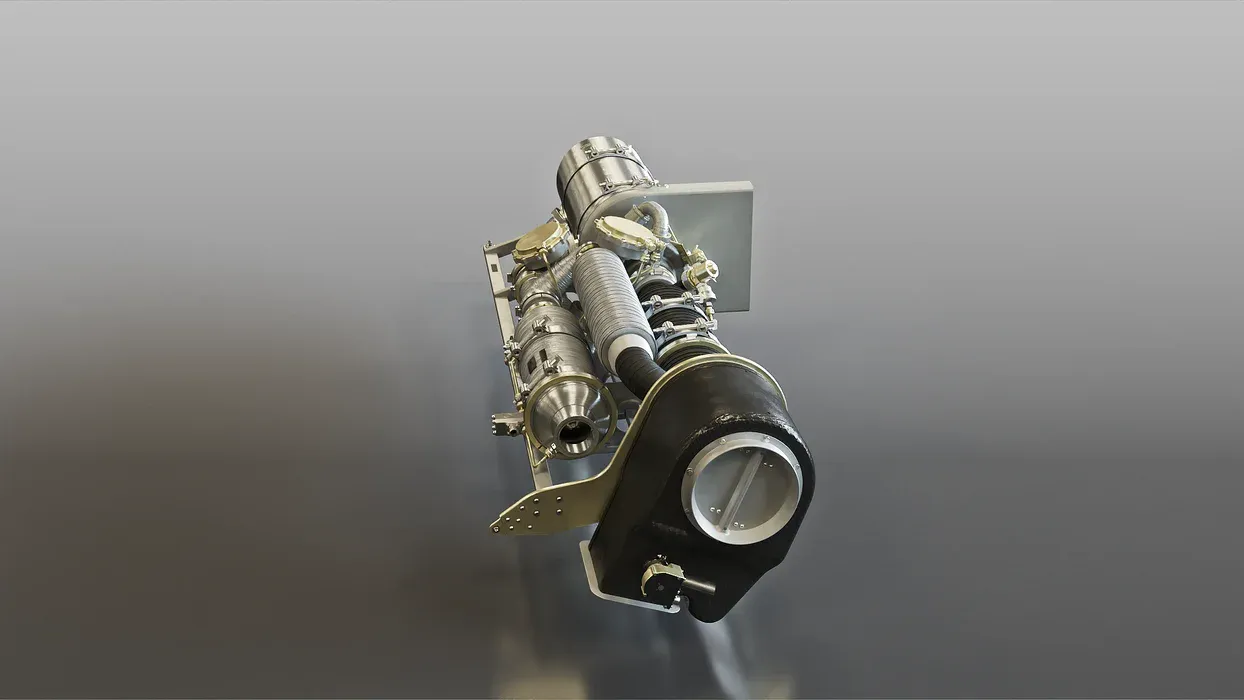

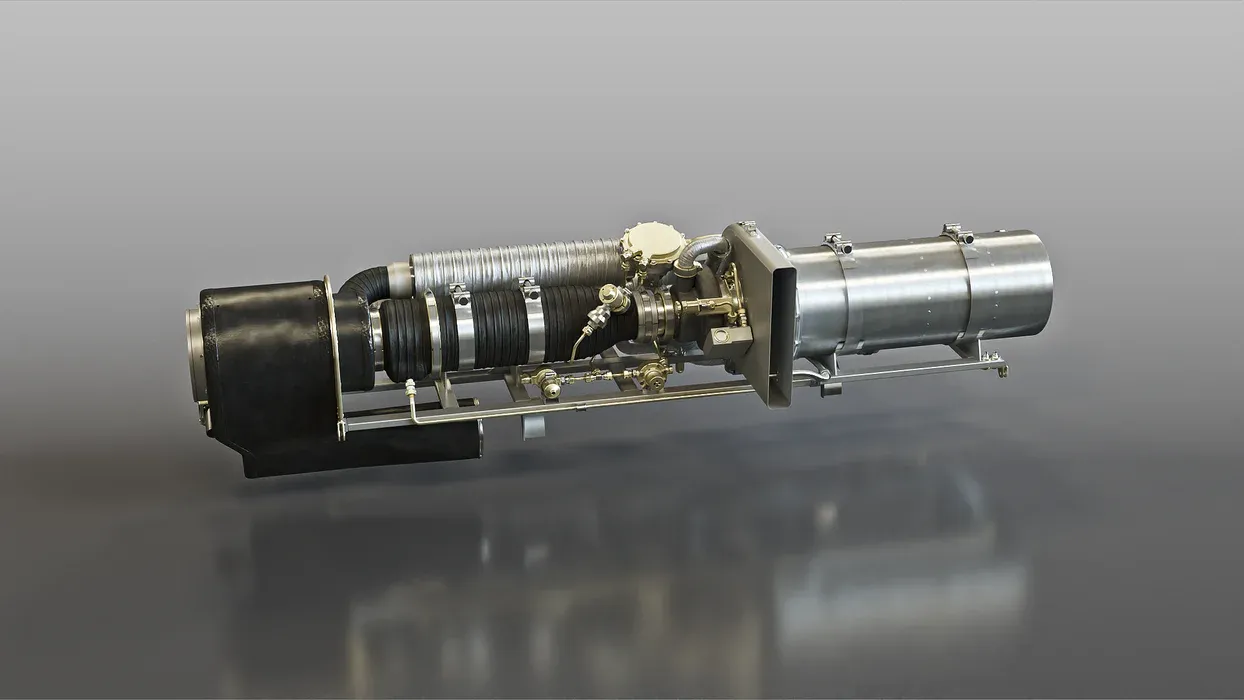

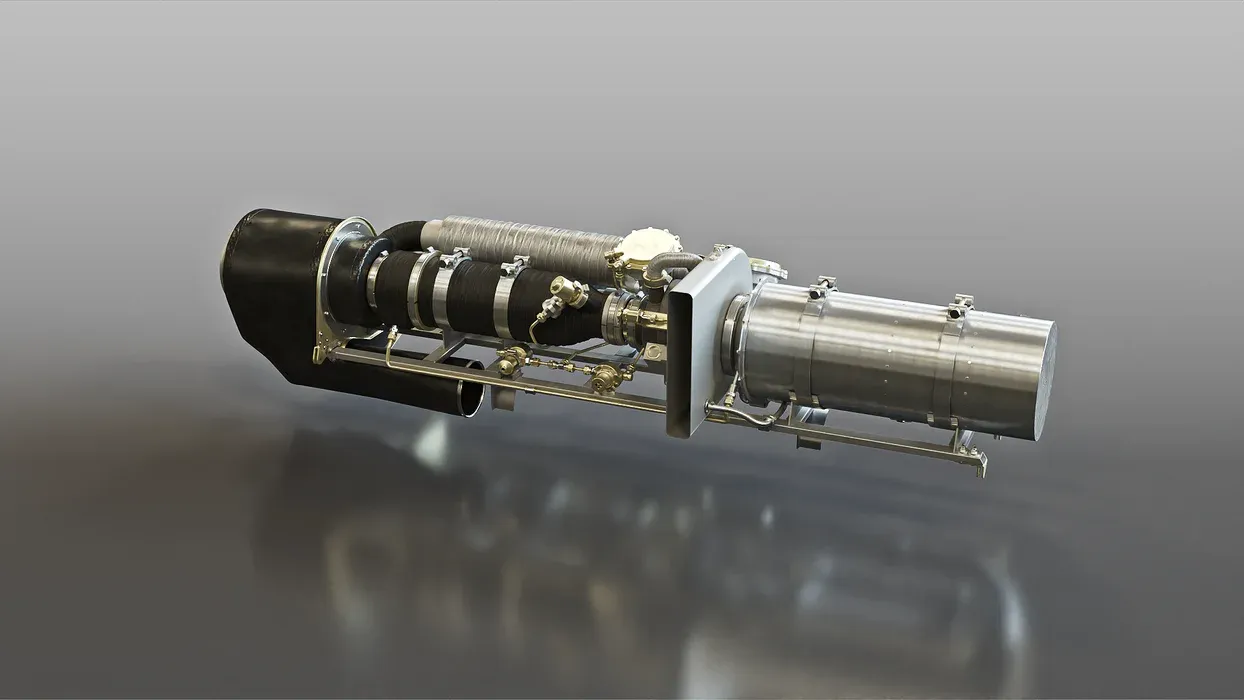

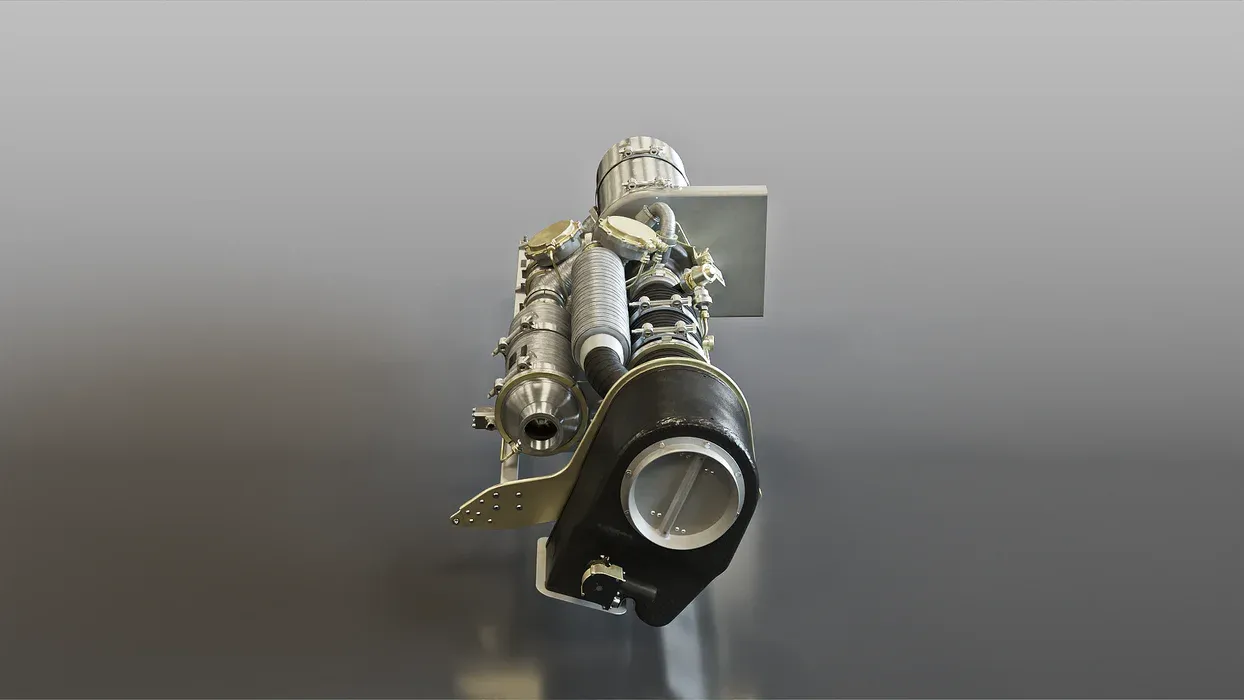

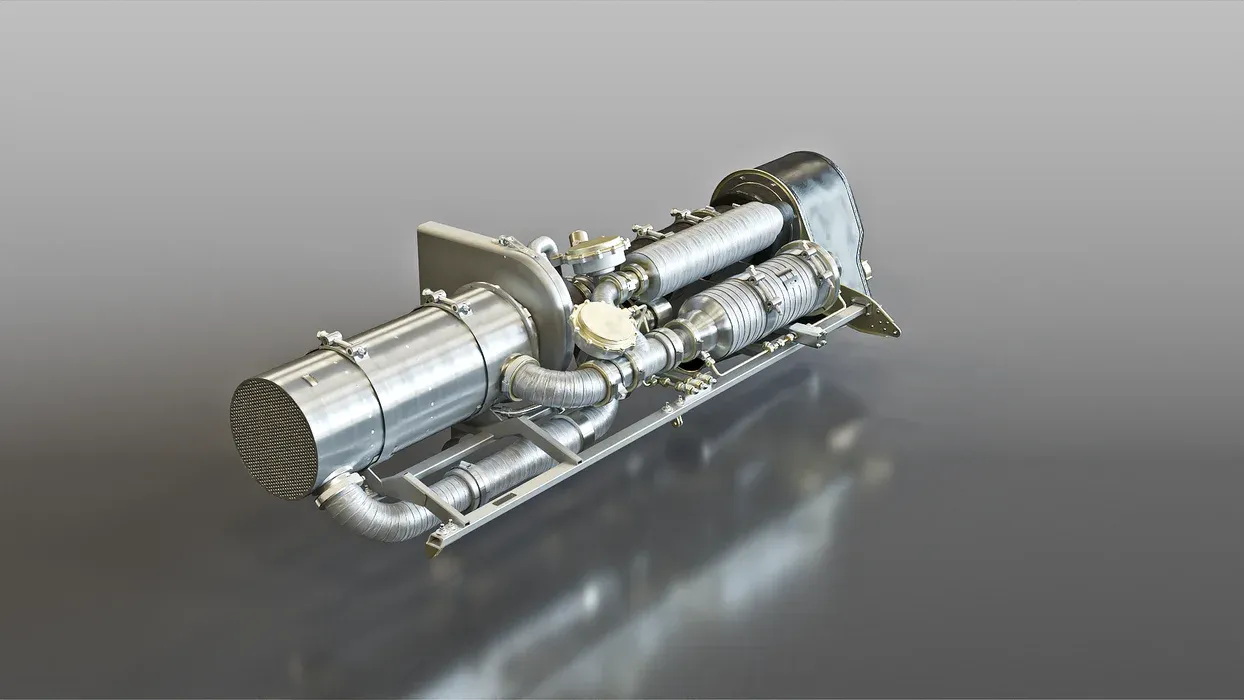

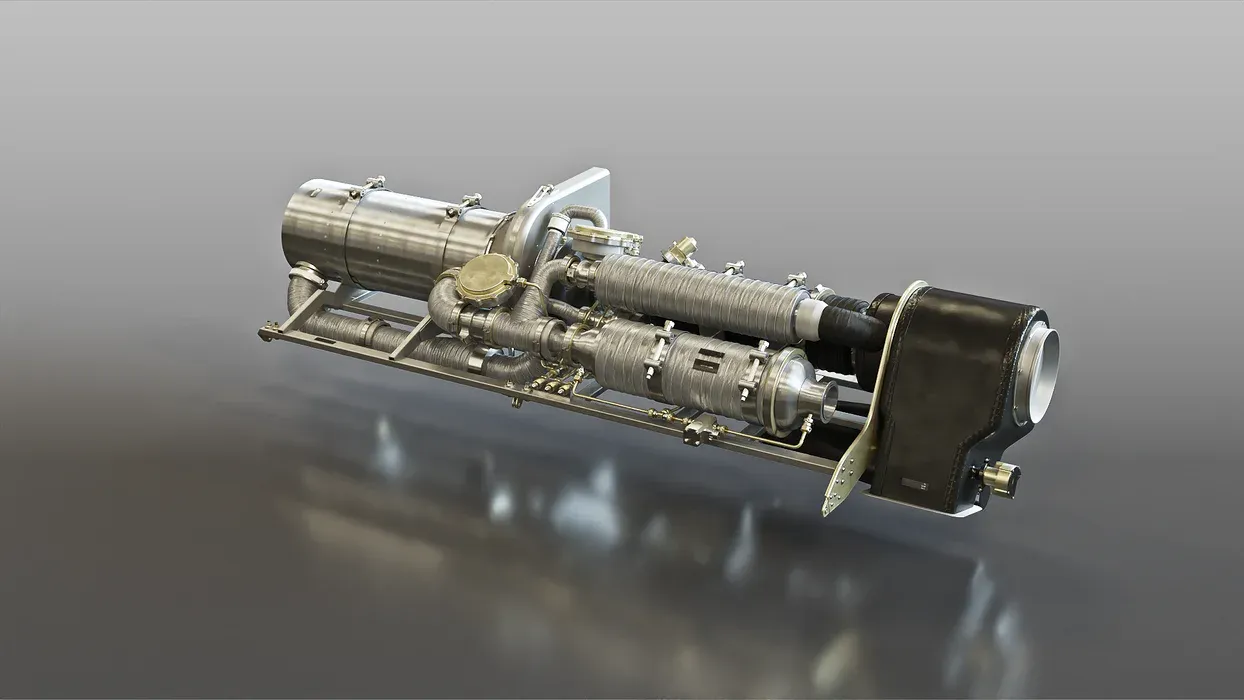

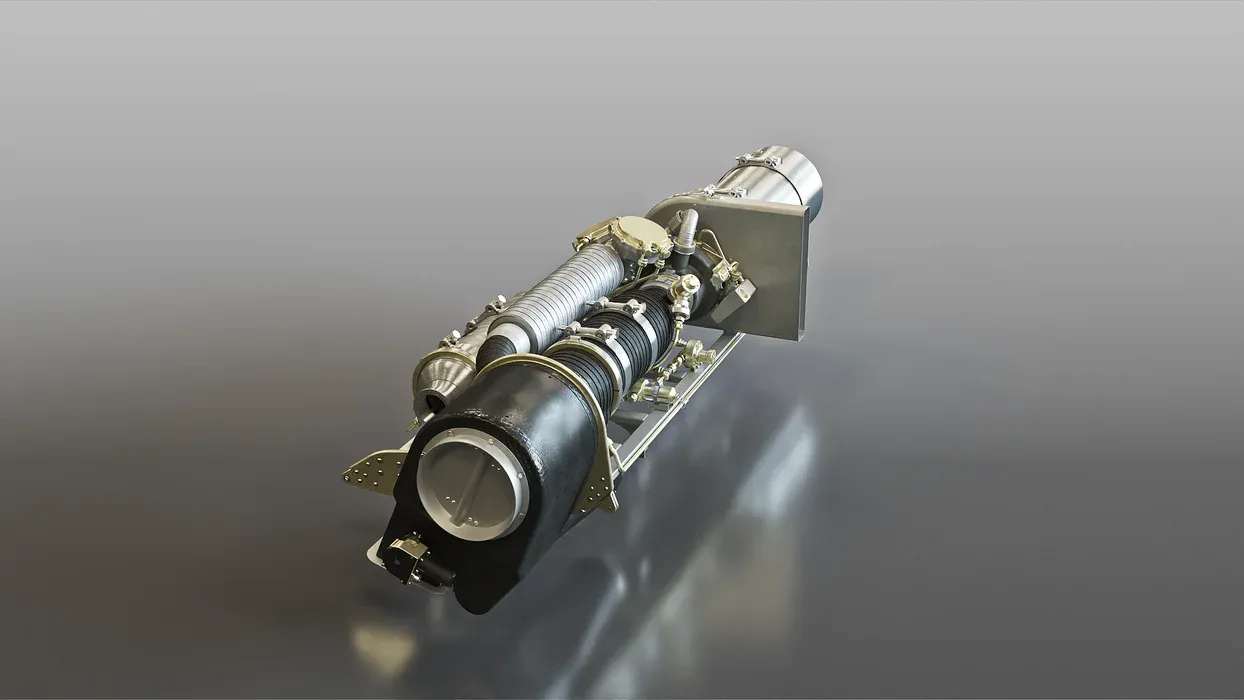

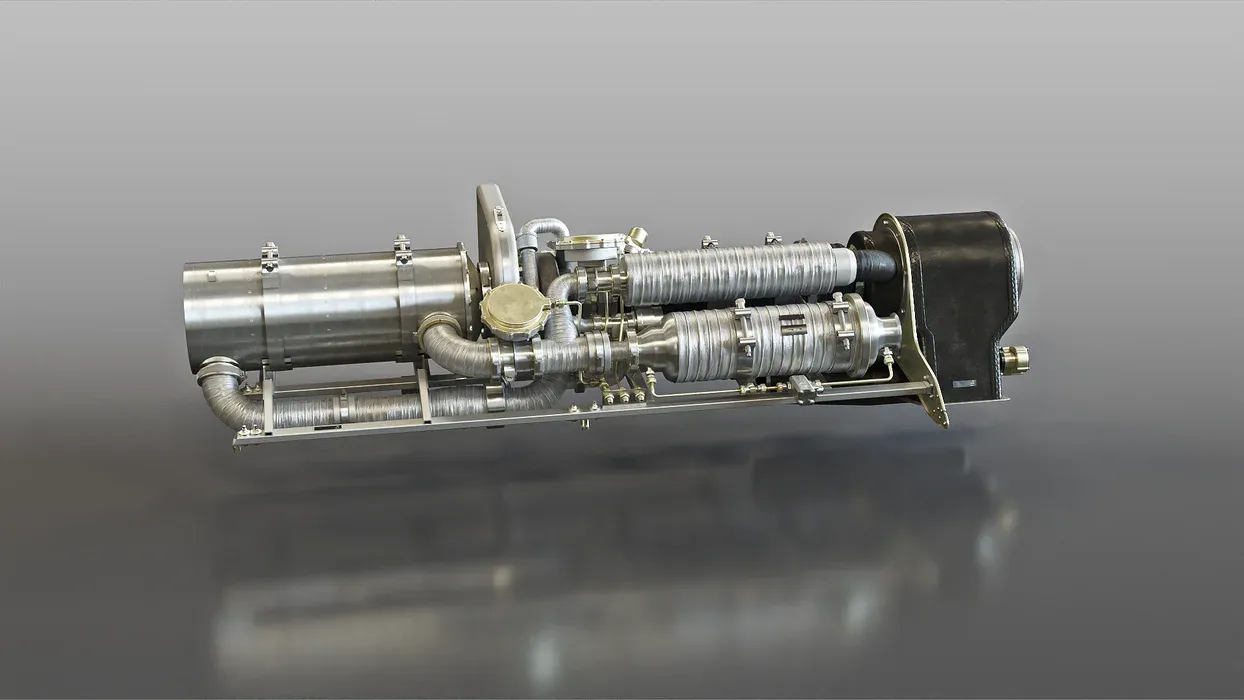

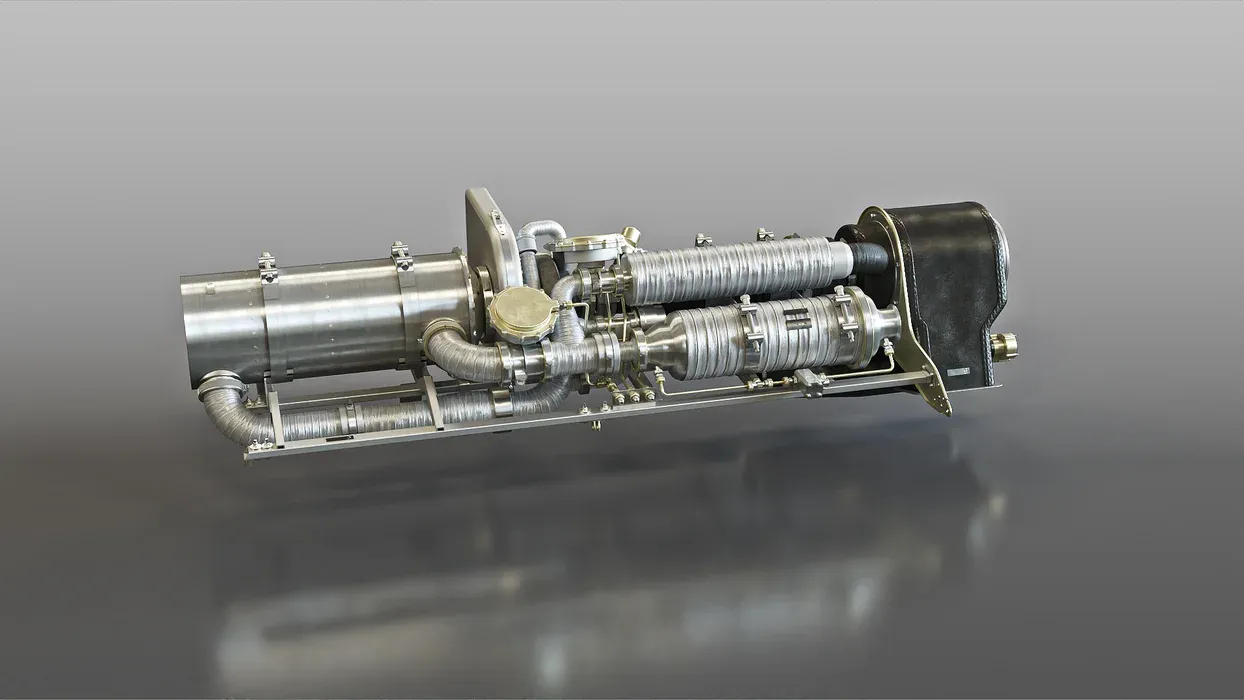

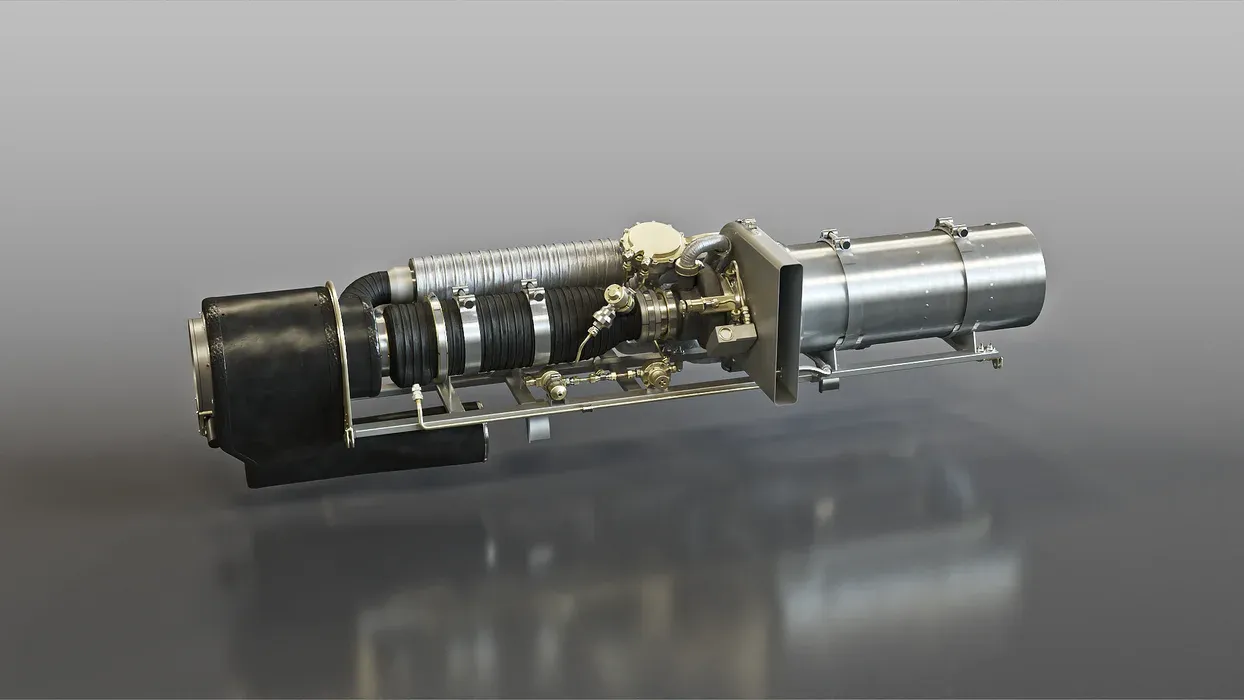

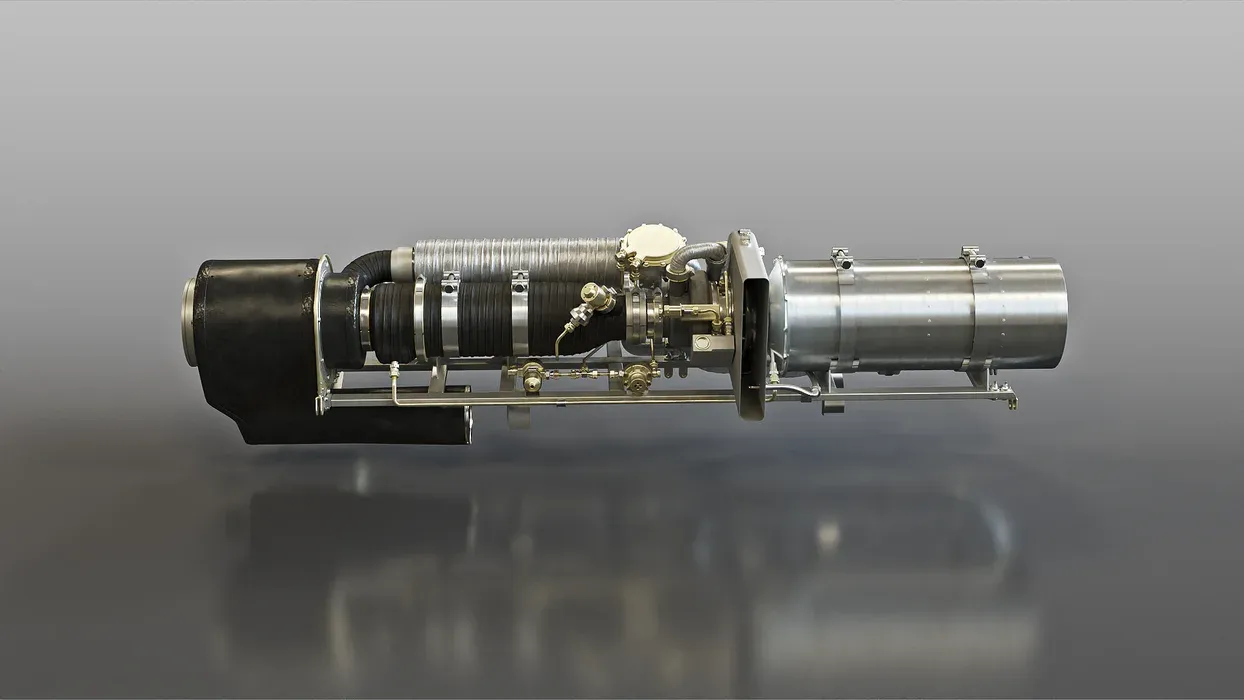

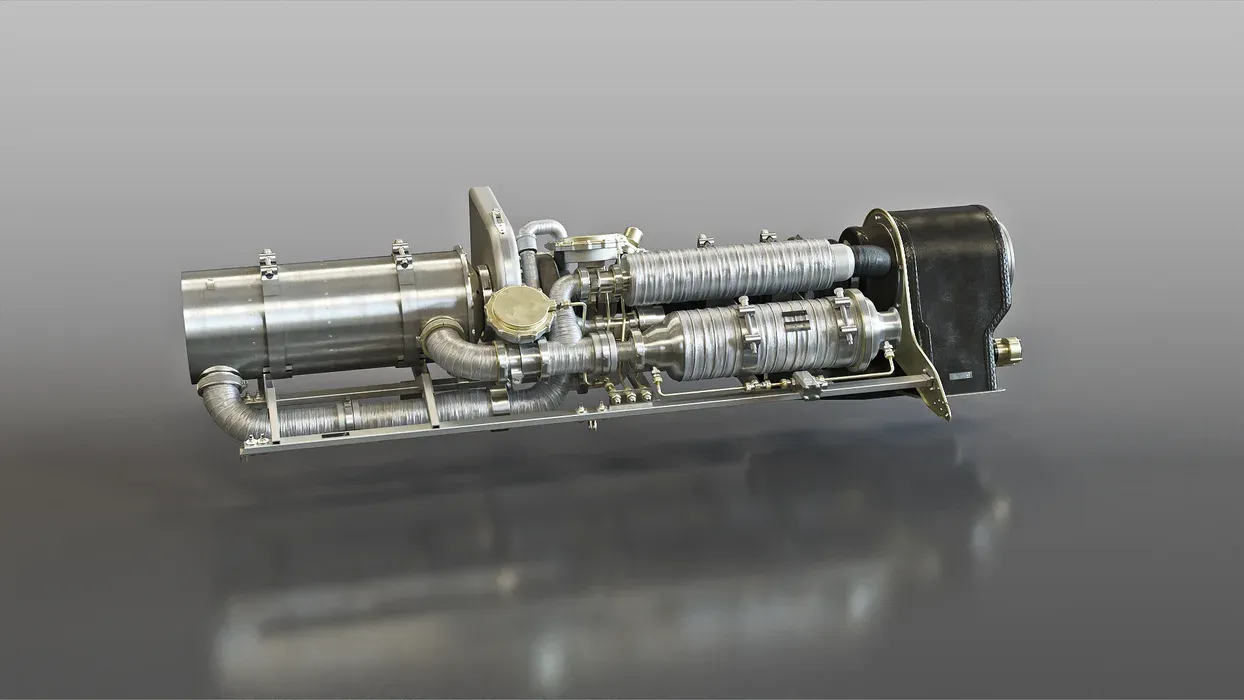

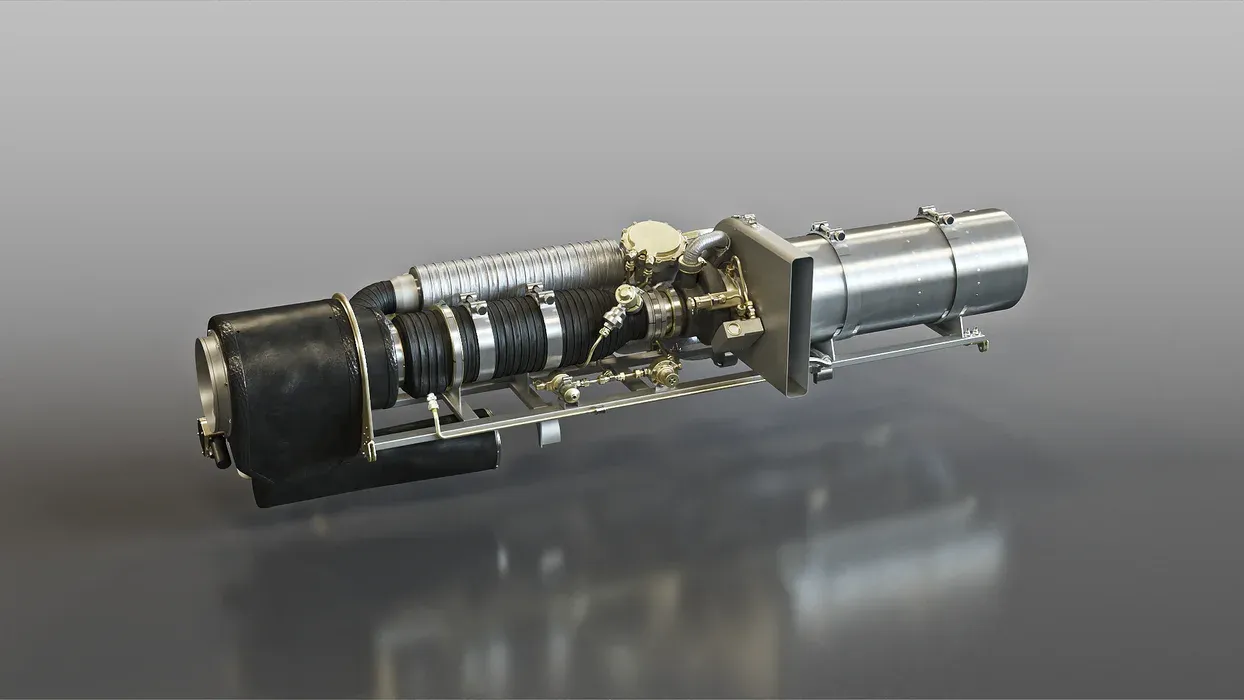

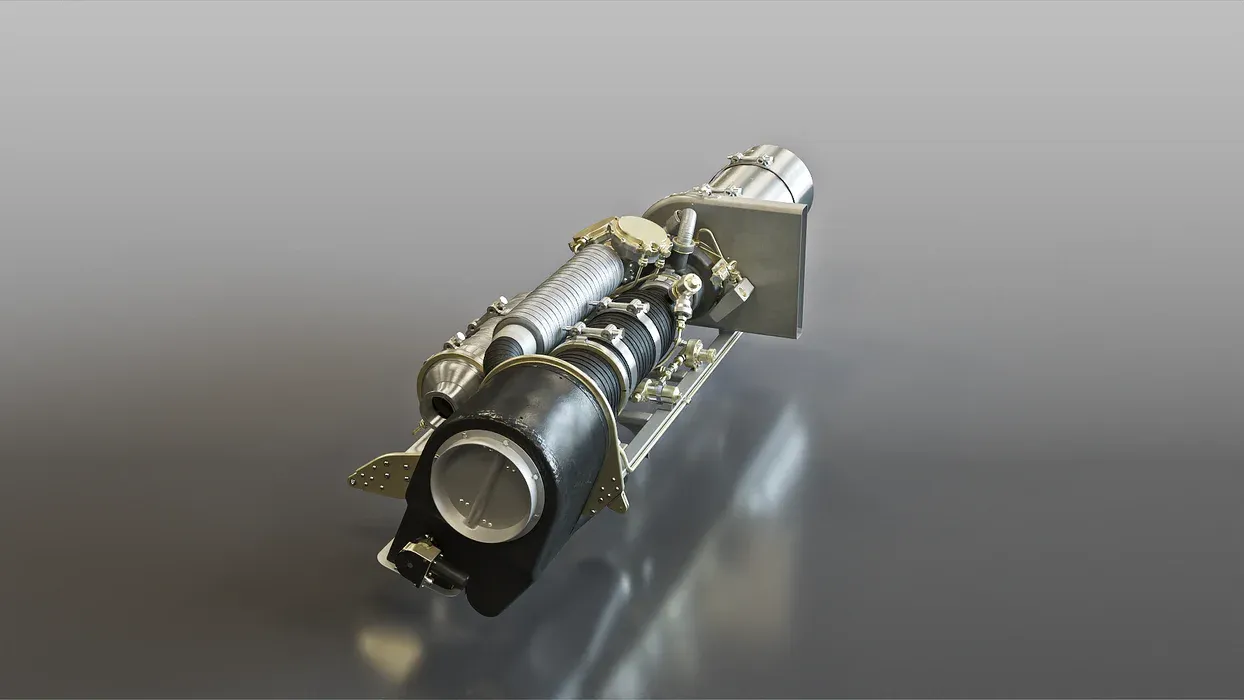

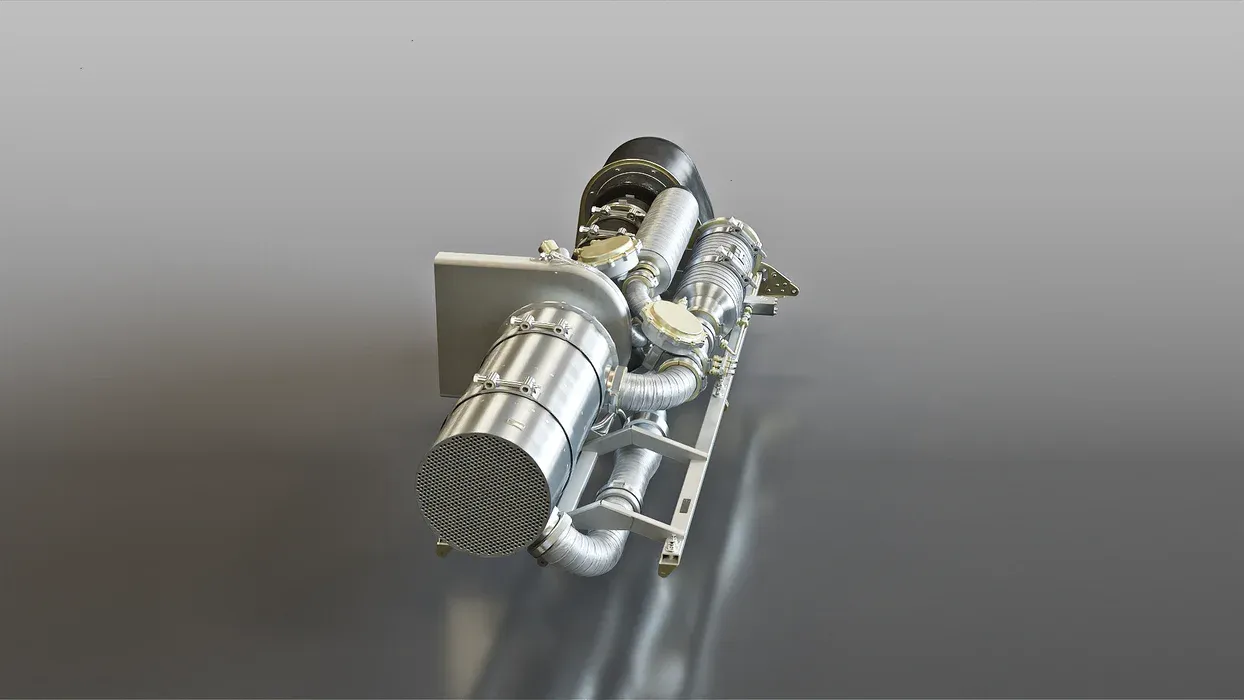

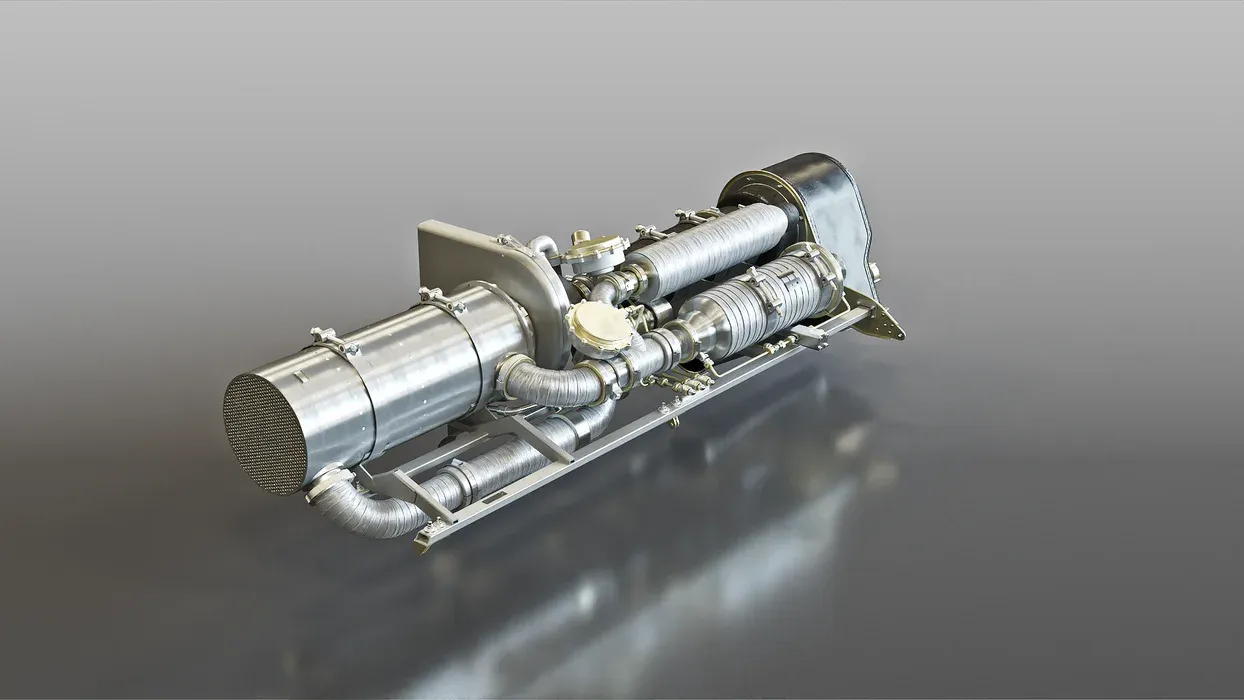

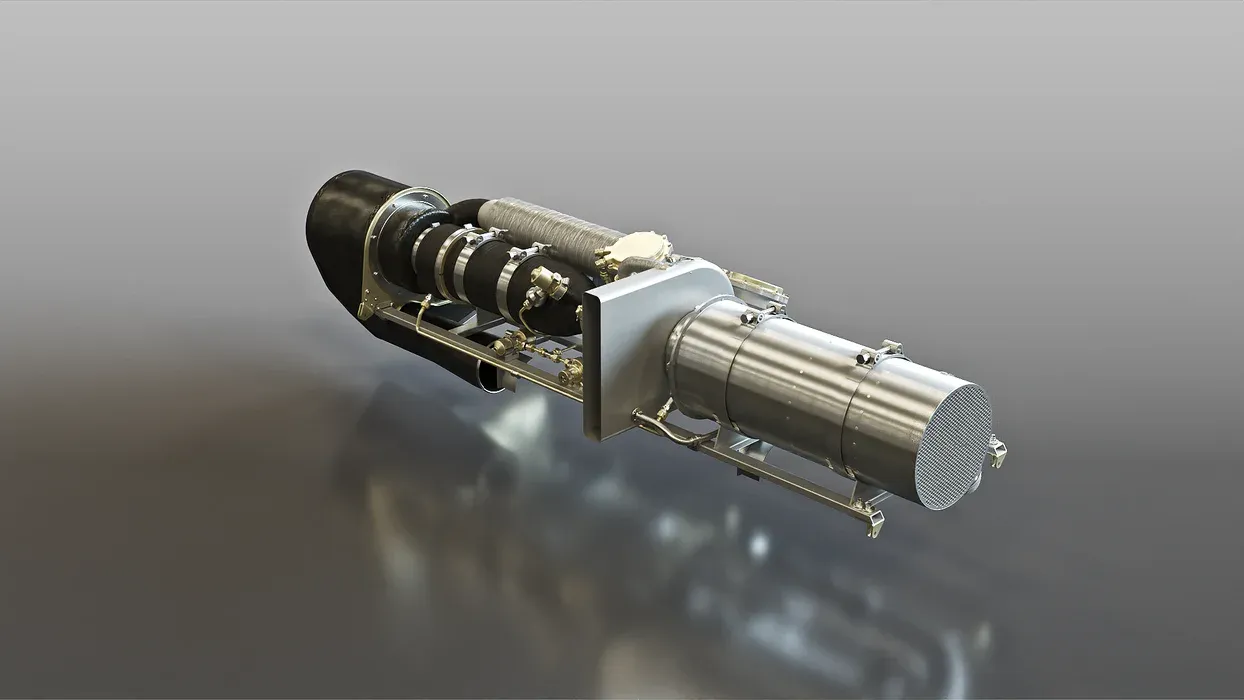

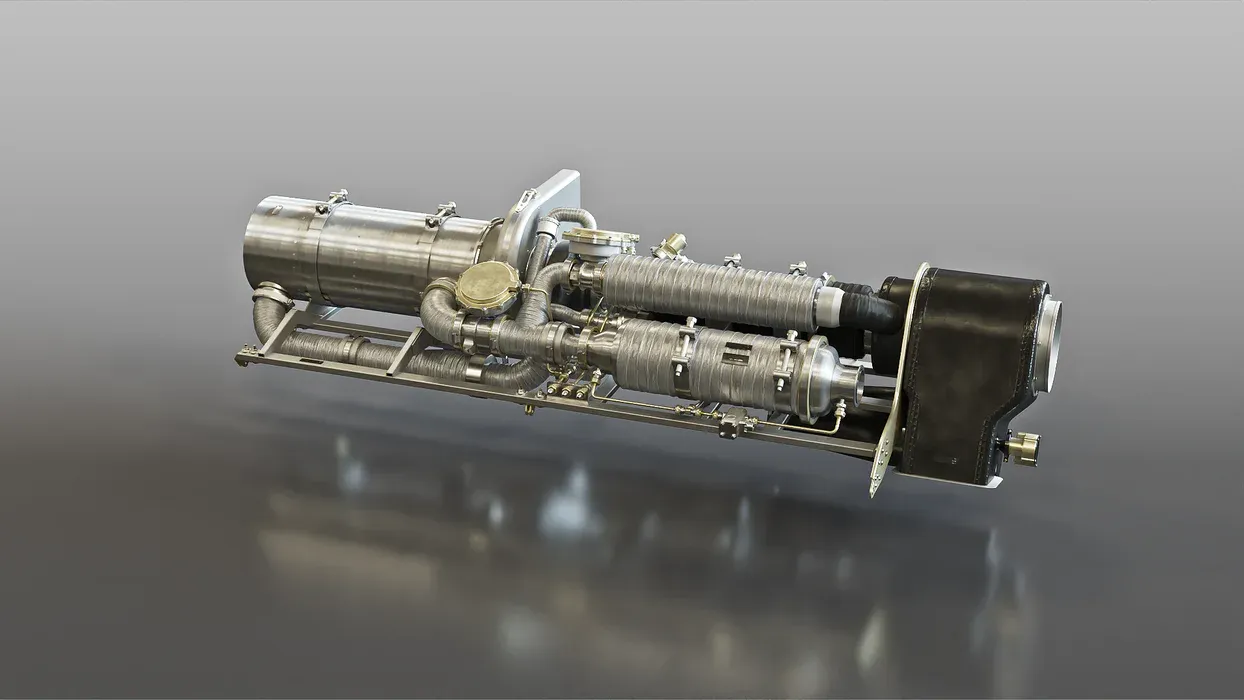

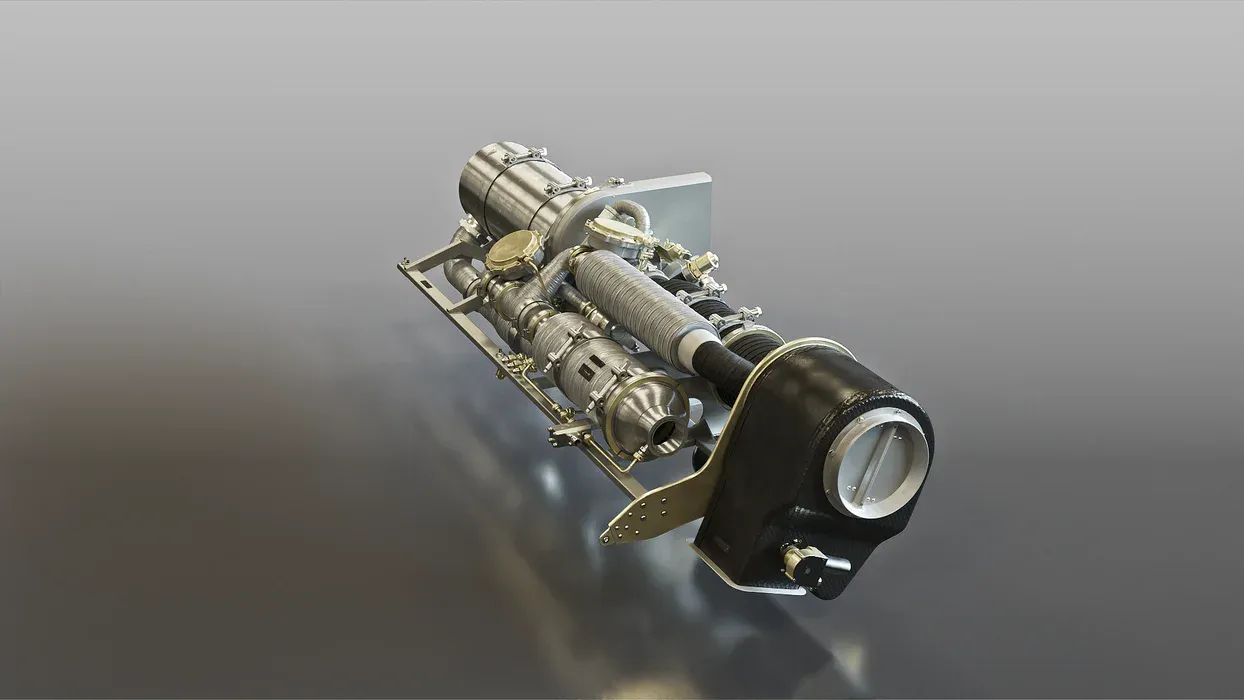

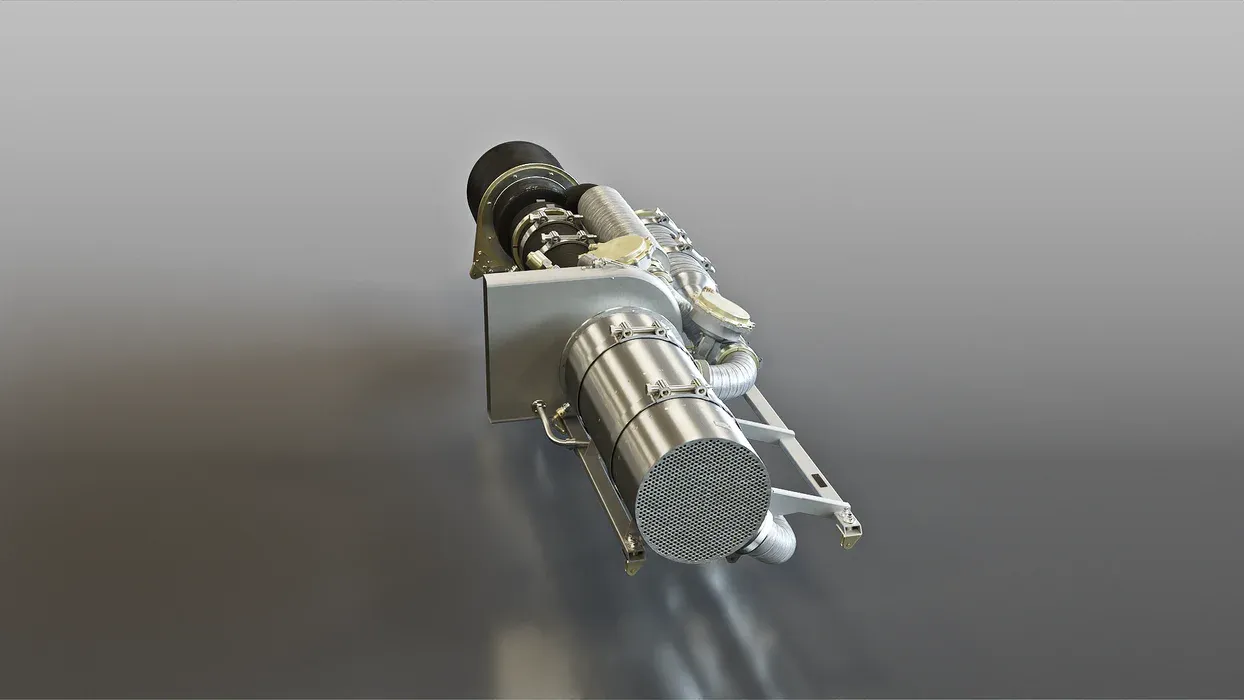

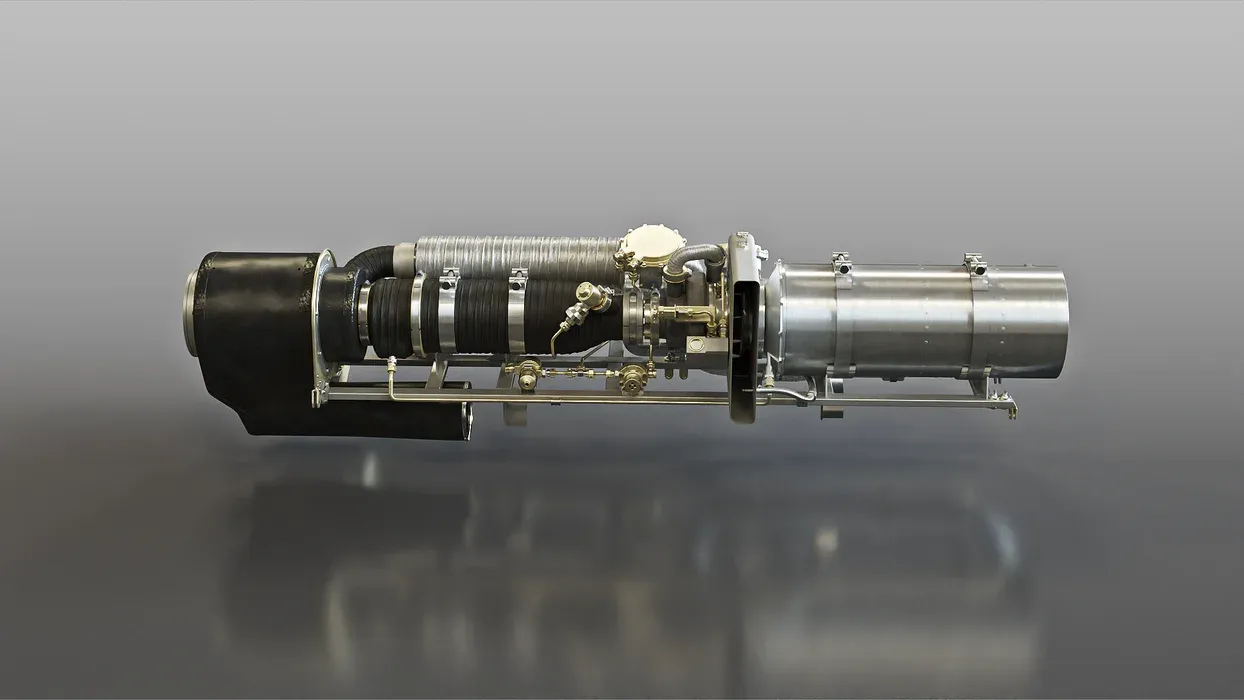

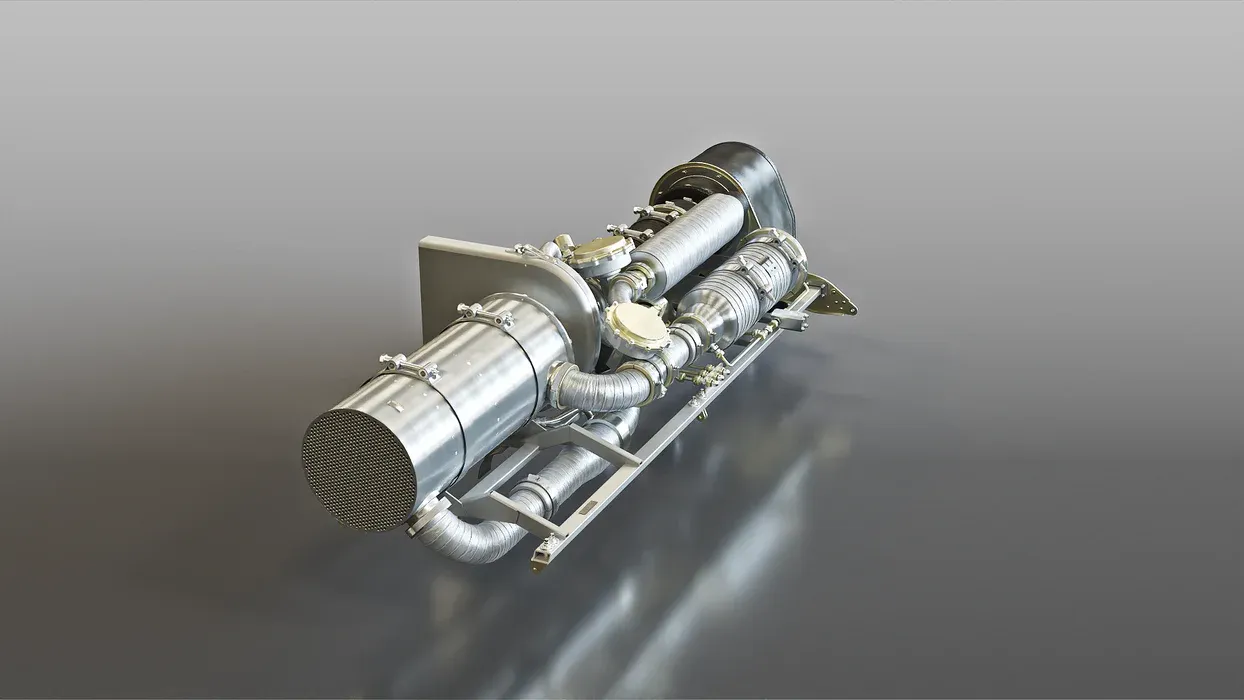

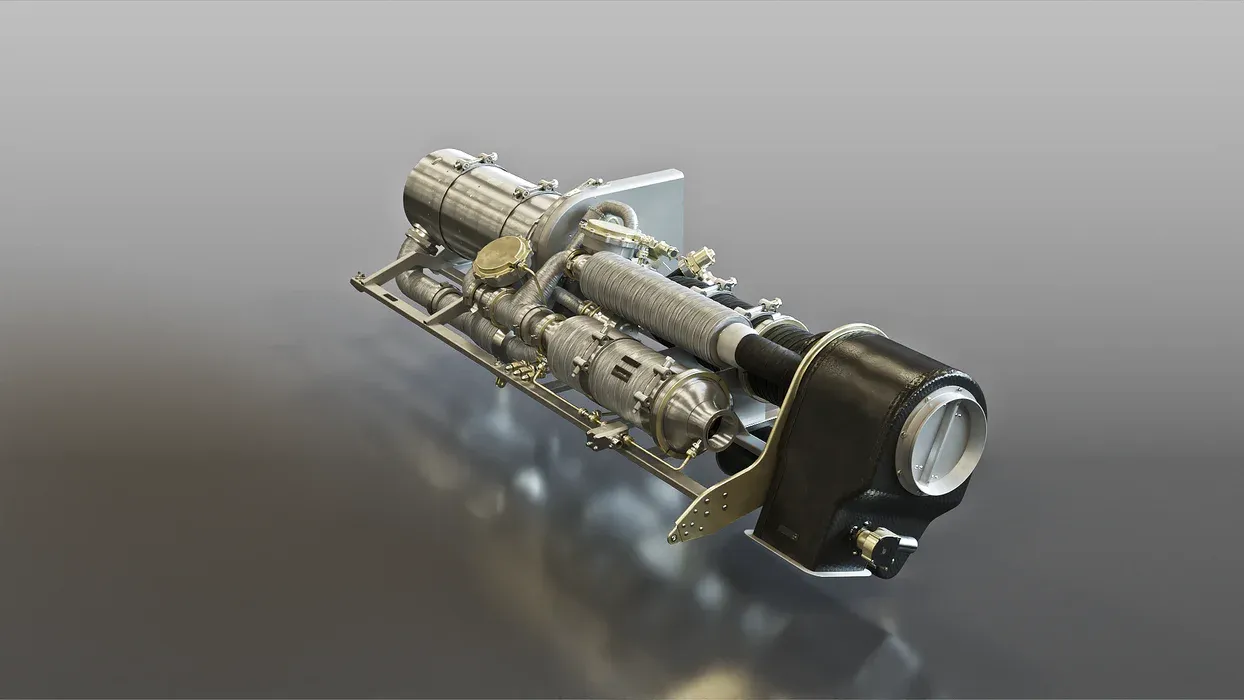

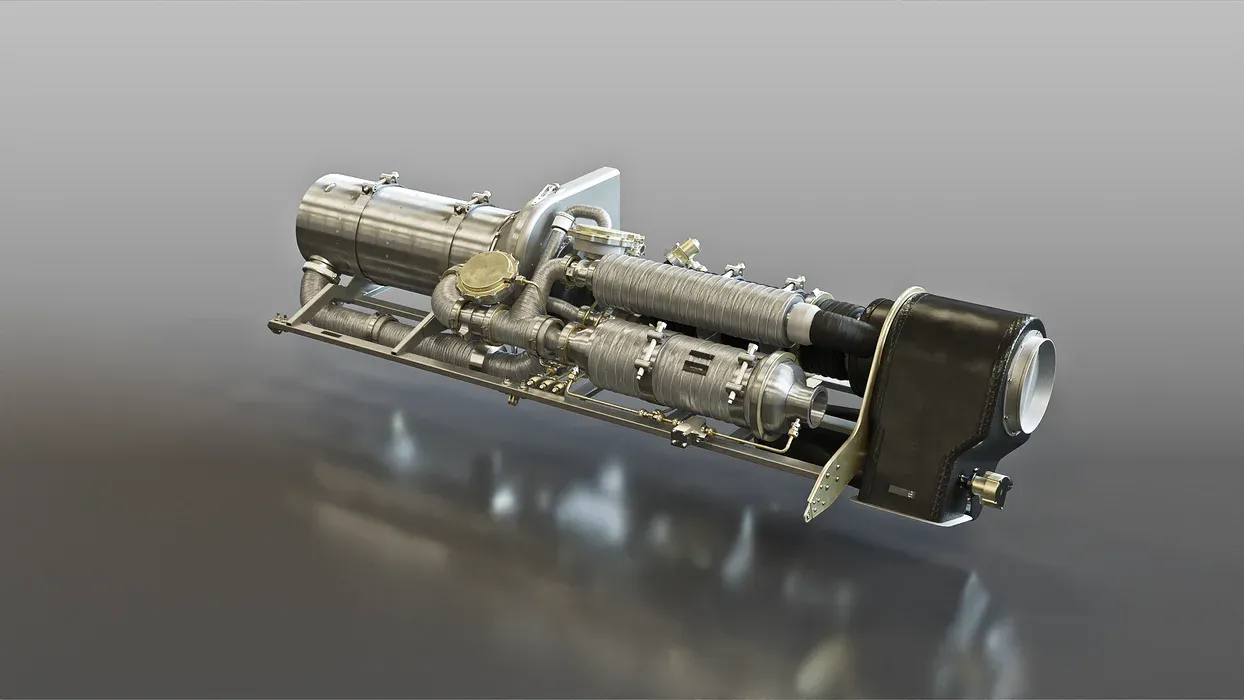

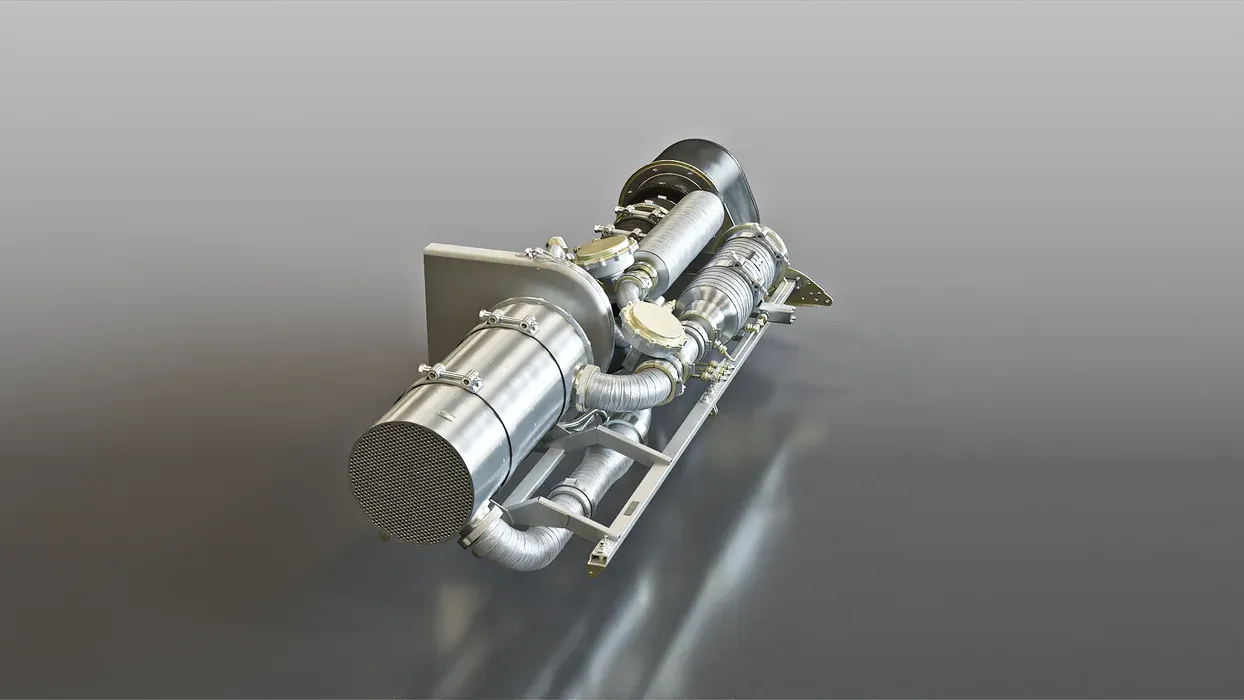

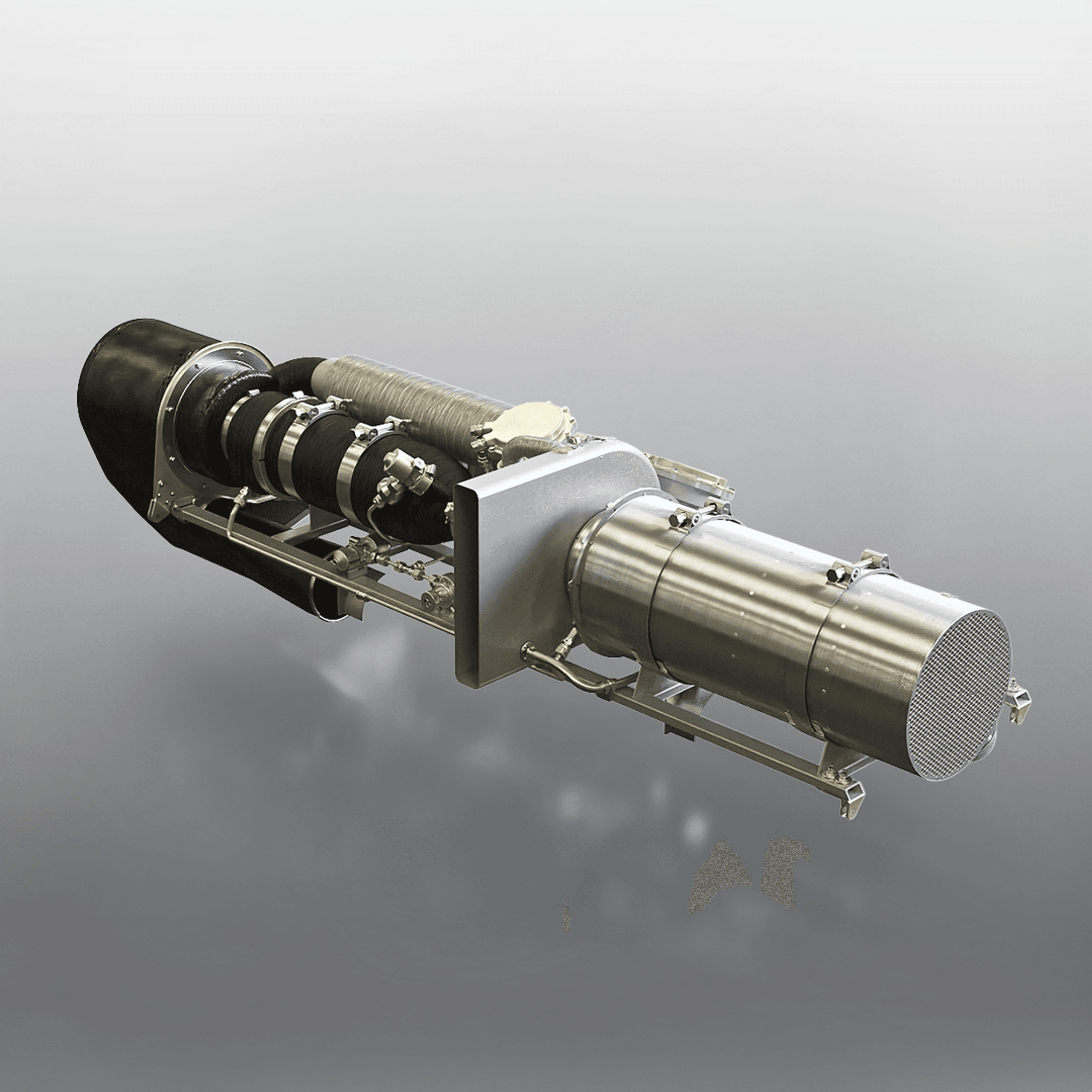

ECS-M1V Environmental Control System

The system is designed for air-conditioning and ventilation of Mi-8/17/171 series helicopters, with the option of modifications for other applications.
  • Ability to draw air from both the APU and the main engines
  • Cooling, heating and ventilation in one compact system
  • Ecological operation - no coolant
  • Minimal power consumption

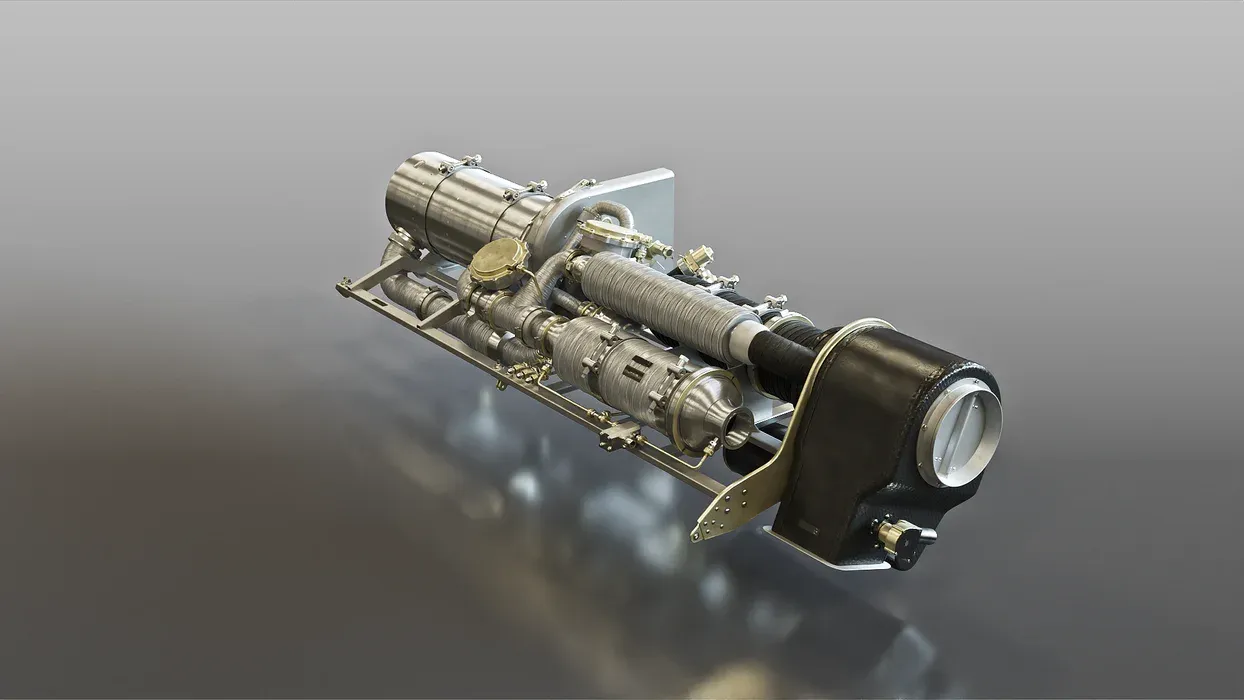

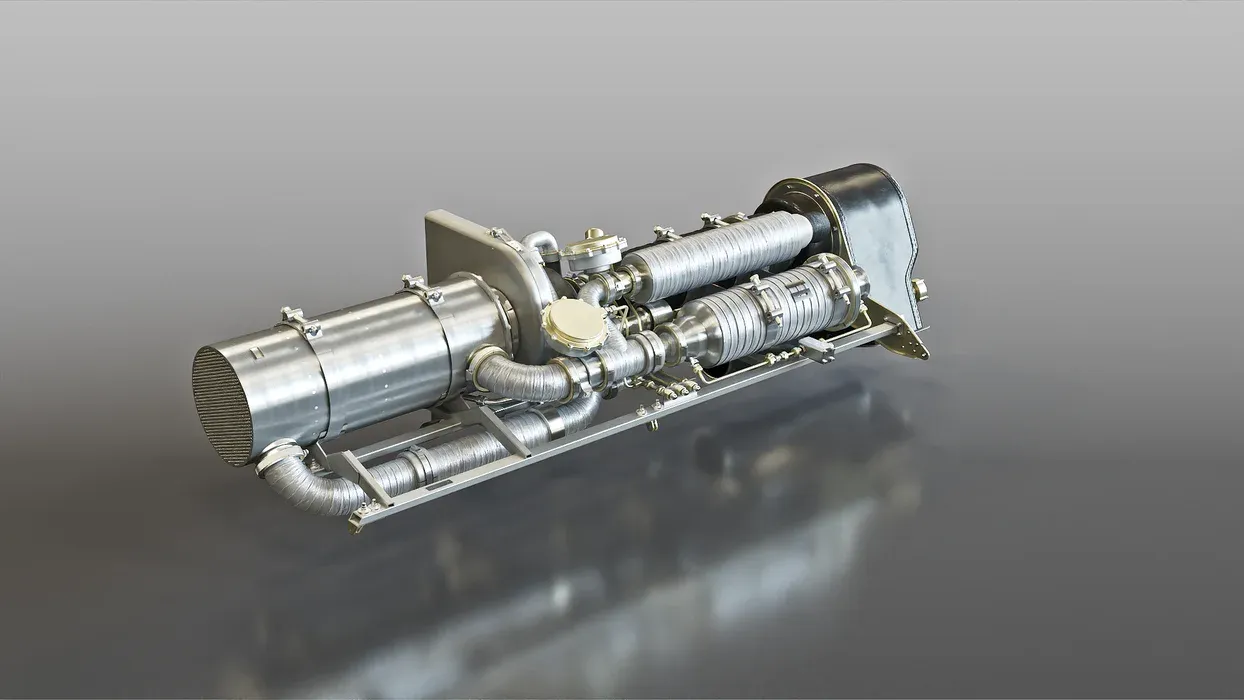

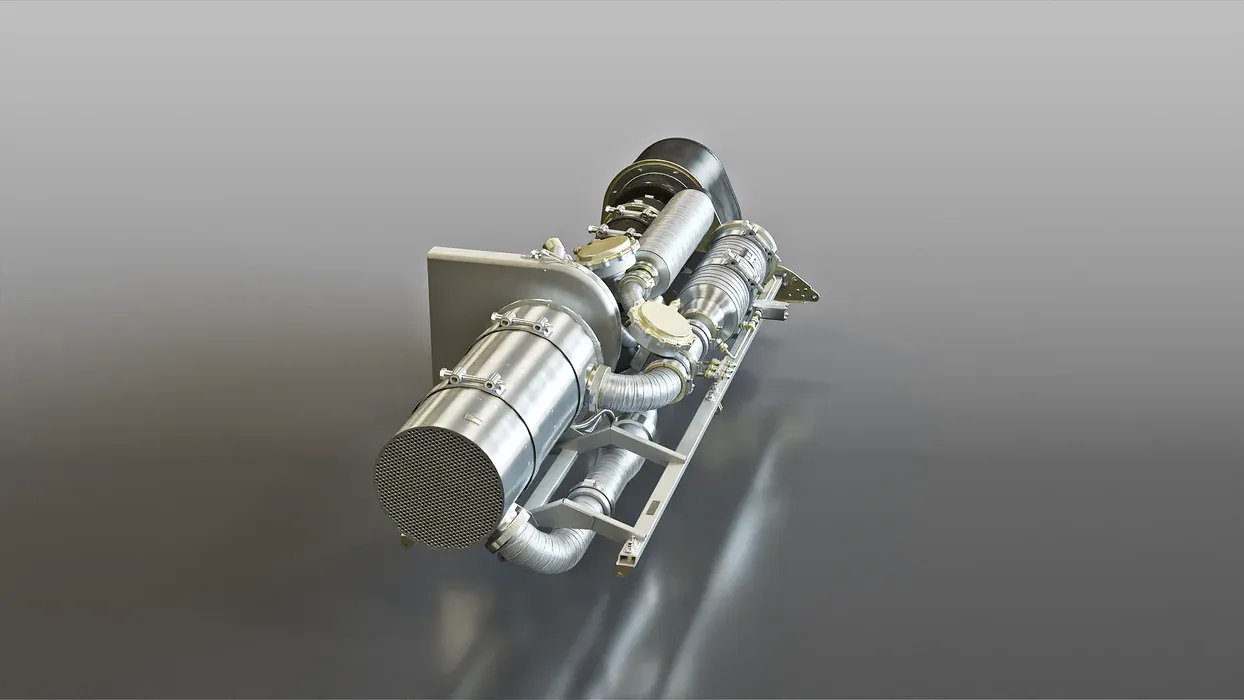

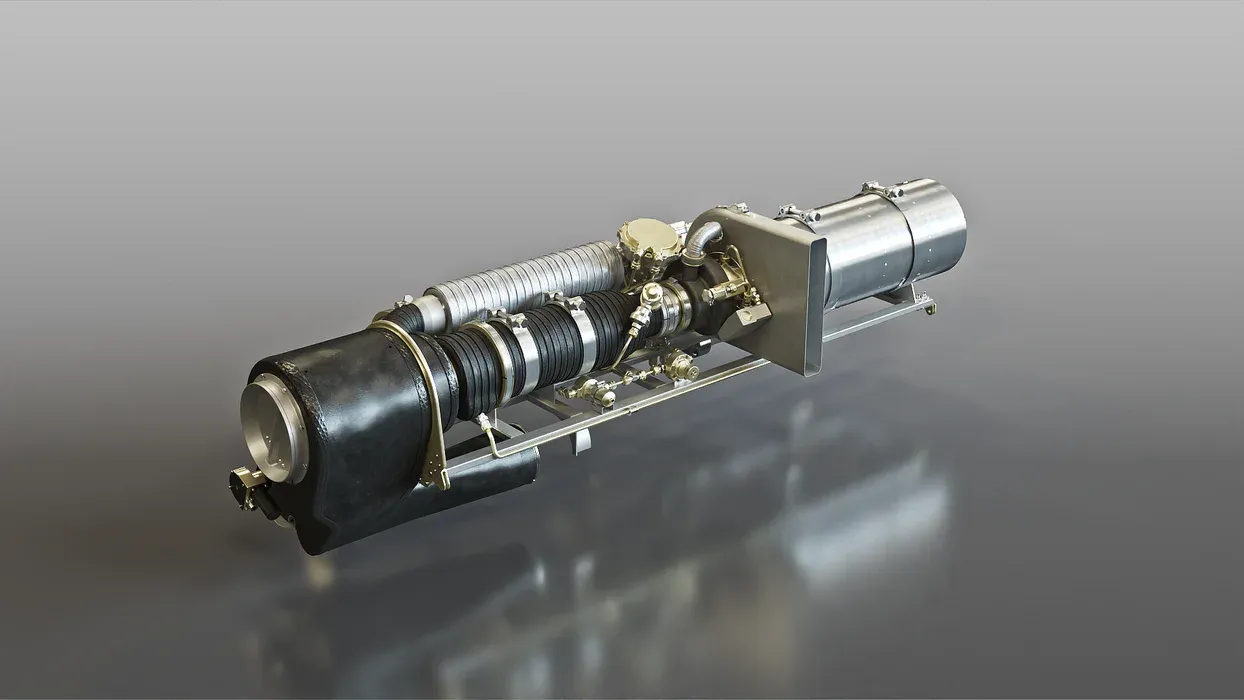

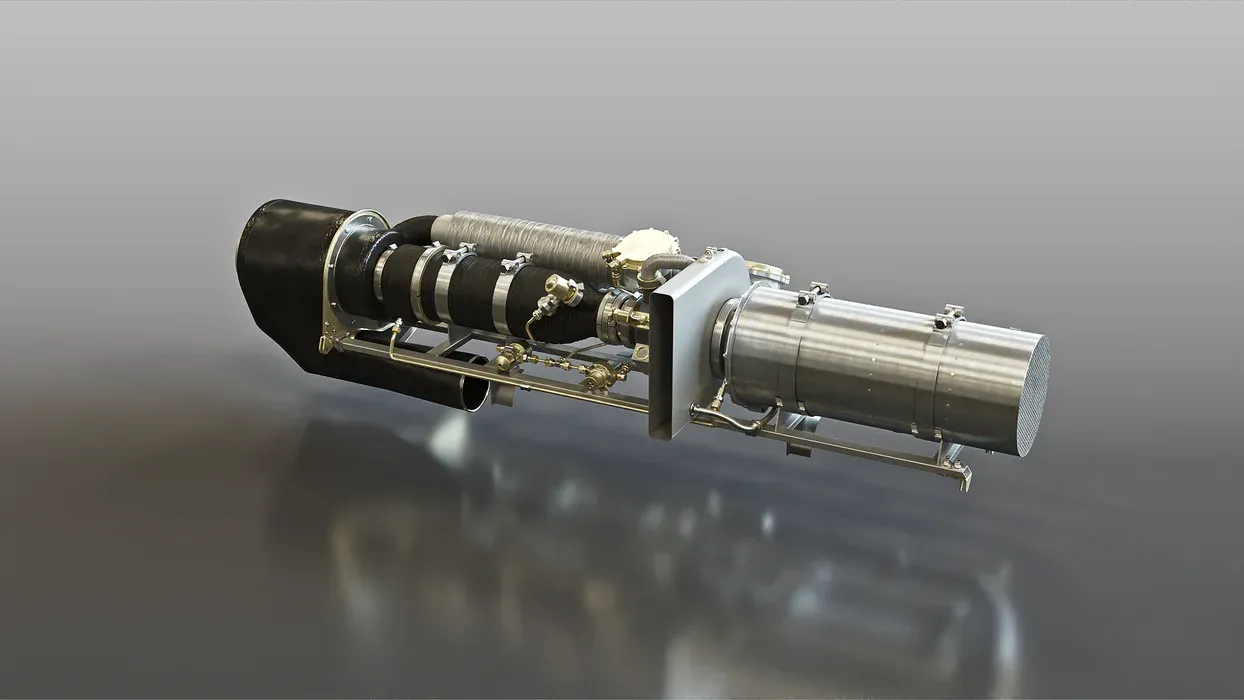

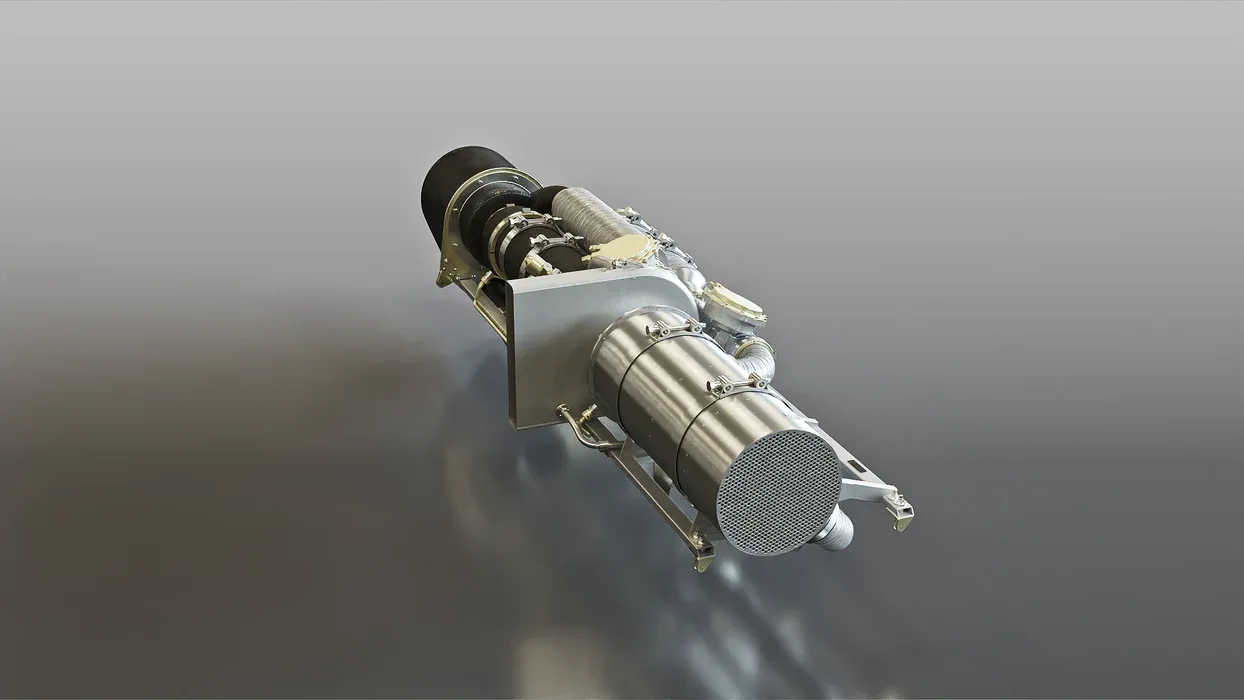

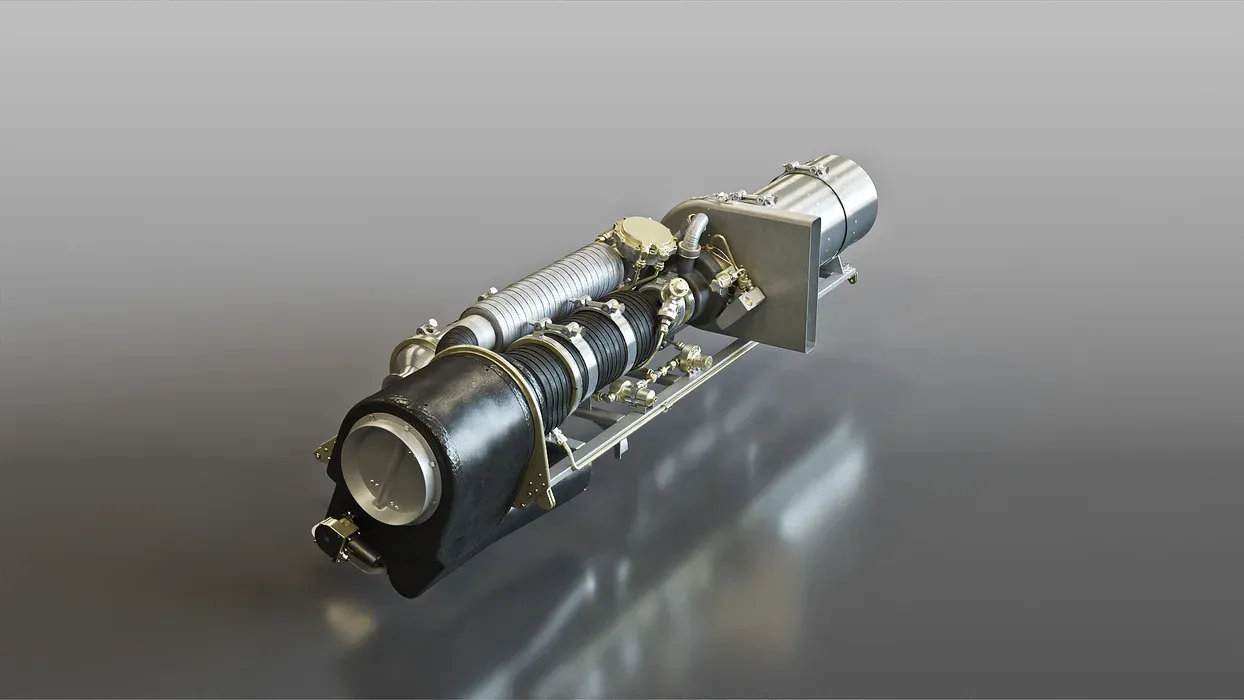

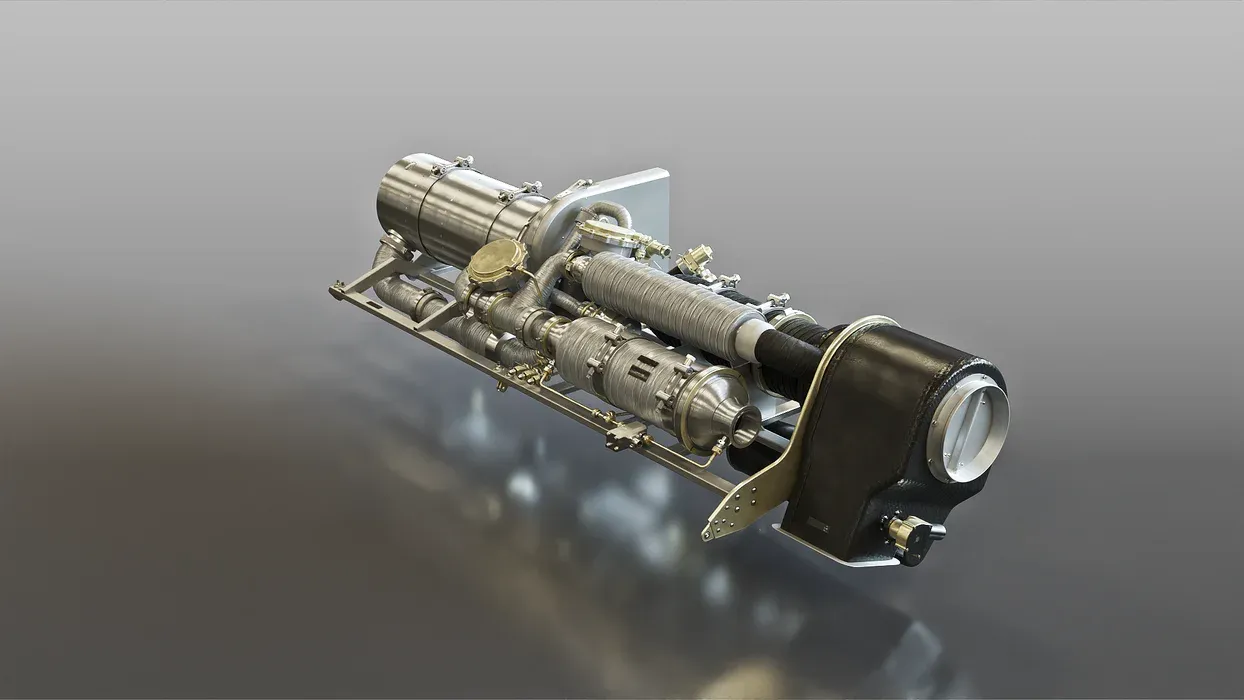

Fill out the form to view the 3D visualization

By submitting the form, you agree to privacy policy

PBS.TopImage.Btn.Scroll

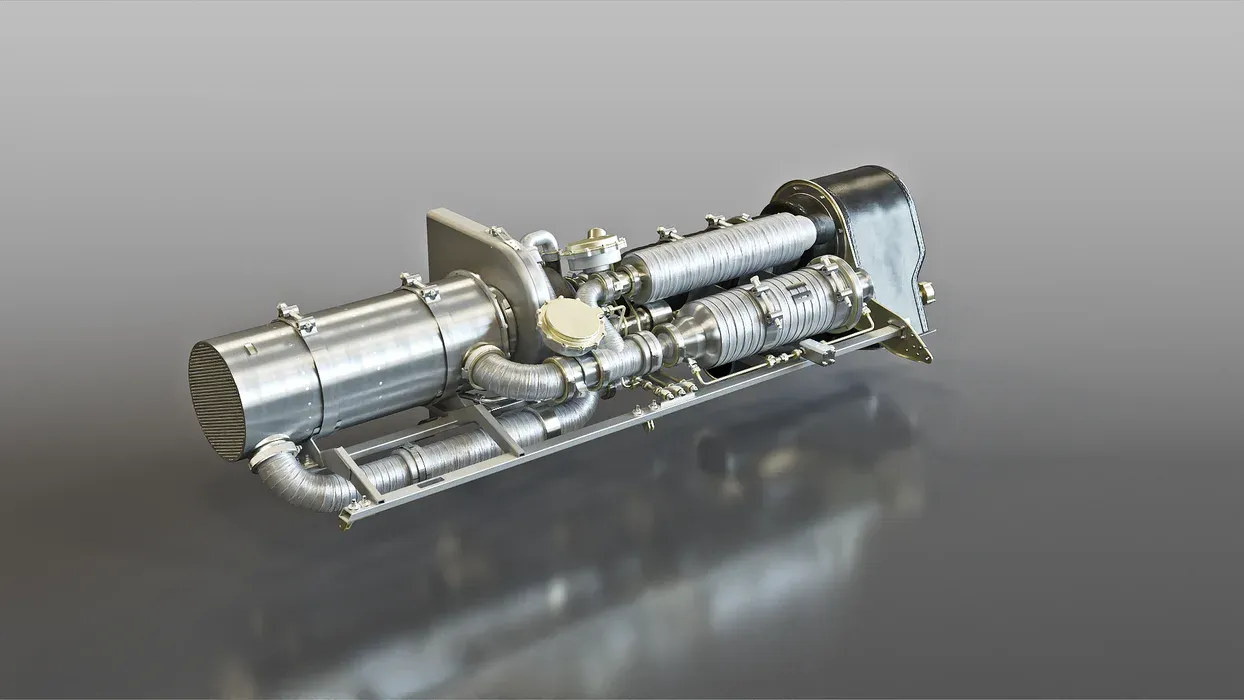

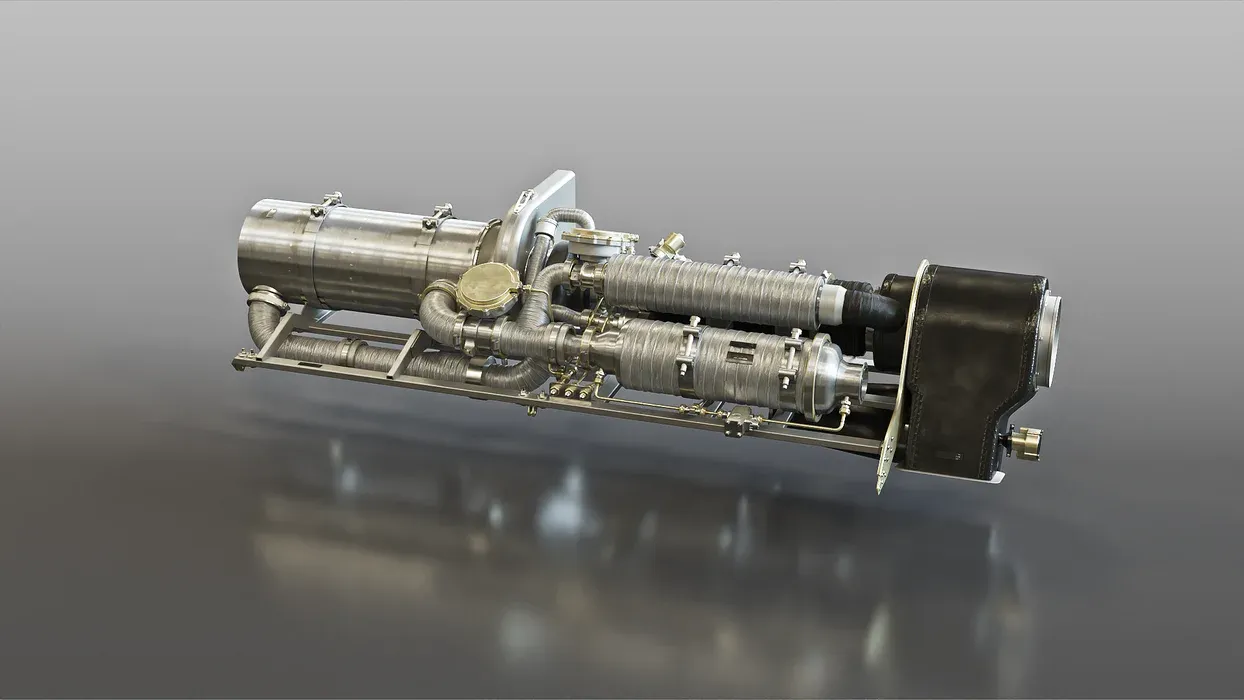

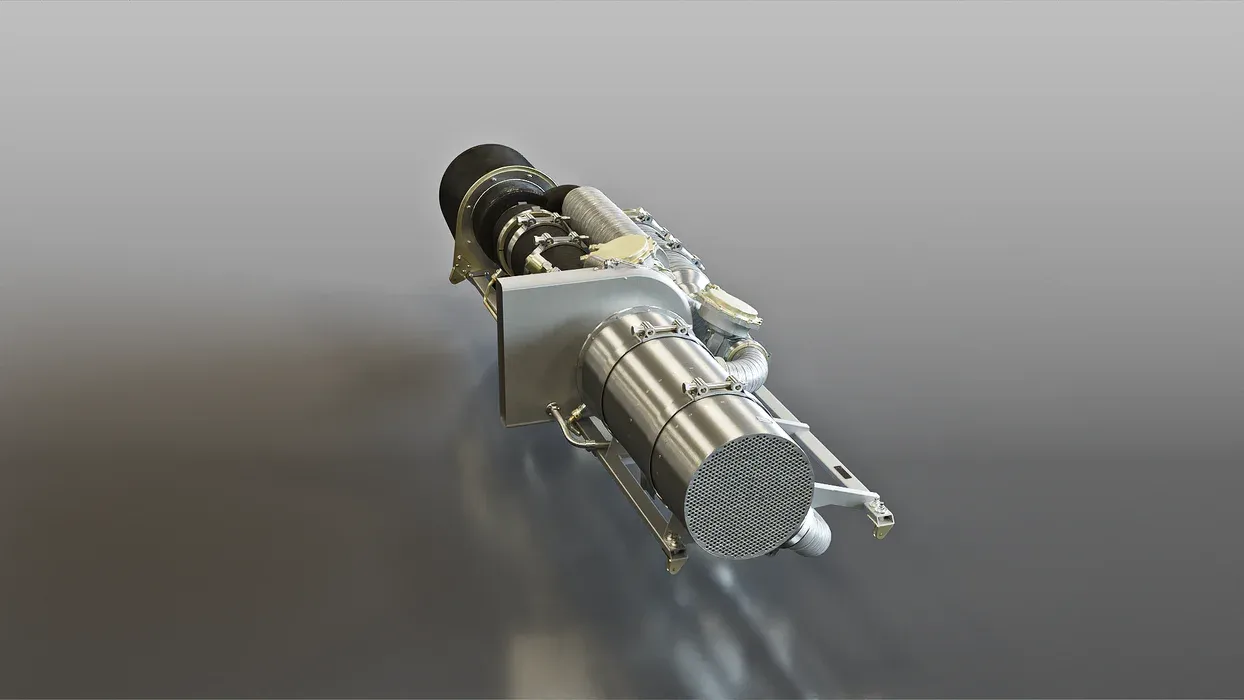

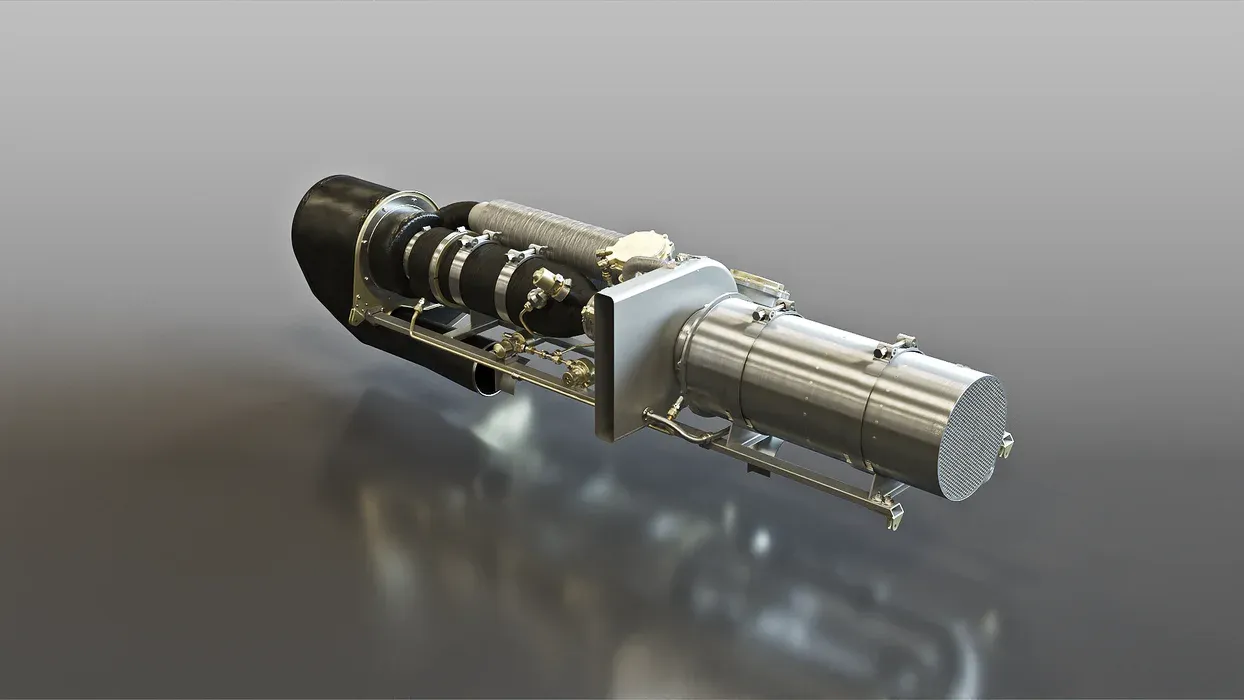

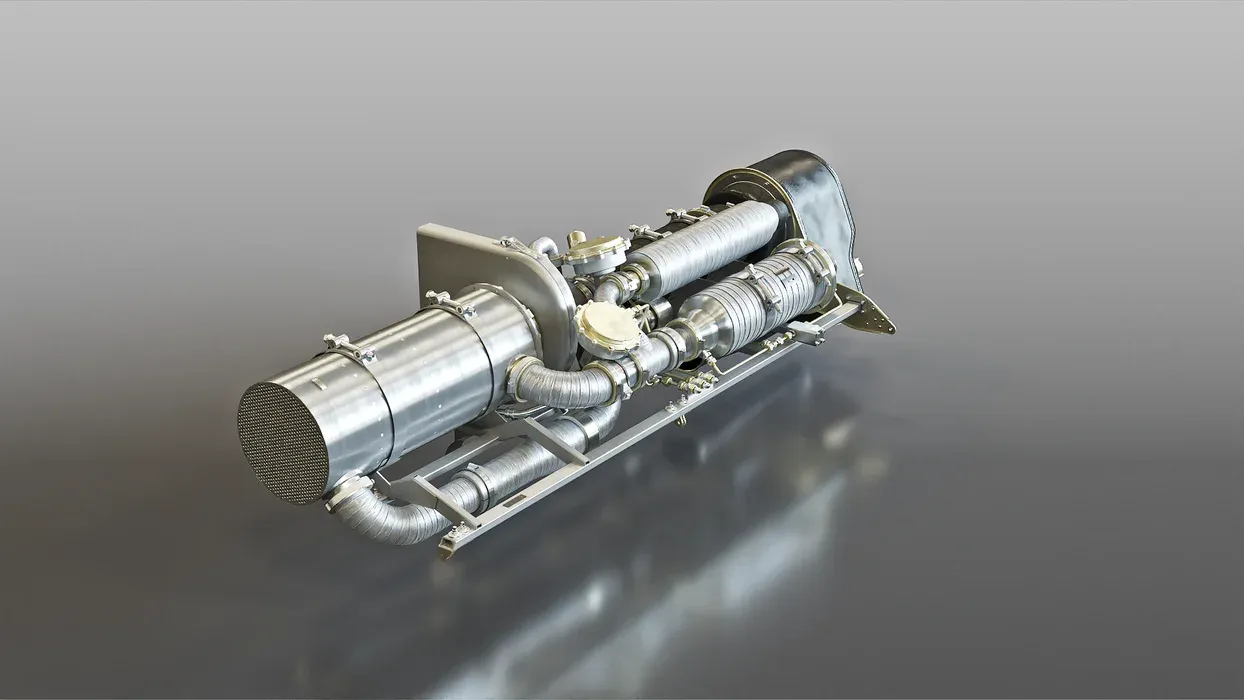

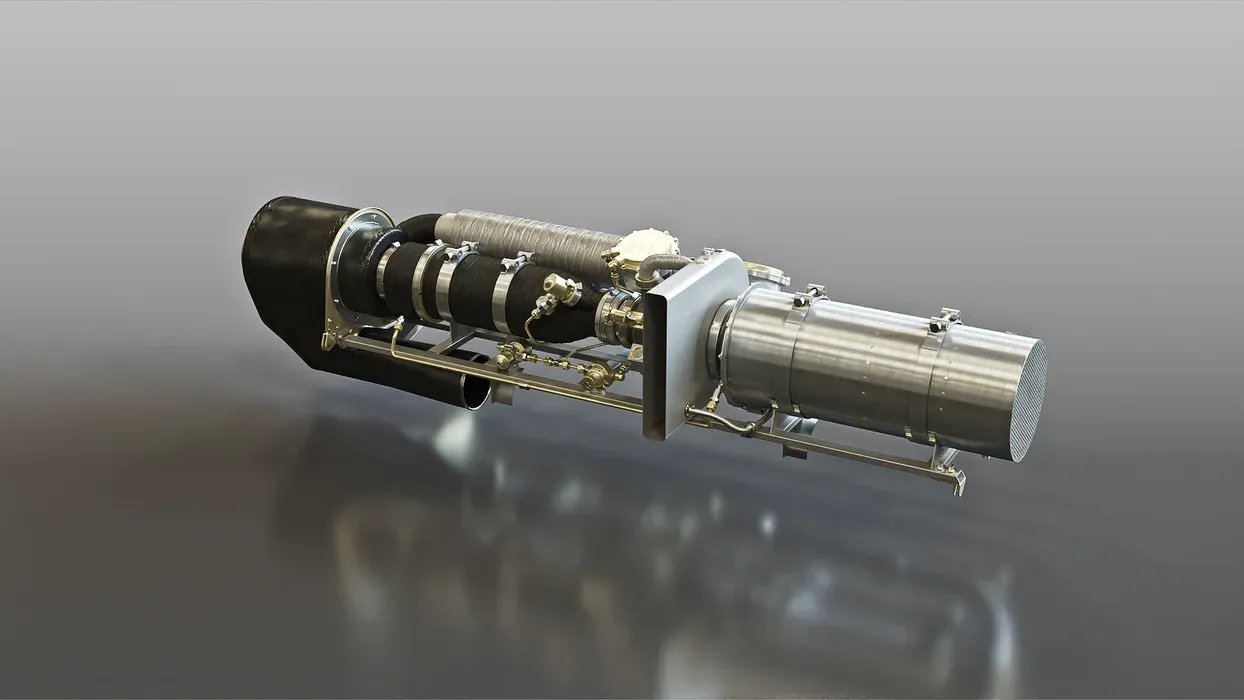

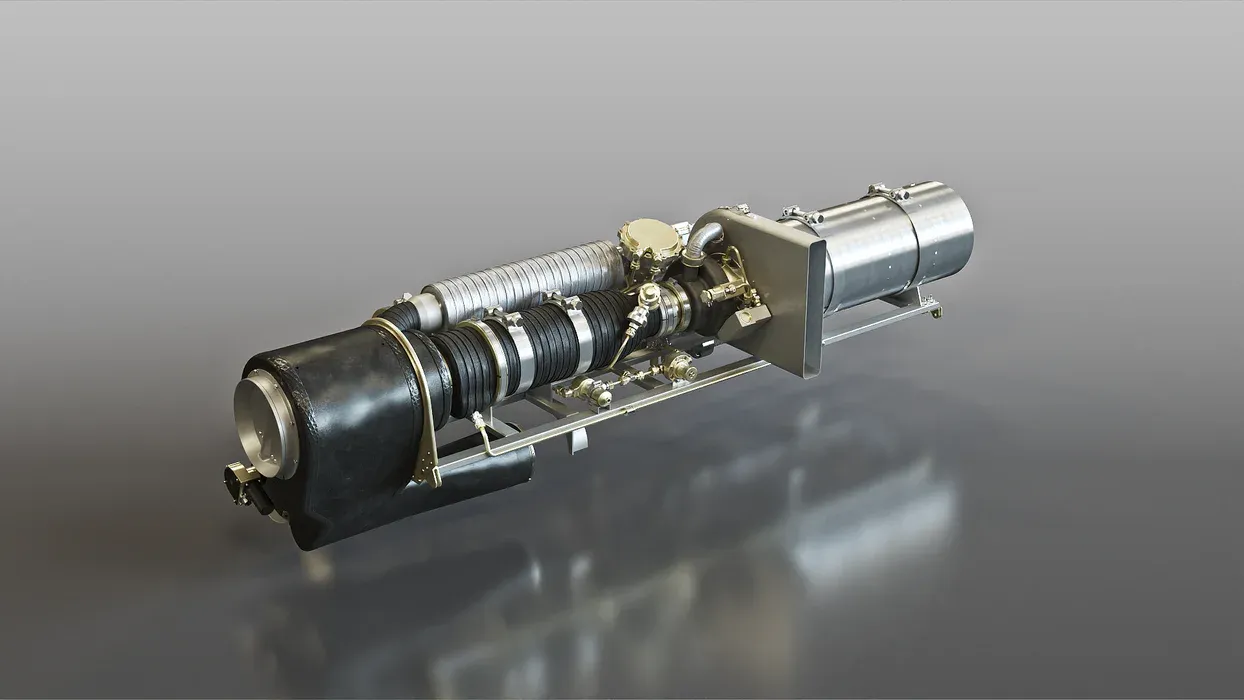

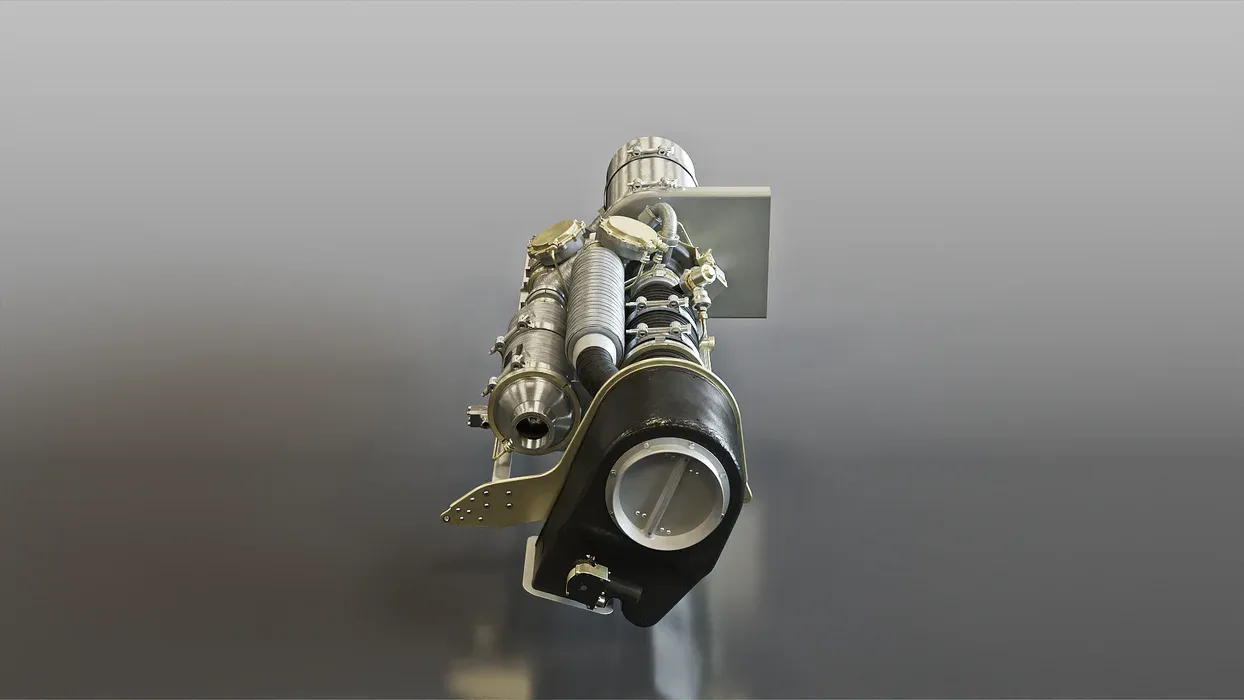

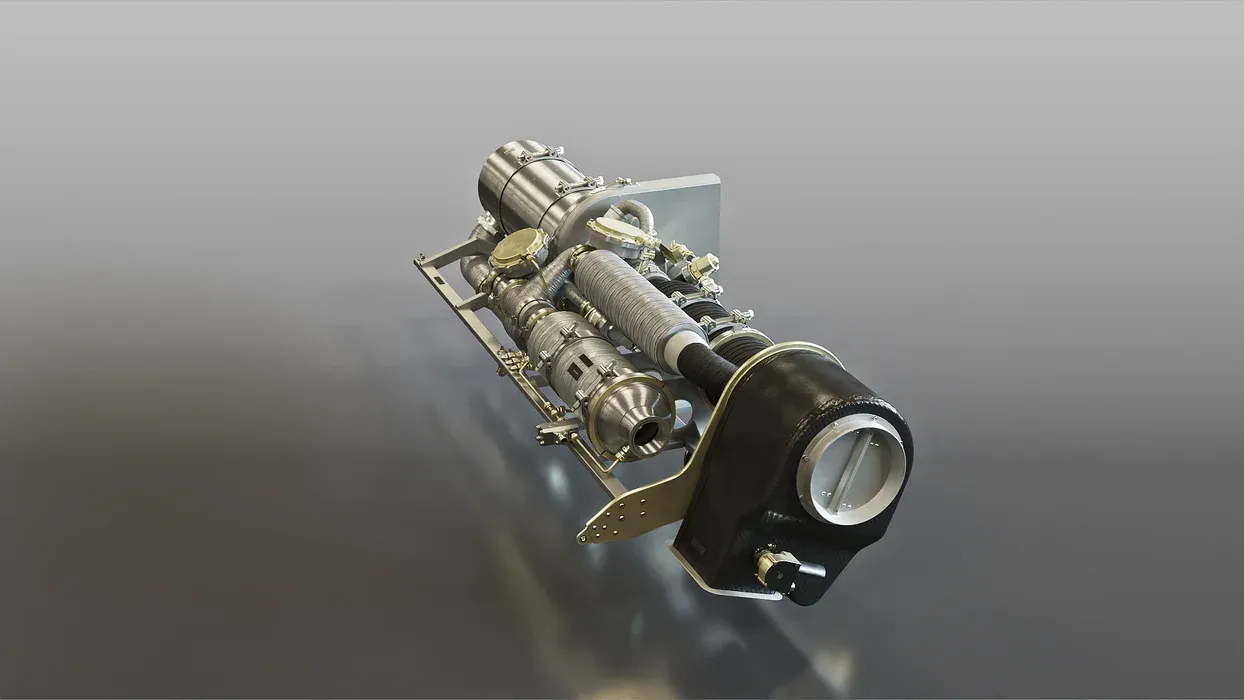

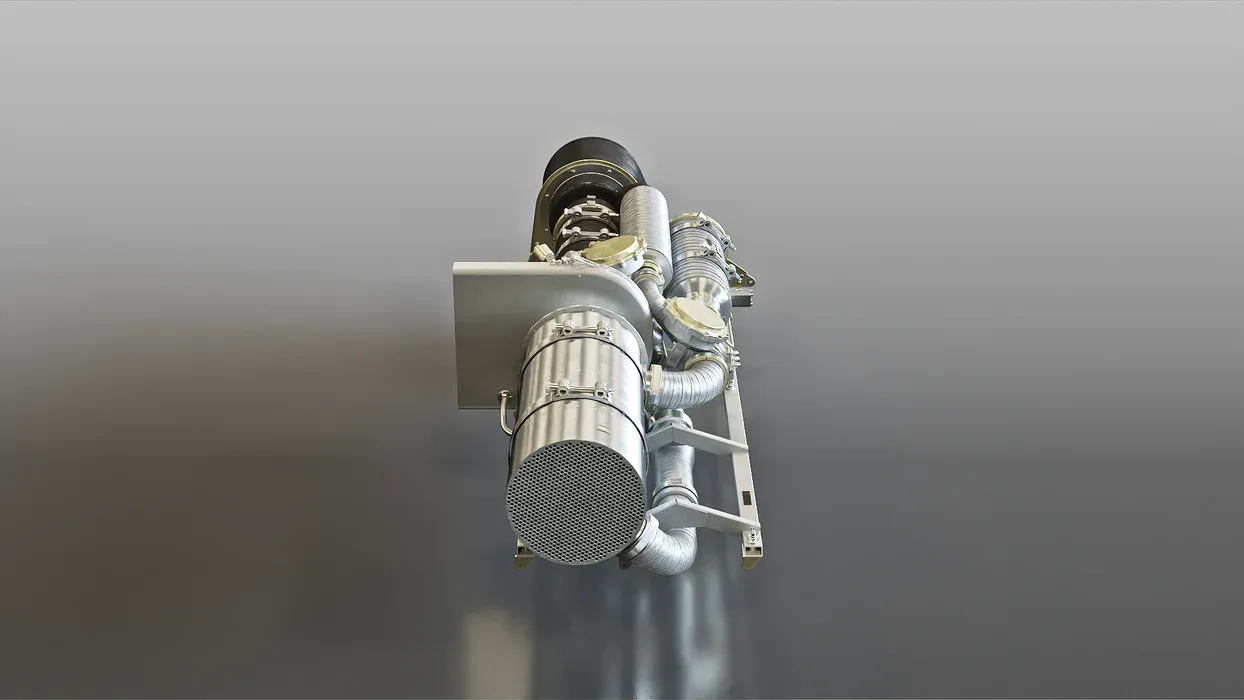

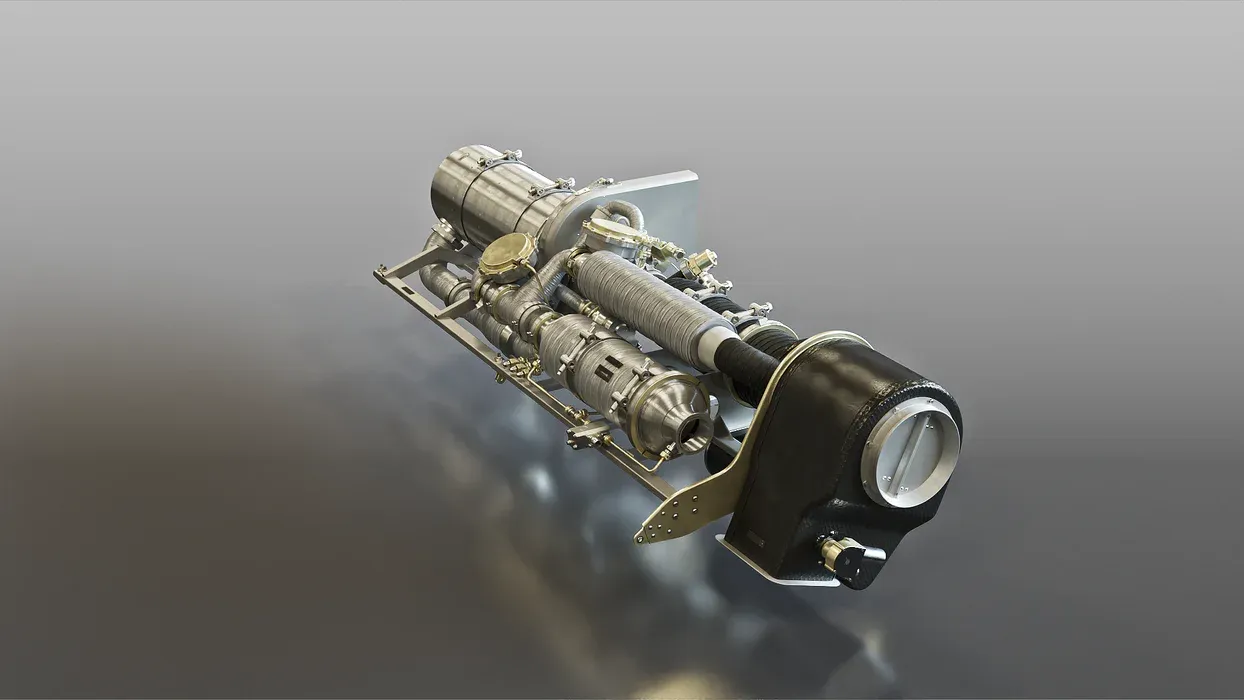

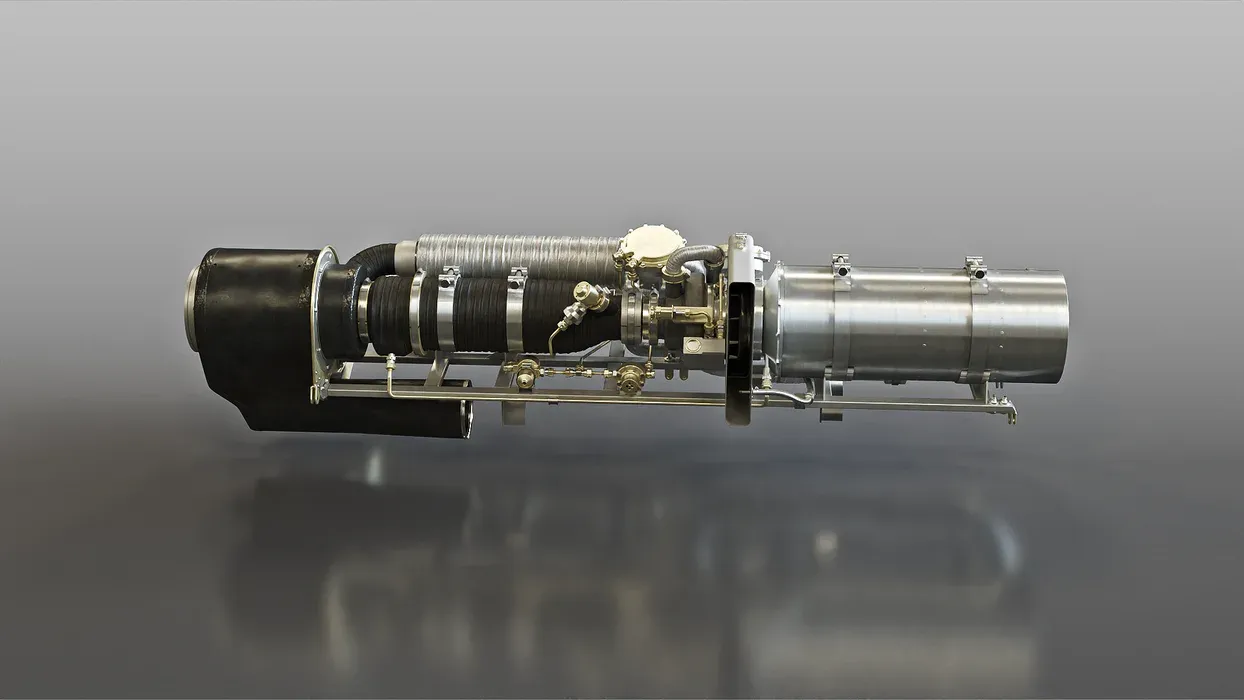

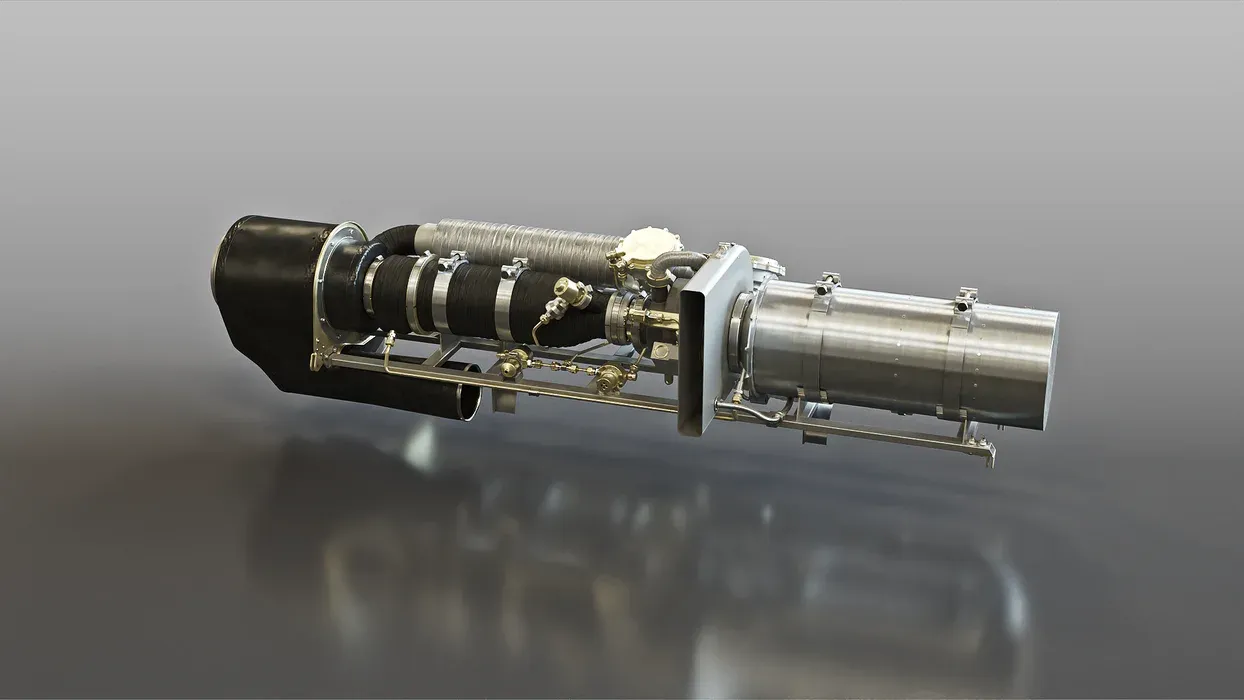

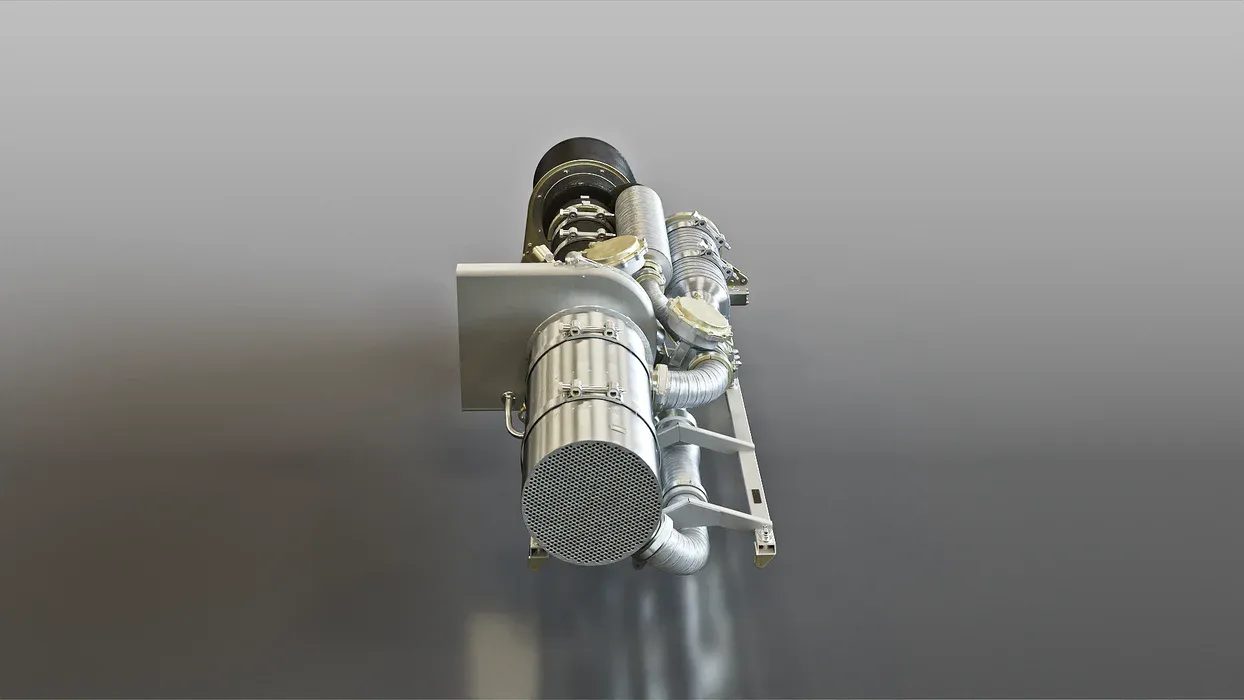

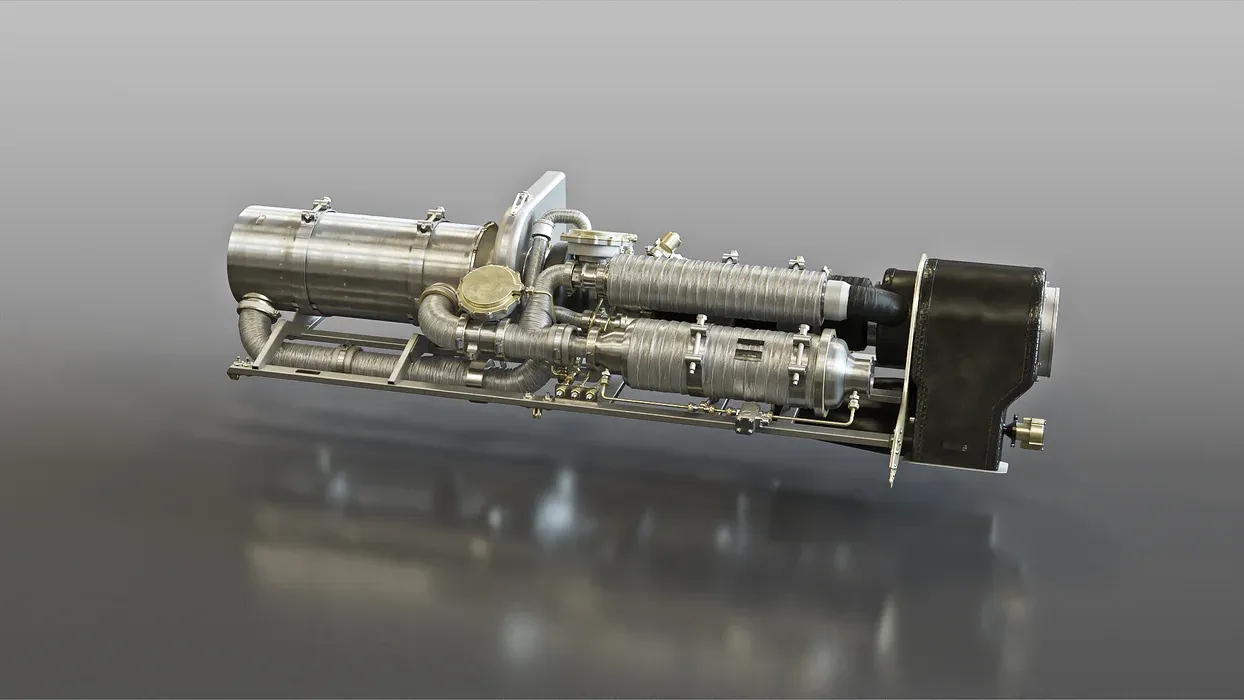

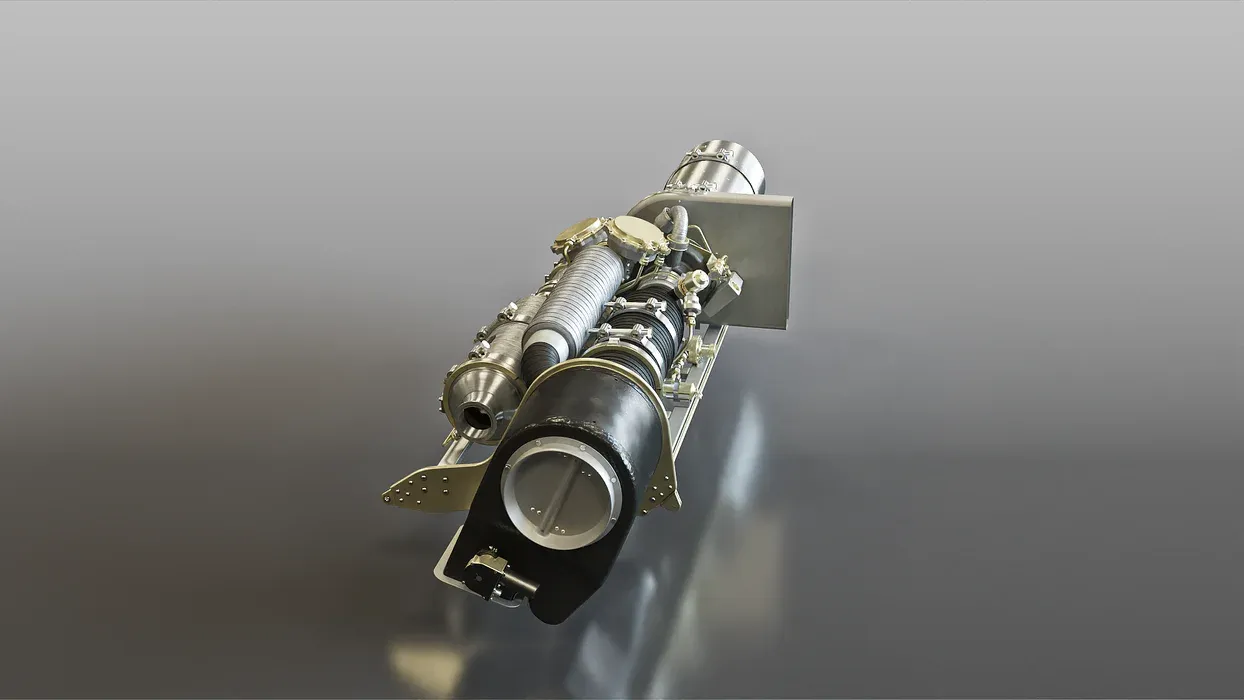

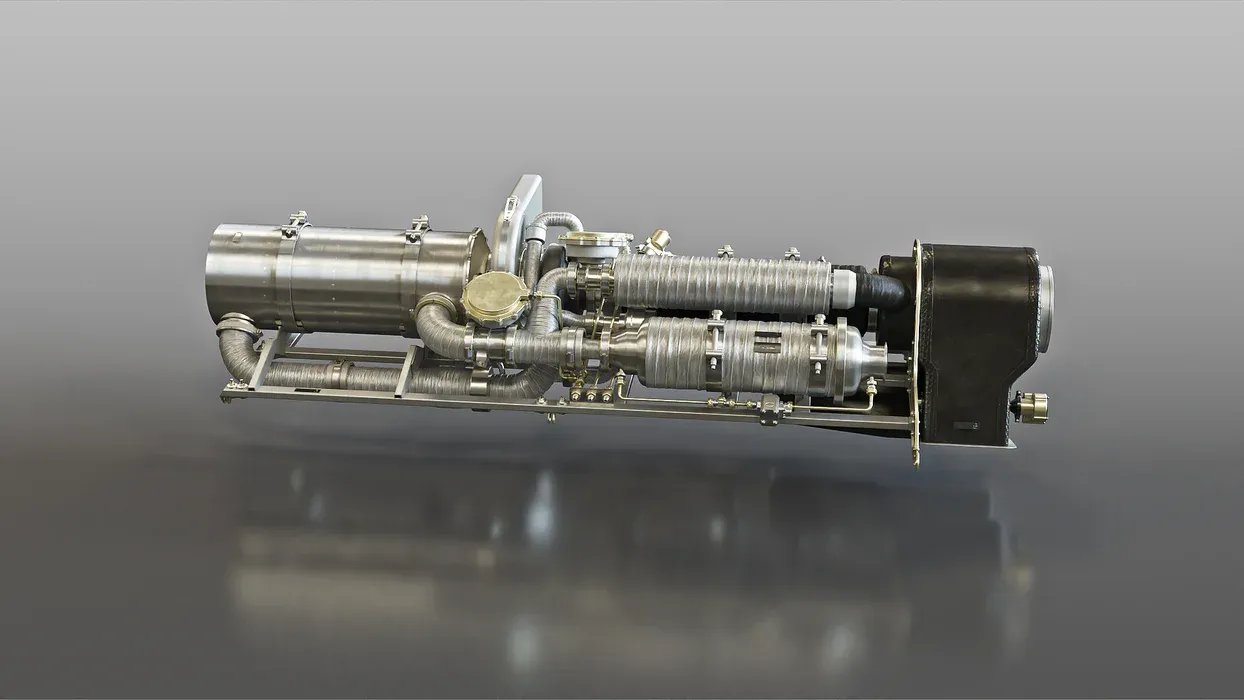

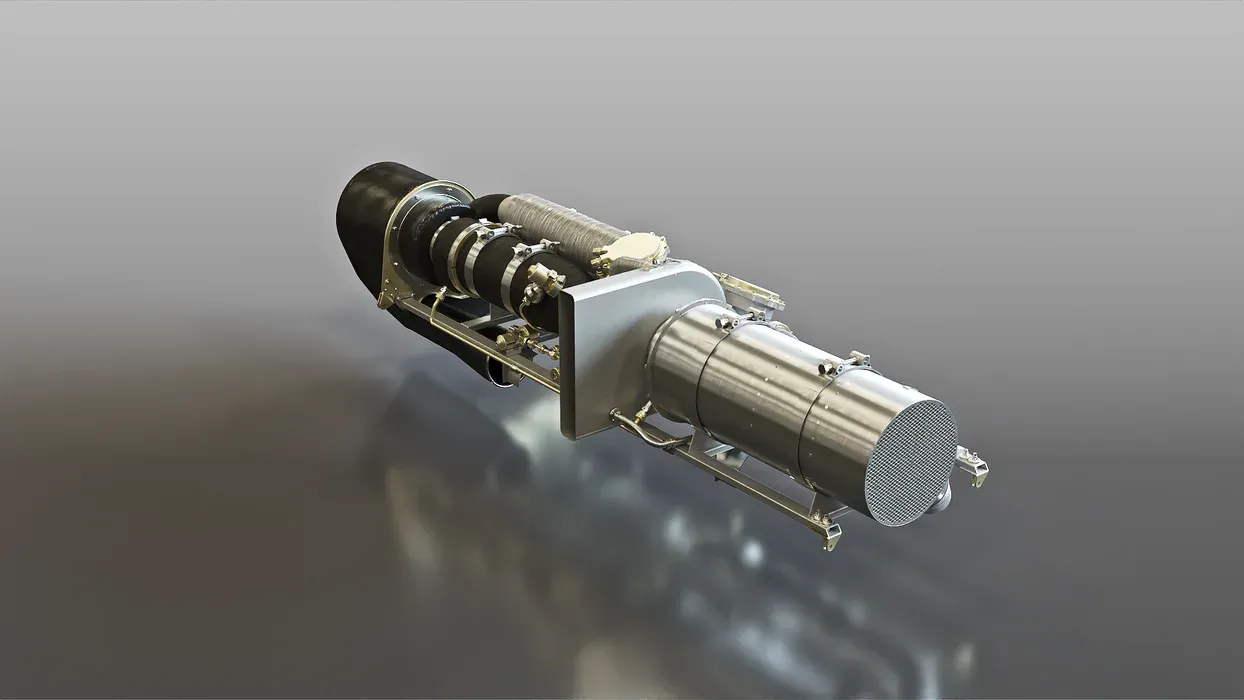

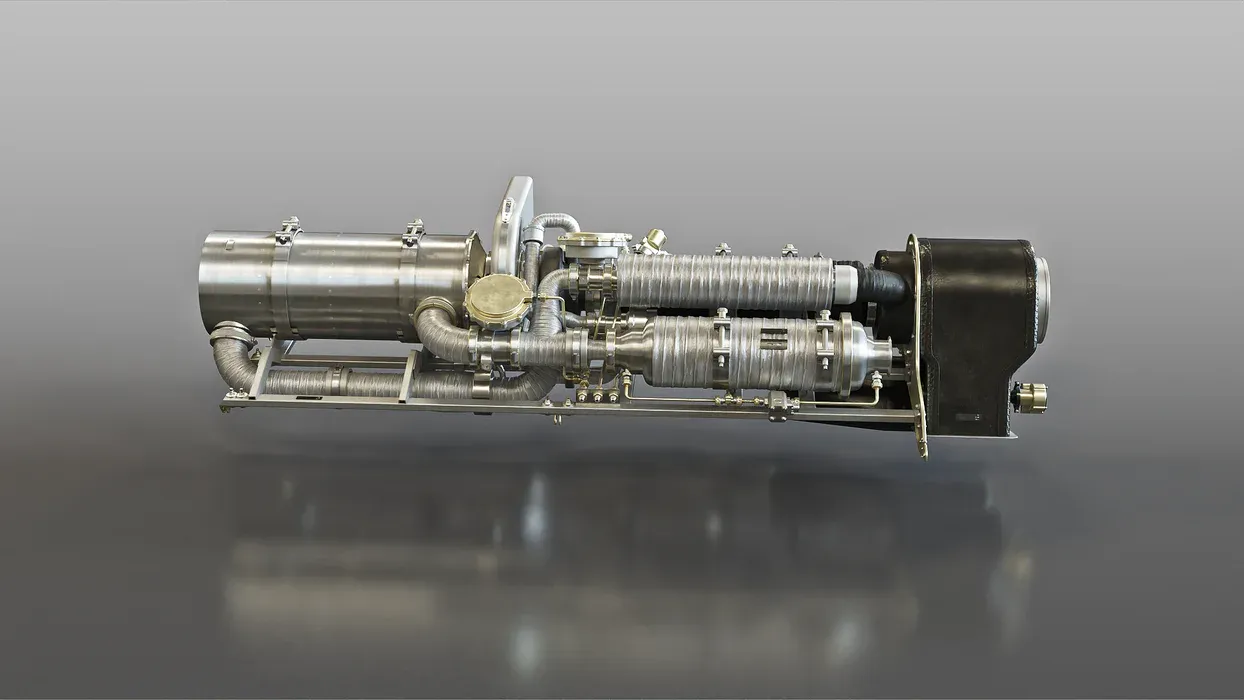

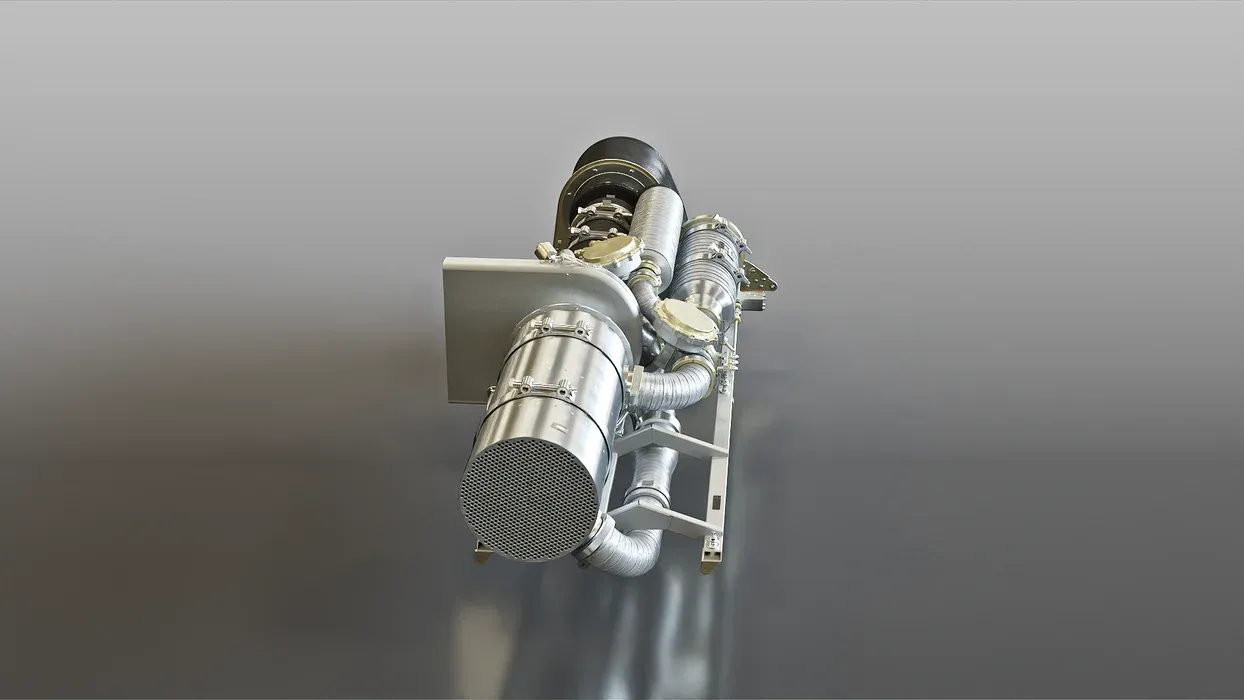

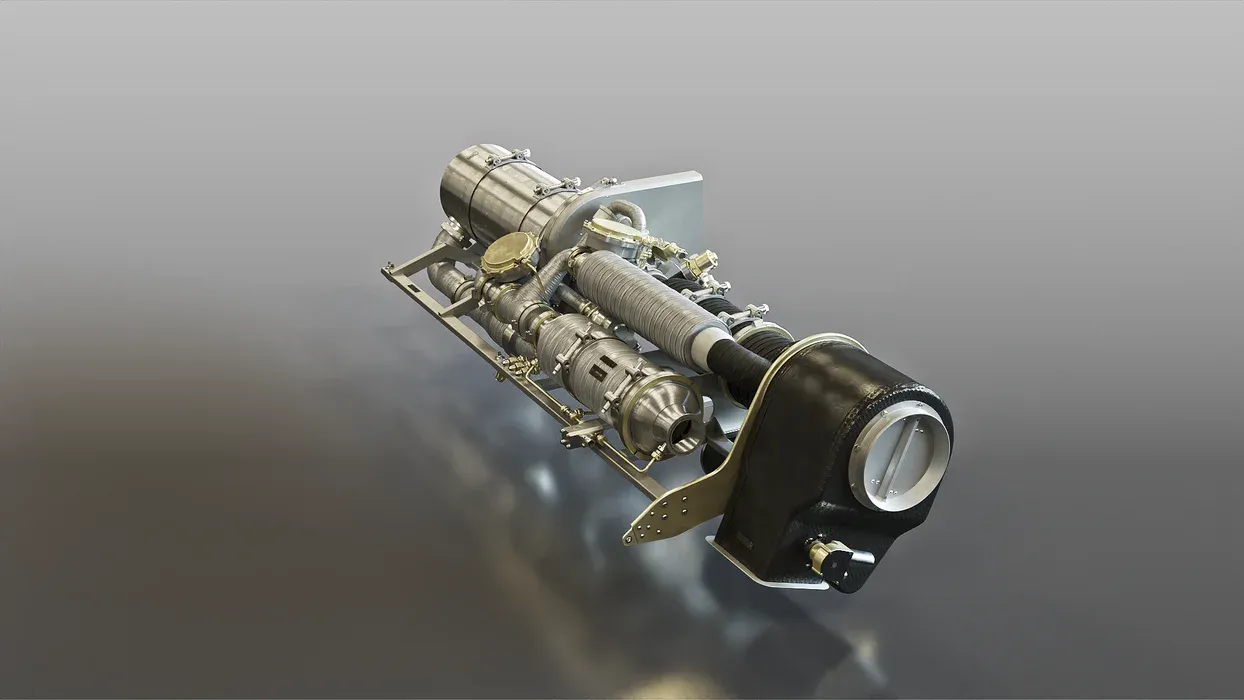

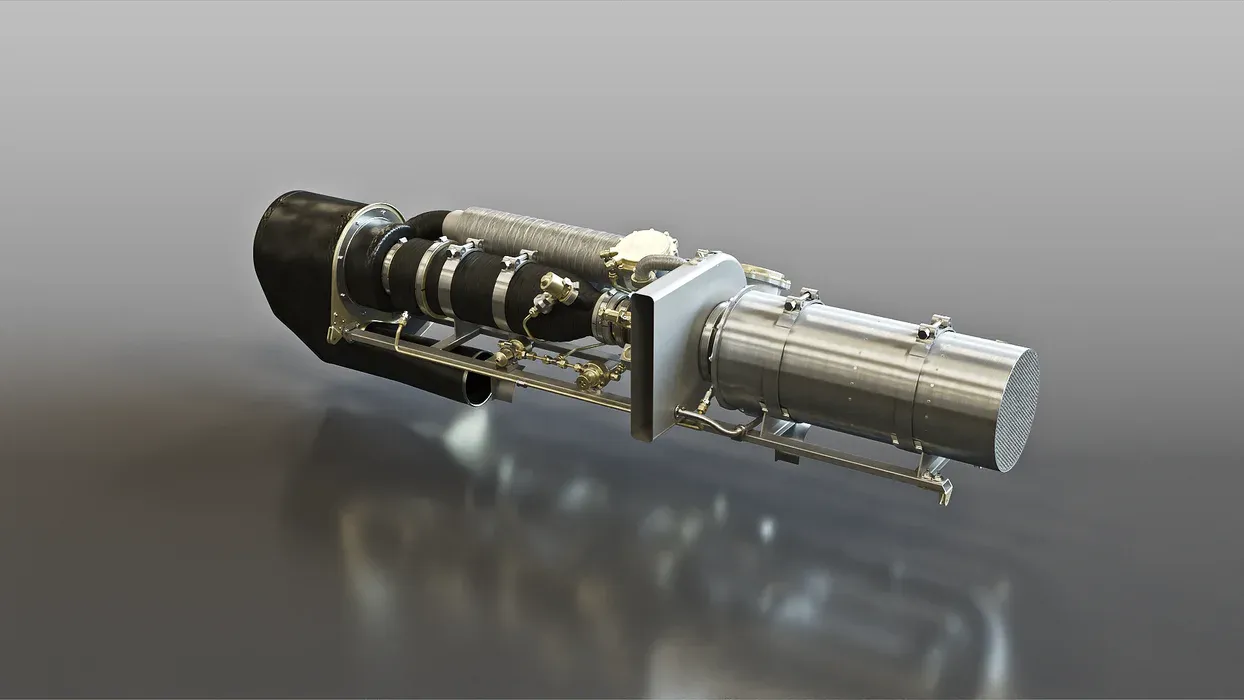

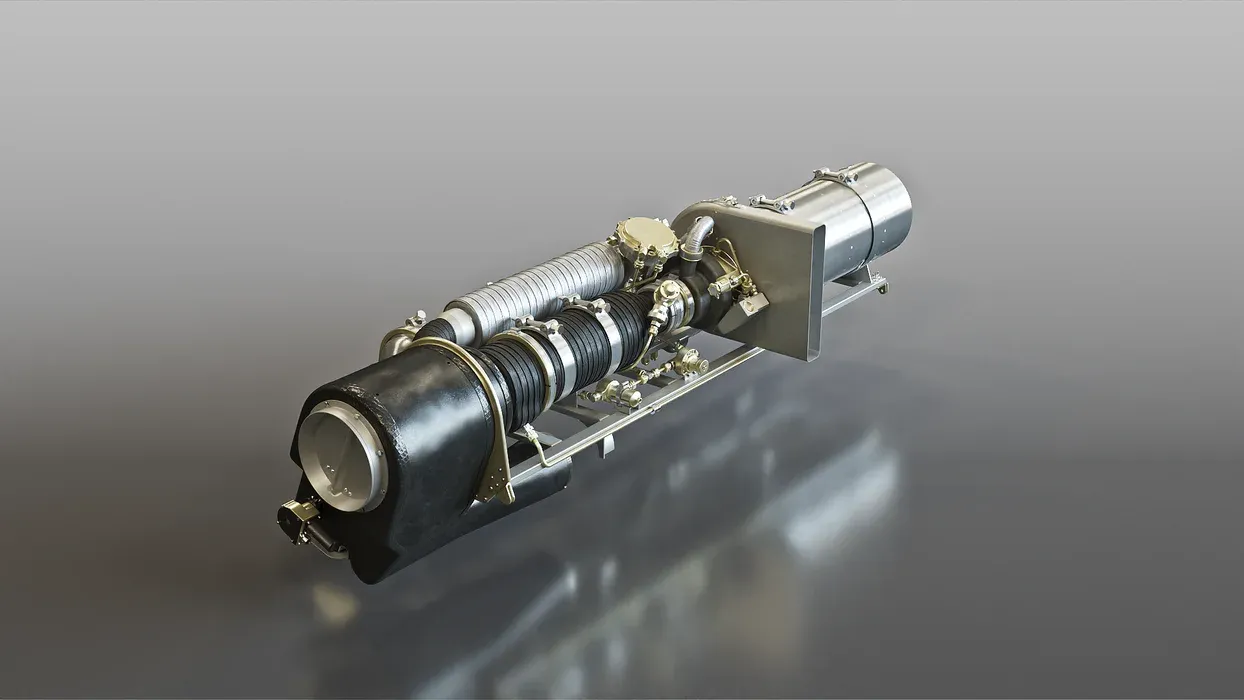

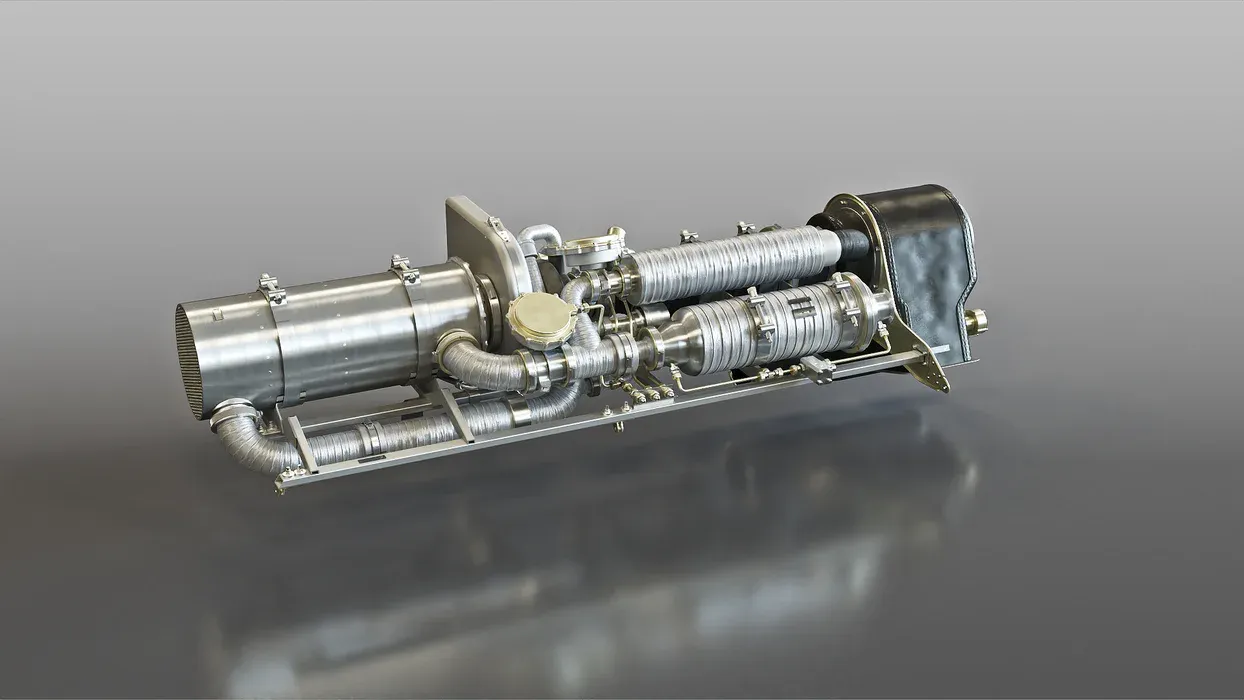

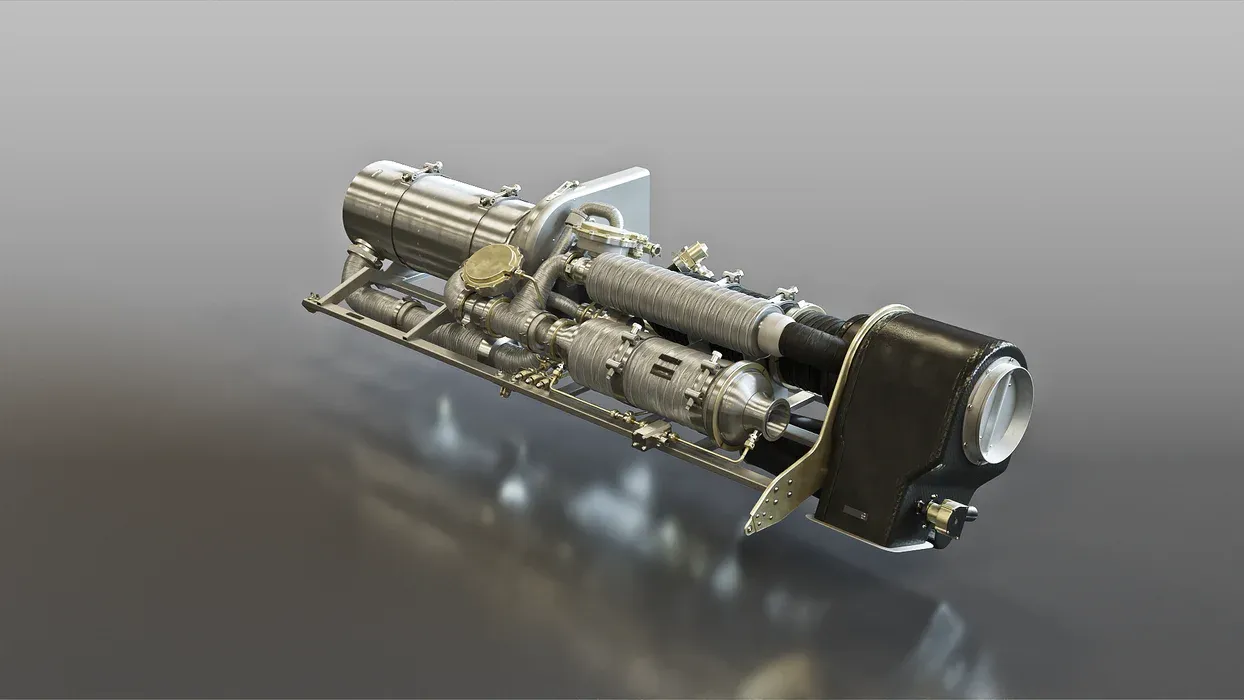

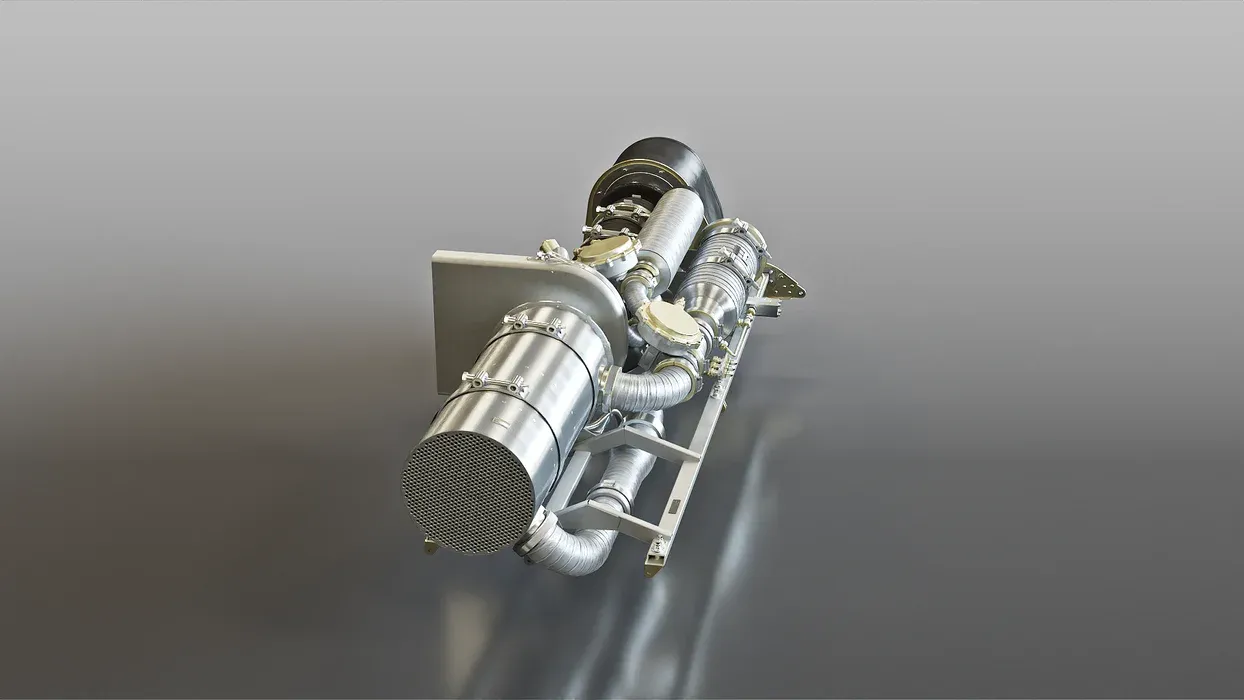

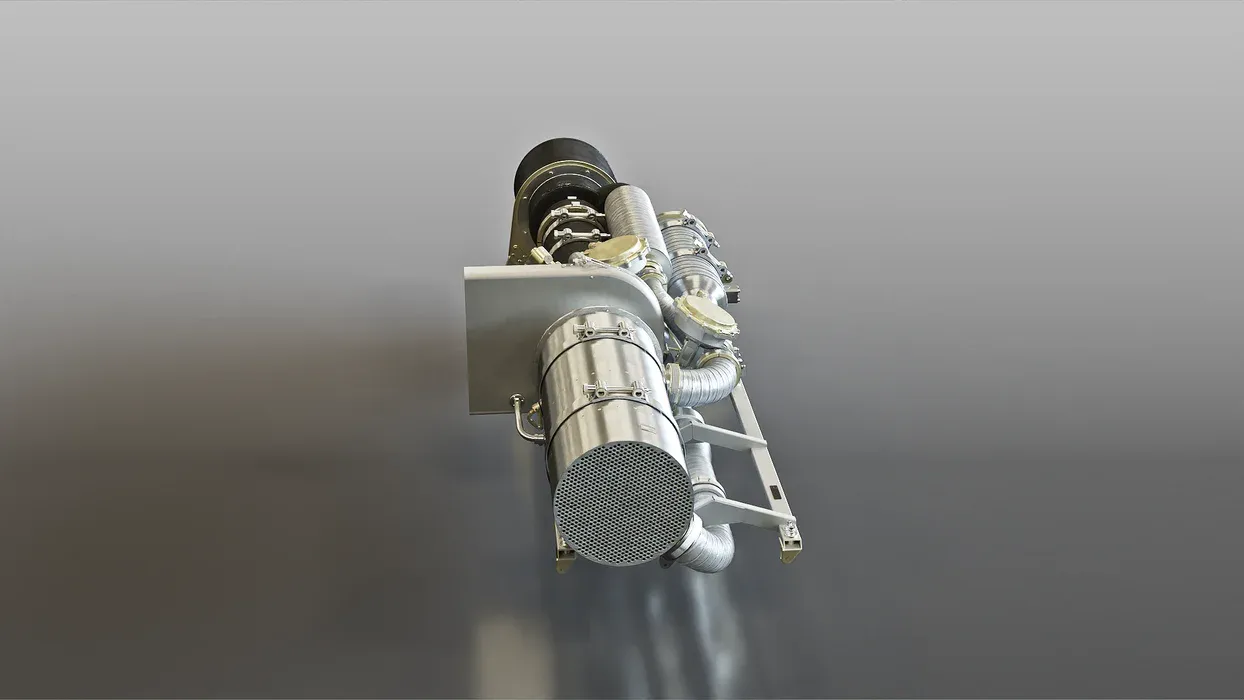

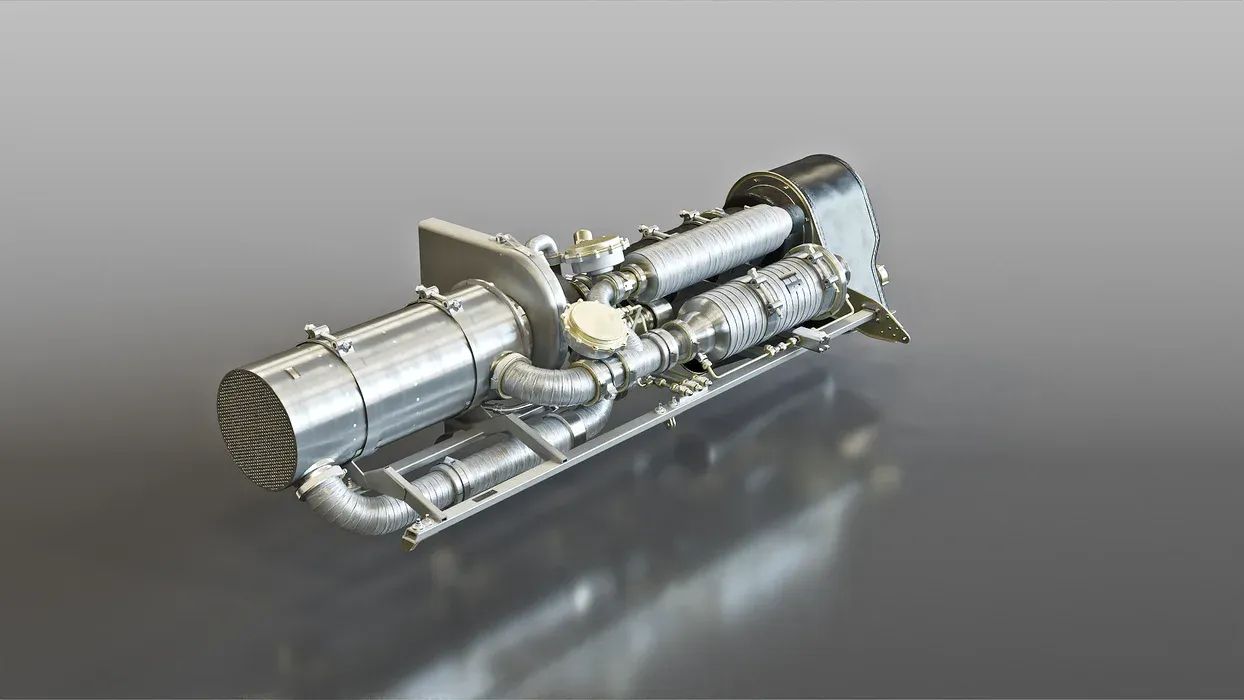

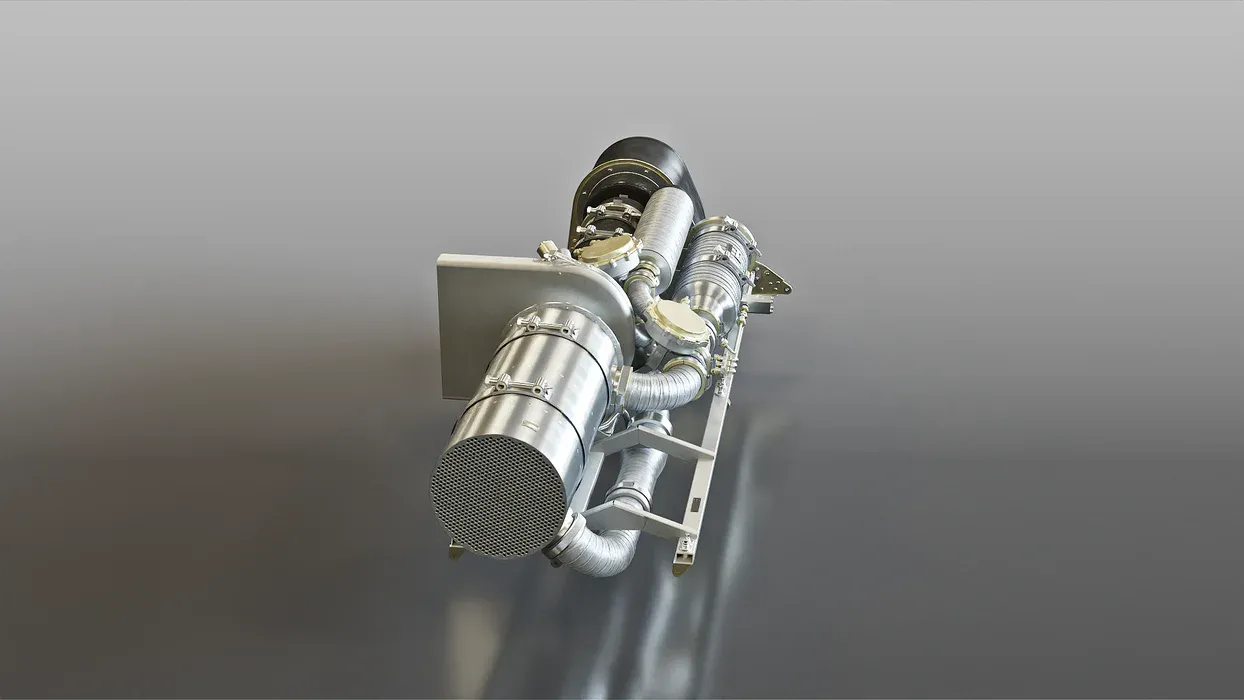

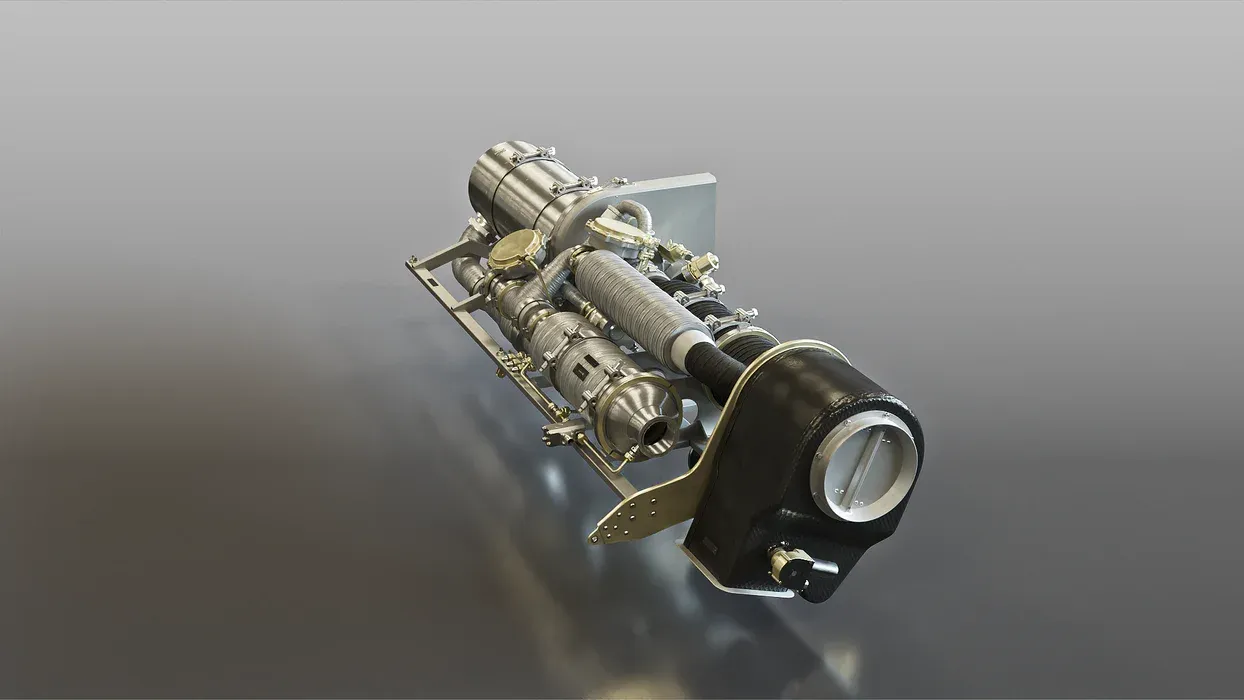

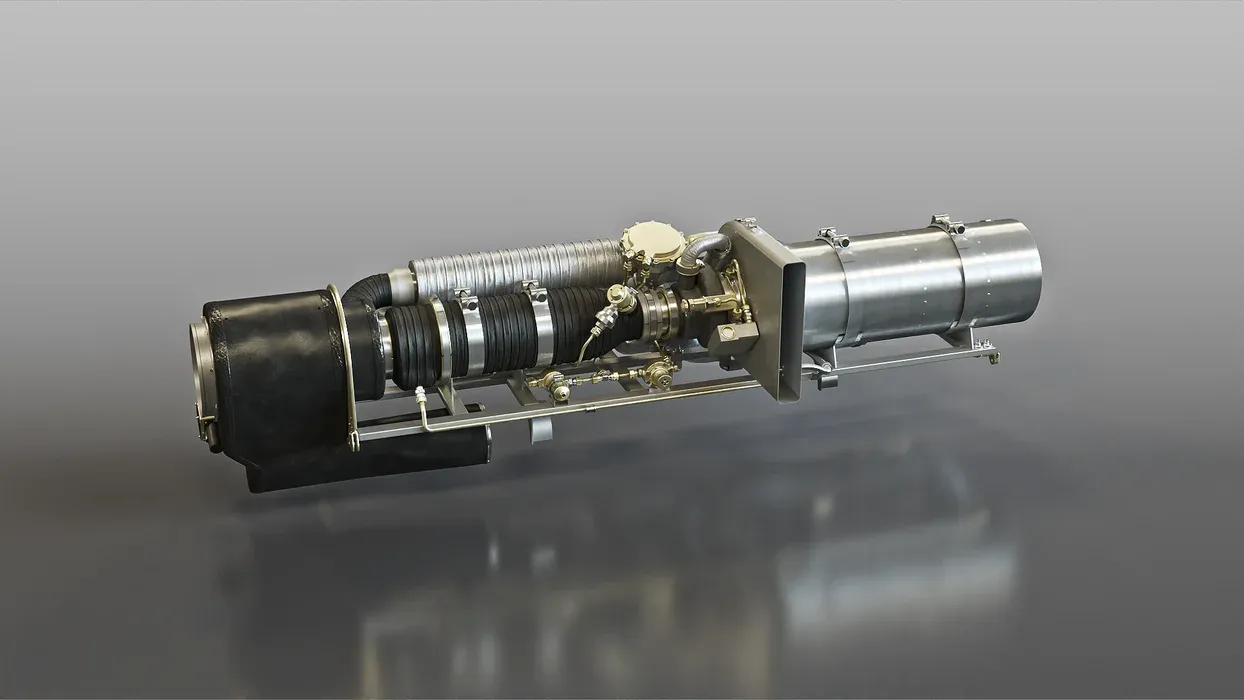

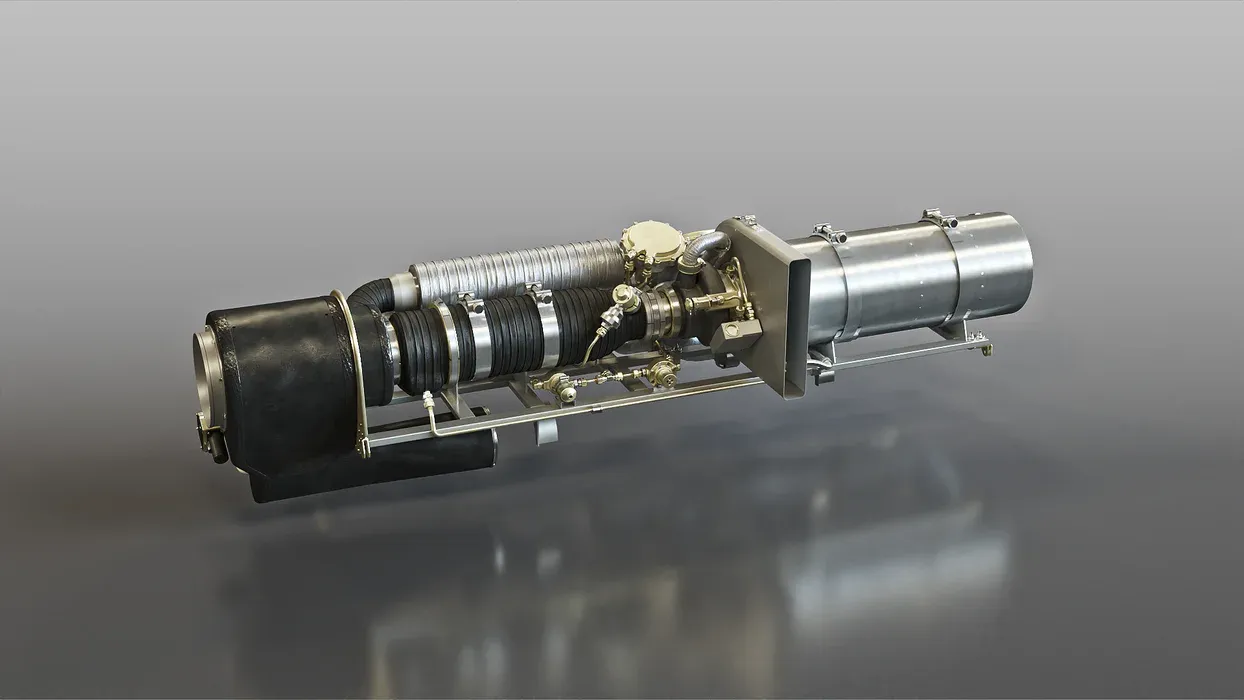

The ECS-M1V stands out from its competitors for its compact design (1,695 x 592 x 466 mm) and low weight (60 kg). The all-in-one cooling, heating and ventilation for this environmental control system allows for easy installation and for the pilot to maintain the cabin and cargo area temperature within the desired range (+15°C to +30°C), in both ground and flight modes. There is the additional feature of an independent control of the conditions within the cargo area, such as the ability to control the distribution air to the upper and lower ducts, or shut it off completely.

PBS gives our customers the added value of allowing modifications and specifications in the process, to ensure that the ECS is optimal for the aircraft for which it is intended. You will work with our expert designers and technicians to create the ECS that is right for your airplane or helicopter.

ECS-M1V modifies hot compressed air taken from the APU or the main engines to the required temperature of the air entering the helicopter cockpit. The system allows ventilation, heating and cooling of the pilot cockpit, passenger cabin and helicopter cargo area on the ground and in all its flight modes.



Look at the Environmental control systems brochure here.

ECS-M1V Parameters

Technical parameters SI units Imperial units
Cooling performance max. 10.8 kW max. 36,900 BTU/hr
Heating performance max. 62.0 kW  max. 211,800 BTU/hr
Airflow max. 1,500 kg/h max. 3,300 lbs/hr
Temperature of air entering the cockpit +15°C to +30°C +59°F to +86°F
Weight 60 kg  132.3 lbs
Dimensions length x height x width 1,695 × 592 × 466 mm 66.73 × 23.31 × 18.35 in
Operating altitude 0 to 6,000 m 0 to 19,700 ft
Service life 12,000 h 12,000 hr

Why us?

Compact design

Compact design

The PBS ECS-M1V environmental control system has a lightweight, compact all-in-one cooling, heating and ventilation system, which facilitates simple installation and easy maintenance. We offer on-condition maintenance as well, for optimal service.
Pneumatic control

Pneumatic control

The system also enables freely closing the air conditioning inlet into the cargo compartment and redistributing it to the upper and lower distribution systems.

Service, spare parts and overhauls of aerospace technology

We provide service of the highest quality for all users of our aerospace technology products.

We have long been working to extend the service life of our products, e.g. by introducing new technologies to produce the most exposed parts. Our turbine-based aircraft equipment regularly receives very good references.
