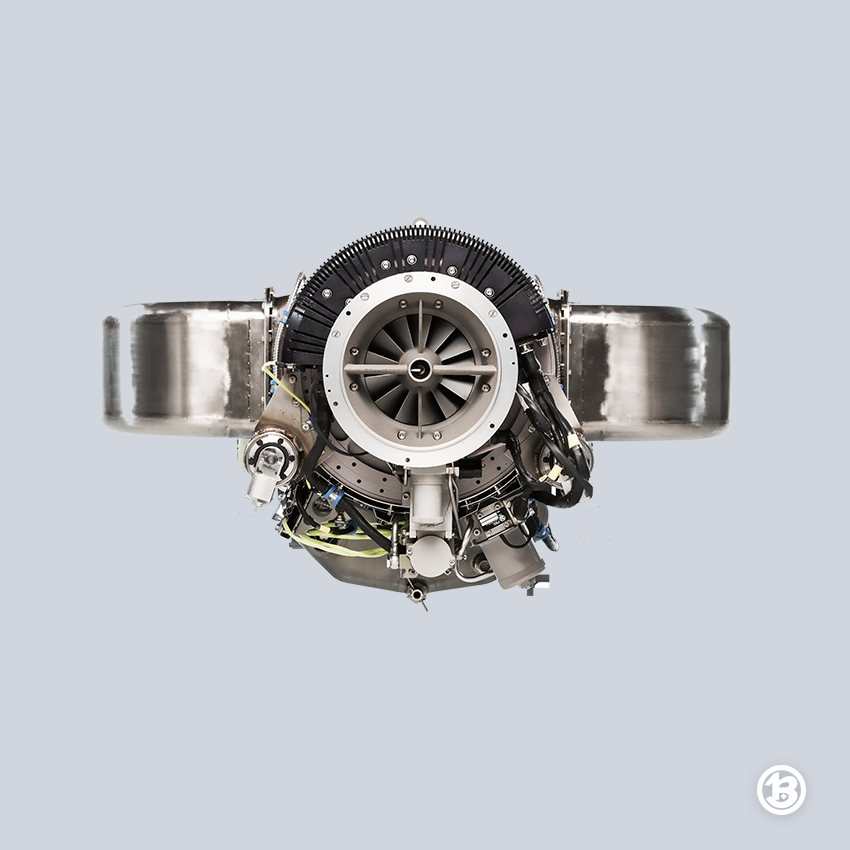

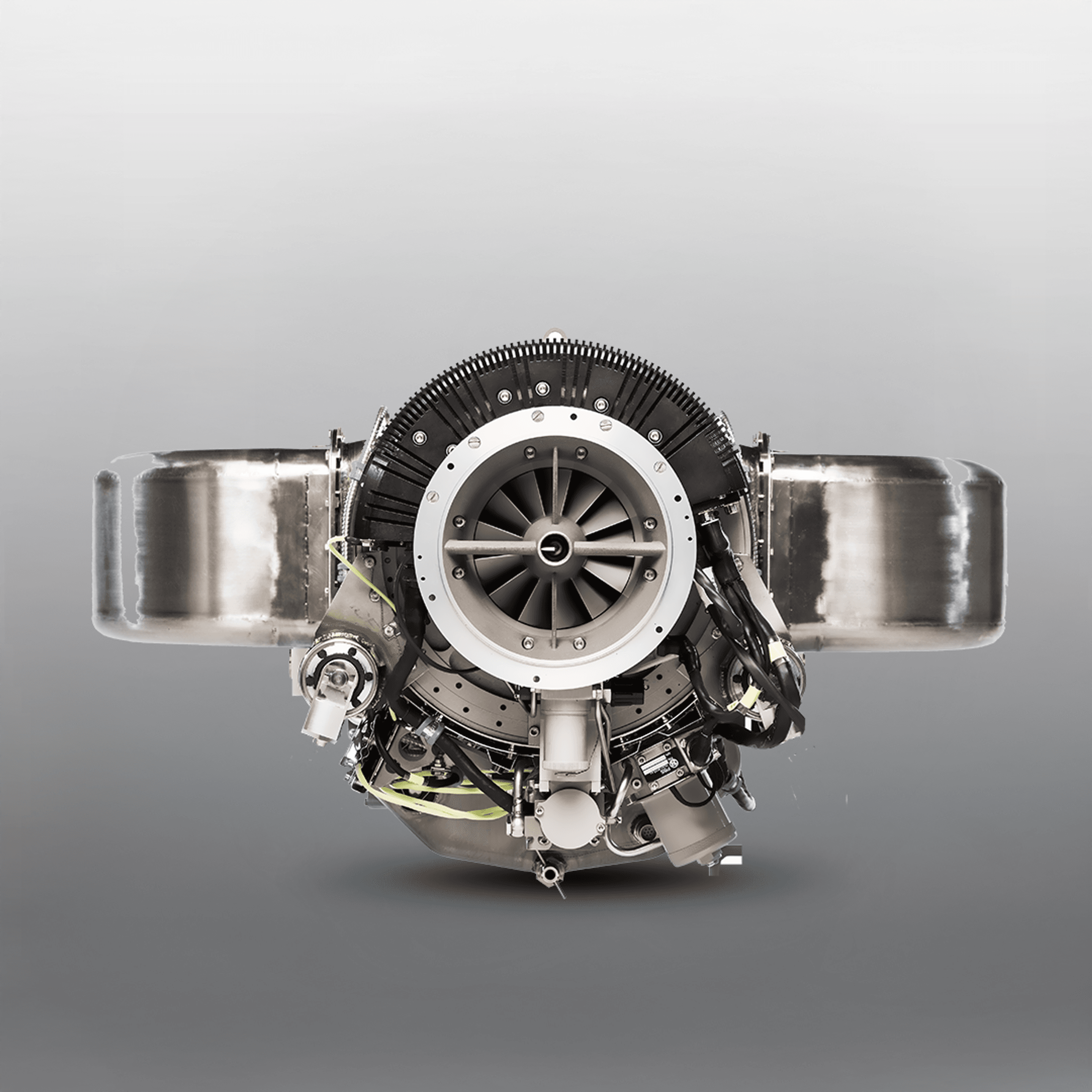

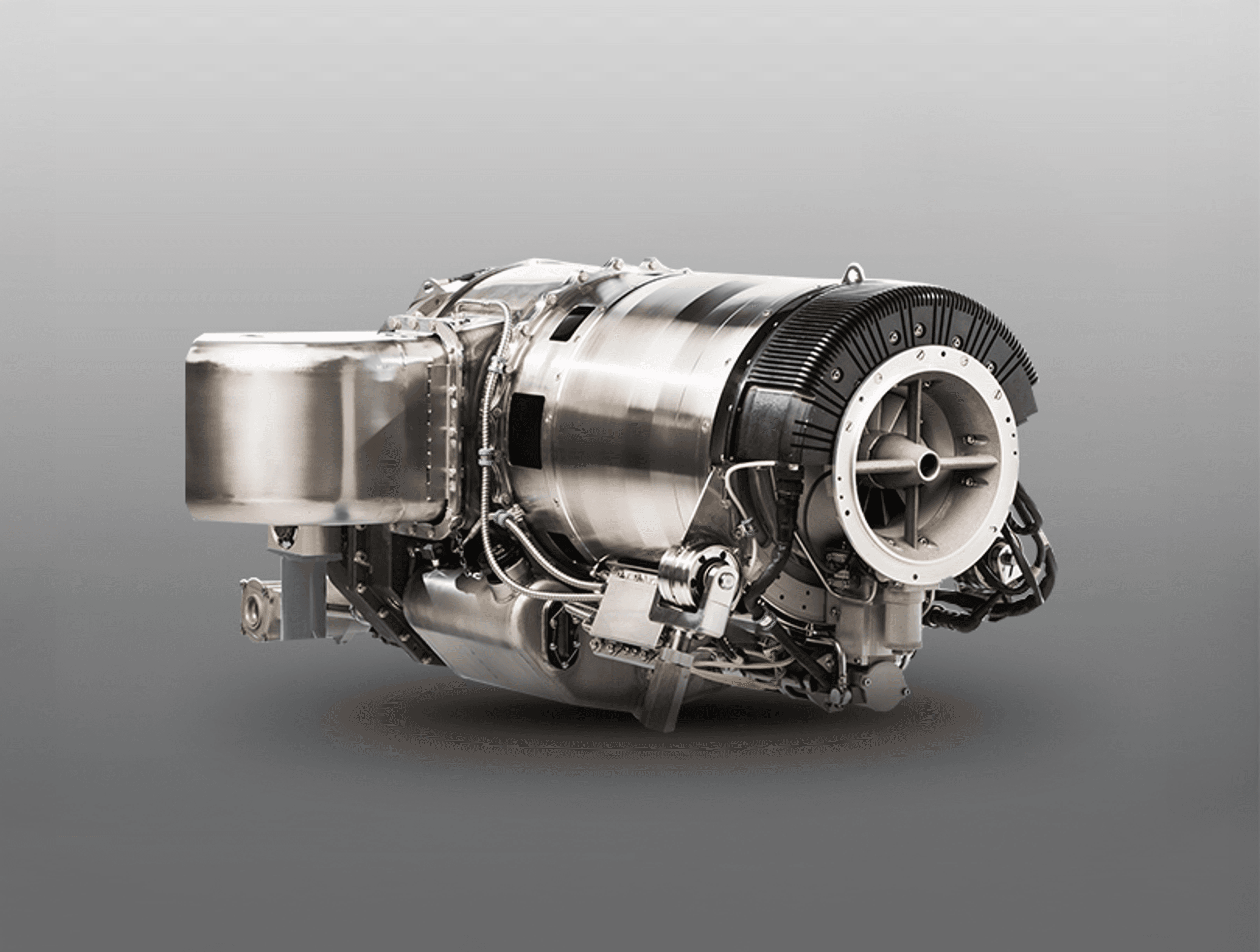

Turboshaft Engine PBS TS100

The turboshaft engine PBS TS100 is suitable for light helicopters weighing up to 1,000 kg. The engine offers a power take-off of up to 180 kW.

The maximum continuous power mode of 160 kW is available up to 2,000 m, even at high temperatures. The turboshaft engine can be started even at cold temperatures below -30 °C without preheating.

The engine is equipped with an autonomous oil and fuel system, BLDC electric starter-generator and a digital engine control unit (ECU). The ECU controls the acceleration and deceleration of the gas generator to maintain a constant output shaft speed. The ECU also provides subsequent automatic cooling of hot components after the engine stops.

Turboshaft engine can be controlled by an analogue interface (control voltage) or digital interface (based on CAN Aerospace V1.7 protocol). The engine parameters for a multi-function cockpit display are only available in digital format. Two engine versions are available: PBS TS100ZA 5,978 RPM with or PBS TS100DA with 2,158 RPM (output shaft speed).

Standard accessories (included): digital control system (ECU), ignition, connecting cable
Required accessories: electromagnetic fuel valve, boost pump, oil cooler
Optional accessories: alternator,  control box, EMS display, thermostatic valve, and others

Technical parameters

Technical parameters Metric units Imperial units
Maximum power 180 kW 241 HP
Electrical output power 720 W - 3 700 W 720 W - 3,700 W
Weight PBS TS100ZA/PBS TS100DA 56,7 kg / 61,3 kg 125 lb / 135 lb
Height x width - without exhaust 398 x 330 mm 15.67 x 13.00 in
Length PBS TS100ZA/PBS TS100DA 829 mm / 881 mm 32.64 in / 34.69 in



Main Features


  • Low weight
  • Small installation dimensions
  • Excellent power-to-weight ratio
  • Digital interface for control and monitoring
  • Stable operation at high altitudes and high temperatures
  • Ability to run at cold temperatures below -30 °C without preheating
  • Pusher and tractor configuration option

Why us?

Light weight

Light weight

This turboshaft engine offers an excellent power/weight ratio. The maximum continuous power mode of 160 kW is available up to 2,000 m, even at high temperatures.
Low vibrations

Low vibrations

The digital ECU controls the acceleration and deceleration of the gas generator to maintain a constant ouptut shaft speed.
