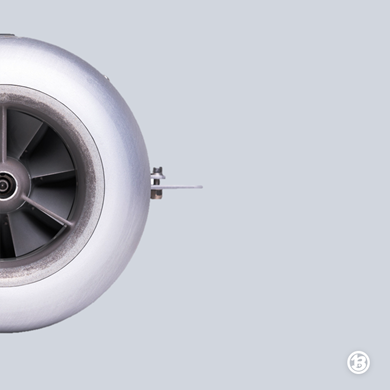

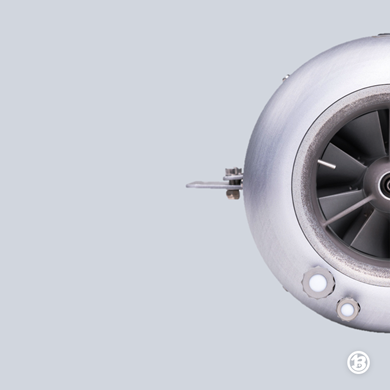

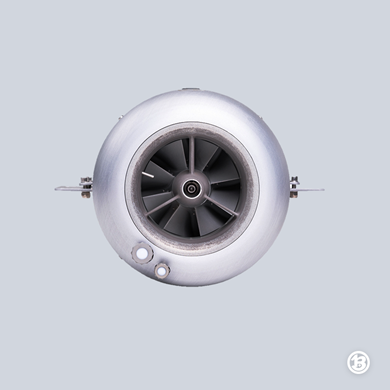

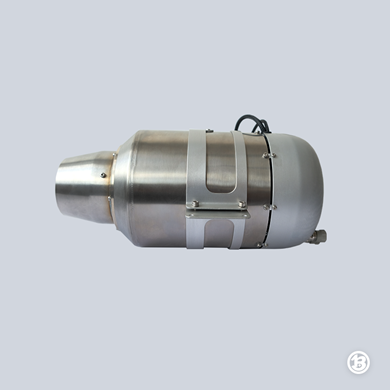

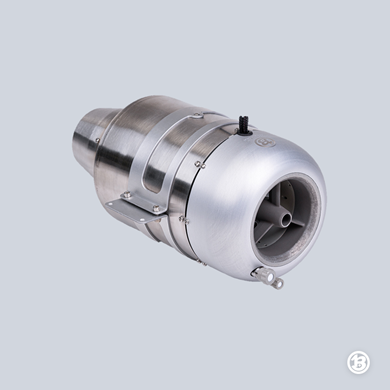

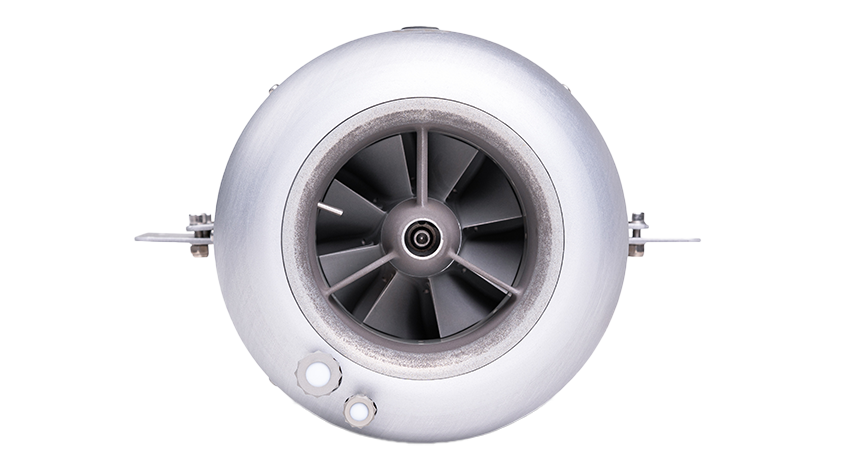

Jet Engine PBS TJ40-G1NS

The PBS TJ40-G1NS jet engine by PBS is built with a compact ‘Plug & Play’ design, making it the optimal engine for UAVs, target drones, and other small unmanned aircraft.


  • ‘Plug & Play’ design
  • Salt water recovery
  • Integrated starter-generator
  • Compact design
  • EASA standards

Our expert technicians at PBS have designed and developed the PBS TJ40-G1NS turbojet engine within the small turbojet engine category for UAVs, target drones and other small unmanned aircraft.

Its distinctive features include simple and compact design, low weight and plug & play solution (all components including ECU integrated in the engine body). The engine weighs only 3.6 kg and provides a maximum thrust of 425 N. The start-up sequence is advantageously short at less than 25 seconds and there is an easy and rapid kerosene starting system. The PBS TJ40-G1 can restart from the ground as well as in-flight and has unilimited starting position angles.

The PBS TJ40-G1NS small turbojet engine is a single-shaft engine with a one-stage radial compressor, radial and axial diffuser, annular combustion chamber, single-stage axial turbine and outlet nozzle. The output of the generator is 150 W. It is slightly more compact than the TJ40-G2, which is measures just 69 mm longer than the PBS TJ40-G1.








Standard accessories: fuel pump and filter, engine control unit (ECU), connecting cables, fuel hose, data terminal, battery (4s Li-Fe - 2,5 Ah), CAN connector

Technical parameters


Technical parameters Metric units Imperial units
Max. thrust 425 N  96 lbf
Fuel consumption 0.147 kg/N/H 1.442 lb/lbf/hr
Outer diameter 147 mm 5.79 in
Length 304 mm 11.97 in
Weight 3.6 kg 7.94 lb
Max. altitude for operating envelope 9,000 m 29,528 ft
Max. altitude for starting envelope 4,500 m 14,764 ft

Key parameters



Pyrotechnic ignition - under development

Pyrotechnic ignition - under development

The engine allows to start in seconds
Salt water recovery - under development

Salt water recovery - under development

The engine allows reuse after landing in salt water
Separate oil system - under development

Separate oil system - under development

This engine is lubricated by a separate oil system
